British Rail Class 107 – Scotland's Derby Heavyweight DMU 1960-1992

The British Rail Class 107 represents one of the most characterful yet least modelled first-generation diesel multiple units in British railway history. Built exclusively at Derby Works between December 1960 and June 1961, these "Derby Heavyweight" DMUs served Scotland's central belt for 32 years, becoming synonymous with Glasgow suburban operations and cross-country services to Edinburgh. Twenty-six three-car sets totalling 78 vehicles worked intensively across the Scottish Region until final withdrawal in August 1992—making them one of the longest-serving first-generation DMU classes and the last survivors of their type in Scotland.

For model railway enthusiasts, the Class 107 presents both compelling prototype appeal and significant modelling challenges. The class's Scottish exclusivity, distinctive "heavyweight" construction, and operational longevity spanning BR green through Strathclyde PTE liveries create fascinating layout possibilities. However, commercial model availability remains extremely limited—only one ready-to-run model has ever been produced, a 2008 Bachmann limited edition now commanding premium prices on the secondary market.

From Glasgow's Cathcart Circle suburban services to the challenging Edinburgh via Shotts cross-country route, the Class 107 proved that Derby Works' robust engineering could deliver remarkable service life. Eleven vehicles survive in preservation across five heritage sites, with operational examples currently running at the Great Central Railway (Nottingham) and Somerset & Dorset Railway, ensuring this important Scottish DMU class remains accessible to railway enthusiasts despite the tragic absence of commercial modelling support.

Quick Takeaways

• Seventy-eight vehicles built: Constructed at Derby Works across 26 three-car sets between December 1960 and June 1961, representing the final first-generation DMU production from this famous facility
• Derby Heavyweight construction: All-steel bodywork on heavyweight DD10 power bogies and DT9 trailer bogies, contrasting with aluminium-bodied "lightweight" Class 108s from the same works
• Twin AEC 150hp engines: Each power car fitted with two AEC AC220AC 11.3-litre units delivering 300 bhp combined output, later supplemented by Leyland 680 replacements during service life
• Scottish exclusivity: Entire fleet allocated exclusively to Scottish Region throughout 32-year service career, never venturing beyond Scottish metals for regular passenger operations
• Glasgow suburban backbone: Operated intensive Cathcart Circle services, cross-country Glasgow-Edinburgh via Shotts diagrams, and Ayrshire coastal routes to Ayr, Ardrossan, and Largs until 1986 electrification
• Withdrawal challenges: 1984 Ayr depot fire damaged eight vehicles; 1986 axle fracture crisis grounded entire fleet requiring emergency repairs and enhanced inspection regimes
• Minimal model coverage: Single Bachmann 32-910Z limited edition (2008, discontinued) represents sole commercial ready-to-run model; no N gauge, O gauge, or current OO production exists

Historical Background and Context

The genesis of the Class 107 lay in British Railways' ambitious 1955 Modernisation Plan, which called for wholesale replacement of steam traction with diesel units across the network. With an estimated requirement for 4,300 diesel multiple unit vehicles, BR's workshops and private contractors embarked on an unprecedented building programme that would fundamentally transform Britain's railway landscape within a single decade.

Derby Carriage & Wagon Works emerged as the most prolific producer during this modernisation programme, constructing 1,175 DMU vehicles—more than any other facility. The works' contribution spanned multiple classes including the lightweight aluminium-bodied Class 108 (eventually totalling 333 vehicles) and the heavier all-steel Classes 115, 116, 117, and 118 built for Midland, London Midland, and Western Region services.

Introduced in December 1960, the Class 107 holds the distinction of being the last first-generation DMU vehicles built at Derby Works. The entire order comprised 26 three-car sets totalling 78 vehicles: 26 Driving Motor Brake Seconds (DMBS, numbered 51985–52010), 26 Driving Motor Composite Lavatories (DMCL, numbered 52011–52036), and 26 Trailer Second Lavatories (TSL, numbered 59782–59807). This represented a substantial investment specifically targeting Scottish Region requirements.

The class emerged from Derby's experience building heavyweight suburban stock for intensive stop-start operations. Despite superficial resemblance to the Class 108 "lightweights" produced at the same works, the Class 107 shared far more design DNA with the longer-underframed "heavyweight" classes 116, 117, and 118. The robust all-steel construction and substantial bogies reflected Scottish Region's preference for durable equipment capable of withstanding intensive service across challenging routes.

Insider Tip: Heavyweight Recognition

The "heavyweight" classification refers not to physical mass but to construction methodology. Class 107s employed all-steel bodywork mounted on heavyweight DD10 power bogies and DT9 trailer bogies—identical to those fitted to Classes 116-118. The Class 108, conversely, used aluminium construction with lighter-weight bogies. You can distinguish Class 107s from visually similar Class 108s by the higher-positioned side windows, 18-inch diameter Oleo buffers (versus 24-inch on Class 115), and greater overall width at 9 ft 3 in. The cab front design most closely mirrors Class 115 suburban stock, featuring roof-mounted four-character headcode boxes and characteristic Derby curved windscreens.

The entire class was ordered specifically for Glasgow south side suburban services, with all 26 sets delivered new to Hamilton depot between December 1960 and June 1961. This Scottish exclusivity would define the class throughout its existence—the Class 107 never ventured beyond Scottish metals for regular passenger service, establishing a unique identity among first-generation DMU classes that typically saw nationwide deployment.

The locomotives arrived to revolutionise Glasgow's southern suburban network, branded as "Green Trains" to complement the electric "Blue Trains" already operating on electrified routes. Taking over from borrowed North Eastern Region Class 111 and Metro-Cammell sets that had inaugurated diesel services in November 1960, the new Derby products quickly became synonymous with Clydeside commuting, establishing operational patterns that would endure for three decades.

Design and Technical Specifications

The engineering excellence of the British Rail Class 107 lay in Derby Works' masterful application of proven first-generation DMU technology to Scottish Region's specific operational requirements. At the heart of each power car sat twin AEC 150hp (112kW) engines—the same 11.3-litre AC220AC units employed across numerous first-generation classes including the ubiquitous Class 101. Total power output per motor car reached 300 bhp (224 kW), providing adequate performance for suburban stop-start duties whilst maintaining fuel economy appropriate for intensive daily operations.

The AEC powerplant represented mature diesel technology by 1960 standards. The 11.3-litre six-cylinder engine featured undersquare bore and stroke dimensions optimised for torque delivery at medium speeds—precisely the characteristics demanded by suburban DMU operation with frequent station calls. Naturally aspirated breathing provided reliable performance without the complexity of turbocharging, whilst robust construction ensured longevity under intensive service conditions.

Transmission employed the proven Wilson (SCG) 4-speed epicyclic gearbox, with all gears constantly in mesh and air-operated selection. Power flowed from each engine through a fluid flywheel and freewheel unit to the gearbox, then via cardan shafts with Hardy Spicer universal couplings to the inner bogie axle. This arrangement accommodated bogie pivoting whilst maintaining reliable drive. Gear ratios ranged from 4.28:1 in first to direct drive (1:1) in fourth gear, providing smooth acceleration from rest to the 70 mph maximum speed.

The epicyclic gearbox design offered significant advantages over sliding-mesh alternatives. Continuous meshing of all gears eliminated the synchronisation challenges and wear associated with dog clutch engagement. Air operation provided rapid, precise gear selection controlled from the driver's position. The compact design minimised intrusion into passenger accommodation whilst the inherent strength of planetary gear arrangements ensured durability under the shock loadings characteristic of frequent acceleration and braking.

Technical Innovation: Engine Replacement Programme

Later in service, many Class 107 vehicles received Leyland 680 replacement engines (11.1-litre, also 150 bhp) during heavy maintenance, reflecting the interchangeability that characterised first-generation DMU powerplants. Some units trialled the Leyland 4041 engine, though output shaft failures necessitated redesigned shafts and mountings—a modification programme that delayed full fleet implementation. This progressive engine upgrading extended service life whilst maintaining performance standards appropriate for Scottish suburban operations throughout the 1980s.

The bogie design represented Derby's mature understanding of DMU running gear requirements. The DD10 power bogies employed substantial fabricated steel frames carrying the traction motors, gearboxes, and final drive components. The DT9 trailer bogies featured lighter construction appropriate for unpowered vehicles whilst maintaining ride quality and stability. Both designs incorporated coil spring primary suspension and secondary air springs, providing comfortable riding characteristics across the varied track quality encountered on Scottish Region routes.

Braking employed vacuum systems throughout—the standard for first-generation DMUs despite air brakes' increasing adoption on newer rolling stock. The vacuum brake provided adequate stopping power for the class's 70 mph maximum speed whilst ensuring compatibility with vacuum-braked coaching stock occasionally worked in mixed formations. Clasp brakes acted on all wheels, with the driver's deadman device ensuring automatic brake application if crew incapacitation occurred.

The class carried Blue Square coupling code, permitting operation with similarly-equipped first-generation types. This enabled mixed formations with Classes 101, 104, 108, and 120 when operational requirements demanded additional capacity or when component failures necessitated hybrid consists. Engine management featured relatively sophisticated protection for the era: automatic low water shutdown, oil pressure monitoring, and Graviner fire suppression systems protecting against engine compartment fires.

Passenger accommodation reflected typical first-generation DMU standards. The Driving Motor Composite Lavatory provided both first and second class seating with toilet facilities, whilst the Driving Motor Brake Second offered second class accommodation with luggage space. The central Trailer Second Lavatory maximised seating capacity with toilet provision. Total three-car seating reached 188 passengers (12 first, 176 second), appropriate for intensive suburban services where standing capacity supplemented seated accommodation during peak periods.

Service History and Operations

The British Rail Class 107 quickly established itself as the backbone of Glasgow's southern suburban railway network. Initial services focused on the Cathcart Circle, Glasgow Central to Neilston High, and connecting routes to Barrhead, East Kilbride, and Kilmacolm. The "Green Trains" branding distinguished these diesel services from the electric "Blue Trains" operating on electrified routes, creating a clear visual identity that passengers readily recognised.

Early operational flexibility saw sets loaned extensively beyond their intended Glasgow allocation. Two sets transferred to Ayr depot in February 1961, covering Class 126 Inter-City shortages that threatened service reliability on Ayrshire routes. More significantly, five sets moved to Leith Central depot from late February 1961, working Edinburgh-Stirling-Fife-Dundee services that demonstrated the class's versatility beyond purely suburban duties.

The 1962 Cathcart Circle electrification fundamentally reshaped Class 107 deployment. Displaced from their original duties by electric multiple units, the class migrated to wider Scottish diagrams. Major fleet movements saw Corkerhill depot become the primary allocation, holding 13 sets by year-end 1962. Following Glasgow St Enoch station's closure in June 1966, Corkerhill consolidated the entire fleet under its control, establishing operational patterns that would endure for two decades.

Throughout their three decades of service, Class 107s became familiar across central Scotland's railway geography. The Glasgow Central to Edinburgh via Shotts route (Table 17) emerged as the class's signature cross-country diagram from the 1960s until withdrawal. This challenging route featured sustained gradients, single-track sections requiring careful signalling coordination, and substantial intermediate traffic at stations including Motherwell, Wishaw, and Shotts. The Class 107's reliable performance on this demanding diagram vindicated Derby's heavyweight construction philosophy.

Operational Insight: The Land Cruise Tours

Beyond regular service duties, Class 107s achieved distinction operating "Land Cruise" excursions including the celebrated "Six Lochs" tours traversing spectacular Scottish scenery. Some workings extended as far as Keswick in the English Lake District, demonstrating operational range far beyond the class's suburban design brief. These excursion duties showcased the units' comfort for longer-distance travel whilst generating revenue from tourist traffic increasingly important to Scottish Region economics.

Glasgow to Ayrshire services represented another major operational sphere. Routes to Ayr, Ardrossan, and Largs utilised Class 107s intensively until the May 1986 electrification displaced diesel operations. These coastal routes combined commuter traffic with leisure travel, particularly during summer months when day-trippers headed for Ayrshire's beaches and seaside resorts. The scenic Largs route with its dramatic coastal views became particularly associated with the class.

Glasgow suburban workings continued throughout the class's career, with routes to Barrhead, East Kilbride, Kilmacolm (until 1983 closure), Lanark, and Gourock/Wemyss Bay providing bread-and-butter diagrams. Edinburgh area services included workings to Stirling, Fife, and occasionally Dundee, though these represented secondary duties compared to the dominant Glasgow operations. The geographic concentration reflected Scottish Region's pragmatic approach to fleet deployment—concentrating specialised assets where they delivered maximum operational benefit.

The January 1984 Ayr depot fire proved catastrophic for the Class 107 fleet. Eight vehicles suffered damage in the blaze, forcing immediate withdrawal of sets 442 and 448. Three fire-damaged cars (52014, 59787, 52032) were dispatched to Derby for potential conversion to laboratory use, though the project was abandoned and the vehicles scrapped. The fire accelerated withdrawal plans already under development as Scottish Region contemplated fleet modernisation.

More seriously, June 1986 brought crisis when axle fractures were discovered in Class 107 power cars—a structural defect that risked catastrophic body separation from chassis under heavy braking. The entire fleet was grounded immediately whilst trailer cars continued service in hybrid formations alongside other classes. The power cars underwent shot-peening repairs at Glasgow Works to restore structural integrity. The first sets returned to service in late November 1986, with full fleet reinstatement achieved by early 1987 under an enhanced ultrasonic inspection regime that monitored axle condition throughout subsequent operations.

The class's final years saw concentration at Haymarket depot, working peak-time commuter trains between Edinburgh and Fife. By October 1990, the Class 107s were Scotland's sole surviving first-generation DMUs—all other classes having succumbed to withdrawal as Sprinter units progressively displaced older stock. Introduction of Class 156 Sprinters for Strathclyde PTE services from October 1989 accelerated the final decline, with the modern units offering superior passenger comfort, reliability, and operating economics.

Final withdrawal came in August 1992, making the Class 107 one of the longest-serving first-generation DMU classes at 32 years. The final operational sets—107747 (52008 + 59792 + 52029) and a hybrid formation using vehicles from sets 444/445—worked peak Edinburgh-Fife services until the end. Black Cat Railtours operated the class's farewell tours on 16 May and 13 June 1992, traversing East Central Scottish freight branches and providing enthusiasts final opportunities to travel behind these characterful units.

Withdrawal and Preservation Legacy

The withdrawal history of the British Rail Class 107 reflects both the inevitable obsolescence of first-generation technology and the remarkable service longevity achieved through robust construction and systematic maintenance. Unlike many contemporary DMU classes that faced early withdrawal as Sprinter units arrived, the Class 107 continued earning its keep until 1992—testament to Derby Works' engineering quality and Scottish Region's careful fleet management.

Early withdrawals commenced in 1973 when collision-damaged DMBS 51995 became the first Class 107 casualty. The pace remained modest through the 1970s as the fleet remained essential for Scottish services lacking viable replacement options. The 1984 Ayr fire and 1986 axle crisis accelerated attrition, but the most rapid decline followed introduction of Class 156 Sprinters from October 1989. These modern units offered air-conditioned comfort, superior acceleration, and operating costs that made first-generation DMU retention increasingly untenable.

Six power cars received a reprieve through conversion to Sandite rail-head treatment units for autumn leaf-fall duties. Operating from 1991 until February 1995, these specialised vehicles applied sand-based paste to rail heads, improving wheel-rail adhesion during the notorious "leaves on the line" season. All six Sandite vehicles subsequently passed into preservation, ensuring survival of representative examples beyond the class's passenger service conclusion.

Of the original 78 vehicles, eleven survive across five preservation locations. Remarkably, only one trailer car (59791) escaped scrapping—making authentic three-car formations essentially impossible to recreate. This trailer's survival represents exceptional historical significance, as preservation of complete Class 107 sets remains theoretically possible if the trailer can be reunited with compatible power cars.

Preservation's Opportunity

Unlike classes that suffered complete extinction, the Class 107 benefits from preservation-era withdrawal when heritage railways actively acquired significant DMU types. The diverse preservation locations ensure geographic accessibility for enthusiasts, whilst operational examples at Great Central Railway (Nottingham) and Somerset & Dorset Railway provide authentic running experiences. The survival of former Sandite units additionally preserves vehicles with interesting secondary careers beyond passenger service.

Great Central Railway (Nottingham) operates the most recently restored set: 52031 + 52005 in BR Green livery with period-correct "speed whiskers" and half-yellow warning panels. Restored at Nemesis Rail's Burton-on-Trent facility, this pairing entered traffic in November 2024 and currently works all DMU diagrams on the heritage line. The restoration included complete mechanical overhaul, rewiring to modern safety standards, and authentic livery application researched from period photographs.

Somerset & Dorset Railway Heritage Trust at Midsomer Norton operates 52006 + 52025, also in BR Green livery. This set arrived in April 2022 following extensive fundraising and volunteer restoration efforts. The locomotives provide midweek passenger services alongside gala appearances, demonstrating the operational viability of preserved first-generation DMUs when supported by dedicated volunteer teams and appropriate workshop facilities.

Strathspey Railway at Boat of Garten holds three power cars (51990, 52008, 52030) in storage, though attention currently focuses on the railway's operational Class 117 set. These vehicles represent future restoration potential if resources and volunteer capacity permit expansion of the heritage line's DMU operations. The Scottish location provides authentic geographic context for Class 107 preservation, though the railway's steam focus limits immediate restoration prospects.

Nemesis Rail stores three vehicles including the sole surviving trailer 59791—of exceptional historical significance despite its static condition. The trailer's survival means authentic three-car formations remain theoretically possible, though the practical challenges of reuniting power cars and trailer across different preservation sites make realisation unlikely. Nevertheless, the trailer's existence preserves complete technical documentation of Class 107 construction and could inform future restoration projects.

Fife Heritage Railway acquired 52029 in 2022 as their first DMU, with restoration progressing at Kirkland Yard. The railway's Scottish location and growing DMU focus suggest strong restoration prospects, potentially returning another Class 107 to operation within Scotland—appropriate geographic context for a class that spent its entire service career north of the border.

The engineering legacy extends beyond individual preserved vehicles. The Class 107's 32-year service life validated design principles that influenced subsequent DMU development: robust all-steel construction, proven mechanical transmission, and straightforward maintenance accessibility. These lessons informed BR's approach to second-generation DMU procurement, whilst preservation demonstrates that well-maintained first-generation units can deliver decades of reliable heritage railway service.

Modelling Significance and Scale Replications

The British Rail Class 107 presents exceptional modelling significance due to its unique Scottish exclusivity, distinctive "heavyweight" construction, and operational longevity spanning multiple BR livery eras from 1960 to 1992. For railway modellers seeking authentic Scottish Region atmosphere, these DMUs provide compelling prototype appeal enhanced by fascinating operational stories and geographic concentration. However, commercial model availability remains frustratingly limited—only one manufacturer has ever produced a Class 107 model, and that single offering has been discontinued for over fifteen years.

The modelling landscape remained entirely barren until Bachmann Branchline announced a Class 107 tooling project in 2008. Rather than mainline catalogue production, the company produced the model as a limited edition exclusive for Model Rail Magazine and Harburn Hobbies—a Scottish model railway retailer. This exclusivity reflected realistic assessment of the niche market for a Scotland-only DMU class versus the broader appeal of Classes 101, 108, and other nationwide types.

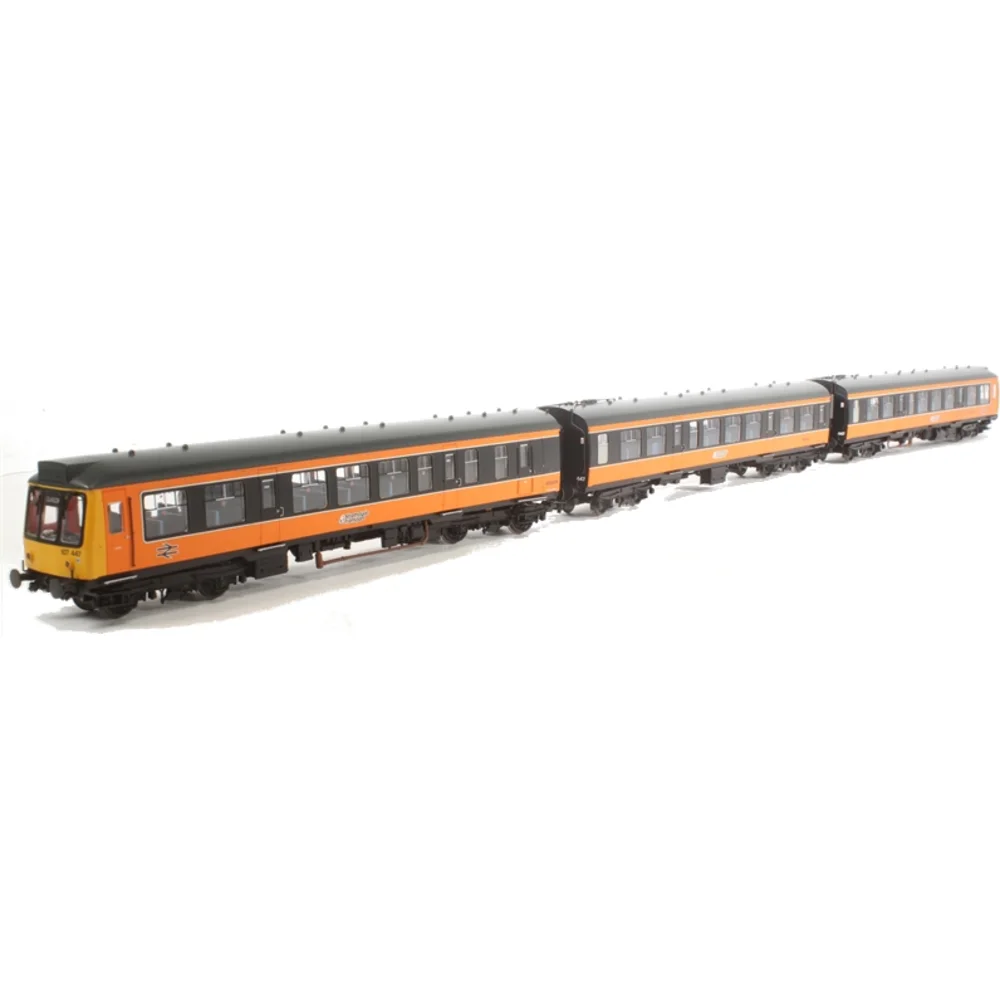

Bachmann's catalogue number 32-910Z represented set 107447 (SC52008 + SC59792 + SC52029) in Strathclyde PTE orange and grey livery—appropriate for Era 8 (BR Sectorisation, 1985-1995). The three-car formation matched prototype practice with Driving Motor Brake Second, Trailer Second Lavatory, and Driving Motor Composite Lavatory configuration. The model featured DCC-ready specification with 8-pin decoder sockets in each power car, though no factory-fitted sound version was ever produced.

The original recommended retail price sat around £150-180 for the three-car set—premium pricing reflecting limited production volume and the costs of tooling a class with minimal sales potential beyond Scottish layout enthusiasts. Current secondary market prices on eBay, Vectis auctions, and specialist dealers typically range from £150 to £300+ depending on condition, demonstrating sustained collector interest despite the model's discontinued status.

Advanced Modelling: Livery Authenticity

Bachmann's model depicts the Strathclyde PTE orange and grey livery worn during the class's final years. However, Class 107s carried multiple liveries throughout their 32-year career: early BR green with small yellow warning panels (1960-1968), BR blue (1968-1976), BR blue and grey (1976-1985), and finally Strathclyde PTE colours. Modellers seeking to represent earlier periods would need to undertake complete repainting and remarking—a significant project requiring removal of factory livery, surface preparation, application of correct BR colours, and accurate lining and numbering. The lack of alternative commercial models makes such custom work essential for authentic Era 5-7 representation.

Detail quality on the Bachmann model reached good standards for 2008 ready-to-run production. Separately applied components included handrails, lamp irons, windscreen wipers, and coupling details. Factory-fitted glazing included basic cab interior representation. The underframe featured brake rigging and battery boxes appropriate for the prototype. The chassis employed a standard Bachmann mechanism with single motor driving both power cars through connecting driveshaft—a compromise necessitated by the three-car set configuration.

Performance characteristics proved adequate rather than exceptional. The single-motor arrangement limited slow-speed crawling ability compared to independently-motorised units, though operational speeds remained prototypical. Minimum radius capability suited most OO gauge layouts, with the set negotiating second radius (438mm) curves without difficulty. The connecting driveshaft between power cars occasionally proved troublesome on tight curves or complex trackwork, requiring careful alignment during setup.

The most significant limitation concerned livery availability. With only the single Strathclyde PTE version ever produced, modellers seeking BR green, BR blue, or BR blue and grey examples face extensive repainting projects. The lack of alternative factory-decorated variants severely restricts the model's utility for layouts set before the mid-1980s—precisely the periods when Class 107s were most numerous and operationally significant.

No other manufacturer—Hornby, Dapol, Heljan, Accurascale, Revolution Trains, or specialist producers—has produced or announced Class 107 models in any scale. The class's niche appeal and limited geographic operation make commercial production economically challenging given the substantial tooling investment required. This monopoly situation means Bachmann's discontinued 32-910Z remains the sole option for ready-to-run Class 107 representation.

Graham Farish, Bachmann's N gauge brand, never produced an N gauge Class 107 equivalent. No other N gauge manufacturer has tooled this class, leaving N gauge modellers without any commercial options. The smaller N gauge market combined with the prototype's Scottish exclusivity makes future production unlikely unless a manufacturer specifically targets Scottish railway modelling enthusiasts.

O gauge enthusiasts face even greater challenges. No manufacturer produces ready-to-run Class 107 models in O gauge (7mm scale, 1:43.5 proportion), and none have announced development plans. The substantial market size required to justify O gauge tooling combined with the prototype's limited appeal makes commercial production highly unlikely. Skilled modellers could scratchbuild or kitbash from generic first-generation DMU components, though this requires advanced skills and substantial time investment.

Etched brass kit options remain absent. Worsley Works, the premier UK supplier of etched DMU kits, has not produced Class 107 components. Their catalogue includes Classes 101, 108, 116, and numerous other first-generation types, but the Class 107's unique characteristics and limited market have precluded kit development. Custom etching services could theoretically produce Class 107 sides and ends, though the substantial development costs would likely prove prohibitive.

The secondary market situation for the Bachmann model demonstrates sustained collector interest. Well-preserved examples in original packaging command premium prices, whilst weathered or damaged examples sell for more modest sums. Specialist dealers occasionally stock examples, though availability remains sporadic. Online auction platforms provide the most reliable source, though competition from Scottish layout modellers and Class 107 enthusiasts maintains pricing above original retail levels even fifteen years after production ceased.

Unique Modelling Tips and Layout Integration

Successfully incorporating British Rail Class 107 models into layout operation requires understanding their specialised nature as exclusively Scottish units operating across specific routes and time periods. Unlike nationwide classes suitable for diverse geographic settings, the Class 107 demands authentic Scottish context to maintain prototype fidelity. This specificity creates both challenges and opportunities for modellers committed to accurate representation.

Era selection proves fundamental to authentic Class 107 deployment. For Bachmann's Strathclyde PTE-liveried model, the appropriate timeframe spans 1983-1992, encompassing the class's final decade of operation under Strathclyde's distinctive orange and grey colours. Layouts depicting this period should reflect 1980s-1990s Scottish infrastructure: modern signalling, concrete platforms, contemporary station furniture, and the visual indicators of BR's final years before privatisation.

Modellers seeking earlier periods face the challenge of repainting the model. Era 5 (1957-1966) representation demands BR green livery with small yellow warning panels—appropriate for depicting the class's introduction and early Glasgow suburban services. Era 7 (1971-1982) requires BR blue or blue and grey livery, reflecting the class's mature operational period on cross-country and Ayrshire services. Complete repainting projects require factory livery removal, careful surface preparation, application of correct BR colours researched from period photographs, and accurate lining and numbering matching prototype practice.

Weathering Authenticity for Scottish DMU Service

Class 107 weathering should reflect intensive Scottish suburban and cross-country operation whilst maintaining the relatively clean appearance expected of passenger-rated units. Focus weathering effects on operational areas: brake dust along bodyside edges below windows, oil staining around bogies and underframe equipment, exhaust residue around roof-mounted engine compartment ventilators, and general road grime accumulated during daily service. Avoid heavy industrial weathering inappropriate for passenger units—Scottish Region maintained reasonable external cleanliness standards through regular washing facilities at major depots. The distinctive orange and grey Strathclyde livery showed dirt readily, making light to moderate weathering most authentic for late-era representations.

Layout infrastructure authenticity demands attention to Scottish Regional characteristics. Station buildings should reflect Scottish architectural styles rather than generic BR patterns: substantial stone-built structures in cities, modest wooden buildings on rural routes, and the distinctive canopy designs favoured by Scottish Region. Signalling should match the period represented: semaphores for Era 5, colour-light signals for later eras, with Scottish-specific signal box designs adding regional character.

Authentic operating scenarios reflect the class's diverse Scottish duties. Glasgow suburban terminus scenes suit the Cathcart Circle services, Neilston workings, or East Kilbride routes that characterised early operations. Cross-country layouts depicting the Glasgow Central to Edinburgh via Shotts route provide opportunities for realistic through-running operations, with Class 107s hauling typical three-car formations between terminal stations. Ayrshire coastal scenes enable recreation of the scenic Largs or Ayr services that showcased the class's versatility beyond purely suburban work.

Train formation authenticity requires three-car consists matching the prototype's standard configuration: Driving Motor Brake Second leading, Trailer Second Lavatory centre, Driving Motor Composite Lavatory trailing. The class occasionally operated in six-car formations during peak periods, achieved by coupling two three-car sets. Single-car operation never occurred as power cars required the trailer for balanced weight distribution and passenger capacity. Mixed formations with other Blue Square-coded classes (101, 104, 108) appeared when operational necessity demanded, though Class 107s typically worked as homogeneous sets.

Sound decoder installation in the Bachmann model enhances operational realism. ESU LokSound or Zimo decoders with first-generation DMU sound projects deliver appropriate AEC/Leyland engine notes. Programming should emphasise the characteristic mechanical transmission whine during gear changes—a distinctive Class 107 acoustic signature that distinguished these units from hydraulic-transmission types. The Wilson epicyclic gearbox produced particular sounds as air-operated pawls engaged different gear ratios, creating rhythmic clicking audible to platform observers during station departures.

Depot scenes provide excellent static display opportunities whilst demonstrating maintenance infrastructure. Model a section of Corkerhill depot (the class's primary allocation for much of its career) or create a freelance Scottish facility featuring maintenance pits, fueling points, and storage sidings. Class 107s sharing space with Class 101 or 108 units creates authentic Scottish Region DMU atmosphere. Include period-appropriate details: diesel fuel pumps, wheel-cleaning equipment, inspection pits with mechanics, and storage containers for spare components.

Timetable construction enables systematic operations reflecting intensive Scottish suburban schedules. Multiple three-car sets working a route in sequence, tight turnaround times at terminal stations, and coordinated passing movements at intermediate stations all reflect prototype practice. A realistic operating sequence might include departing Corkerhill depot for morning peak Glasgow Central to Neilston services, midday cross-country working to Edinburgh via Shotts, afternoon return to Glasgow for evening peak suburban duties, and final return to depot for overnight stabling and light maintenance.

Compatible rolling stock for mixed workings should reflect Scottish Region practices. First-generation DMUs from Classes 101, 104, and 108 all operated alongside Class 107s and carried compatible Blue Square coupling codes. Locomotive-hauled coaching stock occasionally appeared in mixed formations during exceptional circumstances, though this remained unusual given the DMU's self-contained nature. Freight traffic rarely shared tracks simultaneously given the passenger-focused nature of Class 107 routes, though passing freight workings add operational interest to cross-country scenarios.

Finally

The British Rail Class 107 represents far more than 26 suburban DMU sets; these machines embody Derby Works' engineering excellence applied to Scottish Region's specific operational requirements during the first-generation diesel revolution. The class's 32-year service career from 1960 to 1992 demonstrates that robust all-steel construction, proven mechanical transmission, and systematic maintenance could deliver remarkable longevity from what critics dismissed as interim diesel technology pending electrification.

For railway historians, the Class 107 provides fascinating insights into British Railways' regional approach to diesel multiple unit deployment. The Scottish exclusivity—unique among Derby-built classes—reflects pragmatic fleet management prioritising standardised assets where they delivered maximum operational benefit. The class's evolution through multiple livery eras, operational crises including the 1986 axle fracture emergency, and final years as Scotland's sole surviving first-generation DMU type creates a rich historical narrative spanning three decades of railway development.

The tragic absence of comprehensive commercial model support represents one of railway modelling's most regrettable gaps. Bachmann's single limited edition, discontinued since 2008, leaves Scottish layout enthusiasts with minimal ready-to-run options and forces extensive custom work for authentic representation across multiple eras. This commercial neglect contrasts sharply with the prototype's historical significance and operational importance, highlighting the economic realities that prioritise nationwide classes over regionally-concentrated types regardless of their heritage value.

Preservation provides some consolation for the modelling drought. The survival of eleven vehicles across five heritage sites ensures the Class 107 remains accessible to railway enthusiasts, whilst operational examples at Great Central Railway (Nottingham) and Somerset & Dorset Railway demonstrate that well-maintained first-generation DMUs can deliver reliable heritage railway service decades beyond their British Rail careers. The recent November 2024 restoration of 52031 + 52005 proves that volunteer dedication and appropriate workshop facilities can resurrect even long-stored examples to operational standards.

Model railway enthusiasts incorporating the rare Bachmann Class 107 into Scottish layouts gain authentic period atmosphere spanning the class's operational career. Whether depicting early BR green era Glasgow suburban services, blue and grey cross-country workings to Edinburgh via Shotts, or final Strathclyde PTE orange livery operations, these models provide characterful motive power uniquely associated with Scottish railways. The challenge of limited availability and single livery option demands creativity and commitment, but rewards modellers with distinctive traction unavailable through mainstream commercial ranges.

As the railway modelling community increasingly values regional authenticity and prototype-specific accuracy, the British Rail Class 107 stands as perfect exemplar of a significant yet commercially neglected class. These Derby Heavyweights prove that engineering excellence emerges from thoughtful design precisely matched to operational requirements, robust construction enabling decades of intensive service, and systematic maintenance preserving capability throughout extended careers. The class deserves recognition not merely as Scotland's suburban DMU workhorse, but as demonstration that first-generation diesel technology, when properly executed and maintained, could deliver service lives rivalling many subsequent generations of railway traction.

Frequently Asked Questions

When were the British Rail Class 107 DMUs built and by whom?

British Railways Derby Carriage & Wagon Works constructed all 78 Class 107 vehicles between December 1960 and June 1961. They hold the distinction of being the last first-generation DMU vehicles built at Derby Works, with all 26 three-car sets delivered new to Hamilton depot in Scotland for Glasgow suburban services.

Why are Class 107s called "Derby Heavyweights"?

The nickname refers to their all-steel body construction and heavyweight DD10/DT9 bogies, which were identical to those fitted to Classes 116, 117, and 118. This contrasted with the aluminium-bodied "lightweight" Class 108s built at the same works, despite superficial visual similarities between the two classes.

What routes did Class 107s operate?

The class worked exclusively on Scottish Region throughout its career. Principal services included Glasgow suburban workings including the Cathcath Circle, Barrhead, and East Kilbride routes, the Glasgow Central to Edinburgh via Shotts cross-country route, Ayrshire coastal services to Ayr and Largs until 1986 electrification, and Edinburgh-Fife commuter trains in final years from 1990-1992.

When were Class 107s withdrawn from service?

Final passenger withdrawals occurred in August 1992, making the class one of the longest-serving first-generation DMU types at 32 years operational life. Six vehicles continued as Sandite rail-head treatment units until February 1995. The class never operated under railway privatisation, being withdrawn during the final British Rail era.

How many Class 107 vehicles survive in preservation?

Eleven vehicles survive across five heritage locations. Four are currently operational—two at Great Central Railway (Nottingham) comprising set 52031+52005, and two at Somerset & Dorset Railway (Midsomer Norton) comprising set 52006+52025. Seven remain stored or under restoration at Strathspey Railway, Nemesis Rail, and Fife Heritage Railway.

Is there a Class 107 model available?

Only one commercial model has been produced: Bachmann's 32-910Z three-car set in Strathclyde PTE orange and grey livery, released as a 2008 limited edition exclusive for Model Rail Magazine and Harburn Hobbies. Now discontinued, examples command £150-300+ on the secondary market. No N gauge, O gauge, or alternative OO gauge kit options exist from any manufacturer.

What engines did Class 107s use?

Original fitment comprised two AEC 150hp AC220AC engines per power car (11.3-litre six-cylinder units), later replaced with Leyland 680 units during overhauls. Some vehicles trialled Leyland 4041 engines, though shaft failures required engineering modifications. Total power output reached 300 bhp per motor car with twin engines providing redundancy if one unit failed.

What was the Class 107's maximum speed?

Maximum speed was 70 mph (113 km/h), standard for first-generation DMUs with 150hp engines and Wilson 4-speed epicyclic gearboxes. This provided adequate performance for suburban stop-start duties and cross-country services whilst maintaining fuel economy appropriate for intensive daily operations across Scottish Region routes.

Why is only one Class 107 trailer car preserved?

The 78-vehicle class included just 26 trailers (TSL configuration), and TSL 59791 is the sole survivor—making it of exceptional historical significance. Currently stored at Nemesis Rail, its survival means authentic three-car formations remain theoretically possible, though reuniting the trailer with compatible power cars across different preservation sites presents significant practical challenges.

What caused the 1986 Class 107 withdrawal crisis?

Discovery of axle fractures in power cars prompted emergency grounding of the entire fleet in June 1986. The structural defect risked catastrophic body separation from chassis under heavy braking. Repairs involved shot-peening axles at Glasgow Works to restore structural integrity, with full reinstatement by early 1987 under enhanced ultrasonic inspection regimes that monitored axle condition throughout subsequent operations.

Where can I see an operational Class 107 today?

Great Central Railway (Nottingham) operates set 52031+52005 following November 2024 restoration, whilst Somerset & Dorset Railway at Midsomer Norton runs 52006+52025 for passenger services. Both sets carry BR Green livery with period-correct markings and offer regular public running days on their respective heritage railways.

Could I convert a Class 108 model into a Class 107?

While both classes share Derby Works styling, significant differences make direct conversion challenging. Class 107s feature higher side windows, wider 9 ft 3 in body profile, different bogie types (DD10/DT9 versus lighter units), and all-steel rather than aluminium construction. Extensive modification including new bodyside panelling, bogie replacement, and detail changes would be required for accurate representation—making scratchbuilding potentially more practical than conversion.
