British Rail Class 74 – The Southern Region's Ambitious Electro-Diesel Experiment

Historical Background and Context

The genesis of the Class 74 lay in the intersection of surplus equipment and evolving operational requirements on British Rail's Southern Region during the mid-1960s. The increased deployment of electric multiple units on Kent Coast services following the 1959 Kent Coast electrification scheme had displaced the Class 71 electric locomotives from their original passenger duties. Ten of these powerful Bo-Bo machines—built at BR Doncaster Works between 1958 and 1960—found themselves redundant and placed into storage in 1964, their impressive 2,500 horsepower traction capability suddenly without regular employment.

The success of the Class 73 electro-diesel, which had entered service from 1962 onwards, demonstrated the operational advantages of dual-mode traction on the Southern Region's extensive third-rail network. Non-electrified sections at Southampton Docks, Weymouth Quay, and across numerous level crossings, goods yards, and freight terminals required either time-consuming locomotive changes or entirely separate diesel haulage for through workings. The Class 73's ability to operate seamlessly across electrified and non-electrified territory proved its operational value, despite relatively modest performance in both modes.

British Rail engineers conceived an ambitious plan: rebuild the stored Class 71s into more versatile electro-diesels, retaining their powerful electric capability whilst adding diesel engines for off-wire running. This approach would create locomotives far more capable than the Class 73 on electric power, theoretically combining the best of both worlds—express passenger capability under the wires with diesel flexibility for non-electrified sections.

The rebuild programme was originally scheduled for Eastleigh Works, but that facility was fully occupied constructing electric multiple units for the Bournemouth electrification scheme that would transform services to the South Coast. Consequently, the conversion work transferred to BR Crewe Works in the North West, far from the Southern Region territory where the completed locomotives would operate. The decision to undertake such specialist Southern Region work at Crewe—a facility with limited third-rail electro-diesel experience—arguably contributed to subsequent reliability problems.

Strip-down of the first donor locomotive, E5016, commenced in August 1966 and immediately revealed significant engineering challenges. The original Class 71 bodyshells had not been designed as structural load-bearing components—they were essentially cosmetic covers over a substantial underframe that carried all mechanical equipment. Engineers discovered that the planned diesel engine, generator, fuel tanks, and associated equipment could not be accommodated within the existing structure without major modifications.

The solution involved rebuilding the bodies with Warren truss framework and outriggers to support the curved body skin whilst creating space for the diesel powerplant. This extensive reconstruction work helps explain why the conversion programme took considerably longer than initially anticipated, with the first rebuilt locomotive not completing its maiden journey from Crewe to Stewarts Lane depot until 10 November 1967—over a year after work commenced. All ten conversions were completed by May 1968.

The converted locomotives entered traffic in BR Blue livery with full yellow warning ends—amongst the earliest locomotives to carry this new corporate identity scheme from new. They were initially numbered E6101–E6110 under the pre-TOPS system, later receiving TOPS classification numbers 74001–74010 as British Rail's computerised locomotive identification system rolled out during the early 1970s. Contemporary railway periodicals praised the impressive specifications whilst expressing cautious optimism about the innovative electronics package.

Design and Technical Specifications

The British Rail Class 74 represented a fundamentally different approach to electro-diesel design compared to the purpose-built Class 73. Rather than designing a new locomotive with modest performance in both modes, BR engineers sought to retain the Class 71's impressive electric capability whilst grafting on diesel propulsion for non-electrified sections. This created a machine with considerable electric performance—2,552 hp at the one-hour rating—but severely limited diesel capability of just 315 hp continuous output at the rail after transmission losses from the 650 bhp Paxman engine.

The power disparity between electric and diesel modes proved far more extreme than the Class 73's more balanced arrangement. Whilst a Class 73 offered 1,600 hp electric versus 600 hp diesel—roughly a 2.7:1 ratio—the Class 74 provided 2,552 hp electric against 315 hp diesel, an 8:1 ratio that created vastly different performance characteristics depending on power source. On third rail, a Class 74 could accelerate a heavy boat train with authority; on diesel power alone, the same locomotive struggled up moderate gradients with identical loading.

The diesel powerplant was a Paxman 6YJXL 'Ventura' six-cylinder turbocharged engine producing 650 brake horsepower. This compact but powerful unit was shoe-horned into the restricted space available within the Class 71's body structure, with its silencer inconveniently mounted in the roof near the cab—creating considerable noise for crews. The engine drove an English Electric generator that fed power to the four traction motors, following conventional diesel-electric practice. However, the diesel engine proved notoriously difficult to start, particularly in cold conditions, and suffered reliability problems throughout the class's brief service life.

Fuel capacity totalled just 400 imperial gallons—considerably less than most contemporary main line diesels and reflecting the Class 74's intended role on relatively short non-electrified sections rather than extended diesel-only operation. The modest tank capacity created operational restrictions, as locomotives required frequent refuelling when working extensively on diesel power away from electrified routes.

The electronics package represented the Class 74's most innovative—and ultimately most problematic—feature. The locomotives employed pioneering solid-state electronic traction control, arranged in modular Line Replaceable Unit trays designed for rapid fault diagnosis and component replacement. The constant current control system permitted fine regulation when starting trains and operated identically on both diesel and electric power, whilst sophisticated wheelslip protection automatically regulated traction current across all four motors to maximise adhesion without manual driver intervention.

This technology was genuinely advanced for the mid-1960s, predating widespread solid-state control adoption by several years. However, 1960s semiconductor technology proved insufficiently robust against the harsh railway environment's vibration, temperature cycling, electrical surges, and contamination from brake dust and moisture. Electronic components failed with depressing regularity, and the complex interactions between multiple control trays meant that faults in one system often manifested only in combination with problems elsewhere—leading to protracted fault-finding sessions that kept locomotives out of service for extended periods.

The four English Electric 532 series traction motors were carried over from the Class 71 donors but operated at derated output to accommodate the diesel mode's limited power supply. The motors were nose-suspended—directly mounted to the bogies—following conventional practice for the era. This arrangement transmitted considerable noise and vibration into the body structure, particularly noticeable on diesel power when the Paxman engine's mechanical rumble combined with traction motor whine.

Train heating was provided by electric train supply equipment drawing power from the third rail on electrified sections. On diesel power, the locomotives could not provide train heating—a significant operational limitation when working coaches on non-electrified routes during winter months. This restriction further reduced the Class 74's utility compared to the Class 73, which offered steam train heating from its diesel engine.

The cab interior retained the Class 71's relatively spacious layout with large forward-facing windows providing excellent visibility. However, the roof-mounted diesel silencer created considerable noise intrusion that crew members found fatiguing during extended diesel-mode operation. Vibration from both the Paxman engine and nose-suspended traction motors proved more intrusive than in purpose-built diesel locomotives with more sophisticated isolation systems.

Service History and Operations

All ten Class 74 locomotives were allocated to Eastleigh depot throughout their entire operational careers, with day-time out-stationing at Clapham Junction yard and Stewarts Lane depot in London enabling locomotives to be positioned close to their primary workings. This concentration of the entire class at a single depot simplified maintenance arrangements but also meant that electronic failures could quickly deplete available traction when multiple locomotives required workshop attention simultaneously.

The locomotives' primary intended role was hauling boat train services from London Waterloo to Southampton's Ocean Terminal and Eastern and Western Docks, as well as the Weymouth boat trains that connected with Channel Islands ferry services. These prestigious workings had traditionally required locomotive changes at Eastleigh (for Southampton services) or Bournemouth (for Weymouth) where the Southern Region's third-rail electrification ended. The Class 74's dual-mode capability promised to eliminate these time-consuming and operationally complex changes, enabling through running with a single locomotive throughout.

In practice, the Class 74's chronic unreliability severely compromised this operational concept. The Paxman diesel engine proved difficult to start—particularly problematic when locomotives needed to switch from electric to diesel mode at electrification boundaries—and prone to failure when working under load away from electrified routes. Contemporary observers noted that Class 74s were rarely seen at Weymouth because diesel failures disrupted services; instead, they were typically replaced at Bournemouth by the more dependable Class 33 diesels for the final non-electrified leg to Weymouth Quay. This negated the entire purpose of the dual-mode conversion whilst adding operational complexity.

One railway enthusiast recorded typical operational problems: "74006 struggled up Parkstone Bank [between Bournemouth and Poole] on a parcels working where a 73 would have performed far better." The Class 74's limited diesel power output—approximately 315 hp continuous at the rail—meant that the locomotives could barely maintain schedule on even moderate gradients with normal loadings when operating away from third-rail power supply. The contrast with their impressive electric-mode performance created particularly stark operational limitations.

Beyond boat train duties, the Class 74 fleet found employment on night mail and newspaper trains between London Waterloo and Bournemouth—workings that typically operated entirely on electrified routes but required diesel capability for accessing sorting offices and newspaper distribution centres with non-electrified sidings. Milk trains running from Weymouth to Acton Yard via Clapham Junction and Kensington utilised Class 74 traction, as this route crossed onto London Midland Region and Western Region tracks requiring diesel power beyond Southern Region third-rail territory.

The locomotives also operated various parcels workings, often in pairs when returning empty to Eastleigh or positioning for London workings. They occasionally worked push-pull services with TC trailer units using high-level control jumpers—the distinctive "bagpipe" multiple-working connections visible on buffer beams. However, these duties remained secondary to the boat train and parcels roles that defined the class's operational purpose.

The Class 74 fleet carried only BR Blue livery throughout their careers—they never appeared in BR green livery, unlike their Class 71 predecessors which had operated in Brunswick green with orange/black lining. All entered service with full yellow warning ends meeting contemporary safety regulations, presenting a smart corporate appearance that contrasted sharply with their troublesome mechanical reputation. The locomotives received TOPS numbers 74001–74010 during the early 1970s as British Rail's computerised identification system rolled out, replacing the original E6101–E6110 pre-TOPS designations.

From 1973/74 onwards, the Class 74 became increasingly marginalised when four additional 4-REP electric multiple units entered service on Waterloo–Weymouth boat train diagrams. These modern EMUs offered superior passenger accommodation, more frequent service capability, and complete reliability compared to locomotive-hauled formations behind temperamental Class 74s. The displacement from premier passenger workings relegated the class to increasingly secondary duties on parcels and freight services where their unreliability caused less customer-facing disruption.

The accelerating decline of ocean liner traffic through Southampton during the mid-1970s—as air travel supplanted sea voyages for transatlantic passengers—further reduced the boat train workings that had justified the Class 74's existence. By 1976, the operational case for maintaining ten complex and unreliable electro-diesels had evaporated, with simpler alternatives available for the remaining duties.

Fleet

No locomotives found.

Withdrawal and Preservation Legacy

The British Rail Class 74's decline was swift, comprehensive, and remarkably conclusive for a class that had entered service barely a decade earlier. Three locomotives departed before the mass condemnation: 74006 was withdrawn in June 1976 following severe fire damage sustained at Worting Junction the previous December when electrical faults ignited insulation materials; 74002 followed in July 1977 after collision damage was deemed uneconomical to repair given the class's overall obsolescence; and 74009 departed in August 1977 when yet another mechanical failure prompted BR to abandon further repair efforts. The remaining seven locomotives were withdrawn en masse on 31 December 1977, marking the end of the entire class just ten years after entering traffic.

The decision not to repair or upgrade the class reflected multiple converging factors beyond simple unreliability. Boat train traffic had declined substantially by the mid-1970s as fundamental changes in international shipping routes reduced ocean liner services through Southampton. The remaining boat trains increasingly switched to electric multiple unit operation offering superior frequency and reliability. Freight and parcels traffic on the Southern Region was contracting as road transport captured market share. Most significantly, the Class 73—despite offering considerably lower power output in both modes—proved vastly more reliable and versatile, handling similar duties without the chronic maintenance burden that plagued the Class 74.

British Rail briefly considered upgrading the Class 74's troublesome electronics with proven Class 86-style systems, following the successful pattern established with early AC electric locomotive classes whose original electronics had been replaced with more reliable technology. However, with work requirements evaporating and simpler alternatives readily available, no business case existed to justify substantial investment in a small class of ageing locomotives approaching obsolescence. A senior BR engineer involved in the original conversion project reportedly commented "never again" regarding such ambitious major locomotive rebuilds without adequate testing and development time.

Scrapping proceeded with depressing efficiency. Most locomotives were cut up at Eastleigh Works—ironically, the facility originally intended to perform the Class 71 to Class 74 conversions—or dispatched to Pounds scrapyard at Tipner, Portsmouth. The scrap metal from these ten sophisticated electro-diesels returned to the commercial market within months of withdrawal, their advanced electronic components consigned to recycling before their technological innovations could be properly evaluated.

The last Class 74 to be scrapped was 74005, which met the cutter's torch at Fratton Traincare Depot, Portsmouth, in January 1981—over three years after withdrawal, suggesting it had been retained for spare parts to support the remaining fleet during final operations. Locomotive 74010 received a brief reprieve when transferred to the Railway Technical Centre at Derby for evaluation as a potential departmental vehicle, but detailed assessment deemed it unsuitable for conversion and the locomotive was ultimately cut up at Doncaster Works in 1979.

One Class 71—E5001, the prototype of the donor class—does survive in the National Railway Museum collection at York, representing the Class 74's electrical and mechanical heritage. However, this preserved Class 71 lacks the Paxman diesel engine, solid-state control electronics, and operational compromises that characterised the Class 74 conversion. For railway historians and enthusiasts, the Class 71 survivor provides tantalising hints about what the Class 74 might have preserved had even a single example been saved.

The engineering legacy proved more enduring than any physical survivor. The Class 74's modular Line Replaceable Unit philosophy for electronic components eventually became standard practice across the railway industry once semiconductor reliability caught up with the concept's promise. The lessons learned about integrating diesel engines into electric locomotive bodyshells informed later dual-mode traction development. Most significantly, the Class 74's failure served as a cautionary tale about implementing unproven technology without adequate testing—a lesson that influenced British Rail's more conservative approach to subsequent traction innovation.

The contrast between Class 73 and Class 74 outcomes—one achieving decades of successful service with multiple preserved examples, the other suffering complete extinction after just ten years—demonstrates that operational success depends less on headline specifications than on fundamental reliability, maintainability, and fitness for actual operational requirements rather than theoretical capabilities.

Modelling Significance and Scale Replications

The British Rail Class 74 presents exceptional modelling significance due to its unique position as the Southern Region's most powerful electro-diesel type, operating exclusively during the BR Corporate Blue era on prestigious boat train and parcels services. For railway modellers seeking to depict authentic late-1960s through mid-1970s Southern Region operations, these locomotives provide a distinctive prototype that appeared nowhere else on the British railway network—yet remained frustratingly unavailable in ready-to-run form until very recently.

The modelling landscape remained barren for decades despite the class's historical importance and visual distinctiveness. Neither Hornby, Dapol, Heljan, Bachmann Branchline, Graham Farish, nor any mainstream manufacturer offered Class 74 representations in any scale. This inexplicable neglect left modellers of Southern Region operations during the 1970s without a fundamental locomotive type that should have been considered essential for authentic layout operation, particularly for anyone modelling Southampton Docks, Weymouth services, or Eastleigh depot operations.

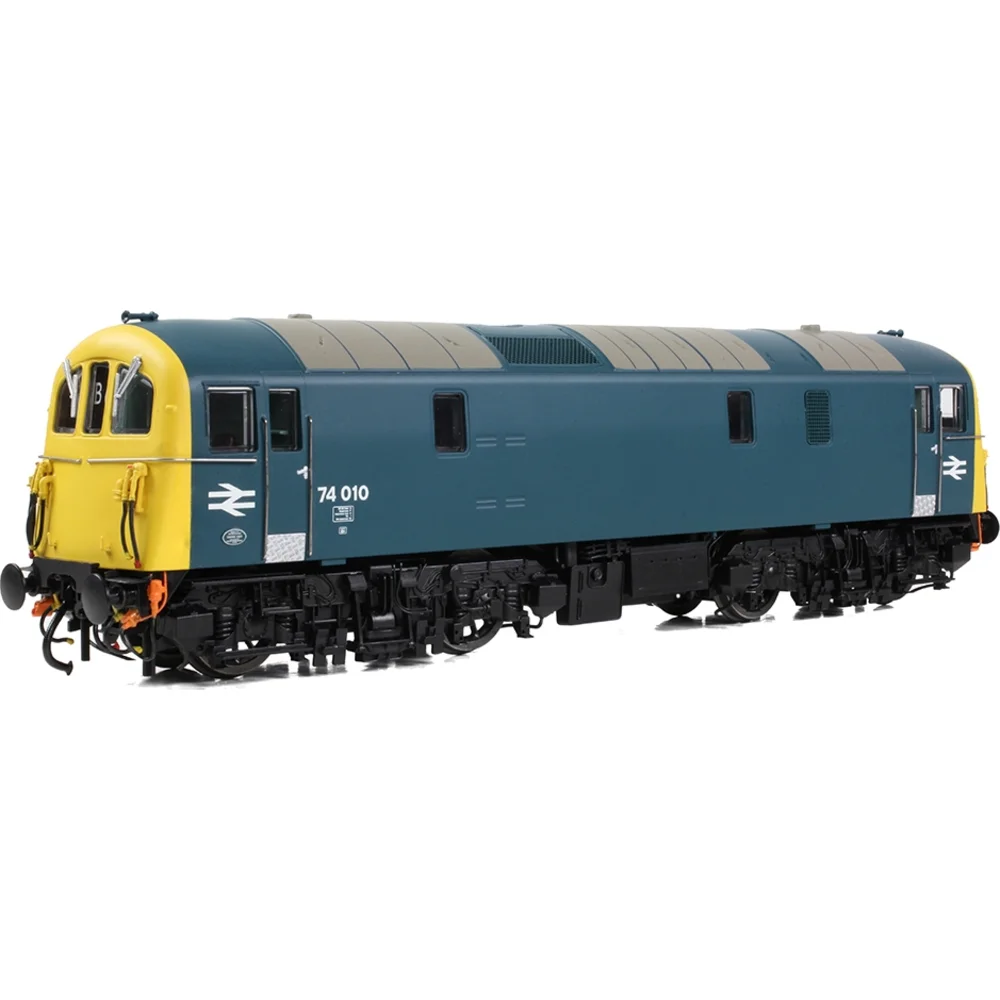

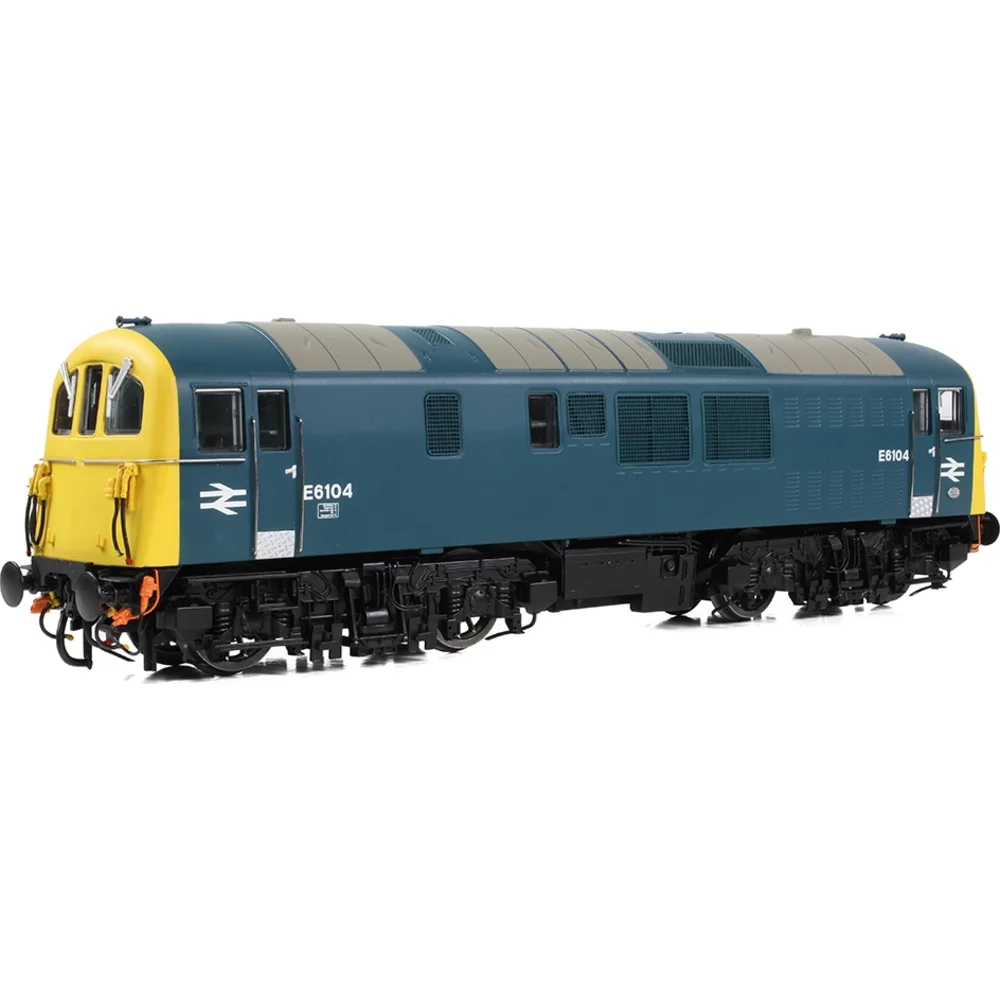

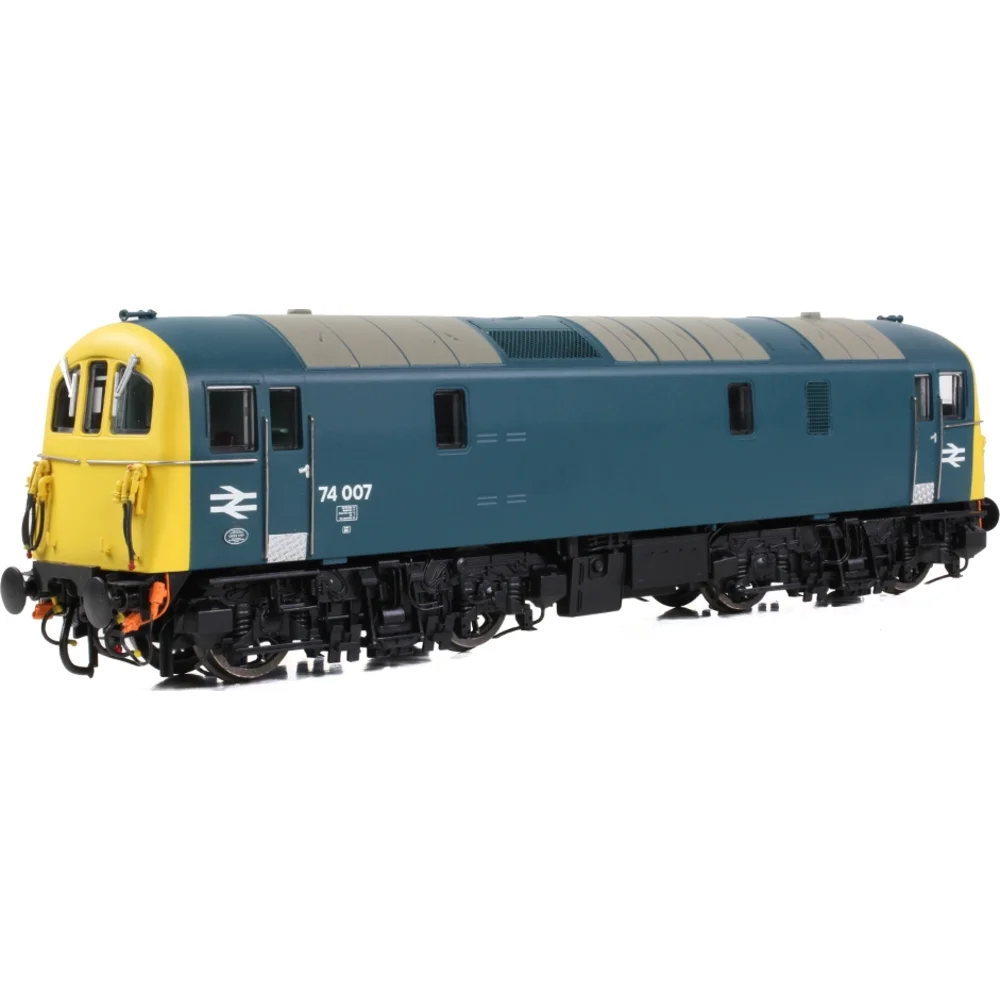

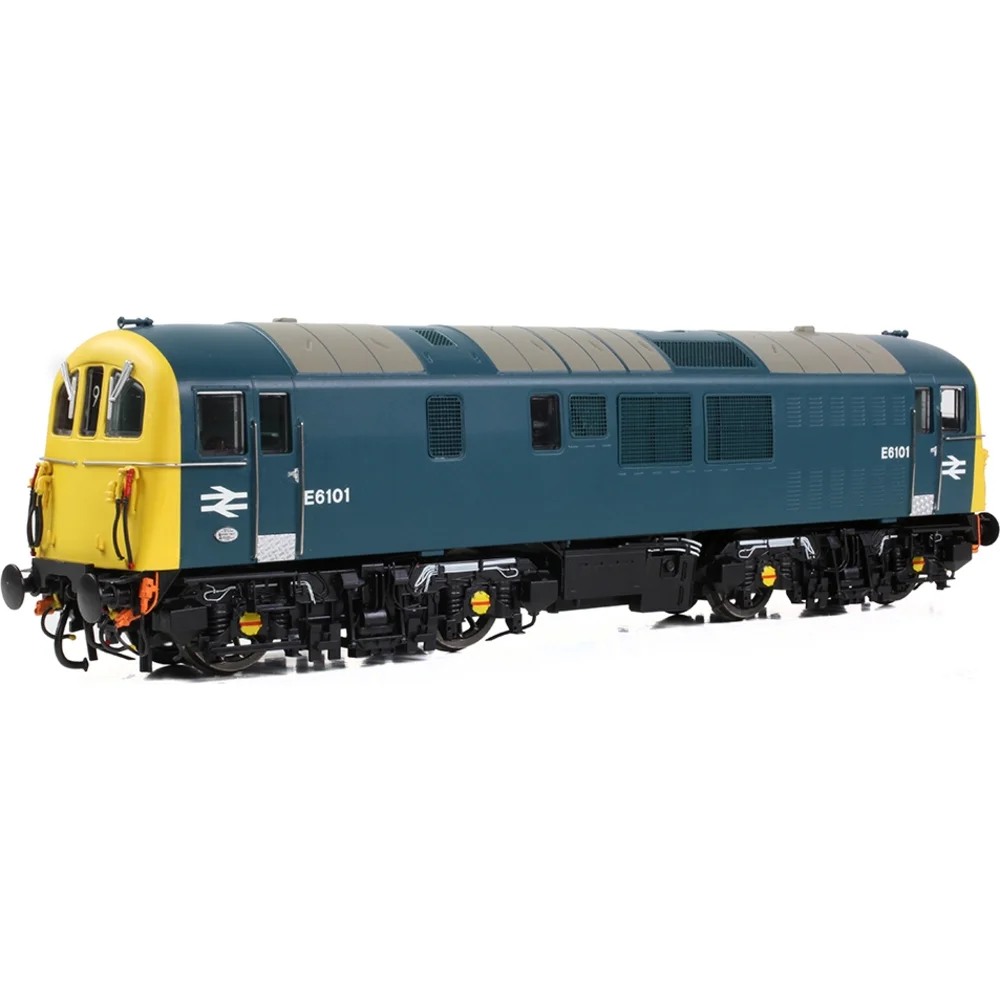

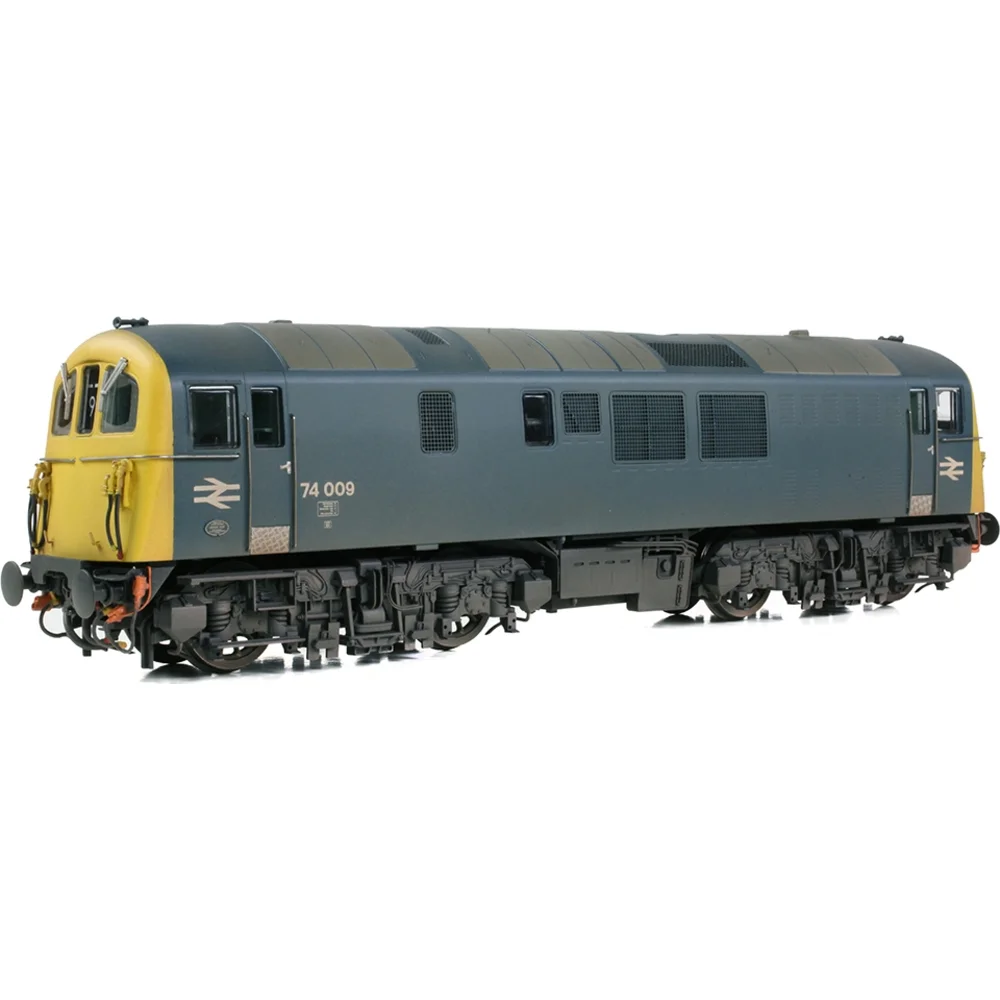

This changed dramatically when EFE Rail (a brand within the Bachmann Europe group) announced Class 74 tooling development, with first models reaching enthusiasts in December 2025. The announcement described it as "a subject that has never before been produced as a mainstream ready to run model in OO Scale," acknowledging the decades-long gap in the ready-to-run market. The release immediately earned acclaim from Southern Region enthusiasts who had waited years for accurate representation of this distinctive class.

EFE Rail's approach demonstrates exemplary commitment to prototype accuracy for this challenging subject. The manufacturer created entirely new tooling specifically for the Class 74, rather than attempting to adapt existing Class 73 or other diesel locomotive models—an approach that captures the distinctive Class 71-derived bodyshell proportions, streamlined nose profile, and unique equipment arrangement that differentiate the Class 74 from all contemporary designs.

Five initial variants cover the primary livery variations and running number ranges that appeared during the class's brief operational career. Catalogue numbers E82006 through E82010 represent locomotives E6101, E6104, 74007, 74010, and 74009 respectively. All models correctly depict BR Blue livery with full yellow warning ends—the only scheme these locomotives ever carried operationally. The range includes both pre-TOPS (E61xx) and TOPS (740xx) numbering styles, enabling modellers to select appropriate examples for specific periods between 1967 and 1977.

The technical execution impresses throughout EFE Rail's development. A high-quality coreless twin-shaft motor drives all four axles on both bogies, ensuring powerful performance and smooth slow-speed operation appropriate for station work and dock shunting movements. All-wheel electrical pickup collects current from both rails on all axles, maximising reliability on layouts where track cleanliness might otherwise cause stalling. The sophisticated pickup arrangement reflects the challenges of reliably powering models of Bo-Bo locomotives, where the shorter wheelbase compared to Co-Co types reduces the number of contact points with the rails.

A 21-pin DCC decoder socket with speaker space provided and solder pads ready for sound installation enables straightforward digital conversion for modellers operating DCC-equipped layouts. The locomotive arrives with a blanking plug installed for conventional DC operation, allowing immediate running on analogue layouts whilst providing a clear upgrade path to full digital control with sound effects when desired. This flexible approach suits the varied technical sophistication levels across the model railway hobby.

Detail quality reaches impressive standards for ready-to-run models at this price point. Separately applied components include metal handrails along bodysides and over cab roofs, lamp irons at each corner for proper headcode displays, vacuum brake pipes between bogies, multiple working jumper cables on buffer beams, and detailed brake rigging beneath the underframe. Factory-fitted glazing includes cab interior detail with driver's seats and control equipment visible through the large forward-facing windows. The roof features translucent panels replicating the prototype's engine room skylights—a distinctive Class 74 recognition feature that differentiates these locomotives from the Class 71 donors.

Sprung metal buffers provide authentic appearance and realistic cushioning during coupling operations, particularly important for shunting movements in goods yards and dockside operation scenarios. The model accurately represents the Class 71-derived streamlined bodyshell profile with sloped nose ends and smoothly contoured sides, whilst incorporating Class 74-specific modifications including altered ventilation grilles and the absence of roof-mounted pantographs.

Livery application demonstrates meticulous research and execution. The BR Blue shade matches contemporary paint standards from the 1967–1977 period, with correctly positioned full yellow warning ends meeting the revised safety regulations that came into force during the late 1960s. Running numbers, BR double-arrow logos, and locomotive data panels appear in accurate positions and sizes matching photographic evidence from period documentation. The pre-TOPS examples show the E61xx numbering style, whilst TOPS versions correctly display the 740xx series allocation.

Pricing reflects the specialised nature of this niche prototype combined with entirely new tooling investment. Standard versions retail at £214.95 RRP, with the factory-weathered 74009 commanding a modest premium at £224.95. Major UK model railway retailers including Rails of Sheffield, Hattons Model Railways, Kernow Model Rail Centre, and Gaugemaster typically offer 10–15% discounts from RRP, reducing actual purchase prices to approximately £180–£195 depending on retailer and specific catalogue number. The December 2025 release saw strong initial demand from Southern Region enthusiasts and collectors seeking this long-awaited prototype.

For modellers seeking alternatives or working in different scales, Silver Fox Models offers a cast resin body kit at £47.50 requiring a Hornby Class 90 chassis for motive power—a budget-conscious option for experienced modellers comfortable with kit construction and chassis adaptation. Silver Fox also produces a completed ready-to-run resin model at £160 with custom running numbers available on request, providing an alternative to the EFE Rail offering at approximately 25% lower cost though with slightly less sophisticated detailing and drive system.

In N gauge, the situation remains challenging. CMAC Models provides 3D-printed bodyshells via Shapeways at approximately $22 USD, though these require the modeller to source an appropriate N gauge chassis and undertake complete assembly and finishing work. Worsley Works offers an etched nickel silver body kit at £20 for experienced N gauge modellers comfortable with advanced construction techniques. Neither option provides the plug-and-play convenience of ready-to-run models, reflecting the limited commercial viability of tooling such a niche prototype at N scale.

No Class 74 models exist in O gauge from any manufacturer—a notable gap given Heljan's comprehensive Class 73 range in 7mm scale. The substantial market size required to justify O gauge tooling investment combined with the Class 74's brief operational career and small fleet size makes commercial production unlikely without group orders or advance purchase commitments from committed Southern Region O gauge modellers. Skilled scratch-builders can construct Class 74 models using brass or styrene sheet with extensive fabrication work, though this approach requires considerable modelling expertise.

Models

Unique Modelling Tips and Layout Integration

Successfully incorporating British Rail Class 74 models into layout operation requires careful attention to the specific constraints of these locomotives' brief operational careers and specialised Southern Region duties. Unlike long-lived classes that worked diverse routes over decades, the Class 74 operated exclusively on Southern Region boat train and parcels services for just ten years between 1967 and 1977, demanding strict era discipline for authentic representation.

The appropriate era spans late 1967 to December 1977, placing Class 74 operations firmly within BR Corporate Blue period (Era 7 in the model railway era classification system). All Class 74 locomotives carried BR Blue livery with full yellow warning ends from new—no green-liveried examples ever existed, and modellers should resist any temptation to create fictional earlier schemes. The locomotives appeared in pre-TOPS numbering (E6101–E6110) from 1967 until approximately 1973, then TOPS numbers (74001–74010) from 1973 onwards through final withdrawal. Selecting appropriately numbered models for specific layout periods creates authentic atmosphere.

Layout infrastructure authenticity demands attention to Southern Region characteristics. Third-rail electrification equipment—conductor rails mounted on ceramic insulators alongside running rails—must be modelled on all electrified sections where Class 74s would operate under electric power. Transitions between electrified and non-electrified territory at locations like Eastleigh, Bournemouth, and Southampton Docks create authentic operational scenarios where the Class 74's dual-mode capability theoretically offered advantages. However, modellers recreating prototypical operations should note that Class 74s rarely operated to Weymouth due to diesel unreliability, typically being replaced by Class 33s at Bournemouth.

Appropriate coaching stock selection proves crucial for authentic Class 74 representation. BR Mk1 coaches in various blue-and-grey and maroon schemes suit boat train formations, particularly restaurant cars and first-class accommodation for Ocean Liner Specials serving Southampton's prestigious passenger ship traffic. Pullman cars add authenticity to premier boat trains—the Golden Arrow and other named services that connected with cross-Channel ferries. The distinctive Southern Region 4TC push-pull trailer sets occasionally worked with Class 74s on parcels and secondary passenger duties, creating interesting operational variety.

For parcels and mail workings—significant Class 74 duties that occupied the class during night hours—appropriate rolling stock includes BR standard parcels vans (GUV, BG, CCT types) in maroon or blue-grey livery, newspaper vans, and mail sorting coaches. Milk tank wagons suit the Weymouth to Acton Yard milk train operations where Class 74s worked during their middle years. Mixed formations of passenger stock and parcels vans accurately represent the varied consists these locomotives hauled on secondary services.

Train lengths should reflect the Class 74's impressive electric power output (2,552 hp) enabling eight to ten coach formations on boat trains operating under third-rail power, contrasting with the severe diesel-mode limitations (315 hp at rail) requiring much shorter consists when operating away from electrified routes. Authentic operations might show a Class 74 departing Waterloo with a substantial boat train, then returning from Southampton with a modest three or four van parcels formation due to diesel power constraints on non-electrified dock trackage.

Southampton Docks provides the quintessential Class 74 operating scenario—the location that theoretically justified the entire conversion programme. Model the Ocean Terminal with its distinctive architecture, or the Eastern Docks with cargo handling facilities, creating settings where Class 74s would transition from electric to diesel power whilst positioning boat trains alongside berthed passenger liners. The non-electrified quayside trackage forces operation on diesel power despite being just miles from extensive third-rail territory, demonstrating the operational challenges that exposed the Class 74's limitations.

Depot scenes centred on Eastleigh—the sole allocation depot for the entire Class 74 fleet—offer excellent static display opportunities. Model a section featuring locomotive servicing facilities including fueling points for both third-rail electrical supply and diesel fuel tanks, maintenance workshops with lifting equipment, and storage sidings where failed locomotives await attention. Including Class 73 electro-diesels, Class 33 diesels, and various EMU formations at the same depot creates authentic Southern Region atmosphere and provides operational variety whilst highlighting the Class 74's specialised nature within the broader locomotive roster.

Out-stationing locations at Clapham Junction yard and Stewarts Lane depot in London enable modelling of urban Southern Region settings where Class 74s awaited their next duties. These locations suit compact layouts focusing on locomotive servicing and preparation rather than extensive running, with appropriate infrastructure including water columns, coaling stages (for steam heating boilers, though Class 74s lacked this), and modest maintenance facilities.

Operational sessions benefit from varied duties reflecting typical Class 74 employment. A realistic operating sequence might begin at Eastleigh with preparation and fueling, proceed to London hauling parcels overnight, position to Waterloo for a Southampton boat train departure, work the train to Southampton Docks (switching to diesel power for dockside movements), return with mail vans to Eastleigh, and finish with maintenance and servicing. This pattern creates engaging movements whilst remaining prototypically accurate to actual Class 74 diagrams.

For DCC-equipped layouts, sound-fitted models (either factory-installed or retrofitted using the 21-pin socket) dramatically enhance operational realism. Programme decoder functions to emphasise the Class 74's distinctive operational characteristics: electric motor sounds under third-rail power contrasting with diesel engine rumble on non-electrified sections, horn sounds using authentic two-tone air horns, wheel flange squeal during tight curves through dock complexes, and compressor operation for brake systems. The audible transition between electric and diesel modes at electrification boundaries provides powerful operational drama.

Timetable construction should incorporate the intensive boat train schedules that characterised Southampton Docks operations during the 1960s–1970s period. Multiple Class 74s working in sequence on different services creates operational interest and justifies having several examples on the layout. However, acknowledging the chronic unreliability that plagued the class, modellers seeking ultimate authenticity might occasionally "fail" a Class 74 during operating sessions, substituting a Class 73 or Class 33 to complete the diagram—precisely as happened regularly in prototype operations.

The contrast between the Class 74's impressive specifications and disappointing operational reality provides rich storytelling opportunities for modellers interested in railway history beyond mere train running. Creating scenes that subtly hint at the class's struggles—a Class 74 surrounded by maintenance staff at Eastleigh, another being assisted by a Class 33 on a gradient, or one conspicuously absent from a boat train diagram filled by a Class 73—adds narrative depth that transforms simple model operation into engaging historical recreation.

Finally

The British Rail Class 74 represents far more than ten troubled electro-diesel locomotives; these machines embody an ambitious engineering project that promised operational flexibility but foundered on the harsh realities of unproven technology and inadequate development time. The concept of creating powerful dual-mode traction by rebuilding surplus electric locomotives proved sound in theory—retaining impressive electric performance whilst adding diesel capability for non-electrified sections. However, the execution fell victim to 1960s semiconductor unreliability, a troublesome diesel engine, and the fundamental mistake of implementing pioneering solid-state control systems without adequate testing under real-world operational conditions.

For railway historians, the Class 74 provides fascinating insights into the transitional period when British Rail grappled with modernisation challenges whilst managing diverse inherited locomotive fleets from the pre-nationalisation railway companies. The decision to rebuild redundant Class 71s rather than design new locomotives reflected pragmatic resource management in an era of limited capital investment. Yet the outcome demonstrated that ambitious technical innovation without thorough testing and proven component reliability creates more problems than it solves—a lesson that influenced BR's more conservative approach to subsequent traction developments.

The stark contrast between Class 74 and Class 73 outcomes—one achieving barely a decade of troubled service before complete extinction, the other delivering over sixty years of reliable operation with multiple examples preserved and continuing in active service—demonstrates that engineering success depends less on impressive headline specifications than on fundamental reliability, appropriate power output for actual duties, and maintainability using proven components. The Class 73's modest but dependable performance proved vastly more valuable than the Class 74's theoretically superior capabilities hobbled by chronic unreliability.

The complete absence of preserved Class 74 locomotives represents one of British railway preservation's most regrettable gaps. These machines embodied genuine innovation—pioneering modular electronic systems, sophisticated traction control, and dual-mode operation at unprecedented power levels. Their brief operational career and unfortunate timing between 1977 withdrawal and the heritage railway movement's expansion ensured no examples survived to demonstrate their technology to future generations. The preserved Class 71 at the National Railway Museum offers tantalising hints about the Class 74's heritage, but cannot replicate the complex dual-mode systems and electronic sophistication that characterised the conversion.

EFE Rail's exceptional OO gauge range released in December 2025 provides model railway enthusiasts with long-awaited access to accurate Class 74 representation. The models' comprehensive technical specification, authentic BR Blue livery application, and attention to prototype variations enable Southern Region modellers to finally depict this distinctive class on layouts recreating late-1960s through mid-1970s operations. The five initial variants covering pre-TOPS and TOPS numbering plus various detail differences support authentic period-specific modelling across the class's entire operational span.

Model railway hobbyists incorporating Class 74s into layouts gain access to a fascinating prototype that combines visual distinction, historical significance, and compelling operational stories. The locomotives' Eastleigh allocation, boat train duties to Southampton Docks, and chronic unreliability create authentic Southern Region atmosphere whilst providing narrative depth beyond simple train operation. Whether depicting prestigious Ocean Liner Specials departing Waterloo, dockside shunting movements at Southampton, or maintenance scenes at Eastleigh revealing the class's troubled nature, Class 74 models bring character and authenticity to any 1970s-era Southern Region layout.

As model railway technology continues advancing and manufacturers increasingly address niche prototypes previously ignored, the Class 74's appearance in mainstream ready-to-run form demonstrates the hobby's growing sophistication and attention to historical accuracy. Modellers no longer need settle for generic representations or complex scratch-building projects—accurate Class 74 models enable authentic recreation of a fascinating yet troubled chapter in British railway electrification history.

The British Rail Class 74 story ultimately serves as both inspiration and cautionary tale. The ambition to create powerful dual-mode traction through innovative rebuilding deserves recognition as forward-thinking engineering. Yet the execution's failures—unproven electronics, inadequate testing, troublesome diesel engines—demonstrate the risks of implementing sophisticated technology before underlying components achieve adequate reliability. For railway enthusiasts and historians, the Class 74 reminds us that engineering excellence requires not just ambitious vision but patient development, thorough testing, and humble recognition that sometimes simpler, proven solutions deliver better outcomes than theoretically superior but practically troubled alternatives. These ten locomotives taught British Rail valuable lessons about locomotive development that influenced railway engineering for decades after their premature departure—ensuring their brief operational career cast a surprisingly long shadow across railway history.

Frequently Asked Questions

How many British Rail Class 74 locomotives were built?

Ten Class 74 locomotives were rebuilt—not newly constructed—from redundant Class 71 electric locomotives at BR Crewe Works between November 1967 and May 1968. The donor Class 71s had originally been built at BR Doncaster Works between 1958 and 1960. The conversion programme transformed them into dual-mode electro-diesels by adding Paxman diesel engines and pioneering solid-state electronic control systems.

What was the difference between Class 73 and Class 74 electro-diesels?

The Class 73 was purpose-built from new with balanced performance in both modes—1,600 hp electric and 600 hp diesel—using conventional control systems that proved highly reliable. The Class 74 was rebuilt from Class 71 electrics, offering much greater electric power (2,552 hp) but similar diesel capability (650 hp engine, ~315 hp at rail). Crucially, the Class 74's advanced solid-state electronics proved chronically unreliable whilst the Class 73's simpler systems gave decades of dependable service, explaining why Class 73s continued operating into the 2020s whilst all Class 74s were withdrawn by 1977.

Why were the Class 74 locomotives withdrawn so quickly?

The entire Class 74 fleet was withdrawn between June 1976 and December 1977—just ten years after entering service—due to chronic unreliability of their pioneering solid-state electronic traction control systems. The 1960s semiconductor technology couldn't withstand railway vibration, temperature extremes, and electrical surges. The Paxman diesel engine proved difficult to start and frequently failed. Combined with declining boat train traffic and availability of more reliable alternatives like the Class 73, BR saw no business case for expensive electronic upgrades to a small, troublesome fleet.

Were any Class 74 locomotives preserved?

No. All ten Class 74 locomotives were scrapped between July 1977 and January 1981 without a single example entering preservation. The combination of small fleet size, brief ten-year operational life, poor reputation for reliability, and withdrawal timing before the heritage railway movement expanded prevented any from being saved. One Class 71 donor locomotive (E5001) survives in the National Railway Museum, representing the Class 74's electrical heritage but lacking the diesel engine and electronic systems that characterised the conversion.

What livery did Class 74 locomotives carry?

All Class 74 locomotives carried BR Blue livery with full yellow warning ends throughout their entire operational careers from 1967 to 1977. They never carried BR green livery—unlike their Class 71 predecessors—as they entered traffic during the Corporate Blue standardisation period. The locomotives initially carried pre-TOPS numbering (E6101–E6110), later receiving TOPS numbers (74001–74010) during the early 1970s. No other liveries or colour schemes ever appeared on operational Class 74s.

Where were Class 74 locomotives based?

All ten Class 74 locomotives were allocated exclusively to Eastleigh depot throughout their entire operational careers, with day-time out-stationing at Clapham Junction yard and Stewarts Lane depot in London. This concentration of the entire class at a single depot simplified maintenance arrangements but also meant electronic failures could quickly deplete available traction when multiple locomotives required workshop attention simultaneously. No Class 74s operated from any other depot in their ten-year service life.

What routes did Class 74 locomotives work?

Primary duties included boat trains from London Waterloo to Southampton Docks connecting with ocean liners and Weymouth services for Channel Islands ferries, night mail and newspaper trains to Bournemouth, milk trains to Acton Yard via Western Region tracks, and various Southern Region parcels workings. However, Class 74s were rarely seen at Weymouth due to diesel unreliability—they were typically replaced by Class 33 diesels at Bournemouth, negating their dual-mode advantage. Southampton Docks provided the quintessential Class 74 operating scenario where non-electrified quayside trackage required diesel operation.

What was the Class 74's power output?

Power output varied dramatically between electric and diesel modes. On third-rail 750V DC electric supply, Class 74s developed 2,552 hp at the one-hour rating (2,300 hp continuous)—significantly more powerful than the Class 73's 1,600 hp. However, on diesel power from the Paxman 6YJXL engine rated at 650 bhp, transmission losses reduced output to approximately 315 hp continuous at the rail—barely more than the Class 73's 600 hp diesel capability. This extreme 8:1 ratio between electric and diesel performance created vastly different operational characteristics depending on power source.

Are there ready-to-run Class 74 models available?

Yes. EFE Rail (Bachmann) released the first mainstream ready-to-run OO gauge Class 74 in December 2025, with five variants available covering pre-TOPS and TOPS numbering at £214.95–£224.95 RRP. Silver Fox Models also offers a cast resin ready-to-run model at £160 or a body kit at £47.50. In N gauge, only specialist kits exist from CMAC Models (3D-printed) and Worsley Works (etched brass). No ready-to-run or kit models exist in O gauge from any manufacturer.

What coaching stock is appropriate for Class 74 models?

BR Mk1 coaches in maroon or blue-and-grey livery suit Class 74 boat train passenger workings, particularly restaurant cars and first-class accommodation for Ocean Liner Specials. Pullman cars add authenticity to premier services like the Golden Arrow. Southern Region 4TC push-pull trailer sets occasionally worked with Class 74s on secondary duties. For parcels operations, appropriate stock includes GUV, BG, and CCT parcels vans in maroon or blue-grey, newspaper vans, mail sorting coaches, and milk tank wagons. Train lengths should reflect electric-mode capability (8–10 coaches) versus diesel-mode limitations (3–4 vehicles).

Can I model a Class 74 in Network SouthEast or other later liveries?

No—this would be completely historically inaccurate. All Class 74 locomotives were withdrawn by 31 December 1977, long before Network SouthEast was created in 1986. The class operated exclusively in BR Blue livery between 1967 and 1977. Any Class 74 model should depict the locomotive in BR Blue with either pre-TOPS (E61xx) or TOPS (740xx) numbering appropriate to the 1967–1977 operational period. Creating fictional later liveries would misrepresent this class's actual brief operational history.

What era should I model for Class 74 authenticity?

The appropriate era spans late 1967 to December 1977, placing Class 74 operations firmly within BR Corporate Blue period (Era 7). Pre-TOPS numbering (E6101–E6110) suits layouts set from 1967 to approximately 1973, whilst TOPS numbers (74001–74010) represent 1973 onwards through final withdrawal. Appropriate coaching stock includes 1960s–1970s BR Mk1 coaches, early Mk2 stock, and Southern Region 4TC units. Infrastructure should feature third-rail electrification on Southern Region routes with transitions to non-electrified territory at Southampton, Bournemouth, and dock complexes.
