British Rail Class 90 – The Versatile Workhorse That Conquered Two Main Lines

Historical Background and Context

The genesis of the BR Class 90 lay in British Rail's pressing requirement to replace its increasingly unreliable fleet of 1960s electric locomotives. By the mid-1980s, the Class 81 through 85 series were approaching the end of their economic lives, whilst the cancelled Advanced Passenger Train programme had created an acute shortage of modern electric traction capable of exploiting the West Coast Main Line's 110 mph capability. British Rail Engineering Limited faced a critical decision: commission another experimental design or develop a proven platform.

The solution emerged from BREL's successful Class 87 programme. Rather than starting afresh, engineers proposed what was initially designated the Class 87/2—a modernised derivative incorporating thyristor power control technology proven on experimental locomotive 87101. This conservative approach offered dramatically lower development risk compared to competing proposals including the six-axle Class 89 (of which only one prototype was ultimately built) and an electrified High Speed Train variant that never progressed beyond conceptual studies.

On 9 July 1987, the design was officially reclassified as Class 90, acknowledging the substantial visual and technical differences from its Class 87 predecessor. The angular nose profile replaced the rounded Class 87 front end, creating improved crashworthiness whilst enhancing driver visibility. Fixed windscreens replaced traditional droplight windows, with ancillary driving positions relocated to dedicated panels. Most significantly, the entire electrical control system was redesigned around sophisticated thyristor converters providing stepless power control—a quantum leap from the Class 87/0's crude tap changer arrangement.

BREL commenced construction at Crewe Works under contract to GEC Traction Ltd, who supplied the electrical equipment including the revolutionary Time-Division Multiplexing system enabling push-pull operations. The first locomotive, 90001, emerged in October 1987 wearing BR InterCity's striking new blue and grey Swallow livery. Following comprehensive testing at Derby Railway Technical Centre's test track, revenue service commenced on 12 July 1988 when 90003 hauled its inaugural passenger train—a date now celebrated as the class's official birthday, marked in 2025 with the 37th anniversary.

The total order of 50 locomotives was completed by 1990, with the fleet strategically divided between InterCity passenger duties (initially 90001-90025) and Railfreight services (90026-90050). This mixed-traffic capability proved remarkably prescient, allowing the class to adapt seamlessly as Britain's railway landscape transformed through privatisation, sectorisation, and the dramatic operational changes that characterised the 1990s and 2000s. Unlike specialised designs that became redundant when traffic patterns evolved, the Class 90's versatility ensured continued relevance across changing railway eras.

Contemporary railway press coverage praised the Class 90's modern appearance and technical sophistication. The distinctive angular profile created an immediately recognisable silhouette that epitomised late-1980s British locomotive design. The decision to standardise on InterCity Swallow livery for initial deliveries—making the Class 90 the first new locomotive class to receive this iconic scheme from new—demonstrated BR's confidence in the design and its central role in the modernisation programme.

Design and Technical Specifications

The engineering excellence of the British Rail Class 90 lies in its sophisticated integration of proven mechanical components with advanced electrical control systems. At the heart of the design sits the Bo-Bo wheel arrangement, placing all locomotive weight on four powered axles to maximise adhesion whilst maintaining the compact dimensions essential for operation across Britain's restrictive loading gauge infrastructure.

Each axle carries a frame-mounted GEC G412CY traction motor, delivering combined continuous output of 5,000 brake horsepower (3,730 kW) at 25kV AC supply voltage. These four-pole force-ventilated DC motors receive power through sophisticated thyristor converters that provide infinitely variable control from standstill to maximum speed—a dramatic improvement over earlier tap changer technology that relied on crude step changes in power application. The microprocessor-controlled system continuously monitors motor current, speed, and loading, automatically adjusting power distribution to prevent wheelslip and maintain optimal tractive effort.

The 25kV AC overhead electrification system powers the locomotive through a single Stone-Faiveley high-speed pantograph mounted centrally on the roof. Onboard transformers reduce the supply voltage to levels suitable for the traction motors, whilst the thyristor converters provide smooth DC output with minimal harmonic distortion. This arrangement delivers exceptional energy efficiency compared to older electro-mechanical control systems, reducing both electricity consumption and maintenance requirements through elimination of mechanically switching components.

The advanced wheelslip detection system represented genuine innovation in British locomotive design. Unlike conventional systems that simply compared individual wheel speeds, the Class 90's Doppler radar detected absolute ground speed—identifying situations where all wheels were slipping simultaneously whilst conventional systems would detect no speed differential. The microprocessor-controlled system automatically reduced power application, deployed sanding gear to restore adhesion, and gradually restored tractive effort as wheel grip improved. This sophisticated approach proved invaluable on the demanding gradients of both the West Coast Main Line's Shap and Beattock summits and the Great Eastern Main Line's challenging Brentwood bank.

The Time-Division Multiplexing equipment enabled true push-pull operation from new construction—a capability that transformed InterCity operations by eliminating time-consuming locomotive run-rounds at terminal stations. Drivers could control the locomotive remotely from a Driving Van Trailer using standard RCH lighting jumper cables, with all control functions transmitted via coded pulses through the train line. This system, combined with Electric Train Supply providing 1,000V single-phase heating and air conditioning power for passenger coaches, made the Class 90 ideally suited to intensive InterCity diagrams where rapid turnaround times directly improved line capacity and service frequency.

Crashworthiness received particular attention in the design phase, with strengthened cab structures meeting updated UIC requirements for driver protection in collision scenarios. The angular nose profile incorporates substantial steel members designed to absorb impact energy whilst directing collision forces around the driving cab. The elimination of droplight windows (replaced by fixed glazing with ancillary driving positions relocated to dedicated control panels) further enhanced structural integrity whilst eliminating potential projectile pathways during accidents. These safety enhancements, combined with comprehensive fire detection and suppression systems throughout the locomotive, created one of the safest electric designs in British railway history.

The electrical cubicle arrangement demonstrates exceptional attention to maintenance accessibility. Major components including thyristor converters, control processors, and auxiliary power supplies are housed in dedicated compartments accessible through large side doors. This modular design philosophy enables rapid component replacement, with failed units exchanged for serviceable spares and returned to workshops for bench repair—dramatically reducing out-of-service time compared to locomotives requiring extensive on-vehicle repairs. This practical maintenance approach directly contributed to the class's exceptional availability rates following resolution of early teething problems.

Service History and Operations

The BR Class 90 operational history spans the entire privatisation era, touching virtually every major train operating company and freight operator whilst adapting to dramatic changes in Britain's railway landscape. Under British Rail InterCity, the initial fleet deployment concentrated on West Coast Main Line express services from London Euston to Birmingham, Manchester, Liverpool, and Glasgow. The first 25 locomotives received the striking InterCity Swallow livery—the Class 90 being the first new locomotive class to carry this iconic blue and grey scheme from new construction.

Early service proved challenging. Initial reliability problems earned the fleet the unflattering nickname "Skodas" amongst operating crews, with traction motor failures, thyristor malfunctions, and train heating issues creating operational headaches. However, systematic rectification by BREL engineers progressively eliminated these deficiencies. By 1993, the class had been transformed into what Modern Railways magazine described as "possibly the most reliable locomotive on BR," achieving availability rates exceeding 90%—a remarkable turnaround demonstrating the fundamental soundness of the basic design.

Sectorisation in 1991 divided the fleet amongst BR's business units. InterCity West Coast retained 90001-90015 for premier express services, Rail Express Systems acquired 90016-90020 for overnight mail trains, Railfreight Distribution operated 90021-90025 on mixed freight duties, whilst dedicated freight locomotives 90026-90050 were reclassified as Class 90/1 with reduced 75 mph maximum speed reflecting their purely freight role. This organisational structure demonstrated the class's fundamental versatility—capable of 110 mph passenger expresses one day and heavy container trains the next.

A fascinating operational chapter emerged when Class 91 reliability issues saw Class 90s temporarily covering East Coast Main Line services with Mark 4 coaches—demonstrating the class's ability to work Britain's other premier electrified route despite being designed specifically for West Coast operations. These emergency diagrams proved the locomotives' fundamental competence, with drivers praising their smooth power delivery and comfortable cabs even when working unfamiliar routes under pressure.

Following privatisation, Virgin Trains inherited the InterCity passenger fleet in 1997. Locomotive 90002 became the first repainted in Virgin's striking red and black livery, receiving the name Mission: Impossible to reflect the monumental challenges facing the West Coast Main Line upgrade programme. Virgin's Class 90 operations continued successfully until 2004, when Pendolino introduction displaced locomotive-hauled services. However, the memorable "Pretendolino" substitute service—Mark 3 coaches in Pendolino livery covering for unit shortages—operated until October 2014, proving the class's enduring capability and reliability.

The Greater Anglia chapter (2004-2020) saw 90001-90015 transferred to Crown Point depot, Norwich, for Liverpool Street to Norwich express services. Initial operations proved problematic, with locomotives struggling in unfamiliar East Anglian territory plagued by different operating conditions, maintenance practices, and route knowledge requirements. However, systematic improvements transformed performance. By 2007, the fleet won Modern Railways' prestigious Silver Spanner award for most improved reliability—testament to both the locomotives' fundamental quality and the engineering teams' dedication. These services concluded on 24 March 2020 when Stadler Class 745 FLIRT electric multiple units assumed all Greater Anglia express diagrams.

DB Cargo UK (formerly EWS) operations proved controversial. The company inherited a substantial fleet through various acquisitions, operating them on coal, steel, and intermodal services across the electrified network. However, in July 2023, DB Cargo announced permanent withdrawal of its entire Class 90 fleet, citing high electricity costs and claiming diesel traction was more economical—a decision that provoked fierce criticism given electrification's clear decarbonisation benefits and the questionable economics of the comparison. By December 2025, ten locomotives have been scrapped at Sandbach Commercial Dismantlers, with nine remaining stored at Crewe IEMD awaiting uncertain futures.

Locomotive Services Limited emerged as an unexpected saviour for preserved operational capability. The charter operator acquired 90001 and 90002, returning both to authentic InterCity Swallow livery as Royal Scot and Wolf of Badenoch respectively—fitting tributes to their original InterCity role. LSL added 90026 to its operational fleet in June 2025, ensuring continued charter operation availability. These locomotives regularly appear on enthusiast specials, heritage railway galas, and commercial charter services, keeping the InterCity heritage alive for new generations.

Fleet

No locomotives found.

Withdrawal, Preservation and Legacy

The withdrawal history of the British Rail Class 90 entered a dramatic new chapter in July 2023 when DB Cargo UK announced permanent withdrawal of its entire fleet, citing high electricity costs and claiming diesel traction was more economical. This controversial decision provoked fierce criticism from environmental campaigners and railway professionals who questioned both the economics and the environmental logic of abandoning electric traction when Britain's railway decarbonisation strategy explicitly prioritises electrification over diesel operation.

By December 2025, ten former DB Cargo locomotives have been scrapped at Sandbach Commercial Dismantlers, with 90022 becoming the first casualty in July 2024. Contemporary photographs show these once-proud machines being systematically dismantled—bogies separated from bodies, electrical equipment salvaged for spares, and steel structures cut into manageable sections for recycling. Each scrapping represents the loss of a serviceable 5,000 horsepower electric locomotive capable of decades more operation, making these withdrawals particularly controversial within the railway community.

Nine former DB Cargo locomotives remain stored at Crewe International Electric Maintenance Depot, their futures uncertain. These operational machines require wheelset attention and mid-life overhauls but could potentially return to service under new ownership. Industry observers speculate about possible acquisition by open access operators, charter companies, or overseas railways seeking proven electric traction. However, Britain's unique 25kV AC electrification system and restrictive loading gauge limits export potential, making domestic redeployment the most likely scenario for survivors.

Freightliner's commitment to electric traction ensures continued operational service for 28 locomotives working intensive intermodal container services. The company's substantial investment in the class—including the strategic 2019-2020 acquisition of ex-Greater Anglia locomotives—demonstrates confidence in long-term viability. CEO Gary Long's description of Class 90s as "an investment in the future" aligns with Freightliner's carbon-neutral freight ambitions, suggesting these locomotives will continue working well into the 2030s as Britain's railway electrification expands.

Locomotive Services Limited provides crucial operational preservation capability. The charter operator's acquisition of 90001 and 90002, both returned to authentic InterCity Swallow livery, enables continued mainline operation on enthusiast specials and commercial charters. The addition of 90026 in June 2025 expanded LSL's electric traction fleet, ensuring Class 90 availability for heritage railway galas, depot open days, and commemorative services. These locomotives represent working preservation—maintaining operational capability whilst celebrating the class's InterCity heritage.

The engineering legacy extends beyond individual preserved locomotives. The Class 90 pioneered Time-Division Multiplexing-equipped push-pull operations that became standard across Britain's locomotive-hauled passenger services. The DVT-locomotive combination eliminated terminal run-rounds, dramatically improving turnaround times and line capacity. This operational concept influenced subsequent designs including the Class 91/Mark 4 combination and continues shaping modern locomotive-hauled operations. The Class 90's sophisticated thyristor control demonstrated British capability in power electronics, informing later developments in traction technology.

The class's exceptional reliability after early teething troubles validated the conservative design approach. Rather than pursuing experimental concepts, BREL evolved proven technology incrementally—delivering a design that outlasted more ambitious contemporaries. The Class 90's 37-year career spanning nationalised BR through privatisation to today's fragmented railway demonstrates remarkable adaptability. Few locomotive classes have served so many operators across such diverse duties whilst maintaining the operational flexibility that earned it British Rail's most reliable fleet status by 1993.

For future railway historians, the Class 90 represents the transition from BR's standardised approach to privatisation's operator-specific requirements. The 35+ livery variations chronicle this transformation—from unified InterCity Swallow through privatisation's colourful diversity to today's corporate freight schemes. Each repaint tells a story about changing ownership, evolving identities, and Britain's fragmented railway structure. This visual diversity, combined with operational longevity, ensures the Class 90's place as one of Britain's most significant electric locomotive designs.

Modelling Significance and Scale Replications

The British Rail Class 90 presents exceptional modelling significance due to its position spanning multiple railway eras, operators, and livery schemes. For railway modellers seeking authentic modern British traction, Class 90s provide thoroughly documented prototypes operating from 1987 through today—covering BR InterCity, privatisation operators, and contemporary freight services. The extensive livery variety spanning over 35 distinct schemes creates modelling opportunities satisfying both historical accuracy and aesthetic preferences.

The modelling landscape transformed dramatically when Bachmann Europe announced all-new Class 90 tooling in 2017, with initial deliveries reaching enthusiasts in 2019. This represented the first completely new OO gauge Class 90 tooling since Hornby's 2008 release, incorporating technological innovations that set new standards for British outline electric locomotives. Bachmann's approach demonstrates exemplary commitment to prototype accuracy combined with sophisticated model engineering.

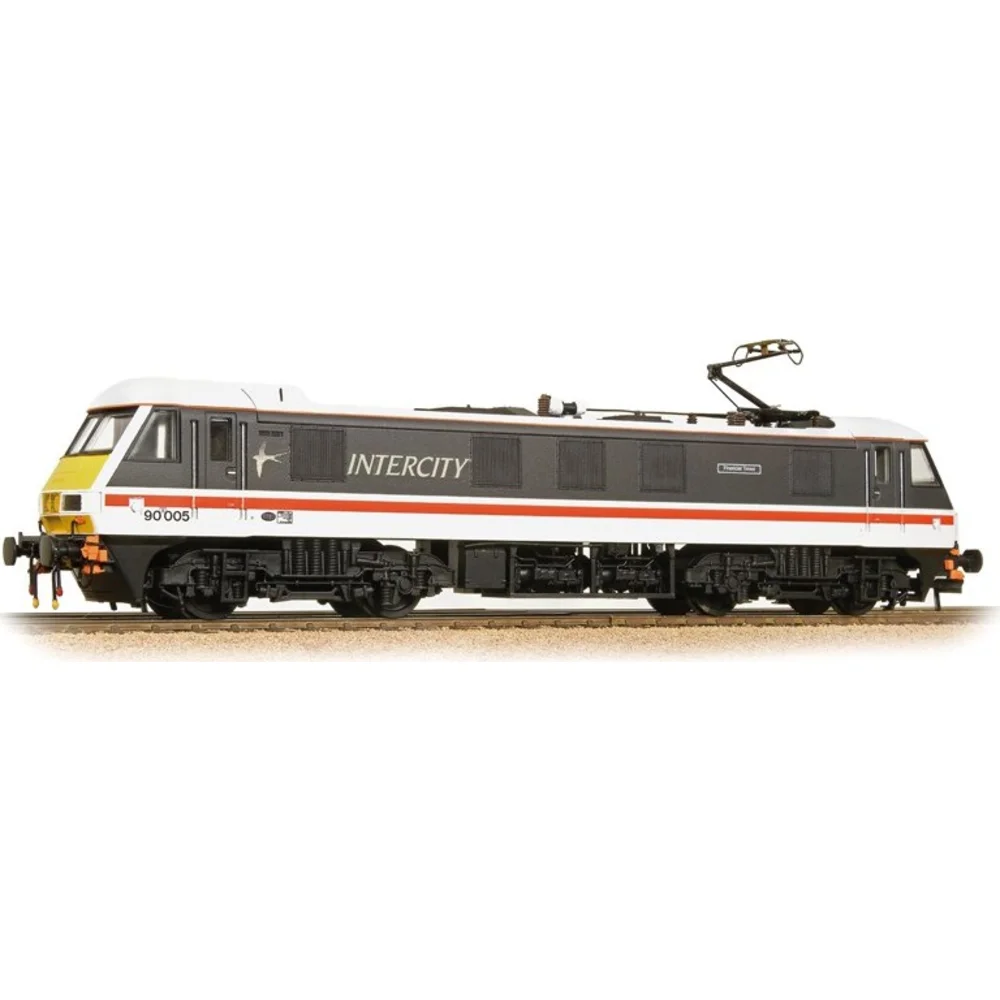

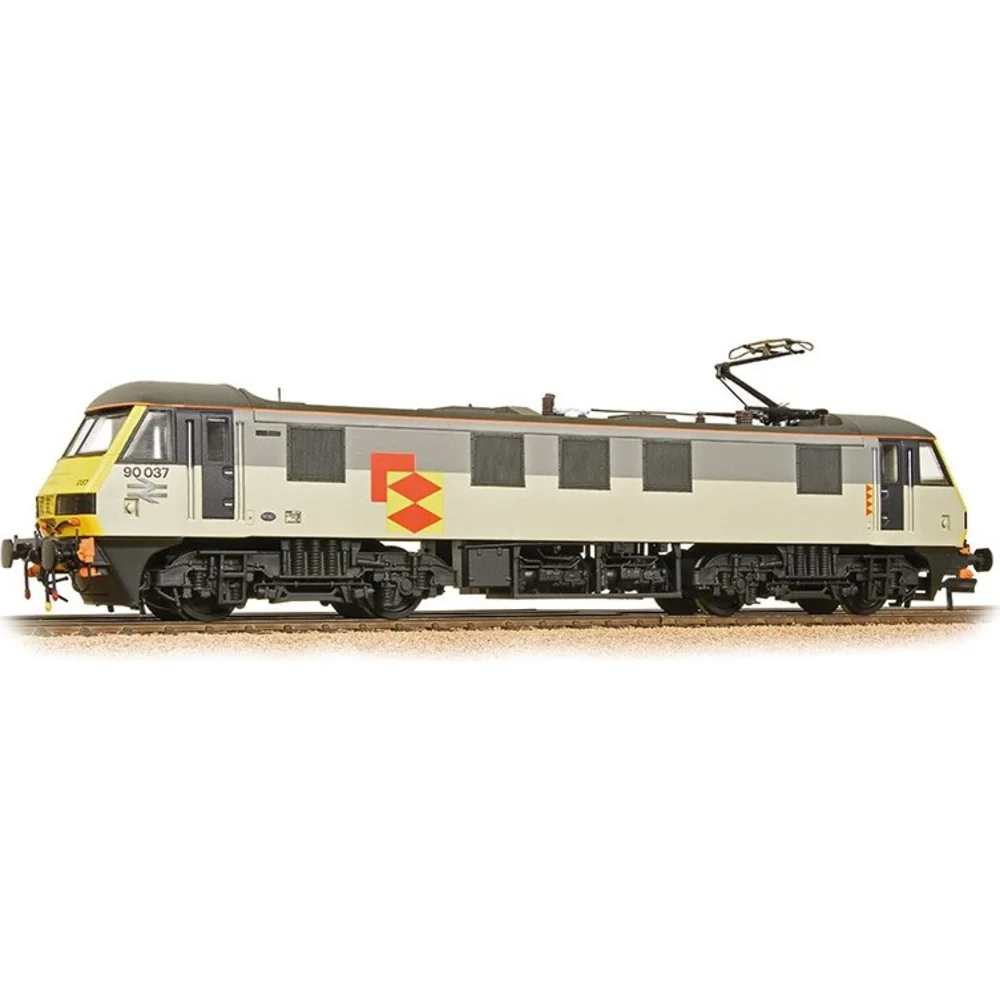

Bachmann Branchline OO Gauge (1:76 scale) represents the definitive model, featuring innovations that revolutionised British electric locomotive representation. The centrepiece innovation—a world-first servo-operated metal pantograph controlled via DCC—creates authentic operating realism previously impossible in ready-to-run models. Rather than fixed or manually-positioned pantographs, Bachmann's design enables realistic raising and lowering through DCC function mapping, with the servo motor providing smooth, scale-speed movement. This technical achievement earned widespread acclaim and established new expectations for premium electric locomotive models.

The OO gauge range encompasses diverse liveries across multiple releases. Initial offerings included 32-610 (90005 Financial Times in InterCity Swallow), 32-611 (90037 in Railfreight Distribution sector grey), 32-612 (90129 Frachtverbindungen in European scheme), and 32-613 (90026 in BR InterCity Mainline freight). Subsequent releases expanded coverage to Virgin Trains (32-615SF featuring 90004 City of Glasgow), EWS maroon (32-619 with 90030 Crewe Locomotive Works), Freightliner variants (32-617SF and 32-620), and Greater Anglia white (32-621). Each release demonstrates meticulous attention to livery accuracy, period-specific detailing, and prototype variations.

Technical execution impresses throughout Bachmann's development. A powerful motor with twin flywheels drives all four axles through precision gearing, ensuring smooth slow-speed operation appropriate for station platform crawling and realistic high-speed running. Comprehensive electrical pickup from all eight wheels maximises reliability on less-than-perfect track, whilst the substantial diecast metal chassis provides excellent weight distribution and low centre of gravity. Models measure 264mm in length, closely matching the 18.80-metre prototype when scaled to OO gauge's 1:76 proportion.

Bachmann models include 21-pin DCC sockets positioned for straightforward decoder installation, though a critical caveat applies: these models require the specific Bachmann 36-569A decoder (approximately £38-45) designed explicitly for Class 90 operation. Standard 21-pin decoders will damage the servo pantograph motor, making this specialised decoder essential for digital operation. The decoder provides five-function capability including directional lighting, cab illumination, switchable day/night running modes, and pantograph control. Sound-fitted variants (SF suffix) include factory-installed decoders with pre-fitted speakers, offering authentic Class 90 audio including thyristor "whine," rheostatic braking, compressor operation, and horn sounds.

Typical discounted prices run approximately £137-175 for DCC Ready versions and £250-330 for Sound Fitted models, representing excellent value given the sophisticated features and exceptional detail quality. Major retailers including Rails of Sheffield, Hattons Model Railways, Kernow Model Rail Centre, and The Model Centre offer consistent availability across the range, with pre-owned examples occasionally appearing at discounted prices.

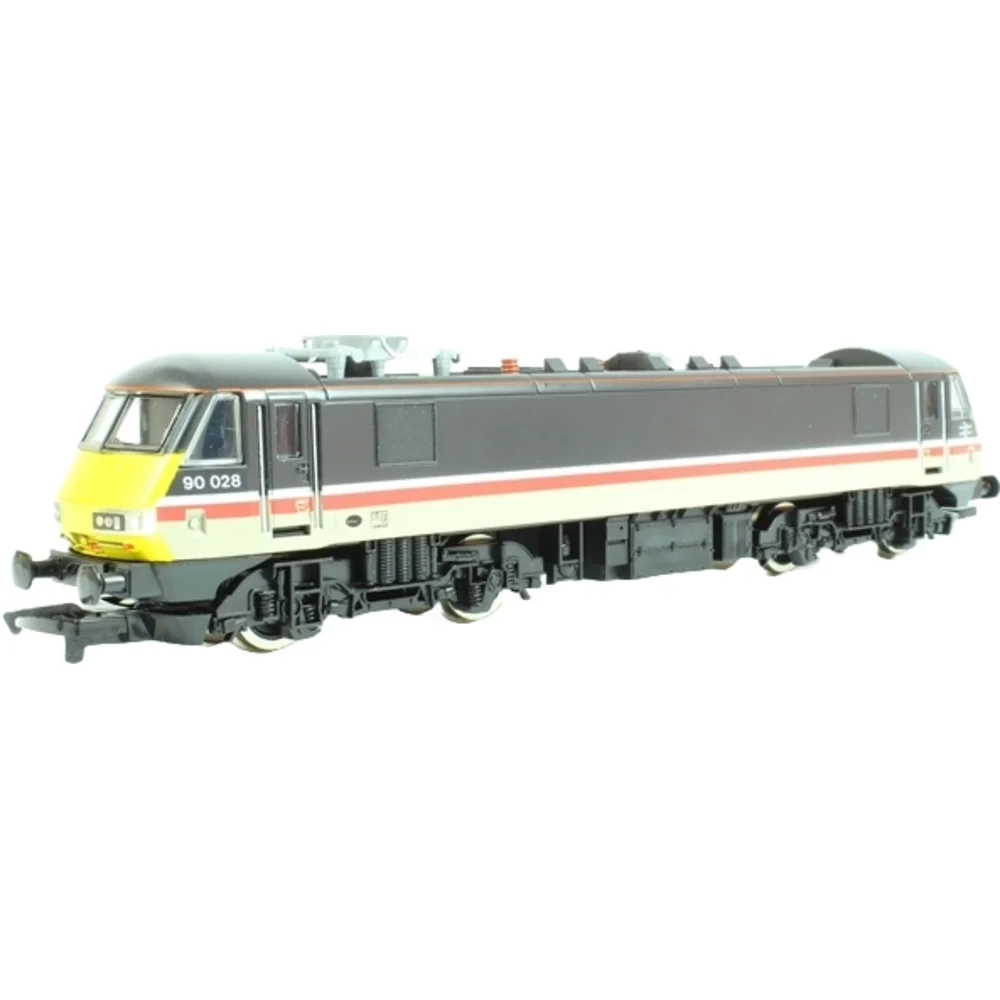

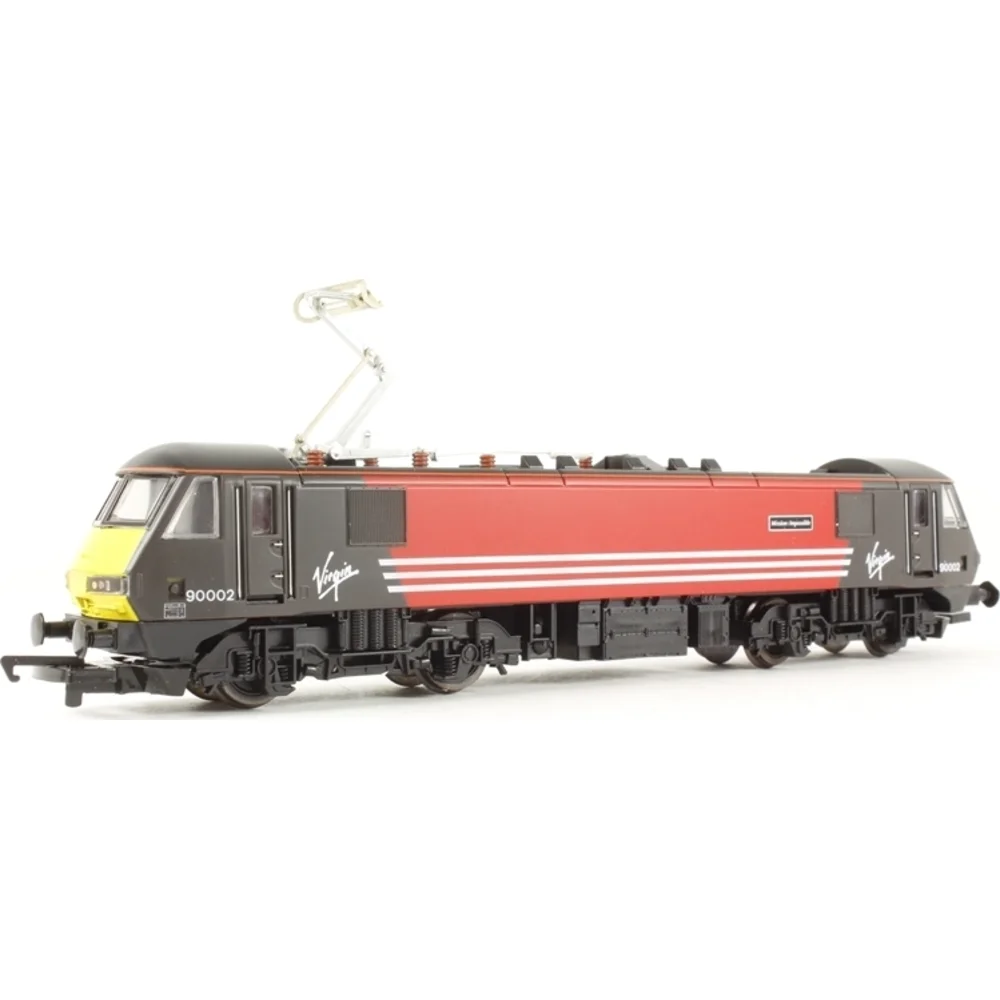

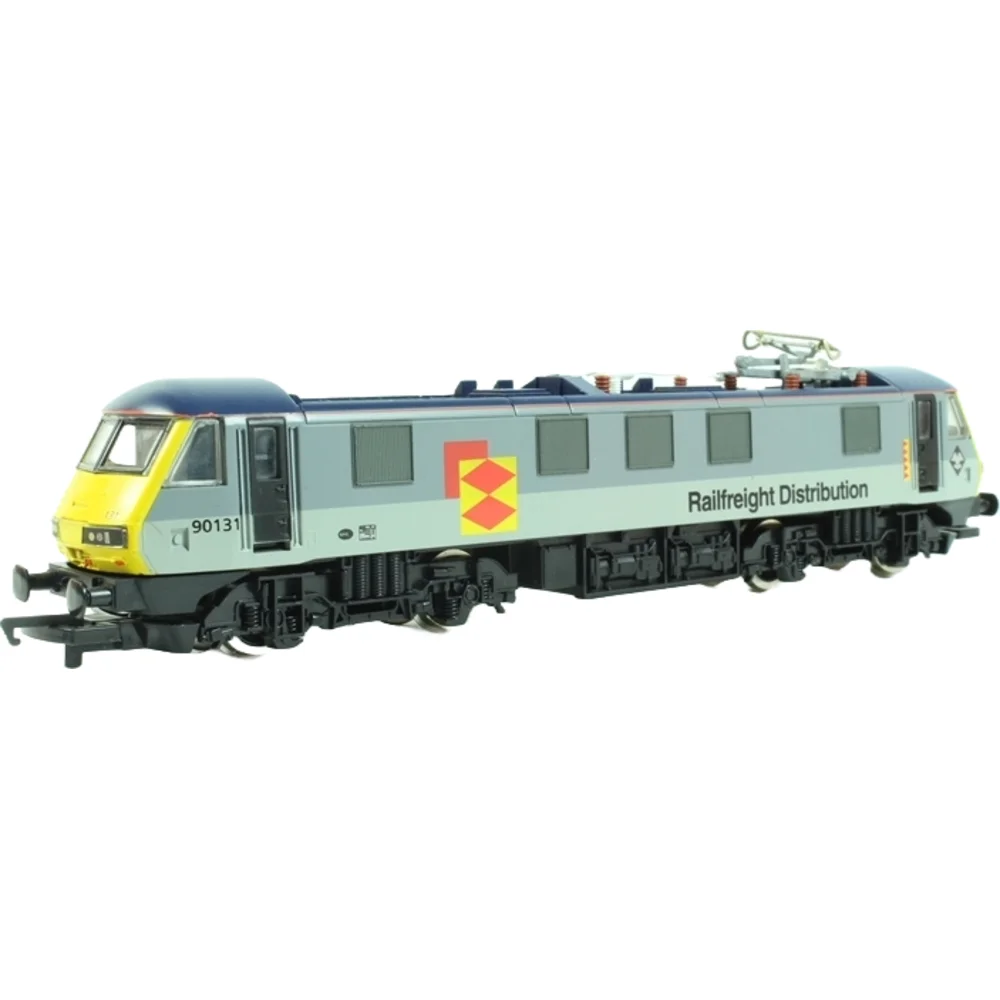

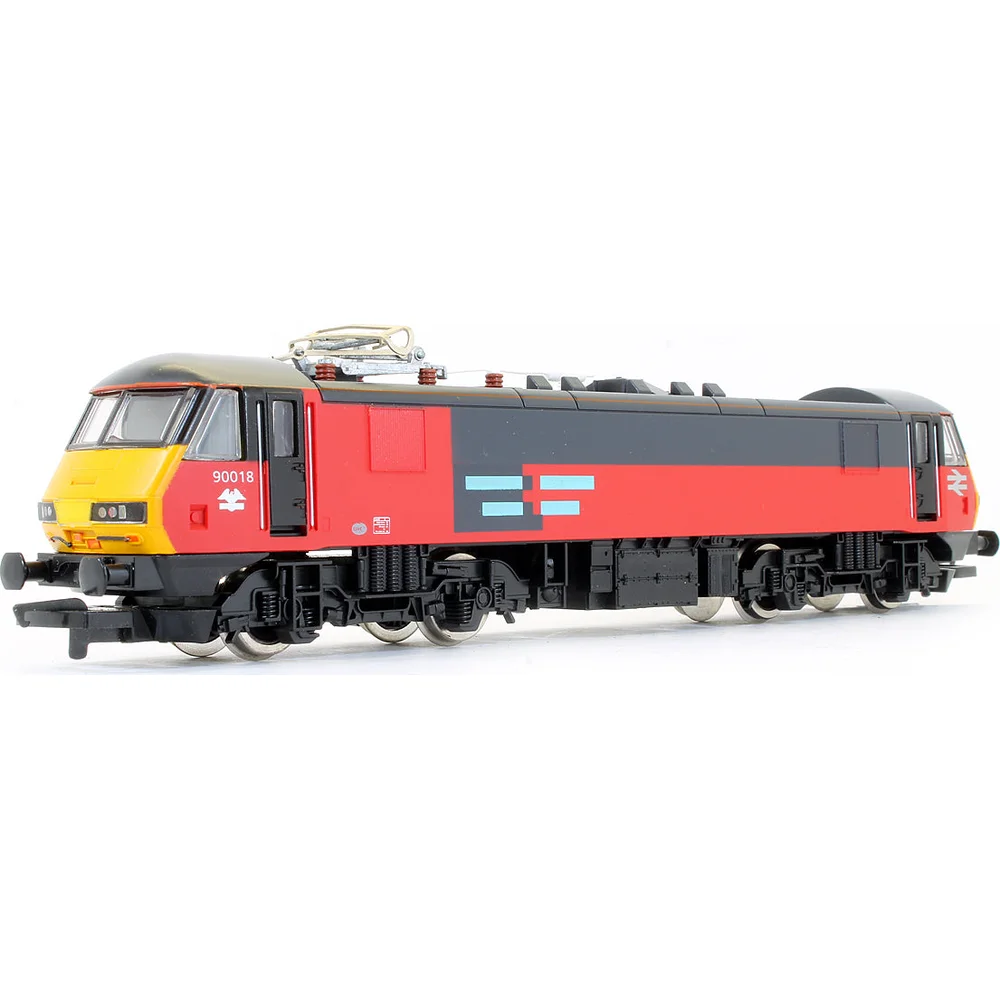

Hornby OO Gauge offers budget-friendly alternatives using their 2008-era tooling. The current R3924 (90024 in Malcolm Rail livery celebrating 100 years of the haulage company) retails at approximately £82, featuring an 8-pin DCC socket for conventional decoder installation. Whilst less detailed than Bachmann's premium offering—particularly regarding cab interior, underframe equipment, and the fixed rather than servo-operated pantograph—Hornby models provide accessible entry points for modellers prioritising affordability. Earlier Hornby releases from the 2008-2015 period covered InterCity, Virgin, EWS, and Freightliner schemes, with pre-owned examples typically selling for £45-75 depending on condition.

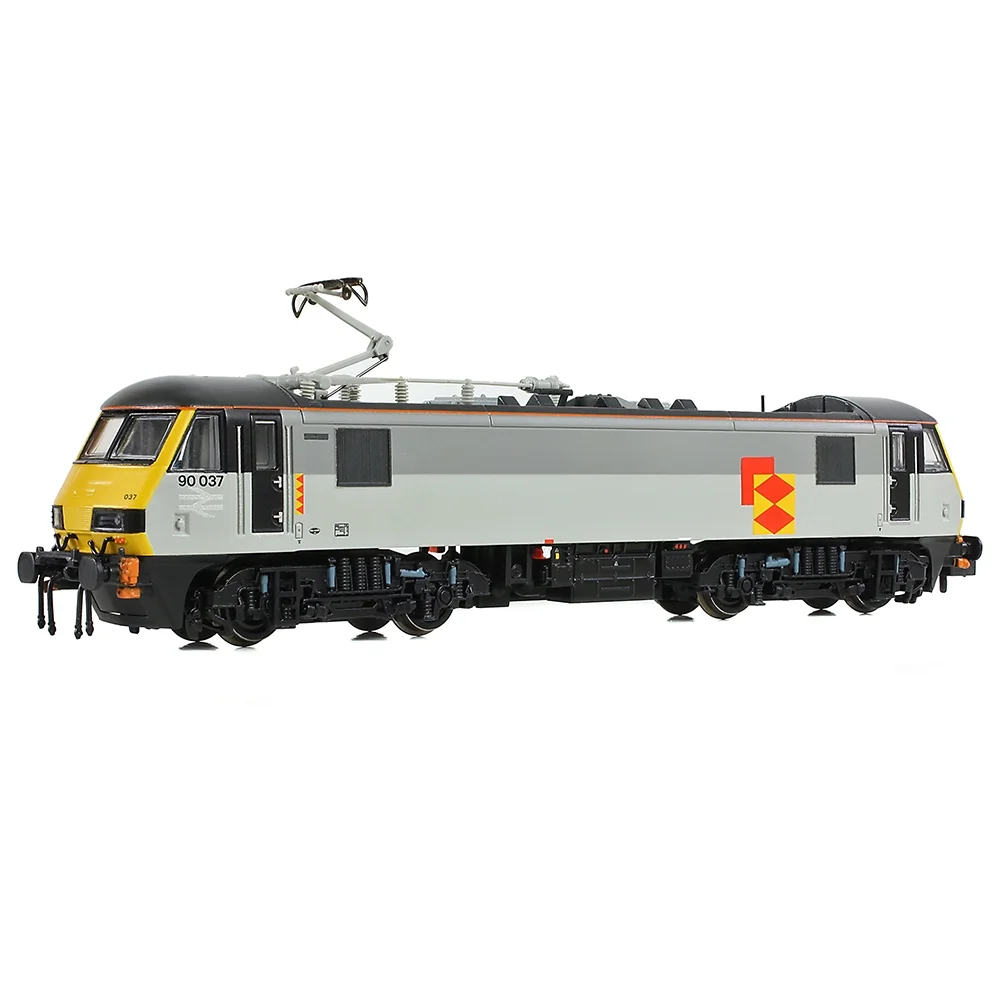

Graham Farish N Gauge (1:148 scale) launched completely new Class 90 tooling in 2022, representing the class excellently at the smaller scale. Models feature Next18 DCC sockets for straightforward digital conversion, coreless motors with twin flywheels ensuring smooth operation, and detailed poseable pantographs (though not servo-operated like Bachmann's OO version). The substantial diecast chassis provides excellent weight and stability, whilst comprehensive electrical pickup from all wheels maximises reliability.

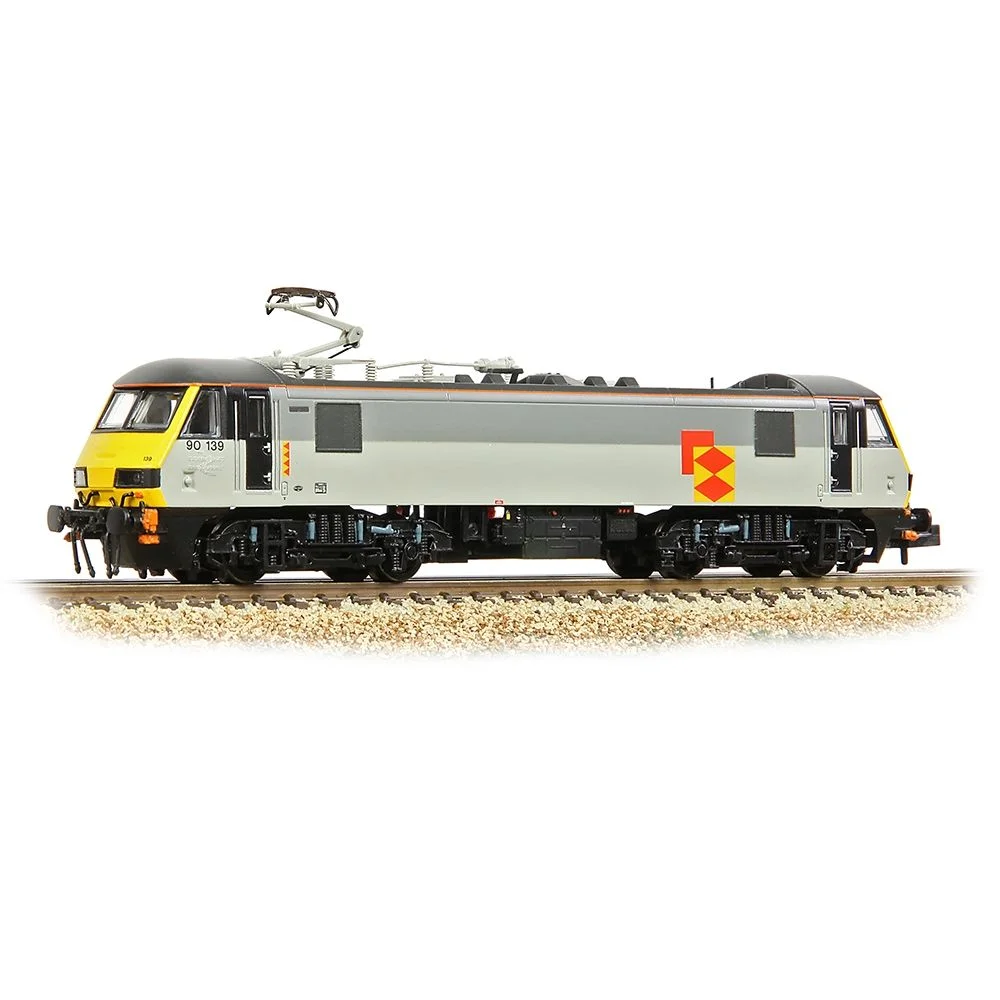

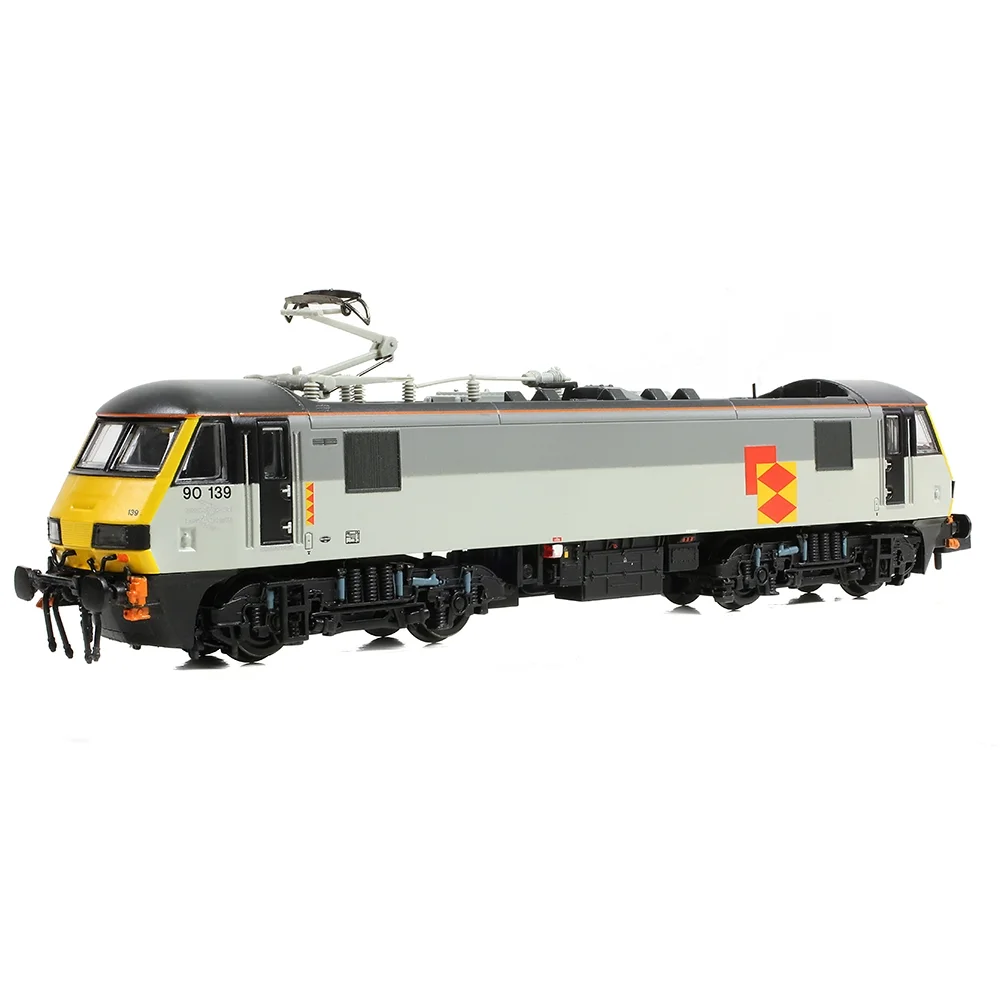

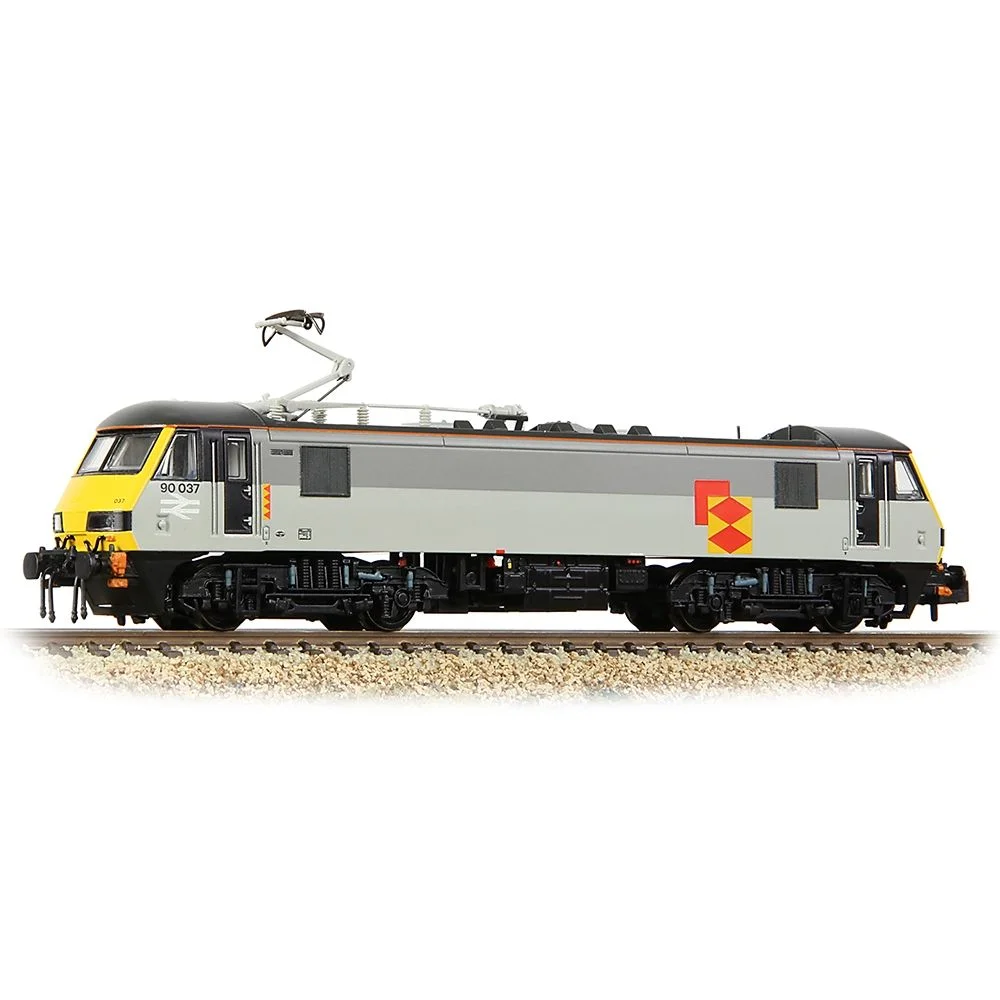

Graham Farish's range includes key liveries spanning the class's career: 371-780A (90006 Modern Railways 1911-2011 in InterCity Swallow), 371-781A (90139 in Railfreight Distribution), 371-783 (90004 City of Glasgow in Virgin Trains original red), 371-785 (90047 in Freightliner Green & Yellow), and others covering EWS, Greater Anglia, and contemporary Freightliner schemes. Models retail at RRP £194.95, typically discounted to approximately £165 through specialist retailers. Sound-fitted variants (SF suffix) incorporate factory-installed decoders and speakers, offering authentic Class 90 audio in N gauge—a significant achievement given the space constraints.

Contemporary reviews praise Graham Farish's execution, particularly the smooth running characteristics, excellent detail levels appropriate to N gauge, and comprehensive lighting implementation. The models suit layouts from second radius curves upwards, making them accessible for space-constrained modellers seeking modern British electric traction without requiring expansive main line radius infrastructure.

No O gauge Class 90 exists from any ready-to-run manufacturer—Heljan, Dapol, Tower Models, or others have not tooled this class. The substantial market size required to justify O gauge tooling development, combined with the relatively recent prototype and limited enthusiast demand for modern traction in 7mm scale, makes commercial production unlikely. Ambitious O gauge modellers seeking Class 90 representation face scratch-building challenges requiring advanced skills, extensive research, and substantial time investment.

Models

Unique Modelling Tips and Layout Integration

Successfully incorporating British Rail Class 90 models into layout operation requires understanding their specialised operational context and the authentic service patterns that characterised different eras. Unlike general-purpose mixed-traffic diesels that might appear anywhere, Class 90s operated specific routes with particular coaching stock combinations and freight consists that informed modellers can replicate authentically.

For InterCity era modelling (1987-1997), pair your Class 90 with Bachmann or Hornby Mark 3 coaches in matching Swallow livery, topped with a Driving Van Trailer for authentic push-pull operation. The DVT should lead when travelling away from London—a detail many modellers overlook but which creates instantly recognisable authenticity. Services typically comprised 9-11 vehicles including First Class, Standard Open, Standard with facilities (toilets/luggage), and buffet/restaurant cars. The locomotive pushed from the rear on down trains (leaving London) and hauled conventionally on up trains (approaching London), with drivers controlling from the DVT cab via Time-Division Multiplexing.

Authentic InterCity service patterns involved intensive West Coast Main Line operations including the prestigious hourly Birmingham Pullman, two-hourly Manchester services, Liverpool trains, and the overnight Caledonian Sleeper to Scotland. Model these demanding diagrams by scheduling your Class 90 for multiple return trips during operating sessions, with minimal turnaround time at terminal stations reflecting the push-pull operational advantages. Period photographs show locomotives maintaining remarkable external cleanliness despite intensive operation—InterCity standards demanded regular washing and attention to presentation.

Virgin Trains operations (1997-2004) offer colourful modelling possibilities. The distinctive red and black livery—initially applied to just five locomotives including 90002 Mission: Impossible—created striking visual impact against traditional BR blue and grey coaching stock. Virgin gradually repainted Mark 3 coaches to match, creating fully coordinated formations that epitomised late-1990s railway branding. The infamous "Pretendolino" substitute service saw Class 90s hauling Virgin-liveried Mark 3s configured to replicate Pendolino seating arrangements, complete with at-seat power sockets and redesigned interiors—an unusual but prototypically accurate formation for layouts set in the early 2000s.

Greater Anglia operations (2004-2020) transformed the class's geographical context. The locomotives worked intensive Liverpool Street to Norwich expresses with Mark 3 coaches in Greater Anglia's distinctive white, pink, and blue livery. These services operated every hour throughout the day, with peak-hour extras during commuting periods. The route characteristics differed substantially from West Coast operations—flatter terrain, tighter curves through North London suburbs, frequent station stops at Stratford, Chelmsford, Colchester, and Ipswich, and the distinctive ambience of East Anglian branch termini. Model this operational context through appropriate station infrastructure, signalling, and the inclusion of contemporary EMUs like Class 317s and 321s sharing the route.

Freight modelling opens extensive possibilities for authentic contemporary layouts. Freightliner Class 90s work intensive intermodal container services using modern FFA and FGA wagons loaded with 20ft and 40ft ISO containers in contemporary shipping line liveries—Maersk blue, Evergreen green, China Shipping red, and generic grey containers. Model the distinctive overnight workings that see locomotives traverse both Great Eastern and West Coast routes in single diagrams—services like the flagship 4S88 (Ipswich to Coatbridge) covering over 400 miles through East Anglia, the North London Line, and the WCML to central Scotland.

Typical freight consists range from 12-20 container wagons depending on route, loading, and locomotive availability. The 75 mph maximum speed (for freight-configured Class 90/1 examples) places these trains in the "fast freight" category, overtaking slower coal and aggregates services whilst following passenger trains in timetable hierarchies. Model this operational pattern through careful timetabling that sees your Class 90 freight threading between passenger services, using loops and sidings for regulation during delays.

Your Class 90 can legitimately appear alongside diverse traction depending on layout location and era. On West Coast Main Line-themed layouts, it shares tracks with Class 86s, 87s, 390 Pendolinos, 221 Voyagers, and even Class 91s covering for East Coast diagram disruptions. The East Anglian context places it alongside Class 47s, 66s, 90s, and electric multiple unit types including Class 317, 321, 360, 379, and modern Class 720 and 745 Aventras. This operational diversity creates interesting visual variety whilst maintaining prototypical accuracy.

Sound fitting transforms the Class 90 modelling experience for operators prioritising authentic audio atmosphere. The distinctive thyristor "whine" during acceleration—a rising electronic tone that varies with power application—creates immediately recognisable character. Combine this with rheostatic braking sounds (a rushing "whoosh" during deceleration), compressor operation (periodic pumping sounds maintaining air pressure), and the twin-tone horn for an immersive experience. Specialist sound project provider Legomanbiffo offers dedicated Class 90 projects compatible with ESU LokSound decoders, whilst Bachmann's factory-fitted sound models include authentic recordings from actual locomotives.

Consider modelling named locomotives with historical significance: 90001 Royal Scot represents the pioneer of the class and now operates in preserved LSL ownership. 90003 hauled the inaugural passenger service on 12 July 1988—the class's official birthday. For something distinctive, 90028-90030 carried European railway partner liveries in 1992 (Belgian SNCB, German DB, and French SNCF respectively), offering unusual prototype justification for Continental-inspired colour schemes. 90014 Over the Rainbow wore special NHS tribute livery in 2020—an emotional modern scheme perfect for layouts representing the pandemic era.

Layout infrastructure should reflect the Class 90's electrified environment. Overhead line equipment (OLE) is essential for authenticity—Bachmann, Peco, and Viessmann offer comprehensive catenary systems in OO gauge, whilst Kato and Tomix provide N gauge alternatives. Modern LED signals with multiple-aspect displays replace older semaphore or colour-light installations. Contemporary station infrastructure includes ticket barriers, digital information displays, and CCTV cameras. These details create convincing 1990s-2020s atmosphere essential for appropriate Class 90 deployment.

Finally

The British Rail Class 90 represents electric locomotive design at its most pragmatic and successful. Rather than pursuing revolutionary innovation, BREL evolved proven Class 87 technology with sophisticated thyristor control, advanced wheelslip detection, and pioneering Time-Division Multiplexing push-pull capability. The result delivered exceptional reliability (after early teething troubles were systematically resolved), operational versatility spanning express passenger and heavy freight duties, and remarkable longevity—37 years of continuous service from 1987 through today.

For railway historians, the Class 90 chronicles Britain's railway transformation from nationalised unity through privatisation's fragmented diversity. The 35+ livery variations—from BR InterCity Swallow through Virgin's red, EWS maroon, Greater Anglia white, and contemporary Freightliner schemes—document changing ownership, evolving corporate identities, and the dramatic operational restructuring that characterised post-privatisation Britain. Each repaint tells a story about operators' ambitions, service patterns, and the changing economic context of railway operation.

The engineering legacy extends beyond operational statistics. The Class 90 pioneered TDM-equipped push-pull operations that transformed InterCity services by eliminating time-consuming locomotive run-rounds, directly improving line capacity and service frequency. The sophisticated thyristor control demonstrated British capability in power electronics, informing subsequent developments in traction technology. The advanced Doppler radar wheelslip detection proved its worth on demanding gradients, validating investment in sophisticated control systems over crude mechanical approaches.

The controversial DB Cargo withdrawals and subsequent scrapping represent one of Britain's railway preservation movement's significant challenges. The loss of ten serviceable electric locomotives—each capable of decades more operation—contradicts decarbonisation ambitions whilst eliminating valuable assets. However, Freightliner's commitment to electric traction and LSL's operational preservation efforts ensure continued Class 90 visibility. Approximately 30 locomotives remain active, providing modellers with thoroughly contemporary prototypes operating on today's railway alongside historical examples in heritage schemes.

For model railway enthusiasts, the Class 90 offers exceptional appeal. Bachmann's revolutionary 2019 OO gauge tooling—featuring world-first servo-operated pantograph, comprehensive DCC integration, and meticulous detail—sets new standards for British electric locomotive models. Graham Farish's excellent N gauge versions ensure smaller-scale enthusiasts access authentic modern traction. The diverse livery range spanning BR through privatisation to contemporary freight operations provides virtually unlimited modelling possibilities, whilst operational versatility enables authentic deployment across passenger expresses, overnight sleepers, and intermodal container services.

Whether representing the 1988 InterCity heyday with Swallow-liveried locomotives hauling Mark 3 coaching stock, the colourful privatisation years with Virgin's striking red schemes, Greater Anglia's intensive East Anglian expresses, or contemporary Freightliner freight threading through the night, the Class 90 delivers authentic modern British railway atmosphere. These versatile, reliable locomotives represent pragmatic engineering success—outlasting more ambitious contemporaries through fundamental soundness and remarkable adaptability.

As Britain's railway continues evolving towards decarbonisation, the Class 90's 37-year career validates electrification's benefits. The locomotives demonstrate that well-maintained electric traction delivers decades of reliable service with dramatically lower environmental impact than diesel alternatives. For modellers seeking to represent this significant chapter in British railway history, the BR Class 90 provides thoroughly documented, extensively modelled, and operationally authentic prototype appeal spanning generations of railway development.

Frequently Asked Questions

How many BR Class 90 locomotives were built and when?

Fifty Class 90 locomotives were constructed at BREL Crewe Works between 1987 and 1990, numbered 90001-90050. The first locomotive, 90001, emerged in October 1987, with the inaugural passenger service operated by 90003 on 12 July 1988—now celebrated as the class's official birthday. The entire order was completed by 1990, with locomotives initially divided between InterCity passenger duties (90001-90025) and Railfreight services (90026-90050) reflecting their mixed-traffic design philosophy.

What power does the Class 90 produce?

The Class 90 produces 5,000 brake horsepower (3,730 kW) continuous output from four GEC G412CY traction motors powered through sophisticated thyristor converters from 25kV AC overhead supply. This output matches the earlier Class 87 whilst incorporating dramatically more advanced control systems providing stepless power application, superior wheelslip detection using Doppler radar technology, and microprocessor-controlled traction management that automatically optimises adhesion across varying rail conditions and gradient profiles.

What is the maximum speed of a Class 90?

In passenger configuration (Class 90/0), the maximum speed is 110 mph (177 km/h), matching the West Coast Main Line's premier express capability and equalling the prestigious Class 91's top speed. Freight-configured locomotives (formerly designated Class 90/1) are limited to 75 mph reflecting their purely freight role and different gearing ratios. The design incorporated automatic speed limiting that drivers could set up to the maximum permitted speed, with the system preventing overspeed through automatic power reduction.

Who currently operates Class 90 locomotives?

As of December 2025, Freightliner operates 28 Class 90s on intensive intermodal container services across the West Coast and Great Eastern main lines, having strategically acquired 13 ex-Greater Anglia locomotives in 2019-2020. Locomotive Services Limited runs three locomotives (90001, 90002, 90026) on charter operations, maintaining them in heritage InterCity Swallow livery. Nine former DB Cargo locomotives remain stored at Crewe IEMD with uncertain futures, whilst 90050 is preserved at Crewe Heritage Centre. Ten locomotives have been scrapped following DB Cargo's controversial 2023 withdrawal decision.

What is the best OO gauge Class 90 model?

Bachmann's 2019 tooling (32-6xx series) represents the definitive OO gauge Class 90, featuring world-first servo-operated metal pantograph controlled via DCC, comprehensive directional lighting with cab illumination, 21-pin DCC socket, and exceptional detail including separately-applied handrails and underframe equipment. DCC Ready versions typically sell for £137-175, whilst Sound Fitted variants retail at £250-330. Critical note: these models require the specific Bachmann 36-569A decoder (£38-45)—standard 21-pin decoders will damage the servo pantograph mechanism.

Does Hornby make a Class 90?

Yes, Hornby produces Class 90 models using 2008-era tooling offering budget-friendly alternatives to Bachmann's premium versions. The current R3924 (90024 in Malcolm Rail centenary livery) retails at approximately £82 with 8-pin DCC socket and functional but less sophisticated specification. Earlier Hornby releases from 2008-2015 covered InterCity, Virgin Trains, EWS, and Freightliner schemes, with pre-owned examples typically available for £45-75 depending on condition. Whilst less detailed than Bachmann, Hornby models provide accessible entry points for modellers prioritising affordability.

Is there an N gauge Class 90 available?

Graham Farish released completely new Class 90 tooling in 2022, offering excellent representation at 1:148 scale with Next18 DCC socket, coreless motor with twin flywheels, detailed poseable pantograph, and comprehensive lighting. Models including 371-780A (90006 InterCity Swallow) and 371-783 (90004 Virgin Trains) retail at RRP £194.95, typically discounted to approximately £165. Sound-fitted variants (SF suffix) incorporate factory-installed decoders and speakers, delivering authentic Class 90 audio in N gauge—a significant achievement given space constraints at the smaller scale.

What coaches did Class 90s typically haul?

Class 90s hauled Mark 3 coaches on BR InterCity, Virgin Trains, and Greater Anglia passenger services, operating in push-pull formation with Driving Van Trailers (DVTs) at the London end enabling remote control via Time-Division Multiplexing. They briefly worked Mark 4 coaches when covering East Coast Main Line duties during Class 91 reliability issues. Overnight Caledonian Sleeper services used dedicated sleeping cars. Authentic modelling requires matching locomotive and coaching stock liveries, with typical formations comprising 9-11 vehicles including First Class, Standard, buffet facilities, and DVT.

How many different Class 90 liveries exist?

Over 35 distinct livery variations have been documented across the class's 37-year career, including BR InterCity Swallow, Railfreight Distribution grey, Rail Express Systems red, Virgin Trains red and black, EWS maroon and gold, Freightliner green and yellow plus grey variants, Greater Anglia white with pink and blue, DB Cargo red, and numerous special schemes including European partner liveries (Belgian, German, French), commemorative designs like 90014's NHS tribute "Over the Rainbow", and anniversary schemes celebrating railway milestones.

Are any Class 90s preserved?

Traditional preservation faces challenges due to the 25kV AC overhead electrification requirement that no UK heritage railway possesses. However, 90050 is preserved at Crewe Heritage Centre on long-term loan from Freightliner, undergoing cosmetic restoration for static display following withdrawal after fire damage in 2004. Additionally, Locomotive Services Limited operates 90001 and 90002 in authentic InterCity Swallow livery on mainline charter services, effectively serving as working heritage locomotives maintaining public visibility and operational capability whilst celebrating the class's InterCity heritage.

What happened to the DB Cargo Class 90 fleet?

DB Cargo UK controversially announced permanent withdrawal of its entire Class 90 fleet in July 2023, citing high electricity costs and claiming diesel traction was more economical—a decision that provoked fierce criticism from environmental campaigners given electrification's clear decarbonisation benefits. By December 2025, ten locomotives have been scrapped at Sandbach Commercial Dismantlers (with 90022 the first casualty in July 2024), whilst nine remain stored at Crewe IEMD with uncertain futures pending potential acquisition by other operators seeking proven electric traction.

Can Class 90s work in multiple with other locomotives?

Yes, Class 90s feature comprehensive Time-Division Multiplexing multiple working capability enabling operation with other TDM-equipped locomotives, Driving Van Trailers, Driving Brake Standard Opens, and Propelling Control Vehicles using standard RCH jumper cables. This system transmits all control functions via coded pulses through the train line, enabling drivers to operate locomotives remotely from driving cabs at either end of formations—essential for the push-pull operations that defined InterCity services and eliminated time-consuming terminal run-rounds.
