Historical Background and Context

The genesis of the 1000 Class emerged from Samuel Johnson's determination to address escalating coal costs through superior thermal efficiency. As Chief Mechanical Engineer of the Midland Railway since 1873, Johnson had established the company's reputation for elegant, economical locomotive designs embodying the controversial "small engine policy"—a philosophy prioritising standardisation and frequent services over increasingly powerful but complex alternatives adopted by rival companies.

By the early 1900s, rising fuel expenses threatened railway operating economics. Compound expansion—using steam twice by passing it from high-pressure cylinders to larger low-pressure cylinders—offered theoretical advantages, but British experiments with Webb's LNWR compounds and other designs had produced disappointing results. Johnson recognised that successful compound operation demanded sophisticated engineering eliminating the complexity that plagued earlier attempts.

The solution emerged through collaboration with Walter Mackersie Smith, Chief Draughtsman of the North Eastern Railway, whose patented three-cylinder compound system offered elegant simplicity. Smith's arrangement placed one high-pressure cylinder inside the frames between the leading coupled wheels, with two low-pressure cylinders outside driving the leading coupled axle. This configuration provided excellent weight distribution and avoided the mechanical complications of earlier two-cylinder compound designs.

Derby Works commenced construction of the pioneer locomotive, numbered 2631, in 1902. The works delivered five locomotives by 1903, numbered 2631-2635, incorporating Smith's compound system with independent valve gear control allowing drivers to adjust high-pressure and low-pressure expansion ratios. Contemporary engineering publications praised the sophisticated mechanical arrangement, though initial operational experience revealed the complexity demanded exceptional driver skill for optimal performance.

When Richard Deeley succeeded Johnson as Chief Mechanical Engineer in 1904, he immediately recognised both the potential and limitations of the compound design. Deeley's engineering pragmatism led him to simplify and refine Johnson's pioneers whilst expanding the class substantially. Between 1905 and 1909, Derby Works constructed forty additional locomotives incorporating Deeley's improvements, creating the definitive compound design that would serve Britain's railways for half a century.

Deeley's modifications proved transformative. He eliminated Smith's complex independent valve gear refinements, substituting an ingenious automatic starting arrangement that began locomotive movement with live steam admitted directly to the low-pressure cylinders—effectively operating as a simple expansion engine with enhanced starting tractive effort. As the driver opened the regulator progressively, an automatic valve gradually closed the direct steam admission, transitioning seamlessly to true compound operation without requiring driver intervention or special skill. This brilliant solution eliminated the operational complexity that had deterred many enginemen from Johnson's originals.

Additional Deeley refinements included raising the running plate clear of the coupling rods to improve maintenance access, replacing rectangular rear splashers with graceful quarter-circle designs merging into cab side sheets, and initially specifying 220 psi boiler pressure (later standardised to 200 psi superheated). The visual result combined Midland Railway aesthetic elegance with mechanical accessibility—a design achieving the company's standardisation philosophy whilst delivering genuine performance advantages over contemporary simple expansion designs.

The 1907 renumbering scheme reflected the class's growing importance. Johnson's five pioneers received numbers 1000-1004, whilst Deeley's thirty completed locomotives took 1005-1034, with the final batch (1908-1909) numbered 1035-1044. This created the unified 1000 Class designation that would endure through LMS and British Railways ownership, distinguishing these Midland compounds from the larger fleet of 195 LMS-built variants constructed 1924-1932 with smaller 6ft 9in driving wheels.

Design and Technical Specifications

The engineering excellence of the Midland Railway 1000 Class lay in the sophisticated integration of compound expansion principles within a mechanically accessible design suitable for intensive express passenger service. At the heart of the system sat the three-cylinder arrangement: one inside high-pressure cylinder measuring 19 inches diameter by 26 inches stroke positioned between the frames, paired with two outside low-pressure cylinders of 21 inches diameter by 26 inches stroke driving the leading coupled axle.

The cylinder configuration created distinctive operational characteristics. The inside high-pressure cylinder received boiler steam at 200 psi (superheated), expanding it through the 19-inch bore before exhausting at intermediate pressure to a receiver chamber. This partially-spent steam then distributed simultaneously to both outside low-pressure cylinders, where it expanded through the larger 21-inch bores before final exhaust. The sequential expansion cycle extracted substantially more work from each unit of steam compared to simple expansion designs—the fundamental thermodynamic advantage demonstrating compound superiority.

Valve gear arrangements reflected the mechanical sophistication underlying smooth operation. Stephenson valve gear actuated all three cylinders, with piston valves controlling the inside high-pressure cylinder and slide valves operating the outside low-pressure cylinders. Deeley's automatic starting valve ingeniously admitted live steam directly to the low-pressure cylinders during initial regulator opening, providing enhanced starting tractive effort by temporarily operating as a simple expansion engine. As the regulator opened progressively, an automatic mechanism gradually closed the direct admission, transitioning seamlessly to compound operation without driver intervention—eliminating the complexity that had plagued Johnson's original independent valve gear arrangements.

The 4-4-0 wheel arrangement combined 7-foot diameter driving wheels with excellent adhesion characteristics. The large drivers provided speed capability approaching 85 mph on level routes, whilst the coupled wheelbase distributed weight effectively for reliable adhesion on the challenging 1-in-100 gradients characterising the Settle-Carlisle line. The leading bogie ensured stable high-speed running, whilst the trailing coupled wheels provided additional adhesive weight—a configuration proving ideal for the express passenger duties dominating the class's operational profile.

Boiler development proceeded through distinct phases reflecting progressive improvements in steam generation technology. Original Johnson locomotives featured round-top fireboxes with saturated steam, designated Type G9. When No. 1040 received experimental superheating in 1913, the thermal efficiency improvements proved so dramatic that Derby Works systematically rebuilt the entire class. Johnson's five pioneers received comprehensive reconstruction to Deeley standard during 1914-1919, including superheated G9AS boilers, whilst the Deeley engines progressively received superheating from 1919 onwards. The superheating elements significantly increased steam temperature without raising pressure, improving thermal efficiency whilst reducing cylinder condensation losses—modifications extending the class's competitive lifespan by decades.

Frame construction followed established Midland Railway practice with inside plate frames providing substantial rigidity whilst maintaining the company's standardisation philosophy. The frames accommodated the inside high-pressure cylinder between the leading coupled wheels, with careful attention to weight distribution ensuring the cylinder's mass didn't compromise adhesion. Outside frames would have simplified cylinder access but violated Midland aesthetic principles favouring clean external appearance—a design philosophy Johnson and Deeley maintained despite mechanical considerations.

Tender arrangements evolved through the locomotives' service lives. Original Johnson engines carried large double bogie tenders, replaced in 1911 with six-wheel tenders conforming to evolving Midland standards. These six-wheel designs provided adequate water and coal capacity for typical express passenger diagrams whilst reducing overall train weight—an important consideration for the small engine policy emphasising economical operation over raw power. The preserved locomotive No. 1000 carries a later Fowler-pattern tender, though this represents post-preservation modification rather than original specification.

The visual distinction between Johnson and Deeley variants remained evident throughout the class's service life. Johnson's five locomotives initially featured lower running plates closely following the coupling rod arc, rectangular rear splashers, and Smith's complex valve gear arrangements visible to trained observers. Deeley's engines presented cleaner lines with raised running plates clearing the rods, graceful quarter-circle splashers merging into cab sides, and simplified external appearance reflecting the automatic valve gear's reduced complexity. Following superheating and rebuilding programmes, Johnson locomotives conformed externally to Deeley standards, though subtle detail differences remained for enthusiasts documenting individual engines.

Service History and Operations

The MR 1000 Class established its reputation hauling prestige express passenger services across the Midland Railway's extensive main line network. Initial deployment concentrated on the company's premier routes, particularly the challenging London St Pancras to Leeds and Carlisle services traversing the mountainous Settle-Carlisle line. The locomotives' 7-foot driving wheels provided speed capability for competitive timings, whilst the compound system's superior thermal efficiency delivered economical operation on sustained climbs—precisely the combination demanded by Midland Railway's operational philosophy.

The Settle-Carlisle route proved the perfect testing ground for compound locomotive capabilities. The notorious 1-in-100 gradients climbing to Ais Gill summit (1,169 feet above sea level) and the exposed moorland conditions challenged locomotive performance and coal efficiency. Contemporary operating records praised the compounds' ability to maintain scheduled speeds with typical 8-11 coach formations whilst consuming significantly less coal than simple expansion alternatives. Enginemen particularly appreciated the automatic starting system eliminating the skill-intensive manual changeover procedures required by other compound designs.

Geographic deployment expanded progressively as Deeley's production batches entered service. By 1914, the forty-five locomotives worked from major express passenger depots including Derby, Leeds Holbeck, Leicester, Nottingham, Manchester, Bristol, and Kentish Town in North London. Typical duties involved departing London St Pancras mid-morning with northbound expresses, working through to Leeds or Manchester with intermediate stops at Leicester, Nottingham, and Derby, then returning with evening southbound services. The intensive diagrams demanded reliable locomotives requiring minimal servicing—precisely the standardised maintenance approach Midland Railway engineering emphasised.

The 1918 Little Salkeld accident involving No. 1010 demonstrated both the class's operational intensity and the railway's challenging infrastructure. On 19 January, the locomotive struck a landslip at 60 mph whilst hauling an eleven-coach express through Long Meg cutting. The collision telescoped the front two carriages, killing seven passengers and injuring forty-six. The accident investigation revealed no mechanical defect with the locomotive; rather, the tragedy resulted from insufficient civil engineering monitoring of unstable geological conditions. No. 1010 returned to service following repairs, though it suffered another collision at the same location in 1933—a testament to the persistent infrastructure challenges characterising the Settle-Carlisle route.

The 1923 Grouping expanded operational territory dramatically. The London Midland & Scottish Railway inherited all forty-five compounds (originally numbered 1000-1044), initially retaining Midland crimson lake livery before progressively repainting in LMS maroon. The locomotives' operational excellence ensured continued deployment on premier services, with expanded duties encompassing former Caledonian Railway main lines in Scotland and Glasgow & South Western routes. Contemporary accounts described the compounds performing "magnificent work" on Scottish expresses, where their proven reliability and economical operation impressed LMS management sufficiently to inspire construction of 195 additional compounds during 1924-1932.

The 1924-1925 comparative trials between Carlisle, Leeds, and Preston provided definitive validation of compound superiority. LMS testing departments organised rigorous dynamometer car trials comparing Midland compounds against LNWR George the Fifth Class 4-4-0s and Caledonian Dunalastair 4-4-0s on the challenging Aisgill and Shap routes. The results proved conclusive: the Midland compounds demonstrated significantly superior coal consumption whilst maintaining equivalent or better timekeeping. The thermal efficiency advantages of compound expansion, previously theoretical, received empirical confirmation—justifying both the original Johnson design and LMS decision to construct additional examples.

The progressive superheating programme enhanced performance throughout the 1920s and 1930s. Locomotives receiving superheated boilers demonstrated noticeably improved steam generation, reduced cylinder condensation losses, and enhanced thermal efficiency. The modifications extended the class's competitive lifespan, allowing continued frontline express service through the 1930s despite increasing competition from newer Stanier designs. However, the compounds remained specialised machines requiring understanding of their operational characteristics—knowledge that progressively declined as experienced Midland Railway enginemen retired.

World War Two marked the beginning of decline. Wartime conditions imposed deferred maintenance, heavy utilisation, and declining coal quality—factors particularly detrimental to precision machinery like compound locomotives. The complex valve gear and three-cylinder arrangement demanded meticulous maintenance standards that wartime operating conditions couldn't sustain. By 1945, many locomotives exhibited worn components, leaking glands, and compromised thermal efficiency—defects that peacetime austerity prevented rectifying comprehensively.

British Railways inherited forty locomotives at nationalisation on 1 January 1948, promptly renumbering them 41000-41044 by adding 40000 to Midland numbers. The new administration showed little sympathy for elderly compound locomotives requiring specialised maintenance. Progressive withdrawals commenced immediately, with declining maintenance standards accelerating deterioration. Locomotives increasingly faced assignment to local passenger duties for which their compound system was thoroughly unsuited—short trips with frequent stops prevented efficient compound operation, whilst the automatic starting valve's complexity became liability rather than asset on stop-start suburban services.

The rapid elimination reflected BR's determination to standardise on simpler, more modern designs. By January 1952, only eleven locomotives remained in service, concentrated at seven depots: Gloucester Barnwood (2), Bedford (2), Nottingham (3), Derby (1), Leeds Holbeck (1), Leicester (1), and Manningham (1). Contemporary observers noted increasingly decrepit external condition with faded paintwork, leaking glands, and general neglect—a sad decline for locomotives that had represented engineering excellence just two decades earlier.

Fleet

No locomotives found.

Withdrawal and Preservation Legacy

The withdrawal history of the Midland Railway 1000 Class unfolded with remarkable rapidity following British Railways nationalisation. The forty locomotives inherited in January 1948 faced systematic elimination over just five years—a compressed timeline reflecting BR's determination to modernise the locomotive fleet and eliminate specialised designs requiring unusual maintenance expertise. The accelerated scrapping contrasted sharply with the 195 LMS-built compounds, which continued service until 1961, demonstrating that the older Midland engines were considered less economical despite their historical significance.

The pattern began immediately following nationalisation. Eight locomotives faced withdrawal during 1948—the first full year of BR operation—reducing the fleet to thirty-seven. The eliminations continued systematically: five withdrawn in 1949, four in 1950, then seventeen in 1951 representing the heaviest single-year condemnations. By January 1952, only eleven locomotives remained scattered across former Midland territory at Gloucester Barnwood, Bedford, Nottingham, Derby, Leeds Holbeck, Leicester, and Manningham depots.

The final year witnessed rapid conclusion. Ten locomotives faced the cutter's torch during 1952, leaving solitary survivor No. 41025 at Gloucester Barnwood. This ultimate example operated through December before final withdrawal in January 1953—precisely five years after nationalisation commenced. Contemporary photographers documented increasingly decrepit condition with faded lined black paintwork, leaking glands, and general neglect characteristic of elderly locomotives receiving minimal maintenance pending inevitable withdrawal.

Multiple factors drove the accelerated elimination programme. The locomotives' age—even the newest examples reached thirty-nine years by 1948, with Johnson's originals approaching forty-six years—justified replacement on economic grounds. The three-cylinder compound system demanded specialised maintenance knowledge increasingly scarce as experienced Midland Railway fitters retired. Wartime deferred maintenance had imposed heavy deterioration on precision machinery requiring meticulous upkeep. Perhaps most significantly, the locomotives' reassignment to local passenger duties for which they were never designed prevented efficient operation—frequent stops and short trips negated compound efficiency advantages whilst exposing the automatic starting valve's complexity as operational liability.

Only No. 1000 survived into preservation—the pioneer Johnson compound originally numbered 2631, built at Derby Works in 1902. British Railways set the locomotive aside at Derby in 1951, recognising its historical significance as both the first of the class and the foundation for Britain's largest compound locomotive programme. The decision proved prescient, as rapid elimination of the remaining fleet through 1953 left No. 1000 as the sole physical representative of forty-five locomotives that had served Britain's railways for half a century.

The preservation journey commenced with storage at Crewe Works from 1953 through 1959 whilst museums and heritage organisations debated appropriate disposition. In 1959, Derby Works undertook comprehensive restoration approximating the locomotive's 1914 condition following Deeley rebuilding and superheating modifications. The restoration included fitting a boiler manufactured at Crewe in 1946—not original equipment but appropriate for operational requirements—replacing worn cylinders, and attaching a tender originally fitted to former Somerset & Dorset 2-8-0 No. 53805, though this represented incorrect pattern for purist authenticity.

The locomotive emerged from restoration in magnificent Midland Railway crimson lake livery with full lining and polished brass fittings—a spectacular recreation of Edwardian railway elegance. From 1959 through 1962, No. 1000 operated special passenger trains and railtours, delighting enthusiasts with authentic compound exhaust beats and graceful acceleration. The locomotive then entered static display at the Museum of British Transport, Clapham, from 1962 until transfer to the newly-established National Railway Museum, York, in April 1975.

The Rail 150 celebrations at Shildon in August 1975 marked No. 1000's return to steam following museum transfer. The locomotive's participation in this historic cavalcade celebrating 150 years since the Stockton & Darlington Railway introduced it to new generations of railway enthusiasts. From 1976 through 1983, the locomotive enjoyed active main line operation on occasional railtours and special services, demonstrating that sixty-year-old compound engineering could still deliver reliable performance when properly maintained.

The pinnacle arrived at the May 1980 Rocket 150 cavalcade at Rainhill, celebrating 150 years since Stephenson's pioneering locomotive trials. No. 1000 achieved star billing piloting LNER A3 Pacific Flying Scotsman and double-heading with LMS Jubilee No. 45690 Leander—a spectacular pairing demonstrating Victorian, Edwardian, and 1930s express passenger locomotive evolution. Contemporary observers praised the compound's smooth running and distinctive exhaust note, vindicating Johnson and Deeley's design excellence seven decades after construction.

The final main line runs occurred in 1983. On 12 February, No. 1000 worked a farewell railtour over the Settle-Carlisle line—the route where the class had established its reputation eight decades earlier—double-heading with Leander. The ultimate main line appearance came on 28 September 1983 with a private National Railway Museum charter from York to Rochdale. Following this, the locomotive returned to static display, with boiler certification expiry and museum conservation priorities preventing further steaming.

Since 1983, No. 1000 has enjoyed varied display locations whilst remaining part of the National Railway Museum's National Collection. Extended loans to the Bo'ness & Kinneil Railway in Scotland and Severn Valley Railway (2007-2011) introduced the locomotive to Scottish and West Midlands audiences. Most recently, the locomotive has been displayed at Barrow Hill Roundhouse in Derbyshire, where its elegant crimson lake livery and accessible location enable detailed examination by modellers and historians.

The engineering legacy extends far beyond the preserved locomotive. The Midland Railway 1000 Class validated compound locomotive principles sufficiently to inspire LMS construction of 195 additional examples during 1924-1932, creating a combined fleet of 240 three-cylinder compound 4-4-0s—by far Britain's largest compound locomotive programme. The 1924-1925 comparative trials conclusively demonstrated superior fuel economy, vindicating Johnson's original concept and Deeley's practical refinements. Plans were developed for compound Pacifics based on the successful 4-4-0 design, though these never materialised due to political pressure favouring alternative designs. Locomotive historians consistently rank the Deeley/Johnson compounds as "the only really successful compound locomotives ever to work in this country"—an assessment the preserved No. 1000 continues validating through its existence.

Modelling Significance and Scale Replications

The MR 1000 Class presents exceptional modelling significance as one of Britain's most historically important locomotive designs blessed with both a preserved example providing unparalleled prototype reference and excellent ready-to-run models spanning budget and premium price points. For railway modellers seeking authentic Edwardian, LMS, or early British Railways express passenger traction, these elegant 4-4-0s offer compelling visual appeal enhanced by fascinating operational history and the availability of diverse livery options across five decades of service.

The modelling landscape remained frustratingly sparse for decades despite the class's historical significance. Early efforts were limited to specialist white metal kits from manufacturers like GEM Model Railways, demanding intermediate to advanced construction skills and providing challenging subjects for all but experienced kit builders. The Midland Railway's distinctive crimson lake livery with intricate lining proved particularly demanding, with contemporary accounts describing the finish as "not for the faint hearted" even for skilled modellers.

Hornby Railways pioneered ready-to-run production with catalogue number R355 during 1983-1985, producing 3,250 models of Midland Railway Compound No. 1000. This vintage release featured the Ringfield motor technology of its era, with motor in the locomotive body rather than later tender-drive configurations. Whilst representing breakthrough availability at the time, the model reflected 1980s manufacturing standards with limited detail compared to contemporary products. The R355 has been discontinued for four decades, making examples available only on the secondary market at approximately £40-80 depending on condition—primarily of interest to collectors rather than operators seeking modern running characteristics.

Bachmann Branchline revolutionised 1000 Class modelling with comprehensive new tooling announced in 2011. The company's approach demonstrated exemplary commitment to prototype accuracy and market diversity, creating extensive variants representing the class across its entire service career. The range encompasses National Railway Museum exclusives, standard production runs in multiple liveries, and both DCC Ready and factory-fitted DCC versions addressing different technical sophistication levels.

The centrepiece release was catalogue number 31-930NRM, a National Railway Museum exclusive commemorating the preserved locomotive. Produced in a limited Platinum Collection run of 500 pieces, each model came in presentation packaging with acrylic plinth and numbered certificate. The Midland Railway crimson lake livery received exceptional execution with accurate lining patterns, whilst the model featured DCC Ready specification with 21-pin decoder socket and speaker-ready tender enabling straightforward sound installations. Retail pricing reflected the exclusive nature at £170 for Platinum editions and £250 through the NRM shop. These models sold out rapidly and now command £150-250 on the secondary market depending on condition and packaging completeness.

Models

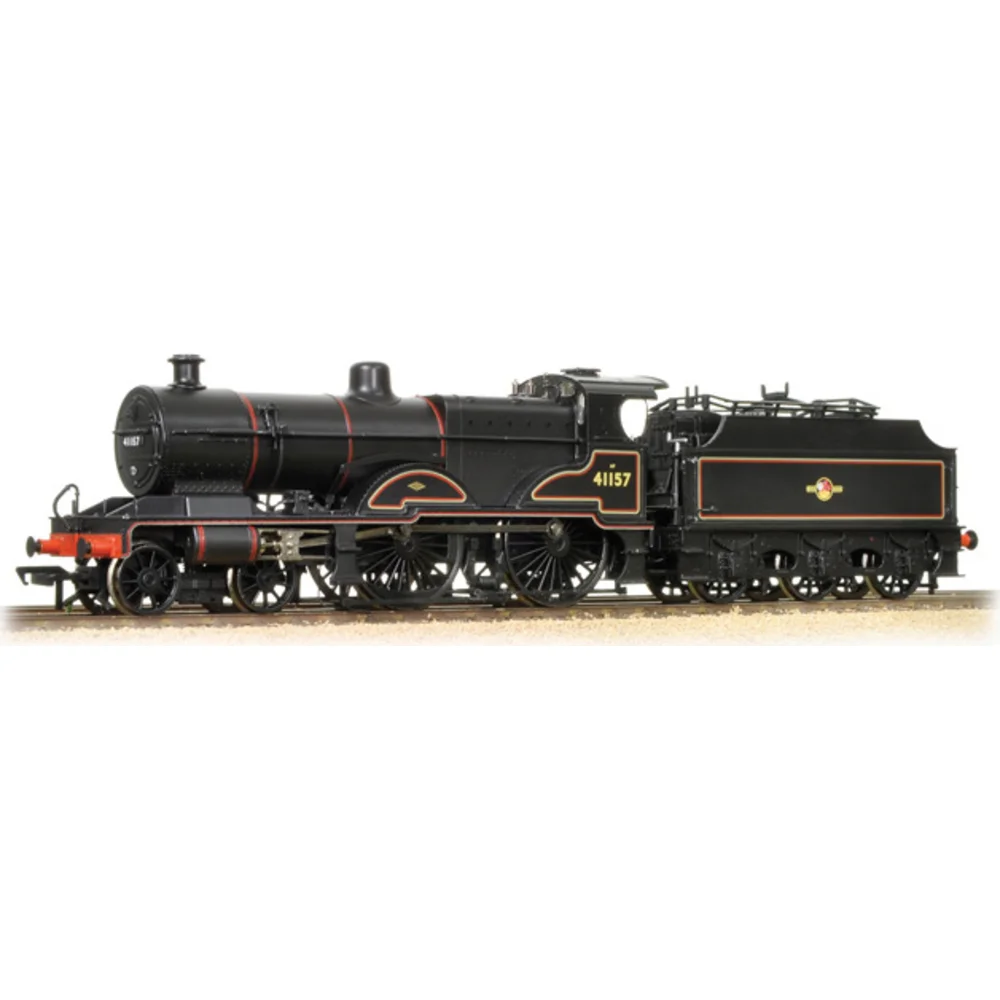

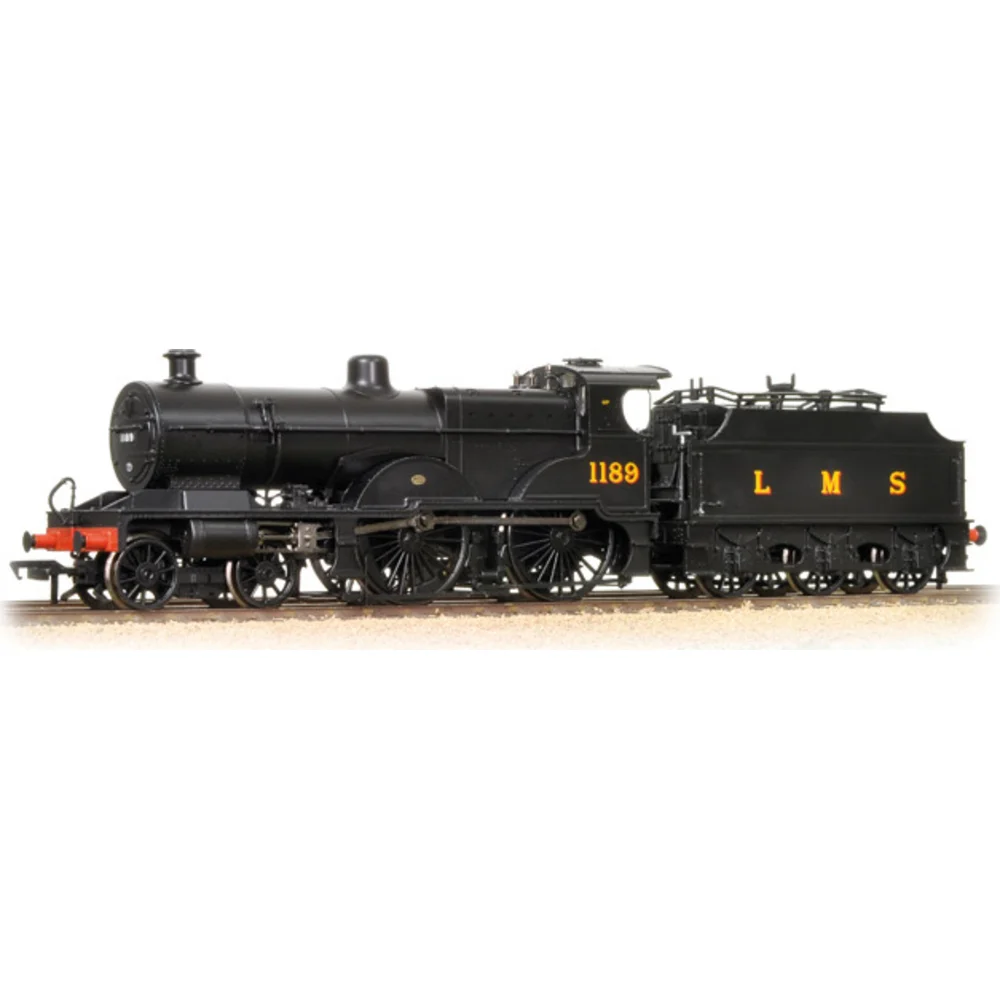

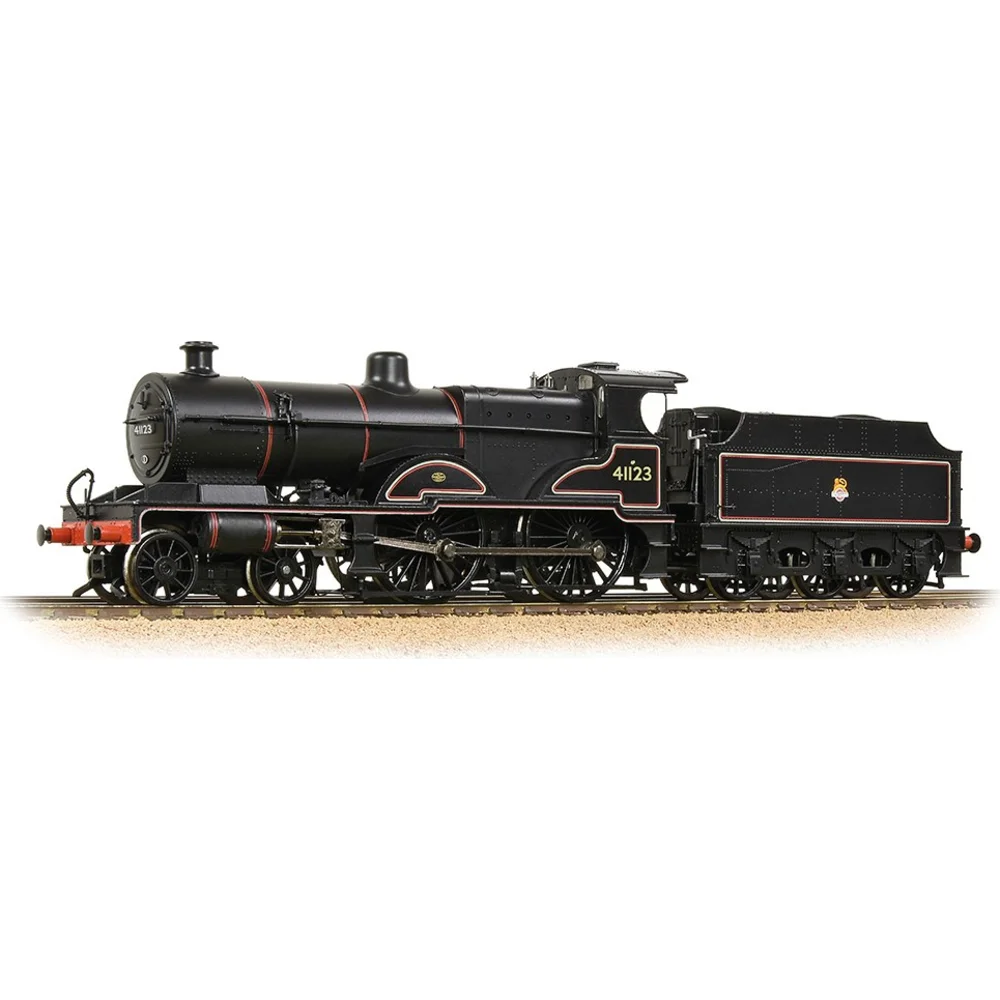

Current production Bachmann models include 31-932 representing Class 4P Compound 41123 in BR lined black with early emblem (Era 4), 31-933/31-933A showing BR lined black with late crest, and 31-931 depicting locomotive 1189 in LMS black livery. All standard production models carry DCC Ready specification with 21-pin sockets, retail at approximately £100-120, and remain readily available through major UK model railway retailers including Rails of Sheffield, Hattons Model Railways, and Kernow Model Rail Centre.

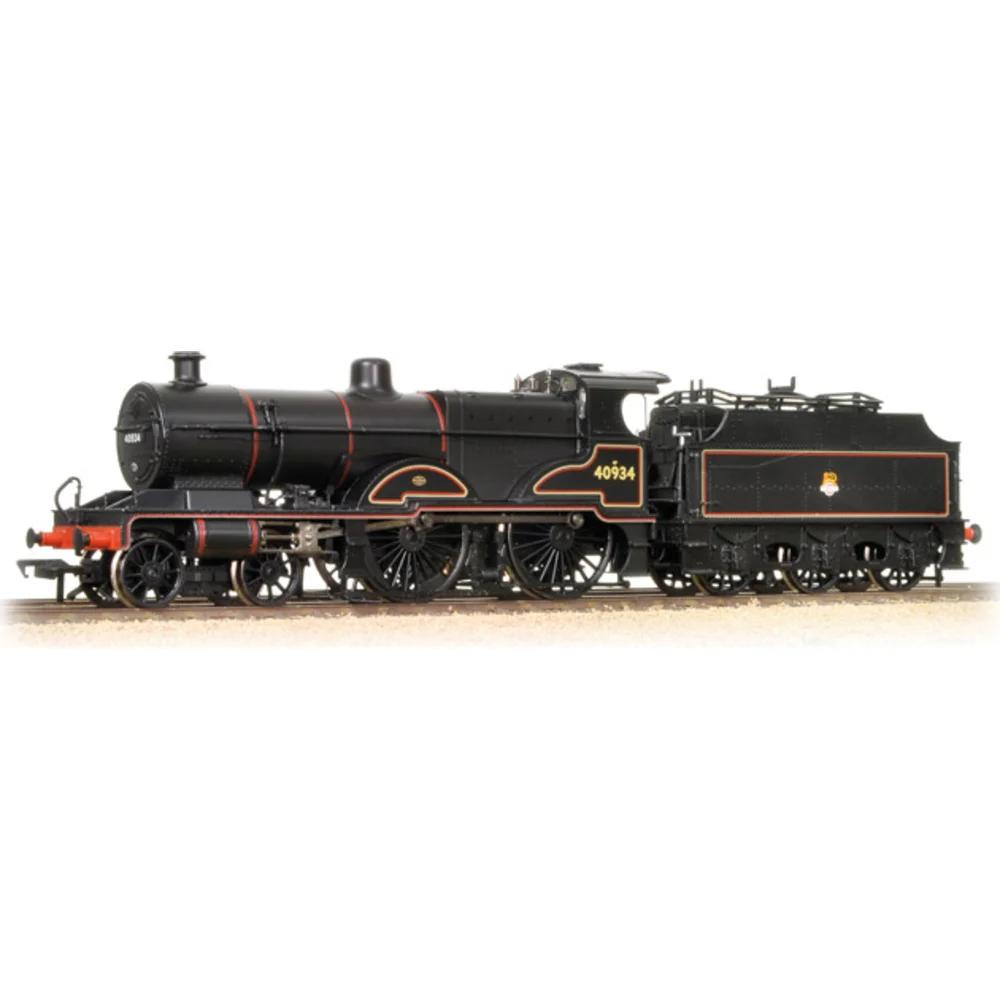

For modellers requiring factory-installed digital control, Bachmann offers 31-932DC representing locomotive 40934 in BR lined black with DCC fitted specification. This variant includes a pre-installed decoder eliminating the installation challenges faced by modellers uncomfortable with soldering and decoder configuration. However, Bachmann has not produced factory sound-fitted versions of the 1000 Class—unlike some other Branchline releases—requiring enthusiasts seeking sound to undertake aftermarket installations using the speaker-ready tender provision.

The technical execution throughout Bachmann's range impresses at every level. A modern can motor with flywheel drives the locomotive body, providing smooth slow-speed operation and realistic momentum characteristics appropriate for express passenger service. The models measure 233mm overall length, accurately representing the prototype's dimensions when scaled to OO gauge's 1:76 proportion. Detail quality reaches impressive standards with separately-fitted handrails, lamp irons, vacuum brake pipes, and intricate valve gear components creating visual depth. Factory-fitted glazing includes cab interior detail with crew figures visible through windows, whilst the underframe features fully detailed brake rigging and motion components.

Livery application demonstrates meticulous research and exceptional execution quality. The Midland Railway crimson lake versions accurately reproduce the deep maroon-red shade with full yellow lining following prototype panel arrangements, black-painted motion and underframe, and correct lettering styles. LMS maroon variants show proper simplified lining patterns adopted during the 1920s-1930s, whilst British Railways examples correctly represent both early and late BR totem variations with lined black finish and appropriate power classification markings. The attention to era-specific details extends to buffer beam colours, tender lettering styles, and smokebox door fixtures—refinements appreciated by knowledgeable enthusiasts seeking authentic period representation.

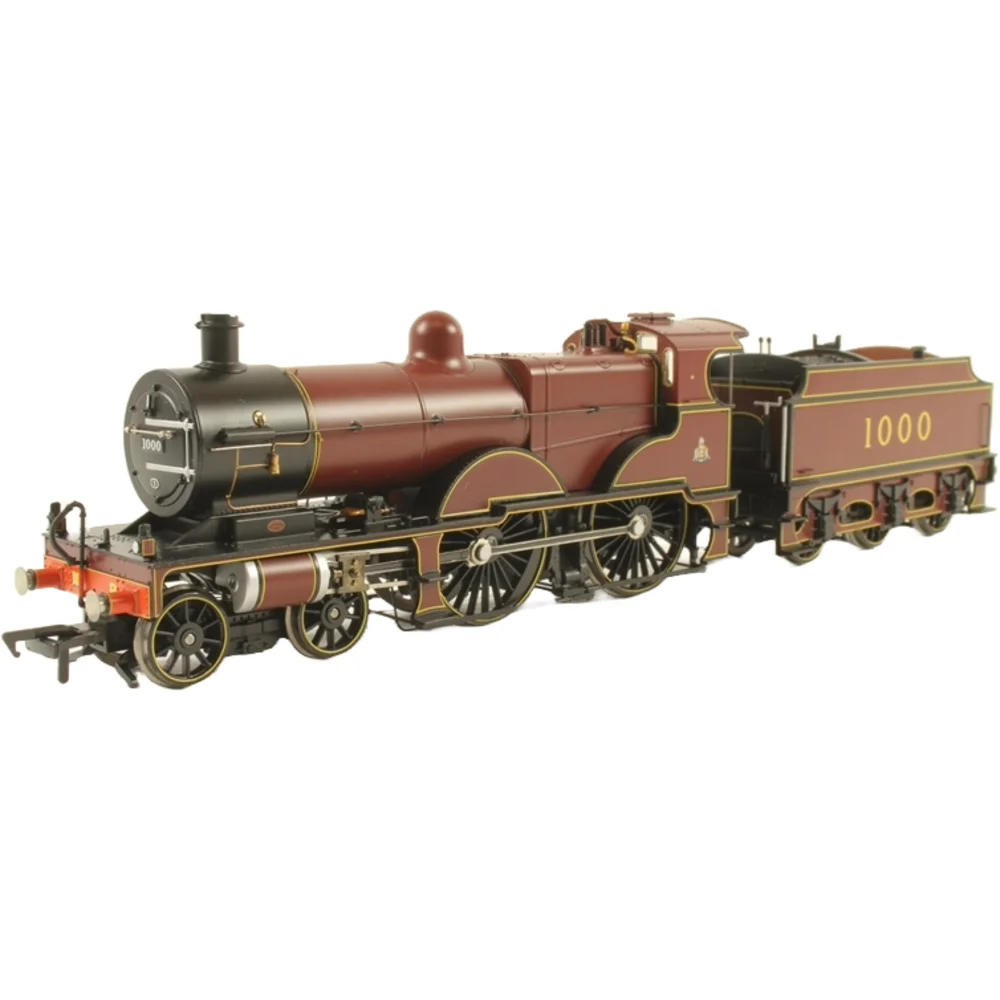

Hornby Railways re-entered the market with catalogue number R3063 in their Railroad budget range, representing LMS Compound 4-4-0 No. 1000 in LMS lined maroon livery. This model provides excellent value at approximately £75-100 retail pricing—roughly half Bachmann's standard models—making compound 4-4-0 ownership accessible to budget-conscious modellers. The specification includes DCC Ready capability with 8-pin decoder socket, 3-pole motor with flywheel upgraded in 2011, and locomotive body drive configuration. Detail levels reflect Railroad range positioning with acceptable rather than premium execution, though the model runs smoothly and provides reliable service for operators prioritising function over ultimate accuracy.

Contemporary forum discussions note that Hornby's R3063 may feature slightly incorrect coupled wheelbase dimensions, with measurements suggesting approximately 6 inches overlength at scale—a discrepancy noticeable to purist observers comparing models directly with prototype photographs but acceptable for typical layout operation. The budget positioning reflects appropriate compromises between manufacturing costs and market expectations, creating viable alternatives for modellers unable or unwilling to justify Bachmann's premium pricing.

N gauge enthusiasts face significant challenges. Graham Farish (Bachmann's N gauge brand) produced 1000 Class models during 1987, but these vintage releases featured pre-DCC era motor technology and have been discontinued for nearly four decades. Examples occasionally appear on the secondary market but command collector pricing rather than representing practical operating choices. Despite Bachmann's usual practice of producing N gauge versions following successful OO gauge releases, the company has not translated its excellent 2011 OO tooling to N gauge—a disappointing omission leaving 2mm scale modellers without viable 1000 Class representation.

O gauge modellers confront complete unavailability. No manufacturer—Heljan, Dapol, Darstaed, Bachmann Brassworks, or specialist producers—offers ready-to-run 1000 Class models in 7mm scale. Even white metal or etched brass kits from specialist suppliers like DJH Models, Slaters, or SER-Kits are absent. This represents a significant market gap given O gauge's growth and the popularity of Victorian and Edwardian era subjects among 7mm scale enthusiasts. Skilled modellers can scratch-build or extensively modify alternative 4-4-0 chassis, but such projects demand advanced capabilities beyond typical hobbyist skills.

The GEM Model Railways white metal kit—long discontinued—occasionally appears on the secondary market at £40-50 for unbuilt examples. These kits require intermediate to advanced construction skills, a separately-purchased chassis (GEM L1 recommended), and considerable patience for assembly and finishing. The Midland Railway lining patterns prove particularly challenging, with period accounts emphasising the difficulty of achieving authentic appearance even for experienced kit builders. These kits serve primarily as historical artefacts demonstrating early modelling approaches rather than practical alternatives to superior ready-to-run products.

Unique Modelling Tips and Layout Integration

Successfully incorporating Midland Railway 1000 Class models into layout operation requires understanding the specialised nature of express passenger service and the authentic operating scenarios that characterised main line duties from Edwardian elegance through mid-century decline. Unlike tank engines suitable for diverse local duties or freight locomotives operating varied consists, the compounds were purpose-designed express passenger machines thriving on sustained high-speed running with corridor coaching stock—operational characteristics that should inform realistic deployment.

Era selection proves fundamental for authentic 1000 Class representation. Midland Railway period layouts (1902-1922) demand crimson lake livery with full yellow lining, original 2631-2635 or renumbered 1000-1044 identities, and period-appropriate infrastructure including lower-quadrant semaphore signals, clerestory-roof corridor coaching stock, and characteristic Midland Railway architectural styles. The locomotives operated premier express services during this era, hauling prestige trains between London St Pancras and Leeds, Manchester, or Carlisle with intermediate calls at major cities. Authenticity demands representing the compounds in their intended role rather than relegating them to local passenger or freight duties they never performed during Midland ownership.

LMS period layouts (1923-1947) enable representation of the class at peak capability and expanded operational territory. Early LMS era (1923-1930) allows depicting crimson lake livery gradually transitioning to LMS maroon, whilst later periods (1930s-1940s) show full LMS maroon with simplified lining. The locomotives' operational territory expanded dramatically during LMS ownership to include Caledonian Railway main lines in Scotland and former LNWR routes—scenarios enabling varied layout settings beyond traditional Midland territory. The 1930s represented the class's operational zenith following superheating programmes, with the compounds demonstrating proven superiority in rigorous comparative trials and inspiring LMS construction of 195 additional examples.

British Railways period layouts (1948-1953) depict the class in terminal decline. Renumbered 41000-41044 and finished in lined black livery with lion and wheel emblem, the compounds faced progressive withdrawal and deteriorating maintenance standards. Authenticity demands representing increasingly decrepit external condition with faded paintwork, leaking glands, and general neglect characteristic of elderly locomotives receiving minimal attention pending inevitable scrapping. By 1952, only eleven survivors remained concentrated at seven depots, making the compounds rare sightings appropriate for occasional appearance rather than frequent operation.

Train formation authenticity demands careful coaching stock selection. Midland Railway period operation requires 54ft clerestory-roof corridor coaches in all-over crimson lake with yellow lining and distinctive white window surrounds. These magnificent vehicles—arguably Britain's most visually striking Edwardian coaching stock—create spectacular trains when marshalled behind crimson lake compounds. Typical formations involved 8-11 coaches for express services, with dining cars included on longer-distance trains. The Little Salkeld accident of 1918 involved No. 1010 hauling an eleven-coach express, confirming that formations approaching a dozen vehicles represented normal maximum loading for the class.

LMS period coaching stock progresses from wooden-framed vehicles with twin-window arrangements in full crimson lake or maroon (1920s-early 1930s) to later Period III Stanier designs in maroon with cream upper panels (mid-1930s onwards). Corridor stock remained standard for express services, with Third Class predominating but First Class and dining cars included on prestige trains. Train lengths remained consistent at 8-11 coaches, though the compounds' modest power output compared to emerging Stanier designs meant they increasingly worked lighter formations or secondary services as more powerful locomotives displaced them from premier duties.

British Railways coaching stock for 1948-1953 operations should feature early BR crimson and cream livery or later maroon with standard BR lettering styles. However, by this terminal period, the compounds faced progressive relegation to local passenger duties with shorter formations of 4-6 non-corridor compartment coaches—services thoroughly unsuited to their compound design and contributing to poor late-career reputations. Authentic BR-era operation should depict this operational decline rather than perpetuating the express passenger glory characterising earlier decades.

Layout infrastructure requirements reflect express passenger operation on main line routes. Stations should feature substantial platforms accommodating 8-11 coach trains, with overall roofs or lengthy canopies characteristic of major Midland Railway termini. Water columns positioned at platform ends enabled locomotives to replenish tanks during station stops, whilst water troughs on main lines allowed pickup at speed—a capability the compounds exploited on long-distance services. Coaling stages, ash pits, and turntables at major depots facilitated locomotive servicing between duties.

Signalling should reflect appropriate period standards. Midland Railway layouts demand lower-quadrant semaphore signals following Midland patterns, with distinctive signal boxes positioned to command views of controlled sections. LMS period sees transition to upper-quadrant semaphores on modernised routes whilst retaining lower-quadrant on secondary lines. British Railways period depicts progressive colour-light signal installation on electrified and main line routes, though many former Midland lines retained semaphores through the compounds' 1953 final withdrawals.

Operational scenarios should emphasise sustained running characteristic of express passenger service. Typical diagrams involved departing a major terminus (St Pancras, Leeds, Manchester) with a 8-11 coach express, running at sustained 60-70 mph speeds between intermediate stops at major cities, with brief station calls for passenger exchange and locomotive watering. The compounds excelled at this steady high-speed work where compound efficiency advantages offset their modest power output—scenarios readily replicated through timetable operation on well-designed layouts with generous curve radii and adequate straight running sections.

Double-heading scenarios provide operational variety whilst reflecting prototype practice on particularly heavy trains or challenging routes. The Settle-Carlisle line frequently saw compounds piloting or double-heading with other express passenger types when train weights exceeded comfortable single-locomotive capability or when banking assistance was unavailable. During late LMS and BR periods, compounds occasionally appeared paired with more modern designs when motive power shortages demanded utilising available locomotives regardless of type—creating visually interesting consists combining Edwardian elegance with 1930s-1940s modernity.

Depot scenes offer excellent opportunities for static display whilst demonstrating authentic maintenance infrastructure. Model a section of Derby Works or create a freelance major express passenger depot featuring coaling stages with elevated hoppers, ash disposal pits, water columns and tanks, turntables (60-70ft diameter), multi-road running sheds with inspection pits, and sand drying furnaces. Compounds sharing depot space with other Midland Railway types (Kirtley 0-6-0 freight engines, Johnson 0-4-4T tank locomotives, contemporary Class 2 and Class 3 4-4-0s) creates authentic atmosphere demonstrating the company's standardisation philosophy. Include depot staff figures—cleaners, fitters, firemen, and shed foremen—engaged in daily maintenance activities.

Sound-equipped models benefit tremendously from careful attention to the compounds' distinctive operational characteristics. The three-cylinder exhaust created unique rhythmic beats differing markedly from typical two-cylinder locomotives. Programme sound decoders to emphasise gentle drifting at stations during stops, sharp barks during acceleration as the automatic starting valve transitions to compound operation, steady rhythmic beats during sustained running, and distinctive whistle tones. Recorded sound projects from preserved No. 1000 provide authentic references, capturing the characteristic compound exhaust patterns that experienced observers recognised instantly during the locomotives' active service.

Finally

The Midland Railway 1000 Class represents far more than forty-five elegant express passenger locomotives; these machines embodied sophisticated engineering principles that validated compound expansion for British railway service whilst demonstrating that thermal efficiency and mechanical reliability could coexist with operational practicality. Samuel Johnson's vision of economical express passenger power refined by Richard Deeley's pragmatic simplifications created locomotives that served continuously for five decades—from Edwardian confidence through wartime austerity to nationalisation's rapid modernisation.

For railway historians, the class provides fascinating insights into British railway engineering philosophy during the critical transition from Victorian craft traditions to twentieth-century standardisation. The Midland Railway's controversial "small engine policy"—derided by contemporary critics favouring increasingly powerful locomotives—achieved vindication through the compounds' remarkable operational economy. The 1924-1925 comparative trials conclusively demonstrated that sophisticated engineering could deliver superior results compared to brute force approaches, with the compounds' fuel efficiency significantly exceeding larger, more powerful contemporary designs on identical duties.

The decision to construct 195 additional LMS compounds during 1924-1932 represented the ultimate validation of Johnson and Deeley's design excellence. This unprecedented production expansion—creating Britain's largest compound locomotive fleet totalling 240 machines—proved that the three-cylinder compound system could succeed where earlier British compound experiments had failed. The automatic starting valve's elimination of operational complexity, the thermal efficiency advantages of compound expansion, and the mechanical reliability achieved through careful engineering combined to create locomotives that satisfied railway management's economic demands whilst earning enginemen's respect.

The tragic loss of forty-four locomotives to the scrapyard represents one of British railway preservation's most regrettable oversights. The timing of rapid 1948-1953 withdrawals preceded the preservation movement's maturation, whilst the existence of 195 nearly-identical LMS-built compounds reduced urgency to save additional Midland examples. Only the fortunate 1951 selection of pioneer No. 1000 for preservation prevented complete class extinction—a decision that has proven invaluable for historians, modellers, and enthusiasts seeking physical evidence of Victorian and Edwardian engineering excellence.

The preserved locomotive's active career from 1959 through 1983 introduced new generations to compound locomotive operation. The sight and sound of No. 1000 working special trains demonstrated that septuagenarian technology could still deliver reliable performance when properly maintained. The locomotive's participation in major railway celebrations including the 1975 Rail 150 at Shildon and the spectacular 1980 Rocket 150 cavalcade at Rainhill—where it piloted Flying Scotsman and double-headed with Jubilee Leander—created memorable spectacles showcasing Victorian, Edwardian, and 1930s express passenger locomotive evolution across a single magnificent train.

Bachmann Branchline's exceptional OO gauge models and Hornby's budget-friendly Railroad alternative provide contemporary modellers with unprecedented access to this historically significant design. The comprehensive Bachmann range spanning multiple liveries and eras enables authentic layout representation from Edwardian crimson lake elegance through LMS maroon sophistication to British Railways lined black decline. The models' exceptional detail quality, smooth running characteristics, and DCC-ready specification address modern technical expectations whilst maintaining prototype accuracy that would satisfy the most demanding enthusiasts.

Model railway hobbyists incorporating compounds into layout operation gain versatile express passenger locomotives suitable for premier main line services across five decades of British railway history. The locomotives' proven capabilities on challenging routes like the Settle-Carlisle line provide authentic justification for intensive express passenger diagrams, whilst the progressive operational decline through BR ownership enables depicting both operational excellence and terminal deterioration depending on chosen era. Whether representing the compounds hauling eleven-coach Midland crimson lake expresses departing St Pancras, working Birmingham two-hour services with distinction, demonstrating superiority in rigorous comparative trials, or facing ignominious final service on unsuitable local passenger duties, these models bring character and authenticity to any Midland-themed layout.

The engineering legacy endures through preserved No. 1000 and the historical record documenting compound locomotive success. Modern railway historians consistently rank the Deeley/Johnson compounds among Britain's finest express passenger designs, noting that sophisticated engineering principles properly executed could deliver results exceeding contemporary simple expansion alternatives. The class proved that compound expansion wasn't inherently problematic—earlier British failures resulted from inadequate engineering rather than fundamental principle flaws. This lesson influenced locomotive development extending beyond the compounds themselves, demonstrating that thermal efficiency and mechanical sophistication could coexist productively.

As the railway preservation movement continues evolving and heritage railways seek diverse motive power representing British railway history's breadth, the absence of additional preserved 1000 Class locomotives becomes increasingly poignant. Unlike classes where multiple examples survived enabling varied locations to operate representative locomotives, the singular preservation of No. 1000 concentrates access to this important design at a single institution. The National Railway Museum's stewardship has proven exemplary, with extended loans to Bo'ness & Kinneil Railway, Severn Valley Railway, and currently Barrow Hill Roundhouse ensuring widespread public access. However, the locomotive's static status since 1983—driven by boiler certification expiry and conservation priorities—means contemporary enthusiasts cannot experience authentic compound operation as earlier generations enjoyed.

The Midland Railway 1000 Class story ultimately celebrates engineering excellence, operational economy, and the validation of sophisticated principles through rigorous service. When compound expansion principles properly executed through the Smith three-cylinder arrangement and Deeley's automatic starting valve, the results vindicated Johnson's original vision whilst inspiring the largest compound locomotive programme in British history. These graceful machines proved that Victorian and Edwardian engineering could deliver lasting value—a lesson preserved No. 1000 continues teaching through its elegant presence at Barrow Hill Roundhouse, where crimson lake splendour inspires modellers and historians alike to appreciate the sophisticated excellence underlying British railway history's golden age.

Frequently Asked Questions

How many Midland Railway 1000 Class locomotives were built and when?

Forty-five locomotives comprised the complete Midland Railway 1000 Class roster, constructed at Derby Works across three batches between 1902 and 1909. Samuel Johnson's five original compounds (initially numbered 2631-2635, later renumbered 1000-1004) were built 1902-1903, establishing the three-cylinder compound design. Richard Deeley's refined versions followed with thirty locomotives constructed 1905-1906 (originally numbered 1005-1034) and ten additional engines built 1908-1909 (numbered 1035-1044), incorporating simplified valve gear and automatic starting arrangements that made compound operation transparent to drivers.

What made the 1000 Class different from other British compound locomotives?

The 1000 Class succeeded where earlier British compound experiments failed through sophisticated engineering eliminating operational complexity. The three-cylinder arrangement (one inside high-pressure, two outside low-pressure) provided excellent mechanical balance. Deeley's ingenious automatic starting valve admitted live steam directly to low-pressure cylinders during starting, automatically transitioning to compound operation as regulator opened—requiring zero special driver skill. This eliminated the manual changeover procedures plaguing Webb's LNWR compounds and other designs, making the Midland compounds operationally transparent whilst delivering superior fuel economy proven in rigorous 1924-1925 comparative trials.

What routes did the 1000 Class typically operate?

The compounds excelled on Midland Railway's premier express passenger routes, particularly the challenging London St Pancras to Leeds and Carlisle services traversing the mountainous Settle-Carlisle line with its notorious 1-in-100 gradients. They handled Birmingham two-hour expresses with distinction, demonstrating rapid acceleration and sustained 70-75 mph running between intermediate stops. Following the 1923 Grouping, operational territory expanded dramatically to Caledonian Railway main lines in Scotland, Glasgow & South Western routes, and former LNWR services. The locomotives proved versatile across varied main line express passenger duties whilst maintaining economical operation.

How did superheating improve the 1000 Class performance?

Superheating transformed the class's thermal efficiency and operational economy from 1913 onwards. No. 1040 received experimental superheating in 1913, with results so impressive that Derby Works systematically rebuilt the entire fleet. Superheating increased steam temperature without raising pressure, reducing cylinder condensation losses and improving thermal efficiency significantly. Johnson's five original locomotives received comprehensive rebuilding to Deeley standard with superheated G9AS boilers during 1914-1919, whilst Deeley engines progressively received superheating from 1919 onwards. The modifications extended the class's competitive lifespan by decades, enabling continued frontline express service through the 1930s despite increasing competition from newer designs.

What was the 1924-1925 comparative trial and what did it prove?

The London Midland & Scottish Railway organised rigorous dynamometer car trials comparing Midland compounds against LNWR George the Fifth Class 4-4-0s and Caledonian Dunalastair 4-4-0s on challenging routes between Carlisle, Leeds (via Aisgill summit), and Preston (via Shap). The Midland compounds demonstrated significantly superior coal consumption whilst maintaining equivalent or better timekeeping, conclusively validating compound expansion's thermal efficiency advantages. These results justified LMS construction of 195 additional compounds during 1924-1932, creating Britain's largest compound locomotive programme totalling 240 machines. Contemporary engineers considered the trials definitive proof that properly-executed compound designs delivered superior economy over simple expansion alternatives.

Why were the locomotives withdrawn so rapidly after nationalisation?

British Railways eliminated all forty inherited locomotives within five years (1948-1953) due to multiple factors: advanced age reaching 39-46 years, three-cylinder compound system demanding specialised maintenance knowledge increasingly scarce as experienced Midland fitters retired, wartime deferred maintenance imposing heavy deterioration on precision machinery, and reassignment to unsuitable local passenger duties preventing efficient compound operation. The existence of 195 nearly-identical LMS-built compounds providing adequate express passenger power reduced urgency to maintain older Midland examples. British Railways' modernisation philosophy favoured simpler, standardised designs over specialised elderly locomotives requiring unusual expertise.

Are any 1000 Class locomotives preserved today?

Only No. 1000 survived—the pioneer Johnson compound originally numbered 2631, built at Derby Works in 1902. British Railways set it aside at Derby in 1951, recognising historical significance as both the first compound and foundation for Britain's most successful compound programme. Following comprehensive 1959 restoration to approximate 1914 condition, the locomotive operated special trains 1959-1983, including starring at the 1980 Rocket 150 celebrations. Since 1983, it has been displayed at various heritage locations whilst remaining part of the National Railway Museum's National Collection, currently on loan to Barrow Hill Roundhouse in magnificent Midland Railway crimson lake livery.

What OO gauge 1000 Class models are currently available?

Bachmann Branchline produces comprehensive range including 31-932 (BR early emblem, £100-120), 31-933/31-933A (BR late crest), 31-931 (LMS black), and 31-932DC (DCC-fitted). All feature DCC Ready specification with 21-pin decoder socket, speaker-ready tender, modern can motor, and exceptional detail quality. The National Railway Museum exclusive 31-930NRM (Midland crimson lake, limited to 500 pieces) sold out but occasionally appears on secondary market at £150-250. Hornby Railways offers R3063 in Railroad budget range (LMS maroon, £75-100) with DCC Ready 8-pin socket, providing excellent value alternative. Both manufacturers deliver smooth running and authentic appearance.

Are 1000 Class models available in N gauge or O gauge?

N gauge suffers significant availability gaps. Graham Farish produced models in 1987 but these vintage releases featured pre-DCC technology and have been discontinued for nearly four decades, available only occasionally on secondary market at collector pricing. Despite Bachmann's usual practice of producing N gauge versions following OO releases, the excellent 2011 OO tooling has not been translated to 2mm scale. O gauge faces complete unavailability—no manufacturer offers ready-to-run models in 7mm scale, and even specialist white metal or brass kits are absent, representing a significant market gap for this historically important design.

What coaching stock should I use with 1000 Class models?

Midland Railway period (1902-1922) demands 54ft clerestory-roof corridor coaches in crimson lake with yellow lining and white window surrounds—Britain's most visually striking Edwardian stock. Typical formations involved 8-11 coaches for express services, with dining cars on longer-distance trains. LMS period (1923-1947) requires wooden-framed vehicles in crimson lake or maroon (1920s-early 1930s) progressing to Period III Stanier designs in maroon with cream upper panels (mid-1930s onwards). British Railways period (1948-1953) features early BR crimson and cream or later maroon livery, though declining compounds increasingly worked unsuitable 4-6 coach local passenger formations during terminal decline.

How should I weather 1000 Class models authentically?

Express passenger status demands relatively clean appearance befitting premier services. Midland Railway and early LMS era: light coal dust around chimney, subtle exhaust staining on smokebox, oil traces around motion, brake dust on wheel tyres, scuffed buffer faces. Later LMS and BR era weathering increases: faded livery colours, heavier soot streaking, rust spots on boiler bands and handrails, paint flaking on cab sides, pronounced oil stains around motion. Avoid excessive industrial weathering inappropriate for passenger locomotives—even in declining condition, compounds received more attention than freight engines. Focus weathering on operational areas whilst maintaining overall dignity reflecting express passenger heritage.

Can I install sound decoders in Bachmann 1000 Class models?

Bachmann's speaker-ready tender facilitates straightforward sound installations. The tender accommodates 28mm diameter speakers, with ESU LokSound V4 or V5 decoders (21-pin format) providing optimal sound quality. Several sound projects recorded from preserved No. 1000 capture distinctive three-cylinder compound exhaust beats and characteristic whistle tones. Installation requires removing tender body, fitting speaker into designated enclosure, connecting decoder to 21-pin socket, and programming CV settings—manageable for intermediate-skill modellers with basic soldering capability. Factory sound-fitted versions are not available in the Compound range, requiring aftermarket installations for authentic sound effects enhancing operational realism.
