The British Rail Class 156 Super Sprinter represents one of BR's most successful diesel multiple unit designs, with all 114 original units still accounted for after nearly four decades of continuous service—a remarkable survival rate unmatched by any comparable DMU class. Built by Metro-Cammell at Birmingham's Washwood Heath Works between 1987 and 1989, these two-car diesel-hydraulic units transformed regional rail services across Britain, replacing ageing first-generation DMUs and locomotive-hauled trains with modern, efficient traction suitable for express services competing directly with deregulated coach operators.
For model railway enthusiasts, the Class 156 offers exceptional versatility that few modern British outline subjects can match. The class's service across virtually every region of Britain—from the Scottish Highlands to East Anglia, from the Settle-Carlisle Line to Welsh branch routes—means almost any contemporary or late-BR era layout can authentically justify including one. The distinctive 23-metre bodyshell with single-leaf sliding doors and comfortable 2+2 seating interior created the "Super Sprinter" designation that separated these units from their shorter 20-metre Class 150 predecessors.
Provincial sector's strategic deployment targeted longer-distance regional express services where the Class 156 could compete with National Express coaches by offering InterCity-style comfort at regional fares. From launching innovative through services connecting Norwich with Liverpool via Birmingham, to transforming Scottish rural operations on the West Highland Line to Fort William and Mallaig, the Class 156 proved that thoughtful design matched to operational requirements could deliver extraordinary longevity—with replacement programmes only now advancing after 37 years of front-line service.
Quick Takeaways
- 114 two-car units built: Constructed by Metro-Cammell at Washwood Heath Works, Birmingham between 1987-1989, totalling 228 vehicles with all units surviving to present day
- 23-metre Super Sprinter design: Longer bodyshells than Class 150 enabled 2+2 seating with tables and armrests, positioning units to compete with express coach services on longer regional routes
- Proven Cummins-Voith drivetrain: Each car powered by 213 kW Cummins NT855-R5 turbocharged diesel driving Voith T211r hydraulic transmission, delivering reliable 75 mph performance
- Unprecedented fleet survival: Zero units permanently scrapped after 37 years of service despite serious incidents, with even severely damaged units repaired and returned to traffic
- Geographic versatility unmatched: Operations spanning Scottish West Highland Line, Settle-Carlisle expresses, East Anglia rural services, Northern England suburban networks, and Welsh branch lines
- BSI coupling compatibility: Multiple-working capability with Classes 142, 143, 144, 150, 153, 155, 158, 159, 170, and 172 enables diverse formation possibilities
- Extensive model availability: Realtrack Models produces premium OO gauge versions (£270 RRP) with dual motors and extensive detailing; Dapol offers N gauge models (£145-186 street price) with Next18 DCC
Historical Background and Context
The genesis of the Class 156 Super Sprinter emerged from British Rail's Provincial sector confronting an existential challenge during the early 1980s. The existing fleet of first-generation diesel multiple units—predominantly designs from the 1950s—suffered mounting reliability problems, contained hazardous asbestos insulation that BR committed to eliminate by late 1987, and proved increasingly expensive to maintain as specialist components became scarce. Meanwhile, the 1980 Transport Act's deregulation of express coach services unleashed aggressive competition from National Express and regional operators targeting the same longer-distance regional passengers that Provincial services carried.
Rather than pursue costly refurbishment programmes for ageing DMUs with fundamentally obsolete design, British Rail committed to an entirely new generation of diesel multiple units. The initial specification proved overambitious—the experimental Class 210 offered 90 mph capability and EMU-like acceleration performance but at prohibitive construction and maintenance costs that made large-scale procurement impossible. By 1983, BR adopted more pragmatic requirements balancing performance against affordability: 75 mph maximum speed, 90 dB interior sound level, 1,000-mile operational range between servicing, and five-year or 350,000-mile intervals between major overhauls.
The "Super Sprinter" designation distinguished the 23-metre bodyshell units—Classes 155 and 156—from the earlier 20-metre Class 150 "Sprinter." This extra length proved crucial for Provincial's marketing strategy. The longer bodyshells enabled comfortable 2+2 seating with armrests, tables at many seats, and spacious interior circulation—matching the ambience of InterCity's locomotive-hauled Mark III coaches rather than the cramped suburban atmosphere of shorter DMUs. Provincial deliberately targeted journey times exceeding one hour where passengers would appreciate this enhanced comfort, positioning the Super Sprinter to compete directly with express coach operators by offering superior comfort at competitive fares.
The single-leaf sliding doorway configuration reflected this express-oriented design philosophy. Where suburban-focused Class 150 units featured double doors for rapid station dwell times, the Class 156's single doors assumed longer station stops at less frequent stations—typical of rural and cross-country services where passenger exchange volumes remained modest. This design decision would later prove limiting when units cascaded to intensive suburban operations, but perfectly matched Provincial's original vision of competing with coaches on longer regional routes.
Insider Tip: The East Anglia Express Strategy
Provincial's launch strategy for Class 156s centred on innovative long-distance regional services that previous DMU capabilities couldn't support. The first allocations to Crown Point depot in Norwich enabled entirely new express services connecting East Anglia with the North West—Norwich to Liverpool via Birmingham, and boat train connections from Harwich International to Blackpool and Liverpool. These operations—some exceeding five hours duration—demonstrated the Super Sprinter's comfort credentials whilst attacking coach operators' market share. For modellers recreating late-1980s Provincial operations, these pioneering long-distance DMU workings provide authentic operational scenarios that challenge assumptions about DMU deployment being limited to short branch services.
British Rail placed its order for 228 vehicles forming 114 two-car units in November 1985, with Metro-Cammell's Washwood Heath Works in Birmingham selected as prime contractor. The company subcontracted welded steel bodyshell fabrication to three specialist firms: Procor Engineering at Wakefield produced 118 vehicles, W.H. Davis at Mansfield constructed 60 vehicles, and Standard Wagon at Heywood manufactured 50 vehicles. This distributed production strategy enabled rapid delivery whilst spreading work across Britain's struggling railway engineering sector.
Interior fitting was assigned to Aston Martin Tickford—an unusual choice of automotive luxury specialist that brought fresh thinking to rail vehicle passenger accommodation. Tickford's automotive background influenced numerous design details including the ergonomic seating with integrated armrests, carefully considered luggage space provisions, and attention to interior finish quality that elevated the Super Sprinter above typical British Rail rolling stock standards of the era.
The first unit, 156401, conducted its maiden test run on 10 November 1987 from Washwood Heath to Banbury. Extensive testing throughout early 1988 validated performance, reliability, and ride quality before revenue service commenced on 16 May 1988. The launch services perfectly embodied Provincial's strategy—new express connections linking East Anglia with the North West via Birmingham, offering passengers modern, comfortable trains as genuine alternatives to increasingly dominant coach operators.
Design and Technical Specifications
The engineering philosophy underlying the Class 156 Super Sprinter prioritised proven reliability over innovative technology. British Rail deliberately selected established components with track records of dependable service rather than pursuing cutting-edge but unproven alternatives. This conservative approach—sometimes criticised as lacking ambition—ultimately delivered the extraordinary longevity that has seen every unit survive nearly four decades of intensive operation.
At the heart of each vehicle sits the Cummins NT855-R5 turbocharged diesel engine, a six-cylinder 14-litre powerplant producing 213 kW (285 hp) at 2,100 rpm. This engine represented mature, proven technology—variants of the NT855 family powered everything from agricultural machinery to marine vessels and road haulage trucks. The railway application benefited from decades of development ensuring reliability, fuel efficiency, and straightforward maintenance procedures familiar to workshops already servicing Cummins engines in other railway vehicles.
Power transmission employs the Voith T211r hydraulic transmission, another proven design with successful service history on Netherlands Railways' "Wadloper" DMUs and British Rail's prototype Sprinter 150.001. The Voith turbo-transmission incorporates one torque converter providing multiplication during initial acceleration, and one fluid coupling for efficient cruising at higher speeds. Automatic speed-stage changes occur through filling and draining hydraulic circuits, eliminating the mechanical complexity and driver skill requirements of traditional mechanical gearboxes. The system delivers smooth, progressive acceleration ideal for passenger comfort whilst maximising adhesion through infinitely variable torque multiplication.
The mechanical layout follows elegant simplicity. Each vehicle's engine mounts beneath the floor, driving through the Voith transmission to a Gmeinder GM 180 final drive unit. Both axles of each car's inner bogie receive power through cardan shafts, creating a 2-B+B-2 wheel arrangement in AAR classification. This configuration places all powered axles on the inner bogies of each vehicle, with unpowered trailing bogies at each outer end. The arrangement ensures excellent adhesion whilst minimising unsprung weight at vehicle ends where ride quality matters most.
Bogie design employs BREL's proven P3-10 powered bogie featuring air suspension for superior ride quality and BREL BT38 trailing bogies. The air suspension system provides constant floor height regardless of passenger loading whilst delivering comfortable running over track irregularities—crucial for the longer-distance services Provincial envisaged. The powered bogies incorporate resilient wheels minimising track wear and reducing interior noise levels, helping achieve the specified 90 dB interior sound standard that represented significant improvement over first-generation DMUs.
Technical Innovation: BSI Coupling Versatility
The Class 156's BSI automatic coupling system delivers remarkable operational flexibility through compatibility with an extensive family of British Rail's second-generation DMUs. Units can work in multiple with Classes 142, 143, 144, 150, 153, 155, 158, 159, 170, and 172—enabling Train Operating Companies to create flexible formations matching capacity to demand. This capability proves particularly valuable during peak periods, seasonal traffic variations, and operational disruptions. For modellers, the BSI compatibility enables authentic mixed formations: 156+153 pairings on West Highland Line services, 156+158 combinations on Liverpool routes, and various other prototype-accurate consists that add operational interest and variety to layout operations.
The steel bodyshell construction represented a conscious departure from the aluminium employed on the unsuccessful Class 151 prototype units. Whilst heavier, steel offered proven fabrication techniques, lower material costs, and superior long-term durability. The distributed fabrication across three specialist contractors enabled rapid delivery whilst maintaining consistent quality through Metro-Cammell's rigorous inspection standards. The 23-metre body length matched InterCity's Mark III coaches, creating visual consistency when Super Sprinters operated alongside locomotive-hauled trains and reinforcing Provincial's positioning as offering express-quality services.
Interior layout prioritises passenger comfort for longer journeys. The standard configuration provides 163 seats in 2+2 arrangement with many seats featuring tables, contrasting sharply with the cramped 3+2 seating typical of earlier DMUs. Large windows with rubber-mounted glazing reduce noise intrusion whilst maximising passengers' enjoyment of scenic routes—particularly important for the Highland and Yorkshire Dales services where landscape views form part of the travel experience. Forced-air heating and ventilation systems maintain comfortable temperatures across Britain's challenging climate range.
Each unit comprises two vehicle types with specific accommodation provision. The DMSL (Driving Motor Standard Lavatory), numbered in the 52xxx series, contains the accessible toilet facilities required by accessibility regulations. The DMS (Driving Motor Standard), numbered in the 57xxx series, provides wheelchair accommodation space, bicycle storage, and general luggage areas. This asymmetric arrangement reflects the realistic assumption that most two-car formations require only one toilet, maximising revenue seating capacity whilst meeting passenger facility requirements.
The braking system employs Westcode electro-pneumatic tread brakes providing progressive, controlled deceleration. The electro-pneumatic operation enables rapid brake application when required whilst allowing drivers precise modulation during normal service braking. The system incorporates wheel slide protection preventing locked wheels during emergency stops, and interfaces with BR's standard Automatic Warning System ensuring compatibility across the entire national network.
Service History and Operations
The Class 156 Super Sprinter deployment strategy reflected British Rail Provincial sector's ambitious vision of transforming regional railway services through entirely new journey opportunities previously impractical with existing DMU capabilities. Initial allocations strategically targeted routes where the Super Sprinter's superior comfort and range could demonstrate clear advantages over both existing rail services and competing express coach operations.
The first operational base, Crown Point depot in Norwich, received units from May 1988 to launch innovative long-distance regional express services. These pioneering operations connected East Anglia with the North West—Norwich to Liverpool via Birmingham, Norwich to Manchester, and boat train connections from Harwich International serving Blackpool and Liverpool. These services—some exceeding five hours duration—exemplified Provincial's strategy of using Super Sprinters to attack coach operators' market share by offering superior comfort at competitive fares on routes traditionally considered marginal for locomotive-hauled trains.
Scottish allocation from October 1988 transformed operations across some of Britain's most scenic and operationally challenging railways. Corkerhill depot in Glasgow received units for services to Stranraer and Carlisle via Dumfries, replacing elderly first-generation DMUs on routes serving ferry connections to Northern Ireland. The deployment proved particularly significant for the Glasgow and South Western Line where improved comfort and reliability enhanced the passenger experience on this important cross-border corridor.
The West Highland Line allocation from January 1989 created one of the Class 156's most celebrated associations. Services from Glasgow Queen Street to Fort William, Mallaig, and Oban traverse spectacular Highland scenery including the iconic Glenfinnan Viaduct, with the Super Sprinter's large windows and comfortable seating perfectly suited to leisure travellers experiencing some of Britain's most dramatic railway landscapes. The operational challenges proved demanding—severe weather exposure, limited infrastructure, single-track operation with passing loops, and the Radio Electronic Token Block signalling system requiring specialised equipment on operating units.
Yorkshire allocations supported intensive regional services across the Pennines and to the Yorkshire coast. Units based at Neville Hill (Leeds) and Heaton (Newcastle) operated services including the scenic Settle-Carlisle Line, the Esk Valley route to Whitby, cross-Pennine services between Lancashire and Yorkshire, and coastal connections to Scarborough. These operations demonstrated the class's versatility across terrain ranging from challenging Pennine gradients to coastal branch lines.
Operational Insight: West Highland Line Specialisation
The West Highland Line operations require specialised Radio Electronic Token Block equipment fitted to only 15 Class 156 units, making them unique within the fleet. The RETB system replaced traditional signalling with radio communication between drivers and signallers, with driver-operated tokens authorising occupation of single-track sections. This technology enables operations across Highland routes where conventional signalling would prove economically unviable. The RETB-equipped units operate exclusively on West Highland services, representing dedicated rolling stock for one of Britain's most spectacular railway routes. For modellers recreating Highland operations, this specialisation justifies limiting Class 156 appearances to specific numbered units whilst incorporating distinctive RETB infrastructure features including stop boards rather than colour-light signals.
Rail privatisation during 1994-1997 fragmented the fleet across multiple Train Operating Companies. Rolling stock ownership transferred to two ROSCOs: Angel Trains acquired 76 units whilst Porterbrook obtained 38 units, with both companies leasing units to various operators. The initial post-privatisation distribution saw ScotRail, Central Trains, Northern Spirit, Wales & West, and other regional franchises operating Class 156s on diverse route networks spanning the entire country.
Cascade movements and franchise changes progressively concentrated the fleet. Central Trains' fleet transferred to East Midlands Trains and subsequently to other operators as franchise boundaries evolved. Wales & West's units moved to Arriva Trains Wales (later Transport for Wales). Northern Spirit's fleet became Northern Rail and subsequently Northern Trains following the 2016 franchise change. These cascades created the current concentrated fleet distribution serving primarily Scottish and Northern England operations.
Today's operational deployment reflects decades of fleet rationalisation and strategic concentration. Northern Trains operates approximately 68-70 units, making it the largest Class 156 operator by significant margin. Services span an extraordinarily diverse route portfolio: Liverpool to Barrow-in-Furness following the Cumbrian Coast, the Tyne Valley Line between Newcastle and Carlisle, the scenic Esk Valley branch to Whitby, Manchester Airport connections, Leeds to Carlisle via Settle, and numerous Manchester-area suburban services. This geographic diversity demonstrates the class's fundamental versatility across operational contexts from intensive urban services to rural branch operations.
ScotRail retains approximately 40-45 units concentrated on Glasgow suburban services and the West Highland Line network. The suburban operations serve Ayrshire lines to Ardrossan, Largs, and Ayr, East Kilbride services, and Cumbernauld routes. The Highland operations to Fort William, Mallaig, and Oban employ the 15 RETB-equipped units exclusively, reflecting the specialised infrastructure requirements. ScotRail's fleet represents the class's longest continuous operational association with specific routes, maintaining service patterns established at introduction over 35 years ago.
Greater Anglia inherited nine Class 156 units serving rural East Anglian routes including Norwich to Great Yarmouth, Lowestoft, and Sheringham. The company invested £3 million refurbishing the fleet at Railcare Wolverton during 2016-2017, delivering modern interiors, improved accessibility, and enhanced passenger information systems. However, the arrival of new Stadler Class 755 bi-mode FLIRTs in 2020 enabled complete Class 156 withdrawal from Greater Anglia operations, with units transferring to Northern Trains to increase fleet capacity.
Major refurbishment programmes have progressively modernised the fleet ensuring continued fitness for purpose. ScotRail's £16 million programme during 2016-2019 delivered comprehensive transformation including PRM-TSI accessibility compliance with enlarged accessible toilets and enhanced wheelchair spaces, new Fainsa seating matching Class 385 EMU standards, LED lighting throughout, power sockets at seats, passenger Wi-Fi, and refreshed exterior livery application. The work extended service life by at least a decade whilst significantly improving passenger experience to contemporary expectations.
Northern Trains issued a £5 million tender during 2024-2025 for "Class 156 Refresh & Digital Train upgrade" covering 20 units. The specification includes interior refurbishment, digital train systems enabling real-time passenger information, accessibility enhancements, and mechanical refreshment extending operational life into the early 2030s. This investment signals Northern's intention to maintain Class 156 operations until replacement rolling stock arrives, likely around 2030-2032 based on current procurement timelines.
Operational versatility extends to diverse duty cycles. Typical Class 156 diagrams include commuter services with intensive peak-hour loadings and off-peak frequency reductions, rural branch operations with limited daily return trips, cross-country expresses connecting regional centres, and seasonal leisure services to coastal destinations and scenic routes. The units regularly work in multiple with compatible classes—156+153 combinations on West Highland services, 156+158 pairings on Liverpool routes, and various other formations matching capacity to demand.
Withdrawal and Preservation Legacy
The withdrawal history of the British Rail Class 156 Super Sprinter stands as perhaps the most remarkable testament to successful railway vehicle design in modern British railway history. After 37 years of intensive service spanning some of the most demanding operational contexts in Britain—from the weather-exposed West Highland Line to intensive urban commuter services—not a single unit has been permanently scrapped. This unprecedented 100% survival rate vastly exceeds any comparable diesel multiple unit class and rivals the longevity of celebrated steam locomotive designs.
The survival statistics prove particularly impressive when considering the class has endured several serious incidents that would typically result in permanent withdrawal. The fatal Ais Gill derailment on the Settle-Carlisle Line in January 1995 involved Class 156 units but damage proved repairable. The Falls of Cruachan fire in June 2010 severely damaged unit 156477, yet ScotRail elected to fund comprehensive repairs returning the unit to traffic rather than accept insurance write-off. Most remarkably, unit 156478 suffered catastrophic flood damage near Mauchline in December 2014, with Angel Trains declaring the unit beyond economic repair and removing it from the operational fleet.
However, even this apparently terminal casualty achieved resurrection. Brodie Leasing purchased the damaged unit from Angel Trains, commissioned comprehensive repairs, and returned 156478 to operational service by October 2016. This extraordinary effort—likely costing more than the unit's residual market value—demonstrated the fundamental soundness of the Class 156 design and the railway industry's commitment to maximising asset utilisation. The repair proved economically justifiable only because the basic structure and major components remained salvageable despite severe damage.
The absence of any scrapped units contrasts sharply with contemporary DMU classes. The Class 155 Super Sprinters suffered complete fleet withdrawal by 2012 with units either scrapped or converted to Class 153 single-cars. The Class 142 Pacer fleet faced mass scrapping from 2019-2020 following disability discrimination legislation compliance deadlines. Even the generally successful Class 150 Sprinter has seen a handful of units scrapped following accident damage or component failure. The Class 156's unique survival record reflects both robust initial design and operators' sustained investment in maintaining fleet fitness for purpose.
Preservation's Future Opportunity
Currently, no Class 156 units have entered preservation—a surprising gap given the class's historical significance and operational longevity. However, the precedent established by related classes suggests strong preservation prospects when withdrawals commence. The Watercress Line acquired Class 150 unit 150231 in 2025, demonstrating heritage railway appetite for second-generation DMUs. The Great Central Railway operates Class 153 units for heritage diesel services. These examples indicate that Class 156 preservation appears virtually certain, with heritage railways likely competing for early withdrawal units in good condition. Modellers can anticipate preserved Class 156s appearing at heritage diesel galas, potentially in historically significant liveries including BR Provincial, Strathclyde PTE orange, or special commemorative schemes.
Replacement programmes are nevertheless advancing inexorably, driven by three converging pressures: fleet age approaching 40 years, accessibility legislation requiring further expensive modifications, and political commitments to railway decarbonisation eliminating diesel traction. Northern Trains launched Britain's largest rolling stock procurement tender in January 2025, seeking up to 450 new trains to replace its entire DMU fleet including Classes 150, 155, and 156 by the early 2030s. Five manufacturers—Alstom, CAF, Hitachi, Siemens, and Stadler—have been shortlisted for what may prove Britain's final major diesel or bi-mode DMU order.
The Northern procurement timeline envisions contract award during 2026, first deliveries around 2029-2030, and complete fleet replacement by 2032-2033. This schedule means Class 156 withdrawals will likely commence around 2030, with the final units departing service by 2033-2034. The phased withdrawal enables orderly cascade of displaced units to other operators requiring stopgap capacity, though Scotland's aggressive decarbonisation targets may preclude accepting diesel cascade units.
ScotRail launched its own procurement in November 2025 for at least 69 new electric and battery-electric trains specifically to replace Class 156 diesel units. Scotland's Rail Decarbonisation Action Plan commits to eliminating diesel-only operations by 2035, forcing earlier withdrawal timelines than England. ScotRail's procurement targets first deliveries around 2028-2029, enabling Class 156 withdrawals to commence from 2029-2030. The West Highland Line's electrification remains economically unviable, necessitating battery-electric or hydrogen units for this iconic route currently served exclusively by Class 156s.
Preservation planning should ideally commence before withdrawals accelerate. Early identification of historically significant units—including RETB-equipped West Highland examples, units carrying special liveries, or examples representing operational milestones—would ensure the most appropriate candidates secure heritage futures. The Great Central Railway and Watercress Line both possess infrastructure suitable for operating full-length two-car DMUs, whilst the Scottish Railway Preservation Society at Bo'ness might appropriately preserve a ScotRail-liveried example given the class's long Scottish association.
The engineering legacy extends beyond preserved examples. The Class 156 validated design principles influencing subsequent British and international DMU development: proven component selection over innovation, passenger comfort prioritisation for longer-distance services, operational versatility across diverse route types, and standardisation enabling economical fleet maintenance. The Cummins-Voith drivetrain influenced numerous later designs including the Class 158 Express Sprinter. The bodyshell construction techniques refined by Metro-Cammell informed later DMU manufacturers. The BSI coupling system enabling extensive multiple-working compatibility became standard across Britain's second-generation DMU fleet.
Modelling Significance and Scale Replications
The British Rail Class 156 Super Sprinter presents exceptional modelling significance due to its unparalleled geographic versatility and remarkably diverse livery history spanning nearly four decades. Few modern British outline subjects offer comparable authenticity across such varied layout contexts—from Scottish Highland drama to East Anglian rural branches, from Yorkshire industrial landscapes to Welsh coastal routes. This operational diversity means virtually any contemporary or late-BR era British railway layout can authentically justify Class 156 operation.
The modelling landscape divides sharply between OO gauge where premium tooling delivers exceptional quality, and N gauge offering good value despite more modest detail levels. O gauge enthusiasts face complete absence of ready-to-run models, reflecting the economic challenges of tooling large modern DMUs for this limited market. The concentration of quality OO and N gauge offerings nevertheless provides excellent options for the vast majority of British modellers.

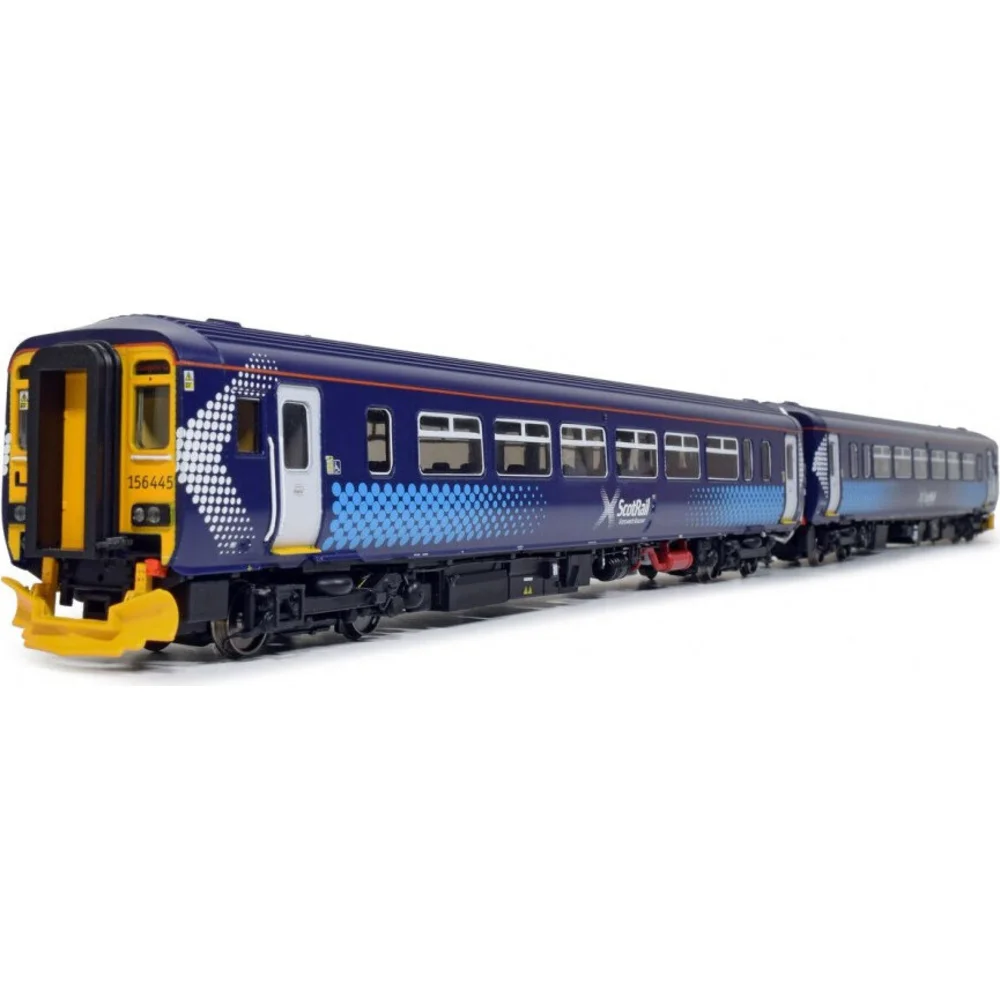

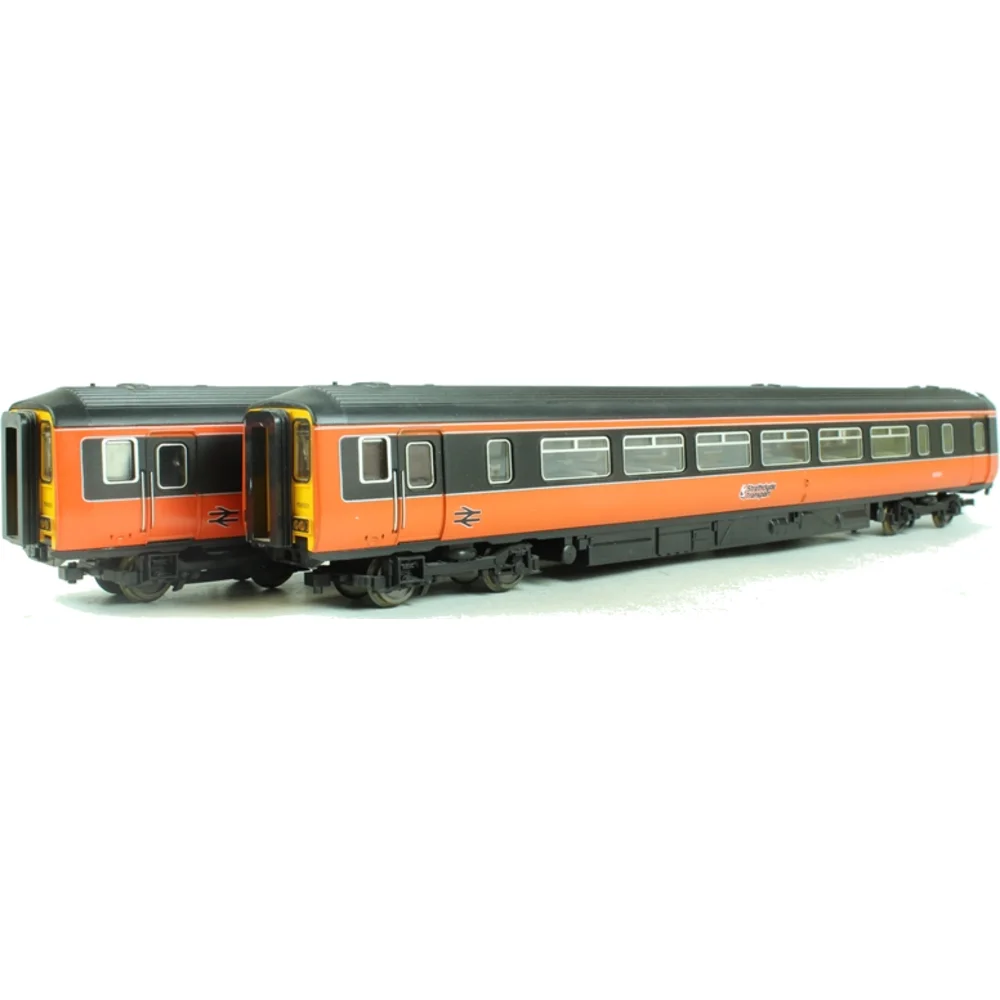

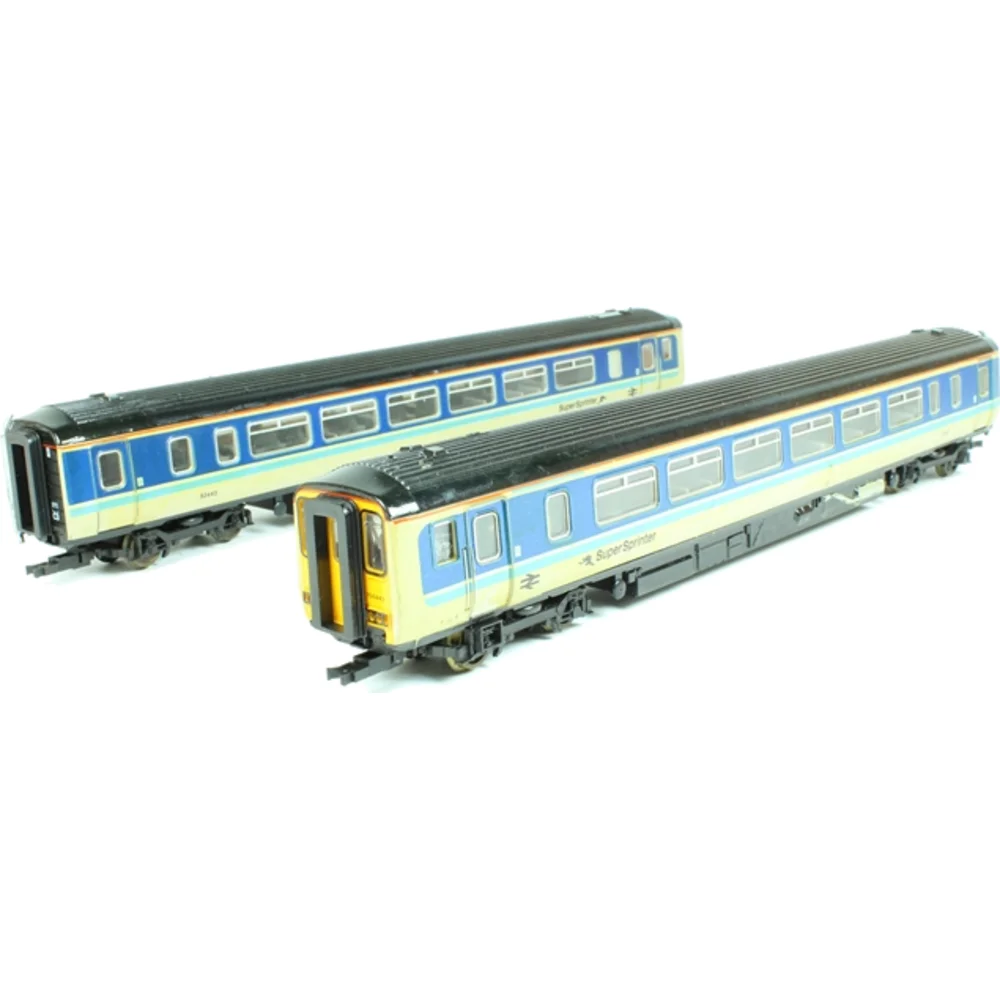

Realtrack Models, manufactured by Rapido Trains UK, produces the definitive OO gauge Class 156. First introduced in 2017 following extensive prototype research including 3D scanning of actual vehicles, these models represent contemporary British outline modelling excellence. The tooling captures the distinctive 23-metre Super Sprinter proportions with remarkable accuracy, including the subtle body side curves, correctly profiled cab fronts, and authentic underframe detail that separates Class 156 from shorter Class 150 Sprinters.
The technical execution impresses throughout. Both cars feature motorised rear bogies incorporating low-profile micro geared drives, five-pole motors, and dual flywheels delivering smooth performance from crawling speeds through 75 mph maximum. The 21-pin DCC socket configuration requires two decoders for full functionality—a premium approach enabling independent control of features in each vehicle. Factory-fitted directional head and tail lights operate on DC analogue layouts, with DCC unlocking additional functions including working orange door warning lights (DCC only), illuminated destination boards displaying route information, interior lighting throughout both vehicles, and cab lighting visible through detailed glazing.
Current production availability from Realtrack Models includes several significant liveries reflecting the class's diverse operational history. The Strathclyde PTE orange and black livery (units 156502, 156510, 156508) recreates the distinctive 1980s-1990s Scottish regional identity, particularly appropriate for Glasgow suburban operations. Northern Trains white "bubbles" livery (units 156452, 156428) represents contemporary operations on Northern's extensive route network. Northern midnight blue including the named unit "Lancashire Dalesrail" (156464) offers alternative Northern representation with the special name carried by this unit celebrating the popular Dalesrail leisure services.
Previous Realtrack releases covered numerous additional liveries that modellers frequently encounter on the secondhand market. BR Provincial two-tone blue and grey represents the original 1988-1990 delivery livery, ideal for late-BR era layouts. Regional Railways blue with red, white, and blue stripes captures the early-to-mid 1990s Sector identity. East Midlands Trains and various ScotRail schemes including the "Barbie" turquoise and magenta offer franchise-era variety. Secondhand market pricing typically ranges £180-£250 depending on condition and specific livery desirability.
Custom repainting services from specialists including Rainbow Railways expand livery availability. Professionally repainted models offer ScotRail Saltire (current blue and white branding), Central Trains green and cream, and other operator-specific schemes not covered by regular production. These custom repaints typically command £220-280 reflecting both the base model cost and professional paint application labour.
Advanced Modelling: Formation Authenticity
Authentic Class 156 operation predominantly involves single two-car units rather than coupled formations, with four-car consists (two coupled units) appearing during peak periods or seasonal traffic surges. The BSI automatic coupling enables prototype-accurate mixed formations with compatible classes—156+153 pairings frequently appear on West Highland Line services from 2021 onwards, 156+158 combinations served Liverpool routes during the 1990s-2000s, and various other mixed workings occurred throughout privatisation. Modellers should research specific route and era combinations to ensure authentic consists. Platform lengths should accommodate approximately 60cm for a single OO gauge two-car unit, or 120cm for four-car formations. The operational flexibility provided by BSI compatibility adds significant interest to layout operations whilst remaining entirely prototypical.
The discontinued Hornby R3773 model (156401 in BR Provincial livery) utilised older Lima tooling acquired when Hornby purchased that manufacturer's assets. The model features basic 8-pin DCC readiness without the sophisticated lighting functionality of Realtrack's 21-pin implementation, single-bogie drive rather than dual-motor configuration, and more modest detail levels particularly evident in underframe and bogie representation. Whilst clearly inferior to Realtrack's contemporary offering, secondhand examples trading at £60-£120 provide budget-conscious entry into Class 156 modelling for those prioritising economic accessibility over ultimate accuracy.

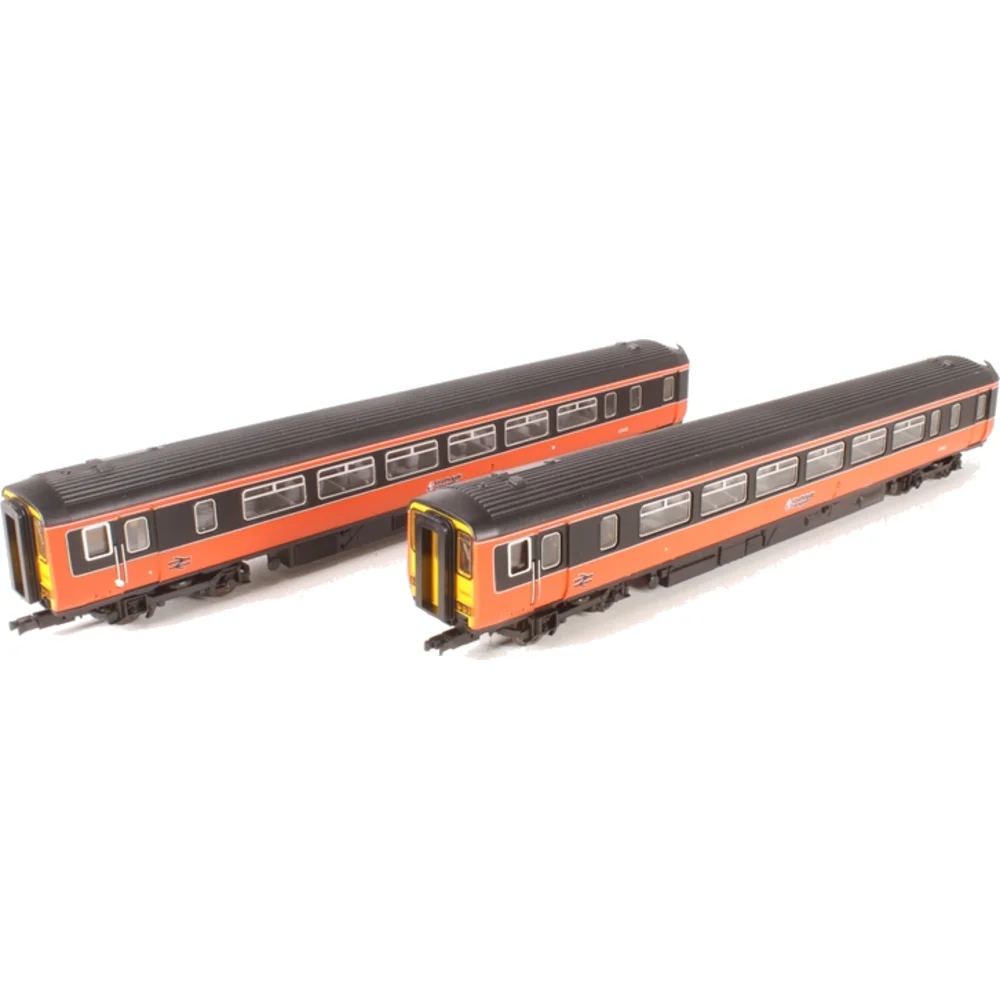

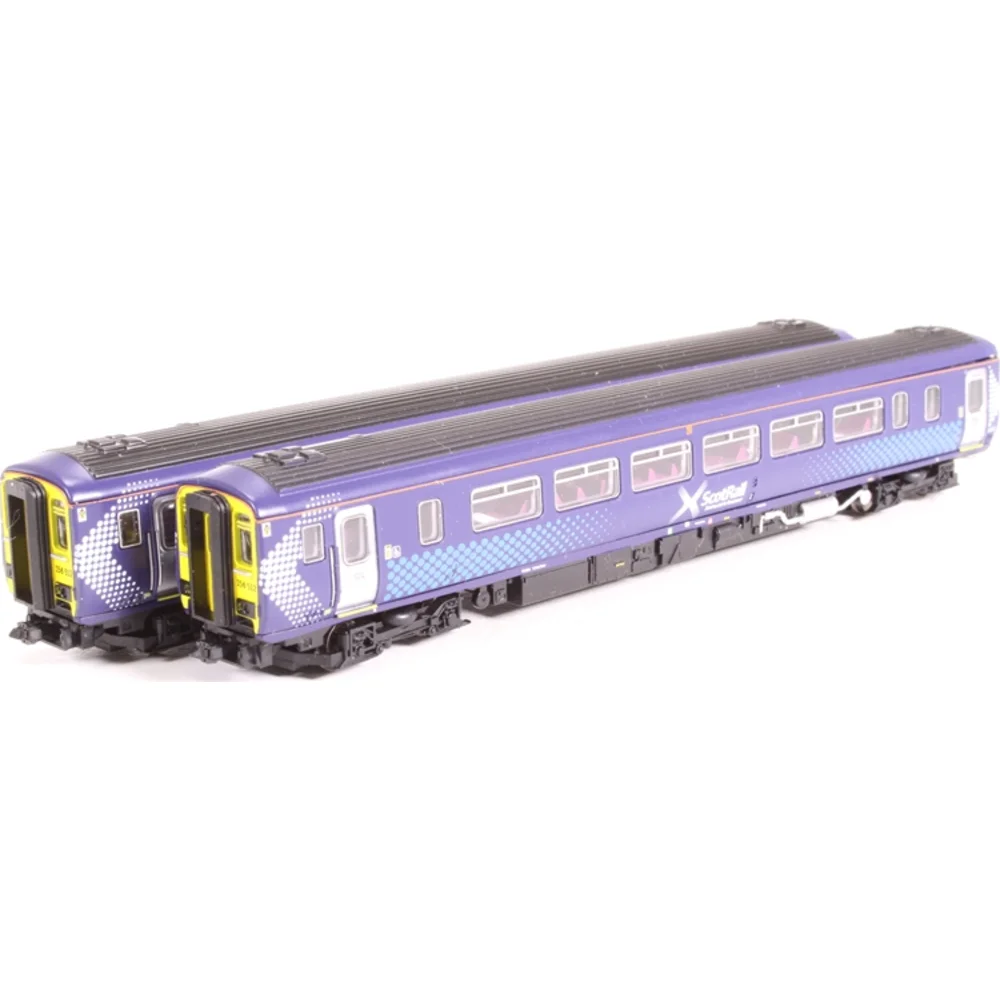

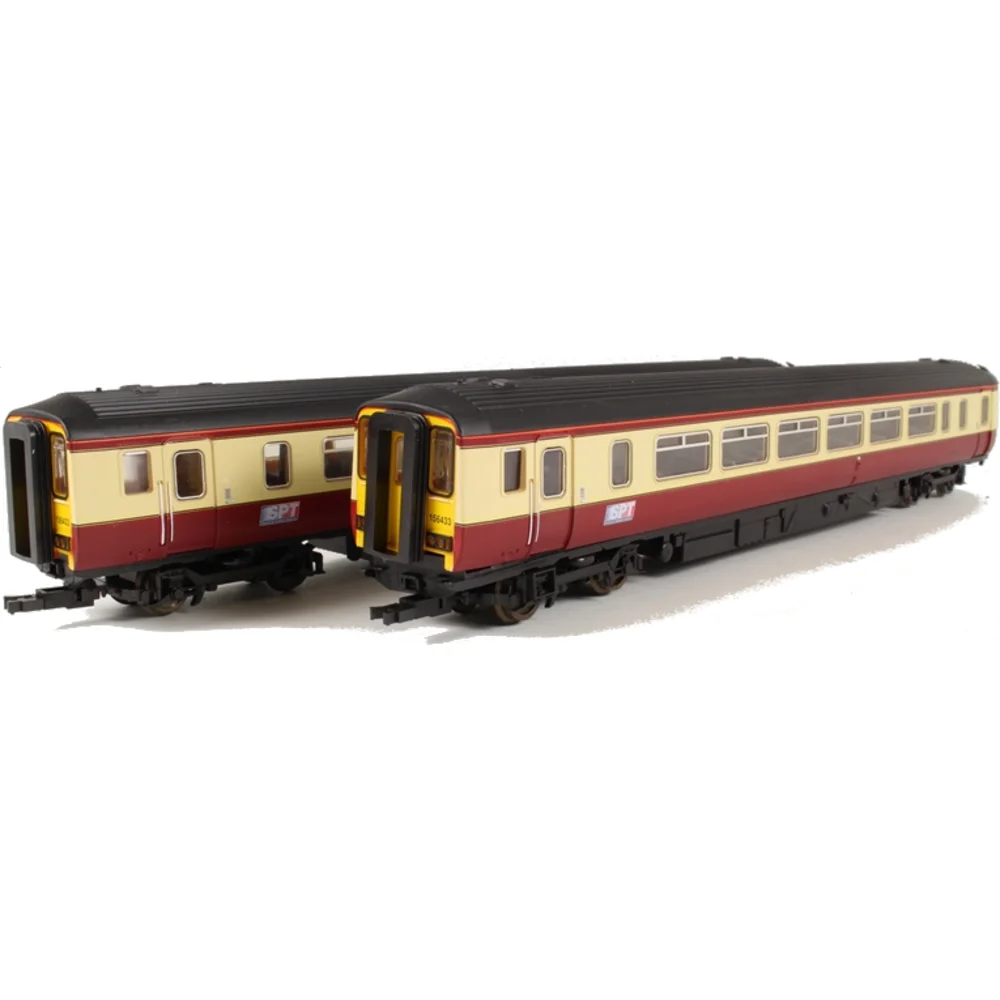

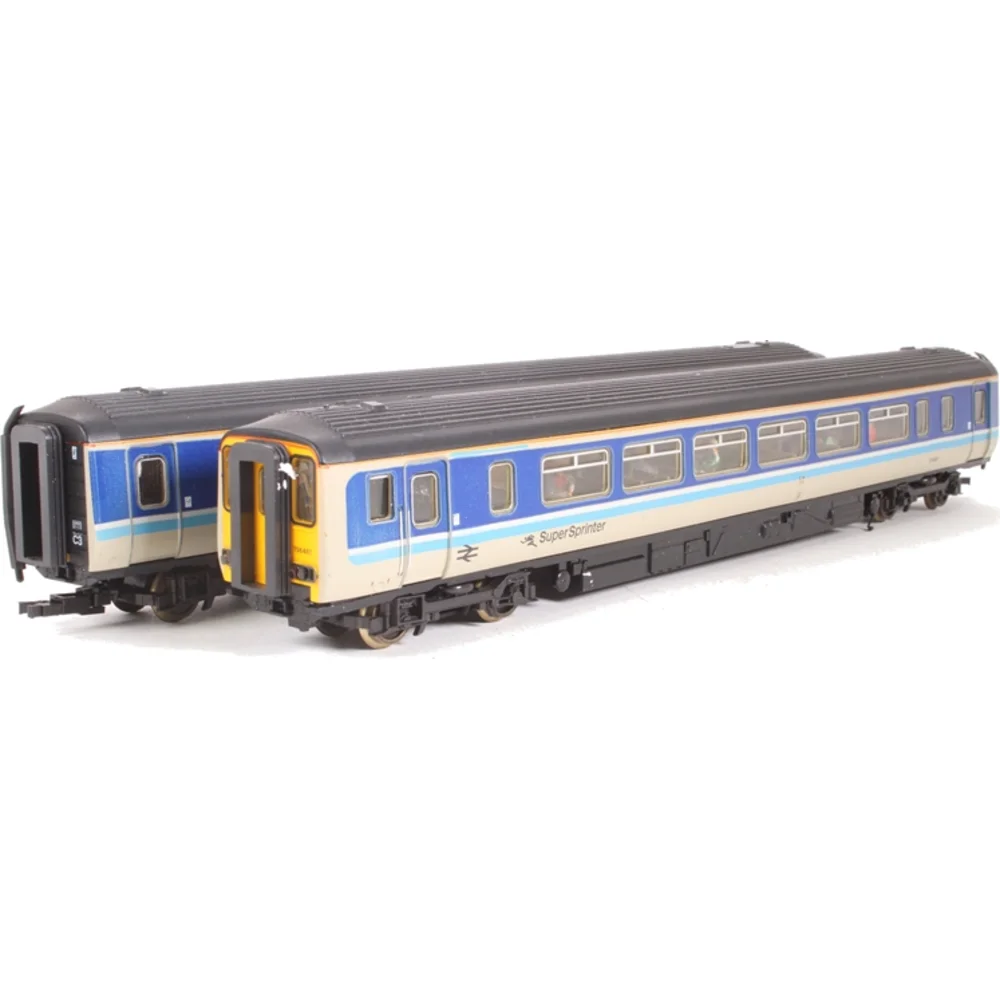

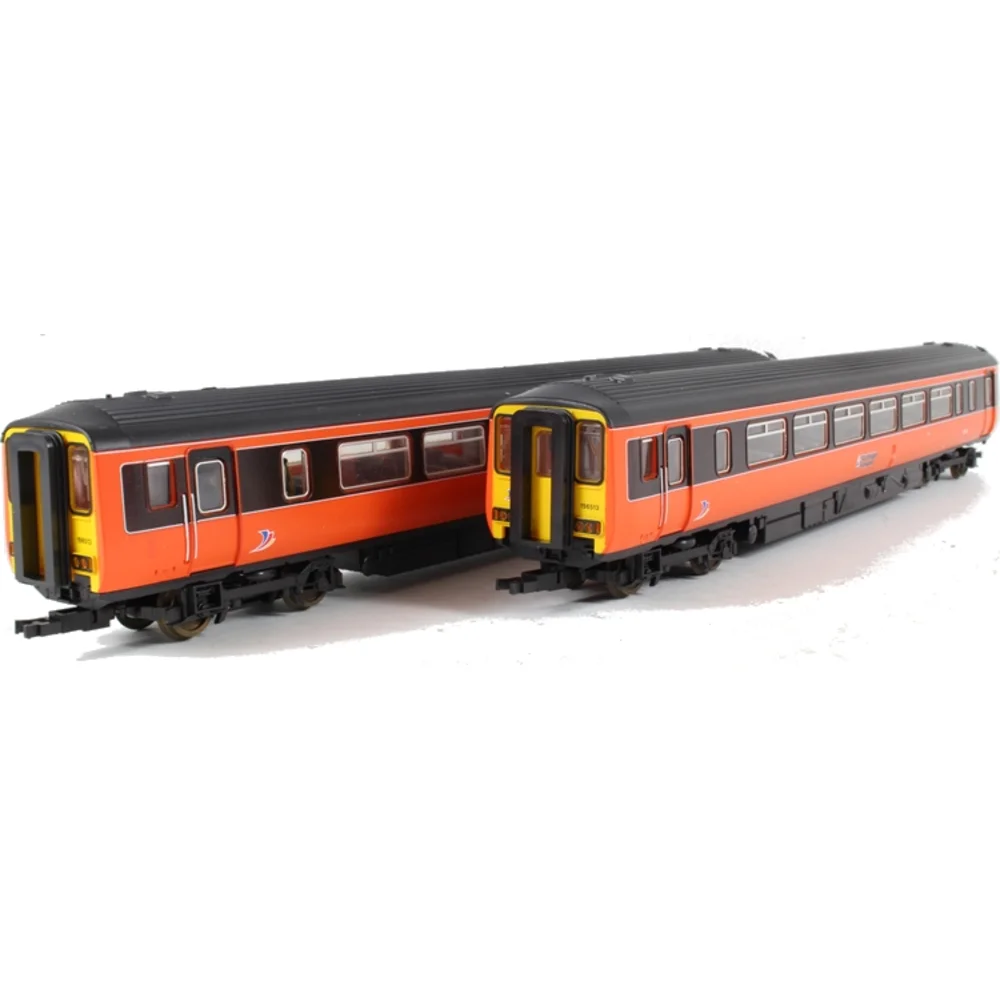

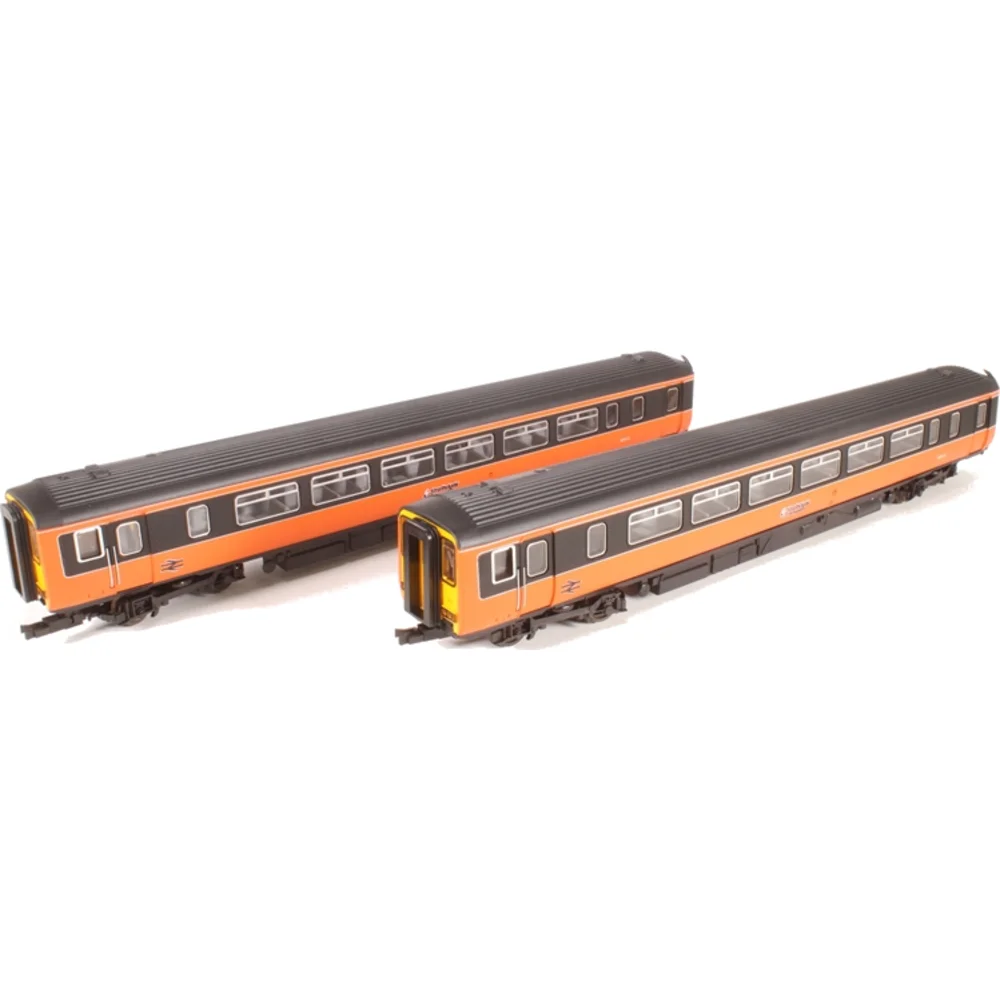

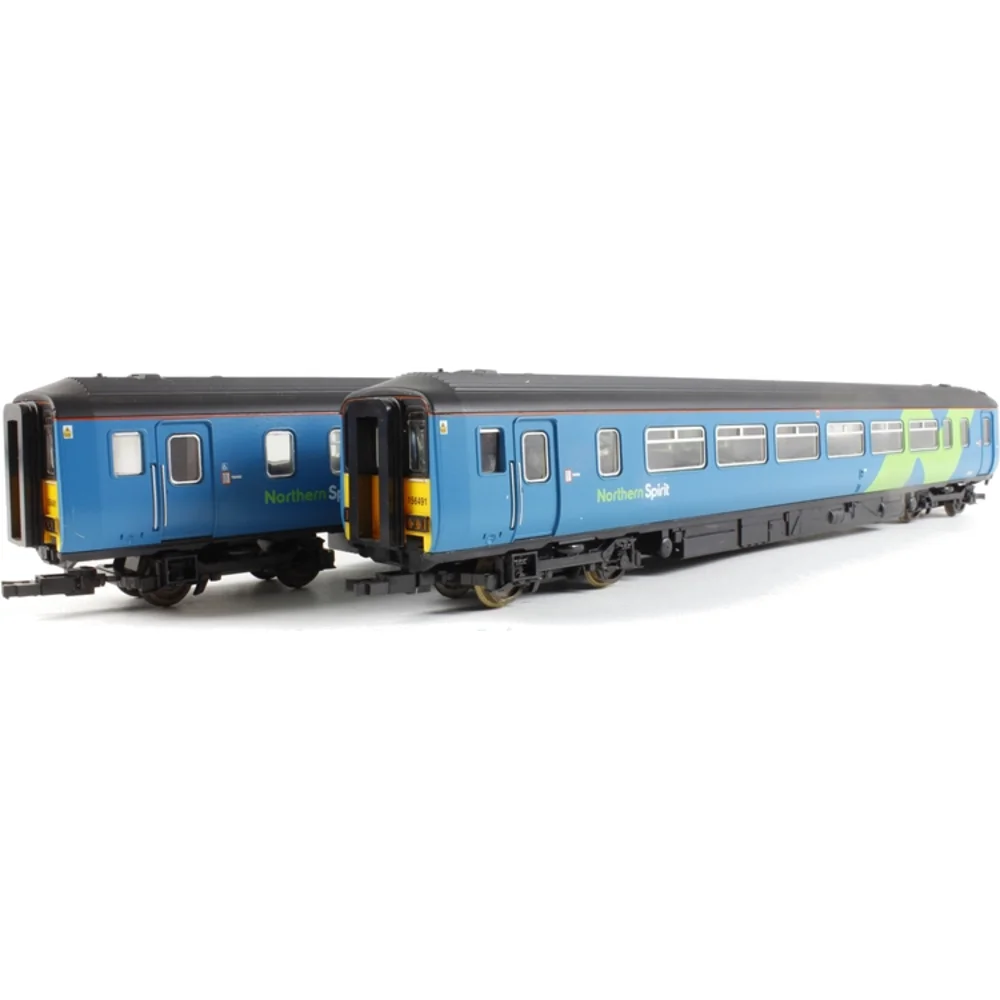

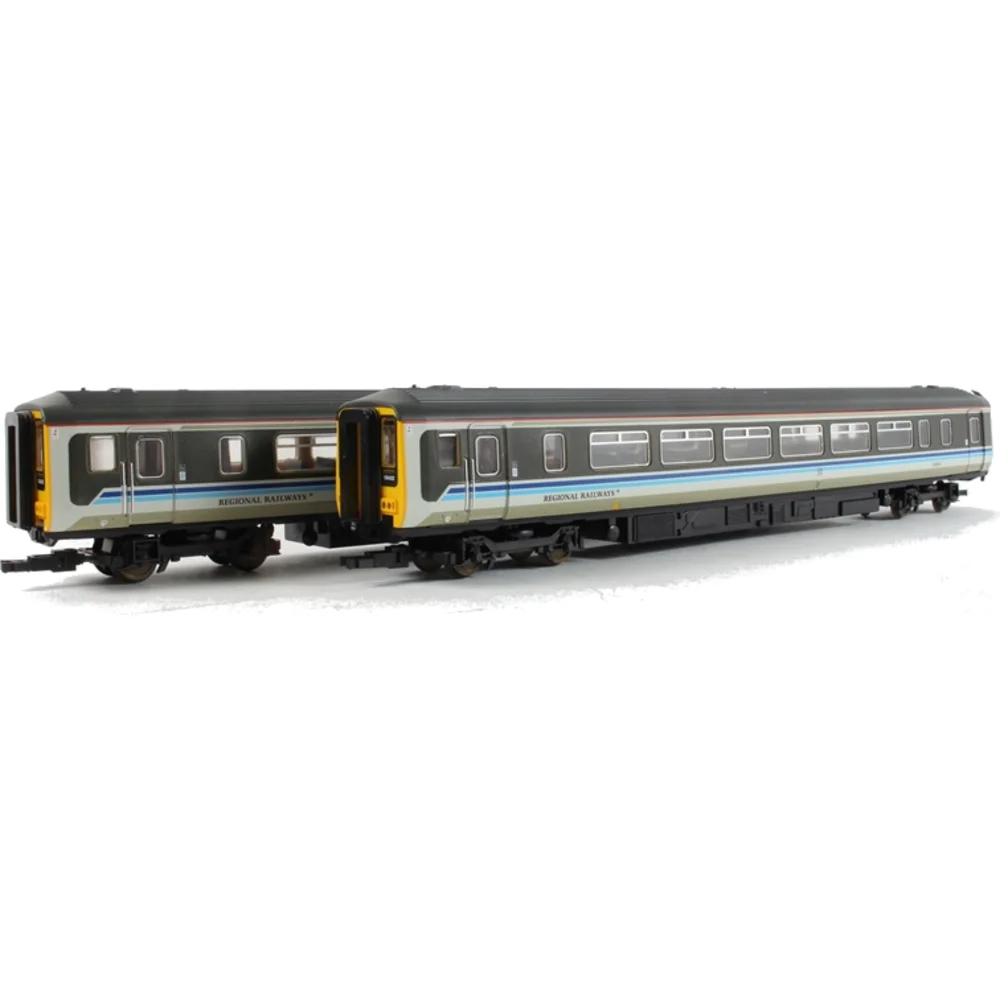

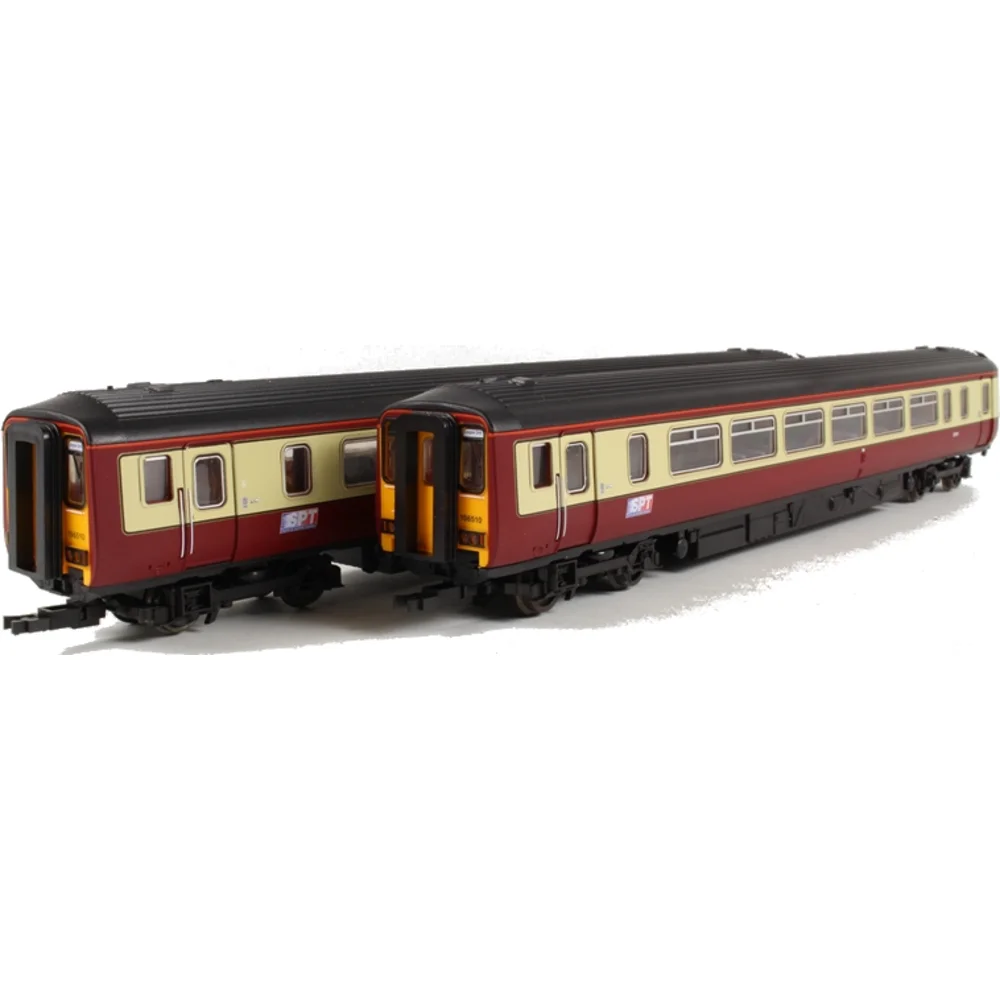

Dapol dominates N gauge Class 156 production with current tooling featuring Next18 DCC socket configuration. The models measure approximately 165mm in length per vehicle, accurately scaled to N gauge's 1:148 proportion. Pricing structures include DCC Ready versions at £178.50 RRP (typically £145-155 street price from major retailers) and DCC Fitted models at £228.71 RRP (approximately £185-195 street price) incorporating factory-installed decoders with basic sound functionality.
Current Dapol production availability includes National Express East Anglia livery (unit 156419) representing the 2004-2012 franchise period, and Northern Trains 2016 onwards livery (unit 156468) covering contemporary operations. The extensive back catalogue of discontinued Dapol releases provides excellent secondhand hunting opportunities. Strathclyde PTE orange and black, BR Provincial two-tone blue and grey, Regional Railways, Northern Spirit, Central Trains green and cream, and East Midlands Trains liveries all appeared in previous production runs. Secondhand N gauge prices typically range £90-£140 depending on condition and livery.
The technical execution of Dapol's N gauge models employs single-bogie drive with the powered bogie positioned in one vehicle, and the trailing bogie pickup in the opposite vehicle providing electrical continuity. This arrangement delivers adequate performance for level running and moderate gradients typical of N gauge layouts, though steep inclines may challenge traction. The Next18 DCC socket enables straightforward digital conversion, with several manufacturers offering suitable decoders including basic sound functionality appropriate for N gauge applications.
Detail quality reflects N gauge scale limitations whilst capturing the Class 156's essential character. Separately applied components include grab rails, bodyside ventilation grilles, and coupling mechanisms. Factory-fitted glazing provides cab interior suggestion without the detailed instrumentation visible on OO gauge models. Livery application demonstrates Dapol's characteristic attention to accuracy with correctly positioned fleet numbers, operator logos, and passenger information symbols matching prototype application standards.
No O gauge models exist from any manufacturer—neither ready-to-run nor kit form. Heljan produces several British DMU classes in O gauge including Classes 117, 121, 122, and others, but has not announced Class 156 tooling. The substantial investment required for O gauge DMU tooling combined with limited market size makes commercial production unlikely. Scratch-building or extensive kitbashing from generic components remains the only option for O gauge modellers requiring Class 156 representation, demanding advanced modelling skills and considerable time investment.
The absence of Bachmann Branchline, Hornby (current production), Accurascale, Revolution Trains, or other major British outline manufacturers from Class 156 production reflects market dynamics rather than prototype significance. Realtrack's comprehensive OO gauge coverage appears to satisfy demand sufficiently that competitors see limited opportunity for alternative tooling investment. Dapol's established N gauge presence similarly discourages competitive entries in that scale.
Unique Modelling Tips and Layout Integration
Successfully incorporating British Rail Class 156 Super Sprinter models into layout operation requires understanding the class's operational versatility and matching deployment to authentic prototype contexts. The geographic diversity of Class 156 service—spanning virtually every British region from the Scottish Highlands to East Anglian branches—creates exceptional flexibility for modellers whilst demanding attention to era-appropriate allocation patterns and infrastructure characteristics.
Era selection fundamentally determines authentic Class 156 representation. Late British Rail layouts (1987-1994) demand BR Provincial two-tone blue and grey livery on early routes including Norwich to Liverpool expresses, West Highland Line services, and cross-Pennine operations. Privatisation-era layouts (1994-2004) enable Regional Railways blue with tricolour stripes transitioning to early franchise liveries including ScotRail "Barbie" turquoise and magenta, Northern Spirit navy and gold, Central Trains green and cream, and Wales & West red and cream. Contemporary layouts (2004-present) justify current operator liveries including ScotRail Saltire, Northern white "bubbles" or midnight blue, and various special schemes.
Route selection should reflect historical allocation patterns. West Highland Line layouts from 1989 onwards authentically feature Class 156s as primary motive power for Glasgow Queen Street to Fort William, Mallaig, and Oban services. The infrastructure demands Swiss-chalet style station buildings (Mallaig, Fort William), single-track operation with passing loops at characteristic locations, and the dramatic Glenfinnan Viaduct scenery. From 2021, 156+153 coupled formations provide authentic contemporary operations with the "Highland Explorer" conversions complementing standard Class 156 units.
Settle-Carlisle Line layouts benefit from the Class 156's long association with this celebrated route. Operations include scheduled passenger services, charter traffic particularly during summer months, and occasional diversionary workings when the West Coast Main Line faces disruption. The infrastructure requires distinctive Midland Railway stone-built stations at Settle, Appleby, and other locations, the dramatic Ribblehead Viaduct setting, and freight operations (coal, gypsum, cement trains hauled by Class 66s) adding operational variety beyond passenger services.
Scottish suburban operations around Glasgow offer intensive service frequencies with Class 156s working East Kilbride, Cumbernauld, Cathcart Circle, Ayrshire Coast (Ardrossan, Largs, Ayr), and other routes. Infrastructure includes Glasgow Central's distinctive overall roof, electrified suburban routes (with Class 156s operating under wires despite lacking electric traction capability), and mixed traffic with Class 318, 320, 334, and 385 EMUs plus occasional locomotive-hauled services. Formation patterns include single two-car units during off-peak periods and four-car coupled formations (two units) during peak hours.
Weathering Authenticity for Regional Operations
Class 156 weathering should reflect extended service intervals between cleaning compared to premium InterCity traction. Focus weathering effects on operational areas: brake dust accumulation along bodysides and around bogies, fuel staining around filler cap areas, general road grime particularly along lower bodyside panels and underframe, and exhaust residue around roof-mounted exhaust outlets. However, avoid excessive industrial weathering inappropriate for passenger-rated units receiving regular depot attention. Northern England operations in industrial areas justify heavier weathering than Scottish Highland services operating through relatively clean environments. Bogie frames and underframe components accumulate the heaviest deposits, whilst upper bodyside panels and cab windows remain relatively clean between depot visits. Different operators maintain varying cleanliness standards—ScotRail's recent refurbishments deliver notably cleaner external appearance than Northern's more utilitarian maintenance approach.
East Midlands branch operations suit terminus-to-terminus layouts. Routes including Nottingham to Skegness (seasonal leisure traffic), Derby to Matlock (scenic Peak District operation), and Lincoln area branches provide authentic contexts. Infrastructure includes Victorian-era stations with distinctive architectural styles, level crossings particularly on rural sections, and seasonal traffic variations with intensified services during summer months for coastal destinations. Mixed traffic with Class 158 Express Sprinters, occasional locomotive-hauled charter trains, and freight operations adds operational diversity.
Formation authenticity requires understanding that standard operation involves single two-car units, with coupled formations appearing strategically. Four-car formations (two coupled units) operate during morning and evening peak periods on commuter routes, summer weekend services to coastal destinations experiencing leisure traffic surges, and special events generating exceptional passenger demand. The BSI automatic coupling compatibility enables mixed formations with other classes—156+153 combinations on West Highland services from 2021, 156+158 pairings particularly on Liverpool area routes during the 1990s-2000s, and various other mixed workings throughout the privatisation era.
Platform lengths should accommodate approximately 60cm for a single OO gauge two-car unit (equivalent to approximately 23 metres prototype length at 4mm:1ft scale), or 120cm for four-car coupled formations. N gauge requirements scale proportionally to approximately 33cm per two-car unit. Stations with short platforms characteristic of rural branch operations should demonstrate operational reality—units positioning carefully to align doorways with platform edges, or operating "selective door opening" where only specific doorways open at short platforms.
Timetable construction benefits from understanding typical Class 156 duty cycles. Rural branch operations might involve 2-4 return trips daily with extensive layovers between services, reflecting the economic reality of lightly-trafficked routes. Cross-country express services operate hourly or two-hourly frequencies connecting regional centres. Urban commuter operations deliver intensive 15-30 minute frequencies during peak periods reducing to hourly off-peak service. Seasonal variations affect coastal and leisure routes with weekend frequency increases during summer months.
Sound-equipped models benefit from appropriate audio programming. The Cummins NT855 diesel produces characteristic turbocharged six-cylinder exhaust note distinctly different from four-cylinder units (Classes 142-144) or Perkins-powered alternatives (Class 150). The Voith transmission creates specific "turbo whine" during acceleration and gear change transitions. Programming sound decoders to emphasise these distinctive characteristics—including the transmission whine during hard acceleration and the exhaust bark during climbing—creates authentic atmosphere enhancing operational realism.
Depot scenes provide excellent static display opportunities demonstrating maintenance infrastructure. Northern's Newton Heath depot, ScotRail's Yoker depot, or freelanced facilities incorporating authentic features including fuelling points, wheel lathes, heavy maintenance workshops, and parts storage. Class 156s sharing depot space with compatible classes (150, 153, 155, 158) creates authentic multi-type maintenance environments. Depot staff figures engaged in daily maintenance activities—cleaning interiors, refuelling, minor repairs—add operational realism.
Operational sessions incorporating realistic duty diagrams enhance layout operations. A Class 156 might operate morning commuter service from outer suburb to city centre, mid-morning positioning move to commence cross-country express duty, afternoon leisure service to coastal destination, evening return working, and final positioning to depot. This varied duty cycle creates engaging operations whilst remaining entirely prototypical for units operating on Northern's or ScotRail's networks.
Finally
The British Rail Class 156 Super Sprinter represents far more than 114 successful diesel multiple units; these machines embody a coherent design philosophy that prioritised proven reliability over technical innovation, passenger comfort over construction economy, and operational versatility over specialised optimisation. The result—37 years of continuous service with zero permanent withdrawals—vindicated every design decision and established longevity benchmarks that contemporary rolling stock struggles to approach.
For railway historians, the Class 156 provides fascinating insights into British Rail's Provincial sector strategy during the challenging 1980s when deregulated express coaches threatened regional railway viability. The decision to invest in genuinely comfortable regional DMUs capable of competing with coach operators on longer-distance routes proved strategically sound, with the Super Sprinter enabling entirely new through services previously impossible with existing DMU capabilities. The East Anglia to North West expresses launched with Class 156s demonstrated that thoughtful rolling stock deployment could create market opportunities rather than simply serving existing demand.
The engineering legacy extends well beyond the Class 156 fleet itself. The proven Cummins-Voith drivetrain influenced numerous subsequent British and international DMU designs including the Class 158 Express Sprinter. The emphasis on passenger comfort for longer-distance regional services established expectations that later franchises struggled to maintain when cascading units to different operational contexts. The BSI coupling system enabling extensive multiple-working compatibility became standard across Britain's second-generation DMU fleet, creating operational flexibility that proves increasingly valuable as Train Operating Companies manage complex fleets across diverse route portfolios.
The complete fleet survival—including units recovering from apparently terminal damage—demonstrates both the fundamental robustness of Metro-Cammell's construction and operators' sustained commitment to maintaining fleet fitness for purpose. The contrast with contemporary classes suffering early withdrawals and partial scrapping highlights the Class 156's exceptional design quality. This longevity has enabled operators to defer expensive replacement programmes whilst investing in progressive refurbishments maintaining passenger appeal and accessibility compliance.
For model railway enthusiasts, the Class 156 Super Sprinter offers exceptional versatility that few modern British outline subjects can match. The class's service across virtually every British region from Scottish Highlands to East Anglian branches, from Yorkshire industrial landscapes to Welsh coastal routes, means almost any contemporary or late-BR era layout can authentically justify Class 156 operation. The extensive livery history spanning BR Provincial, Regional Railways, Strathclyde PTE orange, numerous privatisation-era franchise schemes, and current operator identities provides opportunities for any modelling preference.
Realtrack Models' exceptional OO gauge range delivers premium quality tooling with dual motors, comprehensive lighting functionality, and accurate representation of the distinctive Super Sprinter proportions. Dapol's N gauge offerings provide excellent value with good detail levels and DCC compatibility at accessible price points. The concentration of quality models in both scales ensures most British modellers can incorporate Class 156s into layout operations with confidence in prototype accuracy.
Authentic layout integration requires matching Class 156 deployment to appropriate operational contexts and infrastructure characteristics. West Highland Line operations demand single-track with passing loops, distinctive station architecture, and dramatic scenery. Settle-Carlisle services require Midland Railway stone-built stations and viaduct settings. Scottish suburban operations around Glasgow need electrified infrastructure and mixed EMU/DMU traffic. East Midlands branches suit terminus-to-terminus layouts with seasonal traffic variations. This diversity enables modellers to select operational contexts matching their layout themes whilst remaining entirely prototypical.
As replacement programmes advance and the first withdrawals approach—likely around 2030 with ScotRail's units potentially facing earlier displacement due to Scotland's aggressive decarbonisation targets—the window for experiencing Class 156s in mainline service narrows. The precedent established by Class 150 and 153 preservation suggests strong prospects for at least one Class 156 securing heritage railway future, likely including RETB-equipped West Highland Line examples or units wearing historically significant liveries. Future generations will appreciate these successful Super Sprinters as exemplars of thoughtful design matched to operational requirements.
The British Rail Class 156 Super Sprinter story ultimately celebrates the triumph of pragmatic engineering over ambitious innovation, proven components over cutting-edge alternatives, and sustained maintenance investment over short-term economy. When British Rail's Provincial sector faced existential threats from deregulated coach operators during the 1980s, the response delivered 114 comfortable, reliable, versatile diesel multiple units that have served continuously for nearly four decades. This achievement—zero units scrapped, complete fleet survival, sustained operator investment in progressive refurbishment—validates every design decision and establishes the Class 156 as one of British Rail's most enduringly successful modern traction classes.
Frequently Asked Questions
How many British Rail Class 156 Super Sprinters were built and when?
British Rail ordered 228 vehicles forming 114 two-car units from Metro-Cammell's Washwood Heath Works in Birmingham. Construction occurred between 1987 and 1989, with the first unit (156401) conducting test runs from November 1987 and revenue service commencing in May 1988. The bodyshells were fabricated by three subcontractors—Procor Engineering at Wakefield, W.H. Davis at Mansfield, and Standard Wagon at Heywood—with final assembly and interior fitting completed at Metro-Cammell's facility.
What makes the Class 156 a "Super Sprinter" compared to the Class 150?
The "Super Sprinter" designation reflects the 23-metre bodyshell length compared to the Class 150's 20-metre design. This extra length enabled comfortable 2+2 seating with tables and armrests throughout, matching InterCity comfort standards rather than cramped suburban arrangements. Provincial sector targeted longer-distance regional express services where passengers would appreciate enhanced comfort during journeys exceeding one hour, positioning Super Sprinters to compete directly with National Express coaches.
Which operators currently run Class 156 trains?
Northern Trains operates approximately 68-70 units across extensive route networks in North West England, Yorkshire, and North East England, including Liverpool to Barrow, the Settle-Carlisle Line, Esk Valley services to Whitby, and Manchester area suburban routes. ScotRail retains approximately 40-45 units for Glasgow suburban services and West Highland Line operations to Fort William, Mallaig, and Oban. Greater Anglia withdrew its nine units in 2020 following Class 755 deliveries, with the units transferring to Northern.
Can Class 156 units work in multiple with other DMU classes?
Yes, the BSI automatic coupling system enables Class 156 units to operate in multiple with an extensive family of compatible classes including 142, 143, 144, 150, 153, 155, 158, 159, 170, and 172. This operational flexibility proves particularly valuable during peak periods and enables mixed formations such as 156+153 combinations on West Highland Line services from 2021, or 156+158 pairings on Liverpool routes during the 1990s-2000s.
What is special about the West Highland Line Class 156 units?
Only 15 Class 156 units carry Radio Electronic Token Block equipment required for West Highland Line operations. The RETB system replaced traditional signalling with radio communication between drivers and signallers, enabling operations across remote Highland routes where conventional signalling proves economically unviable. These specialised RETB-equipped units operate exclusively on West Highland services to Fort William, Mallaig, and Oban, representing dedicated rolling stock for one of Britain's most spectacular railway routes.
Have any Class 156 units been scrapped or withdrawn?
Remarkably, not a single Class 156 unit has been permanently scrapped after 37 years of service—an unprecedented 100% survival rate. Even units suffering serious damage have been repaired and returned to traffic, including unit 156478 which recovered from catastrophic flood damage after Brodie Leasing purchased it from Angel Trains and funded comprehensive repairs. This extraordinary survival record demonstrates both robust initial design and sustained operator investment in fleet maintenance.
When will Class 156 trains be replaced?
Northern Trains launched procurement in January 2025 for up to 450 new trains to replace its DMU fleet including Class 156s, with deliveries targeting 2029-2030 and complete replacement by 2032-2033. ScotRail's separate procurement launched November 2025 seeks at least 69 electric and battery-electric units to replace Class 156 diesels by around 2030-2032, driven by Scotland's 2035 rail decarbonisation deadline. First withdrawals will likely commence around 2029-2030 with the final units departing service by 2033-2034.
What OO gauge Class 156 models are currently available?
Realtrack Models, manufactured by Rapido Trains UK, produces premium OO gauge Class 156s with dual motors, 21-pin DCC sockets, directional lighting, working door warning lights, and illuminated destination boards. Current production at £270 RRP includes Strathclyde PTE orange and black, Northern white "bubbles" livery, and Northern midnight blue schemes. Previous releases covering BR Provincial, Regional Railways, East Midlands Trains, and ScotRail variants appear on the secondhand market at £180-250.
Are Class 156 models available in N gauge?
Yes, Dapol produces N gauge Class 156 models featuring Next18 DCC sockets. DCC Ready versions retail at £178.50 RRP with street prices typically £145-155, whilst DCC Fitted models at £228.71 RRP sell for approximately £185-195. Current production includes National Express East Anglia and Northern Trains liveries. Extensive back catalogue releases covering Strathclyde PTE, BR Provincial, Regional Railways, Northern Spirit, Central Trains, and East Midlands Trains liveries frequently appear on the secondhand market.
What routes and services are appropriate for Class 156 models on layouts?
Class 156s suit diverse operational contexts including West Highland Line services with single-track operation and dramatic scenery, Settle-Carlisle Line expresses with Midland Railway architecture, Scottish suburban operations around Glasgow with mixed DMU/EMU traffic, East Midlands branches with seasonal leisure traffic to Skegness and Matlock, Northern England commuter services with peak-hour intensification, and Welsh coastal routes. The geographic versatility means few modern British outline layouts cannot authentically justify Class 156 operation.
How should I form Class 156 trains authentically?
Standard operation involves single two-car units during off-peak periods, with four-car coupled formations (two units) appearing during morning and evening peaks, summer weekend services to coastal destinations, and special events. The BSI coupling compatibility enables mixed formations with other classes—156+153 combinations on West Highland services from 2021, 156+158 pairings on Liverpool routes during the 1990s-2000s. Platform lengths should accommodate approximately 60cm for a single OO gauge unit or 120cm for four-car formations.
Will any Class 156 units be preserved?
Currently no Class 156 units have entered preservation, though strong prospects exist when withdrawals commence around 2030. The precedent of Class 150 unit 150231 joining the Watercress Line in 2025 and Class 153 units operating at the Great Central Railway demonstrates heritage railway appetite for second-generation DMUs. RETB-equipped West Highland Line examples or units wearing historically significant liveries including BR Provincial or Strathclyde PTE orange appear likely preservation candidates.
What refurbishments have Class 156 units received?
ScotRail invested £16 million during 2016-2019 delivering PRM-TSI accessibility compliance with enlarged accessible toilets, enhanced wheelchair spaces, new Fainsa seating, LED lighting, power sockets, and Wi-Fi. Greater Anglia spent £3 million refurbishing nine units at Railcare Wolverton during 2016-2017 before their 2020 withdrawal. Northern issued a £5 million tender in 2024-2025 for "Class 156 Refresh & Digital Train upgrade" covering 20 units with interior refurbishment and digital systems extending service life into the early 2030s.
