The LMS Stanier Class 8F stands as one of Britain's most successful and influential freight locomotive designs, with 852 examples built between 1935 and 1946. Born from Sir William Stanier's vision to modernise the London, Midland & Scottish Railway's inadequate freight fleet, these robust 2-8-0 locomotives became the backbone of Britain's wartime goods operations and served faithfully until the final days of steam in 1968. Their remarkable story encompasses global service from the deserts of Iran to the coalfields of Yorkshire, cementing their reputation as perhaps the most versatile and dependable freight locomotives ever to run on British rails.
The LMS Stanier Class 8F represented a quantum leap forward from the collection of underpowered 0-6-0s and disappointing 0-8-0s that the LMS had inherited from its constituent companies. When Robert Riddles selected the 8F as Britain's standard freight locomotive for World War Two, it validated Stanier's engineering excellence and ensured these locomotives would serve far beyond their original LMS territory. Today, with eight examples preserved and new ready-to-run models from Bachmann revitalising the class's presence in model form, the 8F continues to captivate railway enthusiasts worldwide.
From hauling 1,000-ton coal trains over the challenging gradients of the Settle & Carlisle line to shunting duties in Middle Eastern ports, the Class 8F proved its mettle in every conceivable freight operation. Their influence extended well beyond British shores, with examples serving in Turkey, Iran, Iraq, and Palestine, some continuing in service into the 1980s. For model railway enthusiasts, the 8F offers unparalleled authenticity for layouts spanning the 1930s through to the end of steam era, representing both the pinnacle of British freight locomotive design and the industrial heritage that shaped a nation.
Quick Takeaways
- Production Scale: 852 locomotives built 1935-1946, making it one of Britain's most numerous steam classes
- Technical Innovation: Stanier Class 3C boiler with Belpaire firebox and tapered barrel revolutionised freight locomotive steaming
- Wartime Service: Selected as Britain's standard WW2 freight locomotive with 208 built specifically for overseas military service
- Global Operations: Served in Egypt, Iran, Iraq, Turkey, Palestine, and Italy during and after World War Two
- Longevity Record: Last withdrawn August 1968, among final 26 steam locomotives in British Railways service
- Preservation Status: Eight locomotives preserved in UK, with additional examples surviving overseas in Turkey and Iraq
- Modelling Appeal: New Bachmann OO scale models available 2026, complementing existing Hornby and kit-built options
Historical Background and Context
When Sir William Stanier arrived at the London, Midland & Scottish Railway in 1932, he inherited a freight locomotive fleet that epitomised the Midland Railway's misguided "small engine policy." This philosophy, which had served adequately for the Midland's relatively light trains and moderate gradients, proved woefully inadequate for the diverse and demanding freight operations of Britain's largest railway company. Heavy coal trains from Yorkshire and Scotland to London required double-heading with underpowered 0-6-0s, whilst the few available 0-8-0s suffered from poor steaming and restricted route availability.
The catalyst for developing the LMS Stanier Class 8F came from Stanier's successful experience with the "Black Five" mixed traffic locomotives, introduced in 1934. These versatile 4-6-0s demonstrated the potential of modern two-cylinder design with outside valve gear, proving that simplicity and standardisation could deliver superior performance compared to the complex, often problematic locomotives favoured by Stanier's predecessor, Henry Fowler. The freight variant would retain the Black Five's proven mechanical layout whilst adopting the 2-8-0 wheel arrangement for maximum adhesive weight and tractive effort.
Drawing inspiration from the Great Western Railway's successful 28XX class, Stanier's team developed a locomotive that combined proven design principles with modern manufacturing techniques. The first example, LMS No. 8000, emerged from Crewe Works in September 1935, initially carrying the classification 7F before being upgraded to 8F in recognition of its superior capabilities. Early examples suffered from the same steaming deficiencies that had plagued other Stanier designs, but these issues were quickly resolved through increased tube heating surface, a larger superheater, and the addition of a steam dome.
The timing of the 8F's introduction proved fortuitous, as the LMS was experiencing unprecedented growth in freight traffic during the mid-1930s economic recovery. Coal traffic from the northern coalfields to London and the Midlands reached record levels, whilst industrial freight from Scotland and the North West demanded increasingly powerful locomotives. The 8F's ability to handle 1,000-ton coal trains unassisted over challenging routes like the Settle & Carlisle line demonstrated its effectiveness and quickly established it as the LMS's premier freight locomotive. Production accelerated rapidly, with examples emerging from Crewe Works at a rate of one per week during peak periods, establishing a new standard for British freight locomotive construction that would influence designs well into the diesel era.
Design and Technical Specifications
The engineering excellence of the LMS Stanier Class 8F lay in its sophisticated simplicity, combining proven mechanical components with innovative boiler design to create a locomotive of exceptional reliability and performance. At the heart of the design was the Stanier Class 3C boiler, featuring a tapered barrel that increased from 5ft diameter at the smokebox to 5ft 8?in at the firebox. This configuration optimised steam generation whilst maintaining the compact dimensions necessary for the LMS loading gauge, with the distinctive Belpaire firebox providing superior heating surface compared to round-top alternatives.
The locomotive's two 18½in diameter by 28in stroke outside cylinders used identical components to the Black Five 4-6-0s, ensuring parts commonality and simplified maintenance procedures. This standardisation philosophy extended throughout the design, with Walschaerts valve gear operating 10in diameter piston valves through a direct connection that eliminated the complex linkages often found on contemporary designs. The driving wheels, at 4ft 8½in diameter, provided the optimal balance between tractive effort and speed capability for heavy freight service, whilst the leading pony truck improved riding quality and reduced wear on sharp curves.
The frame construction followed LMS standard practice with substantial plate frames providing exceptional rigidity for heavy freight service. The locomotive's weight distribution placed 60.5 tons on the driving wheels, ensuring excellent adhesion for starting heavy trains on adverse gradients. The tender, designed for long-distance freight operations, carried 4,000 gallons of water and 7 tons of coal, providing adequate range for the extended runs typical of inter-regional coal traffic.
One of the most significant technical innovations was the careful attention to weight distribution and axle loading. The 8F's maximum axle loading of 18.5 tons allowed it to operate over virtually all main lines within the LMS system, whilst remaining within the limits imposed by most secondary routes. This universal route availability proved crucial during wartime operations, when 8Fs were required to work over unfamiliar territory at short notice. The locomotive's compact overall dimensions, with a maximum height of 13ft 0½in and width of 9ft 0in, ensured clearance through the restrictive tunnels and bridges that characterised much of the British railway network.
Engineering Highlight: Boiler Innovation
The Class 3C boiler represented a masterpiece of thermodynamic design, with its tapered barrel creating optimal gas flow whilst the large Belpaire firebox provided 195 square feet of heating surface. The addition of a steam dome on later examples eliminated the priming issues that had affected early Stanier designs, whilst the generous superheater heating surface of 421 square feet ensured dry steam delivery under all operating conditions.
Service History and Operations
The operational career of the LMS Stanier Class 8F encompassed some of the most demanding freight workings in British railway history, from the daily coal trains that sustained the nation's industrial economy to the extraordinary wartime service that took these locomotives to battlefields across the globe. Initial deployment focused on the LMS's heaviest freight routes, particularly the coal trains from Yorkshire and the North East to London and the Midlands. These services, often weighing over 1,000 tons, had previously required double-heading with smaller locomotives, but the 8F's superior tractive effort allowed single locomotive operation over most routes.
The Settle & Carlisle line became a proving ground for 8F capabilities, with locomotives regularly hauling 900-ton coal trains over the challenging 1 in 100 gradients of Ais Gill summit. Driver reports from this period consistently praised the locomotives' sure-footed climbing ability and excellent steaming characteristics, even when working at maximum capacity. Similar success was achieved on the former London & North Western routes, where 8Fs took over the heaviest freight workings from inadequate predecessor classes, dramatically improving operational efficiency and reducing the need for assistance locomotives.
The outbreak of World War Two transformed the 8F from a successful regional design into Britain's standard freight locomotive for global operations. Robert Riddles, then seconded to the Ministry of Supply, selected the 8F as the replacement for the originally planned transfer of 300 LNER O4 2-8-0s to the War Department. This decision reflected both the 8F's proven reliability and its superior performance compared to the older Robinson designs that had served during the First World War.
Operational Insight: Global Service
War Department 8Fs served in Egypt (42 locomotives), Iran (143 locomotives), Iraq (10 locomotives), and Turkey (25 locomotives sold 1941). Many adapted to local conditions with modifications including large Prussian-style headlamps in Turkey, where they were nicknamed "Churchills" by railway staff. Some locomotives remained overseas permanently, with Turkish examples serving until the 1980s.
The complexity of 8F production during wartime created one of the most fascinating chapters in British locomotive history. By 1943, all four "Big Four" railway companies were building 8Fs, with the Great Western Railway, London & North Eastern Railway, and Southern Railway constructing locomotives for LMS stock whilst retaining many on loan for their own operations. The LNER went further, ordering 68 8Fs for its own use as Class O6, though these were eventually transferred to LMS ownership after the war.
Domestic wartime service proved equally demanding, with 8Fs handling unprecedented freight loads as Britain's industrial economy adapted to wartime production. Many locomotives achieved remarkable mileages during this period, with some accumulating over 20,000 miles annually whilst hauling trains that would have required double-heading in peacetime. The class's reliability under these extreme conditions validated Stanier's design philosophy and established the 8F's reputation for dependability that would characterise its entire service career.
Withdrawal, Preservation, and Legacy
The withdrawal history of the LMS Stanier Class 8F reflects both the class's exceptional utility and the gradual transformation of British freight operations during the 1960s. Unlike many steam classes that faced rapid obsolescence with dieselisation, the 8F's combination of route availability, reliability, and heavy haulage capability ensured continued employment until the final phases of steam operation. British Railways inherited 666 8Fs at nationalisation in 1948, the largest fleet total achieved by the class throughout its career.
Withdrawals began gradually during the late 1950s, typically affecting the oldest examples first, but accelerated significantly after 1964 as diesel traction expanded across the former LMS network. However, the class's fundamental suitability for heavy freight work meant that many 8Fs continued operating until the final months of steam traction. At the end of 1967, 150 8Fs remained in service on the London Midland Region, representing one of the largest concentrations of any single class during the twilight of steam.
The final chapter came in August 1968, when 26 8Fs based at Rose Grove and Lostock Hall depots were among the last steam locomotives withdrawn from British Railways service. These included No. 48773, which had been purchased directly from service by The Stanier 8F Locomotive Society, ensuring at least one example would survive for preservation. This far-sighted action proved crucial, as the Barry scrapyard boom that preserved many other classes came too late to save significant numbers of 8Fs.
Preservation Highlight: International Repatriation
Two remarkable preservation stories involve 8Fs repatriated from overseas service. No. 8274 (Turkish Railway 45160) returned from Turkey in 1989 and operated on British heritage railways, while No. 45170 was repatriated in 2010 by the Scottish Railway Preservation Society. These locomotives provide tangible links to the class's extraordinary wartime service.
Today, eight LMS Stanier Class 8F locomotives survive in preservation within the United Kingdom, a testament to their historical significance despite the relatively modest preservation rate compared to some other classes. The survivors include No. 48151, operated by West Coast Railways for main line excursions, and No. 48773, displayed as a war memorial at the Severn Valley Railway. Additional examples survive overseas, including three operational locomotives and three static displays in Turkey, plus single examples in Iraq and Israel.
The class's influence on subsequent locomotive design proved substantial, with the successful 8F concept informing the development of both the Riddles WD Austerity 2-8-0 and the later British Railways Standard Class 9F 2-10-0. The emphasis on mechanical simplicity, standardised components, and operational flexibility that characterised the 8F became hallmarks of post-war British locomotive design, ensuring the class's legacy extended far beyond its own service period.
Modelling Significance and Scale Replications
The LMS Stanier Class 8F holds exceptional appeal for railway modellers, representing both the pinnacle of LMS freight locomotive development and offering authentic operational possibilities across multiple eras and geographic regions. The class's widespread deployment, long service life, and diverse livery applications make it suitable for layouts spanning from the 1930s through to the end of steam in 1968, whilst its wartime service provides opportunities for modelling Middle Eastern and European operations rarely represented in British outline modeling.
The modeling landscape for the 8F has evolved significantly over recent decades, with Hornby providing the foundation through multiple releases dating back to their 1988 tooling. These models, whilst showing their age in terms of fine detail, remain popular for operational layouts due to their robust construction and reliable running characteristics. The 2002 Hornby release introduced DCC compatibility and improved detail levels, making these models suitable for both analogue and digital layouts with appropriate detail enhancement.
Bachmann's groundbreaking announcement of an all-new 8F for 2026 represents the most significant development in 8F modeling for decades. This new tooling promises to deliver unprecedented accuracy and detail, with separate metal handrails, turned brass safety valves, and authentic weathering effects that capture the workmanlike appearance of prototype freight locomotives. The model will be available in DCC Ready, DCC Sound Fitted, and Deluxe Sound Fitted versions, with sound files recorded specifically from preserved 8F locomotives.
For advanced modellers, kit-built options provide opportunities for superior accuracy and unique detail variations. DJH Model Railways offers kit K45, which allows builders to incorporate specific detail differences between production batches, including the domeless boilers fitted to early examples and the various tender types used throughout the class's production run. This flexibility proves particularly valuable for modellers seeking to represent specific prototype locomotives or particular time periods.
Modeling Tip: Authentic Weathering Techniques
8F weathering should emphasise the locomotive's freight duties with heavy coal dust around the bunker, oil stains on running plates, and general grime from industrial environments. Focus on the smokebox area for heavy soot deposits, whilst keeping cab areas relatively clean to reflect regular crew maintenance. Use weathering powders sparingly around valve gear and coupling rods to suggest accumulated oil and grime.
Unique Modelling Tips and Layout Integration
Successfully incorporating LMS Stanier Class 8F locomotives into model railway layouts requires understanding their operational patterns and the infrastructure that supported their diverse duties. These locomotives excelled in heavy freight service, making them ideal for layouts featuring coal mines, steelworks, docks, and major marshalling yards. Their universal route availability means 8Fs can justifiably appear on virtually any LMS or BR layout from the 1930s onwards, providing operational flexibility that few other locomotive classes can match.
When planning track layouts for 8F operations, consider the locomotive's primary role in handling long-distance freight trains between major industrial centers. Model representations of the Settle & Carlisle line, the Midland main line to London, or the West Coast main line north of Preston provide authentic settings for 8F operations. The class's ability to handle 1,000-ton trains means your layout can justify substantial freight consists, creating impressive operational spectacle whilst remaining prototypically accurate.
Sound-equipped DCC models benefit from programming that reflects the 8F's characteristic working patterns. Unlike passenger locomotives with sustained high-speed running, freight locomotives operated with frequent stops for signal checks, speed restrictions, and operational delays. Configure sound decoders with realistic acceleration curves that mirror the careful control required when starting heavy trains on gradients, and include appropriate whistle codes for freight train operations.
Layout Integration: Period-Appropriate Rolling Stock
Authentic 8F consists should include LMS standard mineral wagons, steel coal hoppers, and the distinctive "Presflo" cement wagons introduced during the 1950s. For wartime layouts, include the emergency-built wagons typical of 1940s freight trains. Train lengths of 40-60 wagons represent typical coal train formations, though modellers may need to reduce this for practical layout operation.
Weathering techniques for 8F models should reflect their demanding freight duties and often grimy operating environments. Focus weathering effects around areas of high heat and mechanical wear - the smokebox, cylinder covers, and running gear - whilst ensuring the overall effect suggests a well-maintained but hard-working locomotive. Different depot allocations would have resulted in varying maintenance standards, providing opportunities for subtle variation between models representing different time periods or locations.
For the most convincing operation, consider modeling the support infrastructure that made 8F operations possible. This includes coaling stages, ash disposal facilities, and the substantial water capacity required for long-distance freight workings. Many 8F sheds featured distinctive LMS-pattern facilities, and modeling these details adds authenticity whilst providing operational interest during locomotive servicing sequences.
Finally, remember that 8Fs often worked in multiple, particularly on the heaviest coal trains over severe gradients. Double-heading provides dramatic operational possibilities whilst remaining entirely prototypical, and the sight of two 8Fs working hard upgrade with a heavy freight train represents one of the classic images of British steam operation during the 1940s and 1950s.
Finally
The LMS Stanier Class 8F represents the apotheosis of British freight locomotive design, combining engineering excellence with operational versatility to create machines that served with distinction for over three decades. From their introduction as a solution to the LMS's freight locomotive crisis through their adoption as Britain's standard wartime design, and their continuation as reliable workhorses until the end of steam, the 8Fs proved that thoughtful engineering responding to real operational needs could create locomotives of exceptional longevity and capability.
For today's railway enthusiasts, the 8F offers multiple avenues for exploration and appreciation. The preserved examples provide tangible connections to Britain's industrial heritage, whilst the diverse modeling options allow enthusiasts to recreate authentic operations from the steam era's final decades. The upcoming Bachmann models promise to introduce new generations to this remarkable class, ensuring that the 8F's legacy continues to inspire and educate long after the last fires were dropped in 1968.
Perhaps most significantly, the 8F story demonstrates how individual engineering vision can create machines that transcend their original purpose to become symbols of an entire era. Sir William Stanier's pragmatic approach to locomotive design, emphasising reliability and standardisation over complexity and innovation, produced a class that not only met the LMS's immediate needs but proved adaptable enough to serve effectively in conditions ranging from Yorkshire coal trains to Middle Eastern military operations. In an age of increasing technological complexity, the 8F's success reminds us that engineering excellence often lies not in innovation for its own sake, but in the thoughtful application of proven principles to meet real-world challenges.
Frequently Asked Questions
How many LMS Stanier Class 8F locomotives were built and by whom?
A total of 852 LMS Stanier Class 8F locomotives were built between 1935 and 1946. Construction involved multiple builders including LMS works at Crewe and Horwich, plus external contractors and all Big Four railway companies during wartime production.
What made the 8F so successful compared to earlier LMS freight locomotives?
The 8F's success stemmed from its modern two-cylinder design with outside valve gear, superior boiler design with tapered barrel and Belpaire firebox, and standardised components shared with other Stanier locomotives, ensuring reliability and simplified maintenance.
How many 8Fs served overseas during World War Two and what happened to them?
208 8Fs were built specifically for War Department use, with additional locomotives requisitioned from LMS stock. They served in Egypt, Iran, Iraq, Turkey, Palestine, and Italy, with many remaining overseas permanently after the war ended.
Are there any preserved LMS Stanier Class 8F locomotives I can visit?
Eight 8Fs are preserved in the UK, including No. 48151 operated by West Coast Railways for main line tours and No. 48773 displayed at Severn Valley Railway as a war memorial to railway troops killed in World War Two.
What model railway options exist for the LMS Stanier Class 8F?

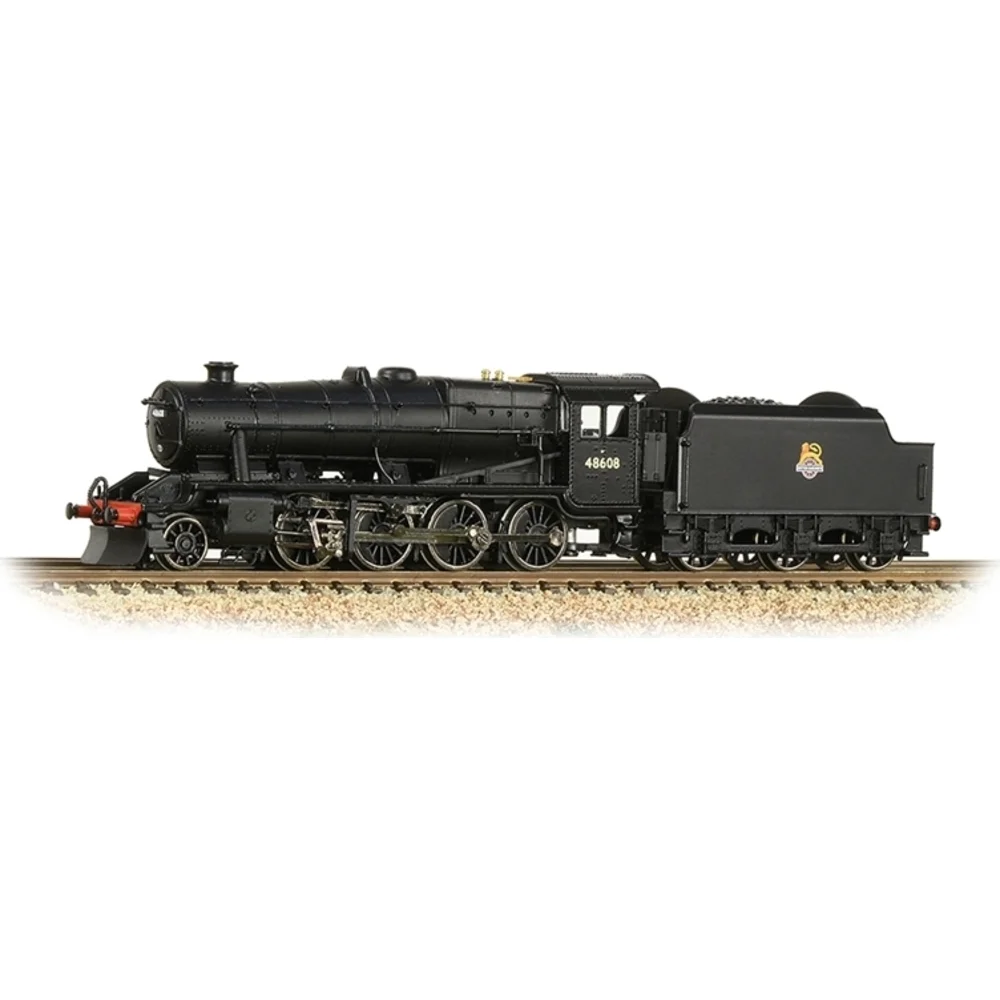

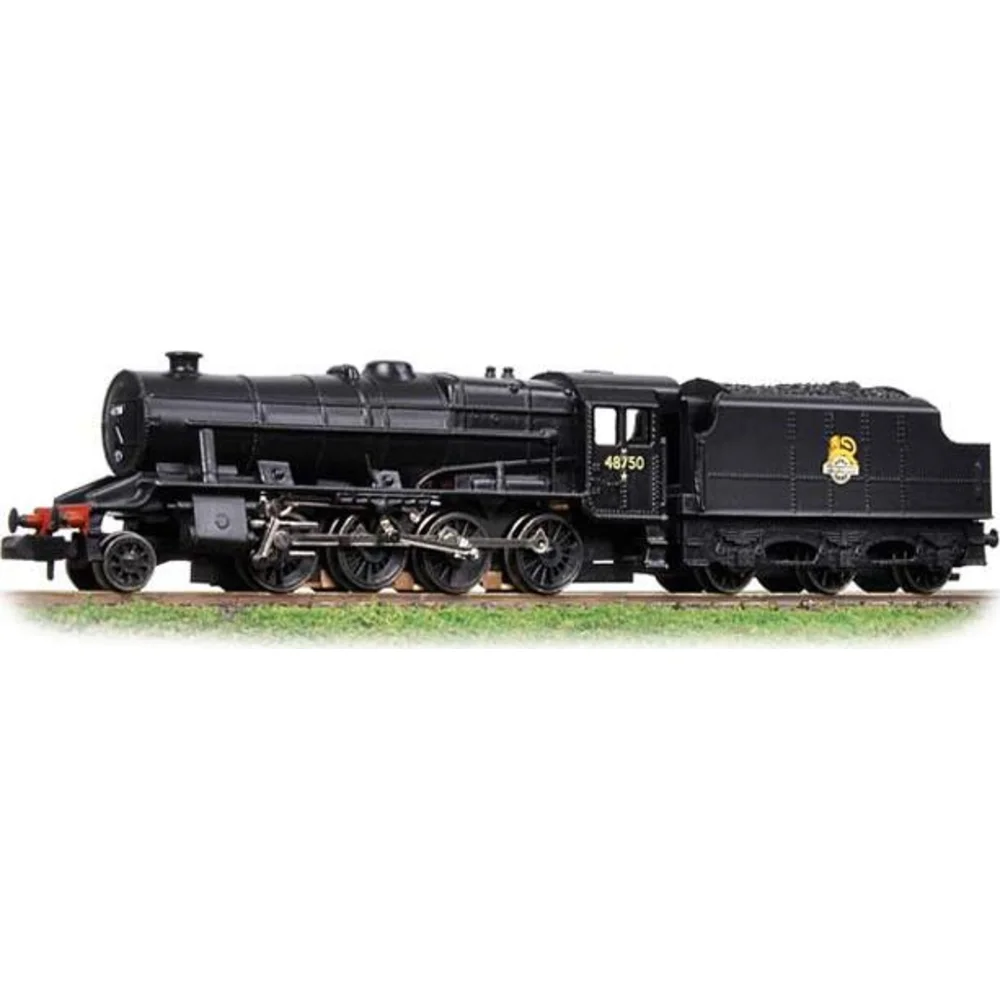

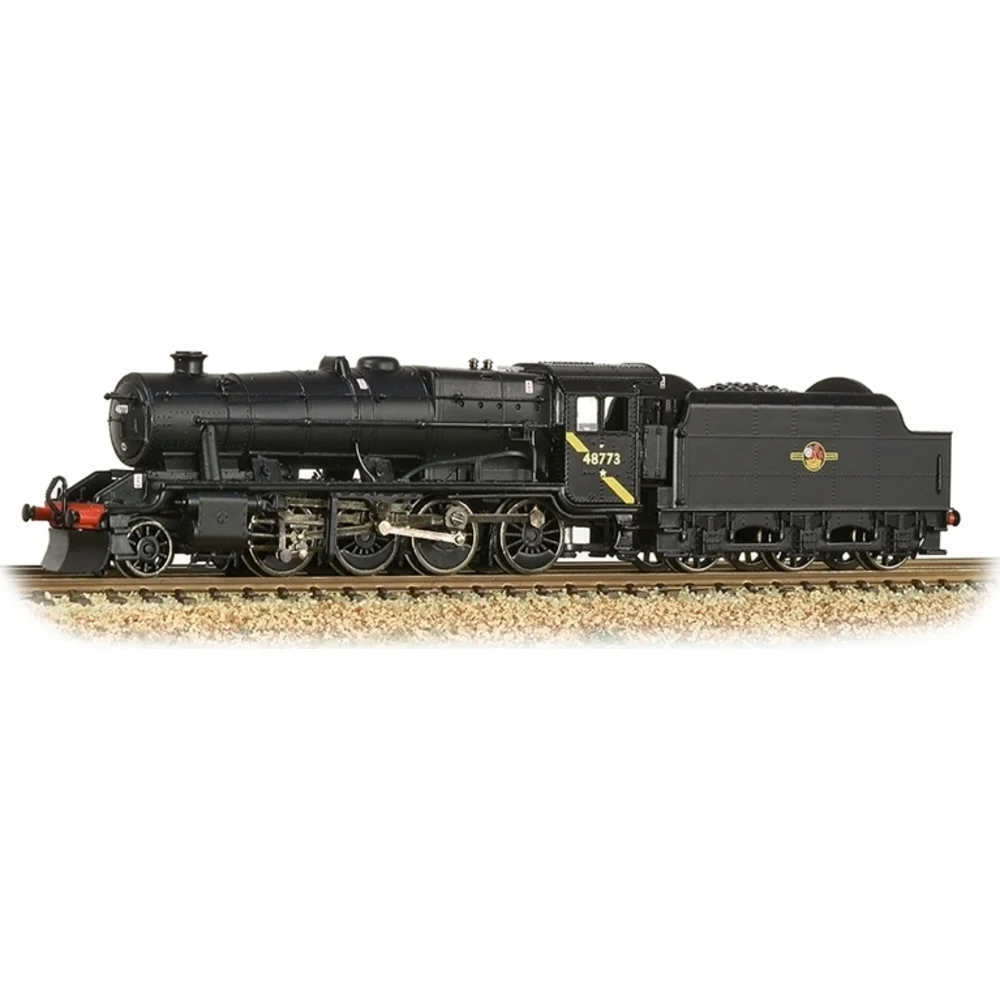

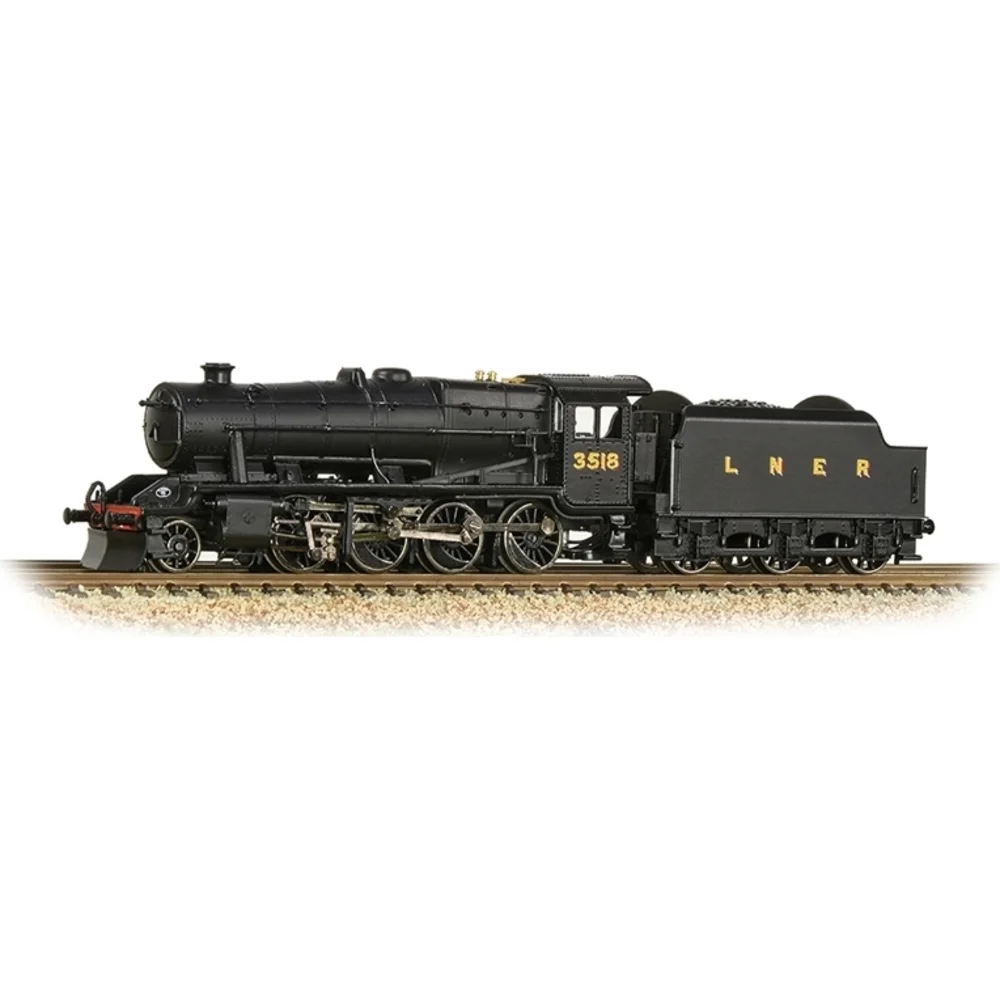

Current options include Hornby OO scale models (various releases since 1988), Graham Farish N gauge versions, and specialist kits from DJH and Connoisseur Models. Bachmann's new OO scale model arrives in 2026 with superior detail and sound options.
Which preserved 8F locomotives are currently operational?
No. 48151 operates main line railtours with West Coast Railways, while several heritage railway-based examples undergo periodic restoration. Operational status changes frequently, so check with individual preservation groups for current availability.
How does the 8F compare to the later BR Standard Class 9F?
The 9F was larger and more powerful with 2-10-0 wheel arrangement versus the 8F's 2-8-0, but the 8F's superior route availability and proven reliability meant many operators preferred the older design for general freight duties.
What specific details distinguish War Department 8Fs from LMS examples?
War Department 8Fs featured modifications for overseas service including different sandboxes, modified lubrication systems, and equipment for operation on foreign railways. Many received distinctive headlamp arrangements in their overseas locations.
Were any 8Fs converted to oil burning and where did they operate?
Several 8Fs were converted to oil burning for Middle Eastern service where coal supplies were limited. These modifications included oil tanks, burners, and modified fireboxes, though most returned to coal burning if repatriated to Britain.
What happened to the overseas 8Fs that remained abroad after World War Two?
Many were sold to local railways, with examples serving in Turkey until the 1980s, Iran until the 1970s, and Iraq into the 1960s. Some were scrapped locally, while others were abandoned when diesel traction arrived.
How should I weather my 8F model for maximum authenticity?
Focus on coal dust around bunker and smokebox areas, oil stains on running plates and valve gear, and general industrial grime. Avoid excessive rust effects as 8Fs were well-maintained, and vary weathering intensity based on depot allocation and era modelled.
What rolling stock pairs authentically with LMS Stanier Class 8F locomotives?
Typical consists include LMS standard mineral wagons, coal hoppers, steel freight wagons, and later Presflo cement wagons. Train lengths varied from local trip workings of 10-15 wagons to main line coal trains exceeding 60 wagons in favourable conditions.
