British Rail Class 92 – Britain's Channel Tunnel Powerhouse

Historical Background and Context

The genesis of the Class 92 project emerged from the extraordinary engineering challenges posed by the Channel Tunnel—a 31.4-mile submarine rail link connecting Britain and France that required locomotive technology far exceeding anything previously deployed on British metals. When the tunnel received formal authorisation in the late 1980s, neither British Rail nor SNCF possessed traction capable of operating safely through such an extended underwater environment whilst managing the complex requirements of dual-voltage electrical systems, duplicated safety equipment, and stringent fire protection standards.

In May 1988, British Rail commenced seeking a locomotive meeting Department for Transport specifications for this unprecedented role. The requirements proved demanding: capability to operate on both 25kV AC overhead electrification (standard on Britain's West Coast Main Line and French high-speed lines) and 750V DC third rail (characteristic of the Southern Region network between the Channel Tunnel portal and London). Additionally, Eurotunnel's safety regulations mandated extensive system duplication to prevent locomotive failure stranding trains within the tunnel—a scenario with potentially catastrophic consequences in the confined underwater environment.

On 22 July 1990, the British Rail Board formally placed an order worth £138 million with a consortium comprising Brush Traction Ltd (mechanical design and assembly) and ABB Transportation Systems (electrical systems and traction equipment). This represented approximately £3 million per locomotive—a substantial investment reflecting the sophisticated technology involved and the extensive testing regime required for Channel Tunnel certification. The original order covered 20 locomotives numbered 92001-92020, designated for Railfreight Distribution's Channel Tunnel freight services.

The project's scope expanded dramatically with British Rail's announcement of Nightstar—an ambitious network of overnight sleeper trains connecting London with Paris, Brussels, Amsterdam, Cologne, and Frankfurt using dedicated rolling stock hauled through the Channel Tunnel by Class 92 locomotives. This passenger role demanded additional capabilities including higher reliability standards, enhanced braking performance for passenger train operation, and compatibility with the Continental signalling systems. A supplementary order for seven locomotives (92021-92027) specifically allocated to European Passenger Services followed, bringing total BR procurement to 27 units.

Construction took place at Brush Traction's facility in Loughborough, with final assembly in the erecting shops and electrical equipment installation at the Falcon Works. The substantial bodyshells—sharing fundamental design with the Class 60 diesel locomotives also built by Brush—were fabricated by Procor (UK) Ltd at Horbury near Wakefield. These arrived pre-painted in the distinctive Railfreight triple-grey livery featuring dark grey bodysides, mid-grey roof, and light grey underframe, with prominent Channel Tunnel roundel badges on the cab fronts.

The first locomotive, 92001, completed static tests at Brush's Falcon Works in August 1993. On 10 December 1993, 92002 "H.G. Wells" became the first Class 92 to run on BR metals when it was delivered to the Railway Technical Centre at Derby for formal testing. The locomotive was appropriately hauled by Class 31 diesel 31454—representing the old order making way for the new, with a 1950s-vintage diesel escorting Britain's most advanced electric locomotive to its test programme.

Testing proved exhaustive given the class's mission-critical role and the unprecedented nature of Channel Tunnel operations. Locomotives underwent performance trials at the Velim test track in the Czech Republic, where the circular route enabled sustained high-speed running and acceleration testing. Climatic testing at Vienna Arsenal subjected locomotives to temperatures as low as -25°C to verify systems reliability in extreme conditions. Channel Tunnel-specific trials validated the sophisticated Train Protection Warning System (TPWS) Mark IV equipment, European Train Control System (ETCS) compatibility, and the critical system duplication that Eurotunnel mandated.

Revenue service finally commenced in 1996 following Channel Tunnel opening on 6 May 1994. Initial operations concentrated on automotive traffic—Ford components from Dagenham to Valencia via the tunnel, intermodal containers between Wembley and Continental destinations, and diverse freight flows capitalising on the new rail link. However, early service proved frustrating as signalling interference problems initially barred Class 92s from their intended Wembley to Dollands Moor via Redhill route, necessitating lengthy diversions and reducing operational efficiency.

The Nightstar cancellation announcement in July 1997 delivered a devastating blow to the class's intended role. Rising project costs, Channel Tunnel construction delays pushing opening dates beyond original schedules, the unexpected growth of low-cost airlines offering competitive London-Continental fares, and complications arising from Britain's non-membership of the Schengen Area combined to doom the ambitious sleeper concept. The seven EPS-allocated locomotives spent years in storage at Crewe—sophisticated passenger-rated machines languishing unused whilst their freight-allocated classmates struggled with operational limitations and declining Channel Tunnel traffic volumes affected by the BSE crisis reducing EU-bound livestock and meat exports.

Design and Technical Specifications

The engineering excellence of the British Rail Class 92 lies in its sophisticated integration of dual-voltage capability with the high power output essential for heavy freight haulage. At the heart of the design sits ABB's advanced traction system employing Gate Turn-Off (GTO) thyristor converters—cutting-edge technology in the early 1990s that provided precise three-phase AC motor control previously impossible with older DC traction motor designs.

The power output specifications reflect the class's freight-hauling mission. Operating on 25kV AC overhead electrification, each locomotive develops 5,040 kW (6,760 hp)—making the Class 92 Britain's most powerful electric locomotive when introduced and maintaining that distinction through subsequent decades. On 750V DC third rail supply, power output reduces to 4,000 kW (5,360 hp) due to the lower voltage characteristics and current collection limitations. This dual capability required complex electrical engineering—separate transformer/rectifier circuits for AC supply and direct connection with sophisticated control electronics for DC collection.

Power collection employs two Brecknell Willis high-speed pantographs mounted on the locomotive roof—a Eurotunnel safety requirement providing complete redundancy. If one pantograph fails within the Channel Tunnel, the second enables continued operation rather than stranding the train in the underwater bore. For third rail operation, twelve collector shoes mounted on the bogies gather current from the conductor rails—substantially more than typical Southern Region electric multiple units, reflecting the Class 92's high current demands when operating on the relatively low 750V DC supply.

The traction system represents sophisticated 1990s technology. ABB's GTO thyristor converters feed six asynchronous three-phase AC traction motors, with one motor driving each axle independently. This configuration provides exceptional adhesion control—if any wheel begins slipping, the control system instantly reduces power to that specific motor whilst maintaining maximum tractive effort on wheels retaining good rail contact. The fundamental approach mirrored contemporary European high-speed train designs, though optimised for freight haulage rather than passenger speed.

Control architecture employs ABB's MICAS-S2 microprocessor system providing distributed intelligence throughout the locomotive. Rather than centralising all control functions in a single location, MICAS-S2 distributes processing across multiple interconnected modules communicating via high-speed data networks. This architecture delivers reliability advantages—failure of one module doesn't necessarily disable the entire locomotive—whilst enabling sophisticated diagnostic capabilities that assist maintenance staff in identifying developing problems before they cause service failures.

Braking systems combine rheostatic, regenerative, and pneumatic technologies. When the driver applies brakes, the traction motors initially function as generators, converting kinetic energy into electrical resistance heating (rheostatic braking) or returning power to the overhead line (regenerative braking when operating on 25kV AC). This electrical braking serves as the primary retardation method down to approximately 3 mph, at which point the system blends in Westinghouse air brakes acting on all twelve wheels through clasp brake blocks. The sophisticated blending ensures smooth deceleration and extends brake block life by minimising mechanical brake usage.

The mechanical design builds upon Brush Traction's proven Class 60 diesel locomotive platform, adapted for electric traction requirements. The bodyshell shares the fundamental stressed-skin monocoque construction, though modified at the front end to accommodate pantograph mechanisms, high-voltage equipment, and different cab layout. The bogies employ fabricated steel frames with primary and secondary suspension systems providing good ride quality at speeds up to 87 mph. Each bogie carries three traction motors with resilient drive coupling through cardan shafts to the wheelsets, isolating traction equipment from track irregularities.

The cab layout reflects both freight and passenger roles. Driver controls include the combined power/brake controller typical of modern electric locomotives, with ergonomic positioning enabling comfortable operation during extended shifts. Comprehensive instrumentation displays traction motor currents, brake pipe pressure, speedometer, power output meters, and diagnostic information from the MICAS-S2 system. Later modifications added ERTMS/ETCS displays when locomotives received European Train Control System upgrades enabling operation on High Speed 1.

Signalling and train protection equipment evolved throughout the class's service life. Original specification included AWS (Automatic Warning System) and TPWS (Train Protection & Warning System) Mark IV for operation on British infrastructure. Many locomotives subsequently received TVM-430 equipment for Channel Tunnel operations—a sophisticated cab signalling system conveying speed restrictions and signal aspects through track circuits rather than lineside signals. The European Commission-funded upgrade programme between 2009-2011 installed ERTMS/ETCS equipment on several locomotives, enabling certification for High Speed 1 operations at speeds up to 87 mph between the Channel Tunnel portal and Dollands Moor freight terminal.

Service History and Operations

The BR Class 92 entered service in 1996 with high expectations but faced immediate operational challenges that would characterise much of its early career. Initial fleet allocation divided the locomotives three ways: 30 units to Railfreight Distribution for Channel Tunnel freight, seven to European Passenger Services for the anticipated Nightstar sleeper services, and nine to SNCF (classified CC 92000) for French operations. All UK-based locomotives received allocation to Crewe International Electric Depot, which remains the primary maintenance base for Class 92 operations to this day.

Early freight operations concentrated on automotive traffic—particularly Ford component flows from Dagenham to Continental assembly plants via the Channel Tunnel—and intermodal container services connecting Wembley with European destinations. However, significant technical problems emerged almost immediately. The class's high electrical power rating caused signalling interference affecting track circuits, initially barring locomotives from the intended Wembley to Dollands Moor via Redhill route through the congested South London suburbs. This necessitated lengthy diversions via the West Coast Main Line to Willesden, then across North London to the Great Eastern main line and down through Kent—adding substantial time and operational complexity.

EWS (English Welsh & Scottish Railway) acquired the Railfreight Distribution locomotive fleet on 22 November 1997 following rail privatisation. Industry sources suggest EWS allegedly considered declining the Class 92s due to their operational limitations and the declining Channel Tunnel freight volumes affected by the BSE crisis severely reducing EU-bound livestock and meat exports. The last British Rail-liveried train operated appropriately behind 92003 "Beethoven" on 21 November 1997—a locomotive named for the German composer, symbolically representing the Anglo-Continental cooperation the class was designed to facilitate.

The Nightstar cancellation in July 1997 created a surplus passenger locomotive problem. The seven EPS-allocated units (92020, 92021, 92032, 92040, 92044, 92045, 92046) entered storage at Crewe, their sophisticated passenger equipment and higher maintenance standards rendering them unsuitable for freight work without modifications. These locomotives would spend years languishing unused—a painful waste of sophisticated machinery and substantial public investment. Various schemes to deploy them on West Coast Main Line passenger services or lease them to passenger operators failed to materialise, leaving the locomotives as expensive static exhibits.

Channel Tunnel freight operations gradually stabilised through the 2000s as signalling interference problems received resolution through equipment modifications and infrastructure upgrades. DB Schenker (later DB Cargo UK) became the principal operator, with locomotives hauling diverse freight flows including automotive components, construction materials, and intermodal containers. The class achieved several operational milestones including 92015 hauling the historic first direct China-UK rail freight train on 18 January 2017—completing the 7,500-mile journey from Yiwu to Barking via Kazakhstan, Russia, Belarus, Poland, Germany, Belgium, France, and the Channel Tunnel in just 18 days, demonstrating rail freight's potential as a middle option between slow sea transport and expensive air cargo.

High Speed 1 certification following ERTMS/ETCS installation opened new operational possibilities. Several locomotives received authorisation to operate on the high-speed line between the Channel Tunnel portal and Dollands Moor at speeds up to 87 mph, significantly reducing journey times for time-sensitive freight flows. This capability proved particularly valuable for automotive just-in-time supply chains where reducing transit time by even 30-60 minutes could prevent production line stoppages at assembly plants.

The fleet reduction programme from 2017 onwards saw surplus locomotives exported to Eastern Europe. DB Cargo Bulgaria acquired five locomotives (92022, 92025, 92027, 92030, 92034) reclassified as Class 88 for copper ore trains between Burgas port and Pirdop refinery—a demanding duty involving 1,200-tonne trains over challenging gradients. Transagent Rail Croatia leased five units (92002, 92005, 92012, 92024, 92026) via Russian company Locotech for freight operations across the Croatian network. DB Cargo Romania retained three locomotives (92001, 92003, 92039) reclassified as Class 472, where they are affectionately nicknamed "The Englishwoman" by local railway workers. These international deployments demonstrate the class's versatility beyond its original Channel Tunnel mission.

Current UK operations divide between GB Railfreight's Caledonian Sleeper services and DB Cargo UK's Channel Tunnel freight. The seven Caledonian Sleeper locomotives work intensive diagrams, departing London Euston each evening and returning the following morning after overnight runs to Scotland. DB Cargo UK operates four locomotives (92015, 92029, 92041, 92042) on Channel Tunnel and HS1 freight duties, with typical workings including automotive traffic, construction materials, and intermodal containers. The remaining UK-based locomotives face uncertain futures, stored at Crewe IMED or Worksop awaiting decisions on refurbishment for further service or eventual withdrawal.

Notable namings throughout the class's career reflect its Anglo-French heritage. Most locomotives carry names of European composers and writers: Beethoven, Debussy, Ravel, Brahms, Berlioz, Puccini, Dvorak, Schumann, and literary figures including H.G. Wells, Victor Hugo, Honoré de Balzac, Thomas Hardy, and Marco Polo. Special names include 92032 "IMechE Railway Division" honouring the Institution of Mechanical Engineers, 92020 "Billy Stirling" commemorating a deceased GBRf employee, and 92043 "Andy Withers" remembering another railway worker. The naming tradition continues with 92037 receiving "Jools Holland" naming at a ceremony in November 2021.

Fleet

No locomotives found.

Withdrawal and Preservation Legacy

The withdrawal history of the British Rail Class 92 remains largely unwritten, as all 46 locomotives survive into 2025—none have faced scrapping. This complete fleet survival reflects both the substantial initial investment that makes premature withdrawal economically painful and the class's successful adaptation to roles beyond its original Channel Tunnel freight mission. However, the approaching end of third-rail electrification compatibility and the inevitable replacement requirements for 30-year-old electrical equipment will eventually force difficult decisions about the class's long-term future.

DB Cargo UK's operational reality shapes the immediate timeline. The company stated in February 2025 that replacement of its four Class 92s for Channel Tunnel and HS1 freight duties cannot occur before 2035 due to the irreplaceable TVM-430 signalling certification. Obtaining this certification for new locomotives would require extensive testing and validation programmes costing millions of pounds—economically unjustifiable for a declining freight market. The locomotives must therefore continue operating until either traffic volumes collapse or alternative transport modes capture the remaining business.

GB Railfreight's Caledonian Sleeper contract extension through June 2030 secures the passenger locomotive fleet's future through the remainder of the 2020s. The seven midnight teal-liveried units received substantial refurbishment investment from 2015 onwards, making premature withdrawal unlikely whilst the contract remains active. However, Serco's procurement of new sleeper coaching stock from CAF included options for additional units potentially featuring alternative traction arrangements. If future orders specify self-powered units rather than locomotive-hauled formations, the Class 92s could face unexpected displacement despite their refurbishment investment.

The stored locomotive population faces the most uncertain prospects. Seventeen locomotives languish at Crewe IMED or Worksop, their electrical equipment gradually deteriorating through lack of use. Reactivation would require substantial investment in traction motor overhauls, control system upgrades, and compliance modifications for current operating standards. Without specific traffic flows justifying this expenditure, these locomotives effectively represent a strategic reserve—available if demand surges but economically unviable to maintain in operational condition "just in case."

The Eastern European contingent demonstrates alternative deployment possibilities. Bulgarian, Croatian, and Romanian operators acquired their Class 92s at heavily discounted prices reflecting their surplus status, making even modest utilisation economically viable. These locomotives may operate for decades on less demanding duties than their original Channel Tunnel mission, potentially outlasting their UK-based classmates through lower performance expectations and more basic maintenance standards.

The engineering legacy extends beyond individual preserved locomotives. The Class 92 programme demonstrated that complex dual-voltage capability could be successfully implemented on heavy freight locomotives, though at substantial cost and weight penalty. Subsequent British electric designs—particularly the Class 68 tri-mode diesel-electric-battery locomotives and forthcoming battery-electric developments—benefit from lessons learned regarding system integration and redundancy requirements. The ERTMS/ETCS upgrade programme provided valuable experience subsequently applied to other locomotive classes and multiple unit fleets.

The preservation movement's evolution suggests multiple Class 92 examples will eventually survive. Contemporary preservation philosophy values representing diverse aspects of railway history rather than focusing exclusively on glamorous express passenger types. A Class 92 in original Railfreight grey represents the optimistic early 1990s Channel Tunnel freight ambitions. An EWS-liveried example reflects the privatisation era and subsequent operational challenges. A Caledonian Sleeper locomotive in midnight teal celebrates the class's unexpected passenger success. This variety ensures preservation interest from multiple organisations and enthusiast groups.

Modelling Significance and Scale Replications

The BR Class 92 presents exceptional modelling significance as Britain's most powerful electric locomotive, offering model railway enthusiasts thoroughly contemporary traction spanning multiple attractive livery periods from the mid-1990s through current operations. The class's distinctive angular profile—clearly related to the Class 60 diesel design yet adapted for electric traction with prominent twin pantographs and streamlined nose ends—creates visual interest whether displayed statically or operating freight and passenger trains on layouts depicting post-Channel Tunnel British railways.

The modelling landscape evolved significantly when Accurascale announced Class 92 tooling in 2019, ultimately delivering models in 2022 that set new standards for OO gauge ready-to-run electric locomotive quality. Prior to this, Hornby's models—first introduced in 1995 and updated with improved tooling from 2011—represented the only option across any scale. The arrival of Revolution Trains' N gauge range in late 2020 finally provided small-scale modellers access to this important class, addressing a gap that had frustrated N gauge enthusiasts for over two decades.

For railway modellers seeking authentic modern traction, the Class 92 offers versatility spanning freight and passenger operations across multiple regions. A midnight teal Caledonian Sleeper locomotive hauling Mark 5 coaches between London and Scotland creates striking passenger train formations. DB Cargo red or GBRf blue/orange examples heading intermodal or automotive freight through the Channel Tunnel or across the West Coast Main Line provide contemporary freight atmosphere. Original Railfreight grey livery enables mid-1990s Channel Tunnel scenes capturing the optimistic early post-privatisation period. The variety ensures layout operators can select appropriate liveries matching their chosen era and operational focus.

Accurascale OO Gauge (2022 onwards)

Accurascale's Class 92 represents arguably the finest OO gauge electric locomotive currently available, with detail quality, feature sophistication, and operational performance exceeding all competitors. The company's development programme extended over three years, with engineering teams conducting extensive prototype research including visits to Crewe IMED to measure locomotives and photograph detail variations between build batches and subsequent modifications.

The technical execution impresses throughout. A heavy die-cast alloy chassis provides excellent weight distribution and low centre of gravity, whilst all-wheel drive and electrical pickup ensure reliable current collection and smooth operation at crawling speeds appropriate for depot movements or congested freight yards. The five-pole motor with twin flywheels delivers powerful performance—contemporary reviews confirm the model easily hauls 20+ bogie freight wagons on level track, matching prototype capabilities.

Perhaps most remarkably, Accurascale tooled dual motorised pantographs controllable via DCC function mapping. The pantographs raise and lower realistically when commanded, creating authentic operational sequences as locomotives transition between overhead wire and third rail territories. The mechanism employs tiny electric motors integrated into the pantograph mounting assemblies—sophisticated engineering that adds substantial manufacturing cost but delivers unprecedented realism. Both pantographs function independently, enabling modellers to recreate prototype practice of raising the leading pantograph for overhead wire collection whilst lowering the trailing unit to reduce drag.

Detail quality reaches impressive standards throughout. Separately applied components include handrails, lamp irons, multiple working unit cables, vacuum and air brake pipes, etched metal "Polo Mint" Channel Tunnel discs, windscreen wipers, cab door handles, and detailed underframe equipment. Factory-fitted glazing includes cab interior detail with driver's seats, control desks, and instrumentation visible through windows. The body features separately applied roof-mounted resistor grilles and accurately rendered bogies with individual brake shoes, suspension springs, and traction motor details.

Sound-fitted models incorporate Accurascale's Hi-Fi dual-speaker system with one speaker mounted in each bogie, providing excellent sound dispersion and realistic audio effects. The factory-installed decoder features authentic Class 92 recordings including motor whine, cooling fan operation, compressor, brake squeal, and numerous other prototypical sounds. The system includes stay-alive capacitors preventing sound dropout during momentary power interruptions on dirty track or insulated point frogs—a valuable feature for reliable exhibition operation.

The first run release in 2022 offered ten different catalog numbers spanning the major livery variants.

Retailer exclusives expanded the range further. Rails of Sheffield secured ACC-92023 representing 92023 "Ravel" in SNCF grey livery—a distinctive variant rarely modelled previously. Kernow Model Rail Centre offered K2692/K2692SF featuring 92017 in Stobart Rail livery with alternative running numbers or detail variations.

The second run entered pre-order status in 2024 with delivery scheduled for Q4 2026. Pricing increased to £229.95 for DCC Ready and £299.95 for DCC Sound variants, reflecting rising manufacturing costs and enhanced tooling incorporating separately applied etched metal grille details and refined body mouldings. This run includes additional livery variants and running number options extending the range's comprehensiveness.

Performance characteristics suit layouts with curves of 438mm radius or greater—second radius on the conventional 00 gauge geometry. The models weigh approximately 420 grams, providing excellent adhesion for heavy freight haulage whilst remaining compatible with standard track. Contemporary reviews praise the smooth running characteristics, with one noting the locomotive "crawls beautifully at realistic depot speeds yet accelerates smoothly to top speed without any cogging or hesitation." The all-wheel drive and comprehensive electrical pickup eliminate the stalling problems that plagued earlier electric locomotive models with fewer powered axles.

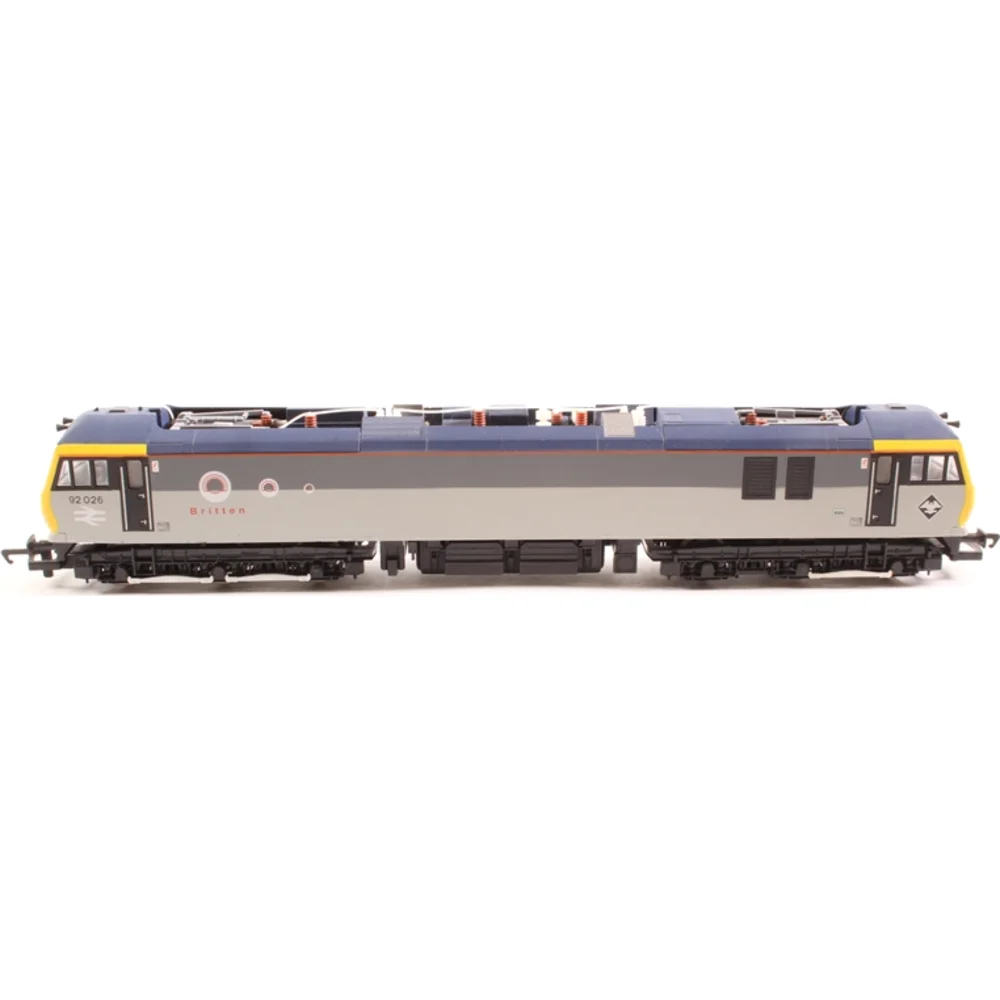

Hornby OO Gauge (1995-present)

Hornby pioneered Class 92 models with the R2003 release in 1995—remarkably early given the prototype's recent introduction. These early models featured Hornby's traditional Ringfield motor mounted longitudinally in the chassis with geared drive to both bogies, delivering adequate performance though without the smooth slow-speed operation of later coreless motor designs. The original releases lacked DCC compatibility, with no provision for decoder installation beyond complex hardwired conversions.

The range underwent significant revision from 2011 onwards with improved tooling featuring factory-fitted 8-pin DCC sockets, enhanced detail including separately applied handrails and lamp irons, and revised body mouldings with better proportions and additional detail. These updated models—catalog numbers R3741 onwards—represent substantial improvements over the 1990s originals, though lacking the motorised pantographs, sound systems, and ultimate detail quality of Accurascale's range.

Earlier catalog numbers from the 1996-1998 period included R2003, R2004 (multiple running numbers), R2037, and R2213, now available only through the second-hand market. These early models command modest prices given their technical limitations compared to contemporary standards.

Hornby's Class 92 models serve budget-conscious operators seeking adequate representation at accessible price points. The heavy discounting following Accurascale's range introduction makes Hornby models particularly attractive for layout operators requiring multiple locomotives for freight consists or who prioritise value over ultimate detail accuracy.

Revolution Trains N Gauge (2020-2021)

Revolution Trains, manufactured by Rapido Trains Inc., delivered N gauge enthusiasts their first Class 92 models in December 2020/January 2021 following an extended development programme. The models represent substantial engineering achievements given the 1:148 scale's constraints, packing sophisticated features into the compact dimensions.

Technical specifications include a Next18 DCC socket providing standardised decoder compatibility, factory-installed sugarcube speaker positioned within the body for sound-fitted variants, five-pole motor driving both bogies through flexible drive shafts, and two poseable etched metal pantographs that can be positioned in raised or lowered configurations. Switchable directional lighting includes headlights and tail lights appropriate for UK railway operations. The chassis incorporates all-wheel electrical pickup addressing N gauge's susceptibility to dirty track and power interruptions.

The range spans the major livery variants with catalog numbers including:

Original recommended retail pricing positioned the range at £175 for standard DCC Ready versions, though current availability primarily consists of pre-owned examples at retailers ranging from £119.50 to £159.50 depending on condition and livery variant. The models' compact dimensions suit N gauge layouts with minimum curve radius of 228mm (9 inches), though performance improves significantly on broader curves of 304mm or greater.

Contemporary reviews praised the smooth running characteristics and impressive detail level given the small scale. However, some users reported pantograph fragility—the etched metal components require careful handling to avoid damage during storage or transport. The sound-fitted versions received particular acclaim for the authentic Class 92 audio effects and adequate speaker volume despite the compact sugarcube installation.

Other Scales and Manufacturers

Graham Farish, Bachmann's N gauge brand, has never produced Class 92 models despite manufacturing numerous other modern British electric and diesel classes. This gap leaves Revolution Trains as the sole N gauge source for this important prototype.

No O gauge, TT gauge, or Continental HO scale (1:87) Class 92 models exist from any manufacturer. The O gauge market's preference for steam and early diesel traction, combined with the substantial tooling costs for a modern six-axle electric locomotive, makes commercial production economically unviable despite the prototype's visual appeal.

Specialist resin kit manufacturers have not produced Class 92 kits in any scale, reflecting the complexity of accurately rendering the prototype's sophisticated electrical equipment and the relatively limited market for advanced modelling projects requiring extensive assembly skills.

Retailer Availability and Purchasing Recommendations

Rails of Sheffield (railsofsheffield.com) now holds the largest Class 92 stock following their acquisition of the Hattons Model Railways brand after that major retailer's February 2024 closure. They stock both new and pre-owned Accurascale OO gauge models, Revolution Trains N gauge variants, and select Hornby releases. Their exclusive ACC-92023 in SNCF grey remains particularly sought-after by collectors.

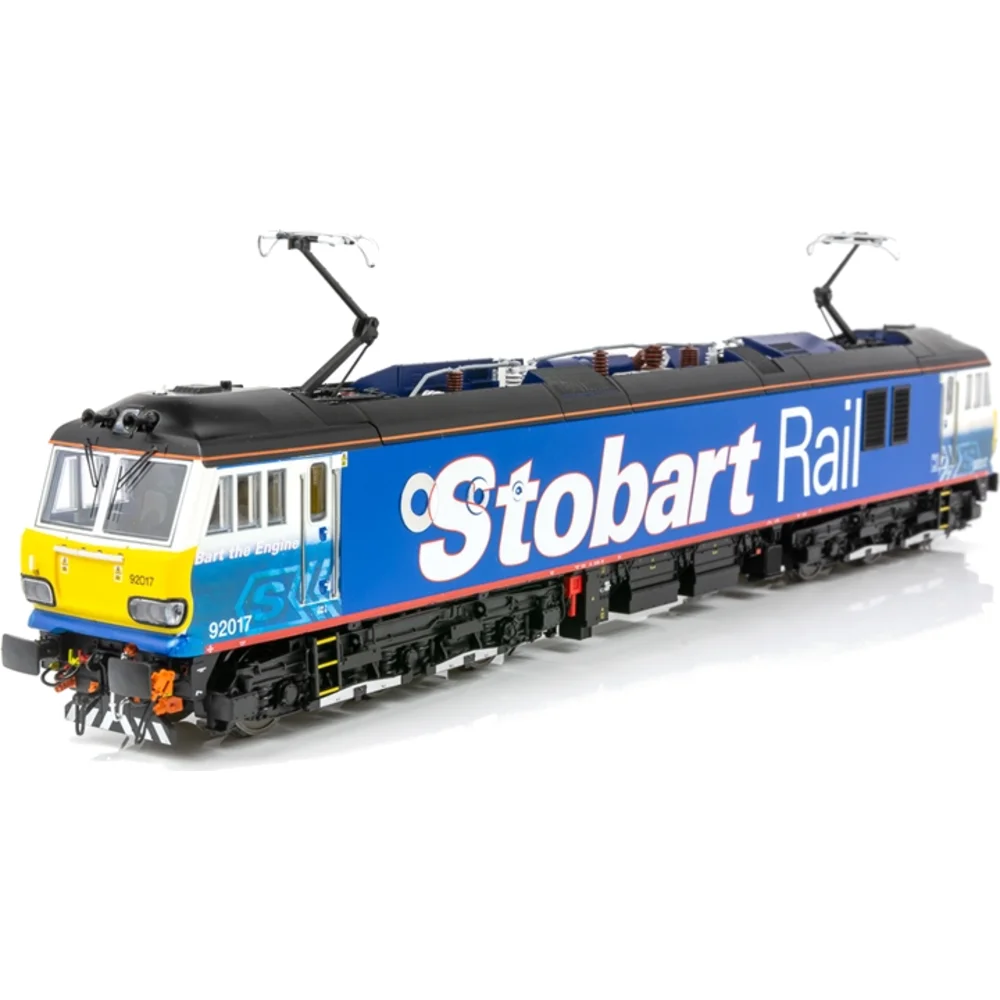

Kernow Model Rail Centre (kernowmodelrailcentre.com) offers Accurascale exclusives including the Stobart Rail variants unavailable through other channels. Their customer service receives consistent praise from enthusiasts, and pre-order terms typically include deposit refund options if delivery dates slip substantially.

Gaugemaster (gaugemasterretail.com) stocks the current Accurascale range with competitive pricing, typically offering 10-15% discounts off recommended retail prices. Their extensive warehouse inventory ensures good availability even for less popular livery variants.

Hattons Model Railways (hattons.co.uk) continues trading online despite the February 2024 physical shop closure, offering both new and pre-owned stock with detailed condition descriptions and clear photography enabling confident remote purchasing decisions.

Models

Unique Modelling Tips and Layout Integration

Successfully incorporating British Rail Class 92 models into layout operation requires understanding the specialised nature of their dual-voltage capability and the diverse operational roles from Channel Tunnel freight to overnight passenger services. Unlike general-purpose electric locomotives suitable for varied duties, the Class 92 demands specific infrastructure and operational scenarios matching its sophisticated capabilities and distinctive mission profile.

Authentic operating scenarios should reflect the class's three primary roles. Channel Tunnel freight operations involve hauling intermodal container flats, automotive transporters, or general merchandise wagons between the West Coast Main Line and Dollands Moor freight terminal via either the direct route through Kent or the diversionary path via the North London Line and Great Eastern. Typical consists range from 15 to 30 wagons depending on load weight and route gradients, with locomotives operating at moderate speeds of 45-60 mph on freight-rated lines.

Caledonian Sleeper passenger services create striking operational interest for modellers favouring overnight trains. A midnight teal Class 92 hauling 12-16 Mark 5 coaches between London Euston and Scottish destinations provides authentic contemporary passenger operations with sophisticated modern rolling stock. These trains operate at speeds up to 80 mph on the West Coast Main Line, requiring layouts with generous curve radii and realistic signal spacing enabling extended high-speed running sections.

Domestic electric freight operations on the West Coast Main Line—particularly automotive component flows and intermodal container trains—represent versatile scenarios suitable for layouts without specific Channel Tunnel infrastructure. A Class 92 in GBRf or DB Cargo livery hauling 20-25 container flats or car-carrying wagons creates authentic modern freight atmosphere appropriate for any electrified main line setting from the mid-2000s onwards.

Layout infrastructure authenticity demands careful attention to electrification details. Class 92s operating on 25kV AC overhead routes require appropriately modelled catenary with correct wire height, support structures, and sectioning arrangements. The locomotives' twin pantographs create interesting visual effects—raising both pantographs during movement and lowering them when stationary at non-electrified sidings or depot roads provides realistic operational variety. Third rail sections representing Southern Region infrastructure between the Channel Tunnel portal and the transition to overhead electrification at Ashford add operational complexity and visual interest.

Era selection proves crucial for authentic Class 92 representation. Layouts depicting the mid-1990s should show original Railfreight grey livery alongside contemporary Class 58, Class 59, and Class 60 diesel freight locomotives, with traffic flows reflecting early Channel Tunnel optimism and pre-privatisation British Rail operations. Post-privatisation layouts from the late 1990s and early 2000s suit EWS maroon livery with mixed freight consists and evidence of operational consolidation following railway restructuring. Contemporary scenes from 2015 onwards enable Caledonian Sleeper midnight teal representation alongside modern GBRf and DB Cargo freight operations.

Coaching stock selection for passenger operations requires careful period matching. Caledonian Sleeper services exclusively employ Mark 5 coaches in matching midnight teal livery from 2018 onwards—these sophisticated vehicles feature external power doors, passenger information systems, and modern design language creating cohesive train formations when combined with Class 92 traction. Earlier hypothetical Nightstar operations (useful for "what if" alternative history layouts) would have used specially-built Nightstar coaching stock—several manufacturers offer these coaches in OO and N gauge despite the service's cancellation, creating interesting possibilities for exploring the road not taken.

Freight wagon selection should reflect Channel Tunnel operational requirements and contemporary British freight traffic patterns. Intermodal container flats—particularly Freightliner, Stobart Rail, and Malcolm Group examples—create authentic modern freight trains. KFA/KSA automotive car-carrying wagons suit Ford component traffic from Dagenham. ISO tank containers on intermodal flats represent chemical and petroleum flows. The class rarely appears with coal, steel, or heavy bulk commodity wagons—these traffics moved primarily behind Class 66 diesel locomotives rather than the more sophisticated and expensive-to-operate electric Class 92s.

Sound-equipped models benefit from careful DCC programming emphasising the Class 92's distinctive operational characteristics. The ABB GTO thyristor traction system produces characteristic high-pitched motor whine increasing in frequency as the locomotive accelerates—programming decoder CVs to emphasise this effect creates authentic atmosphere. Cooling fan sounds should vary with load—quiet during light running, louder when hauling heavy trains up gradients. The compressor cycles periodically to maintain brake system air pressure, creating irregular operational sequences rather than continuous operation.

Depot scenes offer excellent static display opportunities whilst demonstrating maintenance infrastructure. Model a section of Crewe International Electric Depot with overhead electrification, maintenance facilities including wheel lathes and lifting equipment, and multiple road layout enabling storage of locomotives awaiting overhaul or modification. Class 92s sharing depot space with Class 86, Class 87, and Class 90 electric locomotives creates authentic West Coast Main Line atmosphere, whilst mixing them with Class 66 diesels reflects operational reality at Crewe's extensive traction depot complex.

Timetable construction enables systematic operations reflecting intensive Channel Tunnel freight schedules. A realistic operating sequence might begin with departing Wembley International Freight Terminal with an intermodal train, running via the North London Line to Stratford, then through Essex and Kent to Dollands Moor for Channel Tunnel transit. After returning light engine or with Continental traffic, the locomotive works a second freight to Daventry International Rail Freight Terminal before returning to Wembley for its next Channel Tunnel diagram. This varied workload creates engaging movements whilst remaining prototypically accurate.

Finally

The British Rail Class 92 represents far more than 46 sophisticated electric locomotives; these machines embody Britain's ambitious but ultimately troubled relationship with the Channel Tunnel's promise of seamless Anglo-Continental rail freight integration. The £138 million investment in dual-voltage capability, system duplication, and 5,040 kW power output delivered technically impressive locomotives that met every engineering specification—yet faced operational realities of declining freight volumes, cancelled passenger services, and infrastructure limitations that prevented them achieving their intended potential for decades.

For railway historians, the Class 92 story provides fascinating insights into the challenges of international railway cooperation when incompatible electrification systems, divergent operational philosophies, and commercial pressures intersect. The Nightstar cancellation—stranding seven passenger-rated locomotives in storage whilst the railways desperately needed additional freight capacity—exemplifies the sometimes painful disconnect between investment decisions and operational requirements. The signalling interference problems that initially barred locomotives from their intended routes demonstrate how sophisticated modern technology can create unexpected complications requiring expensive mitigation.

Yet the class's eventual success—particularly the Caledonian Sleeper transformation delivering the passenger role two decades late—validates the fundamental engineering excellence underlying the troubled operational history. These locomotives prove that sophisticated traction designed for specific demanding duties can adapt to alternative roles when circumstances change, provided the underlying mechanical and electrical systems remain sound enough to justify refurbishment investment. The international deployments to Bulgaria, Croatia, and Romania further demonstrate versatility beyond the original Channel Tunnel mission.

The complete fleet survival into 2025—with none facing scrapping despite surplus locomotives languishing in storage for years—reflects both the substantial initial investment that makes premature withdrawal economically painful and the class's continuing utility for irreplaceable roles. DB Cargo UK's statement that replacement cannot occur before 2035 due to TVM-430 signalling certification acknowledges the practical reality that sometimes older technology must continue operating simply because nothing else can legally perform the same duties.

Accurascale's exceptional OO gauge range provides model railway enthusiasts with unprecedented access to this important class through models featuring motorised pantographs, comprehensive sound systems, and detail quality rivalling specialist brass imports whilst maintaining ready-to-run convenience. The extensive livery variety spanning Railfreight grey through multiple privatisation-era schemes to contemporary Caledonian Sleeper midnight teal enables authentic representation across three decades of British railway evolution. Revolution Trains' N gauge range similarly serves small-scale modellers with sophisticated features previously impossible at 1:148 proportion.

Model railway enthusiasts incorporating Class 92s into contemporary layouts gain access to thoroughly modern electric traction suitable for diverse freight and passenger operations. Whether recreating Channel Tunnel intermodal trains, overnight Caledonian Sleeper services gliding north through the Scottish Highlands, or domestic freight workings on the West Coast Main Line, these models bring authentic 1990s-to-present atmosphere to layouts depicting Britain's electrified railway network. The distinctive angular profile derived from Class 60 diesel heritage yet adapted for electric traction creates immediately recognisable machines that photograph beautifully and operate reliably.

As railway electrification continues expanding and diesel traction faces inevitable withdrawal under environmental legislation, the Class 92's role as Britain's most powerful electric locomotive takes on new significance. These machines demonstrate that electric traction can deliver the performance essential for heavy freight haulage whilst operating cleanly and efficiently. The lessons learned from their complex development, troubled early service, and eventual operational success inform current locomotive procurement decisions and infrastructure planning as Britain's railways transition toward zero-emission operations.

The British Rail Class 92 story ultimately celebrates engineering ambition, operational adaptability, and the principle that sophisticated machinery designed for specific demanding duties can continue delivering value for decades when underlying quality supports evolution beyond original missions. From Channel Tunnel freight pioneer through Nightstar disappointment to Caledonian Sleeper success, these distinctive locomotives have written a uniquely British railway story—one that continues developing as the class approaches its fourth decade of service with retirement still years distant. For historians, operators, and modellers alike, the Class 92 remains a fascinating subject worthy of sustained attention and careful study.

Frequently Asked Questions

How many British Rail Class 92 locomotives were built and when?

Forty-six Class 92 locomotives were constructed by Brush Traction at Loughborough between 1993 and 1996, with bodyshells fabricated by Procor at Horbury. The fleet comprises 92001-92046, with 92001 completing static tests in August 1993 and 92002 becoming the first to run on BR metals in December 1993. The construction programme included 30 locomotives for Railfreight Distribution Channel Tunnel freight, seven for European Passenger Services Nightstar sleeper services, and nine for SNCF operations.

What makes the Class 92 different from other British electric locomotives?

The Class 92's defining characteristic is dual-voltage capability—the first BR electric locomotives designed from outset for both 25kV AC overhead and 750V DC third rail operation. This enables transit from Continental Europe through the Channel Tunnel across the Southern Region's third-rail network to West Coast Main Line overhead catenary. Additionally, Eurotunnel safety regulations mandate extensive system duplication preventing locomotive failure stranding trains within the 31.4-mile underwater bore.

Why were Class 92 locomotives called "the most powerful" British electrics?

When operating on 25kV AC overhead supply, the Class 92 develops 5,040 kW (6,760 hp)—exceeding all other British electric locomotive classes including the Class 91 (4,800 kW) and Class 90 (3,700 kW). This substantial power output reflects the class's heavy freight-hauling mission requiring ability to move 1,600-tonne trains through the Channel Tunnel and across Britain's main line network. Power reduces to 4,000 kW on 750V DC third rail.

What happened to the Nightstar sleeper trains that Class 92s were designed to haul?

The Nightstar cross-Channel sleeper project was cancelled in July 1997 before services commenced. Rising costs, Channel Tunnel construction delays, low-cost airline competition, and complications from Britain's non-Schengen status doomed the ambitious service linking London with Continental cities. Seven locomotives built specifically for Nightstar (92020, 92021, 92032, 92040, 92044-92046) spent years in storage before eventual deployment on Caledonian Sleeper services from 2015 onwards.

Where do Class 92 locomotives currently operate?

Sixteen Class 92s remain active in UK service—twelve with GB Railfreight (seven on Caledonian Sleeper passenger duties, five on general freight) and four with DB Cargo UK on Channel Tunnel and High Speed 1 freight operations. Thirteen locomotives were exported to Eastern Europe: five to DB Cargo Bulgaria for copper ore trains, five leased to Transagent Rail Croatia, and three to DB Cargo Romania. The remaining seventeen locomotives are stored at Crewe IMED or Worksop.

What is the Caledonian Sleeper and why does it use Class 92 locomotives?

Caledonian Sleeper operates overnight passenger trains between London Euston and Scottish destinations including Edinburgh, Glasgow, Fort William, Aberdeen, and Inverness. When Serco won the franchise in 2015, they selected Class 92 traction because these locomotives possess the power, reliability, and passenger-service certification essential for hauling lengthy formations of heavy Mark 5 coaches over demanding West Coast Main Line routes including challenging gradients through the Scottish Highlands.

Can Class 92 locomotives operate through the Channel Tunnel today?

Yes, though fewer Class 92s maintain Channel Tunnel certification than originally anticipated. DB Cargo UK operates four locomotives (92015, 92029, 92041, 92042) on Channel Tunnel freight services, whilst several others have been withdrawn from tunnel operations due to high costs of maintaining the sophisticated TVM-430 signalling equipment and Eurotunnel's stringent safety certification requirements. The company stated in February 2025 that replacement cannot occur before 2035 due to irreplaceable certification.

What OO gauge Class 92 models are currently available?

Accurascale produces the premium OO gauge Class 92 range with models featuring die-cast chassis, motorised pantographs, all-wheel drive and pickup, and comprehensive sound systems on DCC Sound variants. Catalog numbers ACC2191 through ACC2201 cover major liveries including Railfreight grey, EWS maroon, DB Schenker red, GBRf blue/orange, Caledonian Sleeper teal, and Stobart Rail. Hornby offers budget alternatives with current releases including R3741, though heavily discounted following Accurascale's superior range introduction.

Are Class 92 models available in N gauge or other scales?

Revolution Trains (manufactured by Rapido) produces N gauge Class 92 models released December 2020/January 2021, featuring Next18 DCC socket, factory-installed sugarcube speaker, five-pole motor, and poseable metal pantographs. Catalog numbers span major liveries including Railfreight grey, Caledonian Sleeper teal, GBRf, and DB Schenker red. No O gauge, TT gauge, or HO scale models exist from any manufacturer. Graham Farish has never produced Class 92 despite manufacturing other modern British traction.

Why did some Class 92 locomotives go to Bulgaria and Romania?

Surplus Class 92s were exported to Eastern Europe from 2017 onwards when declining Channel Tunnel freight volumes rendered them surplus to UK requirements. DB Cargo Bulgaria acquired five locomotives (reclassified Class 88) for copper ore trains between Burgas and Pirdop requiring powerful electric traction. DB Cargo Romania retained three locomotives (reclassified Class 472) for freight operations. The locomotives' substantial power output and modern electrical systems suit demanding Eastern European freight duties.

What is the future of the Class 92 fleet?

The UK operational fleet appears secure through the late 2020s. DB Cargo UK's four Channel Tunnel locomotives cannot be replaced before 2035 due to TVM-430 signalling certification requirements. GB Railfreight's Caledonian Sleeper contract extends through June 2030, securing the seven passenger locomotives. However, the seventeen stored locomotives face uncertain prospects—reactivation requires substantial investment in traction equipment overhauls and compliance modifications that appears economically unjustifiable without specific traffic flows.

Are any Class 92 locomotives preserved or likely to be preserved?

No Class 92 locomotives are currently preserved, and their 25kV AC or 750V DC electrification requirements make heritage railway operation impractical. However, eventual static preservation appears virtually certain given the class's historical significance. Candidates include 92003 "Beethoven" as the last British Rail-liveried locomotive, 92015 for pioneering the China-UK direct rail freight route, or 92018 as the inaugural Caledonian Sleeper locomotive. The National Railway Museum or similar institutions could provide appropriate homes.
