The British Rail Class 101 was British Rail's most successful and longest-serving first-generation diesel multiple unit, transforming Britain's branch lines and suburban railways across an extraordinary 47-year operational career from October 1956 until Christmas Eve 2003. Built by Metro-Cammell in Birmingham, these distinctive units represented the vanguard of the 1955 Modernisation Plan's ambitious DMU programme, with over 700 vehicles constructed across nearly 250 sets between 1956 and 1959. From Tyneside suburbs to Scottish Highland branches, Birmingham's Cross-City Line to Norwich rural services, the Class 101 proved that standardised diesel traction could deliver reliable, economical passenger services whilst displacing increasingly uneconomical steam-hauled branch trains.
For model railway enthusiasts, the Class 101 offers compelling prototype appeal across multiple eras and regions. The type operated through virtually every major British Rail livery scheme—from original BR green through corporate blue, blue and grey, sector liveries, and even the famous "Daisy" BR green revival in the 1990s. Comprehensive model availability from Bachmann Branchline in OO gauge, Graham Farish in N gauge, and budget-friendly Hornby Railroad options ensures accessible representation across scales and price points. The substantial preservation movement—41 surviving vehicles at heritage railways nationwide—provides contemporary reference material and operational examples for authentic detailing.
The Class 101's remarkable longevity stemmed from comprehensive refurbishment programmes during the 1970s-1980s that transformed mid-life vehicles into modernised units suitable for continued service. When newer Pacer and Sprinter units proved problematic or unavailable, privatisation-era operators consistently returned to the reliable Class 101. The final five operational units concluded nearly half a century of service on Hope Valley Line and Buxton services for First North Western, their Christmas Eve 2003 withdrawal marking the end of an era that began when Britain's railways were still predominantly steam-operated.
Quick Takeaways
- Over 700 vehicles constructed: Metro-Cammell built 620 Class 101 vehicles plus 106 Class 102 vehicles (later reclassified as Class 101) at Birmingham Saltley Works between 1956-1959
- 47-year operational span: From 24 October 1956 debut on Tyneside services until final scheduled departure 24 December 2003, making it the second longest-lived first-generation DMU type
- Four regional allocations: North Eastern Region (347 vehicles in 134 sets), Scottish Region (159 vehicles in 63 sets), London Midland Region (114 vehicles in 48 sets), Eastern Region (later transfers)
- BUT AEC and Leyland power: Twin 150 hp horizontal diesel engines per power car, with early AEC 220 units progressively replaced by more reliable Leyland 680 engines during 1970s-1980s refurbishments
- Comprehensive refurbishment programme: 562 of 590 vehicles passed through works 1976-1984 receiving fluorescent lighting, new interiors, engine upgrades, and technical improvements extending operational lives by decades

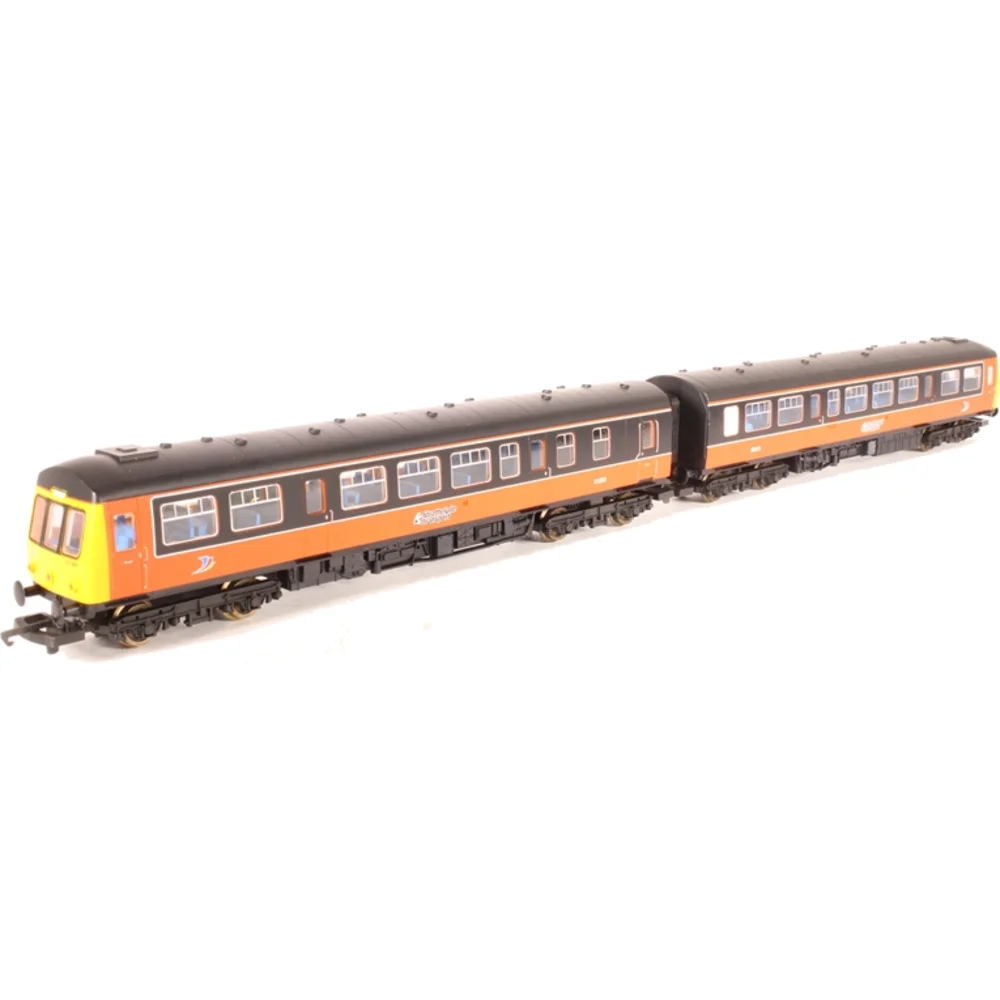

- Livery diversity: Carried BR green, rail blue, blue and grey, white with blue stripe (264 vehicles), Strathclyde PTE orange and black, Network SouthEast, Regional Railways, plus special schemes including "Daisy" revival livery
- Substantial preservation: 41 vehicles survive at heritage railways including Great Central Railway, North Norfolk Railway, North Yorkshire Moors Railway, Keighley & Worth Valley Railway, and Severn Valley Railway
Historical Background and Context
The genesis of the Class 101 lay in the British Railways 1955 Modernisation Plan—an ambitious £1,240 million programme designed to transform an aging network struggling with post-war traffic decline and rising operational costs. At the plan's announcement, British railways operated barely 300 diesel multiple units scattered across experimental services. The Modernisation Plan called for revolutionary expansion to over 4,300 new DMU vehicles that would replace steam traction on branch lines, rural services, and suburban routes where full locomotive-hauled formations proved economically unsustainable.
Metro-Cammell of Birmingham emerged as the most prolific private DMU manufacturer through the tender process, winning substantial contracts based on competitive pricing, proven lightweight vehicle experience, and critically, the shortest delivery timeframe amongst bidders. Production centered on the company's Saltley Works in Birmingham, where at peak output four vehicles per week emerged from assembly lines—an impressive industrial achievement given the complexity of integrating mechanical, electrical, and passenger accommodation systems into compact self-propelled units.
The design philosophy emphasized standardisation and operational flexibility. Each power car carried twin 150 hp BUT (British United Traction) diesel engines mounted horizontally beneath the floor, driving through epicyclic gearboxes derived from contemporary bus and truck designs. The "Blue Square" coupling code classification proved particularly significant—Class 101s could operate in multiple with most other first-generation DMU types, enabling formation flexibility that would prove invaluable across Britain's diverse railway geography. Up to twelve vehicles could operate under single driver control, providing capacity adjustments impossible with fixed locomotive-hauled formations.
The first Class 101 sets entered service on 24 October 1956 when seven four-car and ten two-car units commenced operations in the Tyneside area under North Eastern Region control. This deployment made the Class 101 amongst the earliest products of the Modernisation Plan to reach operational service, establishing patterns that would characterize DMU operations for decades. Contemporary accounts praised the smooth acceleration, reduced noise compared to steam services, and dramatically improved cleanliness that diesel traction delivered—advantages that quickly won passenger approval despite initial skepticism about abandoning steam.
Insider Tip: Identifying Production Batches
Class 101 enthusiasts can identify early versus late production batches through several spotting features. Early vehicles (1956-early 1959) featured long exhaust pipes extending above frame height, creating distinctive visual profiles. From February 1959, Metro-Cammell switched to shorter exhausts positioned at coupling hook level—a change clearly visible in photographs. London Midland Region vehicles received unique "one up/one down" exhaust arrangements never applied elsewhere. The cab front underwent three distinct design changes across production, whilst Scottish Region vehicles uniquely carried yellow first-class stripes in BR green livery. These variations enable precise dating and regional identification for authentic model detailing.
Production continued robustly through 1959, with vehicles progressively delivered to the North Eastern, Scottish, London Midland, and Eastern regions. The design proved so successful that Metro-Cammell secured additional contracts for the closely-related Class 102 featuring Leyland engines rather than AEC units—these 106 vehicles would eventually be reclassified as Class 101 when British Rail introduced the TOPS computer numbering system in the 1970s. The combined total exceeded 700 vehicles, making this the most numerous first-generation DMU class and establishing Metro-Cammell as Britain's leading DMU manufacturer.
The strategic vision behind Class 101 deployment reflected broader railway modernisation objectives. Steam-hauled branch services typically operated at significant losses—locomotive servicing costs, crew requirements, coaching stock maintenance, and terminal facility expenses created uneconomical operations even on routes with reasonable passenger loadings. DMUs transformed the economics through driver-only operation (eliminating firemen), minimal servicing requirements, rapid turnaround enabling intensive diagrams, and crucially, the ability to match capacity precisely to demand through flexible formations. A two-car Class 101 consumed dramatically less fuel and required far less maintenance than the smallest practical steam-hauled formation.
Design and Technical Specifications
The engineering excellence of the British Rail Class 101 lay in Metro-Cammell's successful integration of proven automotive components into purpose-designed railway vehicles. At the mechanical heart sat the BUT (British United Traction) 150 horsepower diesel engines—each power car mounting two engines horizontally beneath the floor between the bogies. Early production batches utilized AEC 220 six-cylinder diesels displacing 11.3 litres, derived from successful bus and truck applications. Later vehicles, originally designated Class 102, received Leyland 680 units of identical displacement but offering subtle performance and maintenance differences that would influence later refurbishment decisions.
Power transmission followed established automotive practice refined for railway application. Each engine drove through an S.C.G. R14 four-speed epicyclic gearbox—a planetary gear design that provided smooth torque multiplication and automatic gear selection based on speed and loading. The final drive connected through cardan shafts and right-angle gearboxes to the inner axle of each bogie, with the drive transmitted through coupling rods to the outer axle. This arrangement provided excellent acceleration whilst maintaining simplicity for depot maintenance staff familiar with automotive mechanical systems rather than traditional railway locomotive engineering.
Vehicle configurations reflected operational requirements across diverse service types. The DMBS (Driving Motor Brake Second) provided 52 second-class seats alongside a substantial brake compartment accommodating parcels traffic—an important revenue stream on rural services. The DMCL (Driving Motor Composite Lavatory) offered mixed accommodation with 12 first-class and 52 second-class seats plus toilet facilities, enabling longer-distance services requiring passenger amenities. Trailer vehicles included the DTCL (driving trailer composite lavatory), TSL and TBSL (trailer seconds with and without brake compartments), and TCL (trailer composite). A small number of buffet cars were constructed for premium services including Newcastle-Leeds Trans-Pennine workings.
The underframe construction utilized heavy-section steel members providing substantial strength for the relatively light superstructure. Metro-Cammell employed aluminum alloy extensively in body construction—roof panels, internal partitions, and external cladding utilized lightweight alloy reducing overall vehicle weight whilst maintaining structural integrity. This weight-saving approach maximized the power-to-weight ratio available from the 300 hp twin-engine installation, ensuring adequate performance on steeply-graded routes that would characterize Scottish and Pennine operations.
Technical Innovation: The Refurbishment Transformation
The 1974 prototype refurbishment at Doncaster Works established revolutionary standards that transformed the Class 101 fleet. Trial set 51451/59545/51518 emerged in June 1974 with fluorescent lighting providing six times previous illumination levels, lowered ceiling panels matching Mk.2 hauled coaching stock aesthetics, new Class 313-style seating in second class delivering improved comfort, and Inter-City 70 adjustable seats in first. Orange laminate vestibules became a trademark of the programme. Technical improvements included new engine mountings and silencers dramatically reducing interior noise, upgraded heating systems, and critically, systematic engine replacements that swapped unreliable AEC units for proven Leyland powerplants. These modifications extended operational lives by decades, enabling 1950s-vintage vehicles to serve reliably into the 21st century.
Braking systems followed contemporary railway practice with Gresham & Craven vacuum brakes actuating clasp brake blocks on all wheels. The vacuum brake system integrated seamlessly with locomotive-hauled stock, enabling Class 101s to be strengthened with hauled vehicles or vice versa—a flexibility occasionally exploited during passenger traffic surges. The relatively generous brake power ensured safe operation at the 70 mph maximum speed, though in practice most services operated at lower speeds on secondary routes with restrictive speed limits.
The electrical system operated at 80 volts supplied from engine-driven generators, with substantial battery banks providing hotel power during station stops when engines idled or shut down completely. Lighting, heating, ventilation, and control circuits all drew from this 80-volt system. The refurbishment programme upgraded electrical systems substantially, replacing dim tungsten lighting with modern fluorescent fittings and enhancing heating capacity to meet improved comfort standards expected by 1970s-1980s passengers.
The gangway connections utilized Midland pattern scissor gangways enabling passengers to traverse between vehicles whilst maintaining weather sealing. These gangways proved compatible with most BR coaching stock and other first-generation DMU types, supporting the flexible formation policies that characterized British Rail operations. The Blue Square coupling code classification meant Class 101 power cars could lead trailer vehicles from other classes, or Class 101 trailers could operate behind different driving cars—a versatility exploited increasingly from the 1980s onwards as DMU fleets aged and vehicle availability varied.
Service History and Operations
The British Rail Class 101 operational history spanned virtually every corner of the British railway network outside the Southern Region, touching diverse service types from intensive urban commuter operations to remote Highland branch lines. This geographic and operational diversity reflected both the type's fundamental versatility and the comprehensive scope of British Rail's DMU modernisation programme.
The North Eastern Region received the largest initial allocation with 347 vehicles forming 134 sets delivered from October 1956. The newly-opened Darlington Depot (51A) became a major Class 101 hub from 1957, ultimately maintaining one of Britain's largest DMU concentrations. Tyneside operations dominated early deployments, with Class 101s transforming services on routes including Darlington-Saltburn, Newcastle-Middlesbrough, and the extensive Tees Valley network. The type revolutionized branch services across Yorkshire, handling intensive stopping trains on routes where steam-hauled services had operated at substantial losses. The 30 May 1981 opening of the Tyne and Wear Metro system displaced DMUs from Newcastle area services, though Darlington's allocation continued until 21 September 1989 when Pacer units assumed duties—though Class 101s would later return when Pacer reliability proved problematic.
The Scottish Region allocation of 159 vehicles in 63 sets commenced from July 1958, distributed across ten depots including Ayr, Corkerhill (Glasgow), Dundee Tay Bridge, Eastfield (Glasgow), Haymarket (Edinburgh), Inverness, Kipps (Glasgow), Motherwell, Perth, and Yoker (Glasgow). Scottish operations showcased the type's versatility—Class 101s handled Glasgow suburban services, Edinburgh-Dundee corridor trains, Highland main line workings from Inverness to Kyle of Lochalsh and the Far North Line, and countless branch services across the Central Belt. The Hamilton Circle electrification of 6 May 1974 substantially reduced Scottish DMU requirements, prompting vehicle transfers southward. A devastating January 1984 fire at Ayr Depot destroyed six Class 101 vehicles, creating temporary capacity shortages. Corkerhill received facelifted sets in distinctive Strathclyde PTE orange and black livery from 1992, operating until privatization saw ScotRail retain eleven units for Glasgow-area services through November 1999.
The London Midland Region received 114 vehicles in 48 sets from April 1958, with the majority allocated to Tyseley Depot for Birmingham Cross-City Line services. This deployment created one of Britain's longest-running DMU operations—Class 101s dominated the Cross-City Line from April 1958 until the route's electrification forced withdrawal on 12 July 1993, an extraordinary 35-year tenure on a single intensive urban service. Tyseley's allocation also covered services to Worcester, Redditch, and across the West Midlands network. The type handled Trans-Pennine stopping services, complementing express locomotive-hauled trains on these important cross-country routes.
Operational Insight: The White Ghost Prototype
Trial set 51451/59545/51518 emerged from the June 1974 Doncaster refurbishment in striking white livery with Rail Blue waistband—earning the nickname "White Ghost" amongst enthusiasts and railway staff. This distinctive colour scheme, intended for high-profile routes, was subsequently applied to 264 Class 101 vehicles between 1974-1978 before British Rail abandoned it in favour of blue and grey livery. White Ghost sets initially concentrated on prestige services including Cambridge-London Liverpool Street shuttles where their modern appearance impressed passengers accustomed to aging green-liveried stock. The livery's susceptibility to dirt accumulation—particularly problematic on coal-traffic routes—contributed to its abandonment. Today, the White Ghost scheme remains one of the most recognizable and photographed Class 101 liveries, commemorated by Bachmann's model production and frequently applied to preserved vehicles at heritage events.
The Eastern Region received Class 101 allocations later, with Norwich Crown Point acquiring vehicles from January 1970 for rural services including Norwich-Sheringham, Norwich-Lowestoft, and various Fen Line duties. Cambridge Depot built substantial allocation from 1977, with nine refurbished sets handling shuttle services to Royston and Huntingdon plus Cambridge-London Liverpool Street semi-fast services. The 1987 electrification programme dramatically reduced Cambridge's Class 101 requirement, prompting transfers to other regions. Eastern Region operations demonstrated the type's continuing relevance even on routes within striking distance of London, where passenger expectations for comfort and reliability typically exceeded those on remote rural services.
The privatization era (1994-2003) concentrated remaining operational Class 101s progressively on North West England services. The creation of Regional Railways as a sectorized business unit saw application of light blue and grey livery to remaining fleets from 1991. Privatization transfers in 1997 saw First North Western inherit sets for Manchester-area operations. Final operational concentration at Newton Heath Depot supported services including Hope Valley Line (Manchester-Sheffield via Edale and Hathersage), Rose Hill Marple locals, and Buxton Line trains through the Peak District. These routes' scenic attractions and enthusiast following ensured the final Class 101 years received substantial photographic documentation.
The ultimate service ran on 24 December 2003—Christmas Eve—when the last scheduled Class 101 departure operated from Rose Hill Marple to Manchester Piccadilly. Three days earlier, the final five operational units had performed a ceremonial farewell tour from Preston to Barrow-in-Furness via Morecambe and Heysham Port, hauling enthusiast specials packed with railway photographers and historians documenting the end of an era. The oldest set withdrawn on that final day had accumulated just over 47 years of continuous service—a longevity far exceeding any original design expectations and exceeded amongst first-generation DMUs only by the diminutive Class 121 "Bubble Cars" that would continue until 2017.
Withdrawal and Preservation Legacy
The withdrawal history of the British Rail Class 101 reflects the gradual obsolescence of first-generation DMU designs despite comprehensive refurbishment programmes that extended operational lives far beyond original expectations. Unlike many contemporary classes facing rapid scrapping during the 1980s rationalization, the Class 101 benefited from sustained investment, operational reliability, and crucially, the absence of adequate replacement stock that repeatedly granted stays of execution.
Early withdrawals commenced during the 1970s as electrification schemes displaced DMUs from specific routes. The Tyne and Wear Metro opening on 30 May 1981 eliminated numerous Newcastle-area Class 101 sets, with similar displacement occurring following the 1987 Cambridge area electrification. However, these early withdrawals represented route-specific rather than class-wide obsolescence—displaced vehicles frequently transferred to other regions facing vehicle shortages, extending their operational careers substantially.
The 1980s-1990s witnessed accelerating withdrawals as newer DMU types—particularly Class 142 Pacers and Class 150 Sprinters—entered service under British Rail's second-generation DMU programme. The Cross-City Line electrification forced Birmingham Tyseley's entire Class 101 fleet into retirement on 12 July 1993, eliminating one of the type's longest-established operations. Scottish Region withdrawals accelerated through the mid-1990s, with the final ScotRail Class 101s departing in November 1999. Eastern Region services transitioned to more modern units progressively, eliminating Class 101 operations from that territory.
Ironically, privatization extended Class 101 operations beyond British Rail planning assumptions. First North Western inherited sets in 1997 but faced severe rolling stock shortages when promised Class 175 Coradia units suffered delivery delays and reliability problems. The aging Class 101s provided essential capacity coverage, operating intensive Peak District and Hope Valley services through the millennium period. Contemporary accounts describe these final operational vehicles as increasingly decrepit—patched bodywork, mismatched components, and obvious mechanical wear—yet still providing fundamentally reliable service that newer units couldn't match.
Preservation's Substantial Success
The Class 101's late withdrawal—concluding Christmas Eve 2003—ensured substantial numbers entered preservation when the heritage railway movement possessed the organizational capacity, funding, and maintenance expertise to acquire and operate complex diesel multiple units. Approximately 41 vehicles survive today, representing roughly 6% of original production—an exceptional preservation rate reflecting the type's historical significance and operational versatility. The concentration at former Eastern Region heritage locations (Great Central Railway, North Norfolk Railway, North Yorkshire Moors Railway) reflects the strong preservation movement in that area combined with the Eastern Region's late adoption of Class 101s providing relatively low-mileage examples. These preserved vehicles enable contemporary enthusiasts to experience authentic first-generation DMU travel whilst providing invaluable reference material for modellers seeking accurate detailing and weathering inspiration.
The final farewell tour on 21 December 2003 attracted hundreds of enthusiasts documenting the end of Class 101 operations. Sets 101685 "Daisy," 101693, and 101676 operated Preston-Barrow-in-Furness via Morecambe and Heysham Port, with participants describing emotional scenes as passengers and railway staff marked the conclusion of 47 years of Class 101 service. The final scheduled departure three days later—a mundane Rose Hill Marple-Manchester Piccadilly local on Christmas Eve—lacked ceremonial recognition but represented the authentic conclusion of everyday operations that had characterized Class 101 service throughout its career.
The engineering legacy proved more enduring than individual vehicles. The Class 101 validated fundamental diesel multiple unit concepts that would inform British railway design for decades. The marriage of automotive diesel engines with railway vehicle design demonstrated that bus and truck technology could deliver reliable railway service when properly integrated. The comprehensive refurbishment programmes established methodologies for life-extension that British Rail would apply to subsequent DMU generations. The operational flexibility of multiple-working enabled by Blue Square coupling proved so valuable that this capability became standard specification for all future DMU procurement.
Preservation efforts commenced even before final withdrawals, with heritage railways recognizing the type's significance. The substantial survival rate—41 vehicles across multiple locations—ensures comprehensive representation of different sub-types, liveries, and configurations. Preserved examples include buffet cars (the sole surviving example resides at Great Central Railway), various seating configurations, and vehicles representing different production batches. This diversity enables heritage railways to recreate authentic period formations spanning the entire 1956-2003 operational timeline.
The preservation movement faces ongoing challenges maintaining aging first-generation DMU technology. Original BUT diesel engines require specialist knowledge and increasingly scarce spare parts. Electrical systems utilizing 80-volt architecture differ fundamentally from modern 110-volt standard specifications. Bodywork corrosion—particularly affecting aluminum alloy panels—demands expert restoration techniques. Several heritage railways have established specialized DMU workshops and recruited staff with specific first-generation DMU maintenance expertise. The Severn Valley Railway's DMU Group (West Midlands), Great Central Railway's Renaissance Railcars, and various other organizations coordinate preservation efforts, sharing knowledge and occasionally pooling resources for major overhauls.
Notable preserved vehicles include set 101685 "Daisy"—one of the final five units withdrawn, restored to operational condition at North Yorkshire Moors Railway wearing the distinctive BR green revival livery applied in 1994. The National Railway Museum holds two vehicles (DMBS 51192 and DTCL 56352) representing the type in the national collection. North Norfolk Railway's fleet includes NRM-owned 51192, recently returned to operational status in April 2025 wearing authentic BR green with full yellow ends. The Keighley & Worth Valley Railway operates vehicles 51189 and 51803 repainted in BR blue with yellow ends in October 2023, regularly utilized for early morning services requiring two-coach formations.
Modelling Significance and Scale Replications
The British Rail Class 101 presents exceptional modelling significance due to its position as Britain's most numerous and longest-serving first-generation DMU type, operating across virtually every major livery scheme and geographic region throughout the BR and privatization eras. For railway modellers seeking to depict authentic British secondary railway operations from the late 1950s through early 2000s, Class 101 representation proves essential rather than optional—these units characterized branch line and suburban operations for nearly half a century.
The modelling landscape offers comprehensive coverage across multiple scales and price points, with Bachmann Branchline producing the definitive OO gauge models, Graham Farish covering N gauge with extensive livery variety, and Hornby Railroad providing budget-friendly alternatives. This multi-manufacturer support ensures accessibility for modellers across experience levels and budgets, from newcomers seeking affordable ready-to-run options through experienced enthusiasts demanding ultimate detail quality and DCC sound functionality.

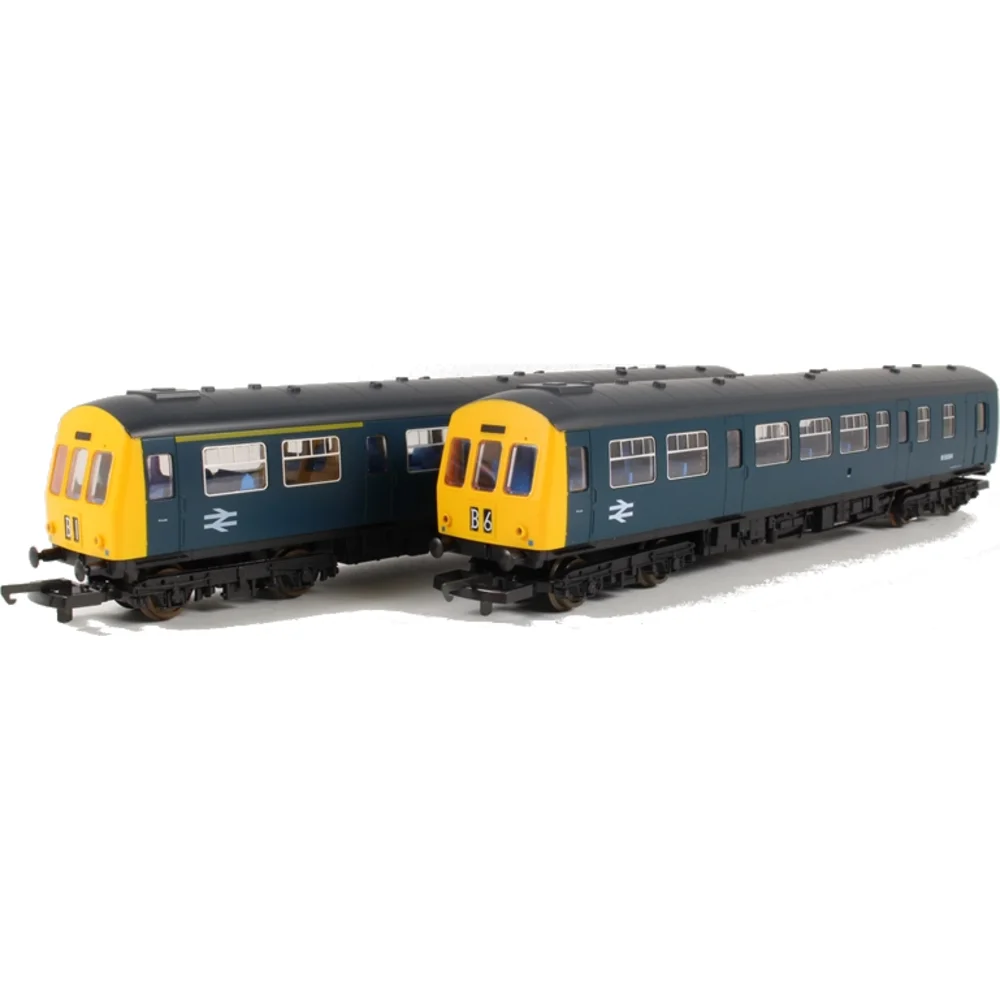

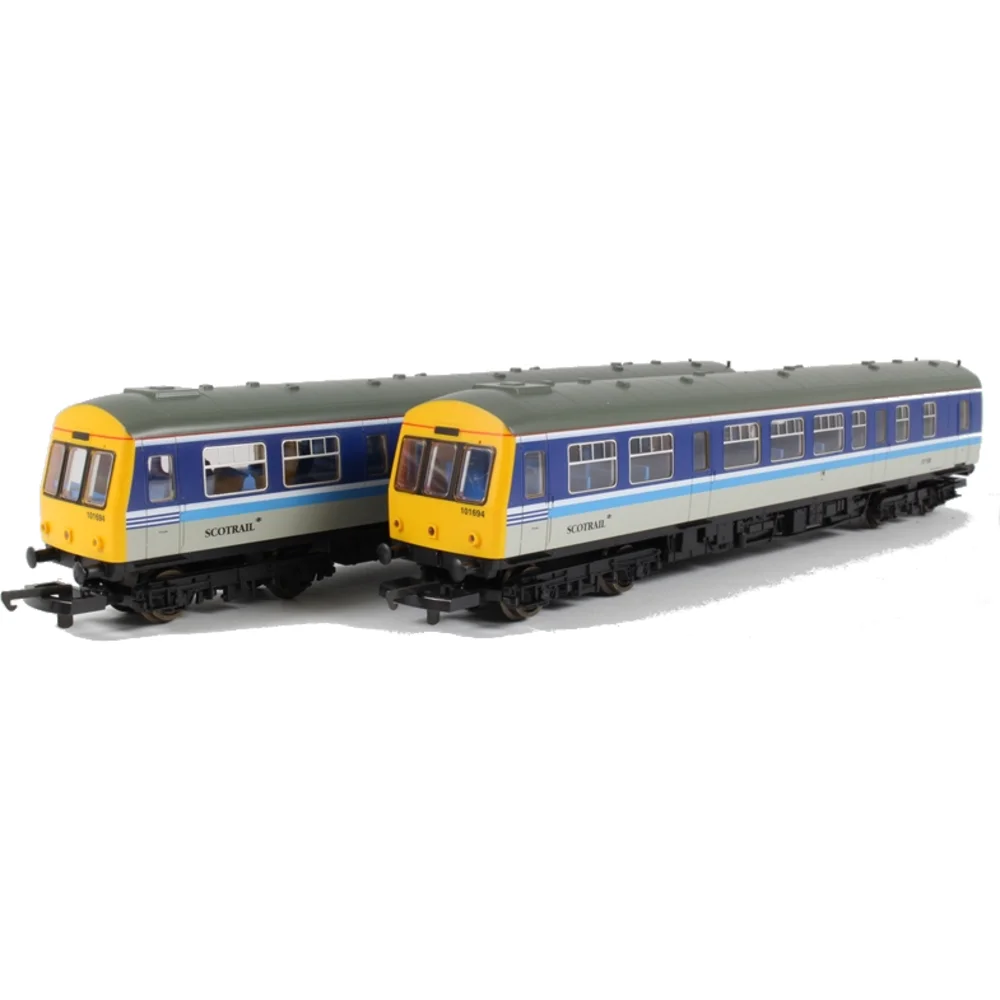

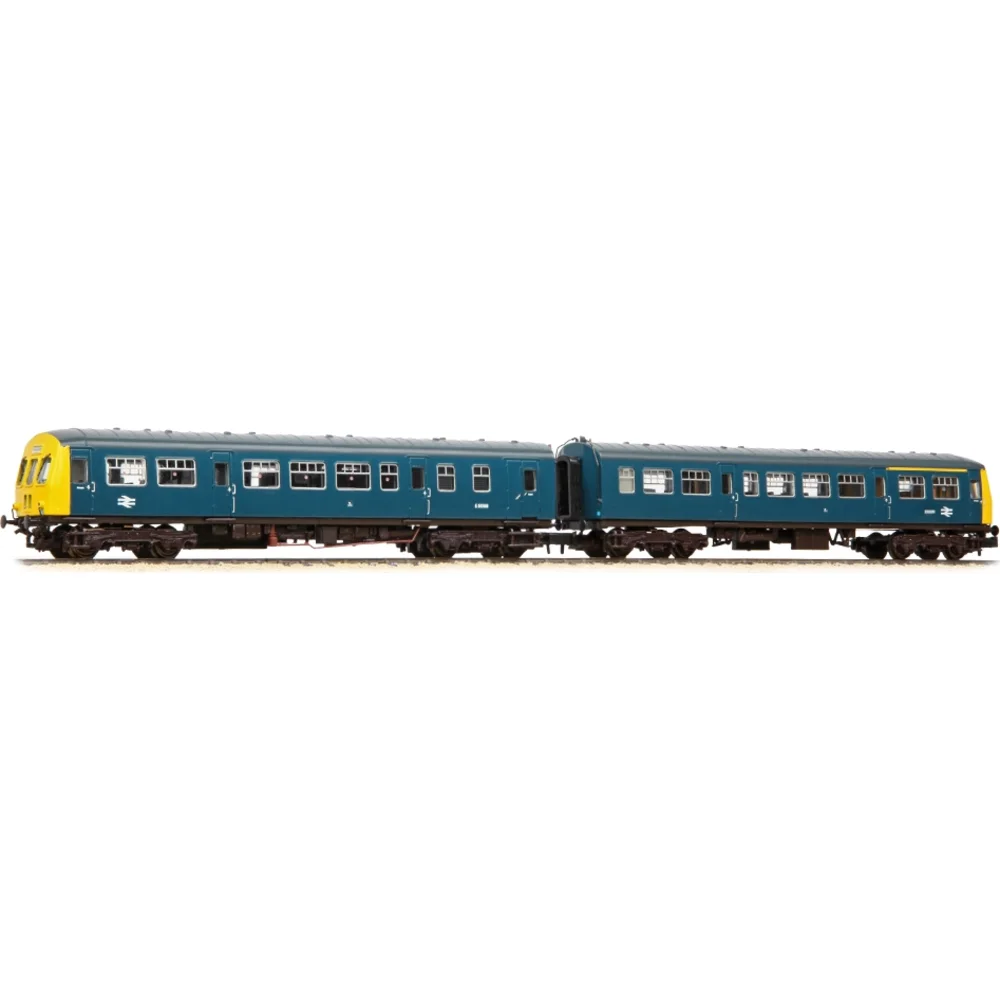

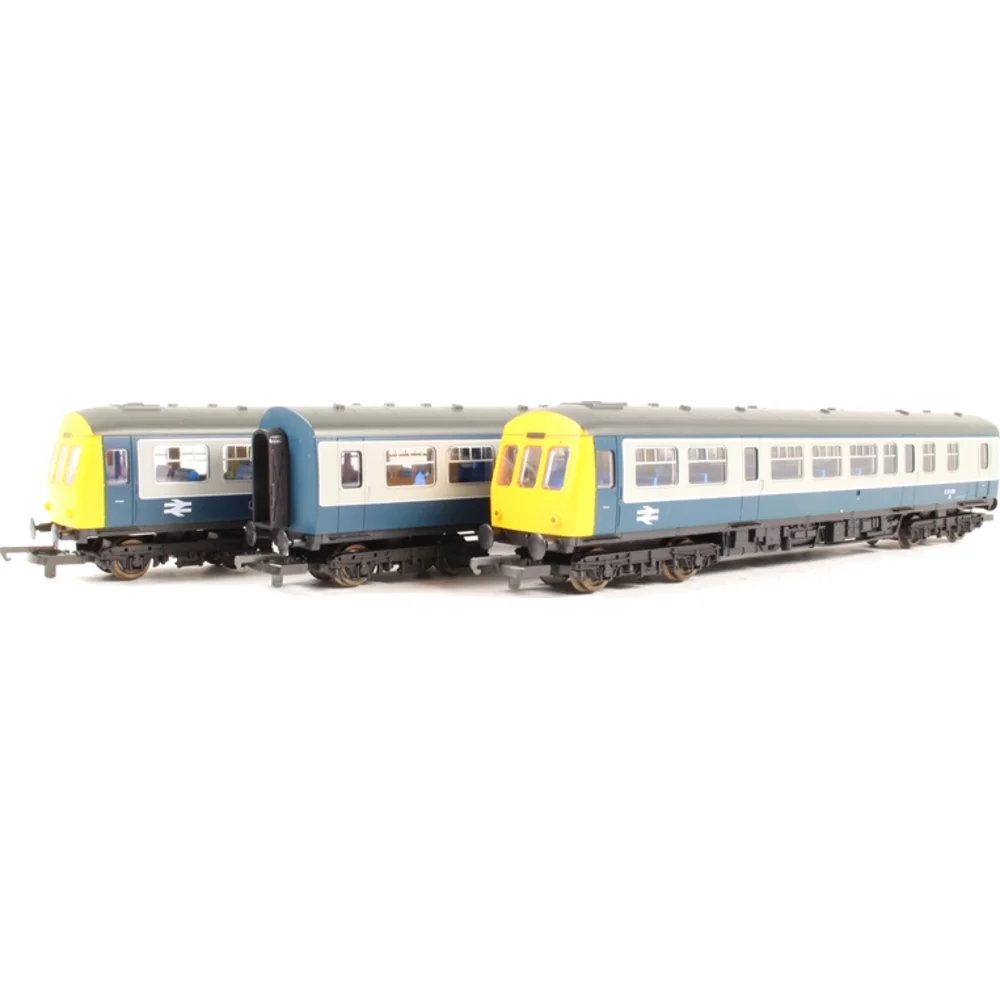

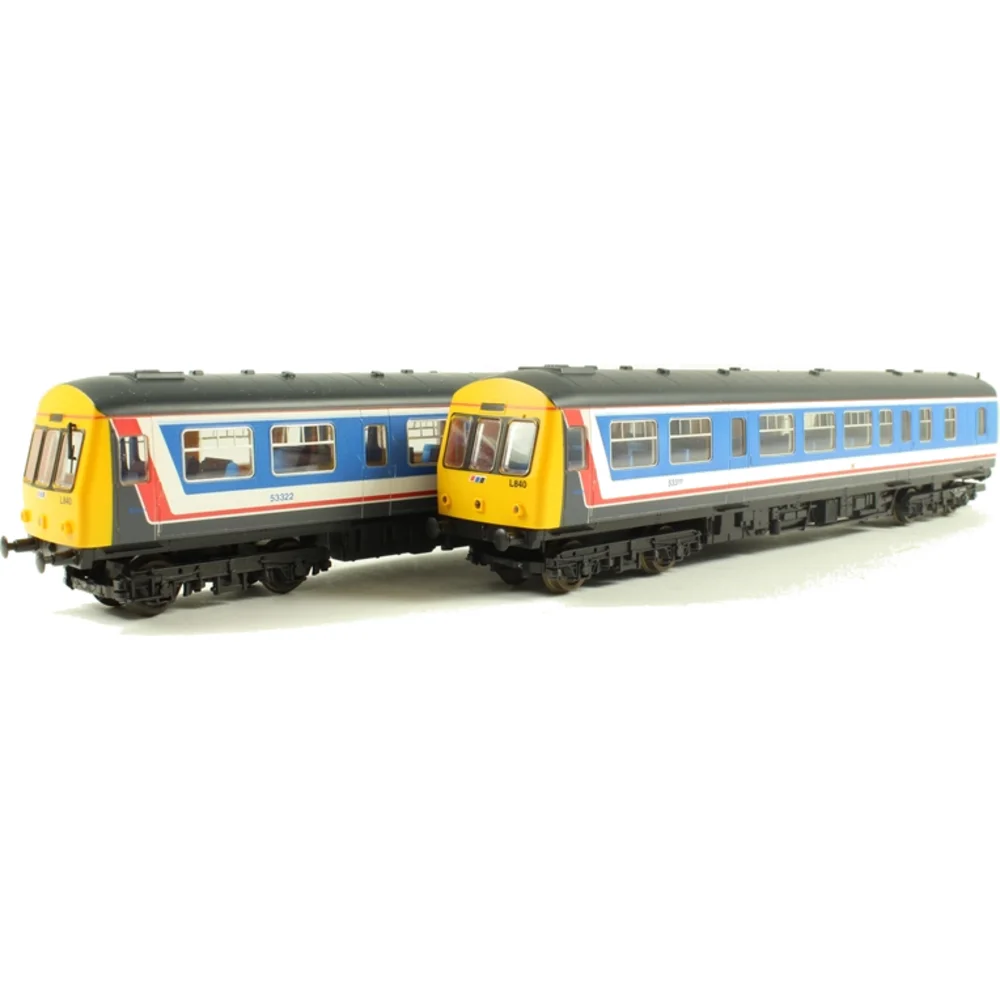

Bachmann Branchline's OO gauge Class 101 models represent the current production standard, featuring comprehensive detail quality that rivals specialist brass model accuracy whilst maintaining ready-to-run convenience. The range utilizes purpose-designed tooling capturing Metro-Cammell's distinctive styling including the characteristic cab front profiles, bodyside beading, gangway connections, and underframe equipment. Five-pole motors with flywheels ensure smooth operation at realistic speeds, whilst sprung buffers, separately-applied handrails, and factory-fitted glazing with interior detail create visually convincing representations.

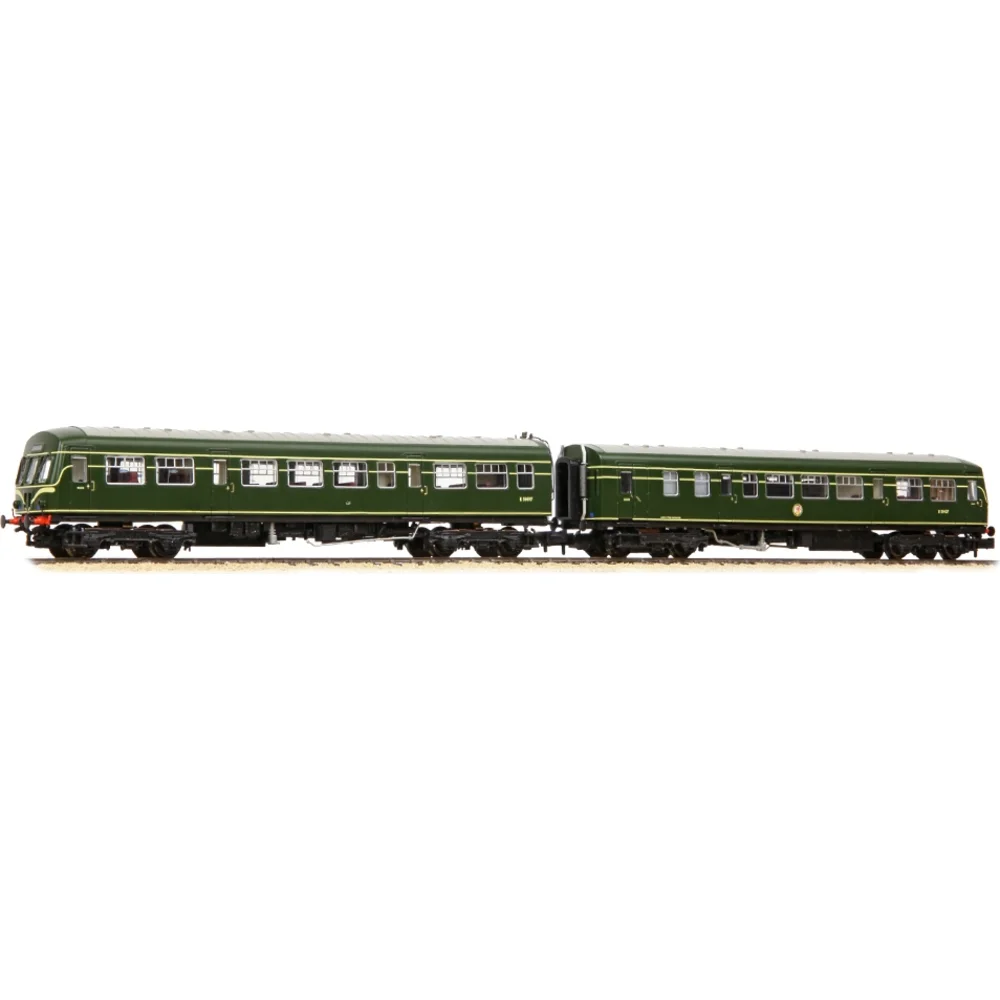

Current Bachmann production includes catalog numbers 32-285A (2-car DMU in BR green with speed whiskers roundel), 32-285ASF (identical livery with factory-fitted DCC sound), 32-287B (2-car DMU in BR blue and grey), and 32-287BSF (blue and grey with DCC sound). All current production models feature 21-pin decoder sockets enabling straightforward digital conversion, with conductive coupling between vehicles eliminating the separate decoder requirement in each car. Sound-fitted variants incorporate pre-installed speakers and ESU Loksound decoders with authentic Class 101 audio including engine sounds, horn, brakes, and passenger ambience. Typical retail pricing ranges £209-£230 for DCC Ready versions and £309-£340 for Sound Fitted variants, with most major retailers offering 10-15% discounts from these recommended prices.
Advanced Modelling: Identifying Authentic Regional Variations
Class 101 prototype variations enable period and region-specific accuracy that transforms generic model operation into authentic representation. North Eastern Region vehicles featured standard exhaust arrangements and early production received distinctive lined BR green. Scottish Region examples uniquely carried yellow first-class stripes in green livery, whilst later acquiring Strathclyde PTE's striking orange and black scheme with characteristic "mask" around cab windscreens. London Midland Region Tyseley vehicles displayed unique "one up/one down" exhaust configurations never applied elsewhere. Eastern Region Cambridge sets received white and blue livery for London services, later transitioning to Network SouthEast red, white, and blue. Matching locomotive to appropriate region and period—including correct vehicle numbering—creates convincing layout atmosphere whilst avoiding anachronisms that undermine careful scenic work.
Discontinued Bachmann models command strong second-hand market interest, including 32-285 (green with small yellow panel), 32-286 (green with full yellow ends), 32-289 (white and blue "White Ghost" scheme), and various limited editions. These earlier releases utilized previous tooling versions and alternative liveries, providing variety for modellers assembling diverse fleets. Typical second-hand pricing ranges £120-180 depending on condition and livery rarity.

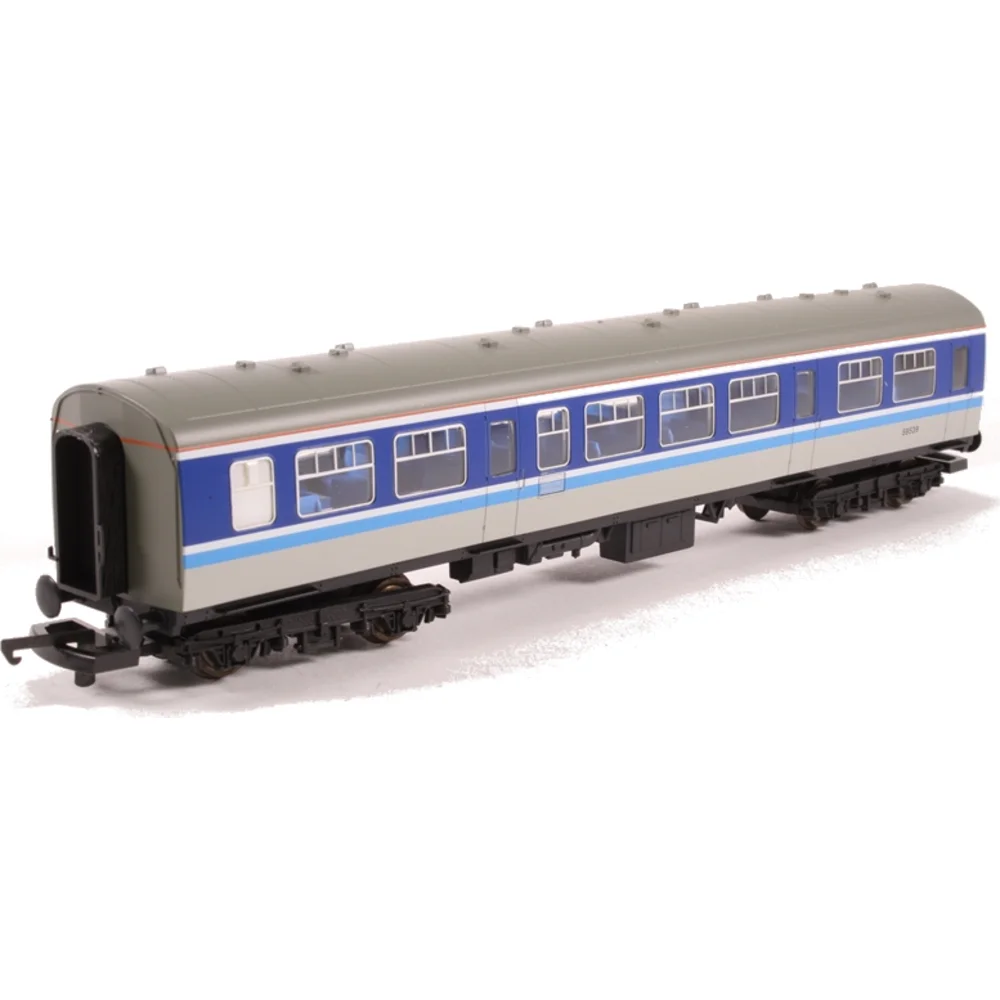

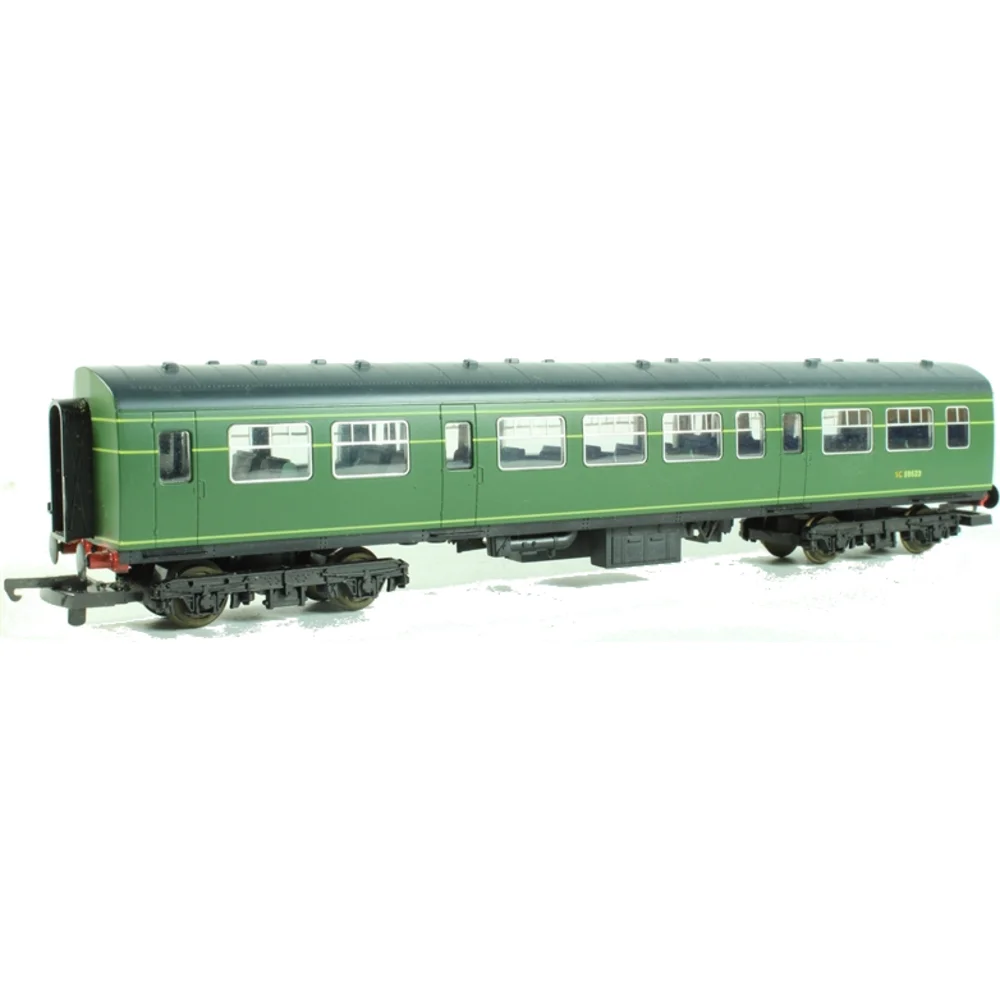

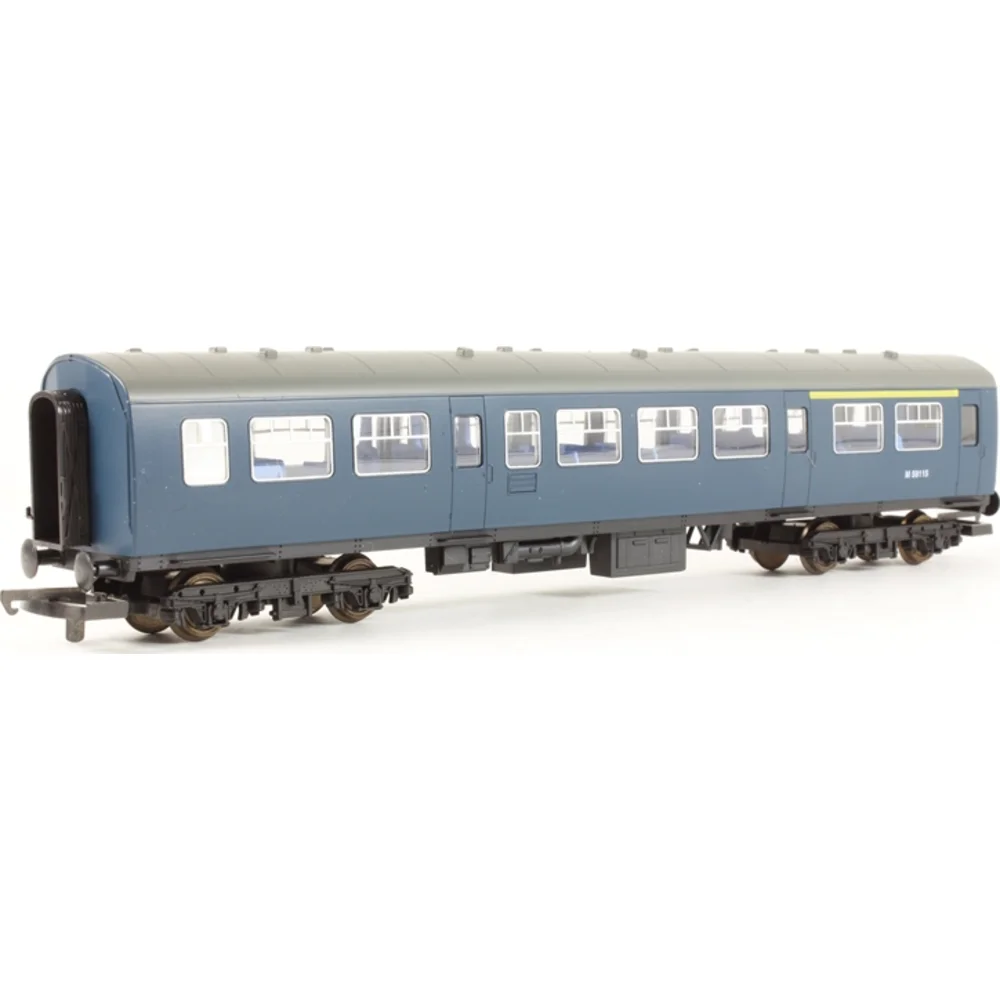

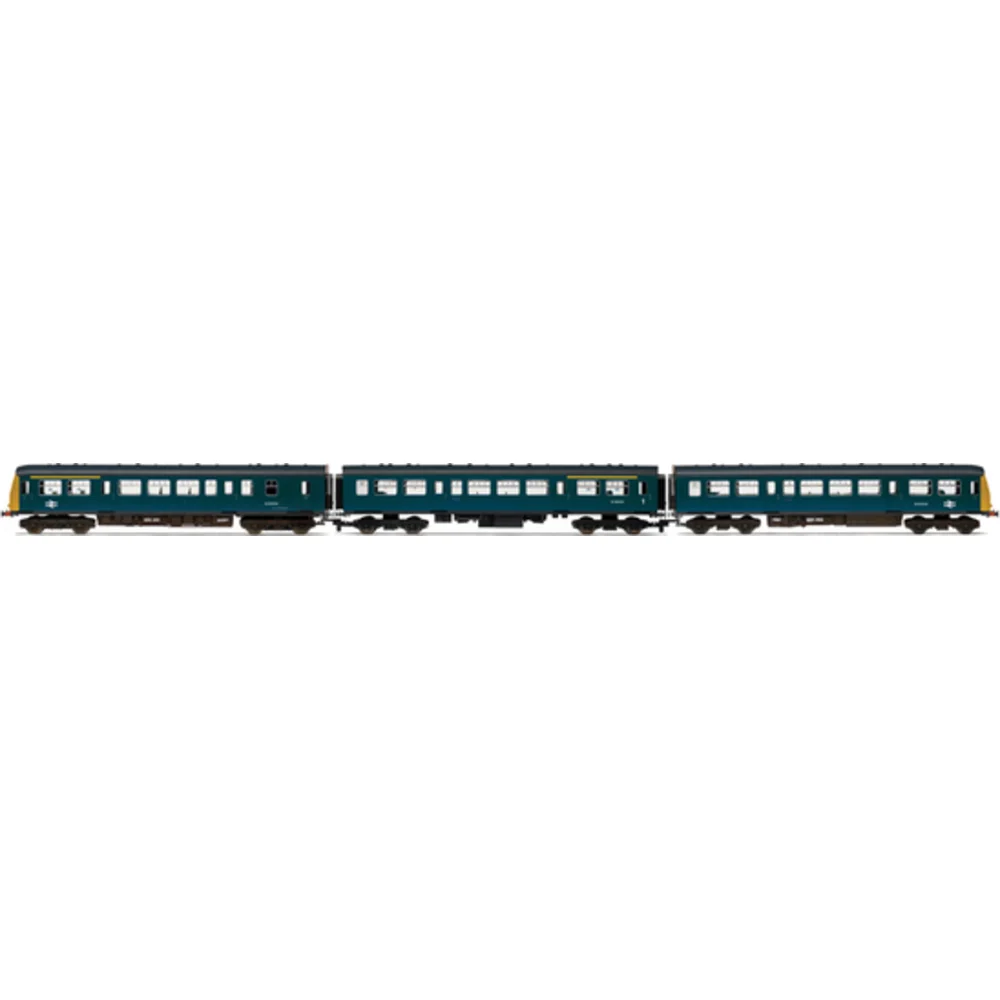

Hornby's Railroad range offers budget-conscious alternatives utilizing upgraded ex-Lima tooling. Current production includes R30172 (2-car DMU in Strathclyde PTE orange and black, approximately £121 RRP) and R30195 (Class 960 2-car in Network Rail yellow "Iris 2" infrastructure monitoring livery, £135-£145 RRP). Earlier Hornby releases from 2008 onwards utilized significantly improved tooling compared to original Lima models, offering three-car sets in BR green (R2578, R2578A), BR blue (R2579, R2579A), blue and grey (R2698, R3146), and ScotRail SPT blue (R2696). These discontinued models provide excellent value on the second-hand market at £60-£120, delivering adequate performance for layouts where budget constraints preclude premium Bachmann purchases.

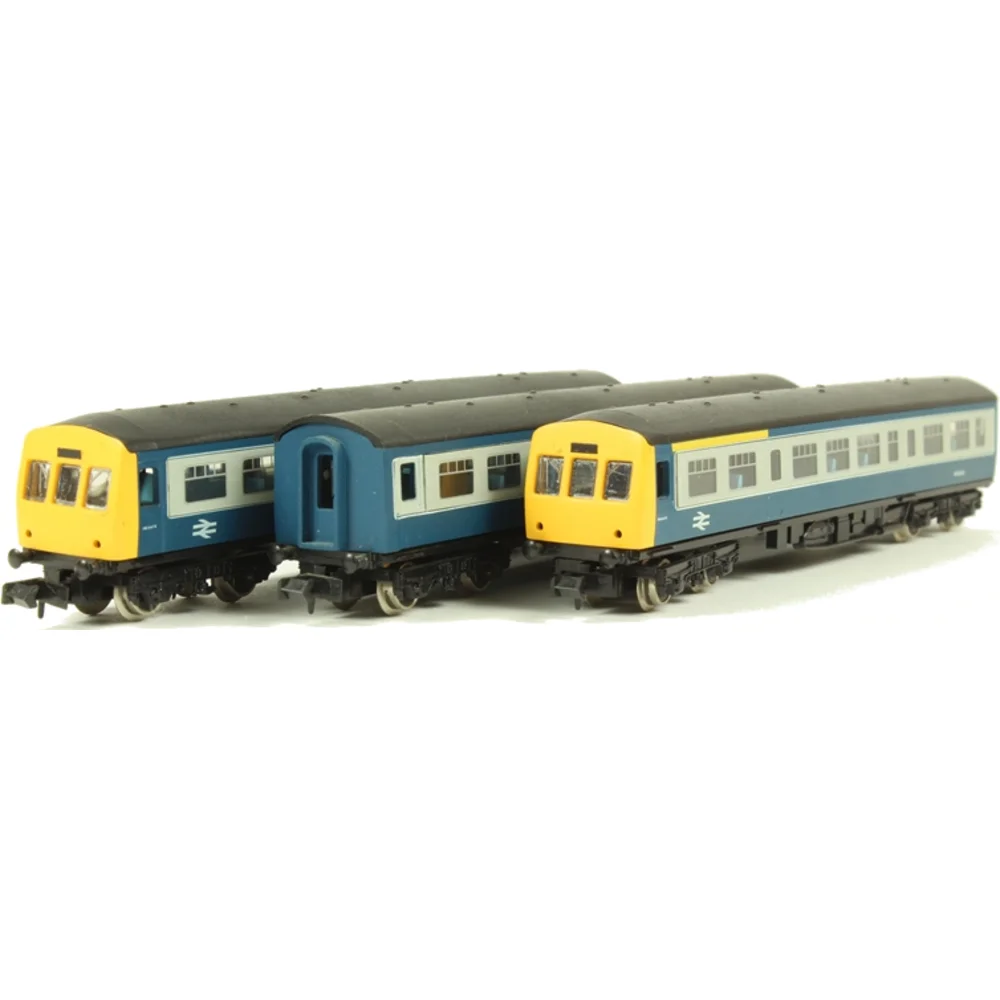

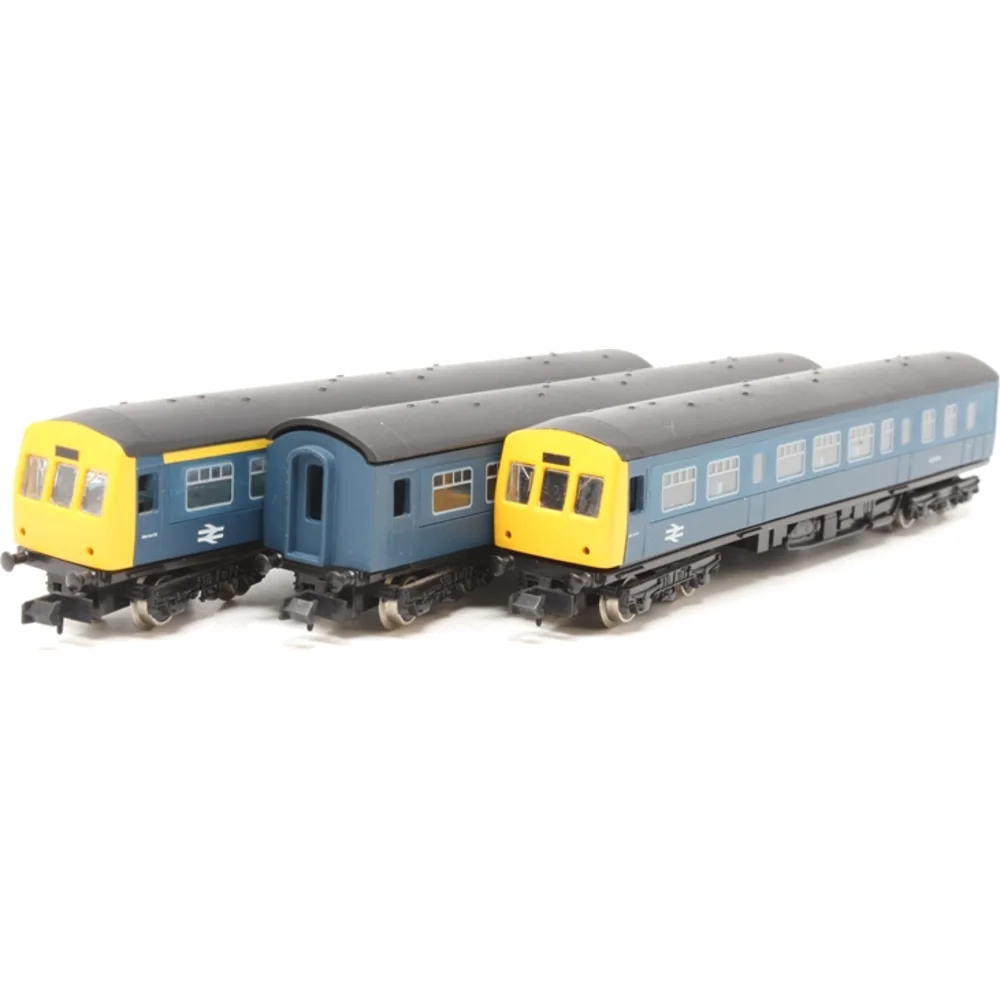

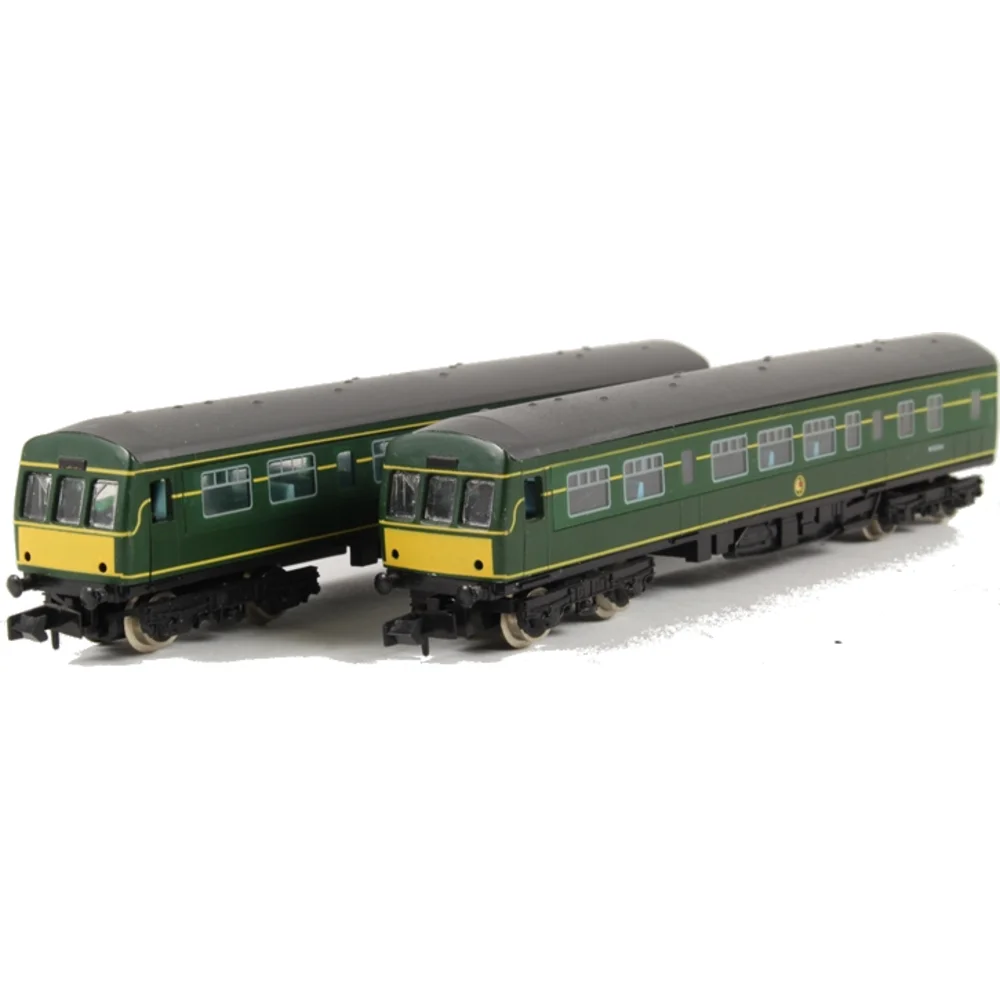

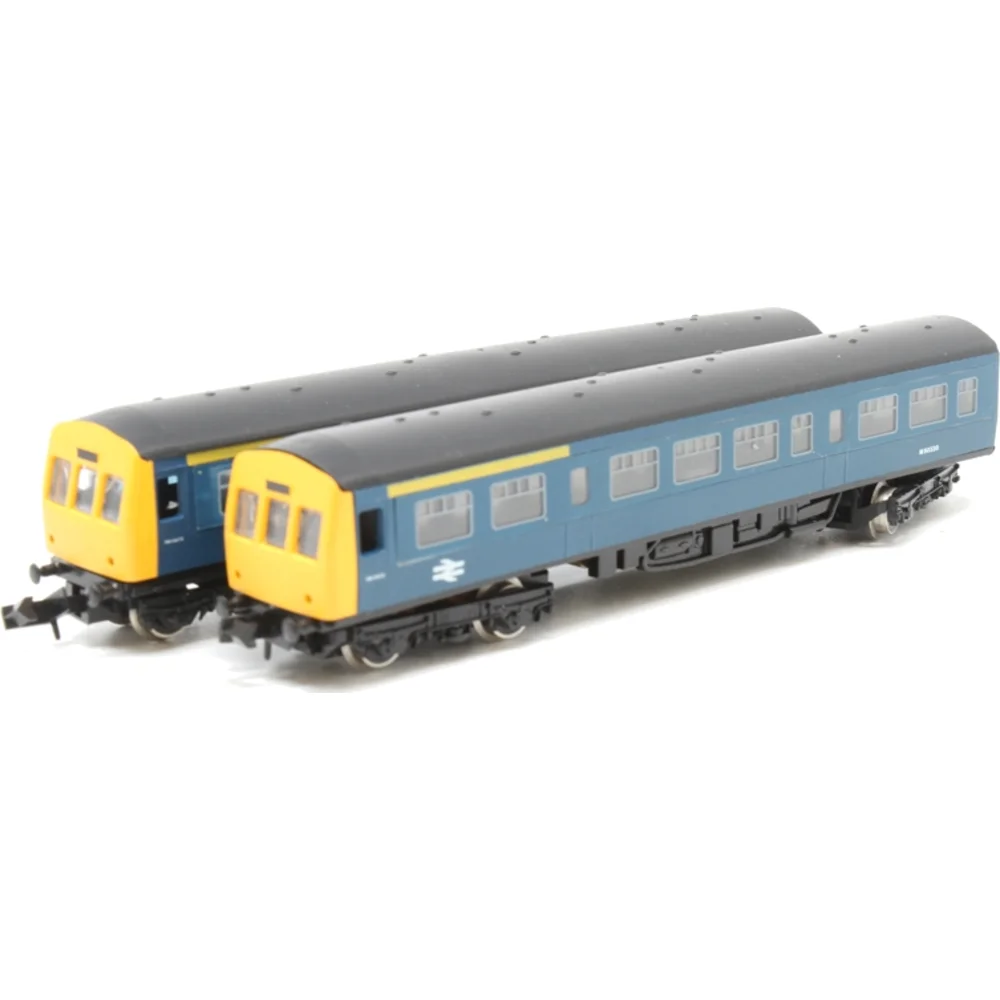

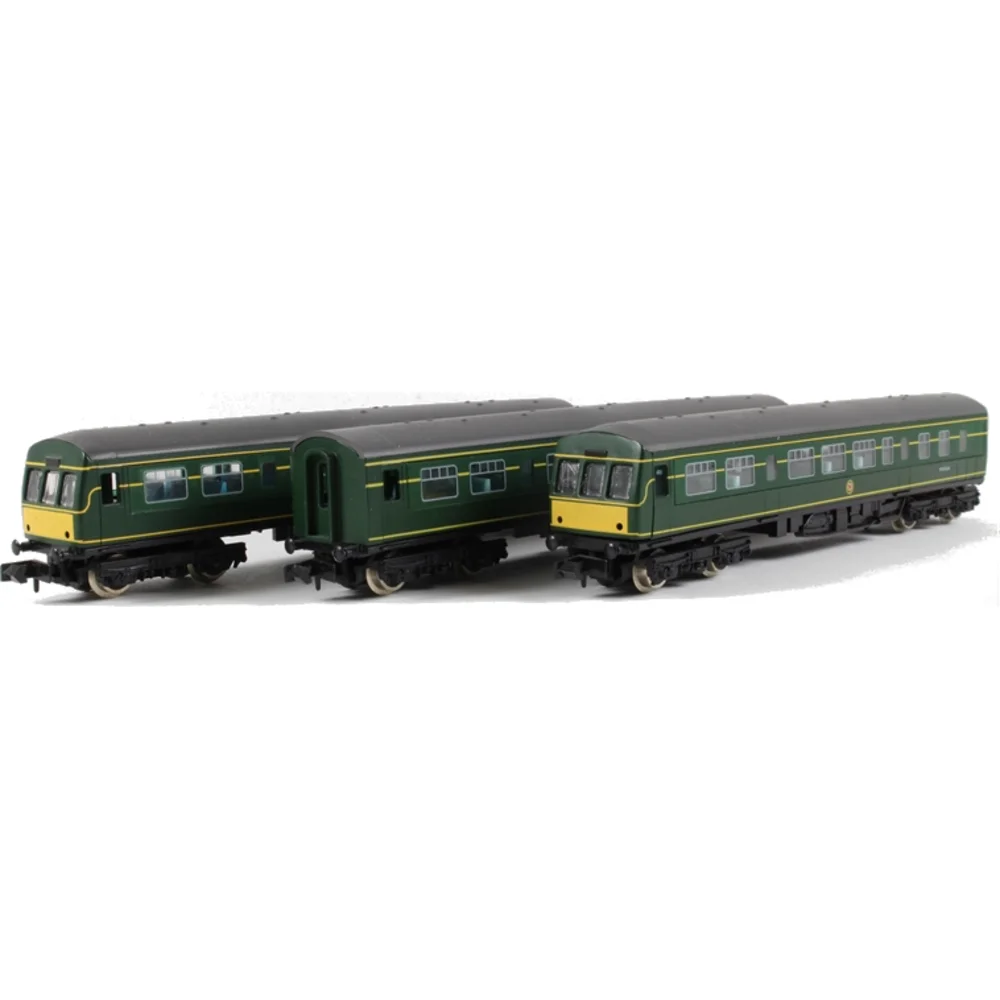

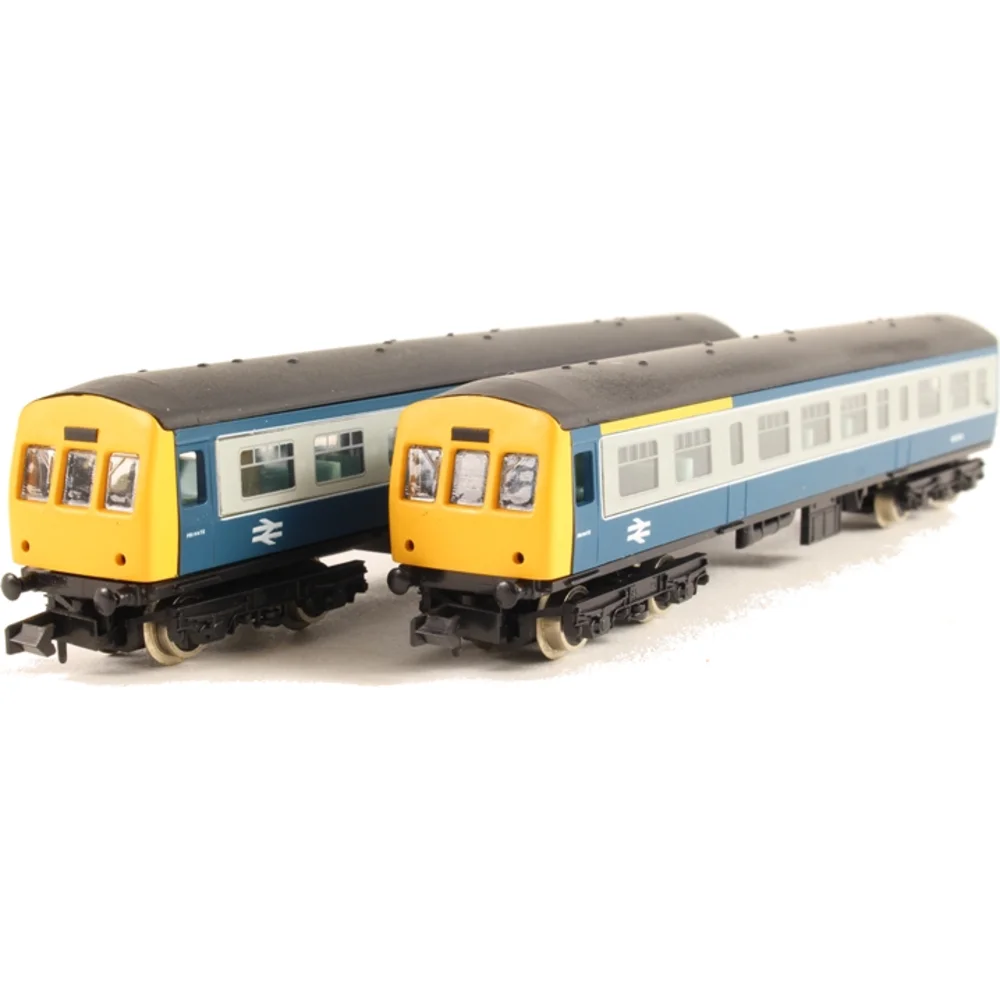

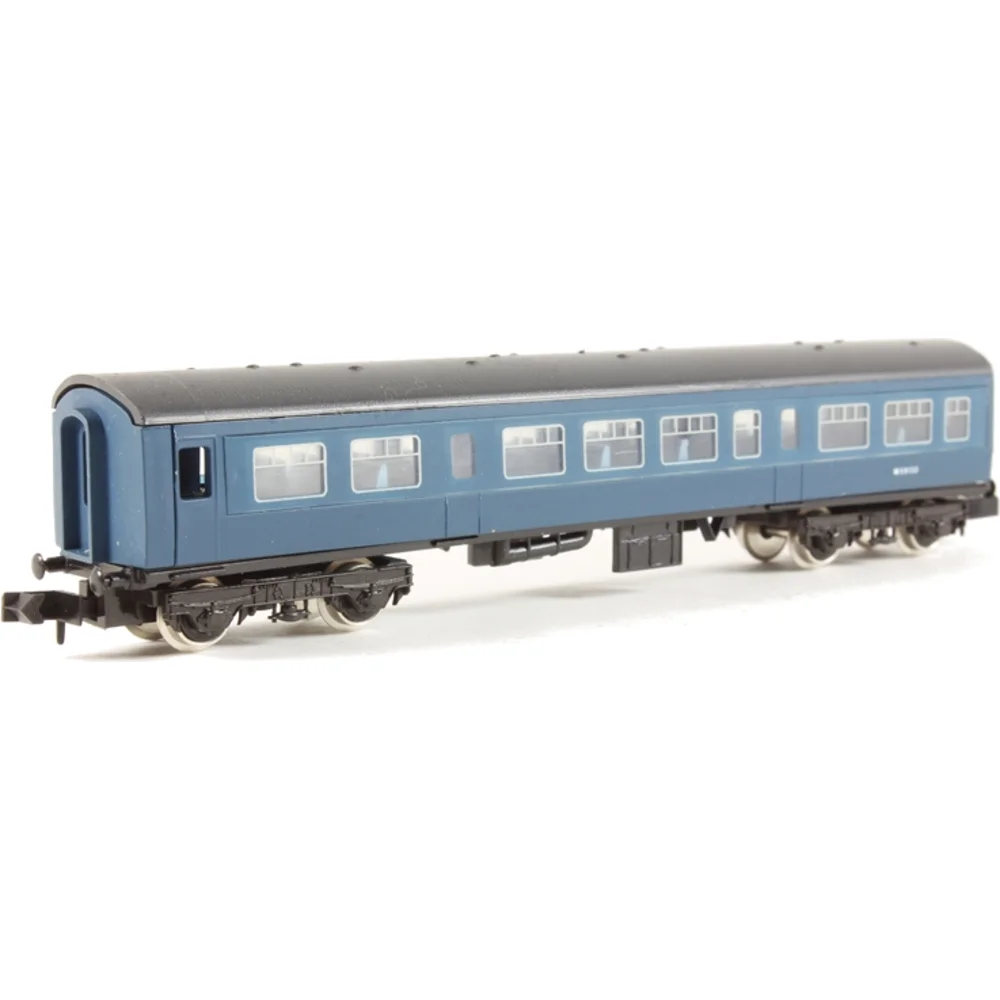

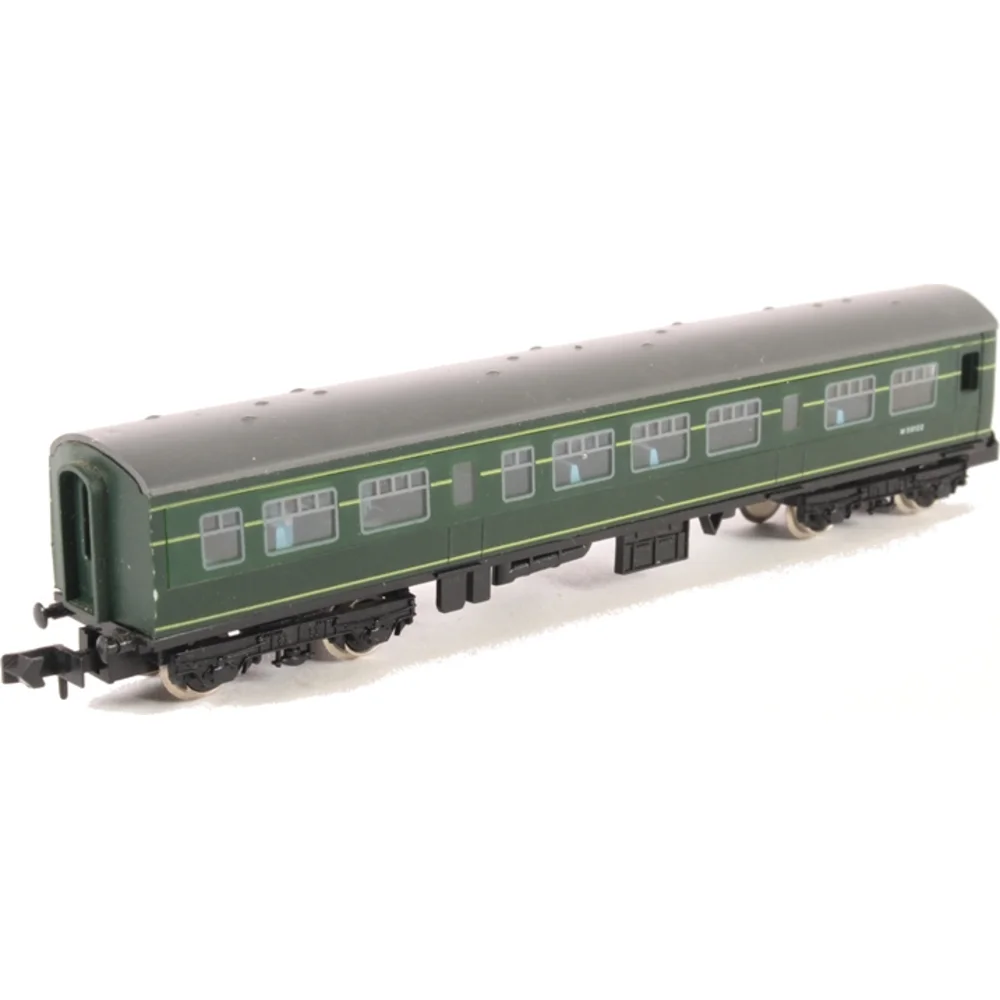

Graham Farish provides comprehensive N gauge coverage reflecting the Class 101's importance for modellers working in the increasingly popular smaller scale. Current production spans multiple liveries: 371-505 (2-car in Network SouthEast), 371-506 (2-car in BR blue and grey), 371-506SF (blue and grey with factory-fitted Zimo DCC sound), 371-508 (2-car in BR green with speed whiskers), 371-508SF (green with DCC sound), 371-513K (3-car in Strathclyde PTE orange and black), and 371-513KSF (Strathclyde with sound). DCC Ready versions retail £178-£275 depending on configuration, whilst sound-fitted variants command £263-£375. All models feature 6-pin decoder sockets, directional lighting, and NEM coupling pockets.
The N gauge mechanisms deliver reliable performance appropriate for the scale, though not matching the exceptional smoothness of Bachmann's OO gauge five-pole motors. Graham Farish sound-fitted models utilize Zimo rather than ESU decoders—both provide authentic Class 101 audio though with subtle differences in sound library quality and function programming. The N gauge range's extensive livery coverage enables accurate fleet representation on space-constrained layouts where OO gauge would prove impractical.

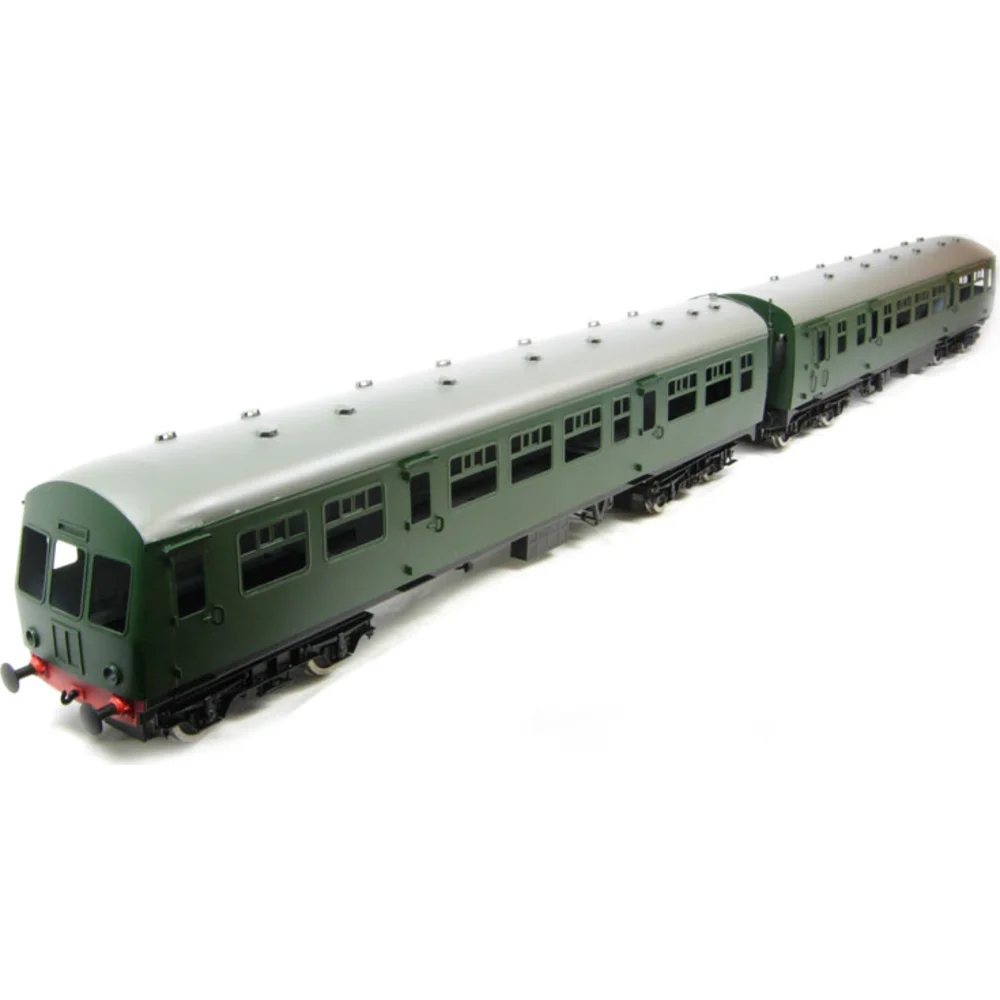

O gauge modellers face significantly limited options. Bachmann Brassworks produced hand-built brass Class 101 models at approximately £1,100, combining etched brass bodyshells with detailed mechanical construction. These limited-production models occasionally appear second-hand through specialist dealers including Footplate and Poplar Models, though scarcity ensures prices remain high. SkyTrex offered white metal and resin body kits requiring substantial modelling experience—purchasers needed to source chassis, wheels, motors, and complete mechanical construction independently. Both options suit experienced O gauge modellers comfortable with extensive building and finishing work rather than ready-to-run convenience.
Detailing accessories enhance model accuracy across scales. ESU produces Loksound V5.0 decoders with authentic Class 101 sound recordings in both 21-pin (S1038-21) and 8-pin (S1038-8) formats, retailing approximately £109.50 and enabling digital conversion of older analogue models or replacement of factory-fitted sound systems. West Hill Wagon Works offers 3D-printed buffer beam detail packs specifically designed for upgrading Hornby Railroad models, adding separately-applied pipework, MU cables, and jumper sockets absent from budget tooling. Shawplan and other decal manufacturers produce authentic running number sets enabling renumbering models to specific prototype vehicles, whilst livery-specific detail sets provide BR regional crests, sector symbols, and privatization operator logos.
The substantial preservation movement provides invaluable reference material for advanced modellers pursuing ultimate authenticity. Heritage railways including North Yorkshire Moors Railway, North Norfolk Railway, Great Central Railway, and Keighley & Worth Valley Railway operate Class 101s on regular services, enabling contemporary photography capturing underframe detail, weathering patterns, and operational characteristics impossible to research from historical photographs alone. Several heritage railways host DMU events bringing multiple Class 101 sets together, creating unique photographic opportunities for documenting formation variety and detailed comparisons between different sub-types and configurations.
Unique Modelling Tips and Layout Integration
Successfully incorporating British Rail Class 101 models into layout operation requires understanding the specialized nature of their prototype duties and the authentic operating scenarios that characterized first-generation DMU service across Britain's diverse railway geography. Unlike main line express locomotives that might work prestigious named trains between major terminals, the Class 101 typically operated humble but essential stopping services connecting smaller communities with the railway network—precisely the traffic that steam-hauled branch trains had served uneconomically.

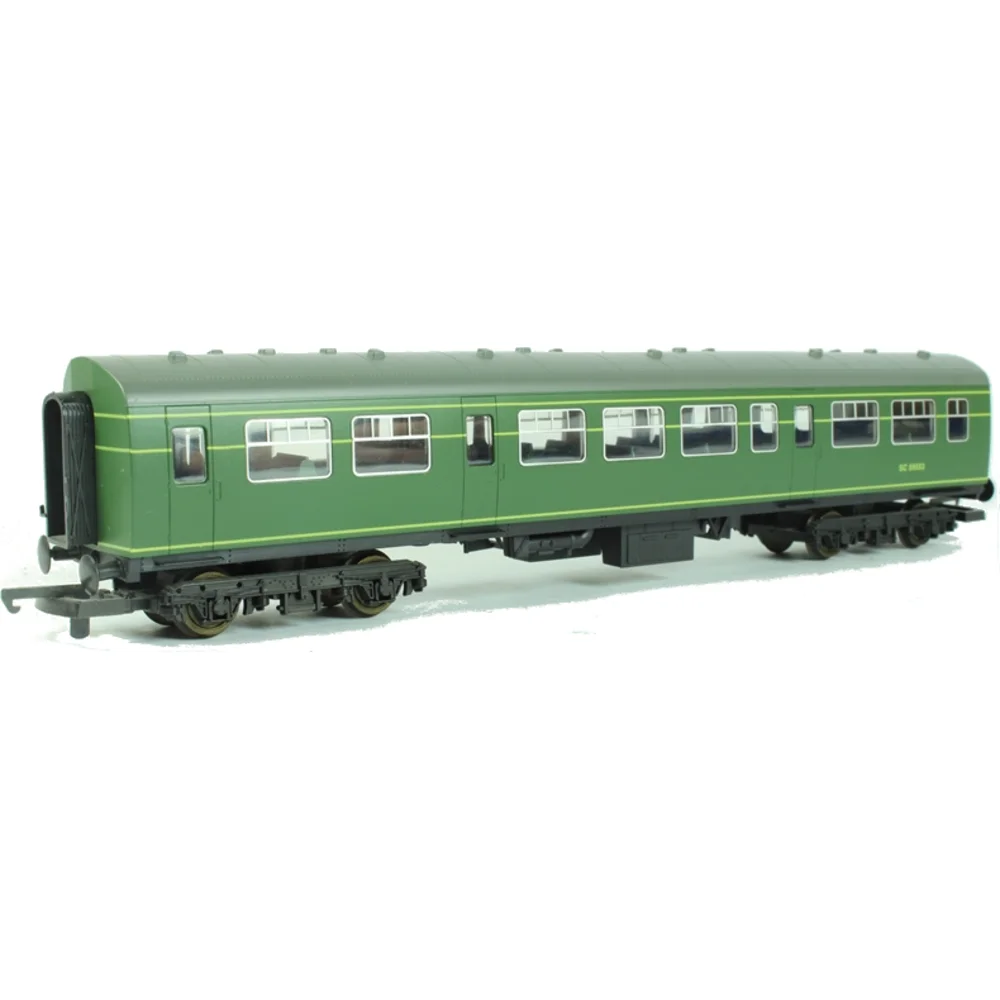

Era selection proves fundamental for authentic Class 101 deployment. Era 4/5 (1956-1968) represents the early service period when newly-delivered green-liveried sets revolutionized branch operations. Appropriate routes include North Eastern suburban services around Newcastle, Darlington, and Middlesbrough; Scottish operations on Edinburgh-Dundee corridor and Glasgow area locals; Birmingham Cross-City Line intensive urban services; and progressive replacement of steam branch services nationwide. Infrastructure should reflect 1950s-1960s standards including semaphore signaling, traditional station architecture, goods yards still handling significant traffic, and steam locomotive presence on main line and freight services. Coaching stock for strengthening formations should match period practice—BR Mk.1 non-corridor compartment stock in maroon or crimson and cream provides appropriate companions.

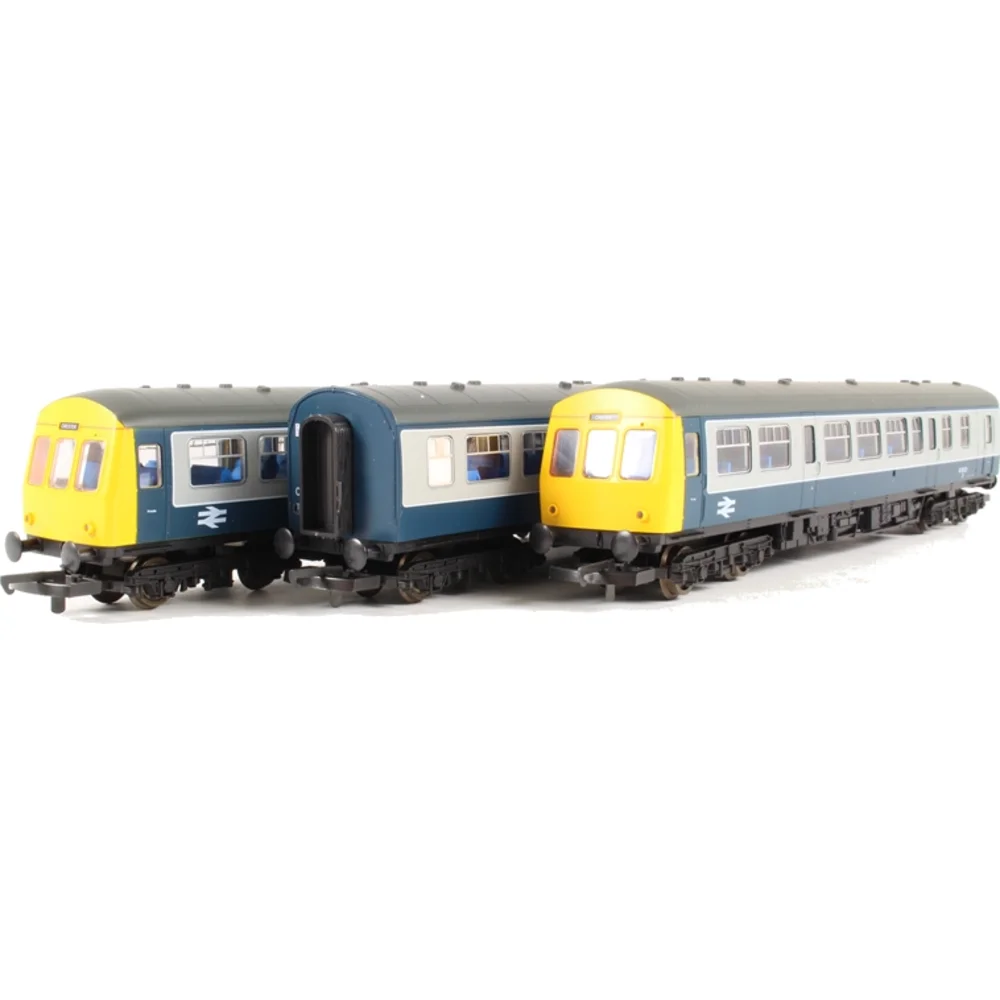

Era 6/7 (1968-1994) encompasses the corporate blue identity through sector liveries. This extended period witnessed comprehensive refurbishment programmes transforming vehicle interiors and technical systems, whilst livery evolved from plain rail blue through blue and grey, white and blue "White Ghost" schemes, and finally sector identities including Strathclyde PTE orange and black. Appropriate operations span Trans-Pennine stopping services between Manchester and Leeds/Sheffield, Scottish rural routes including Kyle of Lochalsh and Far North lines, Norwich-area rural services, Cambridge-London semi-fast workings, and continuing Birmingham Cross-City operations through July 1993. Modern infrastructure reflects this era including colour-light signaling, rationalized station facilities following Beeching closures, and substantially reduced freight activity compared to earlier decades.
Weathering Authenticity for Branch Line Service
Class 101 weathering should reflect intensive daily operation whilst acknowledging the relatively clean appearance expected of passenger-rated DMUs through most of their careers. Focus weathering on operational areas: brake dust and rail dust along solebar edges creating characteristic grime buildup, exhaust staining above roof-mounted silencers particularly concentrated on leading vehicles, fuel spillage around filler caps, and general road dirt accumulated during service. The underframe and bogies accumulate heaviest weathering—thick brake dust, oil seepage from gearboxes, and track dirt thrown up during running. Early green livery maintained relatively clean appearance reflecting BR's cleaning standards, whilst later eras saw declining presentation. The final operational examples (1999-2003) displayed obvious neglect—patched panels, mismatched components, faded liveries—appropriate only for depicting the twilight period. Regional variations existed: Scottish vehicles operating on routes with minimal coal traffic remained cleaner than North Eastern examples working through industrial areas.

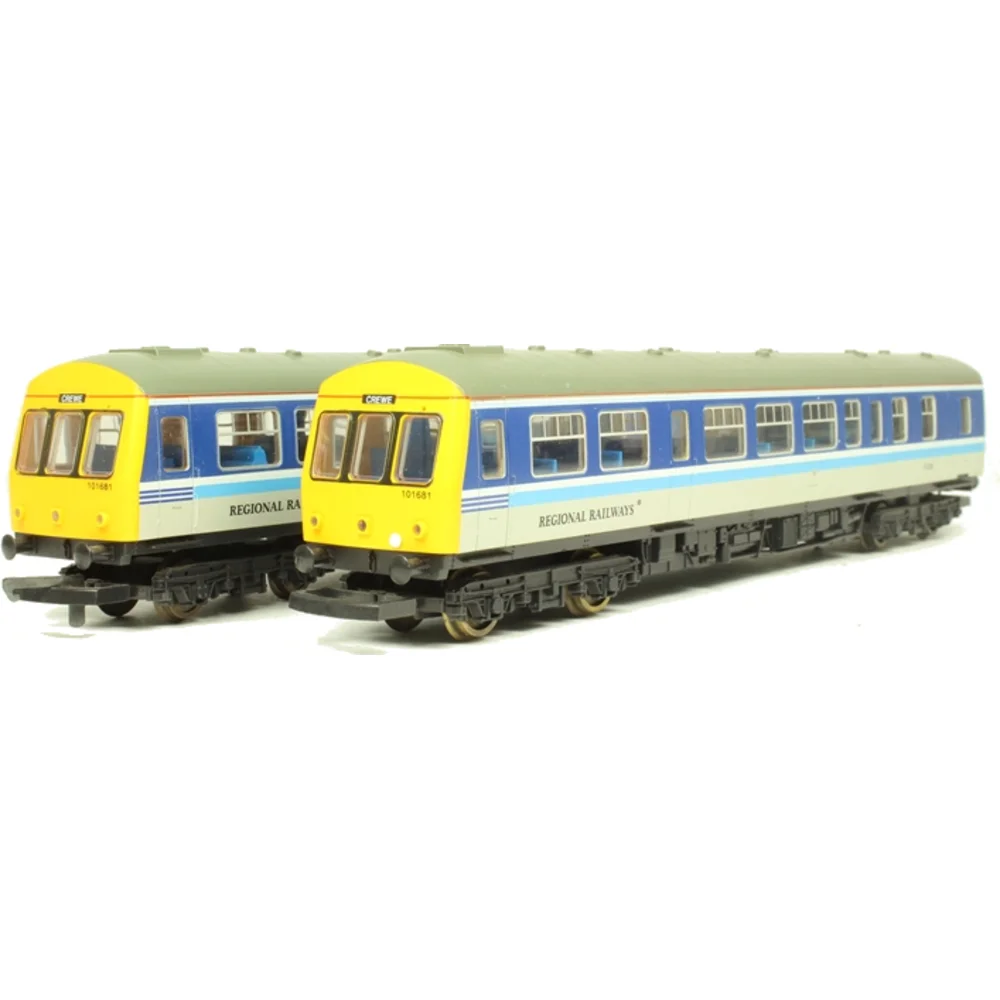

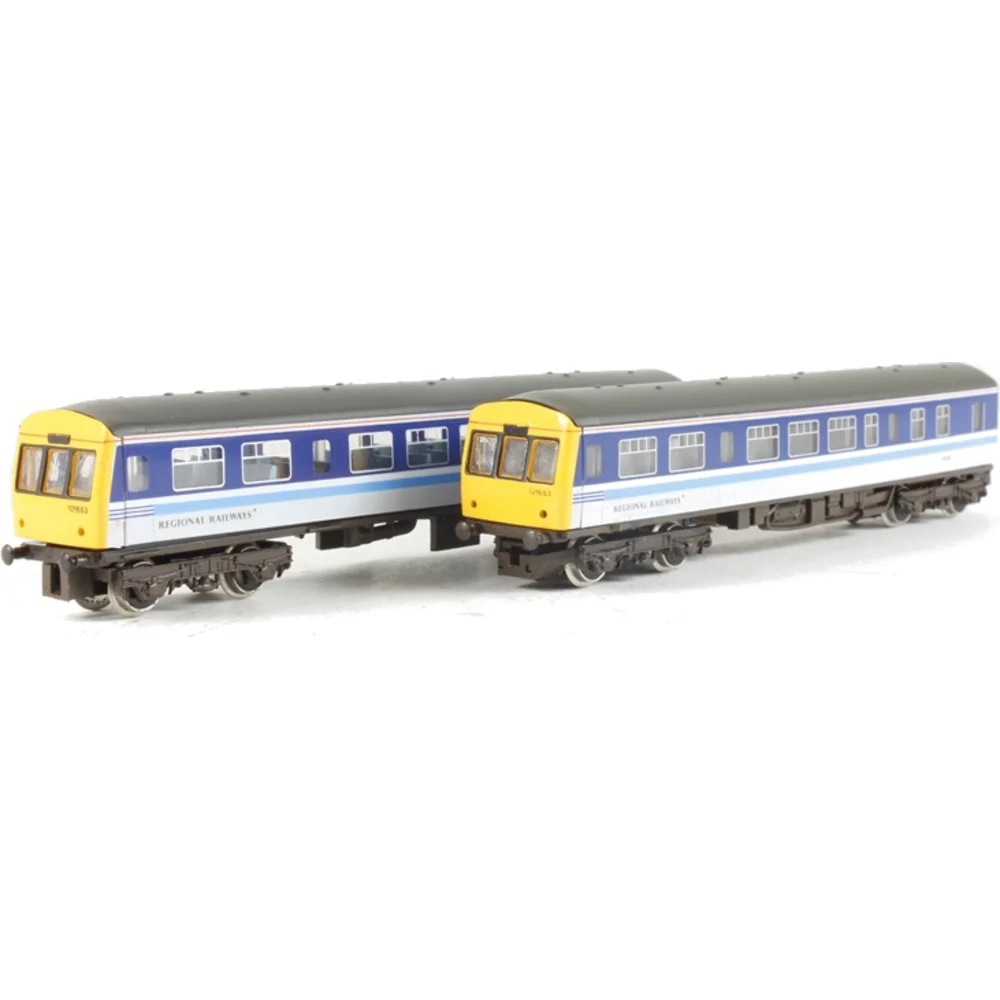

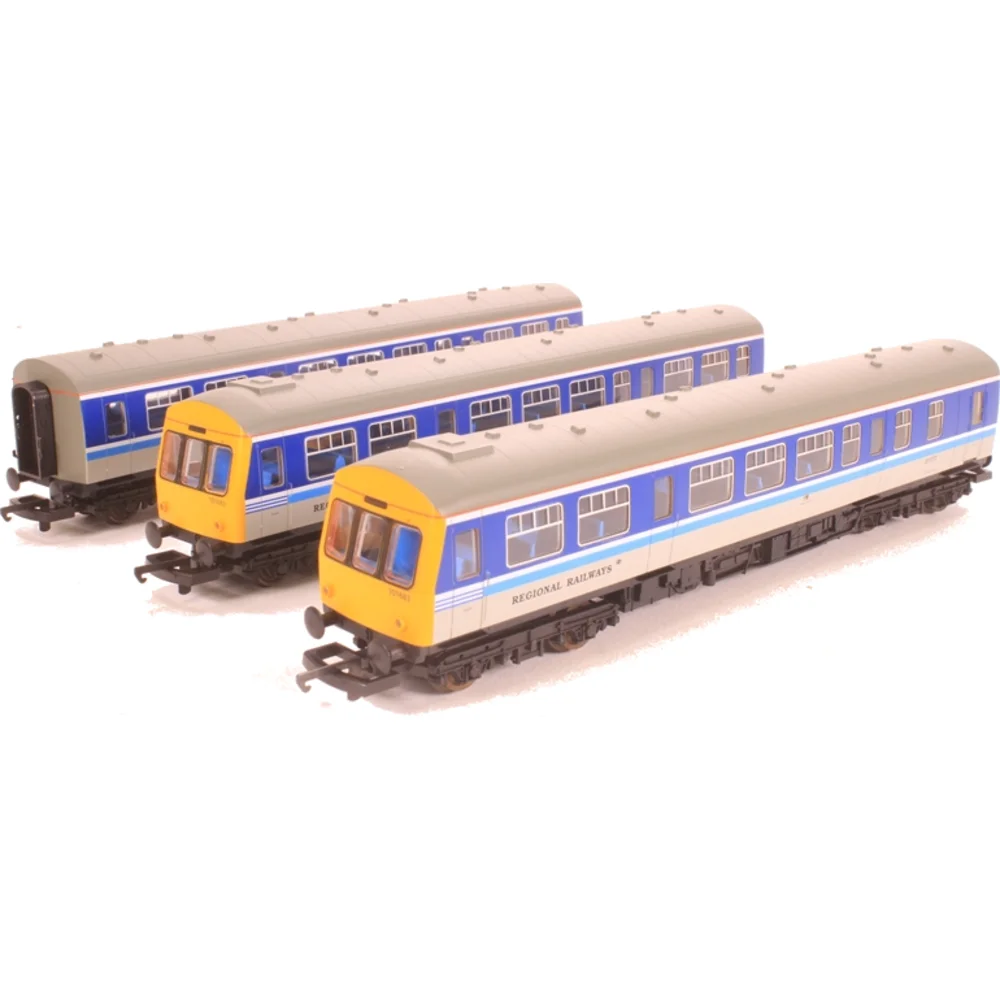

Era 8 (1994-2003) requires Regional Railways light blue and grey livery or First North Western colors for Manchester-area operations. Appropriate routes concentrate on North West England: Hope Valley Line (Manchester-Sheffield via Edale and Hathersage), Rose Hill Marple branches, Buxton Line services through Peak District, and various Manchester suburban workings. Infrastructure reflects privatization-era standards including modern LED signals, rationalized track layouts, limited freight activity, and contemporary station facilities. The relatively brief Era 8 operational period limits layout representation to specific geographic areas—attempting to deploy Class 101s on routes they never served (Southern Region, Wales, South West England) creates anachronisms undermining layout authenticity.
Formation authenticity requires attention to typical operating patterns. Standard formations comprised 2-car sets (power twin) for lightly-loaded branches, 3-car sets adding a center trailer for moderate traffic, and 4-car formations on busier routes requiring maximum capacity. The Blue Square coupling code enabled operation with other compatible first-generation DMUs, creating mixed formations particularly common from the 1980s onwards as vehicle availability varied. Class 101 power cars could lead trailers from Classes 102, 103, 104, 107, 108, 111, or 116, whilst Class 101 trailers operated behind driving cars from these compatible classes. Up to 12 vehicles could operate in multiple under single driver control, enabling capacity adjustments impossible with locomotive-hauled services.
Operational scenarios should reflect the intensive stop-start service characteristic of branch line operation. Typical diagrams involved multiple return trips over relatively short routes—a Class 101 set might complete 8-12 round trips daily on a 15-20 mile branch, with just 3-5 minutes turnaround at terminals. This intensive utilization provided the economic justification for DMU operation compared to locomotive-hauled services requiring longer terminal times for locomotive run-rounds and greater crew requirements. Layout timetables incorporating frequent service patterns with tight turnaround times recreate authentic operational intensity whilst providing engaging operating sessions with constant activity.
Sound-equipped models benefit from careful attention to operational sound characteristics. The distinctive AEC or Leyland diesel engine note differs markedly from locomotive sounds, creating characteristic first-generation DMU atmosphere. Programme decoders to emphasize realistic sequences: gentle idling at stations with one engine shut down for fuel economy, both engines accelerating under load when departing, steady cruise at running speed, engine braking during approach to stations, and the characteristic vacuum brake "wheeze" when stopping. The pneumatic horn sounds differ from steam locomotive whistles or diesel locomotive horns—programming appropriate volume levels prevents overwhelming smaller layouts whilst maintaining audible signaling of movements.
Station infrastructure authenticity enhances Class 101 operations. Branch line stations typically featured modest platforms (2-4 coach lengths), simple waiting shelters rather than elaborate station buildings, limited goods facilities reflecting declining freight traffic, and basic signaling arrangements. Appropriate scenic details include BR(W) and BR(E) totem station signs in the 1950s-1960s, corporate "double arrow" symbols from the 1960s onwards, platform-mounted running-in boards displaying service patterns, BR regional boundary signs, and distinctive period infrastructure including concrete platform lampposts, enamel advertising signs, and wooden platform benches. These details create convincing period atmosphere supporting Class 101 operations.
Depot scenes provide excellent static display opportunities demonstrating DMU maintenance infrastructure. Model a section of Tyseley (Birmingham), Darlington, Newton Heath (Manchester), or other major Class 101 depot including fueling points, carriage washing facilities, inspection pits, wheel lathes, and parts storage. Multiple Class 101 sets sharing space with other first-generation DMU types (Classes 104, 108, etc.) creates authentic depot atmosphere. Include details such as diesel fuel tanks, ground-level fueling points (DMUs refueled from below unlike locomotives refueled from above), cleaning staff with pressure washers, and maintenance crews performing routine inspections. These scenes demonstrate the reduced infrastructure requirements compared to steam locomotive depots whilst maintaining operational interest.
Finally
The British Rail Class 101 represents far more than 700 diesel multiple unit vehicles; these machines embodied the transformation of Britain's secondary railway network from steam-age traditions to modern diesel efficiency. Metro-Cammell's design, refined through production batches spanning 1956-1959, delivered exactly what the Modernisation Plan required: reliable, economical, versatile traction capable of making branch line and suburban operations financially sustainable. The extraordinary 47-year operational span—from October 1956 Tyneside debut through Christmas Eve 2003 Manchester finale—demonstrated that thoughtful engineering, systematic maintenance, and comprehensive refurbishment could extend service lives far beyond original expectations.
For railway historians, the Class 101 provides fascinating insights into the practical realities of railway modernisation during Britain's transition from nationalisation through privatisation. The type witnessed steam's final years, participated in the corporate blue image transformation, survived sector identities and fragmentation, and ultimately served multiple privatised operators. This continuity across five decades of revolutionary change proved that well-maintained, fundamentally sound designs could adapt to evolving operational requirements whilst newer, ostensibly superior types faced premature withdrawal due to reliability problems or poor specification.
The substantial preservation movement—41 surviving vehicles across numerous heritage railways—ensures the Class 101 legacy extends beyond historical documentation into operational demonstration. Contemporary passengers at North Yorkshire Moors Railway, North Norfolk Railway, Great Central Railway, and other locations can experience authentic first-generation DMU travel, feeling the distinctive engine note, hearing the vacuum brake wheeze, and appreciating the period interior design that characterized 1950s railway modernisation. These preserved examples provide invaluable reference material for modellers whilst enabling heritage railways to operate intensive DMU diagrams recreating branch line service patterns.
Bachmann Branchline and Graham Farish's comprehensive model ranges deliver exceptional OO and N gauge representation enabling authentic Class 101 operations on layouts spanning multiple eras. The variety of available liveries—from original BR green through corporate schemes to sector identities—supports accurate period modeling across the entire operational timeline. DCC Ready and Sound Fitted options cater to different technical sophistication levels, whilst budget-friendly Hornby Railroad alternatives ensure accessibility for newcomers. This multi-manufacturer support reflects the Class 101's fundamental importance for depicting authentic British railway operations.
Model railway enthusiasts incorporating Class 101s into branch line and suburban layouts gain versatile period-correct traction suitable for intensive stopping services, rural branches, and secondary main line workings. The type's geographic diversity—from Scottish Highlands to Yorkshire industrial towns, Birmingham suburbs to Norfolk rural routes—enables authentic deployment on virtually any British layout outside Southern Region territory. Appropriate consist formations, realistic operating scenarios, and period-correct infrastructure create convincing 1956-2003 atmosphere spanning eras from steam twilight through privatisation.
The engineering legacy proved equally significant. The Class 101 validated fundamental DMU concepts including multiple-working flexibility, automotive component railway application, and life-extension through comprehensive refurbishment. These lessons informed British Rail's second-generation DMU programme and continue influencing contemporary rolling stock design. The type demonstrated that secondary railway services could operate profitably when matched with appropriately-scaled, economical traction—a lesson repeatedly forgotten and relearned across subsequent decades of railway policy evolution.
As contemporary Britain debates railway modernisation, electrification economics, and decarbonisation timescales, the British Rail Class 101 story offers valuable perspective. These machines proved that innovative technology deployment—diesel traction replacing steam—could transform service quality whilst improving operational economics. The 47-year service span demonstrated that well-maintained equipment could deliver exceptional value despite critics arguing for constant replacement with newest technology. The refurbishment programmes showed that life-extension investment often proved more economical than premature replacement. These lessons remain relevant as modern railway operators balance new rolling stock investment against existing fleet maintenance whilst pursuing environmental sustainability.
The Class 101's final departure on Christmas Eve 2003 marked more than the end of a specific DMU type—it represented the conclusion of first-generation diesel multiple unit operations that had revolutionised Britain's branch railways nearly half a century earlier. The sight and sound of these distinctive Metro-Cammell units had characterized countless branch lines, suburban routes, and rural services across every region. Their absence created tangible void that preservationists and modellers continue filling through operational heritage examples and detailed miniature representations. The enduring fascination these machines inspire testifies to their fundamental importance in British railway history and their continuing relevance for understanding how thoughtful engineering and systematic maintenance can deliver exceptional operational longevity.
Frequently Asked Questions
How many British Rail Class 101 vehicles were built and when?
Metro-Cammell constructed over 700 Class 101 vehicles at Birmingham Saltley Works between 1956 and 1959, comprising 620 vehicles originally classified as Class 101 plus 106 Class 102 vehicles (later reclassified as Class 101). Production spanned five principal batches delivered progressively to North Eastern, Scottish, London Midland, and Eastern regions. At peak output, the factory produced four vehicles per week. This made the Class 101 the most numerous first-generation DMU type, reflecting British Rail's confidence in the Metro-Cammell design.
What engines powered the Class 101 and how much power did they produce?
Each Class 101 power car mounted twin 150 hp horizontal diesel engines beneath the floor, providing 300 hp total per vehicle. Early production used BUT AEC 220 six-cylinder diesels displacing 11.3 litres, whilst later vehicles received Leyland 680 engines of identical displacement. Both types drove through S.C.G. R14 four-speed epicyclic gearboxes derived from bus and truck designs. The comprehensive refurbishment programme during 1976-1984 systematically replaced unreliable AEC units with proven Leyland powerplants.
Which regions operated Class 101 DMUs and on what services?
North Eastern Region operated the largest fleet (347 vehicles in 134 sets) on Tyneside suburbs, Yorkshire branches, and Tees Valley services. Scottish Region (159 vehicles in 63 sets) deployed them on Glasgow area, Edinburgh-Dundee corridor, Highland main line, and numerous branches. London Midland Region (114 vehicles in 48 sets) concentrated operations on Birmingham Cross-City Line for 35 years plus Trans-Pennine and West Midlands services. Eastern Region received later transfers for Norwich area and Cambridge shuttle services.
What was the 1970s refurbishment programme and why was it necessary?
The 1976-1984 refurbishment programme saw 562 of 590 Class 101 vehicles receive comprehensive upgrades at Doncaster, Derby, Glasgow, and Swindon Works. Modifications included fluorescent lighting providing six times previous illumination, new seating and interiors, upgraded heating systems, and crucially, engine replacements swapping unreliable AEC units for proven Leyland powerplants. This transformation extended operational lives by decades, enabling 1950s vehicles to serve reliably through the 1990s and beyond whilst meeting contemporary passenger comfort expectations.
What liveries did Class 101 DMUs carry throughout their careers?
Class 101s carried virtually every major British Rail livery scheme: original BR green with cream bands (1956-1967), rail blue with polished aluminium frames (1967-1978), blue and grey (from 1974), white with blue stripe on 264 vehicles (1974-1979), Strathclyde PTE orange and black, Network SouthEast red/white/blue, Regional Railways light blue and grey, plus special schemes including the famous "Daisy" BR green revival applied in 1994. This livery diversity makes them exceptionally versatile for modelling across multiple eras.
When did the last Class 101 DMUs operate and why did they last so long?
The final Class 101 service ran on Christmas Eve 2003, concluding 47 years of operations—the second longest first-generation DMU survival after Class 121 "Bubble Cars." Several factors produced this longevity: fundamental reliability making them trusted performers when newer Pacer units proved problematic, comprehensive refurbishment transforming vehicles into modernised units, privatisation delays extending operations beyond original plans, and replacement stock problems with Class 175 units ordered for First North Western services providing stays of execution.
How many Class 101 vehicles survive in preservation and where?
Approximately 41 Class 101 vehicles survive at heritage railways including Great Central Railway (6 vehicles including sole surviving buffet car), North Norfolk Railway (6 vehicles including NRM-owned 51192), North Yorkshire Moors Railway (set 101685 "Daisy"), Keighley & Worth Valley Railway (vehicles 51189 and 51803), Severn Valley Railway (3-vehicle set acquired September 2024), plus examples at Mid-Norfolk Railway, Wensleydale Railway, and other locations. The National Railway Museum holds two vehicles in the national collection.
What OO gauge Class 101 models are currently available?
Bachmann Branchline produces definitive OO gauge models including 32-285A (2-car DMU BR green with speed whiskers, DCC Ready, £209-£230 RRP), 32-285ASF (identical with DCC sound, £309-£340), 32-287B (2-car BR blue and grey DCC Ready), and 32-287BSF (blue and grey with sound). All feature five-pole motors, 21-pin decoder sockets, directional lighting, and comprehensive detail. Hornby Railroad offers budget alternatives including R30172 (Strathclyde PTE orange/black, approximately £121) and R30195 (Network Rail yellow infrastructure livery).
Are Class 101 models available in N gauge?

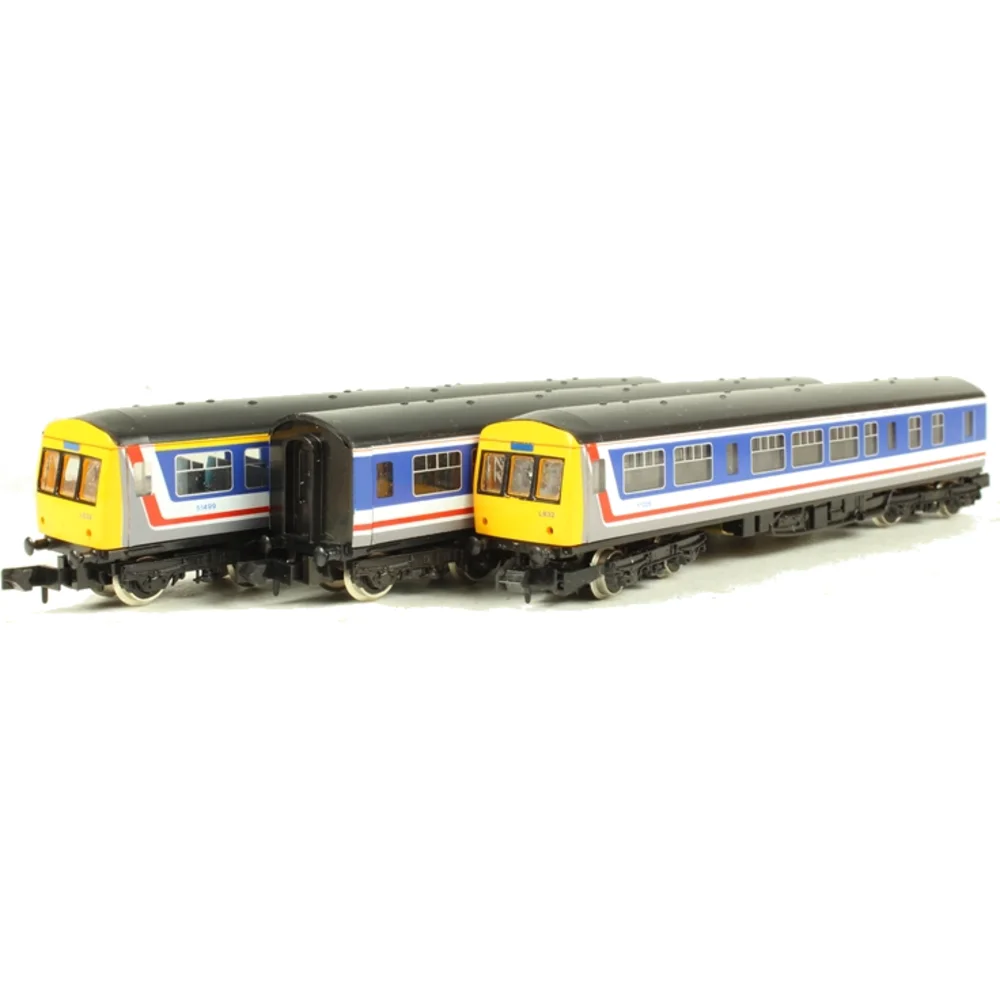

Graham Farish provides comprehensive N gauge coverage including 371-505 (Network SouthEast), 371-506/506SF (BR blue and grey with optional DCC sound), 371-508/508SF (BR green with speed whiskers and optional sound), and 371-513K/513KSF (3-car Strathclyde PTE with optional sound). DCC Ready versions retail £178-£275 depending on configuration, whilst sound-fitted variants cost £263-£375. All models feature 6-pin decoder sockets, directional lighting, and authentic livery application matching prototype standards.
What was the "White Ghost" livery and why was it distinctive?
The "White Ghost" nickname described the white with rail blue waistband livery applied to trial set 51451/59545/51518 following June 1974 refurbishment at Doncaster Works. This striking colour scheme, intended for high-profile routes, was subsequently applied to 264 Class 101 vehicles between 1974-1978 before abandonment in favour of blue and grey. The white livery's susceptibility to dirt accumulation—particularly problematic on coal-traffic routes—contributed to its retirement, though it remains one of the most recognized and photographed Class 101 schemes.
Could Class 101s operate with other DMU types?
Yes, the Blue Square coupling code enabled Class 101s to work in multiple with most other first-generation DMU types including Classes 102, 103, 104, 107, 108, 111, and 116. Class 101 power cars could lead trailer vehicles from these compatible classes, whilst Class 101 trailers operated behind driving cars from other types. Up to twelve vehicles could operate under single driver control, providing formation flexibility that proved invaluable across Britain's diverse railway operations, particularly from the 1980s onwards as vehicle availability varied.
What was special about the Birmingham Cross-City Line Class 101 operation?
Tyseley Depot's Class 101 allocation dominated Birmingham Cross-City Line services from April 1958 until the route's electrification forced withdrawal on 12 July 1993—an extraordinary 35-year tenure representing one of Britain's longest-running DMU operations on a single intensive urban service. This sustained deployment demonstrated the type's fundamental reliability and suitability for high-frequency metropolitan operations, with units completing multiple daily diagrams requiring minimal maintenance attention between intensive running periods. The Cross-City operation became synonymous with Class 101s for generations of Birmingham passengers.
