British Rail Class 143 – The Pacer Railbus That Defied Expectations 1985-2021

Historical Background and Context

The genesis of the Class 143 lay in British Rail's crisis confronting its aging first-generation diesel multiple unit fleet during the early 1980s. Hundreds of DMUs built during the 1950s-1960s approached end-of-life simultaneously, requiring either expensive refurbishment programmes or wholesale replacement. The refurbishment option presented particular challenges: systematic asbestos removal demanded hazmat procedures adding enormous cost, whilst mechanical updates couldn't address fundamental obsolescence in vehicles already three decades old. The replacement option appeared equally problematic given Margaret Thatcher's Conservative government's determination to reduce state railway expenditure.

British Rail Research Division pursued an audacious alternative: develop an ultra-low-cost railbus leveraging automotive industry economies of scale. The Leyland National bus—Britain's most successful single-deck design with over 8,000 built between 1972-1985—offered proven reliability and readily available components. BR's experimental LEV1 prototype in 1978-1979 demonstrated feasibility by literally mounting a Leyland National body on a railway underframe, achieving remarkable capital cost reductions compared to conventional DMU construction.

The prototype lineage progressed through iterations refining the concept. The Class 140 demonstrator (two single-car units, 1980-1981) validated basic operational viability whilst highlighting transmission reliability problems. The Class 141 production batch (20 units, 1983-1984) represented British Leyland's manufacturing contribution, though endemic mechanical failures with Self-Changing Gears automatic transmissions severely compromised availability. These early Pacers proved the concept whilst demonstrating that significant engineering improvements were essential for acceptable service reliability.

British Rail's decision to procure additional Pacer variants rather than simply ordering more Class 141s reflected determination to address identified shortcomings. The 16 January 1984 contract split procurement between two manufacturers: BREL Derby would build the Class 142 using Leyland components, whilst a Scottish consortium comprising Hunslet-Barclay and Walter Alexander would construct the Class 143 using Alexander bus technology. This competitive approach encouraged innovation whilst diversifying supply chains—crucial given British Leyland's increasingly precarious financial position.

The Class 143 specification incorporated lessons learned from Class 141 operations. The body width expanded to the maximum permissible within the British loading gauge—2.8 metres versus the standard bus dimension—providing more comfortable passenger accommodation. A microprocessor-based transmission controller replaced Class 141's crude relay logic, promising improved reliability. Double dampers and wider spring bases addressed ride quality complaints. Auto-couplers enabled multiple working with the emerging Class 150 Sprinter fleet, expanding operational flexibility. Railway-grade wiring replaced automotive standards used on Class 141, eliminating numerous electrical failures.

Construction proceeded rapidly following contract award. Walter Alexander fabricated stressed-skin aluminium bodies at their Falkirk facility using aerospace techniques that minimized weight whilst maintaining strength. Hunslet-Barclay manufactured welded steel underframes at Kilmarnock, incorporating all propulsion equipment, fuel tanks, and mechanical components. Each underframe supported Leyland TL11 turbocharged diesel engines driving through SCG mechanical transmissions—the same problematic gearboxes that plagued Class 141, though BR hoped microprocessor control would mitigate reliability issues. Final assembly at Barclay's Caledonia Works mated bodies to chassis, followed by transfer to BREL Derby for interior fitting and commissioning.

The first unit, 143001, emerged complete from Kilmarnock on 18 June 1985. However, industrial action delayed operational introduction when the National Union of Railwaymen "blacked" these privately-built trains, refusing to allow guards to work aboard them. Only after High Court injunction on 24 July 1985 did the NUR executive permit crew members to operate Class 143s. Following trials at Derby Railway Technical Centre, 143003 entered passenger service on 14 October 1985, working Newcastle-area services to Hexham and Sunderland. The complete 25-unit fleet arrived at Heaton depot (Newcastle) by December 1986, with units 143001-019 wearing BR Provincial blue livery whilst 143020-025 carried distinctive Tyne & Wear PTE yellow and white colours.

Design and Technical Specifications

The engineering foundation of the British Rail Class 143 combined automotive industry mass-production efficiency with railway-specific requirements in an unprecedented synthesis. Each two-car unit comprised a Driving Motor Second (DMS) and Driving Motor Second Lavatory (DMSL), both fully powered rather than employing the trailer car configuration typical of conventional DMUs. This dual-powered approach maximized tractive effort from the compact railbus format whilst eliminating the operational complications associated with trailer vehicle maintenance and positioning.

The original powerplant specification featured twin Leyland TL11 turbocharged diesel engines, one per car, each producing 200 horsepower (150 kW) from an 11.1-litre inline six-cylinder configuration. These proven road vehicle engines offered excellent power-to-weight ratios and benefited from Leyland's extensive automotive parts network. Maximum speed capability reached 75 mph (121 km/h), though operational practice typically limited running to 60-70 mph on lightly-laid branch routes. Fuel capacity totalled approximately 400 litres per vehicle, providing reasonable range between refuelling stops on intensive diagram workings.

The transmission system represented the Class 143's Achilles heel during initial service. Self-Changing Gears mechanical automatic gearboxes—four-speed automotive-pattern units—proved catastrophically unreliable in railway service. Frequent failures necessitated locomotive-hauled substitutions throughout 1987-1989, severely compromising fleet availability. The microprocessor controller's sophistication couldn't compensate for fundamental mechanical inadequacies in gearboxes designed for road vehicle duty cycles rather than railway operational patterns involving sustained full-power running.

Salvation arrived with comprehensive Voith T211r hydraulic transmission conversions executed between 1989-1990. RFS Doncaster converted the first 19 units during 1989, with Hunslet-Barclay Kilmarnock converting the remaining six in 1990. The Voith system—proven in continental European railcar applications—delivered vastly superior reliability whilst providing smoother power delivery and reduced maintenance requirements. This modification transformed Class 143 availability from endemic failure to acceptable standards, validating BR's decision to proceed with wholesale conversion rather than premature withdrawal.

Engine replacement followed during the early 1990s when Leyland's closure threatened spares availability. Cummins LTA10-R diesel engines producing 230 horsepower per car replaced the original TL11 units, providing slightly increased power output whilst ensuring long-term parts support through Cummins' global distribution network. This pragmatic substitution extended operational life whilst maintaining the fundamental mechanical configuration proven reliable following Voith transmission installation.

The underframe design represented perhaps the most controversial aspect of Class 143 engineering. Unlike conventional DMUs riding on two four-wheel bogies per vehicle, each Class 143 car employed a single rigid wheelbase with one axle at each end—a configuration unprecedented in British passenger railway practice since Victorian four-wheel coaches. This "long-wheelbase freight wagon" approach minimized cost and mechanical complexity whilst delivering acceptable stability on straight track. However, negotiating curves generated severe ride harshness from the rigid wheelbase's inability to accommodate track geometry, creating the notorious bouncing motion that earned Pacers the "Nodding Donkey" nickname.

Body construction utilized stressed-skin aluminium alloy panels riveted to an internal framework, providing lightweight strength whilst facilitating rapid production using established bus manufacturing techniques. The floor structure incorporated sound-deadening materials attempting to mitigate diesel engine noise transmission into passenger saloons, though contemporary accounts suggest limited success given the intimate proximity of power units. Cab fronts incorporated reinforced structures meeting crashworthiness standards significantly more demanding than road vehicle requirements, protecting drivers during potential collisions.

Interior refurbishment programmes attempted to address passenger comfort deficiencies. As-built accommodation featured 3+2 bench seating derived directly from bus practice—122 seats per unit crammed into relatively compact saloons. Between 2000-2002, Arriva Trains Wales implemented comprehensive refurbishment installing bespoke Chapman high-back coach seats in 2+2 configuration, reducing capacity to 106 passengers whilst dramatically improving comfort. Non-slip vinyl flooring replaced original carpet, enhanced LED lighting supplanted fluorescent tubes, and CCTV cameras addressed security concerns. These modifications transformed interiors from spartan bus-standard to acceptable light railway accommodation, though nothing could eliminate the fundamental ride quality issues stemming from rigid wheelbase design.

The renumbering scheme implemented during 1989 reflected transmission conversion status. Units retaining original SCG mechanical gearboxes received numbers 1433XX, whilst Voith-converted examples became 1436XX. Once all units completed Voith conversion, the entire fleet standardized on 143601-143625 numbering that persisted through withdrawal. This systematic approach enabled operational staff to immediately identify transmission type—crucial information given the dramatically different reliability characteristics between mechanical and hydraulic configurations.

Service History and Operations

The British Rail Class 143 fleet commenced revenue operations from Heaton depot in Newcastle upon Tyne, serving British Rail's North Eastern Region across an extensive network of local passenger routes. Initial deployments concentrated on Newcastle suburban services including the Newcastle-Hexham corridor, Newcastle-Sunderland coastal route, and connections to Middlesbrough, Darlington, and numerous smaller communities across County Durham and Northumberland. Units 143001-019 wore BR Provincial sector's distinctive two-tone blue livery with white relief, whilst 143020-025 carried Tyne & Wear PTE's striking yellow and white scheme reflecting their intended Metro-feeder role.

Perhaps the most remarkable early working occurred on 13 November 1985 when 143004, positioned at Carlisle for crew training, substituted for a late-running main line express service to Glasgow Central via Beattock. This extraordinary deployment demonstrated the units' capability for sustained high-speed running over challenging gradients, though such intensive duties remained exceptional given their designed role on stopping services. Special workings in Spring 1986 saw three units temporarily transferred to ScotRail for the Edinburgh-Bathgate line reopening, with 143006 working the inaugural public service on 24 March 1986—a high-profile assignment celebrating restored passenger services on this important commuter corridor.

However, the SCG transmission reliability crisis of 1987-1989 severely compromised North East operations. Frequent gearbox failures necessitated locomotive-hauled substitutions using Class 31, 37, or 47 diesels hauling Mark 1 or Mark 2 coaching stock—expensive, inefficient alternatives that undermined the entire railbus economic justification. Contemporary observers reported seeing more Class 143s failed at depots than operating in traffic during peak crisis periods. This catastrophic availability performance contributed to the strategic decision relocating the entire fleet away from the North East.

The comprehensive fleet transfer to Cardiff Canton depot between 1991-1992 established the South Wales association that would define Class 143 operational character through withdrawal. Valley Lines services radiating from Cardiff to Treherbert, Merthyr Tydfil, Aberdare, Rhymney, Coryton, and numerous other South Wales valleys became the primary operational sphere. The intensive stop-start service pattern with frequent station calls suited the units' rapid acceleration characteristics, whilst the Voith transmission conversions completed by this point delivered acceptable reliability enabling intensive diagram utilization.

Bristol area services expanded Class 143 operational territory from December 1992, with units regularly appearing on the Severn Beach line (Bristol Temple Meads-Severn Beach) and various local services around Avonmouth and Portishead. This deployment demonstrated the units' versatility across different operating environments, though South Wales remained the primary allocation throughout the 1990s and 2000s. The distinctive sight of Class 143s working alongside Class 150 Sprinters became characteristic of Welsh commuter operations, with mixed formations providing flexible capacity during peak periods.

Railway privatization from 1996 onwards distributed Class 143s among successive Train Operating Companies. Wales & West initially inherited the fleet, operating Valley Lines and Bristol services until franchise dissolution in 2001. Wessex Trains received approximately nine units for Bristol-Taunton corridor operations between 2001-2006. Arriva Trains Wales (2003-2018) became the dominant operator, ultimately controlling the majority of surviving units for Valley Lines services. First Great Western (later simply GWR) operated approximately eight units from December 2008 onwards on Devon branch lines including the Avocet Line (Exmouth), Tarka Line (Barnstaple), and Riviera Line (Paignton).

Two units suffered catastrophic loss through fire incidents. On 17 October 2004, 143613 caught fire between Flax Bourton and Nailsea & Backwell whilst working a Wessex Trains Bristol Temple Meads-Weston-super-Mare service coupled with 143621. Fire services required two hours to control flames reaching 20 feet high, with one carriage completely burnt out and the other severely damaged. Three passengers required treatment for smoke inhalation. The line remained closed until 03:30 the following morning whilst burnt wreckage was removed to St Philip's Marsh depot for assessment and subsequent scrapping. Similarly, 143615 suffered irreparable fire damage in 2005, reducing the operational fleet to 23 units.

The final decade of mainline operation saw progressive withdrawal pressures mounting. The Rail Vehicle Accessibility Regulations 2008 mandated full PRM-TSI (Persons with Reduced Mobility Technical Specifications for Interoperability) compliance by 1 January 2020. Class 143s' high-floor bus-derived design featuring stepped entrances, no wheelchair spaces, and inaccessible toilets could never meet these requirements without prohibitively expensive modifications effectively rebuilding entire vehicles. Rolling stock leasing company Porterbrook proposed modification programmes, but no operator accepted given the units' age and the dramatic capacity reduction required to accommodate wheelchair spaces and accessible facilities.

GWR received dispensation extending Devon branch operations until 31 December 2020, whilst Transport for Wales (successor to Arriva Trains Wales from October 2018) gained extensions ultimately reaching 31 May 2021 due to delays receiving replacement Class 769 tri-mode units. The final months saw intensive enthusiast activity documenting the last Pacer operations, with special farewell tours operated in May 2021 celebrating 37 years of distinctive railbus service.

The final mainline Pacer service operated on 29 May 2021: the 22:02 Rhymney to Cardiff Central worked by 143601 coupled to a Class 150/2 unit. This service concluded passenger Pacer operations after over 35 years, with Transport for Wales noting that 143601 and 143609 together had covered "the equivalent of over five trips to the Moon and back during their working lives." The distinctive sound of Cummins diesels and Voith transmissions faded from the South Wales valleys, replaced by modern accessible units meeting 21st-century passenger expectations.

Fleet

No locomotives found.

Withdrawal and Preservation Legacy

The withdrawal history of the British Rail Class 143 demonstrates both the class's remarkable longevity and the ultimate triumph of accessibility legislation over economic convenience. Unlike many DMU classes facing gradual obsolescence through mechanical deterioration or capacity inadequacy, Class 143s remained mechanically viable and operationally useful until the very end. The Voith transmission conversions and Cummins engine installations of the 1990s had delivered reliable powertrains capable of years of additional service. Interior refurbishments provided acceptable passenger accommodation. Operating costs remained competitive given the units' fuel efficiency and maintenance simplicity.

However, the fundamental bus-derived design featuring high-floor stepped entrances proved insurmountable. The Rail Vehicle Accessibility Regulations 2008 implementation of EU PRM-TSI requirements demanded level or near-level access enabling wheelchair users to board independently, dedicated wheelchair spaces with securements, accessible toilet facilities, and numerous other features impossible to retrofit into compact railbus bodies without essentially rebuilding entire vehicles. Porterbrook's modification proposals included cutting floor structures to lower entrance heights, removing seats to create wheelchair spaces, and installing accessible toilet modules—changes that would have reduced capacity to perhaps 70-80 passengers per unit whilst costing millions of pounds per vehicle.

The business case proved untenable. With replacement units available through cascade from other routes or new-build procurement, operators uniformly declined expensive Class 143 modifications. GWR's decision to withdraw its eight-unit Devon allocation in December 2020 recognized that modern CAF-built Class 165 and 166 DMUs cascaded from Thames Valley services could provide superior passenger experience whilst meeting accessibility requirements. Transport for Wales similarly prioritized new rolling stock acquisition over expensive life-extension of 35-year-old railbuses approaching obsolescence regardless of accessibility compliance.

The withdrawal timeline accelerated through 2020-2021. GWR's final Class 143 service operated in December 2020, with units immediately transferred to storage pending disposal. Transport for Wales withdrew Class 142s in late 2020, concentrating remaining Class 143s on essential Valley Lines services whilst awaiting replacement unit deliveries. The final weeks saw units 143601, 143604, 143608, 143609, and 143618 concentrated on Rhymney, Coryton, and Merthyr Tydfil services, providing increasingly threadbare coverage as mechanical failures reduced available units.

Post-withdrawal storage locations included Cardiff Canton depot, where the majority of units accumulated, Exeter TMD for ex-GWR examples, and various other facilities pending final disposal decisions. Scrapping commenced during 2021 for units deemed uneconomical to preserve or restore. However, the remarkable preservation interest resulted in 13 units (over half the surviving fleet) entering heritage railway ownership—an extraordinarily high percentage reflecting both enthusiast sentiment and operational pragmatism.

Preserved Class 143 locations demonstrate geographic diversity reflecting the units' operational heritage. The Wensleydale Railway operates 143623 in regular passenger service between Leeming Bar and Leyburn, having repainted the unit in authentic Regional Railways livery complete with period-correct branding. This represents the only Class 143 currently carrying fare-paying passengers, providing authentic Pacer experience alongside the railway's steam and heritage diesel operations. The unit entered service following comprehensive mechanical overhaul addressing deferred maintenance from final mainline years, demonstrating that heritage railway resources can sustain Pacer operations indefinitely given accessible spares and straightforward mechanical systems.

The Tanat Valley Railway acquired three units—143601 (the final mainline working unit), 143616, and 143619—though financial pressures led to offering all three for sale during 2025. This situation illustrates heritage railway reality: whilst Class 143s offer economical operations, maintaining multiple examples stretches volunteer resources and workshop capacity. The railway sought purchasers willing to relocate units to other preservation sites, potentially spreading Pacer preservation across additional locations.

The Llanelli & Mynydd Mawr Railway holds three units (143606, 143607, 143612), including one potentially destined for static café conversion—a creative adaptive reuse recognizing that not all preserved units require operational capability. The railway hosted a successful Pacer Gala in August 2021 featuring multiple units in action, coincidentally blessed with an impromptu Red Arrows flyover that delighted attendees and created memorable commemorative photographs.

Other preservation locations include the Nene Valley Railway (143602), Vale of Berkeley Railway (143603 in BR blue/grey livery), Tarka Valley Railway (143617), Plym Valley Railway (143618), Keighley & Worth Valley Railway (143625), and the Llanelli Railway Goods Shed Trust (143622 in static display). This geographic distribution ensures preserved Class 143s remain accessible to enthusiasts across England and Wales, whilst different livery schemes represent various operational eras.

Notably, no Class 143 entered the National Railway Museum collection, though prototype Class 142 unit 142001 achieved preservation at Locomotion, Shildon. This absence from the national collection reflects the NRM's focus on historically significant or technologically innovative designs. The Pacer family, whilst operationally important, represented evolutionary development of established railbus concepts rather than revolutionary innovation. However, the extensive heritage railway preservation ensures public access to preserved examples potentially outlasting museum storage given active operational maintenance requirements.

The engineering legacy extends beyond preserved hardware. The Class 143 experience validated railbus concepts for lightly-trafficked routes whilst demonstrating the limitations of automotive technology in railway applications. The transmission reliability crisis of 1987-1989 taught valuable lessons about technology transfer between road and rail sectors. The ultimate accessibility-driven withdrawal highlighted fundamental conflicts between heritage design philosophies and modern inclusive access requirements. These lessons informed subsequent DMU procurement emphasizing purpose-designed railway equipment over bus-derived expedients, modular construction enabling economical mid-life refurbishment, and designing accessibility into original specifications rather than attempting expensive retrofits.

Modelling Significance and Scale Replications

The British Rail Class 143 presents exceptional modelling significance due to its extensive operational presence across three decades spanning late British Rail provincial operations through privatisation to the accessibility-driven withdrawal concluding Pacer mainline service. For railway modellers seeking authentic representation of British branch line and commuter operations from the mid-1980s through 2021, Class 143s provide compelling prototype appeal enhanced by distinctive appearance, controversial service history, and the remarkable variety of livery schemes applied throughout their careers.

The modelling landscape remained frustratingly barren for decades despite the class's operational importance. Neither Hornby, Bachmann Branchline, Dapol, nor specialist manufacturers offered Class 143 representations during the units' active service years, leaving modellers of Provincial Sector, Regional Railways, and privatisation-era layouts without this fundamental DMU type. This inexplicable neglect persisted until Realtrack Models announced Class 143 tooling development in the early 2010s, securing acclaim as a specialist manufacturer addressing gaps in mainstream ranges.

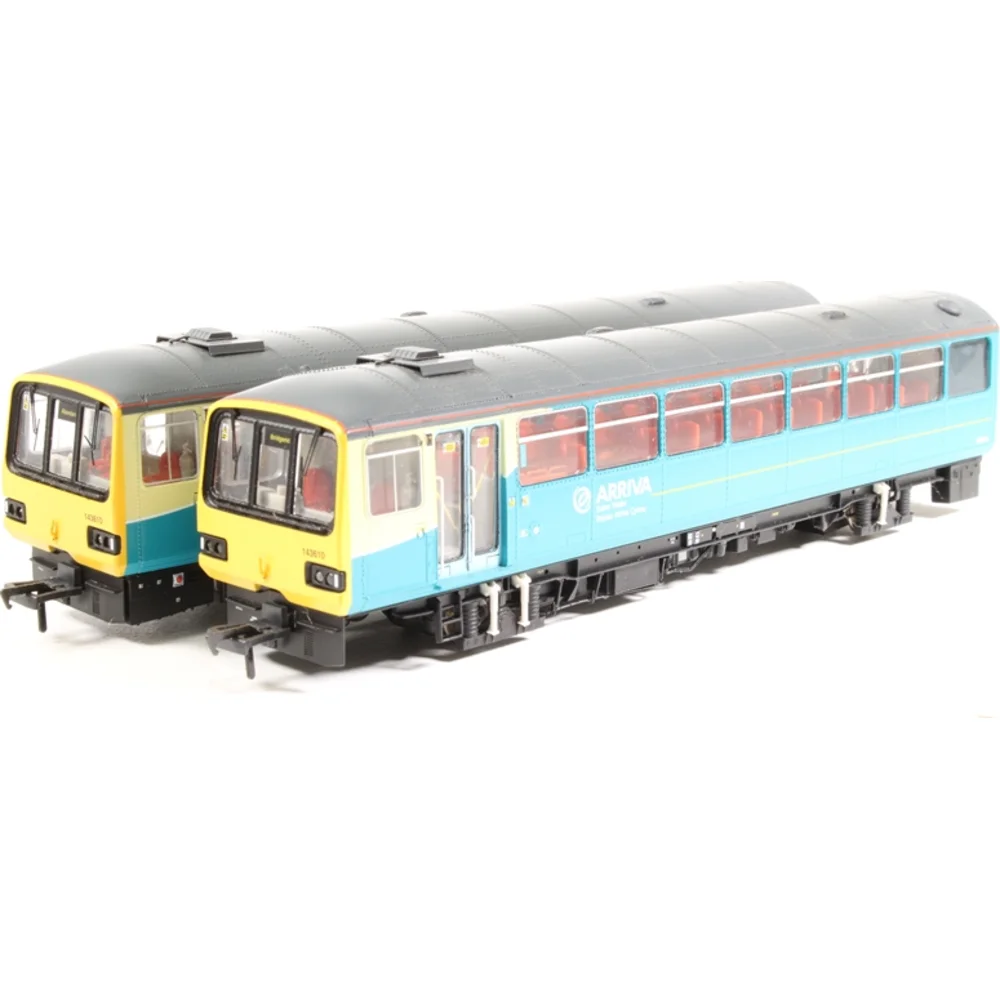

Realtrack Models released their pioneering Class 143 models circa 2013, immediately earning industry recognition including Model of the Year 2013 awards from enthusiast publications. The models featured dual motors (one per car) providing powerful performance, compensated sprung axles delivering smooth running, factory-fitted interior lighting, 8-pin DCC sockets enabling straightforward decoder installation, and excellent detail quality including separately applied components. Original retail pricing around £100 represented exceptional value given the sophisticated mechanism and comprehensive feature set.

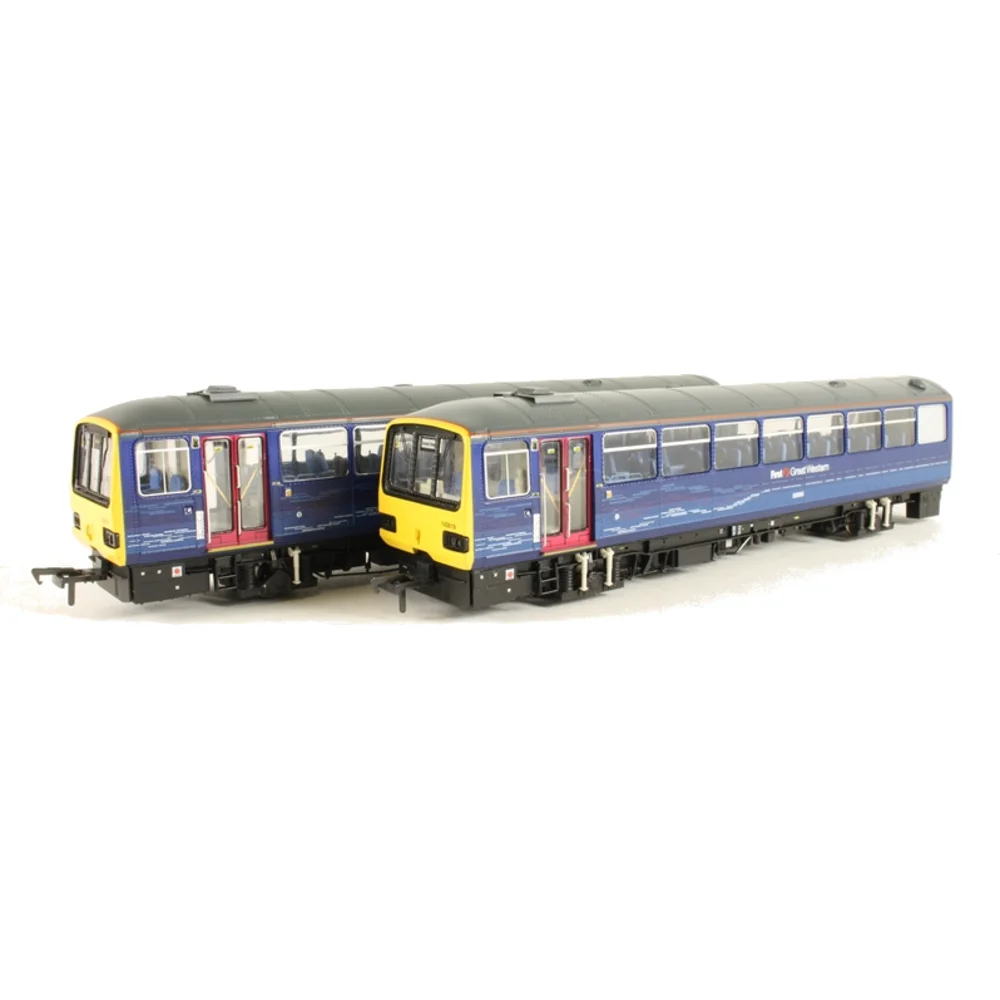

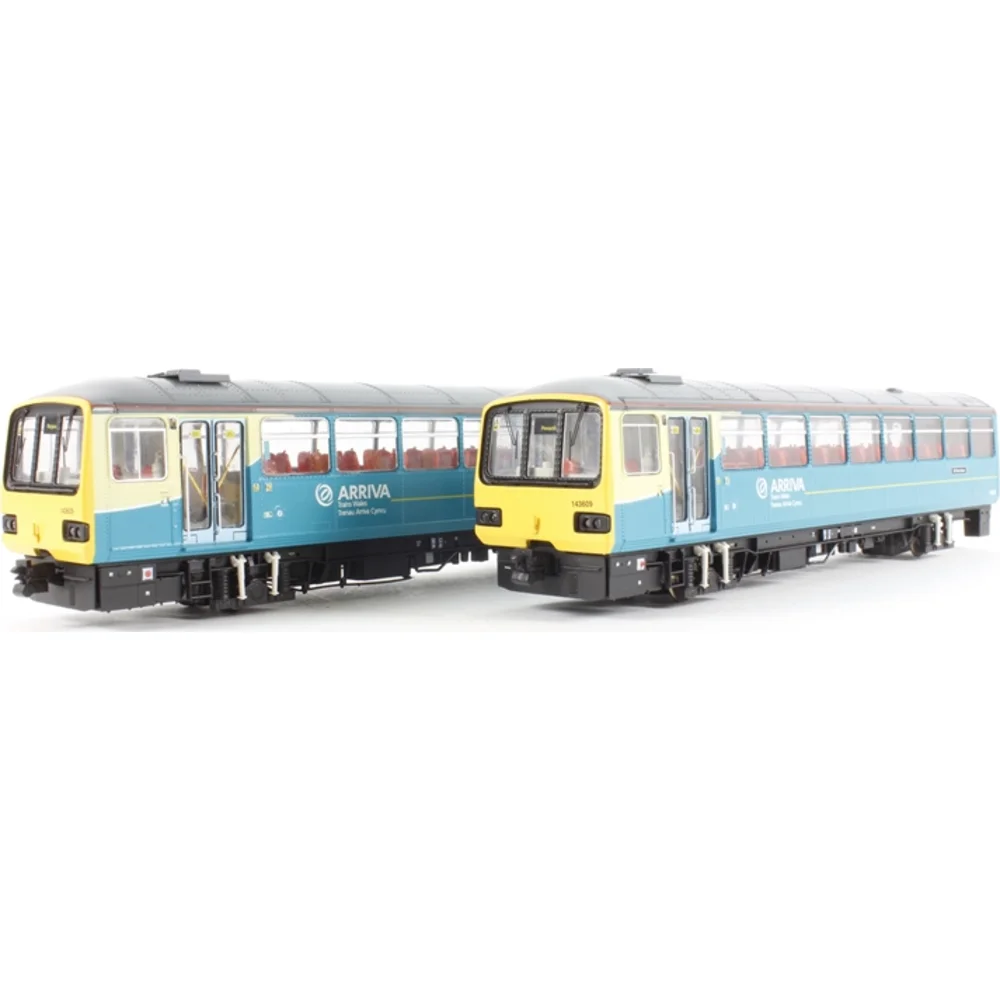

Realtrack catalog numbers RT143-211 through RT143-214 covered key livery variations including Arriva Trains Wales turquoise and cream, First Great Western green, and multiple numbering options enabling diverse fleet representation. However, production volumes remained modest reflecting Realtrack's boutique manufacturing approach. The models sold out relatively quickly, with secondary market values subsequently rising to £170-£180 for mint examples when available. Contemporary reviews praised running quality, detail accuracy, and the thoughtful inclusion of lighting and DCC-ready features uncommon in specialist manufacturer products.

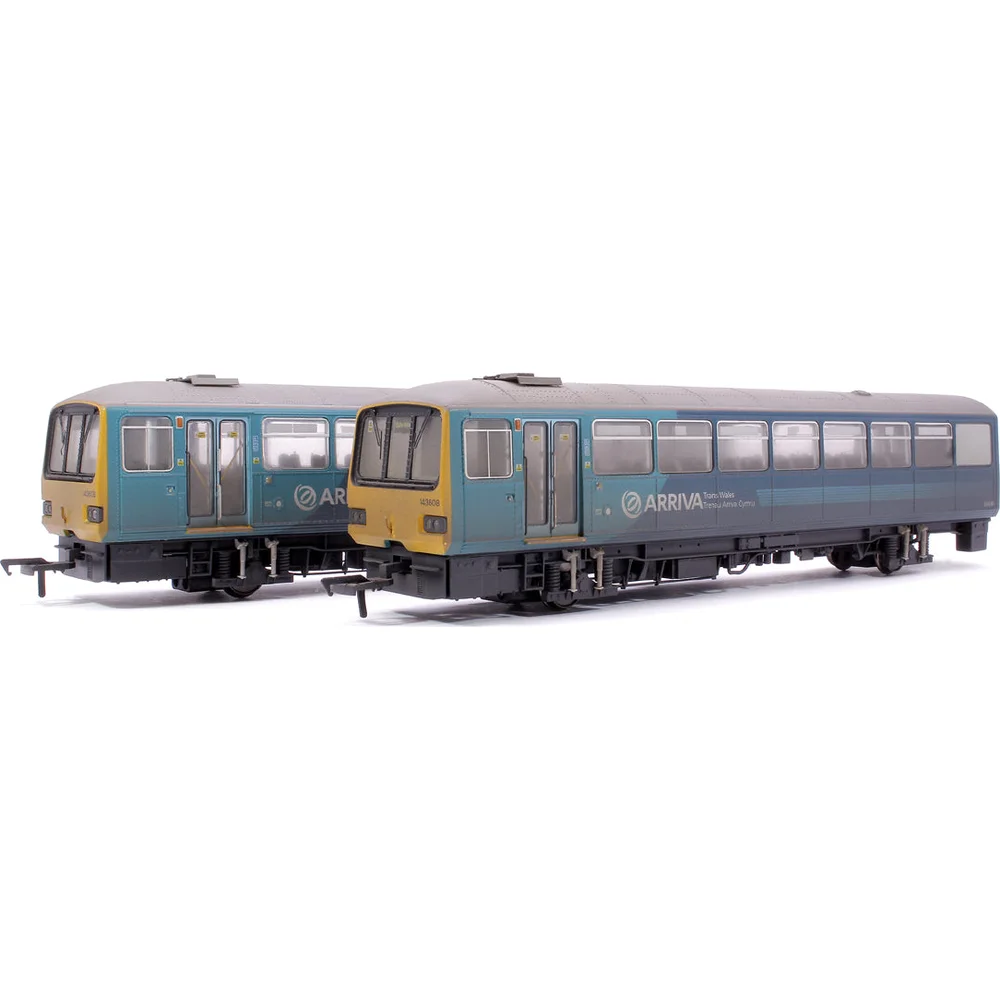

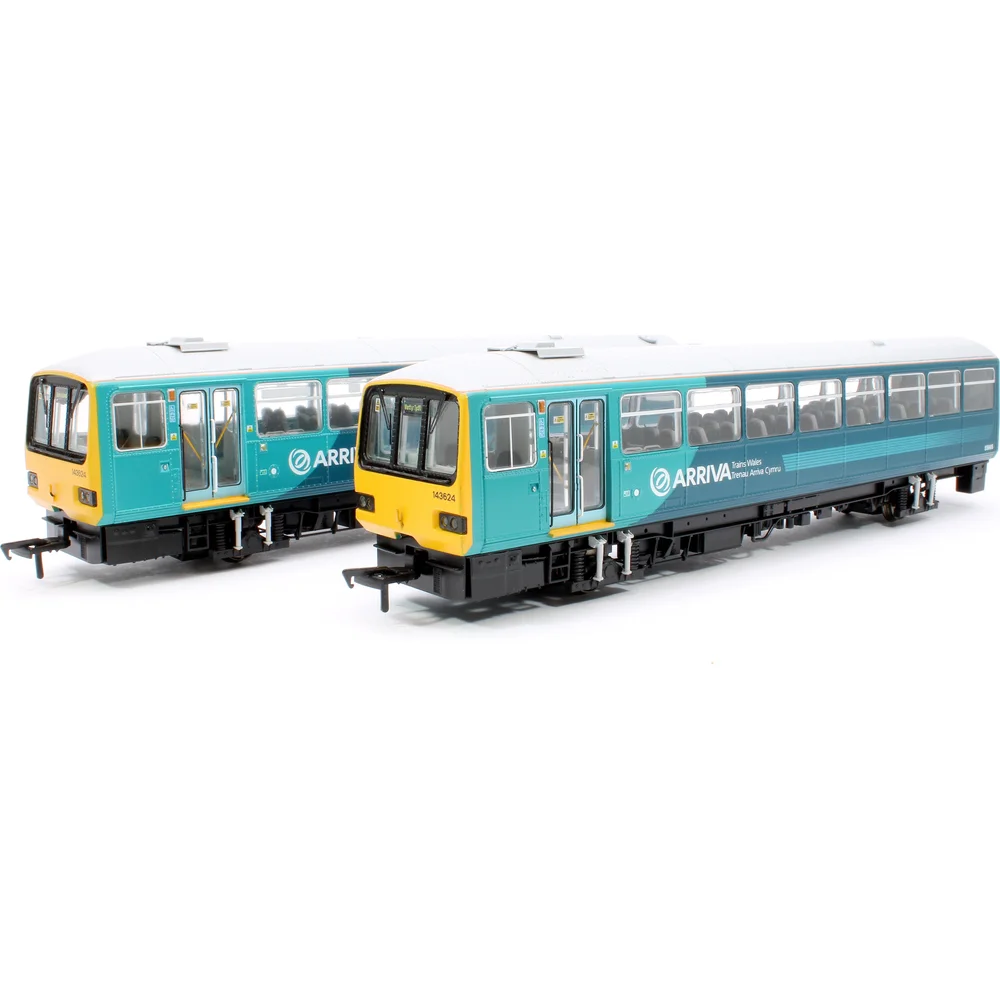

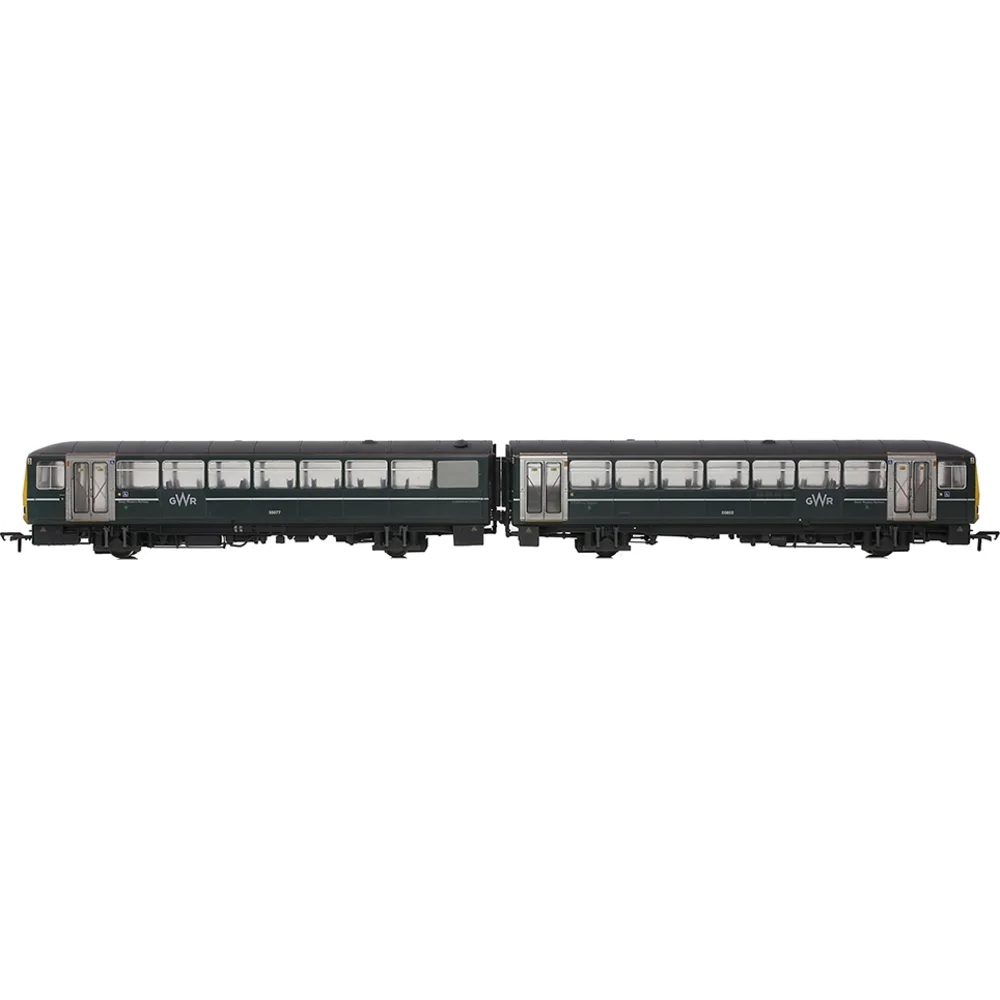

The landscape transformed dramatically when EFE Rail (a Bachmann subsidiary) announced Class 143 tooling in 2022, bringing mainstream manufacturer resources to this distinctive DMU. EFE's models entered production during 2023, featuring completely new tooling incorporating modern manufacturing techniques and comprehensive technical specifications reflecting Bachmann's expertise. The decision to tool Class 143s demonstrated Bachmann's commitment to serving enthusiasts modeling recent British railway operations rather than focusing exclusively on steam-era subjects.

EFE Rail's technical execution impresses throughout. A powerful 3-pole motor with twin flywheels drives all eight wheels through geared transmission, ensuring smooth operation at realistic crawling speeds appropriate for station work. Comprehensive electrical pickup from all wheels maximizes reliability on less-than-perfect track. The Next18 DCC socket simplifies decoder installation for digital control, whilst the models operate perfectly on conventional analog DC layouts. Directional lighting includes headlights and tail lights automatically switching according to travel direction, adding operational realism during shunting and reversing movements.

Interior detail includes molded seating, partition walls, and ceiling detail visible through factory-fitted glazing. The underframe incorporates separately applied brake gear, exhaust systems, fuel tanks, and transmission equipment, providing visual depth when models are viewed from below or positioned on elevated track. The Scharfenberg-style automatic couplers enable realistic multiple-unit formations with other EFE Rail Pacer and Sprinter models, whilst standard NEM coupling pockets at outer ends accept aftermarket couplings.

Livery application demonstrates meticulous research and execution. The BR Provincial blue on E83022 (143001) precisely replicates the two-tone scheme with white relief stripe and black underframe that characterized early operations. The Tyne & Wear PTE yellow and white on E83025 (143622) captures the striking Metro-feeder livery applied to units 143020-025. Arriva Trains Wales turquoise and cream (E83023, E83024) represents the dominant livery throughout the 2000s-2010s. GWR green schemes (E83021, E83027) commemorate the Devon branch operations. The weathered variants (E83024, E83027) feature factory-applied dirt, grime, and wear effects representing later-career appearance.

Discounted pricing through specialist retailers typically reduces acquisition costs substantially below manufacturer's suggested retail. Kernow Model Rail Centre, Rails of Sheffield, Hattons Model Railways, and other stockists frequently offer 15-25% discounts on pre-orders and current stock, bringing typical street prices to £143-£183 for standard versions and £170-£195 for weathered variants. This represents excellent value given the comprehensive feature set, high detail quality, and smooth performance characteristics.

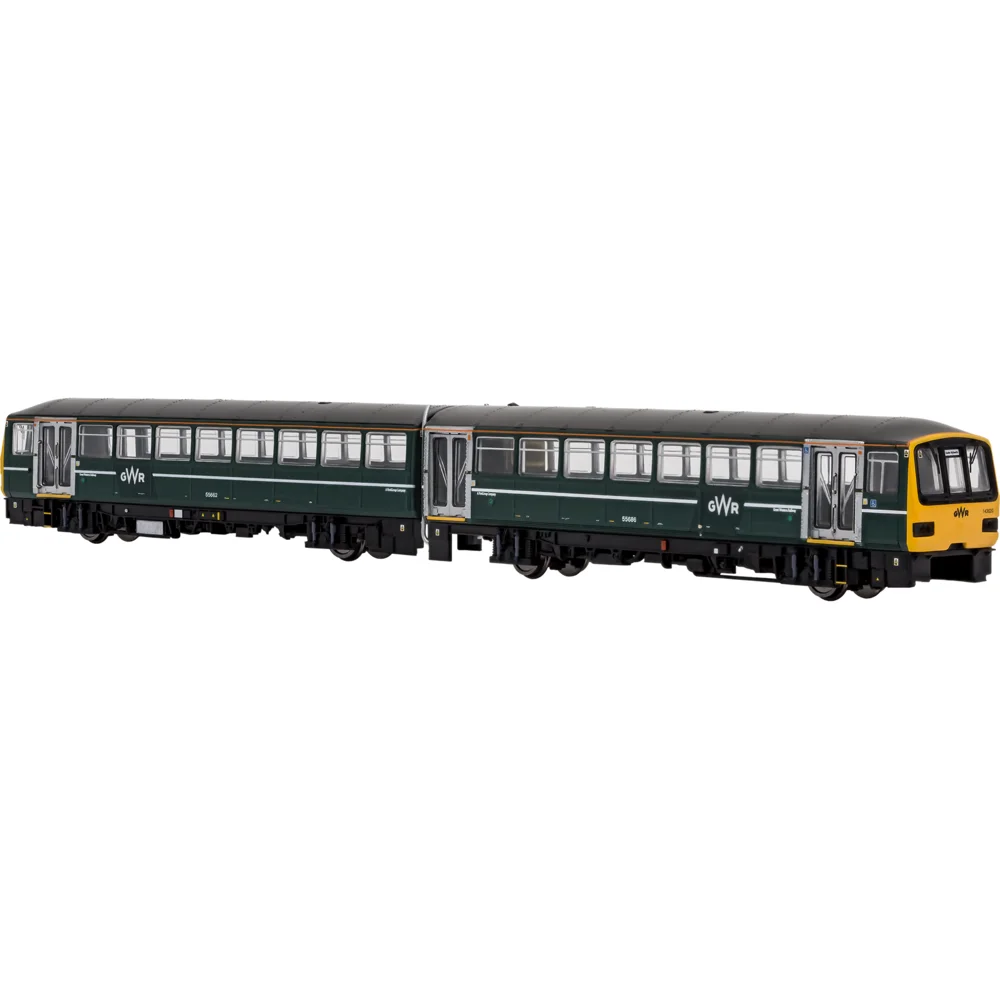

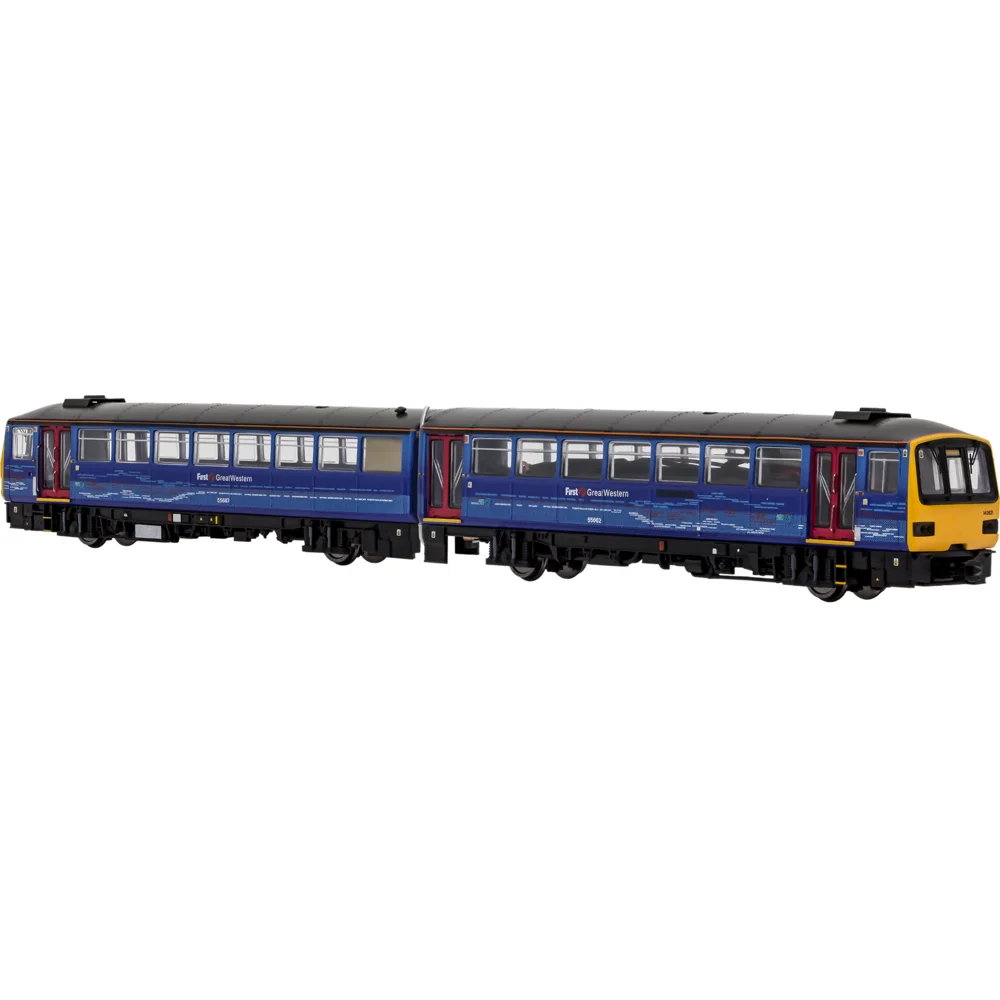

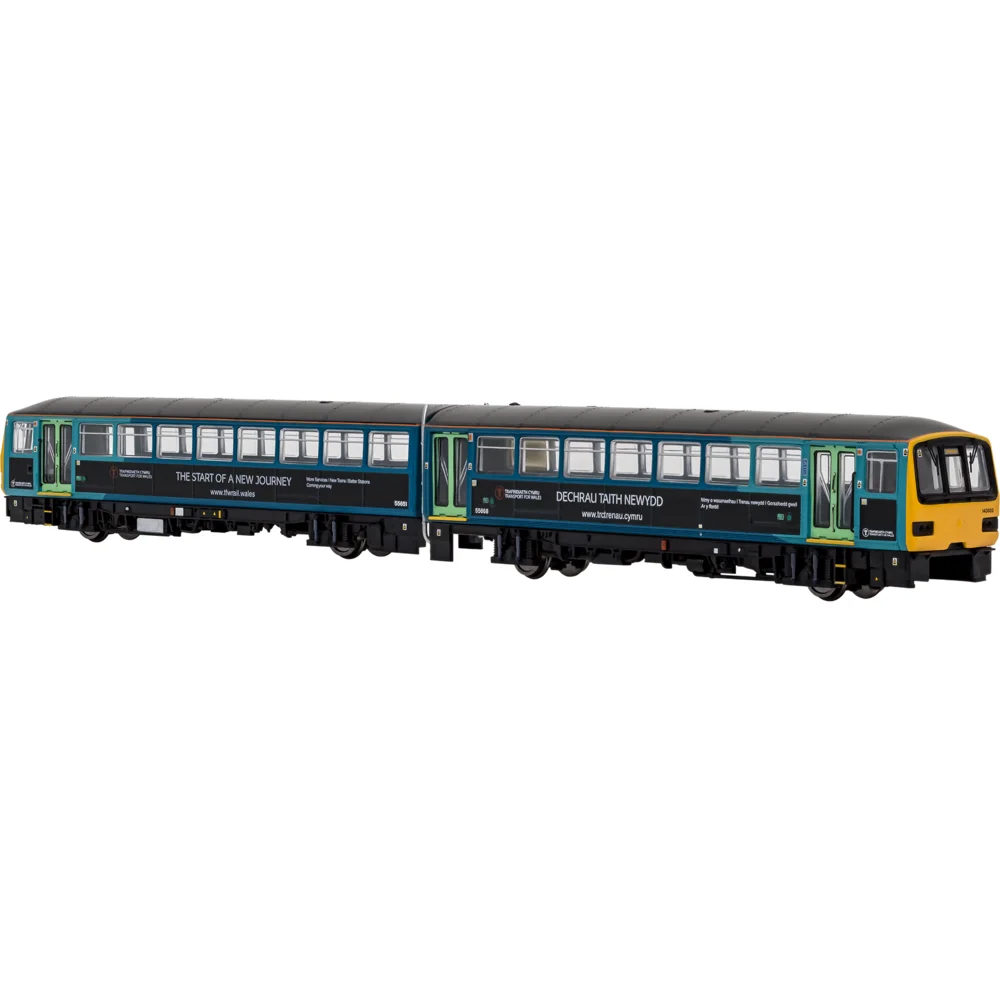

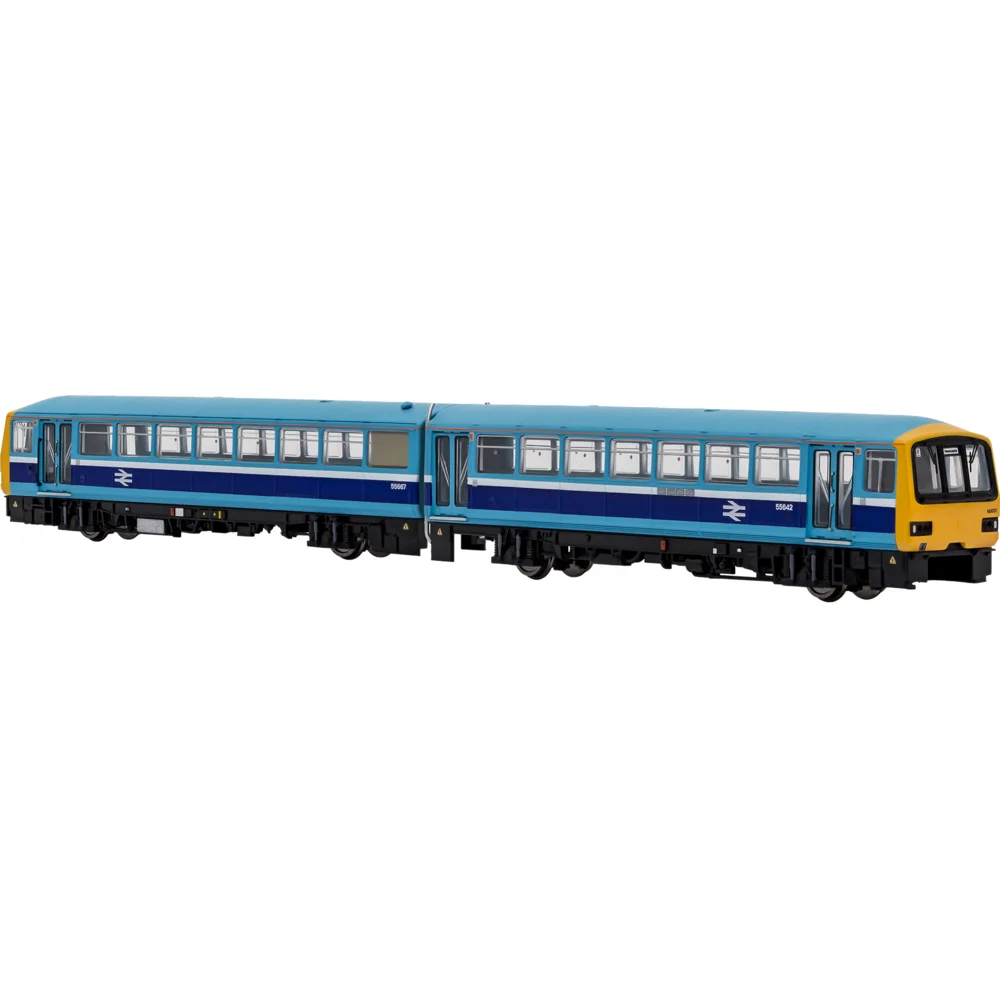

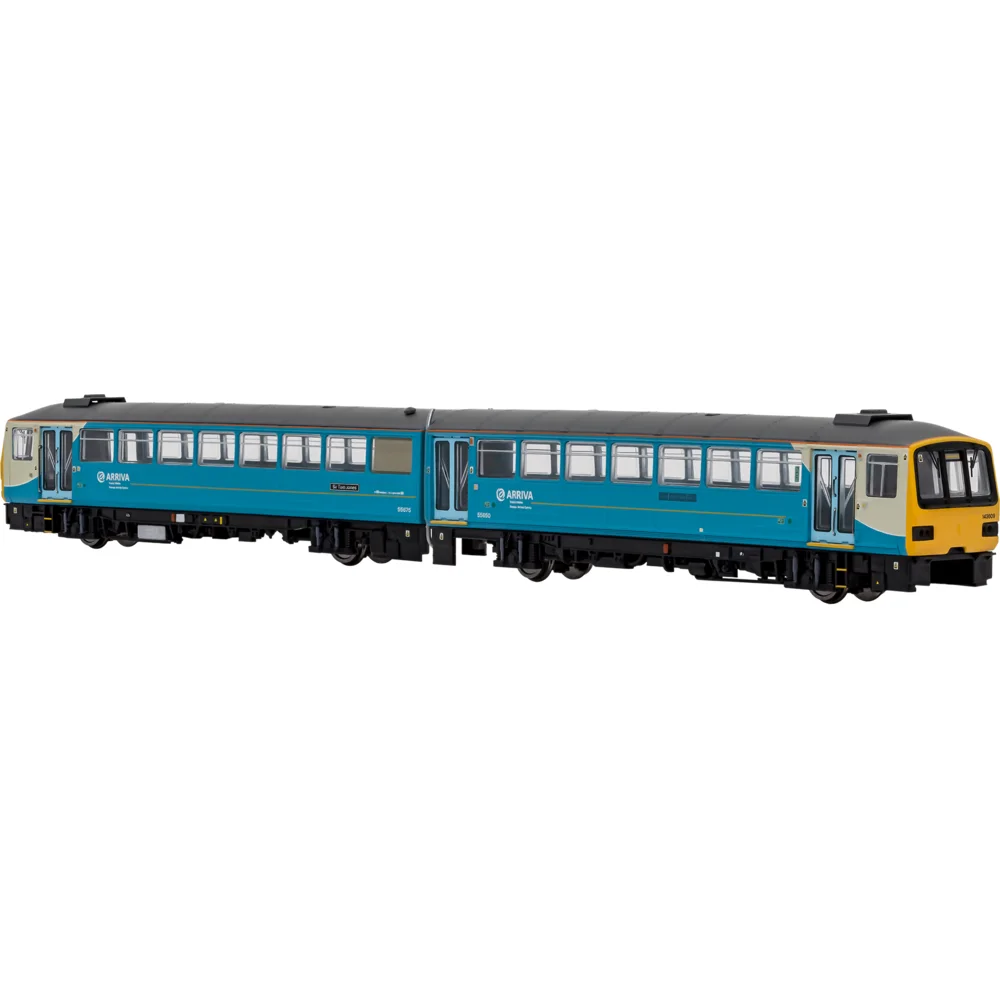

Dapol entered the Class 143 market by announcing comprehensive N gauge tooling in 2024, with expected delivery during Q2 2026. This long-awaited development brings Pacer modelling to Britain's second-most-popular scale, enabling space-constrained modellers to recreate authentic Class 143 operations. The announcement generated significant enthusiast interest given Dapol's reputation for detailed N gauge DMUs including Classes 122, 153, and 156.

DCC-fitted versions carrying catalog suffix "D" command £220 RRP, featuring factory-installed decoders with directional lighting and motor control. Pre-order discounts at major retailers reduce actual purchase prices to approximately £144.50 (DCC Ready) and £187 (DCC Fitted), representing competitive pricing given Dapol's reputation for robust N gauge mechanisms. The models will feature Scharfenberg-style end couplings compatible with Dapol's Class 142, 144, 153, and 156 models, enabling authentic mixed formations common throughout Pacer operational history.

Technical specifications promise all-wheel drive through twin motors (one per car), comprehensive electrical pickup, factory-fitted interior lighting, detailed underframe equipment, and separately applied components including roof vents, door handles, and brake gear. The models will accurately represent the distinctive four-wheel rigid chassis arrangement that characterized Pacer design, though compensated suspension should deliver smoother running than the prototype's notorious ride quality.

O gauge enthusiasts face significant challenges. No manufacturer produces ready-to-run Class 143 models in O gauge (7mm scale, 1:43.5 proportion), and none have announced development plans. The relatively modest market size for British O gauge DMUs combined with tooling costs approaching six figures makes commercial production unlikely absent substantial pre-order commitments. Skilled modellers might undertake scratch-building projects using available drawings and photographic references, though this represents a substantial commitment requiring advanced skills and extensive workshop facilities. No white metal kit manufacturers offer Class 143 components, leaving O gauge as the sole major scale without representation.

Models

Unique Modelling Tips and Layout Integration

Successfully incorporating British Rail Class 143 models into layout operation requires understanding their specialized role as lightweight railbuses designed for lightly-trafficked branch lines and intensive suburban services rather than main line operations. Unlike express DMUs capable of long-distance services, Class 143s operated short-distance intensive diagrams characterized by frequent station stops, tight turnaround times, and repetitive route coverage. This operational pattern provides excellent opportunities for engaging layout operation whilst remaining prototypically accurate.

Era selection proves fundamental for authentic Class 143 representation. The earliest appropriate period begins October 1985 when initial passenger services commenced around Newcastle. Layouts depicting North East operations suit the 1985-1992 timeframe, requiring BR Provincial blue or Tyne & Wear PTE yellow liveries alongside appropriate infrastructure including semaphore or early colour-light signals, concrete post-and-wire fencing, and 1980s-era station architecture. Contemporary coaching stock should include first-generation DMUs (Classes 101, 108) representing the aging units Class 143s replaced, plus Class 142 Pacers and early Class 150 Sprinters entering service simultaneously.

South Wales Valley Lines operations from 1992 onwards provide the most extensive modelling opportunities given this allocation's 30-year duration through withdrawal. Valley Lines layouts demand intensive service frequencies with multiple units operating short routes, stations positioned every 1-2 miles reflecting dense valley communities, and appropriate infrastructure including modern colour-light signals, platform extensions accommodating longer formations, and characteristic Welsh valley scenery. Livery evolution spans Regional Railways (1990s), Valley Lines red/green/white (1990s-2003), Arriva Trains Wales turquoise (2003-2018), and Transport for Wales (2018-2021).

Devon branch operations suit modellers preferring West Country settings. The 2008-2020 timeframe enables First Great Western or GWR green liveries operating Exmouth, Barnstaple, and Paignton services alongside Class 150/1 and 153 units. Appropriate infrastructure includes single-track branch lines with passing loops, heritage railway-style stations serving tourist traffic, and characteristic Devon coastal or moorland scenery. The compact nature of these services—typically single units on hourly frequencies—suits space-constrained layouts whilst providing prototypical operation.

Train formations should match prototype practice and operational requirements. Single 2-car units represented the norm on quieter services and branch lines. Paired units (4 cars) appeared during peak periods on busy routes, particularly Valley Lines commuter services where demand frequently exceeded single-unit capacity. Mixed formations coupling Class 143s with Class 142 Pacers or Class 150 Sprinters were extremely common, enabled by compatible auto-couplers and multiple-working systems. The final mainline service itself coupled 143601 with a Class 150/2, demonstrating this practice persisting through withdrawal.

Station infrastructure should reflect the modest facilities typical of Class 143 operational spheres. Valley Lines stations featured simple platforms (often single platform with passing loop), basic waiting shelters, minimal staffing, and functional rather than architecturally distinguished buildings. Devon branch terminals included slightly more substantial facilities serving tourist traffic, whilst North East suburban stations ranged from basic halts to more significant junction stations. Avoid grand Victorian termini or modern glass-and-steel structures—Class 143 operations concentrated on workaday branches serving local communities.

Depot scenes provide excellent static display opportunities whilst demonstrating maintenance infrastructure. Model a section of Cardiff Canton depot featuring fueling points, exterior cleaning facilities, wheel lathes, and light maintenance workshops. Class 143s sharing space with Class 142, 150, and 153 units creates authentic Welsh railway atmosphere. Include details such as diesel fuel tanks, inspection pits accessed via removable track panels, and storage areas for spare components. Depot staff figures add life—mechanics, cleaners, and supervisors engaged in daily maintenance activities.

Operational sessions benefit from varied duties reflecting typical Class 143 deployment. A realistic operating sequence might begin with departing Cardiff Canton for a Rhymney service (24 miles, 13 stations, 50 minutes), returning to Cardiff, working to Merthyr Tydfil (25 miles, 11 stations, 55 minutes), returning again, and completing a final Treherbert service (30 miles, 15 stations, 65 minutes) before returning to depot. This intensive diagram involving three different routes and 42 station stops accumulates 156 route miles whilst rarely exceeding 30 miles from base—exactly the intensive local utilization for which Class 143s were designed.

Timetable construction should incorporate the frequent service intervals characterizing Pacer operations. Valley Lines services operated 2-4 trains per hour on busy routes during peak periods, reducing to hourly or two-hourly off-peak. Devon branches typically provided hourly service throughout the day. This intensive frequency creates constant operational interest with units continuously arriving, departing, and passing at intermediate stations. The short route distances enable complete circuit times of 60-90 minutes, allowing operators to follow individual units through complete diagram cycles.

Sound-equipped models enhance operational realism through authentic audio experiences. Programme sound decoders to emphasize Cummins diesel characteristics: distinctive six-cylinder note at idle, increasing RPM during acceleration, steady cruise drone, and engine braking during deceleration. The Voith hydraulic transmission produces characteristic whine during gear changes, whilst pneumatic door operation and compressor cycling add operational atmosphere. The notorious wheel squeal negotiating curves—perhaps the most characteristic Pacer sound—should feature prominently when models traverse tight-radius track. Contemporary recordings of preserved Class 143s operating on heritage railways provide excellent reference material for realistic sound decoder programming.

Lighting effects deserve attention for enhanced realism. The directional headlights and tail lights should illuminate according to travel direction, switching automatically during reversing movements at terminal stations. Interior lighting visible through windows adds atmosphere during evening operations. Some modellers install flickering effects simulating failing fluorescent tubes—a characteristic Pacer phenomenon during later service years. Cab lights illuminating driver positions provide additional detail for close viewing.

Multiple-working capabilities enable interesting operational scenarios. Class 143s regularly operated in multiple with Class 142 and Class 150 units, creating mixed formations particularly common on Valley Lines services. Model these consists by coupling different DMU types, ensuring livery compatibility (e.g., matching Arriva Trains Wales or Transport for Wales schemes). The EFE Rail and Dapol Scharfenberg-style couplings enable realistic close coupling between compatible models, whilst the AAR multiple-working system allows prototype-accurate operation of mixed formations under single driver control.

Finally

The British Rail Class 143 represents far more than 25 bus-derived railbuses; these machines embodied a specific moment in British railway history when economic pressures demanded radical solutions to rolling stock shortages. The decision to mount bus bodies on railway underframes challenged conventional engineering wisdom yet delivered serviceable vehicles operating 37 years despite an intended 20-year design life. This remarkable longevity vindicated the fundamental railbus concept whilst highlighting the compromises inherent in automotive technology transfer to railway applications.

For railway historians, the Class 143 story provides fascinating insights into British Rail's final decade confronting simultaneous challenges: aging first-generation DMU fleet replacement, severe government spending constraints, industrial relations conflicts delaying new rolling stock introduction, and the approaching privatisation fragmenting unified procurement strategies. The Pacer programme demonstrated that creative engineering could extract acceptable performance from limited resources, though ultimate success depended on extensive modifications (Voith transmission conversions, Cummins engine installations) addressing initial design shortcomings.

The North East to South Wales operational transition reflected both transmission reliability crises and strategic fleet deployment optimizing asset utilization. The intensive Valley Lines operations from 1992 onwards extracted remarkable productivity from relatively modest rolling stock investment, validating the economic case for lightweight railbuses on suitable routes. However, the increasing passenger comfort expectations and accessibility requirements ultimately rendered even extensively-modified Class 143s obsolete regardless of mechanical viability.

The accessibility-driven withdrawal highlighted fundamental conflicts between heritage rolling stock and modern inclusive design requirements. The 2008 Rail Vehicle Accessibility Regulations represented society's determination that public transport must serve all citizens regardless of physical capabilities. Class 143s' high-floor bus-derived design proved incompatible with these requirements, demonstrating that even economically successful designs face obsolescence when societal expectations evolve. The lesson influenced subsequent DMU procurement emphasizing accessibility from initial design rather than attempting expensive retrofits.

The remarkable preservation rate—13 units surviving from a 25-unit fleet—demonstrates heritage railway appreciation for Pacer economics. Simple mechanical systems, automotive parts availability, and excellent fuel economy enable heritage railways to operate Class 143s more economically than conventional DMUs requiring specialist railway components and expensive maintenance. The Wensleydale Railway's successful operation of 143623 in regular passenger service validates this economic model, potentially ensuring preserved Class 143s operate decades beyond their mainline careers.

EFE Rail's exceptional OO gauge range and Dapol's forthcoming N gauge models provide model railway enthusiasts with comprehensive representation across Britain's two most popular scales. The diverse livery offerings spanning BR Provincial through privatisation operators enable authentic layout representation across 35 years of British railway evolution. The models' high detail quality, smooth performance, and thoughtful features including DCC compatibility and directional lighting create engaging operational experiences whilst accurately representing distinctive prototype characteristics.

Model railway hobbyists incorporating Class 143s into layouts gain versatile railbuses suitable for diverse branch line and suburban scenarios. The units' compact dimensions suit space-constrained layouts, the intensive operating patterns provide constant activity, and the controversial service history adds narrative interest beyond simple train running. Whether representing North East suburban services in BR Provincial blue, South Wales Valley Lines in Arriva turquoise, or Devon branches in GWR green, Class 143 models bring character and authenticity to any layout depicting British operations from 1985-2021.

The cultural legacy extends beyond railway enthusiasts. The Pacer family's notorious ride quality, distinctive appearance, and association with regional inequality in railway investment ensured widespread public awareness unusual for diesel multiple units. Media coverage of withdrawal—ranging from celebratory headlines ("Goodbye and good riddance") to nostalgic retrospectives—reflected ambivalent public sentiment toward these distinctive machines. Yet the preservation interest demonstrates affection transcending complaints about comfort, suggesting the Pacers occupied a unique position in British railway consciousness.

As the railway preservation movement continues evolving and heritage lines develop sustainable business models, the Class 143 fleet provides excellent case studies in economic heritage operation. The units demonstrate that preservation need not focus exclusively on glamorous steam locomotives or prestigious main line diesels—humble branch line railbuses offer equally valid historical significance whilst delivering superior economic performance. This pragmatic approach may influence future preservation priorities, ensuring representative examples of all significant vehicle types survive regardless of romantic appeal.

The British Rail Class 143 story ultimately celebrates pragmatic engineering, operational adaptation, and the unexpected longevity achievable through systematic maintenance and progressive modification. When conventional DMU procurement proved unaffordable and life-expired first-generation units demanded immediate replacement, British Rail's engineers conceived an unconventional solution delivering acceptable service despite inherent compromises. The sight and sound of a Class 143 accelerating from a Valley Lines station—Cummins diesel roaring and Voith transmission whining—represented the culmination of British bus engineering adapted to railway service. This synthesis of automotive and railway technologies ensured these distinctive railbuses remained familiar throughout British branch line operations for nearly four decades, earning their place in railway history through sheer persistence if not universal affection.

Frequently Asked Questions

How many British Rail Class 143 units were built and when?

Twenty-five two-car Class 143 units were constructed in Scotland between June 1985 and December 1986. Walter Alexander & Company fabricated aluminium bodies at Falkirk, Andrew Barclay Sons & Co. assembled complete vehicles at Kilmarnock, and BREL Derby completed final interior fitting. Original numbering 143001-143025 changed to 143601-143625 during late 1980s following transmission modifications. Two units (143613, 143615) were subsequently destroyed by fire, reducing the operational fleet to 23 units through final withdrawal in May 2021.

What made the Class 143 different from other Pacer variants?

Class 143 distinguished itself through entirely Scottish manufacture using Walter Alexander bus bodies rather than Leyland components used on Classes 141 and 142. The class featured microprocessor-based transmission control (versus Class 141's relay logic), wider body maximizing loading gauge dimensions, and improved ride quality through double dampers and wider spring bases. Auto-couplers enabled multiple working with Class 150 Sprinters. Railway-grade wiring replaced automotive standards, improving reliability. However, all Pacers shared the distinctive four-wheel rigid chassis creating characteristic harsh ride quality.

Why were Class 143s so unreliable initially?

Initial reliability problems stemmed from catastrophically unsuitable Self-Changing Gears mechanical automatic transmissions designed for road vehicle duty cycles. Railway operations involving sustained full-power running and frequent acceleration/deceleration overwhelmed these automotive gearboxes, causing endemic failures throughout 1987-1989. Locomotive-hauled substitutions became commonplace, severely compromising fleet availability. Comprehensive conversion to Voith T211r hydraulic transmissions between 1989-1990 transformed reliability from unacceptable to adequate, enabling the units to achieve their eventual 37-year service careers. The Cummins engine replacement further improved long-term maintainability following Leyland's closure.

Where did Class 143s typically operate during their service lives?

Class 143s began life at Heaton depot (Newcastle) operating North East services including Newcastle-Hexham, Newcastle-Sunderland, and routes to Berwick and Carlisle from 1985-1992. The entire fleet transferred to Cardiff Canton depot between 1991-1992, establishing the South Wales Valley Lines association that dominated their careers. Services included Cardiff-Rhymney, Cardiff-Merthyr Tydfil, Cardiff-Treherbert, and numerous valley routes. From December 2008, eight units operated Devon branches including Exmouth, Barnstaple, and Paignton from Exeter TMD. Bristol area services on the Severn Beach line provided additional variety throughout the 1990s-2000s.

Why were Class 143s withdrawn if they were still mechanically viable?

Rail Vehicle Accessibility Regulations 2008 implementing PRM-TSI requirements mandated wheelchair-accessible entrances, dedicated wheelchair spaces, and accessible toilet facilities by 1 January 2020. The Class 143's high-floor bus-derived design featuring stepped entrances proved incompatible with these requirements. Modification proposals from leasing company Porterbrook required cutting floor structures, removing seats for wheelchair spaces, and installing accessible toilets—changes costing millions whilst reducing capacity to perhaps 70-80 passengers per unit. No operator accepted this business case given available replacement options, despite the Class 143s' continued mechanical reliability and operational utility.

What was the final Class 143 service in regular passenger operation?

The final mainline Pacer service operated on 29 May 2021: the 22:02 Rhymney to Cardiff Central worked by unit 143601 coupled to a Class 150/2. This service concluded Transport for Wales operations following dispensation extensions due to delayed Class 769 tri-mode delivery. GWR had withdrawn its Devon-based Class 143s in December 2020. The final service attracted significant enthusiast attention, with Transport for Wales noting that 143601 and 143609 together had covered equivalent to five Moon trips during their working lives—approximately 2.4 million miles combined operational mileage.

Are any Class 143 units preserved and where?

Thirteen Class 143 units achieved preservation across multiple heritage railways—an exceptional 52% survival rate. The Wensleydale Railway operates 143623 in regular passenger service. The Tanat Valley Railway acquired 143601 (final mainline unit), 143616, and 143619, though listed all three for sale in 2025. The Llanelli & Mynydd Mawr Railway holds 143606, 143607, and 143612. Other locations include Nene Valley Railway (143602), Vale of Berkeley Railway (143603), Tarka Valley Railway (143617), Plym Valley Railway (143618), Keighley & Worth Valley Railway (143625), and Llanelli Railway Goods Shed Trust (143622). No Class 143 entered the National Railway Museum collection.

What OO gauge Class 143 models are currently available?

EFE Rail (Bachmann subsidiary) produces comprehensive OO gauge Class 143 models featuring Next18 DCC socket, 3-pole motor with twin flywheels, all-wheel drive, interior lighting, and directional head/tail lights. Available variants include 143603 (GWR Green, E83021), 143001 (BR Provincial Blue, E83022), 143624 (Arriva Trains Wales, E83023), 143608 (ATW Weathered, E83024), 143622 (Tyne & Wear PTE, E83025), 143606 (Valley Lines, E83026), and 143611 (GWR Weathered, E83027). RRP ranges £214.95-£224.95, with typical discounted pricing £143-£183. Realtrack Models' original 2013 range (RT143-211 to RT143-214) remains available secondhand at £170-£180 when found.

Are Class 143 models available in N gauge?

Dapol announced comprehensive N gauge Class 143 tooling in 2024 with expected delivery Q2 2026. Announced variants include 143001 (BR Provincial, 2D-143-001), 143621 (FGW Local Lines, 2D-143-002), 143620 (GWR Green, 2D-143-003), 143602 (Transport for Wales, 2D-143-004), and 143609 (Arriva Trains Wales, 2D-143-005). RRP is £170 (DCC Ready) and £220 (DCC Fitted), with pre-order discounts reaching £144.50 and £187 respectively. Models will feature Scharfenberg-style couplings compatible with Dapol's Class 142, 144, 153, and 156 models, enabling authentic mixed formations.

What coaching stock should I couple with Class 143 models?

Class 143s regularly operated in multiple with other DMUs rather than hauling coaching stock. Authentic consists include pairing with Class 142 Pacers (particularly on Valley Lines services), Class 150 Sprinters (the final mainline service coupled 143601 with a Class 150/2), and occasionally Class 153 or 156 units. Single 2-car units represented normal operation on branch lines, whilst paired units (4 cars total) or mixed DMU formations appeared during peak periods on busy routes. Class 143s never hauled locomotive-hauled coaching stock in normal passenger service, though they occasionally received locomotive assistance during failures.

Why were Pacers called "Nodding Donkeys"?

The "Nodding Donkey" nickname derived from the harsh vertical bouncing motion caused by the four-wheel rigid chassis arrangement. Unlike conventional DMUs riding on two four-wheel bogies per vehicle, each Class 143 car employed single axles at each end—a long-wheelbase configuration unable to accommodate track irregularities smoothly. Negotiating curves, points, and uneven track created severe ride harshness that passengers compared to riding a bucking donkey. Other unflattering nicknames included "Bouncy Buses" and "Spam Tins." The ride quality remained characteristic throughout service life despite refurbishment efforts, as correcting it would have required complete chassis redesign.

How fuel-efficient were Class 143 units?

Class 143s achieved remarkable fuel efficiency around 10 miles per gallon—exceptional for passenger trains and substantially better than conventional DMUs. The lightweight construction (under 25 tonnes per vehicle versus 30-35 tonnes for conventional DMUs), relatively modest power requirements (460 horsepower total versus 600-800 for Sprinters), and efficient Cummins diesel engines following 1990s replacement all contributed to economical operation. This fuel efficiency represented a primary economic justification for railbus deployment on lightly-trafficked routes, enabling British Rail and subsequent operators to maintain services that would have proven uneconomical with heavier, thirstier conventional units.

What happened to scrapped Class 143 units?

Scrapping commenced during 2021 for units not entering preservation. Ten units faced cutting torches at specialist scrapyards including those handling railway rolling stock disposal. Components including engines, transmissions, and electrical equipment were typically removed for spares supporting preserved examples or sold for scrap value. Aluminium bodies commanded significant recycling value given metal prices. The underframes and mechanical components went for ferrous metal scrap. Two units (143613, 143615) were scrapped following fire damage during operational service in 2004-2005. The relatively high preservation rate meant fewer than half the fleet faced scrapping—unusual for modern DMU classes where preservation typically claims 5-10% of production.
