The British Rail Class 104 represents one of the most distinctive first-generation diesel multiple units, with 302 vehicles built by Birmingham Railway Carriage and Wagon Company between 1957 and 1959. These elegant units served British Railways for 36 years across diverse routes from Manchester's celebrated "Spa Line" to Buxton, Yorkshire suburban networks, North Eastern services, and ultimately Scottish West Highland extensions. The characteristic curved BRCW cab front, twin Leyland 680 diesel engines producing 150hp each, and unique retention of varnished wooden interior panelling throughout their careers distinguished the Class 104 from contemporary Derby and Metro-Cammell products.
For model railway enthusiasts, the Class 104 offers compelling prototype appeal spanning BR green through Rail Blue, Blue/Grey, and Network SouthEast liveries. After six decades without ready-to-run representation—the only previous model being Tri-ang's TT gauge offering in the late 1950s—Heljan finally released a comprehensive OO gauge range in 2024-2025. Nine distinct models covering two-car and three-car formations across multiple livery periods now enable accurate recreation of Britain's diesel transition era through to early privatisation.
From inaugural services on Manchester suburban routes in June 1957 to final Thames Line workings in October 1993, the Class 104 proved Samuel Johnson's maxim that good design and systematic maintenance could deliver remarkable service longevity. The class's association with specific routes—particularly the Manchester-Buxton corridor and the celebrated "Mexican Bean" Scottish tourist services—created operational stories that resonate with railway enthusiasts seeking authentic period atmosphere for layout representation.
Quick Takeaways
- 302 vehicles constructed: Birmingham Railway Carriage and Wagon Company built six different vehicle types between 1957-1959 under British Railways' 1955 Modernisation Plan
- Twin Leyland 680 engines: Each power car carried two 150hp horizontal six-cylinder diesel engines with Self Changing Gears R14 four-speed epicyclic transmissions
- 36-year service career: From June 1957 inaugural Manchester suburban services until October 1993 Thames Line final workings, spanning green through Network SouthEast eras
- Distinctive BRCW styling: Characteristic curved cab front with unique varnished wooden interior panelling retained throughout service life, distinguishing from Derby/Metro-Cammell contemporaries
- Geographic diversity: London Midland Region Manchester-Buxton "Spa Line," North Eastern Yorkshire suburban networks, Scottish West Highland tourist services, and Network SouthEast Thames operations
- Comprehensive Heljan OO range: Nine models released 2024-2025 covering BR green, Rail Blue, Blue/Grey, ScotRail "Mexican Bean," and Network SouthEast liveries in 2-car and 3-car formations
- Twelve preserved survivors: Heritage railways including Llangollen Railway, East Lancashire Railway, and North Norfolk Railway maintain operational examples demonstrating authentic 1960s railway travel
Historical Background and Context
The genesis of the British Rail Class 104 lay in the ambitious 1955 Modernisation Plan—a £1.2 billion programme that fundamentally transformed British Railways through wholesale dieselisation. The plan identified requirements for over 4,300 diesel multiple unit vehicles to replace steam traction on branch lines and suburban routes, creating unprecedented opportunities for British railway engineering firms to demonstrate innovative designs addressing specific operational needs.
Birmingham Railway Carriage and Wagon Company, established in 1855 and located at Smethwick Works in the West Midlands, had developed extensive expertise building diesel railcars for export markets including Egypt, New Zealand, and Nigeria during the 1950s. This international experience positioned BRCW advantageously when British Railways issued DMU contracts, enabling the company to become the second-largest private manufacturer after Metro-Cammell during the Modernisation Plan's implementation.
British Railways awarded BRCW an order in June 1956 for 393 vehicles, though 91 were subsequently reallocated to Derby Works for Class 108 production using different mechanical specifications. Construction commenced at Smethwick Works in April 1957, with mechanical components supplied by the Drewry Car Company. The manufacturing programme proceeded systematically through March 1959, with completed vehicles entering service progressively as quality control testing and commissioning work concluded.
The final fleet of 302 vehicles comprised six distinct types addressing different operational requirements. Seventy-one Driving Motor Brake Seconds (DMBS) provided standard power car configuration with brake compartments. One hundred eight Driving Motor Composite Lavatories (DMCL) offered first and second class accommodation with lavatory facilities in power cars. Fifteen Driving Trailer Composite Lavatories (DTCL) enabled non-powered driving vehicles for flexible formations. Fifty-six Trailer Composite Lavatories (TCL), twenty-six Trailer Brake Second Lavatories (TBSL), and twenty-six Trailer Second Lavatories (TSL) completed the complement, creating remarkable formation flexibility.
Insider Tip: Regional Formation Differences
London Midland Region and North Eastern Region received dramatically different Class 104 allocations reflecting contrasting operational philosophies. LMR took 188 vehicles forming 56 three-car sets plus 10 two-car sets for intensive Manchester-area suburban services with frequent stops. NER specified 114 vehicles configured as 26 four-car sets plus 5 two-car sets for longer-distance services including York-Harrogate routes requiring greater seating capacity. Modellers recreating authentic regional operations must match formation types to geographic areas and service patterns.
The distinctive BRCW styling featured a characteristic curved cab front that became the company's signature design element, shared with the more powerful Class 110 which employed Rolls-Royce engines rated at 180hp versus the 104's 150hp Leyland units. This elegant profile created immediately recognisable visual identity whilst maintaining aerodynamic efficiency and driver visibility essential for intensive suburban operation with frequent station stops.
Unlike most contemporary DMU classes which featured Formica interior panelling reflecting 1950s modernist aesthetics, Class 104 vehicles retained varnished wooden panelling throughout passenger saloons. This distinctive specification—unusual for the Modernisation Plan era—created warm, traditional atmosphere that many passengers preferred over synthetic materials. Remarkably, surviving preserved vehicles still showcase these original wooden interiors, providing authentic examples of 1960s railway travel conditions.
The inaugural Class 104 service operated on 17 June 1957, transforming Manchester suburban operations through modern diesel traction replacing aging steam-hauled suburban formations. The enthusiastic public reception—passengers appreciated smooth acceleration, clean interiors, and elimination of steam locomotive smoke and grime—validated British Railways' dieselisation strategy whilst demonstrating that DMUs could deliver superior service quality compared to traditional locomotive-hauled trains on appropriate routes.
Design and Technical Specifications
The engineering excellence of the British Rail Class 104 centred on proven Leyland 680 horizontal six-cylinder diesel engines, each producing 150hp at 1,800rpm for a total of 300hp per power car. These robust 11.1-litre direct-injection units featured four-stroke overhead-valve design with seven crankshaft bearings and two detachable cylinder heads covering three cylinders each. The horizontal installation beneath passenger saloon floors enabled low-profile configuration maximising interior space whilst maintaining accessibility for maintenance.
Power transmission employed Self Changing Gears R14 four-speed epicyclic gearboxes—sophisticated units providing smooth automatic gear changes without torque interruption. AEC F239C final drive units transmitted torque via cardan shafts to the inner axle of the nearest bogie, creating a mechanical transmission system that proved remarkably reliable throughout the class's 36-year service career. The epicyclic design minimised gear noise and vibration, contributing to passenger comfort that distinguished first-generation DMUs from earlier diesel railcar experiments.
The underframe construction employed integral steel framing with 16 s.w.g. steel panelling and aluminium dovetail floor sheets covered with cork and linoleum. This robust structure provided 57ft 6in overall length—shorter than many contemporary DMU designs but offering advantages for operating through tight radius curves on branch lines and older suburban infrastructure. The compact dimensions proved particularly valuable on the Manchester-Buxton "Spa Line" where sharp curves and steep gradients demanded careful weight distribution and adhesion management.
Standard BR DMU swing bolster bogies with Timken roller-bearing axleboxes provided smooth riding characteristics and low maintenance requirements. The bogies featured coil spring primary suspension with swing link secondary suspension, creating a comfortable ride whilst maintaining stability at the 70mph maximum speed. Contemporary accounts praised the Class 104's riding quality as superior to many steam-hauled suburban formations, particularly on poorly-maintained branch line track.
The braking system utilised Gresham & Craven quick-release vacuum brakes with two Clayton exhausters per power car, providing reliable stopping performance and excellent modulation for smooth station stops. The Blue Square coupling code indicated compatibility with numerous other first-generation DMU classes including Classes 101, 107, and 108, enabling mixed formations during later service years when fleet rationalisation demanded operational flexibility.
Technical Innovation: Suspension Modifications
Newton Heath depot's fleet received significant suspension modifications circa 1969-70 addressing lateral movement concerns at speeds above 50mph on West Coast Main Line sections. Engineers removed swing links and mounting brackets, adding additional trapezium-shaped plates to reduce lateral oscillation. Ten three-car sets received these alterations specifically for Manchester-Blackpool services requiring sustained higher speeds. Preserved examples showing these modifications demonstrate period-specific technical evolution that modellers can accurately represent through careful prototype research.
The electrical system provided 50V DC auxiliary power for interior lighting, heating, and control circuits, generated by engine-driven dynamos with battery backup ensuring continued operation during engine shutdown periods. Cab instrumentation included speedometer, brake pressure gauges, engine temperature monitors, and ammeter, whilst driver controls featured power controller, brake valve, horn, and various auxiliary switches arranged for efficient single-person operation.
Passenger accommodation standards reflected 1950s British Railways specifications. Second class compartments featured upholstered bench seating arranged 2+2 across the vehicle width, whilst first class compartments provided individual seats with greater cushioning and legroom. Large windows with opening top sections ensured adequate ventilation before air conditioning became standard, whilst interior heating pipes along window bases maintained comfortable temperatures during winter operation.
The distinctive two-character route indicator boxes fitted to cab fronts at construction proved operationally problematic—limited character combinations couldn't adequately express increasingly complex service patterns. British Railways systematically removed these indicators during 1970s overhauls, filling the resulting apertures and repainting cab fronts. This modification created easily-recognisable visual differences between early and late-service appearance, enabling modellers to accurately date prototype photographs and match model specifications to specific periods.
Original construction included asbestos spray insulation throughout vehicle bodies—standard practice for the era's fireproofing and thermal insulation requirements. British Railways implemented comprehensive asbestos removal programmes during 1970s major overhauls, stripping vehicles to bare frames and installing alternative insulation materials meeting updated safety standards. This extensive work extended service lives whilst addressing health concerns that emerged decades after original construction.
Service History and Operations
The British Rail Class 104 entered revenue service on 17 June 1957, transforming Manchester suburban operations through the "Manchester Part 1" scheme. Fifty-two three-car sets replaced steam-hauled formations on routes radiating from Manchester London Road and Central stations to Buxton, Marple, New Mills, and Blackpool. The immediate success—passengers enthusiastically embraced smooth diesel operation free from steam locomotive smoke and cinders—validated British Railways' dieselisation strategy whilst demonstrating DMUs' operational advantages over traditional locomotive-hauled trains on intensive suburban services.
The Manchester-Buxton "Spa Line" became synonymous with Class 104 operation throughout the vehicles' service careers. The challenging route featured steep Pennine gradients climbing to 1,000 feet elevation, sharp curves restricting speeds, and exposed sections where winter weather created demanding operating conditions. The lightweight Class 104 chassis proved ideally suited for these characteristics, maintaining schedules that heavier locomotives struggled to achieve whilst delivering fuel economy benefits that justified continued operation through decades of changing railway economics.
Birmingham area operations commenced under the "Part 2" scheme with ten two-car sets allocated to Monument Lane, Tyseley, and Cockshute depots. These vehicles served local routes including Birmingham-Redditch, Birmingham-Lichfield, and various Black Country services connecting industrial communities with the conurbation. Four additional three-car sets stationed at Derby, Nottingham, and Leicester provided similar suburban coverage across the East Midlands, demonstrating the class's versatility handling diverse service patterns.
North Eastern Region vehicles entered service from June 1958, with initial allocations including York, Darlington, and Hull Botanic Gardens depots. The distinctive four-car formation preference reflected NER's operational philosophy favouring longer trains with greater seating capacity rather than LMR's frequent service approach using shorter formations. York-Harrogate services commenced with Class 104 four-car sets from August 1958, providing fast suburban connections that proved immensely popular with commuters and leisure travellers.
The North Tyneside Loop's de-electrification in 1967 created unexpected opportunities for expanded Class 104 deployment. North Eastern Region transferred additional sets to South Gosforth and other Newcastle-area depots, replacing the former LNER electric multiple units that had worked suburban services since 1904. This significant redeployment demonstrated the class's adaptability addressing diverse operational requirements whilst maintaining service quality through systematic maintenance programmes.
Operational Insight: The "Mexican Bean"

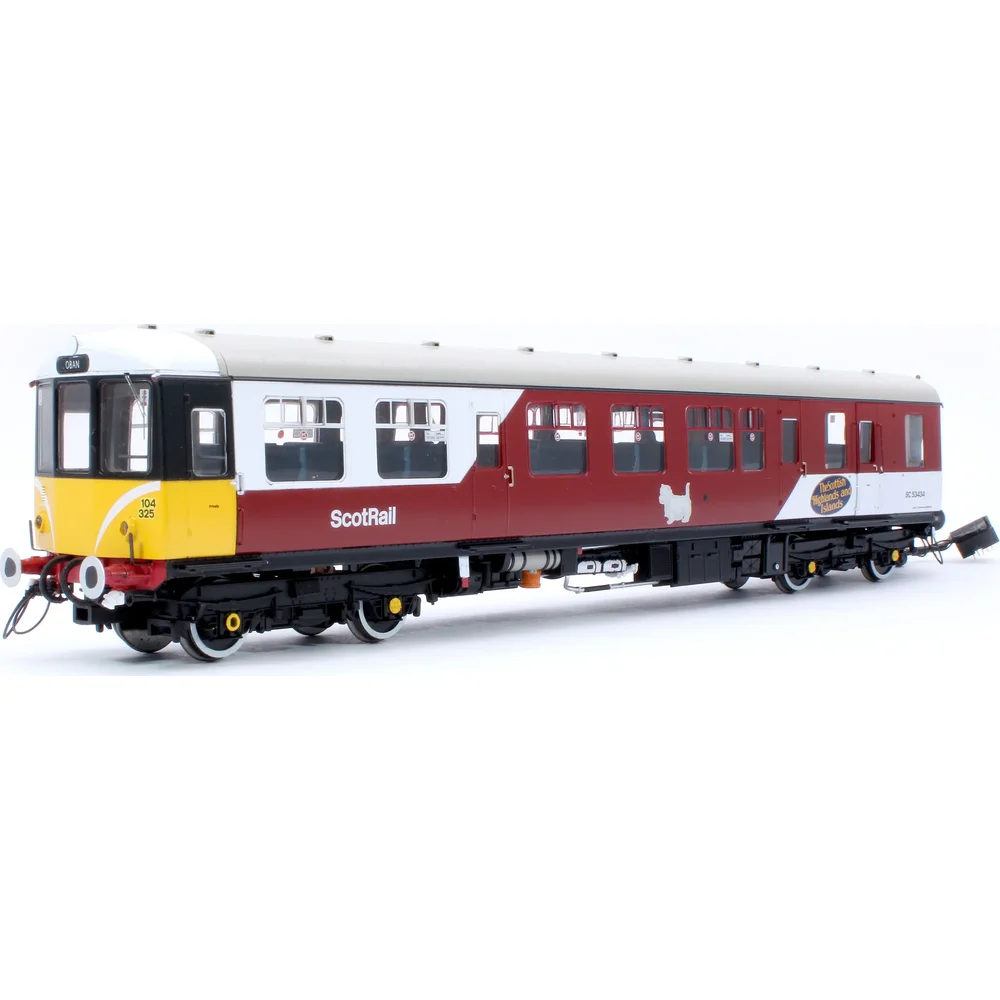

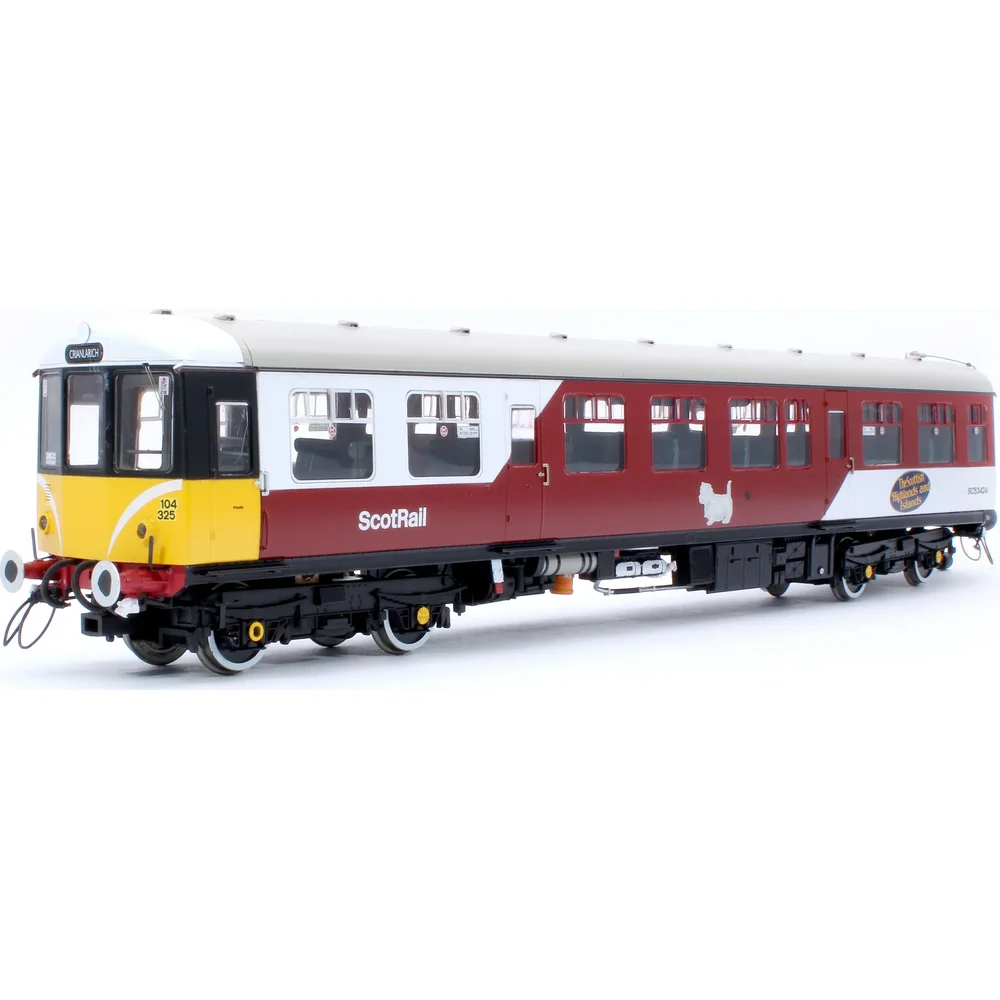

Scottish Region's most celebrated Class 104 working featured set 104325 (vehicles SC53424/SC53434) painted in striking maroon and white livery with black window surrounds, earning the affectionate nickname "Mexican Bean." This distinctive two-car formation operated summer Oban to Crianlarich tourist services from 1985 to 1987, featuring prominently on tourism promotional material showcasing Scotland's spectacular West Highland scenery. The livery included Eastfield depot's "Scotty Dog" logo, creating a unique visual identity that Heljan commemorated with catalog number 1456 in their OO gauge range.
Newton Heath depot's Blackpool service fleet received distinctive white bodyside stripes complementing Rail Blue livery, creating eye-catching appearance for the popular Manchester-Blackpool holiday traffic. Thirteen three-car sets carried this specification alongside suspension modifications improving ride quality at higher speeds over West Coast Main Line sections between Wigan and Preston. Contemporary photographs show these vehicles operating alongside unmodified blue sets, creating operational variety that adds visual interest to layout representation.
Scottish operations commenced in early 1984 following a serious fire that damaged Ayr depot's resident Class 107 and 101 fleets. Six Class 104 power cars transferred north, initially operating Ayrshire local services before expanding to West Highland routes. The Glasgow-Oban corridor proved particularly suitable for Class 104 operation, with lightweight construction advantageous on lightly-built infrastructure whilst passenger capacity matched typical loadings outside peak holiday periods.
Allocation changes reflected evolving traffic patterns and infrastructure developments throughout the 1960s-1980s. April 1966 saw Cockshute lose its DMU allocation with sets transferring to Monument Lane and Longsight, whilst January 1967 witnessed substantial movements from Longsight to Newton Heath related to West Coast Main Line electrification works. The 1984 Scottish transfers represented the class's final geographic expansion, with Chester becoming the ultimate northern depot operating the type before May 1990 withdrawals commenced.
Thames Line services represented the class's final passenger duties, operating Gospel Oak-Barking routes under Network SouthEast administration until January 1992. Ten vehicles received NSE livery during 1988-89 overhauls at Doncaster Works, creating distinctive red, white, and blue appearance that contrasted dramatically with the faded Rail Blue survivors still working alongside them. The sight of freshly-painted NSE units operating with decrepit blue examples epitomised the transitional nature of British Railways' final years before privatisation.
Final revenue passenger services operated in October 1993, marking 36 years continuous Class 104 operations across three railway eras and multiple livery schemes. Departmental use extended careers slightly further—converted Sandite vehicles continued operating in Scotland until 1989, whilst Derby Railway Technical Centre retained two vehicles for auto-gear experiments until February 1991, finally concluding the class's remarkable service history.
Withdrawal and Preservation Legacy
The withdrawal history of the British Rail Class 104 commenced during the late 1980s as British Rail modernised regional fleets with second-generation DMUs including Sprinter and Pacer units. Unlike some contemporary first-generation classes that received life-extension refurbishment programmes, the Class 104 was never included in BR's comprehensive DMU refurbishment schemes. The window arrangement created structural corrosion issues that made extensive rebuilding uneconomical compared to purchasing new units, effectively sealing the class's fate once newer traction became available.
Scottish operations ceased in April 1989 with Sprinter introduction, withdrawing the celebrated "Mexican Bean" and companion units that had operated West Highland tourist services. Chester depot's fleet faced withdrawal by May 1990, eliminating Class 104 presence from northern England operations and concentrating remaining survivors on Network SouthEast services around London. The progressive contraction reflected British Rail's systematic fleet rationalisation as privatisation planning accelerated.
Network SouthEast operations concluded in January 1992 when Gospel Oak-Barking services received newer traction. Thames Line services continued until October 1993, marking the final revenue passenger workings after 36 years. The ultimate survivors operated in increasingly decrepit condition—contemporary accounts describe faded paintwork, mismatched replacement parts, and general neglect as maintenance resources prioritised newer stock. Yet even in twilight condition, the distinctive BRCW styling and varnished wooden interiors retained character that endeared the class to enthusiasts documenting Britain's railway transition.
The preservation movement recognised Class 104 significance early, with a bulk tender process in 1992 enabling heritage railways to acquire vehicles directly from British Rail before scrapyard dispersal. Twelve vehicles entered preservation through this programme, with a thirteenth (former Sandite car M54182) rescued in 2000. One vehicle (50556) was subsequently scrapped in 2020 at East Lancashire Railway due to extremely poor structural condition, reducing the preserved fleet to twelve survivors.
Preservation's Success Story
Unlike many withdrawn DMU classes that vanished entirely, the Class 104 preservation record demonstrates railway heritage movement maturity. The Llangollen Railway's M50454+M50528 power twin has operated continuously since 1994, missing only one season throughout 30 years—remarkable reliability testament to BRCW's robust construction. The North Norfolk Railway's M56182 restoration won silver at the 2024 Railcar Association Awards, validating the enormous effort volunteers invest maintaining these historically significant vehicles. These operational examples enable modern enthusiasts to experience authentic 1960s railway travel impossible through static museum displays.
The Llangollen Railway operates the most consistently-used Class 104 preservation set—power twin M50454+M50528 in Rail Blue livery has provided regular passenger services since 1994. This remarkable operational record demonstrates both the vehicles' fundamental reliability and the dedicated volunteer workforce maintaining them to exacting safety standards. The distinctive varnished wooden interior provides authentic 1960s atmosphere impossible to recreate through modern replicas, making passenger journeys genuine time-travel experiences rather than mere nostalgic exercises.
The East Lancashire Railway has emerged as the primary Class 104 preservation centre, holding seven vehicles including the unique TCL M59137—the sole survivor of this trailer type from the 302-vehicle fleet. Power twin M50455+M50517 entered ELR service at the November 2017 DMU Gala following twelve years restoration at Churnet Valley Railway. Vehicle M50517 currently awaits bogie overhaul, whilst stored vehicles including Eastern Region example E59228 (the only surviving NER Class 104) represent future restoration projects as resources permit.
The North Norfolk Railway's DTCL M56182 restoration exemplifies volunteer dedication preserving railway heritage. Father-son team Paul and Chris Moxon invested 9½ years returning this driving trailer to original BR Green with "cat's whiskers" lining, achieving silver at the 2024 Railcar Association Awards and Highly Commended at the Heritage Railway Association Awards. Power car M50479 undergoes restoration to eventually form an authentic two-car power-trailer set, recreating the North Eastern Region formation type that distinguished NER Class 104 operations from London Midland three-car sets.
The engineering legacy extends beyond preserved vehicles. The Class 104 demonstrated that compact, lightweight DMU designs could deliver reliable service across diverse routes from intensive suburban operations through challenging mountainous territory. This operational flexibility influenced subsequent BR DMU specifications, whilst the distinctive BRCW styling established design principles that informed later multiple unit development. The retention of traditional wooden interior panelling—bucking 1950s modernist trends—proved passengers valued traditional aesthetics over synthetic materials, lessons that informed later refurbishment programmes.
Modelling Significance and Scale Replications
The British Rail Class 104 presents exceptional modelling significance spanning British Railways' diesel transition era through privatisation preparations, combined with distinctive visual characteristics distinguishing it from ubiquitous Derby and Metro-Cammell products. For railway modellers seeking authentic period atmosphere, the characteristic BRCW curved cab front creates immediately-recognisable prototype identity whilst the diverse livery evolution—BR Green through Rail Blue, Blue/Grey, ScotRail, and Network SouthEast—enables layout representation across four decades.
The modelling landscape remained frustratingly barren for six decades despite the class's historical importance. Tri-ang produced a TT gauge Class 104 in the late 1950s—contemporary with the prototype—but this long-discontinued model serves only as historical curiosity. No OO gauge manufacturer—neither Bachmann, Hornby, Dapol, nor Graham Farish—offered Class 104 representations through the class's entire service life and two decades beyond withdrawal, leaving modellers of Manchester, Yorkshire, North Eastern, and Scottish operations without a fundamental DMU type essential for authentic layout operation.
This inexplicable neglect ended when Heljan announced Class 104 tooling development in 2021, commencing a four-year design and manufacturing programme that delivered the first models to enthusiasts during 2024. The company's approach demonstrates exemplary commitment to prototype authenticity—rather than producing generic models with running number variations, Heljan created comprehensive tooling capturing the numerous detail differences characterising the class throughout its 36-year evolution.

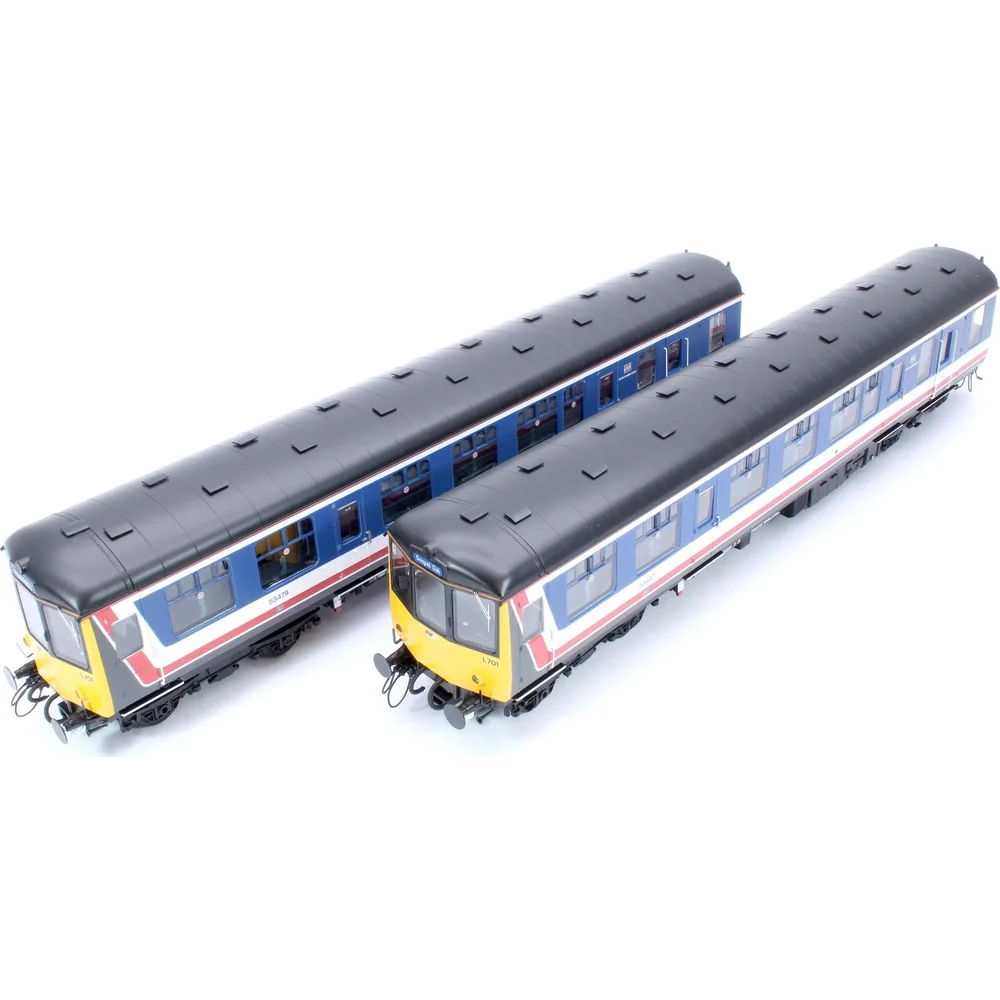

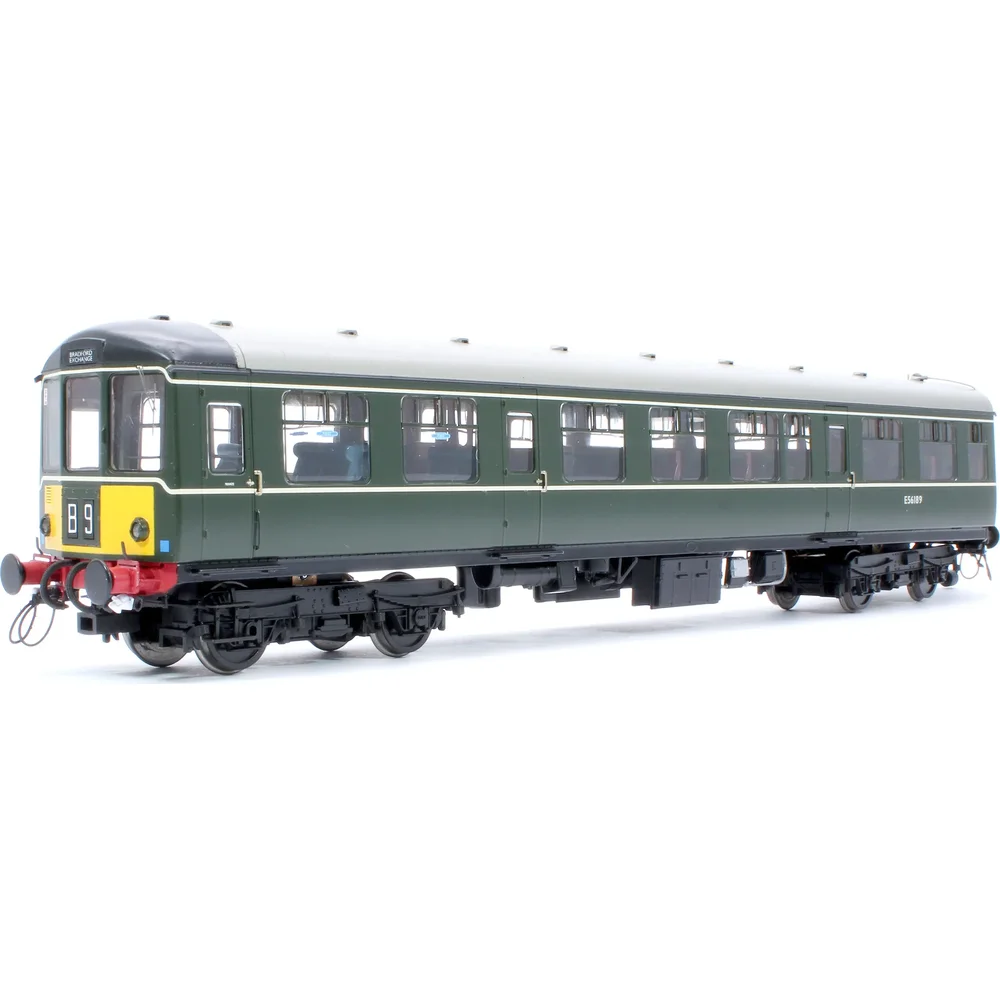

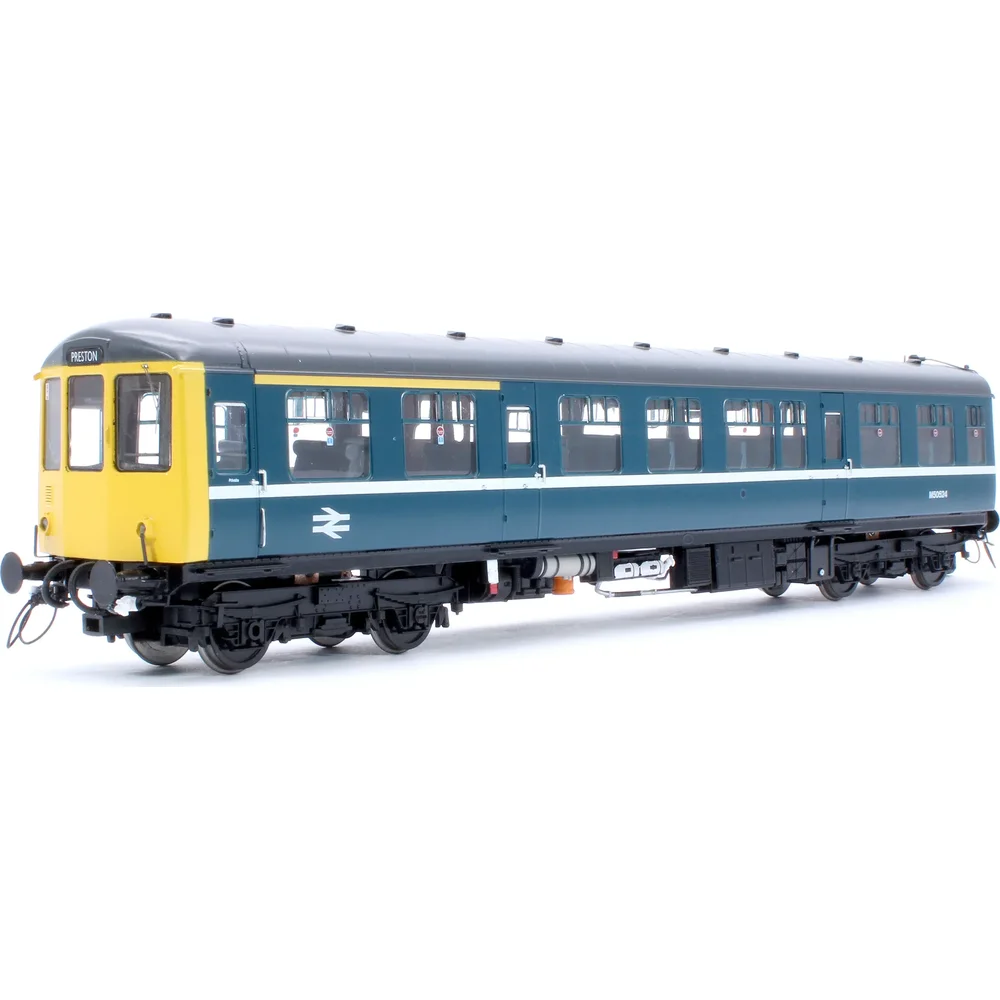

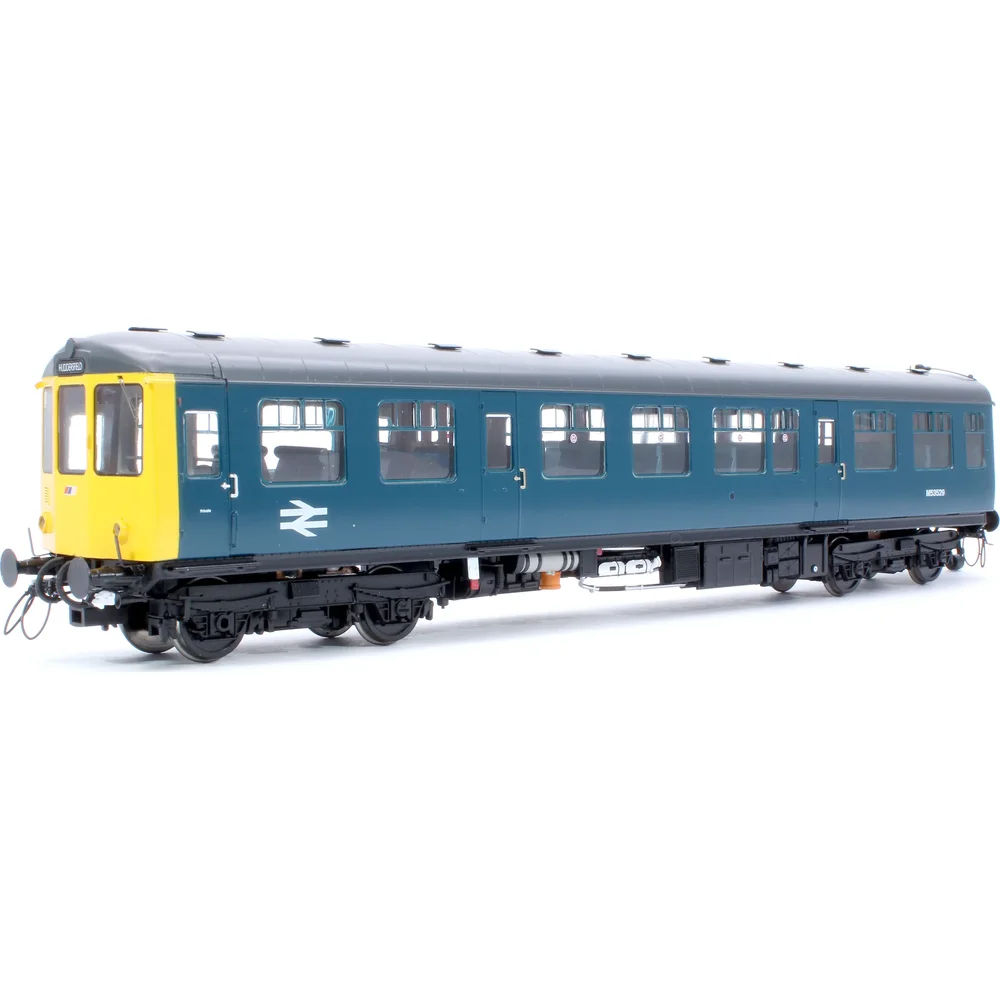

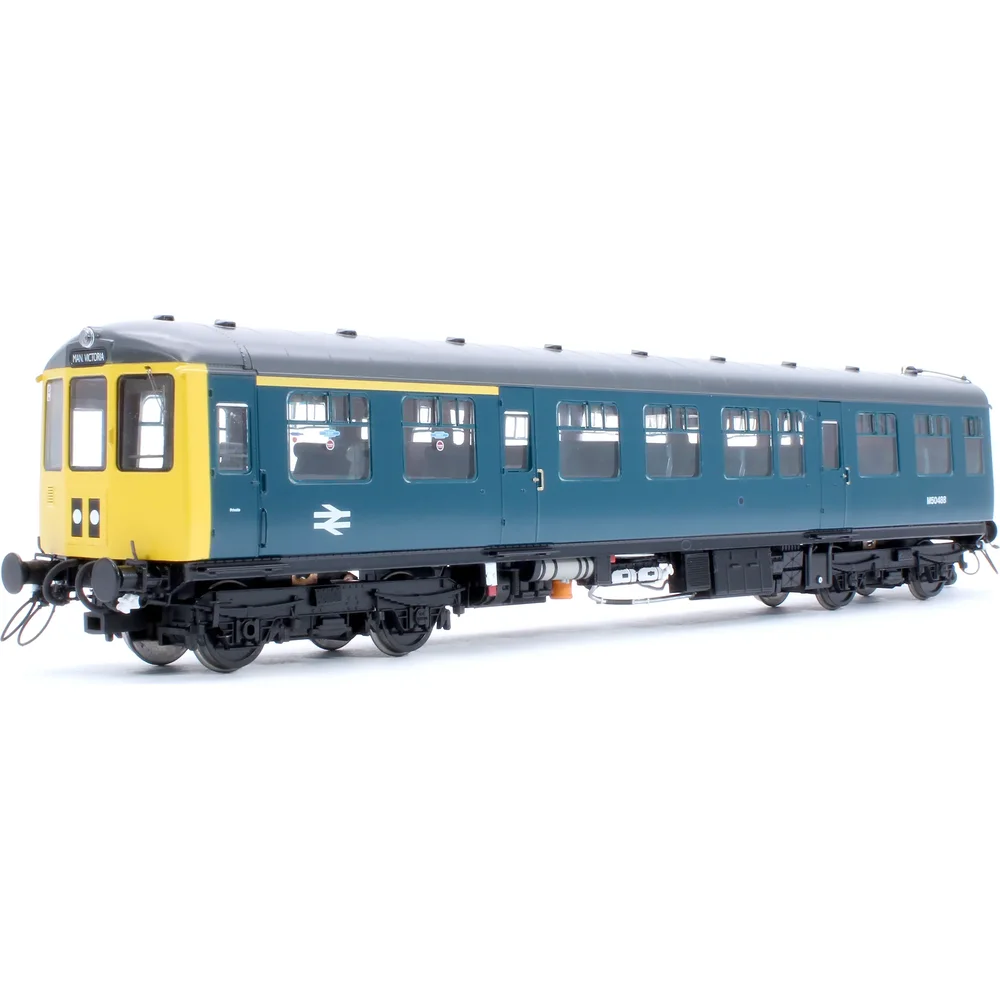

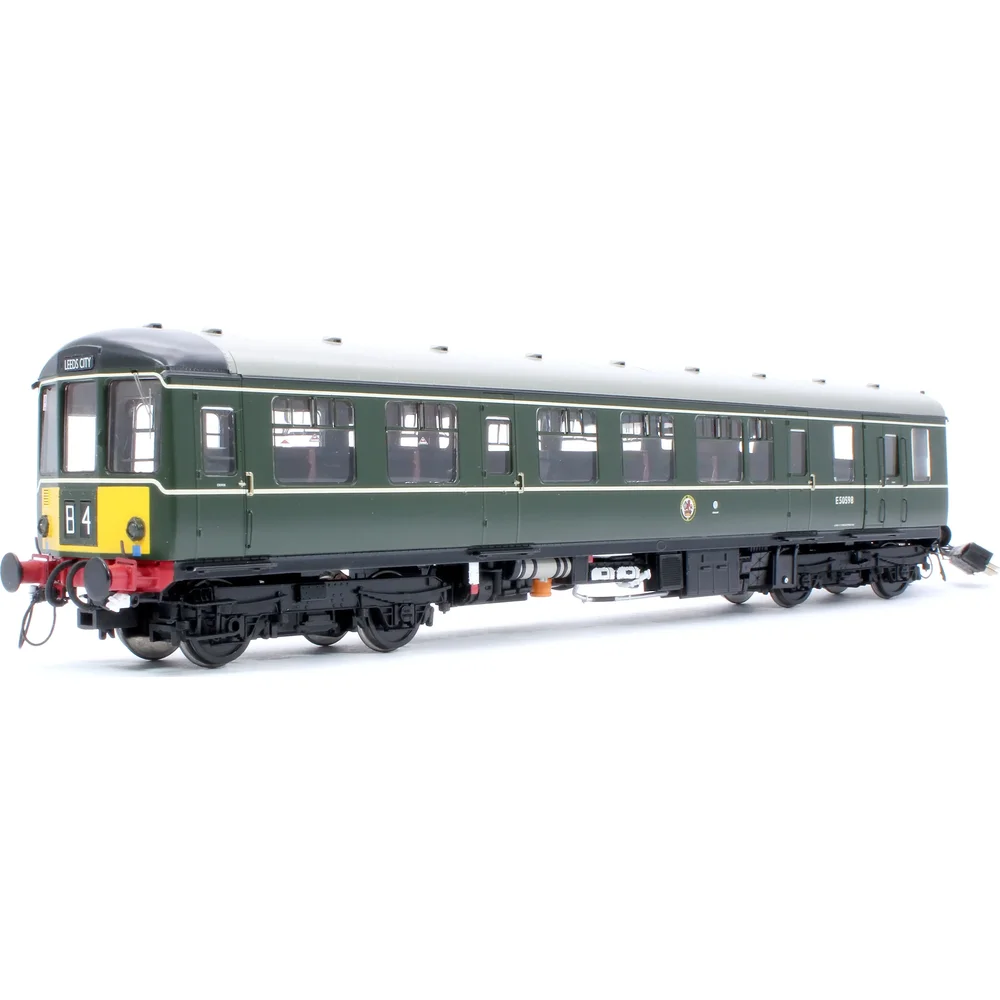

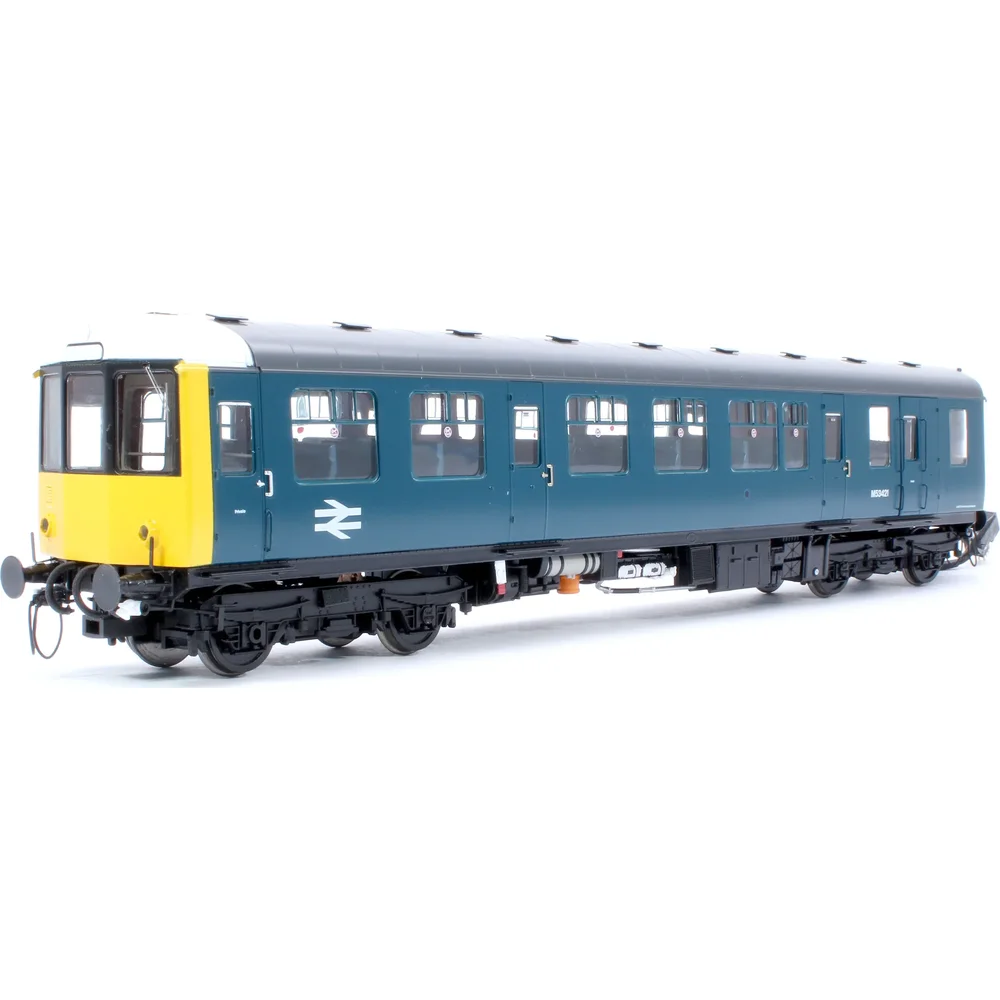

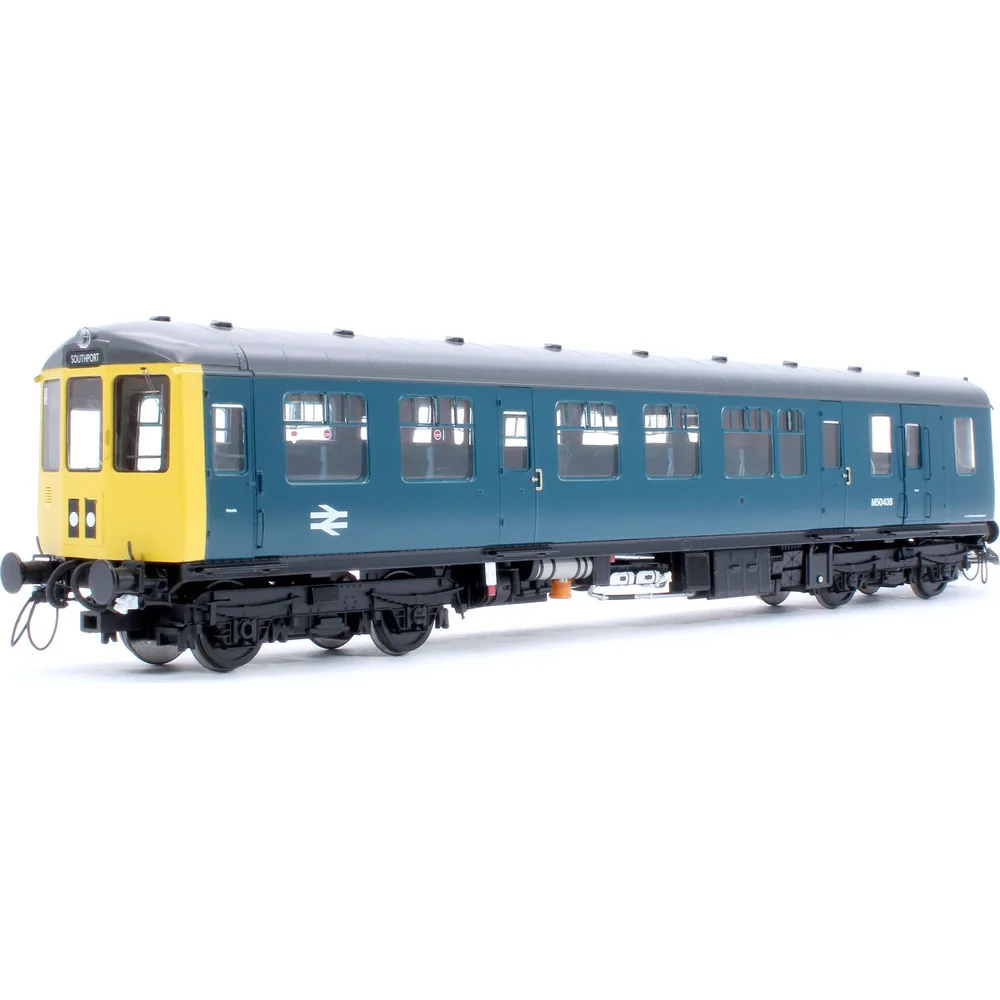

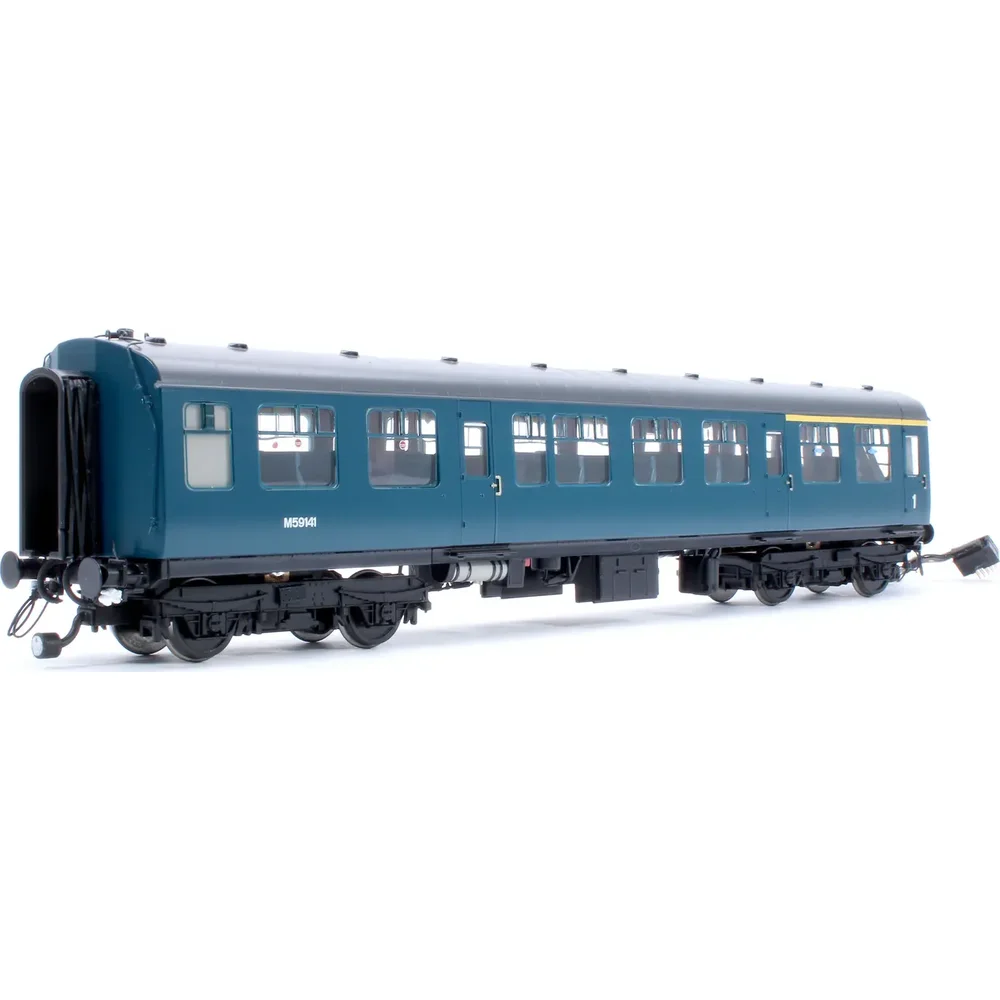

Heljan's OO gauge range comprises nine distinct models organised into coherent series representing both two-car and three-car formations across the class's complete livery evolution. Catalog numbers 1450-1458 encompass BR Green with early Lion and Wheel emblem, BR Green with coaching stock roundel and speed whiskers, BR Green with small yellow panels, Rail Blue with full yellow ends, Rail Blue with distinctive Blackpool white stripe, Rail Blue with NSE flash weathered finish, ScotRail "Mexican Bean" maroon and white, Blue/Grey set BX487, and Network SouthEast set L701.
The technical execution impresses throughout Heljan's development. A low-profile mechanism positioned beneath one vehicle per set drives all wheels through comprehensive pickup from every axle, ensuring smooth operation at realistic crawling speeds appropriate for station work. The five-pole motor with flywheel provides powerful yet controllable performance, whilst the 21-pin DCC decoder socket with pre-fitted speaker enables straightforward digital conversion or factory-fitted sound installation options.
Detail quality reaches impressive standards throughout the models. Switchable interior and exterior lighting includes directional headlights with independent control, illuminated destination displays, illuminated headcodes, and cab lighting creating authentic operational atmosphere. Separately-applied components include door handles, exhausts, handrails, lamp irons, and roof piping providing visual depth, whilst factory-fitted glazing reveals detailed interior seating, luggage racks, and guards compartments visible through windows.
Advanced Modelling: Authentic Detail Variations

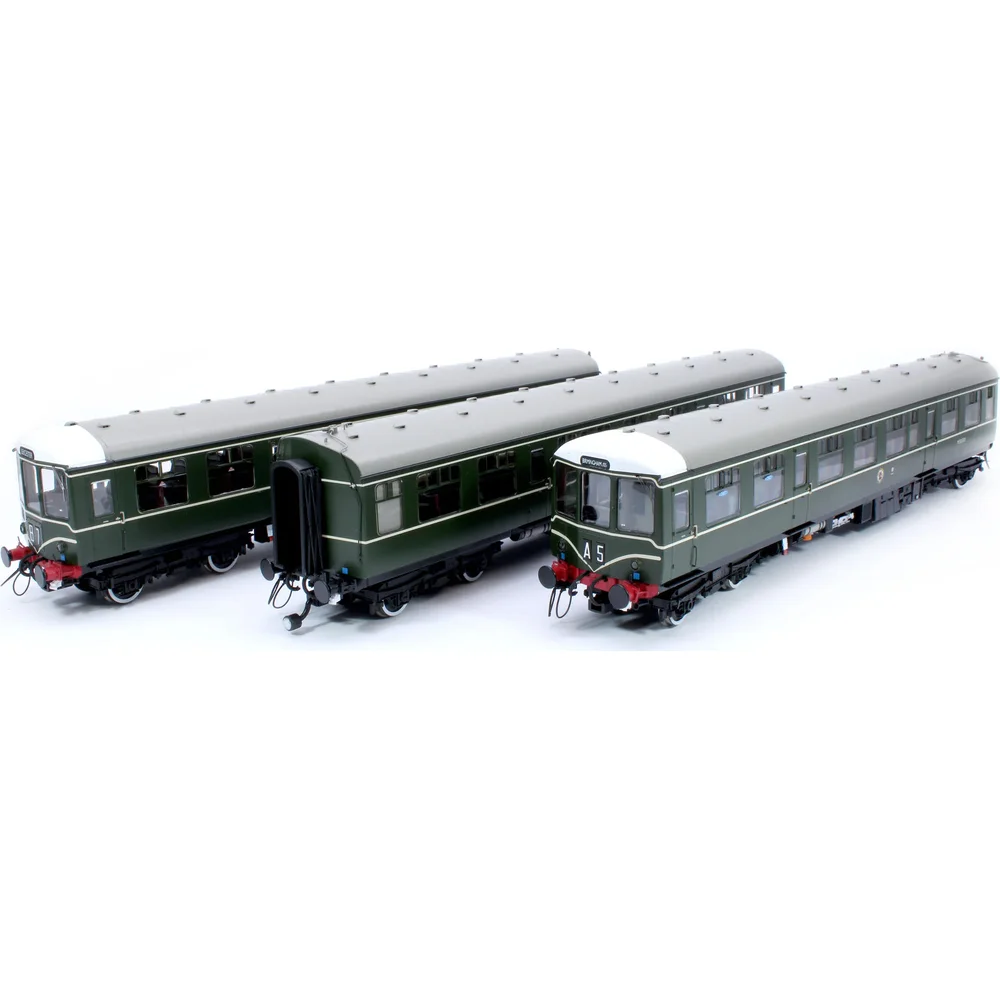

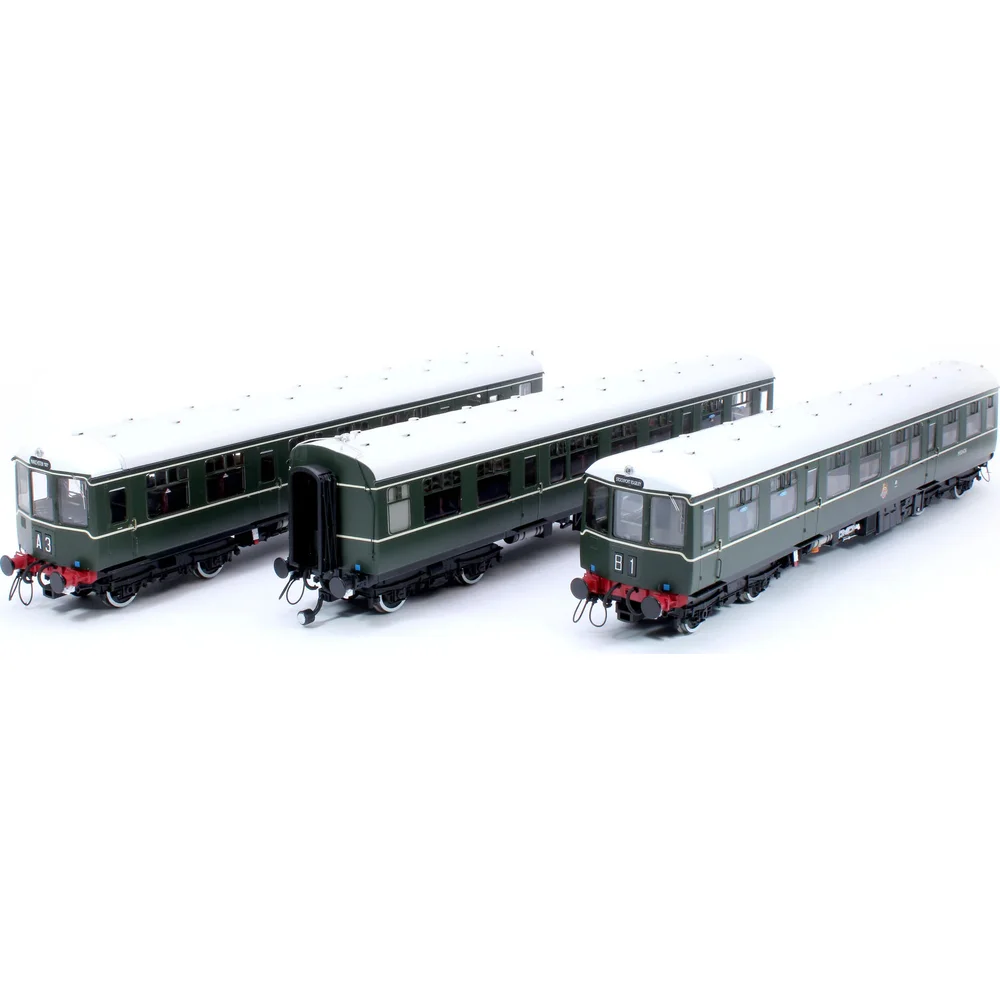

Heljan's tooling variations enable period-specific accuracy crucial for serious modellers. Early BR Green examples (1450, 1451) feature two-character route indicator boxes that were systematically removed during 1970s overhauls—later livery versions correctly show filled apertures and repainted cab fronts. The Blackpool white stripe variant (1454) represents Newton Heath depot's modified suspension fleet with additional frame plates visible on bogies. North Eastern Region two-car example (1452) shows power-trailer formation with DTCL driving trailer differing from London Midland power-twin sets. Matching locomotive details to prototype photographs creates authenticity distinguishing competent modellers from casual enthusiasts.
Pricing reflects the quality and comprehensive feature specifications. Manufacturer's recommended retail pricing positions two-car sets at £349 and three-car sets at £449. However, major UK retailers including Rails of Sheffield, Hattons Model Railways (now under Rails ownership), and other specialist stockists typically offer 15-20% discounts from RRP. Current street prices range approximately £296-330 for two-car sets and £381-415 for three-car sets depending on retailer and specific catalog number, representing excellent value for the detail quality and operational sophistication delivered.
Availability remains strong throughout 2025 with Heljan maintaining production to meet continued demand. The models achieved immediate commercial success upon release—enthusiasts who had awaited ready-to-run Class 104 representation for six decades purchased multiple variants covering different livery periods and formation types. This sustained demand ensures continued production visibility through major retailers whilst supporting development of potential future variants or sound-fitted factory options.
No other major manufacturer produces or has announced Class 104 models. Bachmann reportedly "looked at the 104 years ago" according to industry sources but never progressed development, instead focusing their first-generation DMU range on Classes 101, 105, 108, and other types. Hornby's catalog includes the more powerful Class 110—BRCW's 180hp Rolls-Royce-powered variant—but not the 150hp Class 104. Neither Dapol, Accurascale, Revolution Trains, nor other specialist producers have tooled this class, making Heljan the sole source for ready-to-run Class 104 models in any scale.
Unique Modelling Tips and Layout Integration
Successfully incorporating British Rail Class 104 models into layout operation requires understanding the specialised nature of their prototype duties and the authentic operating scenarios that characterised suburban and branch passenger work during the 1957-1993 period. Unlike main line express DMUs that might work longer-distance services, the Class 104 typically operated intensive suburban routes with frequent stops, short station dwell times, and rapid turnarounds maximising rolling stock utilisation.
Authentic operating scenarios should reflect the intensive stop-start suburban role. A typical Class 104 duty might involve 15-20 return trips daily over 15-25 mile routes with 8-15 intermediate stations, hauling two-car or three-car formations carrying commuters, shoppers, and local travellers. This service pattern provides excellent operational interest whilst remaining true to prototype practice—each journey involves careful station stops, precise door operation, guard's whistle signals, and exact timekeeping essential for intensive suburban timetables where delays cascade rapidly through following services.
Layout design should accommodate the class's operational characteristics and typical infrastructure. Suburban stations with modest 3-4 coach platform lengths, passing loops enabling intensive service frequency, water columns for engine cooling system replenishment, and small diesel depots with fueling facilities, basic maintenance workshops, and crew accommodation all contribute to authentic atmosphere. The infrastructure should suggest secondary importance—no grand Victorian train sheds or extensive passenger amenities, but functional facilities serving working-class communities and market towns.
Weathering Authenticity for DMU Service
Class 104 weathering should reflect regular passenger service whilst acknowledging the vehicles' mechanical nature and outdoor storage. Focus weathering effects on operational areas: brake dust and rail dust along bodyside lower panels and bogie frames, oil staining around engine compartment louvres and access panels, exhaust deposits on roof surfaces above engine exhausts, and general road grime accumulated during service. However, avoid heavy industrial weathering inappropriate for passenger-rated vehicles—British Railways maintained reasonable external cleanliness standards through regular washing programmes at depots. Underframe and bogie areas accumulate the heaviest grime, whilst body sides and roofs remain relatively clean between scheduled depot attention. The varnished wooden interiors visible through windows should show subtle aging and wear rather than heavy distress.
Era selection proves crucial for authentic Class 104 representation. BR Green period layouts (1957-1968) demand early emblem variations progressing through coaching stock roundel to speed whiskers, with small yellow warning panels appearing from 1962 onwards. Rail Blue layouts (1968-1988) should show progressive adoption of blue livery with various yellow panel configurations, whilst some Newton Heath units display distinctive white bodyside stripes. Blue/Grey period (1981-1990) represents transitional appearance with mixed fleets. Network SouthEast layouts (1986-1993) can depict freshly-painted NSE units operating alongside faded blue survivors, creating authentic visual contrasts characterising British Railways' final years.
Route selection requires careful attention to prototype authenticity. Manchester-area layouts depicting 1957-1990 operations should include Class 104s as fundamental motive power, particularly on Buxton corridor services where the type dominated throughout its career. Yorkshire suburban layouts covering 1958-1989 can feature the class on Leeds, Bradford, and York-area services. North Eastern layouts should show predominantly four-car formations distinguishing NER operations from LMR three-car preferences. Scottish layouts covering 1984-1989 can recreate West Highland tourist services including the celebrated "Mexican Bean" Oban workings. Network SouthEast layouts depicting 1988-1993 should show Class 104s on Gospel Oak-Barking Thames Line services.
Formation lengths must reflect prototype practice and the class's modest power-to-weight ratio. London Midland Region operations typically employed three-car formations on most routes, with two-car sets appearing on lighter-trafficked branches. North Eastern Region preferred four-car formations for greater seating capacity on longer-distance services including York-Harrogate routes. Scottish operations utilised two-car sets appropriate for West Highland loading patterns outside peak summer periods. Mixing formation types within the same geographic area creates authentic operational variety whilst demonstrating prototype flexibility.
The Blue Square coupling code enables prototypically-accurate hybrid formations with other first-generation DMU classes during 1980s-1990s rationalisation periods. Class 104 vehicles could operate alongside Classes 101, 107, 108, and other Blue Square-coded types, creating interesting visual combinations as British Rail maximised fleet utilisation through mixed formations. These hybrid sets appeared regularly during late-service years when vehicle availability issues demanded operational flexibility, providing modellers with authentic justification for creative consist assembly.
Depot scenes offer excellent static display opportunities demonstrating maintenance infrastructure. Recreate sections of Newton Heath depot (the spiritual home of LMR Class 104 operations), York depot for NER examples, or Eastfield for Scottish "Mexican Bean" representation. Include fueling points, inspection pits, wheel cleaning equipment, and basic maintenance facilities appropriate for first-generation DMU servicing. Depot staff figures add life—cleaners washing exteriors, mechanics performing running maintenance, and supervisors overseeing daily preparation work. The varnished wooden interiors visible through open doors showcase the class's distinctive specification distinguishing it from contemporary DMU types.
Timetable construction enables systematic operations reflecting intensive suburban schedules. Modern DMU operations maximised rolling stock utilisation through tight turnarounds and back-to-back workings. A Class 104 set might complete five or six distinct return trips during an operating session, with minimal dwell time between duties at terminal stations. This intensive deployment pattern reflects operational realities whilst creating engaging sessions for modellers who enjoy constant activity rather than lengthy periods of static display between movements.
Station operation should emphasise the distinctive characteristics of DMU working compared to locomotive-hauled trains. Passengers board and alight through multiple doorways simultaneously rather than concentrated at specific carriage positions, station stops involve guard's whistle signals rather than locomotive whistles, and departure procedures include door closing sequences before movement commences. These subtle operational differences create authentic atmosphere distinguishing DMU-era layouts from earlier steam-dominated periods, whilst the rapid acceleration away from stations demonstrates the performance advantages that justified wholesale dieselisation.
Finally
The British Rail Class 104 represents far more than 302 diesel multiple unit vehicles; these machines embodied British Railways' transformation from steam operation through comprehensive dieselisation to privatisation preparations. Birmingham Railway Carriage and Wagon Company's distinctive design, featuring characteristic curved cab fronts and unique varnished wooden interiors, delivered 36 years of reliable suburban service validating the 1955 Modernisation Plan's ambitious vision for railway transformation.
For railway historians, the Class 104 provides fascinating insights into the practical realities of first-generation DMU operation across diverse routes and operating conditions. The Manchester-Buxton "Spa Line" association demonstrated lightweight construction advantages on challenging mountainous routes with steep gradients and tight curves. North Eastern Region's four-car formation preference reflected contrasting operational philosophies favouring greater seating capacity over LMR's intensive service frequency approach. The celebrated Scottish "Mexican Bean" tourist services showcased the class's adaptability handling specialist duties far removed from original suburban design intentions.
The successful preservation of twelve vehicles across three heritage railways—Llangollen Railway, East Lancashire Railway, and North Norfolk Railway—ensures future generations can experience authentic 1960s railway travel conditions. The Llangollen Railway's continuously-operational power twin demonstrates both BRCW's robust engineering and dedicated volunteer workforces maintaining these historically-significant vehicles to exacting safety standards. The North Norfolk Railway's award-winning DTCL restoration exemplifies volunteer commitment preserving railway heritage through patient, skilled craftsmanship extending across nearly a decade.
Heljan's exceptional OO gauge range provides model railway enthusiasts with thoroughly authentic Class 104 representation featuring unprecedented detail quality and comprehensive livery coverage. The nine-model series spanning BR Green through Network SouthEast enables accurate layout operation across four decades of British railway history. Multiple formation types, authentic detail variations matching prototype evolution, and sophisticated lighting features create engaging operational experiences whilst accurately representing prototype practices.
Model railway hobbyists incorporating Class 104s into period layouts gain versatile suburban traction suitable for intensive passenger services characterising Britain's diesel transition era. The distinctive BRCW styling creates immediate visual recognition distinguishing Class 104 layouts from those featuring ubiquitous Derby or Metro-Cammell products. Authentic operating scenarios—frequent suburban services with multiple station stops, rapid turnarounds maximising rolling stock utilisation, and mixed formations with other Blue Square-coded classes—provide engaging operational interest whilst maintaining prototype accuracy.
As the railway preservation movement continues evolving and new generations discover the fascination of first-generation DMU operation, the British Rail Class 104 stands as perfect exemplar of an era when dieselisation promised transformation and delivered reliable, economical service across three decades. These machines proved that thoughtful design precisely matched to operational requirements could deliver remarkable service longevity through systematic maintenance and progressive modification addressing changing operational needs.
The engineering legacy proves more enduring than any individual preserved vehicle. The Class 104 validated design principles that influenced subsequent British multiple unit development: compact dimensions enabling operation through restricted clearances, lightweight construction reducing track maintenance costs and improving fuel economy, standardised components enabling efficient maintenance, and passenger-focused interior design creating travel environments passengers genuinely preferred over traditional locomotive-hauled formations. These lessons informed BR's entire first-generation DMU fleet whilst establishing standards that shaped second-generation Sprinter development decades later.
The British Rail Class 104 story ultimately celebrates systematic engineering delivering reliable everyday service without glamour or pretension. These were not prestigious express units hauling named trains between major cities, but honest workhorses connecting communities through frequent, dependable suburban services that sustained Britain's economic and social fabric. The sight and sound of a Class 104 departing a suburban platform—twin Leyland engines accelerating smoothly, passengers visible through large windows, guard observing from his compartment—epitomised British Railways' diesel transition era when modernisation promised improved travel experiences and largely delivered on that ambitious vision.
Frequently Asked Questions
How many British Rail Class 104 vehicles were built and when?
Birmingham Railway Carriage and Wagon Company constructed 302 Class 104 vehicles at Smethwick Works between April 1957 and March 1959. The fleet comprised six different vehicle types: 71 Driving Motor Brake Seconds, 108 Driving Motor Composite Lavatories, 15 Driving Trailer Composite Lavatories, 56 Trailer Composite Lavatories, 26 Trailer Brake Second Lavatories, and 26 Trailer Second Lavatories, creating remarkable formation flexibility addressing diverse operational requirements.
What engines powered the Class 104 and how much power did they produce?
Each Class 104 power car carried twin Leyland 680 horizontal six-cylinder diesel engines, each producing 150hp at 1,800rpm for a total of 300hp per vehicle. These 11.1-litre direct-injection four-stroke units featured overhead-valve design with seven crankshaft bearings. Power reached the rails through Self Changing Gears R14 four-speed epicyclic gearboxes with AEC F239C final drive units, creating reliable mechanical transmission that proved remarkably durable throughout 36-year service careers.
What made the Class 104 different from other first-generation DMUs?
The Class 104 featured distinctive BRCW curved cab fronts distinguishing them from Derby and Metro-Cammell products with more angular styling. Uniquely among first-generation DMUs, Class 104 vehicles retained varnished wooden interior panelling throughout their careers rather than Formica finishes used in contemporary designs. This traditional specification created warm, distinctive passenger environments that surviving preserved examples still showcase today, providing authentic experiences of 1960s railway travel.
Where did Class 104 DMUs typically operate?
London Midland Region received the largest allocation, with Manchester-area depots operating the type on suburban services to Buxton, Marple, New Mills, Blackpool, and numerous other destinations. The Manchester-Buxton "Spa Line" became synonymous with Class 104 operation. North Eastern Region deployed four-car formations on York-Harrogate services and Yorkshire suburban networks. Scottish operations from 1984-1989 included celebrated West Highland tourist services. Final operations covered Network SouthEast Thames Line Gospel Oak-Barking routes until October 1993.
What was the "Mexican Bean" and why was it significant?
The "Mexican Bean" was Class 104 set 104325 (vehicles SC53424/SC53434) painted in striking maroon and white livery with black window surrounds. This distinctive two-car formation operated summer Oban to Crianlarich tourist services from 1985 to 1987, featuring prominently on tourism promotional material. The livery included Eastfield depot's "Scotty Dog" logo, creating unique visual identity that Heljan commemorated with catalog number 1456 in their OO gauge model range.
Why were Class 104s never refurbished like Classes 101 and 108?
British Rail excluded Class 104 from comprehensive DMU refurbishment programmes because the window arrangement created structural corrosion issues making extensive rebuilding uneconomical. The cost of addressing corrosion whilst upgrading interiors, installing modern equipment, and extending service lives exceeded purchasing new second-generation Sprinter units. This economic reality effectively sealed the class's fate once newer traction became available during the late 1980s-early 1990s.
Are any Class 104 vehicles preserved today?
Twelve Class 104 vehicles survive in preservation across three heritage railways. The Llangollen Railway operates power twin M50454+M50528 in Rail Blue, providing regular passenger services since 1994. The East Lancashire Railway holds seven vehicles including unique TCL M59137 and operational power twin M50455+M50517. The North Norfolk Railway operates award-winning DTCL M56182 in BR Green, with power car M50479 under restoration. These operational examples enable modern enthusiasts to experience authentic 1960s railway travel.
What OO gauge Class 104 models are currently available?
Heljan produces a comprehensive nine-model OO gauge range released 2024-2025. Catalog numbers 1450-1458 cover BR Green (early emblem, coaching stock roundel with whiskers, small yellow panels), Rail Blue (full yellow ends, Blackpool white stripe, NSE flash weathered), ScotRail "Mexican Bean" maroon and white, Blue/Grey set BX487, and Network SouthEast set L701. Models include 21-pin DCC socket, switchable lighting, detailed interiors, and authentic detail variations. Pricing ranges £296-415 depending on formation and retailer discounts.
Are Class 104 models available in N gauge or O gauge?
No ready-to-run N gauge Class 104 models exist from any manufacturer. N-Train produces 3D-printed cab conversion kits (CAB001, £5 per pair) enabling modification of Graham Farish Class 101 bodyshells, though this requires modelling skills and achieves compromised accuracy. No O gauge ready-to-run models exist or have been announced. Heljan remains the sole manufacturer producing Class 104 models in any scale, making their OO gauge range uniquely important for modellers seeking authentic BRCW DMU representation.
What passenger stock should I use with Class 104 models?
Class 104 DMUs were self-contained formations and did not haul separate passenger coaching stock. Authentic layout operation requires running Class 104 models as complete two-car or three-car sets appropriate to the modelled region and period. London Midland Region predominantly operated three-car formations, whilst North Eastern Region preferred four-car sets for greater seating capacity. Scottish operations utilised two-car sets. Formation types must match geographic areas for authentic representation.
Can Class 104s operate with other first-generation DMU classes?
Yes, the Blue Square coupling code enabled Class 104 vehicles to operate alongside Classes 101, 107, 108, and other Blue Square-coded types. Mixed formations appeared regularly during 1980s-1990s fleet rationalisation when British Rail maximised utilisation through hybrid consists addressing vehicle availability issues. These combinations provide modellers with authentic justification for creative consist assembly whilst accurately representing prototype practices during the class's final service years.
What liveries did Class 104 DMUs carry throughout their service?
Original livery was BR Green with Lion over Wheel emblem (1957), progressing through coaching stock roundel version, speed whiskers, and half-yellow warning panels from 1962. Rail Blue arrived from 1966, with Newton Heath's Blackpool sets receiving distinctive white bodyside stripes. Blue/Grey livery appeared from May 1981 on approximately 22 vehicles. Network SouthEast colors adorned ten vehicles from 1988-89. The celebrated Scottish "Mexican Bean" wore unique maroon and white with black window surrounds and Eastfield depot logo.
How do Heljan's Class 104 models perform operationally?
Contemporary reviews praise exceptional detail quality, smooth running from five-pole motors with flywheels, comprehensive electrical pickup from all wheels, and authentic lighting effects including switchable directional headlights, illuminated destination displays, and interior lighting. The low-profile mechanism enables realistic slow-speed operation appropriate for station work. DCC-ready specification with 21-pin socket and pre-fitted speaker facilitates digital conversion. Models negotiate R2 minimum radius curves, suiting most OO gauge layouts whilst maintaining prototype-correct appearance throughout operation.
