British Rail Class 89 – Britain's One-Off 125 mph Electric Experimental

Historical Background and Context

The genesis of the Class 89 emerged from British Rail's ambitious plans for East Coast Main Line electrification north of Hitchin during the early 1980s. BR required powerful new motive power capable of handling both express passenger services at 125 mph and heavy freight workings—essentially a universal locomotive that could operate across the ECML and West Coast Main Line to replace aging first-generation electrics from Classes 81-85 whilst supplementing the established Class 86/87 fleet.

In mid-1981, British Rail drew up specifications for this revolutionary machine. The requirements proved demanding: sufficient power for express passenger work matching the successful InterCity 125 diesel formations, adequate tractive effort for heavy freight acceleration, compatibility with existing 25 kV AC overhead electrification infrastructure, and operational flexibility including push-pull capability with Driving Van Trailers. These specifications represented BR's vision for rationalized locomotive-hauled operations where a single versatile design could handle virtually any traffic type.

Brush Traction of Loughborough won the development contract in June 1983, beating competing proposals from other manufacturers. Brush's design team, led by experienced engineers who had contributed to previous BR electric locomotive projects, conceived an ambitious machine incorporating several groundbreaking innovations. The most significant departure from established practice was the Co-Co six-axle wheel arrangement—six powered axles arranged in two three-axle bogies rather than the Bo-Bo four-axle configuration that characterized every previous British AC electric locomotive.

This Co-Co arrangement delivered fundamental advantages. Six driving wheels per bogie instead of four provided 50% more adhesion surface, dramatically improving traction for heavy freight acceleration whilst maintaining the high-speed running capability essential for express passenger work. The increased axle count also distributed the locomotive's 105-tonne weight more evenly, reducing individual axle loading and potentially enabling operation over routes with weight restrictions that excluded heavier four-axle machines.

Construction commenced in 1984 at BREL Crewe Works, the traditional home of British electric locomotive manufacturing since the pioneering days of West Coast Main Line electrification in the 1960s. Brush Traction supplied the sophisticated electrical equipment from their Loughborough facility, whilst Crewe fabricated the substantial underframe, bodyshell, and mechanical components. The locomotive emerged from the works on 2 October 1986, painted in smart InterCity Executive livery featuring the distinctive charcoal grey and white colour scheme that characterized BR's premium passenger services during the mid-1980s.

Static testing at Crewe consumed several months as engineers commissioned the complex electrical systems and verified correct operation of the innovative thyristor control equipment. The locomotive made its first powered movement inside Crewe Electric depot on 10 February 1987, with the first mainline test run following on 20 February 1987. These initial test runs proved highly successful, demonstrating smooth acceleration, stable high-speed running, and effective braking performance that validated Brush's design concepts.

An intensive testing programme accumulated 11,500 miles between February and December 1987, with the locomotive working test trains between Crewe and Carlisle using a British Rail International Mk3 coaching rake. Engineers monitored every aspect of performance, from traction motor temperatures to pantograph current collection efficiency, building comprehensive data that demonstrated the Class 89's capabilities. In December 1987, having completed this evaluation phase, 89001 transferred to Hornsey depot in North London for operational assessment on East Coast Main Line services.

Design and Technical Specifications

The engineering excellence of the British Rail Class 89 lay in Brush Traction's masterful integration of proven technology with innovative design concepts. At the heart of the locomotive sat six Brush TM2141A axle-hung DC traction motors, each rated for continuous operation whilst drawing power from a sophisticated thyristor-controlled electrical system. The continuous power output of 4,286 kW (5,748 hp) made the Class 89 one of Britain's most powerful electric locomotives, with a one-hour maximum rating of 4,530 kW (6,075 hp) available for sustained gradient climbing or heavy acceleration.

The electrical system drew 25 kV AC power from overhead catenary through a Brecknell-Willis high-speed pantograph mounted on the locomotive roof. This single-arm pantograph, positioned towards the London end of the locomotive, incorporated advanced carbon strips for current collection and sophisticated spring mechanisms ensuring consistent contact pressure across the entire speed range. Power flowed through the main transformer to thyristor rectifier equipment that converted the single-phase AC supply to variable-voltage DC for the traction motors.

Each of the six traction motors received power through individual thyristor controllers, with independent field current control using bipolar transistor-based choppers. This sophisticated arrangement enabled precise torque management for each axle, dramatically improving wheel slip control compared to earlier electric locomotives that fed paired motors from common controllers. When any wheel began to slip, the control system could instantly reduce power to that specific motor whilst maintaining full power to wheels with good adhesion—a crucial capability for heavy freight acceleration on wet or contaminated rails.

The Co-Co wheel arrangement employed innovative asymmetrical bogie geometry. Each three-axle bogie featured 2,100 mm spacing between outer and centre axles, with 2,300 mm between centre and inner axles. This asymmetrical configuration optimized the bogie's ability to negotiate curves whilst maintaining stable straight-line running at high speed. The 1,080 mm diameter disc wheels rode on sophisticated suspension incorporating an extraordinary array of damping components: four vertical secondary dampers, four lateral secondary dampers, eight yaw dampers, and twenty-four primary dampers per locomotive. This elaborate damping system delivered an exceptionally smooth ride that impressed drivers and passengers alike.

The braking system combined multiple technologies for safe deceleration from 125 mph. Rheostatic electric braking provided primary retardation, with the traction motors operating as generators that fed electrical energy into resistor grids mounted on the locomotive roof. These grids dissipated the kinetic energy as heat, visible as shimmering air during heavy braking. The system delivered smooth, progressive retardation without wearing brake blocks. Supplementing this was the standard E70 air brake system used across BR's electric locomotive fleet, providing friction braking through blocks acting on wheel treads. A hydraulic parking brake secured the locomotive when stationary.

Multiple working capability utilized a sophisticated Time Division Multiplex control system that would subsequently be adopted for the Class 91 fleet. This digital system enabled remote operation from a Driving Van Trailer, with control commands transmitted along the train via dedicated cables. The system proved highly reliable and formed the technological foundation for the push-pull InterCity 225 formations that eventually displaced locomotive-hauled services on the East Coast Main Line.

The locomotive's substantial weight of 105 tonnes—significantly heavier than the 81-tonne Class 87 or 84.5-tonne Class 90—distributed across six axles resulted in individual axle loadings comparable to lighter four-axle machines. This weight provided excellent adhesion for freight work whilst the sophisticated suspension delivered ride quality matching the best Bo-Bo designs. The overall length of 19.56 metres over buffers made the Class 89 noticeably longer than contemporary four-axle electrics, though still comfortably within platform clearances and depot facilities designed around standard British locomotive dimensions.

Service History and Operations

The British Rail Class 89 entered regular passenger service on 15 July 1988, allocated to Hornsey depot for East Coast Main Line operations. Initial duties focused on King's Cross to Peterborough commuter services, where the locomotive's smooth acceleration and quiet running impressed both drivers and passengers. The sophisticated ride quality, courtesy of the elaborate bogie damping system, proved particularly notable—passengers reported vibration levels comparable to the established InterCity 125 diesel formations rather than the harsher ride characteristic of earlier electric locomotives.

Just weeks before entering regular service, 89001 received a prestigious assignment that showcased its capabilities to the railway enthusiast community. On 3 July 1988, the locomotive hauled the Mallard 50th Anniversary Special from King's Cross, commemorating Sir Nigel Gresley's legendary A4 Pacific achieving the world steam locomotive speed record exactly fifty years earlier. This high-profile working demonstrated the Class 89's fitness for express passenger duties whilst generating positive publicity for British Rail's electric locomotive development programme.

On 16 January 1989, Prime Minister Margaret Thatcher officially named locomotive 89001 "Avocet" at a ceremony at King's Cross station. The naming honored the Royal Society for the Protection of Birds, whose logo features the distinctive long-legged wading bird. The ceremony attracted significant media attention, with Thatcher praising British Rail's engineering achievements and the Class 89's role in modernizing passenger services. The elegant nameplates, mounted on the locomotive's streamlined bodysides, would remain in place throughout the BR era before removal following withdrawal in 1992.

However, the Class 89's promising career was undermined by events beyond its control. Before the prototype was even completed, British Rail had changed policy direction in favor of fixed-formation push-pull trainsets using the new Class 91 locomotives semi-permanently coupled to purpose-built Mk4 coaches. This InterCity 225 concept eliminated locomotive run-rounds at terminal stations whilst enabling consistent train formations optimized for revenue service. Even more problematically, BR subsequently raised the speed requirement from 125 mph to 140 mph—a capability the Class 89 simply could not achieve without fundamental redesign.

When the locomotive was also rejected for West Coast Main Line use—BR preferring an upgraded Class 87 design that became the Class 90—the Class 89's future looked increasingly uncertain. The locomotive continued working alongside the incoming Class 91s until 5 March 1989, when the new InterCity 225 formations took over premier ECML services. Relegated to secondary duties, 89001 struggled with spares availability as Brush Traction had manufactured components for an anticipated production series that never materialized. Maintenance became increasingly difficult as unique parts required custom manufacturing rather than drawing from common stores.

The locomotive worked various King's Cross area duties through 1990 and 1991, including parcels trains and crew training services, but its orphan status made economic operation progressively more challenging. When a serious electrical failure occurred in July 1992—reportedly involving the main transformer—British Rail took the decision to withdraw 89001 rather than invest in expensive repairs to a one-off prototype with no clear operational role. The locomotive was officially condemned and written off at nil book value, having accumulated just four years of revenue service from the six years since construction completion.

The story might have ended with scrapping at a metal dealer's yard, but a group of Brush Traction employees recognized the locomotive's historical significance and arranged for preservation. 89001 moved to the Midland Railway Centre at Butterley in Derbyshire, where it languished in storage throughout the mid-1990s as preservation groups focused limited resources on operational steam and first-generation diesel locomotives.

In a remarkable turn of events, Great North Eastern Railway purchased 89001 in 1996 following privatization of BR's passenger services. GNER invested £100,000 in a comprehensive overhaul that addressed the transformer failure and other accumulated defects, returning the locomotive to operational condition. Repainted in GNER's distinctive blue and orange livery with large fleet numbers, 89001 entered its second operational career in March 1997.

GNER deployed the locomotive on London King's Cross to Leeds and Bradford services, where it worked alongside the company's established fleet of Class 91 and DVT formations. The Class 89 proved popular with drivers who appreciated its smooth power delivery and comfortable cab environment. The locomotive worked reliably throughout 1997, 1998, and 1999, vindicating GNER's investment in the restoration programme. During this period, 89001 received modified GNER livery with gold rather than white lettering, creating a subtle but distinctive appearance variation.

However, the locomotive's second career ended abruptly in October 2000 when a major transformer failure occurred—ironically, the same fault type that had caused the 1992 withdrawal. GNER assessed repair costs and concluded that the expense could not be justified for a unique prototype when standardized Class 91 locomotives required no specialized spares or maintenance procedures. Locomotive 89001 was withdrawn for the second and final time, having worked just three years of its second operational life.

Fleet

No locomotives found.

Withdrawal and Preservation Legacy

Following the October 2000 withdrawal, locomotive 89001 entered a lengthy period of uncertain storage. GNER retained ownership initially, keeping the locomotive at Doncaster Works where it occupied valuable covered accommodation space. In 2004, the locomotive transferred to Bounds Green depot in North London, where it served an unusual role as a stationary generator providing electrical power for depot facilities—a modest but practical application of its substantial transformer and electrical equipment.

The locomotive's preservation prospects improved dramatically in December 2004 when it moved to Barrow Hill Engine Shed in Derbyshire. This former Midland Railway roundhouse had become a major center for preserved diesel and electric locomotive restoration, with excellent facilities and an active community of railway preservationists. The AC Locomotive Group—Britain's only preservation society dedicated specifically to AC electric locomotives—recognized the Class 89's historical significance and launched an ambitious fundraising campaign.

The "89 Appeal" successfully raised sufficient funds to purchase 89001 from GNER in December 2006. This acquisition secured the locomotive's future whilst providing the ACLG with an exceptionally high-profile preservation project that complemented their existing collection of first-generation AC electrics. The purchase price remained undisclosed, though industry observers estimated GNER accepted a nominal sum recognizing the locomotive's heritage value rather than pursuing maximum scrap metal revenue.

What followed was one of the most comprehensive electric locomotive restorations ever undertaken in Britain. The ACLG's engineering team, working with skilled volunteers and professional contractors, systematically addressed every aspect of the locomotive's condition. All field convertors received complete rebuilding with modern equivalent components and new control electronics, dramatically improving reliability whilst maintaining authentic operational characteristics. The rheostatic brake stacks required complete renewal, achieved using blower motors sourced from withdrawn Class 86 locomotives—a pragmatic solution demonstrating the restoration team's resourcefulness.

Every axle bearing received replacement with new units, eliminating potential failure points that could have caused catastrophic damage during operation. High-voltage cabling throughout the locomotive was renewed to modern standards, improving electrical safety whilst ensuring compliance with contemporary mainline certification requirements. The restoration revealed the fundamental soundness of Brush Traction's original engineering—the basic structure, bogies, and mechanical components remained in excellent condition despite two decades of service and storage.

The locomotive received a complete repaint into InterCity Executive livery in 2007, recreating its as-built 1986 appearance. This livery served the locomotive well through the initial restoration phases, though the ACLG eventually decided to adopt the more recognizable InterCity Swallow colour scheme. In 2020, 89001 emerged from Toton depot wearing the distinctive dark grey, white, and red InterCity Swallow livery that it had carried during its BR operational career. Replica "Avocet" nameplates were manufactured and fitted, returning the locomotive to the named appearance it had carried between 1989 and 1992.

A pivotal development came in November 2020 when the pantograph was raised under live 25 kV wire for the first time in two decades at Soho TMD. This critical test verified the integrity of all high-voltage electrical systems and demonstrated that the extensive restoration work had successfully returned the locomotive to operational condition. The successful energization cleared the way for the next major milestone: mainline certification.

In December 2021, the ACLG announced a five-year partnership with Locomotive Services Limited to bring 89001 back to active mainline operation. LSL, an established train operating company specializing in charter and railtour services, provided the commercial framework and regulatory expertise necessary for mainline certification. The partnership saw 89001 receive comprehensive modern safety equipment including GSM-R radio communication systems, Train Protection and Warning System (TPWS), On Train Data Recorder (OTDR), and new fire suppression systems meeting contemporary safety standards.

Installation of this equipment took place at UK Rail Leasing's Loughborough facility through 2022 and 2023, with the locomotive subsequently moving to LSL's Crewe depot in August 2024 for final preparation. The successful test running in September and November 2025 represented the culmination of nearly two decades of dedicated restoration effort, transforming a withdrawn prototype into a fully-certified mainline locomotive ready for railtour operations.

As of December 2025, locomotive 89001 remains based at Locomotive Services Group's depot in Crewe, maintained in operational condition and available for charter work. The ACLG owns the locomotive, with LSL operating it under the partnership agreement. Future plans include regular railtour operations on electrified routes throughout Britain, potentially including the East Coast Main Line where the locomotive enjoyed its most successful service career. The locomotive also appears at major railway events, having attended The Greatest Gathering at Derby Litchurch Lane Works in August 2025 where over 37,000 visitors saw Britain's unique six-axle electric locomotive alongside dozens of other historically significant machines.

Modelling Significance and Scale Replications

The British Rail Class 89 presents exceptional modelling significance as Britain's only six-axle AC electric locomotive, representing a fascinating "what if" chapter in BR engineering history. For railway modellers seeking distinctive modern traction, the Class 89 offers compelling prototype appeal: visually striking with its HST-style streamlined cabs, blessed with multiple authentic livery variations spanning three decades, and characterized by a remarkable preservation story that culminated in dramatic mainline return during 2025. The locomotive's unique status—forever singular despite being designed as a production prototype—creates an unusual modelling proposition where a single locomotive on a layout remains prototypically correct.

The modelling landscape remained frustratingly barren for decades despite enthusiast interest in this distinctive locomotive. No manufacturer—neither Hornby, Lima, Mainline, Dapol, nor Graham Farish—offered ready-to-run Class 89 models during the locomotive's operational career or the subsequent preservation period through the 1990s and 2000s. This inexplicable neglect left modellers of late-1980s East Coast Main Line operations without a fundamental locomotive type that should have been considered essential for authentic layout representation of the transitional period between first-generation electrics and the InterCity 225 era.

The only option for determined modellers was the Silver Fox Models white metal and resin kit requiring a donor Hornby Class 47 chassis. This specialist kit, priced at £47.50 and still available in 2025, demands considerable modelling skill including chassis modification, weight balancing, and body mounting techniques beyond casual modellers' capabilities. Silver Fox offers completed models at £175, though availability depends on their build schedule and waiting lists can extend several months. Olivia's Trains provides custom-built conversions from £315 (analogue) to £451 (ESU LokSound V5 DCC sound fitted), representing the premium end of the market for modellers wanting a Class 89 but lacking the skills or time for kit construction.

This changed dramatically when Accurascale announced Class 89 tooling development in partnership with Rails of Sheffield as an exclusive retailer. The announcement generated immediate enthusiastic response from modellers who had waited decades for a ready-to-run Class 89. Accurascale's engineering team conducted extensive research including measurements from the preserved locomotive, examination of period photographs documenting different livery applications, and consultation with AC Locomotive Group members familiar with operational details. This thorough approach ensured the resulting model would accurately represent prototypical variations rather than generic compromises.

Accurascale unveiled engineering prototype samples at model railway exhibitions throughout 2024, with decorated samples appearing later that year. The reception proved overwhelmingly positive, with reviewers and enthusiasts praising exceptional detail levels including separately applied handrails and grab rails, accurately rendered bogies with visible dampers and suspension components, prototype-specific cab window arrangements and nose profiles, and exquisite livery application matching original paint specifications with correct positioning of logos, numbers, and striping.

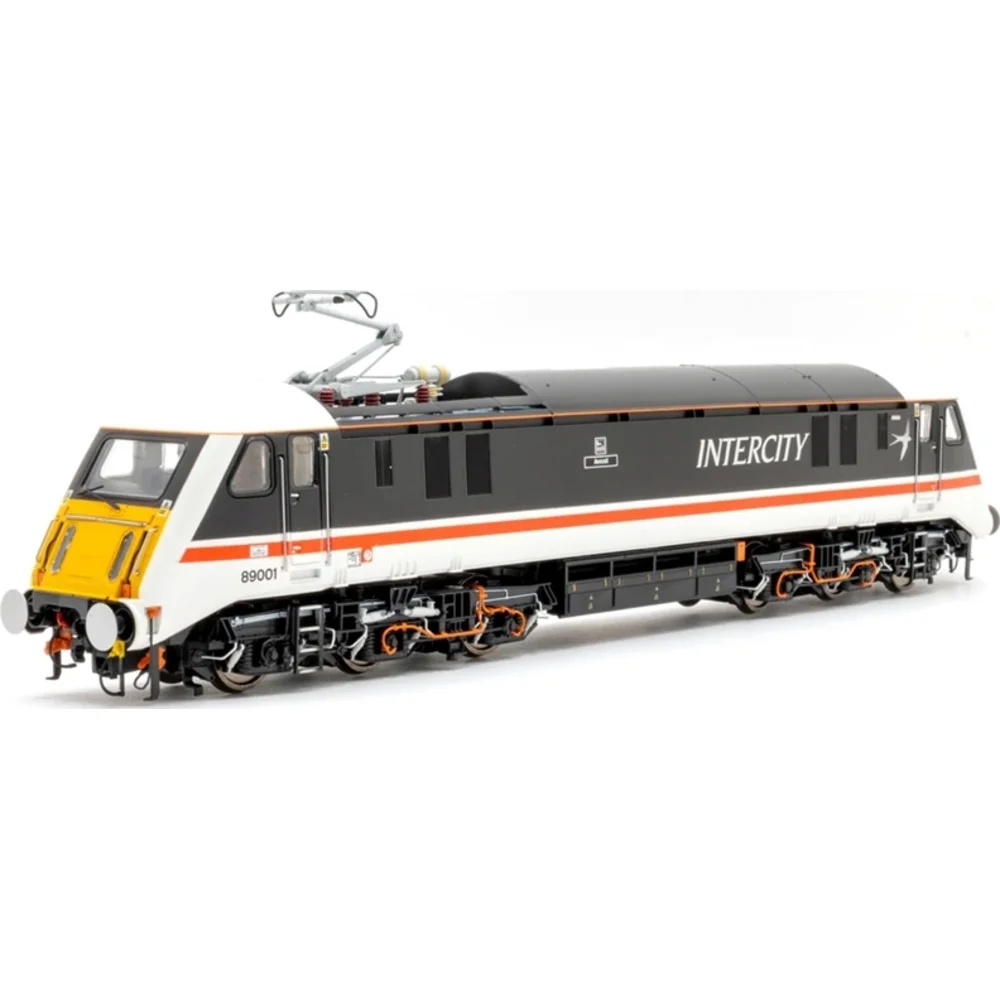

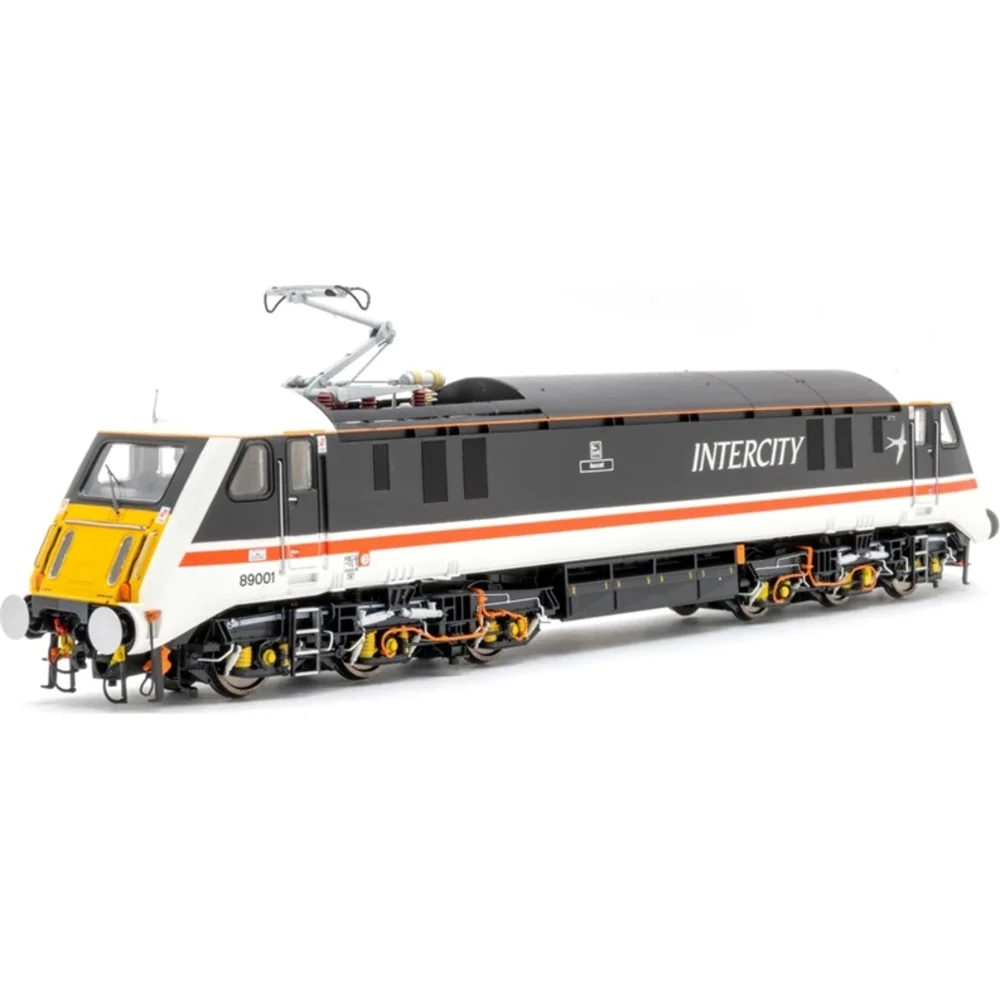

The OO gauge Class 89 range reached retailers in late 2024 through the exclusive Rails of Sheffield distribution arrangement. Five livery variants cover the locomotive's complete operational and preservation history. Catalog number ACC2281 represents the original InterCity Executive livery worn from construction in 1986 through early 1988. ACC2283 depicts the InterCity Swallow "Avocet" livery carried during the locomotive's most successful BR operational period from 1988 to 1992 withdrawal. ACC2294 shows GNER ownership with white lettering from the 1997 restoration, whilst ACC2296 features the modified GNER livery with gold lettering from 1999-2000. ACC2298 recreates the current preservation-era InterCity Swallow appearance with replica "Avocet" nameplates fitted in 2020.

Each variant comes in two specification formats addressing different technical requirements and budgets. DCC Ready versions carry recommended retail pricing of £229.99, providing analog DC operation straight from the box with a 21-pin DCC decoder socket enabling straightforward digital conversion for modellers who prefer installing their own preferred decoder. DCC Sound Fitted models retail at £329.99, incorporating factory-installed ESU LokSound 5 decoders with authentic Class 89 sound recordings including the distinctive transformer hum, pantograph operation sounds, and comprehensive lighting functions controllable through DCC function mapping.

The sound-fitted models feature Accurascale's proprietary dual-speaker system combining their "Accurathrash" bass speaker with a cube tweeter, creating realistic audio dispersion throughout the locomotive body. The ESU LokSound 5 decoder provides prototypical Class 89 sound effects including the characteristic electrical hum audible when the locomotive is energized, pantograph raising and lowering sounds, brake application and release, and warning horns appropriate to British electric locomotive operation. Advanced features include Hall sensor-triggered flange squeal effects that activate automatically when the locomotive negotiates curves, creating impressive operational realism.

The technical execution throughout the model reaches impressive standards for ready-to-run products. A five-pole motor with twin flywheels provides smooth, consistent power delivery suitable for realistic crawling speeds appropriate to depot movements and station approaches. All twelve wheels drive through geared transmission to both bogies, ensuring powerful hauling capability matching the prototype's freight credentials. The sprung centre axle on each bogie accommodates track irregularities whilst maintaining electrical pickup reliability. Comprehensive current collection from all wheels via split-frame construction with pickups on both locomotive sides ensures reliable operation even on slightly dirty track.

The diecast metal chassis block and bogie towers provide satisfying weight—approximately 285 grams—and stability during operation, whilst the detailed plastic body captures the Class 89's distinctive streamlined profile accurately scaled to OO gauge's 1:76 proportion. Models measure 258 mm in length, closely matching the 19.56-meter prototype when scaled appropriately. The minimum curve radius specification of second radius (438 mm/17.25 inches) suits most OO gauge layouts, though the locomotive's substantial length means third radius curves (610 mm/24 inches) provide more prototypical appearance when negotiating bends.

Detail quality reaches impressive standards throughout. Separately applied components include fine wire handrails and grab rails, lamp irons and route indicator boxes, multiple working unit cables, vacuum brake pipes, and detailed brake rigging beneath the underframe. Factory-fitted glazing includes cab interior detail with driver's seats, control desks, and instrument panels visible through windows. The decorated locomotive roof shows the rheostatic brake resistor grids, electrical equipment boxes, and the Brecknell-Willis pantograph with realistic carbon collector strips. Sprung metal buffers provide authentic appearance whilst cushioning during coupling operations.

The wheels employ RP25-110 profile suitable for operation on standard OO gauge track with provision for P4 or EM regauging for finescale modellers. The close coupling arrangement via NEM362 standard coupling pockets enables realistic train formations, with the supplied NEM couplings allowing approximately 12 mm separation between locomotive and first coach—appropriate for the Buckeye automatic couplers fitted to the prototype. Modellers can substitute alternative NEM362-compatible couplings including detailed scale Buckeyes if desired.

Livery application demonstrates meticulous attention to prototype accuracy. Accurascale researched original BR and GNER paint specifications, matching Pantone color standards and verifying correct positioning of logos, numbers, warning flashes, and maintenance markings through examination of period photographs and consultation with the preserved locomotive's custodians. The InterCity Executive livery precisely replicates the charcoal grey and white scheme with red stripe that characterized the locomotive's as-built appearance. InterCity Swallow versions show the distinctive dark grey, white, and red livery with correctly sized InterCity logos and "Avocet" nameplates positioned as per the 1989-1992 and current preservation configurations. GNER liveries capture the bright blue with orange stripe and large fleet numbers that characterized the privatization era.

Critical acclaim for the Accurascale Class 89 proved universal upon release. Hornby Magazine's October 2025 review described the model as "nothing short of a masterpiece," praising the exceptional detail quality, smooth running characteristics, and authentic sound reproduction. Model Rail Magazine highlighted the accuracy of the bogies and underframe detail, noting the model "sets new standards for British electric locomotive representation in OO gauge." Railway Modeller commended the comprehensive livery range enabling authentic representation across multiple operational eras, whilst praising the value proposition considering the sophisticated motor, lighting, and sound installations.

Graham Farish, the N gauge brand under the Bachmann Europe umbrella, has not announced Class 89 models as of December 2025. Industry observers consider N gauge production unlikely given the exclusive manufacturing arrangement between Accurascale and Rails of Sheffield. The substantial tooling investment required for a different scale would prove difficult to justify for a single-locomotive class, even one as historically significant as the Class 89. N gauge modellers seeking Class 89 representation must therefore scratch-build or heavily modify existing N gauge electric locomotive models—a challenging undertaking requiring advanced modelling skills.

O gauge enthusiasts face even greater challenges. No manufacturer produces or has announced ready-to-run Class 89 models in O gauge (7mm scale, 1:43.5 proportion). The substantial market size required to justify O gauge tooling combined with the relatively recent prototype appearance makes commercial production highly unlikely. Finescale modellers with advanced metalworking capabilities could potentially create Class 89 models using brass fabrication techniques, though this represents a major multi-year project beyond most modellers' resources. The availability of dimensioned drawings and access to the preserved locomotive for detailed measurements would assist such projects, but O gauge Class 89 representation remains a distant prospect.

Models

Unique Modelling Tips and Layout Integration

Successfully incorporating the British Rail Class 89 into layout operations requires understanding the locomotive's specialized nature as an experimental prototype that operated during a relatively brief transitional period in British railway history. Unlike widespread classes that worked diverse routes over multiple decades, the Class 89 served primarily on East Coast Main Line duties during two distinct operational phases separated by years of storage, creating specific modelling opportunities whilst also imposing constraints on authentic representation.

Era selection proves fundamental to credible Class 89 modelling. The earliest appropriate timeframe begins February 1987 during initial test running, though the locomotive did not enter regular passenger service until July 1988. Layouts depicting the late 1980s transition period when first-generation BR electrics worked alongside the incoming InterCity 225 formations offer the most historically significant setting. The Class 89 operated in this environment until March 1989, providing roughly eight months of intensive ECML passenger work that represents the locomotive's operational peak. Modellers can authentically depict 89001 working King's Cross to Peterborough services alongside Class 47 diesels still covering unelectrified portions, Class 87 electrics on West Coast services, and early Class 91 units undergoing proving trials.

The secondary BR operational phase from March 1989 to July 1992 saw the locomotive relegated to less prestigious duties including parcels trains, crew training services, and occasional passenger workings covering for failed Class 91 units. This period offers opportunities for modellers interested in depicting the less glamorous aspects of railway operations where an expensive prototype languished in secondary service due to policy changes. The locomotive typically worked in InterCity Swallow livery with "Avocet" nameplates during this phase.

The GNER privatization era from March 1997 to October 2000 represents the locomotive's second operational career, offering excellent modelling potential for enthusiasts interested in early privatization period operations. During these years, 89001 worked King's Cross to Leeds and Bradford services in GNER's distinctive livery alongside Class 91/Mk4 InterCity 225 formations, Class 43 HST sets on non-electrified routes, and various freight operators' locomotives on goods workings. The GNER period provides the most colorful modelling environment with diverse modern traction and coaching stock varieties.

Authentic operating scenarios should reflect the locomotive's express passenger and secondary freight capabilities. Typical Class 89 workings during the BR period involved 8-12 Mk3 coaches in matching InterCity livery on King's Cross to Peterborough services, with journey times approximately matching HST performance. The locomotive never worked with Mk4 coaches or Driving Van Trailers—these were reserved exclusively for Class 91 formations. Modellers must pair the Class 89 with period-appropriate Mk3 coaching stock to maintain authenticity, avoiding the common error of coupling it to Mk4 consists simply because both represent 1980s-era equipment.

Layout infrastructure design should accommodate East Coast Main Line characteristics including four-track main line sections with fast and slow lines, substantial platforms capable of accommodating 12-coach formations, overhead catenary equipment constructed to 25 kV AC specifications, and modern color-light signaling appropriate to the 1980s-2000s era. Stations should suggest ECML locations including King's Cross with its distinctive overall roof, Peterborough with its lengthy platforms, or intermediate locations like Stevenage, Huntingdon, or Grantham. These locations provide authentic settings whilst enabling varied operational scenarios from express passenger work to secondary stopping services.

Depot scenes offer excellent static display opportunities whilst demonstrating maintenance infrastructure. Hornsey depot in North London served as the Class 89's home base during its BR operational career, characterized by modern electric locomotive servicing facilities including overhead catenary in depot areas, maintenance pits for underframe access, wheel lathes for tyre profiling, and component storage buildings. Modellers can recreate sections of this environment showing the Class 89 undergoing routine maintenance alongside Class 87/91 electrics and Class 43 HST power cars. The current preservation era enables depot scenes at Crewe featuring the locomotive alongside other preserved electrics and diesels operated by charter companies.

Train lengths should reflect the locomotive's 4,286 kW power output and express passenger duties. Typical consists involved 8-10 coaches on stopping services and 10-12 coaches on semi-fast or express workings. The Class 89's substantial power enabled it to maintain schedule timings with these train lengths whilst delivering smooth acceleration from station stops. Attempting to depict the locomotive hauling 15-20 coach formations would be prototypically questionable—such lengthy trains remained the preserve of paired Class 87 locomotives or Class 91 sets during the period when the Class 89 operated.

Sound-equipped models benefit from careful attention to the Class 89's distinctive operational characteristics. Electric locomotives produce fundamentally different audio signatures compared to diesel traction, with the dominant sounds being transformer hum when energized, traction motor whine during acceleration, brake system hissing, and warning horns. The ESU LokSound decoder fitted to Accurascale DCC Sound models captures these characteristics authentically. Modellers should programme appropriate function mappings to activate pantograph raising/lowering sounds when moving locomotives on/off depot, brake sounds during station stops, and horn warnings when departing platforms or approaching level crossings.

Operational sessions can recreate authentic Class 89 duties through varied working patterns. A realistic operating sequence might begin with the locomotive departing Hornsey depot with pantograph raised, working light engine to King's Cross to collect a northbound express, hauling 10 Mk3 coaches to Peterborough with intermediate stops at Stevenage and Huntingdon, releasing the train for a Class 91 to continue to Leeds, then working a southbound semi-fast service back to London with 8 coaches making all stations. This varied workload creates interesting movements whilst remaining prototypically accurate to the locomotive's actual operational patterns.

Weathering authenticity for electric locomotives differs significantly from diesel traction. The Class 89 benefited from regular cleaning during its operational career, maintaining relatively smart external appearance befitting prestigious passenger duties. Appropriate weathering focuses on subtle effects including light brake dust around bogie areas, roof weathering from pantograph arcing creating darker patches near the pantograph head, minor oil staining around bogie pivot points, and accumulated grime on underframe equipment. Avoid heavy industrial weathering inappropriate for an express passenger locomotive that received regular attention at depot washing plants. The InterCity Swallow period (1988-1992) saw the cleanest presentation, whilst the GNER years included periods of slightly heavier grime accumulation reflecting intensive utilization and less frequent exterior cleaning.

For modellers interested in contemporary preservation-era representation, the locomotive's September 2025 return to mainline running opens new possibilities. Test trains between Crewe and Stafford provide authentic scenarios, whilst future railtour operations will enable depiction of the Class 89 working heritage charter services on electrified routes throughout Britain. The current InterCity Swallow livery with replica "Avocet" nameplates creates striking visual impact, particularly when photographed against modern railway infrastructure that highlights the locomotive's status as a distinctive 1980s design operating in the 2020s environment.

Timetable construction should reflect realistic operational patterns rather than arbitrary locomotive assignments. The Class 89 worked intensive diagrams during its operational periods, typically completing multiple return trips daily between London and intermediate ECML stations. Modellers can create engaging operating sessions by scheduling the locomotive for varied duties throughout a session—morning commuter service, midday express, afternoon parcels train, evening passenger working—whilst ensuring adequate time for realistic depot servicing activities including refuelling (though electric locomotives obviously don't require diesel), brake tests, and routine inspections.

Finally

The British Rail Class 89 represents far more than Britain's only six-axle AC electric locomotive; this singular machine embodies the fascinating "what might have been" narratives that make railway history so compelling. Brush Traction's ambitious design, incorporating sophisticated thyristor control with independent field current regulation, innovative Co-Co wheel arrangement providing superior adhesion, and HST-style streamlined aesthetics, delivered a genuinely impressive mixed-traffic locomotive capable of both 125 mph express passenger work and heavy freight haulage. That such a capable machine remained forever unique reflects not engineering inadequacy but rather the unpredictable nature of railway policy evolution and the unforgiving economics of prototype operations.

For railway historians, the Class 89 provides fascinating insights into late-1980s British Rail strategic thinking and the technological crossroads facing electric locomotive development. The decision to commission a powerful universal locomotive reflected traditional railway operating philosophy favouring versatile motive power capable of diverse duties. Within just a few years, this philosophy gave way to the fixed-formation concept that prioritized operational efficiency over locomotive versatility. The Class 89 became an expensive casualty of this transition, its greatest strength—adaptability—rendered irrelevant by the InterCity 225 revolution.

The tragic irony of locomotive 89001's career lies in its technical excellence. Contemporary drivers praised its smooth power delivery, comfortable cab environment, and stable high-speed running characteristics. Engineers appreciated the sophisticated traction control that effectively eliminated the wheelslip problems plaguing earlier designs. Passengers enjoyed the quiet, vibration-free ride quality matching the best contemporary equipment. Yet none of these virtues could overcome the fundamental mismatch between the locomotive's capabilities and British Rail's evolving operational requirements. When the ECML speed requirement increased to 140 mph and the InterCity 225 concept gained ascendancy, even a perfectly functional 125 mph mixed-traffic locomotive found itself without a role.

The remarkable preservation story demonstrates the enduring appeal of distinctive railway engineering. The AC Locomotive Group's dedication to restoring 89001 to mainline operational condition represents one of Britain's most ambitious electric locomotive preservation projects, requiring nearly two decades of systematic engineering work addressing every aspect of a complex machine that had languished in storage for years. The successful return to mainline running in September 2025 validates this extraordinary effort whilst providing contemporary railway enthusiasts with opportunities to experience a unique chapter of British railway history firsthand.

Accurascale's exceptional OO gauge range brings the Class 89 to model railway enthusiasts with unprecedented accuracy and attention to prototype detail. The comprehensive livery selection spanning InterCity Executive and Swallow schemes through GNER privatization colors to current preservation appearance enables authentic layout representation across nearly four decades. The sophisticated motor, comprehensive lighting, optional ESU LokSound installation, and motorized pantograph demonstrate Accurascale's commitment to creating models that satisfy demanding enthusiasts whilst remaining accessible to modellers seeking impressive ready-to-run products.

Model railway hobbyists incorporating the Class 89 into layouts gain distinctive modern British electric traction that immediately creates talking points and visual interest. The locomotive's substantial length, streamlined profile, and characteristic "Badger" appearance ensure it commands attention in any consist or depot scene. Whether representing the transitional late-1980s period when established BR practices gave way to privatization-era innovations, the colorful GNER years showcasing early franchise operations, or the current preservation era celebrating Britain's electric railway heritage, the Class 89 brings character and authenticity to layouts depicting electrified main line operations.

As the railway preservation movement continues evolving and societies recognize the value of recent traction alongside historic steam and first-generation diesel examples, the Class 89 stands as perfect exemplar of late-20th-century British electric locomotive engineering. The sophisticated technology wrapped in streamlined aesthetics, the innovative wheel arrangement providing capabilities beyond contemporary designs, and the poignant story of a capable machine rendered surplus by policy evolution combine to create enduring fascination. These characteristics ensure that locomotive 89001—Britain's forever-unique six-axle electric—will continue capturing enthusiasts' imaginations for generations to come.

The British Rail Class 89 ultimately represents both achievement and missed opportunity. The engineering excellence proves that British Rail Engineering Limited and Brush Traction could design and construct world-class electric locomotives matching international standards. The operational success during both BR and GNER periods demonstrates the fundamental soundness of the Co-Co concept for British conditions. Yet the failure to develop the class beyond a single prototype illustrates the challenges facing railway engineering when strategic policy shifts render expensive development programmes obsolete before they mature. The sight and sound of 89001 working contemporary mainline railtours—with its distinctive transformer hum and smooth six-axle acceleration—serves as both celebration of what was achieved and poignant reminder of the production fleet that never materialized.

Frequently Asked Questions

Why was only one British Rail Class 89 built?

British Rail changed policy before the prototype was completed, favoring fixed-formation InterCity 225 trainsets using Class 91 locomotives with Mk4 coaches over traditional locomotive-hauled operations. Additionally, BR raised the East Coast Main Line speed requirement from 125 mph to 140 mph—beyond the Class 89's capability without fundamental redesign. The locomotive was also rejected for West Coast Main Line use in favor of the Class 90 design, leaving no clear operational role to justify series production.

What technical innovations did the Class 89 introduce to British railways?

The Class 89 was Britain's first AC electric with Co-Co six-axle wheel arrangement, providing 50% more driving wheels than contemporary Bo-Bo designs for superior adhesion. It featured sophisticated thyristor control with independent field current controllers for each of six traction motors, HST-style streamlined cabs with Buckeye automatic couplers enabling push-pull DVT operation, and Time Division Multiplex control systems that were subsequently adopted for Class 91 locomotives.

What power output did the Class 89 produce?

The Class 89 delivered continuous power output of 4,286 kW (5,748 hp), with one-hour maximum rating of 4,530 kW (6,075 hp). This made it one of Britain's most powerful electric locomotives during the 1980s, substantially exceeding the Class 87's 3,730 kW and matching the later Class 90's capabilities whilst offering superior adhesion through its six-axle design.

What made the six-axle Co-Co design unique for British electrics?

Every previous British AC electric locomotive used Bo-Bo four-axle wheel arrangements. The Class 89's Co-Co configuration with two three-axle bogies provided six powered wheels per locomotive instead of four, dramatically improving traction for heavy freight acceleration whilst maintaining 125 mph passenger capability. The six-axle design also distributed the 105-tonne weight more evenly, potentially enabling operation over routes with axle loading restrictions that excluded heavier four-axle machines.

Where is locomotive 89001 now and can the public see it?

Locomotive 89001 is based at Locomotive Services Group depot in Crewe, owned by the AC Locomotive Group with LSL as operating partner. The locomotive is maintained in operational condition following comprehensive restoration and successful mainline test running in September 2025. It appears at major railway heritage events and is certified for railtour operations, providing opportunities for enthusiasts to both view and potentially ride behind Britain's unique six-axle electric locomotive.

What services did the Class 89 work during its operational career?

During BR ownership (1988-1992), the Class 89 worked King's Cross to Peterborough passenger services, occasional express workings to Leeds, parcels trains, and crew training duties. It hauled the prestigious Mallard 50th Anniversary Special in July 1988 and was officially named "Avocet" by Prime Minister Margaret Thatcher in January 1989. Under GNER ownership (1997-2000), it worked King's Cross to Leeds and Bradford passenger services alongside Class 91 InterCity 225 formations.

What OO gauge Class 89 models are currently available?

Accurascale produces the only ready-to-run Class 89 models, available exclusively through Rails of Sheffield. Five livery variants include InterCity Executive (1986-1988), InterCity Swallow "Avocet" (1988-1992), GNER White Lettering (1997-1999), GNER Gold Lettering (1999-2001), and current InterCity Swallow preservation appearance (2019-present). Models retail at £229.99 for DCC Ready versions and £329.99 for DCC Sound Fitted with ESU LokSound 5 decoders. Silver Fox Models offers resin/white metal kits at £47.50 requiring donor Hornby Class 47 chassis.

Are Class 89 models available in N gauge or O gauge?

No N gauge or O gauge ready-to-run Class 89 models exist from any manufacturer. The Accurascale OO gauge range represents the only mass-produced ready-to-run version ever made. Finescale modellers with advanced skills could potentially create O gauge examples through scratch-building, but no commercial kits or RTR models are available. The exclusive manufacturing arrangement between Accurascale and Rails of Sheffield makes future N gauge production unlikely.

What coaching stock should I use with Class 89 models?

The Class 89 worked exclusively with Mk3 coaches—never Mk4 stock, which was purpose-built for Class 91 formations. Appropriate consists include 8-12 Mk3 coaches in matching InterCity Executive livery (1986-1988), InterCity Swallow livery (1988-1992), or GNER blue and orange (1997-2000). For test running periods, BR International Mk3 coaches in maroon or modern charter operators' stock provide authentic options. Avoid pairing the Class 89 with Mk4 coaches as this never occurred in prototype operations.

How did Class 89 differ from Classes 87, 90, and 91?

The Class 89 was the only British AC electric with Co-Co six-axle wheel arrangement—all others used Bo-Bo four-axle designs. At 105 tonnes, it was substantially heavier than Class 87 (81 tonnes), Class 90 (84.5 tonnes), and Class 91 (81.5 tonnes). The six-axle configuration provided superior adhesion for freight work whilst the 4,286 kW power output exceeded Class 87/90 but fell short of Class 91's 4,540 kW. The Class 89 achieved 125 mph compared to Class 91's 140 mph, but offered genuine mixed-traffic capability the passenger-optimized Class 91 lacked.

What locations should I model for authentic Class 89 operations?

East Coast Main Line locations between King's Cross and Leeds provide the most authentic settings, particularly stations including Peterborough, Stevenage, Huntingdon, Grantham, and Doncaster. Hornsey depot in North London served as the locomotive's home base during BR operations. For preservation-era modeling, Crewe depot and West Coast Main Line locations between Crewe and Stafford reflect the locomotive's current test running activities. Future railtour operations may see the Class 89 working various electrified routes throughout Britain.

When did locomotive 89001 return to mainline running?

After 25 years stored or under restoration, locomotive 89001 completed successful mainline test runs on the nights of 29-30 September and 30 September-1 October 2025, working between Crewe and Stafford. Additional test runs through November 2025 accumulated sufficient mileage for mainline certification. The locomotive is now approved for railtour operations under Locomotive Services Limited's InterCity programme, marking a triumphant return for Britain's unique six-axle electric locomotive.
