British Rail Class 76 – Gresley's Electric Legacy on the Woodhead Route 1941-1981

Historical Background and Context

The genesis of the Class 76 lay not with British Railways but with the London and North Eastern Railway under Sir Nigel Gresley's visionary leadership during the 1930s. The trans-Pennine route between Manchester and Sheffield via the Woodhead tunnels had presented severe operational challenges since the Great Central Railway's construction in the 1840s. The three-mile Woodhead tunnel permitted only single-line operation, creating bottlenecks that limited traffic capacity. More significantly, the Worsborough Incline between Wombwell and Dunford Bridge featured gradients nominally rated at 1 in 40 but worsened by colliery subsidence to even steeper sections where heavily loaded coal trains crawled at 5-10 mph behind labouring steam locomotives.

In 1936, the LNER drew up definitive electrification plans after the Railway Finance Corporation offered low-interest loans for employment-generating infrastructure projects that would alleviate Depression-era unemployment. The scheme proposed converting approximately 75 route miles to electric operation at an estimated cost of £2.5 million. Economic analysis demonstrated compelling advantages: replacing 181 steam locomotives with just 88 electric units whilst dramatically improving service frequency, reducing journey times, and eliminating the choking smoke and sulphurous atmosphere that plagued the confined Woodhead tunnels.

Gresley personally supervised mechanical design development, visiting South African Railways and Metropolitan-Vickers to study a unique bogie coupling system already proving successful abroad. This innovative arrangement mounted buffers and drawgear on the outer bogie ends rather than the locomotive body itself, theoretically transmitting no tractive or braking forces through the superstructure and reducing structural stress. This distinctive feature would become the Class 76's most recognisable characteristic—and ultimately one of its most problematic.

The government's choice of 1500V DC overhead electrification followed recommendations from standardisation committees dating to 1921. During the 1930s, this voltage and current type represented proven technology successfully deployed on Netherlands State Railways, French railways, and several suburban systems worldwide. The 25kV AC systems that would later become British Rail's electrification standard simply didn't exist as practical technology during the planning period—reliable lightweight transformers, rectifiers, and control equipment hadn't been developed for railway applications. This decision would prove fateful: by the 1955 BR Modernisation Plan, 25kV AC had become the new standard for all British main line electrification, rendering Woodhead's expensive infrastructure immediately non-standard and incompatible with the emerging national network.

War's outbreak in September 1939 devastated electrification progress. Metropolitan-Vickers had received January 1939 orders for electrical equipment for 70 locomotives. By November 1939, this had been slashed to a single prototype as war priorities consumed manufacturing capacity and railway investment. Yet remarkably, the prototype locomotive emerged from Doncaster Works in August 1940—a testament to LNER determination and skilled craftsmanship despite wartime conditions. Initially numbered LNER 6701, it entered traffic under wartime secrecy with minimal publicity.

The designation EM1 (Electric Mixed-Traffic, Power Class 1) only appeared in September 1945 as post-war reorganisation resumed. The prototype underwent extensive trials on the Liverpool Street-Shenfield line which had been electrified in 1949 to 1500V DC overhead, providing the only available test route for Woodhead equipment in Britain. These trials validated design principles whilst identifying modifications required for production locomotives, particularly regarding the troublesome bogie coupling arrangement that caused rough riding and excessive wheelslip during hard acceleration.

Design and Technical Specifications

The engineering excellence of the British Rail Class 76 centred on its distinctive Bo+Bo wheel arrangement—a configuration meaning two four-wheel bogies with all axles individually powered. The crucial "+" notation indicated that the bogies were mechanically linked through a coupling arrangement rather than being independently mounted to the body frame as in conventional Bo-Bo designs. This Gresley-inspired innovation placed drawgear and buffers on the outer ends of the bogies themselves, with a central coupling bar connecting them beneath the locomotive body. The arrangement theoretically transmitted no traction or braking forces through the superstructure, reducing body stress and permitting lighter construction.

The electrical equipment supplied by Metropolitan-Vickers featured four Type 186 DC traction motors producing 467 hp (348 kW) each, providing a continuous power rating of 1,300 hp (969 kW) with a one-hour rating peaking at 1,868 hp (1,393 kW). This substantial power output enabled starting tractive effort of 45,000 lbf (200 kN)—sufficient to move heavy coal trains from standstill on steep gradients. The locomotives collected current through twin diamond-shaped pantographs mounted on the roof, both raised simultaneously during normal Woodhead operation to maximise current collection from the overhead catenary.

The pantograph arrangement proved crucial for reliable current collection. The original Stone-Faiveley design could extend to almost full height—approximately 10 feet above the roof—reaching catenary sometimes installed as high as 20 feet above rail level in certain locations. This exceptional reach ensured consistent power delivery even where civil engineering constraints forced high catenary installation. Later locomotives received modified Brecknell Willis high-speed pantographs during major overhauls, though the line's 65 mph maximum speed hardly demanded such equipment.

The bogie design featured 3 ft 7 in (1.09 m) diameter wheels with a 7 ft 0 in (2.13 m) wheelbase within each bogie. The rigid wheelbase totalled 27 ft 6 in (8.38 m) from front to rear axles, contributing to the poor riding characteristics at higher speeds. Contemporary accounts described severe lateral oscillation above 50 mph, attributed to the bogie coupling arrangement's inability to provide adequate lateral restraint whilst allowing sufficient articulation for curves. Drivers learned to moderate speed on straight sections, though the line's numerous curves rarely permitted sustained high-speed running regardless.

Weight distribution created persistent operational challenges. The innovative bogie coupling caused excessive weight transfer during hard acceleration, lightening leading axles and provoking wheelslip despite the substantial total tractive effort. Maximum permissible train loads had to be reduced from the originally planned 850 tons to 750 tons on steepest gradients due to adhesion limitations. Some bogie centre pins bent or fractured under operational stresses, requiring expensive replacement and strengthening modifications during major overhauls at Gorton Works.

The mechanical construction followed conventional British practice for electric locomotives. A substantial steel underframe carried the electrical equipment in compartments accessible through hinged panels and doors in the body sides. The distinctive body styling featured a central cab spanning the full width with equipment rooms at each end. The prototype received streamlined ends with curved cab windows, though production locomotives adopted simpler flat cab fronts with rectangular windows that reduced manufacturing complexity. Small distinctive ventilation grilles covered much of the body sides, permitting cooling airflow for the electrical equipment whilst protecting components from weather and lineside debris.

Braking equipment comprised comprehensive Westinghouse air brakes for the locomotive itself combined with vacuum train brake equipment for controlling fitted freight wagons—the standard British freight braking system until the 1970s. The substantial weight and powerful motors provided excellent dynamic braking capability, with traction motors switched to generator mode during braking to provide significant retardation whilst feeding energy back into the overhead line for use by other trains. This regenerative braking capability substantially reduced brake block wear whilst contributing to overall system efficiency.

Service History and Operations

The British Rail Class 76 fleet entered service gradually as the Manchester-Sheffield-Wath electrification progressed through the early 1950s. The prototype LNER 6701 enjoyed a remarkable interlude before domestic service commenced. In September 1947, Britain loaned the locomotive to Netherlands State Railways (Nederlandse Spoorwegen) to help address severe post-war locomotive shortages. Dutch drivers affectionately nicknamed her "Tommy" after the familiar British soldier term, and she hauled both heavy freight and express passenger trains across the Netherlands until February 1952. Upon return, the locomotive carried a commemorative nameplate: "So named by drivers of the Netherlands State Railway to whom this locomotive was loaned 1947-1952."

Authority for production locomotives came in July 1946, though actual contracts weren't placed until after nationalisation on 1st January 1948. The prototype received BR number 26000, whilst production examples would be numbered 26001-26057. Gorton Works in Manchester, the former Great Central Railway workshops, built all 57 production locomotives between 1950 and 1953, with Metropolitan-Vickers fitting electrical equipment at their nearby Dukinfield facility. An additional 24 locomotives planned for Darlington Works were cancelled as traffic projections were revised downward and construction costs escalated beyond original estimates.

The first production locomotives reached the Liverpool Street-Shenfield line for trials at Ilford depot on 27 October 1950, where they worked alongside the existing 1500V DC fleet whilst crews gained experience with the new design. Full Woodhead Line electrification came in carefully planned stages: the Dunford Bridge to Wath section energised on 4 February 1952, followed by electric operation through the new Woodhead Tunnel from 30 May 1954, with Princess Alexandra performing the official opening ceremony on 20 September 1954. The total electrification cost reached £10.8 million by some estimates, with others citing figures approaching £15 million—vastly exceeding the original £2.5 million projection after wartime delays, post-war inflation, and the decision to bore an entirely new twin-bore tunnel rather than merely electrifying the existing single-bore Victorian structure.

The Class 76 fleet operated from Reddish Electric Depot, a purpose-built facility coded 9C constructed in 1954 on the Fallowfield Loop specifically for Woodhead services. Locomotives were distributed operationally to stabling points at Wath marshalling yard (39A), Guide Bridge (9D), and Darnall (41A) as traffic requirements dictated. Daily workings saw locomotives travelling throughout the electrified section hauling coal trains from the South Yorkshire coalfield to Manchester and destinations beyond, returning with empty wagons for reloading at the 45 collieries operating within a 10-mile radius of Wath.

From 1970 onwards, Merry-Go-Round coal trains to Fiddlers Ferry Power Station near Widnes became the mainstay of Class 76 operations. These specialised trains featured bottom-discharge hopper wagons that could be unloaded whilst moving slowly through the power station's discharge facility, eliminating time-consuming locomotive uncoupling and wagon shunting. The intensive service demanded reliable motive power operating to tight schedules, and the Class 76 fleet proved remarkably dependable despite the mechanical problems that had plagued their early years.

Fourteen locomotives (26020, 26046-26057) received Spanner steam heating boilers manufactured by Bastian & Allen specifically for passenger train operation. When British Rail controversially sold all seven Class 77 (EM2) express passenger electric locomotives to Netherlands Railways in September 1969 for service to 1986, the Class 76s inherited remaining Woodhead passenger duties until complete passenger service withdrawal in January 1970. The locomotives proved adequate though hardly ideal for passenger work, with the rough riding quality above 50 mph creating passenger discomfort on the few remaining passenger services during their brief tenure in this role.

Twelve locomotives received Greek mythology names between 1959 and 1961 in a publicity initiative: 26020 Archimedes, 26037 Diomedes, 26038 Hector, 26039 Jason, 26040 Stentor, 26041 Mentor, 26042 Nestor, 26043 Perseus, 26044 Pluto, 26045 Prometheus, 26046 Triton, and 26047 Ulysses—plus the prototype's unique "Tommy" nameplate. All nameplates were removed between 1968 and 1970 as British Rail discontinued the practice for freight-only locomotives, though Tommy's nameplate was preserved and later donated to the National Railway Museum.

The operational pattern from the mid-1970s onwards focused almost entirely on coal traffic as general freight declined and passenger services had been withdrawn. A typical working day saw Class 76 pairs departing Wath with loaded coal trains, descending through the Woodhead Tunnel to Manchester, handing over to diesel locomotives for onward movement to destinations beyond the electrified section, then returning with empty wagons for reloading. The intensive service required locomotives to be available 24 hours daily, with maintenance scheduled in short windows between duties rather than lengthy workshop visits that would have removed locomotives from traffic.

Fleet

Withdrawal and Preservation Legacy

The withdrawal history of the British Rail Class 76 represents one of British railway preservation's most controversial chapters. Unlike most locomotive classes that faced gradual obsolescence and piecemeal scrapping over years or decades, the entire surviving Class 76 fleet faced sudden, politically-driven mass withdrawal that condemned 52 entirely serviceable locomotives to premature scrapping.

Early withdrawals began in March 1970 with five locomotives including the prototype 26000 Tommy, primarily examples with electrical defects or accident damage deemed uneconomical to repair. Another locomotive was withdrawn in 1972. The remaining fleet of 52 locomotives continued reliable service through the 1970s, benefiting from systematic overhauls at Gorton Works that maintained them in thoroughly serviceable condition. Contemporary reports suggest several had received major overhauls as recently as 1979-1980, fitting new electrical equipment and refurbished motors that should have provided decades of further service.

The Woodhead Line's decline stemmed not from locomotive obsolescence but from infrastructure politics and declining traffic. The January 1970 passenger service withdrawal proved particularly controversial as the Beeching Report had actually recommended closing the parallel Hope Valley route instead. The Hope Valley survived for "social and network reasons"—a decision that condemned Woodhead to freight-only status and initiated the decline toward complete closure. By the late 1970s, multiple factors aligned against the route: declining coal traffic as South Yorkshire collieries closed or switched to road transport, annual operating losses reported at £1.3 million, the non-standard 1500V DC system isolated from British Rail's 25kV AC network, and prohibitive conversion costs estimated in tens of millions of pounds for a route generating insufficient revenue to justify such investment.

British Rail announced Woodhead closure in 1980, citing economic considerations. The final trains operated on 17-18 July 1981, with 76006 and 76014 hauling the last laden coal train from Wath to Manchester on the evening of 18 July 1981. On 20 July 1981, all 52 remaining locomotives were withdrawn simultaneously—an unprecedented mass withdrawal of an entire class in entirely serviceable condition. The locomotives were stored at Guide Bridge depot where the overhead wires remained energised until December 1984, with staff reportedly raising pantographs nostalgically to demonstrate the locomotives' continued functionality.

Scrapping proceeded with depressing efficiency. Most locomotives went to Booths of Rotherham, the Yorkshire scrapyard that had dismantled countless locomotives over decades. The work ran from February 1983 through December 1984 as the locomotives were towed dead from storage to cutting torches. A few examples travelled to other scrapyards including Vic Berry in Leicester. Within three years of withdrawal, 51 of the 52 locomotives had been completely destroyed, their scrap metal recycled into anonymity.

Only one complete locomotive survives today: 26020 at the National Railway Museum in York. This locomotive was selected for the National Collection because of its appearance at the 1951 Festival of Britain (where it featured distinctive stainless steel handrails and cab window surrounds) and its role hauling the inaugural train through the new Woodhead Tunnel on 30 May 1954. The locomotive is displayed in its original lined BR black livery in the Great Hall and remains freely accessible to visitors. Unlike some museum exhibits, 26020 has never operated on preserved railways—its 1500V DC electrical system and unique bogie coupling arrangement would require specialized infrastructure unavailable on any British heritage line.

The cab section of 76039 (originally 26048 Hector) survives at the South Yorkshire Transport Museum in Aldwarke, Rotherham, having previously been displayed at the Science and Industry Museum in Manchester. A cabside panel and driver's door from 76051 Mentor are preserved at Barrow Hill Roundhouse near Chesterfield, the former Staveley steam and diesel depot that has become a railway heritage centre. Tommy's nameplate resides at the National Railway Museum, a poignant memorial to the prototype's Dutch adventures.

The Woodhead Railway Heritage Group, established in 2016, is developing a museum at Guide Bridge station in the former Network Rail signalling building. Targeted opening at the end of 2025 will celebrate the line's complete history from the 1845 opening through the controversial 1981 closure, preserving artefacts, documents, and memories of the Woodhead Route and its distinctive electric locomotives. The group's work ensures that future generations can understand what was sacrificed when Britain's pioneering mainline electrification scheme was abandoned for short-term economic considerations.

Modelling Significance and Scale Replications

The British Rail Class 76 presents exceptional modelling significance due to its unique position as Britain's first mainline electric locomotive class, its distinctive appearance with twin pantographs and innovative bogie arrangement, and the dramatic operational scenarios that characterized Woodhead Route operations. For railway modellers seeking to recreate authentic 1950s-1980s British electric operations, these locomotives provide compelling prototype appeal enhanced by fascinating operational stories, intensive coal traffic, and the technical challenge of modelling overhead catenary systems.

The modelling landscape remained frustratingly barren for decades despite the class's historical importance. The pioneering 1959 Trix Twin Railways model represented the first ready-to-run Class 76, though its 3-rail operation rendered it incompatible with modern 2-rail layouts. For over 50 years, no major manufacturer produced models despite the class's obvious significance. This inexplicable neglect left modellers of 1950s-1980s BR electric operations without a fundamental locomotive type essential for authentic Woodhead Route representation.

This changed when Heljan announced Class 76 tooling in partnership with Sheffield-based Olivia's Trains in 2010. The first models reached enthusiasts in 2011, immediately earning acclaim for exceptional bodywork detail, comprehensive factory-fitted features, and thoughtful attention to the variations that characterized different livery periods. The announcement generated particular enthusiasm among modellers who had waited decades for ready-to-run representation of this historically important class.

Heljan's approach demonstrated commendable commitment to prototype accuracy. Rather than producing a single generic model, the company created tooling variations representing the class across its entire 40-year service career. The range encompassed six distinct catalogue numbers covering lined BR black (early BR period), BR green with half yellow ends (late 1950s-1960s naming era), and BR blue with full yellow ends (final livery from late 1960s-1981). Each variant featured appropriate period details including correct buffer styles, differently positioned electrical equipment, and era-specific modifications.

Each model features a 21-pin DCC decoder socket with pre-fitted 23mm circular speaker, enabling straightforward digital conversion. Directional lighting comprises working headlights at both ends that automatically switch based on direction of travel. NEM coupling pockets accommodate standard tension-lock or magnetic couplings, with screw-link couplings supplied for modellers preferring period-accurate appearance over operational convenience. The comprehensive factory-fitted details include separately applied etched metal grilles on body sides, cross-arm pantographs with intricate metalwork, detailed pipework and electrical conduits, and separately applied handrails throughout.

Original retail pricing ranged from £124-165 depending on specific catalogue number and retailer discounting. Olivia's Trains offered DCC sound fitting services for approximately £100 additional, installing ESU LokSound decoders with authentic EM1 motor sounds and comprehensive function mapping. These sound-fitted examples provided remarkable operational realism with prototypical traction motor whine, pantograph raising/lowering sounds, compressor cycling, and brake applications.

Technical execution throughout the models reaches impressive standards for ready-to-run products at this price point. A powerful five-pole motor drives all wheels through a split-chassis design providing electrical pickup from every axle, ensuring smooth operation at realistic crawling speeds appropriate for heavily-loaded coal trains on steep gradients. The die-cast metal chassis and body underframe provide satisfying weight (approximately 285g) and stability, contributing to excellent adhesion for double-heading scenarios. The minimum curve radius of second radius (438mm/17.25") suits most OO gauge layouts, though tight industrial sidings require testing.

Performance characteristics demonstrate Heljan's engineering quality. The locomotives operate smoothly from barely perceptible crawl speeds upward, with progressive throttle response enabling realistic speed control. The substantial weight and efficient power transmission enable single locomotives to haul 10-12 laden coal wagons on level track, with pairs managing 20-25 wagons authentically representing prototype Merry-Go-Round train formations. The only limitation concerns steep gradients where model adhesion doesn't match prototype capabilities—layouts featuring dramatic Pennine-inspired grades may require compensation curves or lighter train loads than prototype operation permitted.

Livery application demonstrates meticulous research and execution. The BR black versions precisely match the lined black scheme with gold lining, early lion-and-wheel crest transfers, and correct buffer beam details. BR Brunswick green examples show accurate green shade with black and orange lining, half yellow warning panels, and appropriate numbering styles. The BR blue variants correctly represent the final monastral blue with full yellow ends scheme that dominated the final decade of operations, including proper placement of maintenance warning flashes and updated TOPS numbering where appropriate.

Current availability presents significant challenges for modellers seeking these locomotives. All Heljan catalogue numbers are officially out of production, with the manufacturer showing no indication of re-running the tooling. The secondary market provides the primary source: eBay listings occasionally appear at £120-200 depending on condition and livery desirability, model railway shows offer opportunities to acquire examples from private sellers, and specialist retailers occasionally discover old stock. Hattons Model Railways has periodically offered bargain-priced examples at £90-110 when clearing warehouse stock, though these opportunities disappear rapidly once advertised.

Beyond Heljan's ready-to-run models, kit builders have several options. Silver Fox Models produces a comprehensive resin body kit (code SF76) retailing around £30, requiring modellers to source appropriate chassis, motors, and electrical components. MSL Hobbies offers etched nickel silver kits suitable for both OO gauge and N gauge, demanding considerable metalworking skills but permitting ultimate accuracy for experienced builders. Shapeways hosts 3D-printed bodyshells designed by "m0rris" in both N gauge (designed for Kato 11-103 or 11-109 chassis) and OO gauge (adaptable to Heljan Class 76 chassis for damaged bodywork replacement), with prices varying based on material selection and current Shapeways pricing.

Notably absent from Class 76 production: Hornby, Bachmann, Dapol, Graham Farish, Accurascale, Rapido Trains, and Revolution Trains have never released models of this class despite several manufacturers producing other British electric locomotives. Heljan has not extended the Class 76 to their O gauge range despite extensive O gauge British diesel and electric production. This makes the OO gauge Heljan releases uniquely important for modellers—these represent the only modern ready-to-run Class 76 models in any scale, and their scarcity suggests securing examples when they appear on the secondary market should be a priority for serious Woodhead Route modellers.

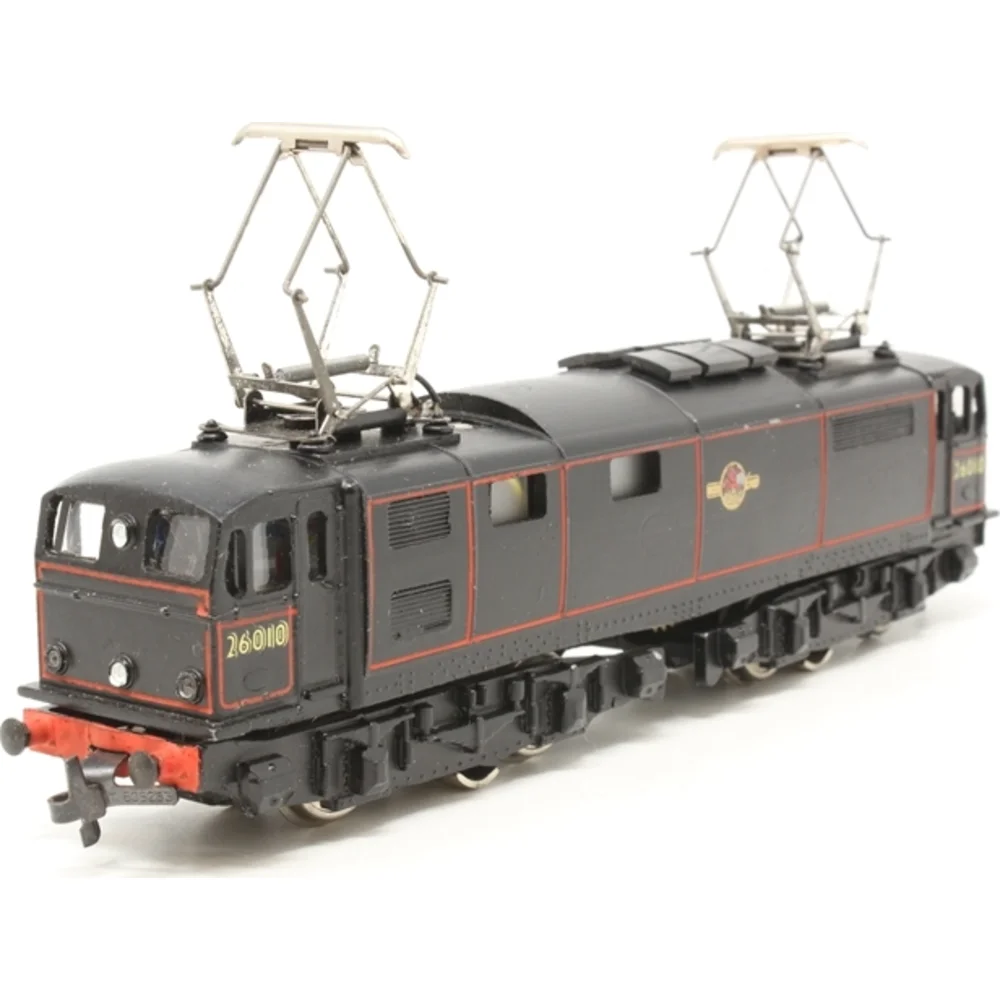

Models

Unique Modelling Tips and Layout Integration

Successfully incorporating British Rail Class 76 models into layout operation requires understanding the specialized nature of their prototype duties and the authentic operating scenarios that characterized Woodhead Route operations from 1954 through 1981. Unlike general-purpose diesel or steam locomotives that might work diverse traffic across wide geographic areas, the Class 76 operated exclusively on a single electrified route hauling predominantly coal traffic, creating both constraints and opportunities for authentic layout representation.

Era selection proves fundamental for Class 76 operation. The earliest appropriate timeframe begins February 1952 when the Dunford Bridge-Wath section energised, though full operations including through the Woodhead Tunnel only commenced from May 1954. Layouts depicting 1954-1969 can show Class 76s alongside Class 77 express passenger locomotives (also available from Heljan) operating both freight and passenger services. The 1970-1981 period represents freight-only operation following passenger withdrawal, with Class 76s dominating all traffic. Post-1981 settings cannot authentically show Class 76s as the entire fleet was withdrawn simultaneously with route closure.

Authentic operating scenarios should reflect the intensive coal haulage that dominated Woodhead operations. A typical Class 76 duty involved departing Wath yard with a loaded coal train—typically 40-50 16-ton mineral wagons or 20-25 32-ton Merry-Go-Round hoppers—proceeding west through the Woodhead Tunnel to Manchester or beyond, then returning with empty wagons for reloading. The Worsborough Incline regularly required four locomotives: two hauling at the front, two banking from Wombwell. Layout operators can recreate this dramatic operation with two Heljan Class 76s hauling and two additional examples banking, providing spectacular multiple-locomotive consists rarely seen elsewhere on British railways.

Layout infrastructure authenticity demands careful attention to overhead catenary installation. The prototype operated under 1500V DC overhead collection, with catenary suspended from portal structures, cantilever arms, and span wires across multiple tracks. Modellers have several options: Sommerfeldt produces comprehensive OO gauge catenary systems with wire, portal structures, cantilever arms, and working pantograph equipment enabling true electrical current collection; Dapol offers simpler catenary kits suitable for visual representation without functional current collection; or modellers can fabricate custom catenary from brass wire and plastruct components for economical large-scale installation. Functional catenary requires replacing Heljan's weak pantographs with Sommerfeldt 941 units as previously noted.

Rolling stock selection requires matching appropriate coal wagons to specific operating periods. Early operations (1954-1970) used traditional 16-ton steel mineral wagons in bauxite or grey livery, requiring 40-50 wagons per train to achieve prototype loadings of 640-800 tons. From 1970 onwards, Merry-Go-Round operations used 32-ton HAA coal hoppers in BR grey or blue livery, with trains comprising 20-25 wagons totaling 640-800 tons payload. Bachmann, Dapol, and Hornby all produce appropriate mineral wagons and HAA hoppers suitable for Woodhead consists. Avoid mixing wagon types within a single train—prototype operations maintained wagon type consistency for operational efficiency.

Passenger operations (1954-1970 only) present additional modelling opportunities for earlier period layouts. Class 76s with steam heating apparatus could substitute for Class 77s on trans-Pennine passenger services, typically hauling 6-8 coaches. Appropriate coaching stock includes BR Mk1 corridor coaches in crimson and cream (1954-1964) or maroon (1964-1970) livery, formed into complete rakes with brake composites at each end. Hornby, Bachmann, and Graham Farish all produce suitable Mk1 coaches. Remember that passenger service withdrawal in January 1970 ended Class 76 passenger operation, so post-1970 layouts should show freight-only working.

Depot and infrastructure scenes provide excellent static display opportunities whilst demonstrating maintenance facilities essential for electric locomotive operations. Model a section of Reddish Electric Depot featuring inspection pits with overhead catenary, washing plants, and storage sidings. Include details such as pantograph test rigs, overhead line section insulators, and catenary maintenance towers. Wath marshalling yard offers alternatives: model the extensive classification sidings where coal wagons were sorted by destination, with Class 76s collecting made-up trains for departure. These scenes demonstrate the specialized infrastructure supporting electric operations.

Gradient modelling enables recreation of the Worsborough Incline's dramatic operations. Purpose-built scenic sections representing the climb from Wombwell through Silkstone toward Dunford Bridge can incorporate gradients of 1:40 (2.5% grade)—steep by model railway standards but achievable with careful trackwork and adequate locomotive power. Four Heljan Class 76s working in multiple should manage 20-25 loaded coal wagons on such grades, authentically representing prototype four-locomotive operation. The "Clearcall" intercom could be represented through DCC sound functions with horn blasts coordinating power application.

Timetable construction should incorporate intensive service frequency that characterized Woodhead coal operations during peak periods. Multiple Class 76 pairs working the route simultaneously, careful scheduling to manage single-bore tunnel occupation (pre-1954 layouts), and coordinated passing movements at crossing loops all reflect prototype practice. A realistic operating session might involve running three or four complete coal train cycles per pair of locomotives, with tight turnaround times at both Wath and Manchester representing the intensive utilization that characterized BR freight operations. This creates engaging operations for multiple participants whilst remaining prototypically accurate.

Sound-equipped Class 76 models enhance realism through authentic audio reproduction. The distinctive sound of DC traction motors differs markedly from diesel engine exhaust or steam locomotive beats. Programme sound decoders to emphasize motor whine during acceleration, steady running hum during cruise, regenerative braking effects during deceleration, pantograph raising and lowering sequences at depot, and compressor cycling. The EM1 sound files available for ESU LokSound decoders provide reasonably authentic reproduction of these characteristics, though enthusiasts seeking ultimate accuracy might record actual tram or trolleybus sounds as closer analogues to 1500V DC traction motors.

Finally

The British Rail Class 76 represents far more than 58 electric locomotives that hauled Yorkshire coal for three decades; these machines embodied Britain's pioneering mainline electrification ambitions whilst demonstrating how infrastructure investments could be rendered obsolete through changing technology standards and short-term political decisions. Sir Nigel Gresley's ambitious 1936 vision for transforming the trans-Pennine route through electric traction delivered precisely what was promised: dramatically improved efficiency, increased traffic capacity, and elimination of the choking atmosphere that plagued steam operation through Woodhead's confined tunnels. Yet the fundamental decision to electrify at 1500V DC—entirely logical given 1930s technology—doomed the scheme to incompatibility when British Railways standardized on 25kV AC from 1955 onwards.

For railway historians, the class provides sobering lessons about infrastructure planning and technological change. The £10-15 million Woodhead electrification represented massive investment—roughly equivalent to £400-600 million in 2025 terms—yet delivered barely 30 years of service before abandonment. The locomotives themselves remained entirely serviceable when withdrawn in 1981, with many having received recent major overhauls fitting new electrical equipment good for decades more operation. That British Rail refused reported Netherlands Railways interest in purchasing the fleet—allegedly to avoid embarrassment over earlier Class 77 sale justifications—demonstrates how institutional pride could trump economic rationality.

The controversial passenger service withdrawal in January 1970 illustrates political decisions overwhelming rational transport planning. The Beeching Report recommended closing the parallel Hope Valley route, yet Hope Valley survived for "social and network reasons" whilst Woodhead was relegated to freight-only status. This decision initiated the decline toward complete closure, as freight-only routes faced easier abandonment than those serving passengers. The 1981 closure and simultaneous withdrawal of 52 serviceable electric locomotives represented one of Britain's most wasteful railway decisions—demolishing infrastructure that could have served for decades whilst increasing dependence on road haulage for coal and freight traffic.

The survival of only 26020 at the National Railway Museum represents one of Britain's most regrettable preservation gaps. Unlike steam locomotives where early preservationists saved hundreds of examples, the Class 76 withdrawal coincided with 1980s financial constraints that limited museum acquisitions. The unique 1500V DC electrical system meant no heritage railway could operate preserved examples without impossibly expensive catenary installation, reducing preservation appeal compared to steam or diesel traction operable on existing heritage infrastructure. The result: 51 historically significant electric locomotives destroyed, with just one static museum exhibit surviving to demonstrate Gresley's pioneering design.

Heljan's comprehensive OO gauge range provides the only modern opportunity for railway enthusiasts to experience Class 76 operations through model form. The exceptional detail quality, thoughtful livery selection spanning the complete 40-year service career, and available period variations enable authentic layout representation from 1950s BR black through 1970s BR blue final livery. The current scarcity of these models in the retail market reflects limited original production quantities and absence of re-runs, making secondary market acquisitions increasingly important for modellers planning Woodhead Route layouts.

Model railway enthusiasts incorporating Class 76s find in them ideal subjects balancing historical significance with operational interest. The dramatic Pennine scenery potential, intensive coal traffic operations, overhead catenary modelling challenge, and multiple-working requirements on steep gradients create engaging layout opportunities. Whether representing peak 1960s operations with both passenger and freight services alongside Class 77s, or focusing on 1970s Merry-Go-Round coal operations with four-locomotive Worsborough Incline consists, these models bring character and authenticity to any Woodhead-themed layout whilst commemorating Britain's pioneering mainline electrification achievement.

The Woodhead Railway Heritage Group's planned museum opening in 2025 promises renewed public appreciation for this significant chapter in British railway history. As railway preservation continues evolving and society recognizes the value of understanding transport infrastructure decisions—both successes and failures—the British Rail Class 76 story provides essential lessons. These locomotives prove that technological excellence alone cannot guarantee longevity when infrastructure planning lacks coherent long-term strategy. The Class 76 stands as both testament to British engineering capability and warning about infrastructure decisions that prioritize short-term considerations over sustained planning.

Frequently Asked Questions

How many British Rail Class 76 locomotives were built and when?

Fifty-eight locomotives comprised the complete Class 76 roster: one prototype (LNER 6701) built at Doncaster Works in August 1940, followed by 57 production examples (26001-26057) constructed at Gorton Works between 1950 and 1953. Metropolitan-Vickers fitted electrical equipment at their Dukinfield facility. An additional 24 locomotives planned for Darlington Works were cancelled as traffic projections were revised and costs escalated. The prototype underwent extensive trials including remarkable service in the Netherlands 1947-1952 before returning for Woodhead operations.

What made the Class 76 different from other British electric locomotives?

The Class 76 featured the unique Bo+Bo wheel arrangement with innovative bogie coupling placing buffers and drawgear on bogie ends rather than the body, transmitting no tractive forces through the superstructure. This Gresley-inspired design theoretically reduced body stress but caused poor riding quality above 50 mph and excessive weight transfer during acceleration provoking wheelslip. The locomotives operated exclusively on 1500V DC overhead collection—Britain's first mainline electric system but incompatible with the 25kV AC standard adopted from 1955 onwards.

Why were the Class 76 locomotives withdrawn prematurely?

The entire surviving fleet of 52 serviceable locomotives was withdrawn simultaneously on 20 July 1981 following closure of the Woodhead Route. The withdrawal stemmed not from locomotive obsolescence but infrastructure politics: declining coal traffic as collieries closed, passenger service withdrawal in 1970 relegating the route to freight-only status, annual losses reported at £1.3 million, the non-standard 1500V DC system incompatible with BR's 25kV AC network, and prohibitive conversion costs. Many locomotives had received recent major overhauls and could have operated for decades more.

What was the prototype's "Tommy" nickname about?

The prototype LNER 6701 was loaned to Netherlands State Railways from September 1947 to February 1952 to help address post-war locomotive shortages. Dutch drivers nicknamed her "Tommy" after the familiar British soldier term, and she hauled both heavy freight and express passenger trains across the Netherlands. Upon return, the locomotive carried a commemorative nameplate: "So named by drivers of the Netherlands State Railway to whom this locomotive was loaned 1947-1952." This nameplate is now preserved at the National Railway Museum alongside the locomotive itself (renumbered 26000 and later 76020).

Where did Class 76 locomotives typically operate?

The Class 76 fleet operated exclusively on the Manchester-Sheffield-Wath electrified route spanning approximately 75 miles. Locomotives worked from Reddish Electric Depot with stabling points at Wath marshalling yard, Guide Bridge, and Darnall. Their primary role involved hauling coal from 45 South Yorkshire collieries within 10 miles of Wath, particularly Merry-Go-Round trains to Fiddlers Ferry Power Station from 1970 onwards. The demanding Worsborough Incline regularly required four locomotives per train—two hauling, two banking—representing Britain's most intensive regular freight operation.

Why was the Woodhead Route electrified at 1500V DC?

The 1936 decision to electrify at 1500V DC followed government standardisation committees' recommendations and represented proven 1930s technology successfully deployed in the Netherlands and France. The 25kV AC systems that later became British standard simply didn't exist practically during planning—reliable lightweight transformers and rectifiers hadn't been developed. This logical 1930s choice became fateful when BR's 1955 Modernisation Plan adopted 25kV AC as standard, rendering Woodhead's expensive infrastructure immediately non-standard and incompatible with the emerging national network.

Are any Class 76 locomotives preserved today?

Only one complete locomotive survives: 26020 at the National Railway Museum in York, selected for the National Collection because of its 1951 Festival of Britain appearance and role hauling the inaugural train through the new Woodhead Tunnel. The locomotive is displayed in lined BR black livery in the Great Hall. Additionally, the cab section of 76039 (originally 26048 Hector) survives at South Yorkshire Transport Museum in Aldwarke, and a cabside panel from 76051 Mentor is preserved at Barrow Hill Roundhouse.

What OO gauge Class 76 models are currently available?

Heljan produced OO gauge Class 76 models in 2011 under catalogue numbers 7600-7605, covering BR black (26020), BR green (E26051), and BR blue (E26049, 76014, 76022) liveries. All variants are now officially out of production. Models feature 21-pin DCC sockets, pre-fitted speakers, directional lighting, etched detail parts, and working pantographs (though replacement with Sommerfeldt 941 units is recommended for functional catenary). Current availability is limited to secondary market sources: eBay (£120-200), model railway shows, and occasional retailer old stock clearances.

Are Class 76 models available in N gauge or O gauge?

No ready-to-run Class 76 models exist in N gauge or O gauge. MSL Hobbies produces etched brass kits suitable for both OO and N gauge construction, demanding considerable metalworking skills. Shapeways offers 3D-printed bodyshells by "m0rris" designed for N gauge (compatible with Kato 11-103/11-109 chassis) requiring modellers to source mechanical components separately. No O gauge options exist despite Heljan's extensive O gauge British locomotive range. Heljan's OO gauge releases represent the only modern ready-to-run Class 76 models in any scale.

What rolling stock should I use with Class 76 models?

Authentic consists reflect predominantly coal traffic. Early period (1954-1970) operations used 16-ton steel mineral wagons in bauxite or grey, requiring 40-50 wagons per train achieving 640-800 tons payload. Merry-Go-Round operations (1970-1981) used 32-ton HAA coal hoppers in BR grey or blue, with 20-25 wagons totaling similar payloads. Passenger services (1954-1970 only) typically comprised 6-8 BR Mk1 corridor coaches in crimson and cream (1954-1964) or maroon (1964-1970). Bachmann, Dapol, and Hornby all produce appropriate wagons and coaches.

Can Class 76 models operate on working overhead catenary?

Heljan's factory-fitted pantographs prove too weak for reliable current collection from working catenary systems. Modellers planning functional overhead operation should replace them with Sommerfeldt 941 high-speed pantographs designed for OO gauge use. This modification requires careful removal of factory pantographs and installation of Sommerfeldt mounting bases but results in reliable current collection from Sommerfeldt or Dapol catenary systems. Many modellers opt for cosmetic catenary representation avoiding the complexity and expense of functional overhead wire whilst maintaining visual authenticity.

What was the Worsborough Incline and why did it require four locomotives?

The Worsborough Incline between Wombwell and Silkstone featured gradients nominally 1 in 40 but worsened by coal mining subsidence to sections approaching 1 in 35. Fully loaded Merry-Go-Round trains weighing 1,000 tons required two Class 76s hauling from the front with two more banking from Wombwell—the only British railway section regularly operating four locomotives per train. A "Clearcall" intercom system transmitted via the overhead catenary enabled the lead driver to coordinate all four crews for simultaneous power application preventing coupling snatch.
