The British Rail Class 110 represents one of the most capable first-generation diesel multiple units ever constructed, purpose-built to conquer the demanding Trans-Pennine routes connecting Leeds and Manchester. Built by Birmingham Railway Carriage and Wagon Company between 1961 and 1963, these powerful DMUs delivered the highest power-to-weight ratio of any first-generation unit through their quartet of 180 bhp Rolls-Royce engines. Thirty three-car sets totalling 90 vehicles served almost three decades tackling the Calder Valley line's punishing 1 in 45 gradients before withdrawal in 1989-1991, establishing journey time improvements that transformed northern England's cross-Pennine connectivity.
For model railway enthusiasts, the BR Class 110 offers compelling prototype appeal: historically significant Trans-Pennine operations, visually distinctive BRCW styling, and fascinating operational stories spanning BR green elegance through blue/grey MetroTrain modernisation. Hornby maintains exclusive production rights across all scales, offering OO gauge models in both three-car and two-car formations with DCC Ready capability representing key livery periods from 1962 Brunswick green through late-1980s West Yorkshire PTE branding.
From launching the accelerated Calder Valley service in January 1962 to final withdrawal from Leeds Neville Hill in 1991, the Class 110 proved that purpose-built engineering matched to specific operational requirements could deliver exceptional performance. Five vehicles survive in preservation at the East Lancashire Railway and Lakeside & Haverthwaite Railway, ensuring these distinctive Trans-Pennine workhorses remain accessible for future generations to experience and appreciate.
Quick Takeaways
- Thirty three-car sets constructed: Birmingham Railway Carriage and Wagon Company built 90 vehicles total between 1961-1963 for North Eastern and London Midland Regions
- Highest first-generation power-to-weight: Four Rolls-Royce C6NFLH engines delivering 720 bhp per three-car set achieved 8.3 hp/ton, increasing to 11.2 hp/ton after 1983 trailer withdrawals
- Purpose-built for Pennine gradients: Specifically designed to tackle Calder Valley line's sustained 1 in 45 climbs with accelerated timetable performance unachievable by standard first-generation DMUs
- Unique engine orientation: Rolls-Royce engines mounted with cylinder heads facing inward required specialized drop pit facilities, constraining operational flexibility throughout service life
- Nearly three decades Trans-Pennine service: From January 1962 Calder Valley launch until final 1991 withdrawals, predominantly operated Leeds-Manchester services with extensions to Liverpool, York, and Lancashire coast
- Six distinctive liveries: Brunswick green with speed whiskers, BR green with yellow panel, rail blue, white with blue stripe refurbishment, BR blue/grey with WYPTE branding, and MetroTrain late-service schemes
- Five vehicles preserved: East Lancashire Railway maintains sole complete three-car set including rare TSL centre car, whilst Lakeside & Haverthwaite operates two-car power twin formation
- Hornby exclusive models: OO gauge only manufacturer worldwide, current production includes R30170 (3-car BR green, £179.99 RRP) and R30171 (2-car MetroTrain, £149.99 RRP) with DCC Ready capability
Historical Background and Context
The genesis of the Class 110 lay in a specific operational challenge facing British Railways in the late 1950s. The Calder Valley line connecting Leeds and Manchester via Bradford presented formidable engineering obstacles—sustained gradients of 1 in 45, tight curves, and restrictive clearances demanded motive power combining exceptional acceleration with compact dimensions. Standard first-generation DMUs lacked sufficient power for the accelerated timetables BR envisioned for this crucial Trans-Pennine artery serving Yorkshire and Lancashire's industrial heartlands.
Birmingham Railway Carriage and Wagon Company received contracts for thirty three-car sets totalling 90 vehicles between 1959 and 1961. The first contract, dated 26 February 1959, covered twenty sets allocated to the North Eastern Region specifically for Calder Valley duties. A second contract from January 1961 added ten sets for the London Midland Region. Production proceeded at approximately one set per week through 1961, with concurrent delivery of both batches ensuring rapid fleet build-up ahead of the planned January 1962 service introduction.
The Class 110 represented BRCW's penultimate first-generation DMU construction, following the company's earlier Class 104 production. The design evolved directly from the Class 104 platform, incorporating substantial improvements reflecting lessons learned from earlier Trans-Pennine operations. Most significantly, BRCW specified more powerful Rolls-Royce C6NFLH diesel engines producing 180 bhp each—a 20% improvement over the Leyland units fitted to Class 104s. With two engines per driving motor car and two power cars per three-car set, each formation delivered 720 bhp total output.
This power specification represented the highest output of any first-generation DMU design. Contemporary Derby-built units like the Class 108 managed just 400-480 bhp per three-car set, whilst even the powerful Metropolitan-Cammell Class 101s produced only 460-600 bhp depending on configuration. The Class 110's 720 bhp output translated to 8.3 horsepower per ton in standard three-car formation—exceptional power-to-weight enabling the rapid acceleration and sustained gradient climbing essential for Calder Valley operations.
Insider Tip: Unique Engine Configuration Recognition
Class 110 locomotives featured a unique engineering peculiarity distinguishing them from all other DMU classes: the Rolls-Royce engines were mounted with cylinder heads facing inward rather than the conventional outward orientation. This arrangement enabled more compact engine bay packaging but created significant operational constraints—engine removal required specialized drop pit facilities available only at designated depots. You can identify this feature by examining the distinctive engine bay grille patterns and access panel arrangements, which differ noticeably from other BRCW products. This constraint meant Class 110s remained concentrated at Bradford Hammerton Street and later Leeds Neville Hill throughout their service lives.
The construction programme proceeded smoothly through 1961-1963, with vehicles emerging in BR Brunswick green livery featuring distinctive speed whiskers. The sets received numbers in the E51xxx and E52xxx series, with driving motor brake composites (DMBCs), trailer second lavatories (TSLs), and driving motor composite lavatories (DMCLs) forming standard three-car formations. Total construction reached 90 vehicles: 60 power cars and 30 unpowered trailers.
Initial allocation split between Bradford Hammerton Street depot (North Eastern Region sets) and Newton Heath, Manchester (London Midland Region sets). The first six NER sets briefly received delivery to Darlington before immediate transfer to Bradford. By December 1961, all NER sets had concentrated at Hammerton Street, which would become the class's primary home for the next two decades. This concentration reflected both operational logic—proximity to primary Calder Valley duties—and the practical necessity of accessing suitable maintenance facilities for the unique engine configuration.
Design and Technical Specifications
The engineering excellence of the British Rail Class 110 lay in BRCW's sophisticated integration of powerful propulsion within the compact dimensions essential for Trans-Pennine operations. At the heart of each driving motor car sat twin Rolls-Royce C6NFLH horizontal six-cylinder diesel engines, each producing 180 bhp at 1,800 rpm. These proven powerplants delivered exceptional reliability whilst achieving the power density necessary for sustained gradient climbing.
Power transmission followed diesel-mechanical practice through SCG SE4 epicyclic gearboxes—robust units capable of handling the substantial torque loads generated during hard acceleration on steep gradients. The transmission drove through cardan shafts to the powered bogies, with final drive gearing optimized for the demanding Calder Valley profile. Maximum speed reached 70 mph, though operational requirements rarely demanded sustained high-speed running given the intensive stop-start nature of Trans-Pennine services with frequent intermediate station calls.
Standard three-car formations comprised three distinct vehicle types optimized for Trans-Pennine passenger accommodation. The Driving Motor Brake Composite (DMBC) provided both first and second class seating alongside a guard's compartment with luggage space. The unpowered Trailer Second Lavatory (TSL) centre car maximized second class capacity with 72 seats plus toilet facilities. The Driving Motor Composite Lavatory (DMCL) offered first and second class accommodation with lavatory provision, completing formations seating 24 first class and 159 second class passengers totalling 183 seats per three-car set.
Construction utilized all-steel bodywork on welded underframes—heavier than contemporary aluminium-bodied Derby products like the Class 108 but essential for the structural rigidity demanded by intensive Trans-Pennine operations. Each driving motor car weighed approximately 31-32 tons, with unpowered trailers at 24 tons, giving complete three-car sets a tare weight of 87½ tons. This substantial weight contributed to excellent riding characteristics and passenger comfort despite challenging route conditions.
The unique engine mounting arrangement—with Rolls-Royce units installed with cylinder heads facing inward—represented the most distinctive engineering feature. This configuration enabled more compact engine bay packaging, creating additional space for auxiliary equipment and facilitating weight distribution optimization. However, the inward-facing orientation necessitated specialized maintenance procedures. Engine removal required accessing from below through drop pits—facilities available only at designated depots equipped with suitable lifting and support equipment.
Technical Innovation: Power-to-Weight Transformation
The 1982-1983 withdrawal of all TSL centre trailers fundamentally transformed Class 110 operational characteristics. Removing the 24-ton unpowered middle vehicles whilst retaining full 720 bhp output from the two power cars dramatically improved power-to-weight ratio from 8.3 hp/ton to 11.2 hp/ton—the highest of any first-generation DMU. This modification enabled further timetable acceleration whilst reducing maintenance costs, though at the expense of passenger capacity which dropped from 183 to just 111 seats per formation. Some sets briefly received Class 111 trailers during 1984-85 to restore capacity on heavily-loaded services.
Braking followed Gresham & Craven twin-pipe vacuum practice—standard for first-generation DMUs and enabling multiple-unit operation with other Blue Square coded classes. The twin-pipe system provided both service brake control and automatic brake application in emergency situations, with vacuum maintained by exhausters driven from the diesel engines. Braking performance proved adequate for Trans-Pennine operations, though the sustained gradient descents demanded careful brake management to avoid overheating.
Interior appointments reflected early 1960s BR standards. First class compartments featured individual bucket seats in moquette upholstery with antimacassars, whilst second class offered bench seating in harder-wearing materials. Tungsten lighting initially provided illumination, later replaced with fluorescent fittings during 1979-1983 refurbishment. Heating came from engine coolant circulated through radiators beneath seats—effective once engines reached operating temperature but providing minimal warmth during cold starts.
The distinctive BRCW styling created immediately recognizable external appearance. Rounded cab fronts with wrap-around windows, prominent ventilation grilles along bodysides, and characteristic roof profile distinguished Class 110s from contemporary Derby and Metro-Cammell products. Aluminium-framed windows with polished surrounds provided attractive contrast against painted bodywork, particularly effective in later blue/grey livery applications. Red buffer beams, white-painted cab roof domes, and carefully applied lining completed the aesthetic package.
Service History and Operations
The British Rail Class 110 fleet entered service progressively through late 1961 and 1962, with the accelerated Calder Valley service launching on 1 January 1962. This new timetable showcased the class's exceptional performance capabilities, delivering journey time improvements that transformed Trans-Pennine connectivity. Manchester Victoria to Rochdale reduced from 18 to 14 minutes, whilst Sowerby Bridge to Bradford dropped from 30 to 20 minutes. These dramatic reductions reflected both the units' powerful acceleration and the infrastructure improvements BR implemented alongside new rolling stock introduction.
Performance testing demonstrated remarkable capabilities on the punishing Calder Valley gradients. Class 110s achieved 30 mph in 45 seconds from standstill on a 1 in 261 gradient—impressive by any standard. More remarkably, the units managed 25 mph in 42 seconds on the demanding 1 in 45 section, a performance level completely beyond standard first-generation DMUs. This gradient-climbing ability enabled timetable planners to schedule aggressive acceleration between stations, maximizing line capacity through the constrained Calder Valley corridor.
Initial deployment concentrated on core Trans-Pennine routes reflecting the units' design purpose. The primary duty involved hourly Leeds-Manchester Victoria workings via Bradford and the Calder Valley, with some services extending to Liverpool Exchange. Additional diagrams included Leeds-Blackpool Central via the Copy Pit route, York-Manchester Victoria, Sheffield-York via Huddersfield, and various Leeds-originating services to Morecambe, Ilkley, Harrogate, and Hull. This diverse working pattern demonstrated the class's versatility beyond its primary Calder Valley role.
The 1976 concentration of all thirty sets at Bradford Hammerton Street simplified maintenance arrangements, eliminating the divided fleet between NER and LMR allocations. This consolidation reflected both operational logic—the Calder Valley and associated Trans-Pennine services remained the class's primary duties—and maintenance practicality given the unique engine configuration requiring specialized drop pit facilities. Hammerton Street's comprehensive DMU maintenance capabilities made it ideal for fleet concentration.
Operational Insight: The Leeds-Liverpool Expresses
Beyond core Calder Valley duties, Class 110s operated prestigious Leeds-Liverpool Exchange services during the 1960s-1970s. These cross-Pennine expresses initially saw up to seven daily workings, providing important connectivity between Yorkshire and Lancashire commercial centres. The 50-mile journey showcased Class 110 capabilities across varied terrain from Yorkshire's industrial heartlands, through demanding Pennine gradients, to Lancashire's coastal plain. These services continued until gradual replacement by Sprinter units during the late 1980s, representing some of the class's most prestigious regular workings throughout their service careers.
When Hammerton Street depot closed in May 1984, the entire Class 110 fleet transferred to Leeds Neville Hill—one of the few depots equipped with suitable drop pit facilities for the unique engine configuration. This transfer maintained fleet concentration whilst ensuring continued access to essential maintenance infrastructure. Neville Hill became the class's final home, supporting operations through the remaining seven years until complete withdrawal.
The introduction of Class 150/2 Sprinter units in 1987 sealed the Class 110's fate. These second-generation DMUs offered superior passenger comfort, lower operating costs, and better reliability than ageing first-generation units. Withdrawals accelerated through 1987-1989, with most Class 110s withdrawn by October 1989. Final withdrawals extended into 1990-1991, concluding nearly three decades of Trans-Pennine service. The non-standard engine configuration, relatively small fleet size (just thirty sets), and advancing age contributed to the decision against refurbishment for continued service.
Withdrawal and Preservation Legacy
The withdrawal history of the British Rail Class 110 reflects both the wholesale replacement of first-generation DMUs during the late 1980s and the particular challenges posed by the class's unique engineering features. Unlike more numerous classes where preservation societies could select from dozens of potential candidates, the Class 110's relatively small fleet of just thirty sets provided limited preservation opportunities. The 1982-1983 scrapping of all TSL centre trailers further reduced available vehicles, with just 60 power cars remaining in service through the final years.
Withdrawals commenced gradually during 1987 as Class 150/2 Sprinter deliveries enabled cascading replacement of first-generation units. The pace accelerated dramatically through 1988-1989, with the majority of Class 110s condemned by October 1989. Sets stored awaiting scrapping accumulated at various locations across the North Eastern Region, with many vehicles moving to scrapyards within months of withdrawal. The non-standard Rolls-Royce engines had little salvage value given their specialized nature and limited application beyond railway use.
Final withdrawals extended into 1990-1991 as the last survivors operated increasingly decrepit final mileage from Leeds Neville Hill. Period photographs show these veterans in poor external condition—faded paintwork, corrosion around window frames, and general neglect reflecting BR's understandable reluctance to invest maintenance resources in units facing imminent withdrawal. Yet they continued providing reliable service, testament to the fundamental soundness of BRCW construction and Rolls-Royce engineering despite advancing age.
From 90 vehicles constructed, just five survive in preservation—a 5.5% survival rate reflecting both the wholesale scrapping of centre trailers in 1982-83 and the limited preservation capacity available during late 1980s DMU withdrawals. The surviving vehicles represent exceptional importance given this small number, providing the only physical examples of this distinctive Trans-Pennine class accessible to future generations.
Preservation's Rare Treasure: The Sole TSL Survivor
Among the five preserved Class 110 vehicles, Trailer Second Lavatory E59701 at the East Lancashire Railway represents extraordinary significance. This vehicle is the sole survivor from the 30 TSL centre cars built, all others having been scrapped during the 1982-1983 fleet rationalization programme. E59701's survival enables the only complete three-car Class 110 formation in preservation, accurately representing the units' original 1961-1983 configuration. Without this unique vehicle, modellers and historians would lack essential reference material for understanding Class 110 operations during the class's first two decades of service.
The East Lancashire Railway maintains the only complete three-car Class 110 set in preservation. Driving Motor Brake Composite E51813, Trailer Second Lavatory E59701, and Driving Motor Composite Lavatory E51842 arrived at the ELR in April 1990, entering passenger service on 2 March 1991. The set initially operated in BR Brunswick green livery, accurately representing early 1960s appearance. Between 2003 and 2016, the formation operated at the Wensleydale Railway in North Yorkshire, returning to the ELR in November 2016 for continued preservation and operation.
As of late 2025, the three-car set faces maintenance challenges. E51813 requires bogie repairs and vacuum cylinder replacement, currently sidelined awaiting workshop capacity. E51842 and E59701 remain operational, though typically operating as a two-car formation without E51813. The set's operational status fluctuates based on volunteer availability, workshop priorities, and parts availability—challenges facing most heritage railway DMU preservation projects.
The Lakeside & Haverthwaite Railway in Cumbria operates a two-car "power twin" formation comprising Driving Motor Brake Composite 52071 and Driving Motor Composite Lavatory 52077. Both vehicles originated from the second construction batch, initially allocated to Newton Heath, Manchester for London Midland Region duties. This formation accurately represents the 1983-1991 two-car operating configuration following centre trailer withdrawals, providing important reference for modellers depicting late-period Class 110 operations.
No Class 110 vehicles currently reside in static museum collections. The National Railway Museum at York holds no examples, nor do other major railway museums. This absence means the five preserved vehicles at operational heritage railways represent the only opportunities for public access to Class 110 units, making their continued preservation and occasional operation particularly important for railway heritage.
The engineering legacy extends beyond preserved vehicles. The Class 110 validated the diesel-mechanical transmission approach for heavyweight DMU applications, demonstrating that mechanical transmissions could reliably handle substantial power outputs when properly engineered. The Rolls-Royce C6NFLH engines proved exceptionally reliable in service, vindicating BRCW's powertrain selection despite the maintenance access challenges created by the unique mounting arrangement. These lessons influenced subsequent DMU developments, though the industry progressively moved toward hydraulic transmissions offering improved reliability and reduced maintenance requirements.
Modelling Significance and Scale Replications
The British Rail Class 110 presents exceptional modelling significance due to its position as the most powerful first-generation DMU, combined with distinctive Trans-Pennine operational history spanning nearly three decades. For railway modellers seeking to depict northern England routes during the 1962-1991 period, Class 110s provide essential motive power for authentic Calder Valley, Leeds-Manchester, and associated cross-Pennine services. The six livery variations through the class's service life create modelling opportunities satisfying both early BR green enthusiasts and later blue/grey era preferences.
The modelling landscape reveals a remarkable exclusivity: Hornby is the sole manufacturer of Class 110 models worldwide, producing them exclusively in OO gauge. No other manufacturer—neither Bachmann, Dapol, Heljan, Graham Farish, nor any specialist producer—offers Class 110 models in any scale. This monopoly extends across N gauge, O gauge, and all other scales. Even kit manufacturers have not addressed this gap: DC Kits produces extensive first-generation DMU coverage including Classes 100, 101, 104, 105, 108, and 114-124, yet offers no Class 110 kit. Modellers requiring N gauge, O gauge, or other scale representations face scratch-building as their only option.
Hornby's Class 110 production history spans over four decades, commencing with original tooling introduced in 1982. This pioneering release provided the first ready-to-run Class 110 models, though the early tooling featured Ringfield motor technology and relatively basic detail standards reflecting 1980s manufacturing capabilities. Numerous variants emerged through the 1980s-2000s under catalog numbers R267, R369, R369A, R377, R403, R687, R698, R2073, R2073A, and the R2297 "Calder Valley" series. These discontinued variants represent significant historical interest but lack modern features like DCC compatibility.
Hornby introduced comprehensively retooled Class 110 models in 2023 under the RailRoad Plus brand, representing dramatic improvement over 1982 originals. The current production range includes two catalog numbers covering key operational configurations and livery periods. Both models feature 3-pole motors with flywheel—substantial upgrades delivering smooth slow-speed operation and realistic acceleration/deceleration characteristics. Pre-fitted details include door handles, exhausts, gangway connectors, and coach-end railings applied as separate components for enhanced visual depth.

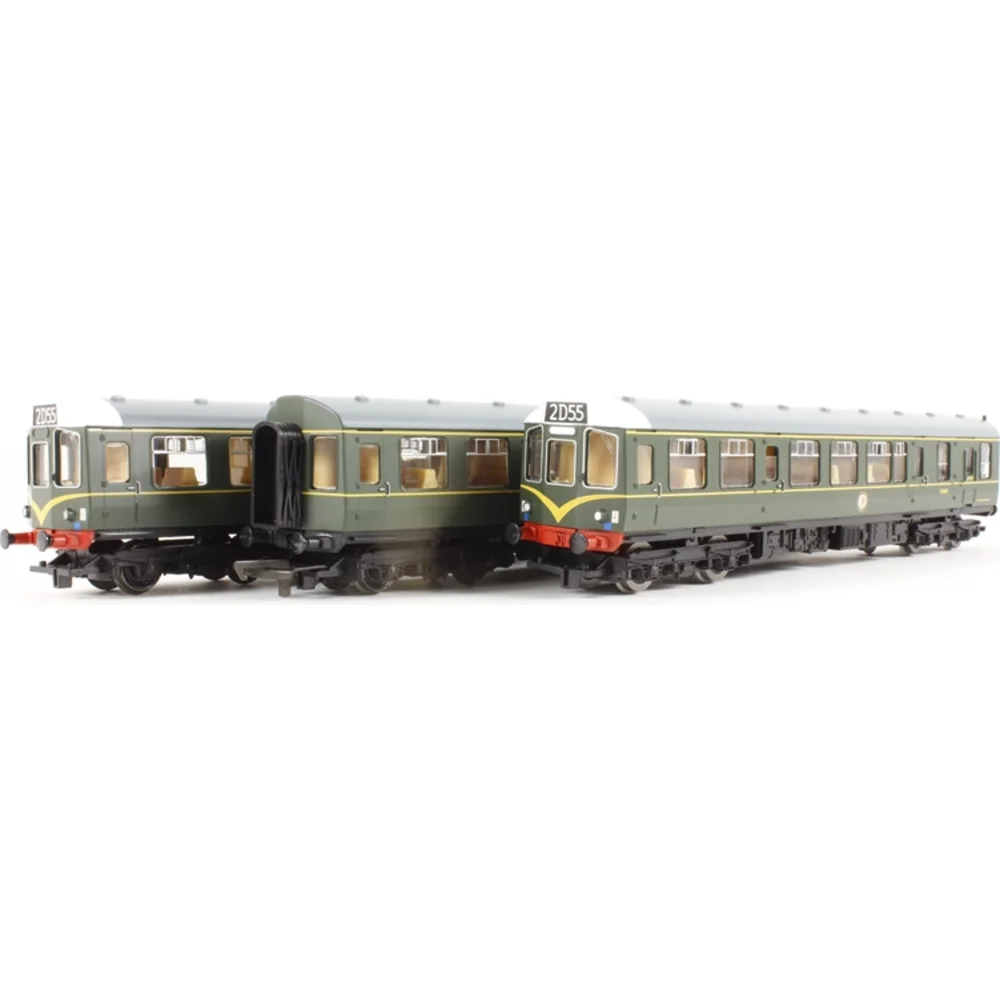

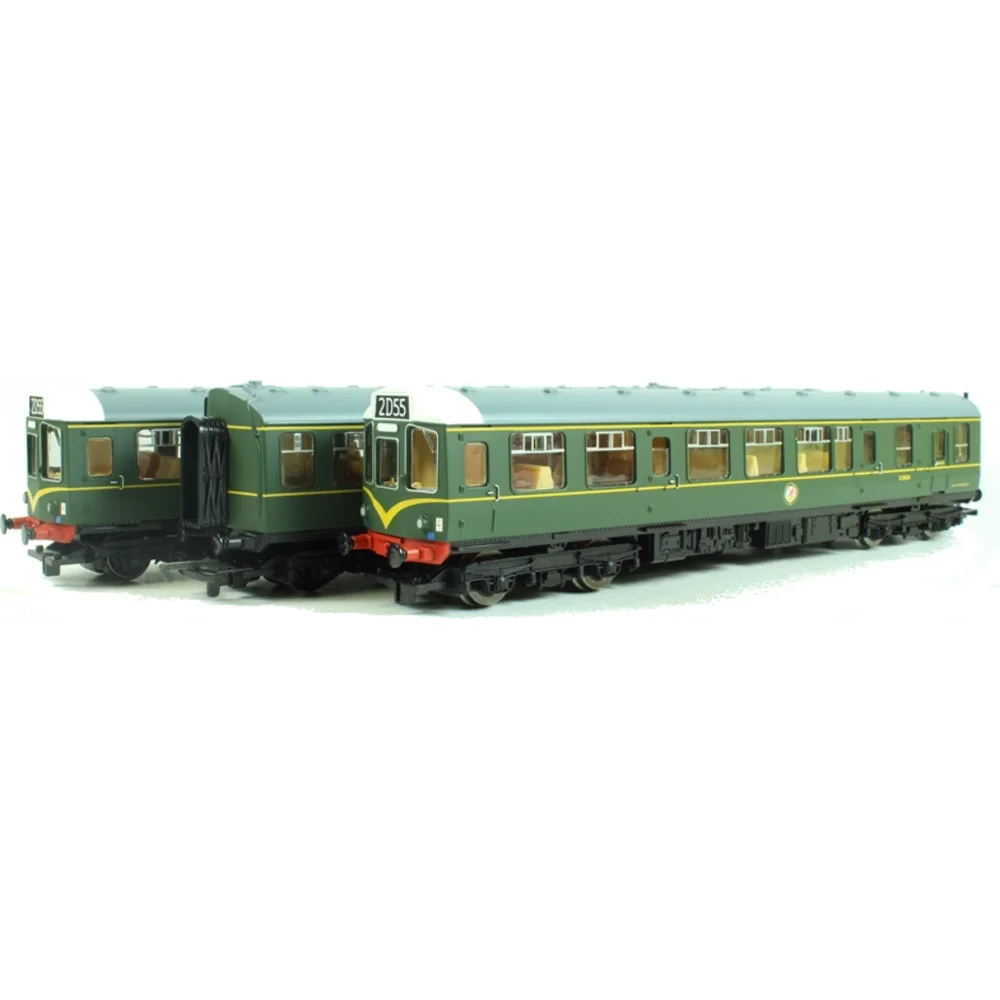

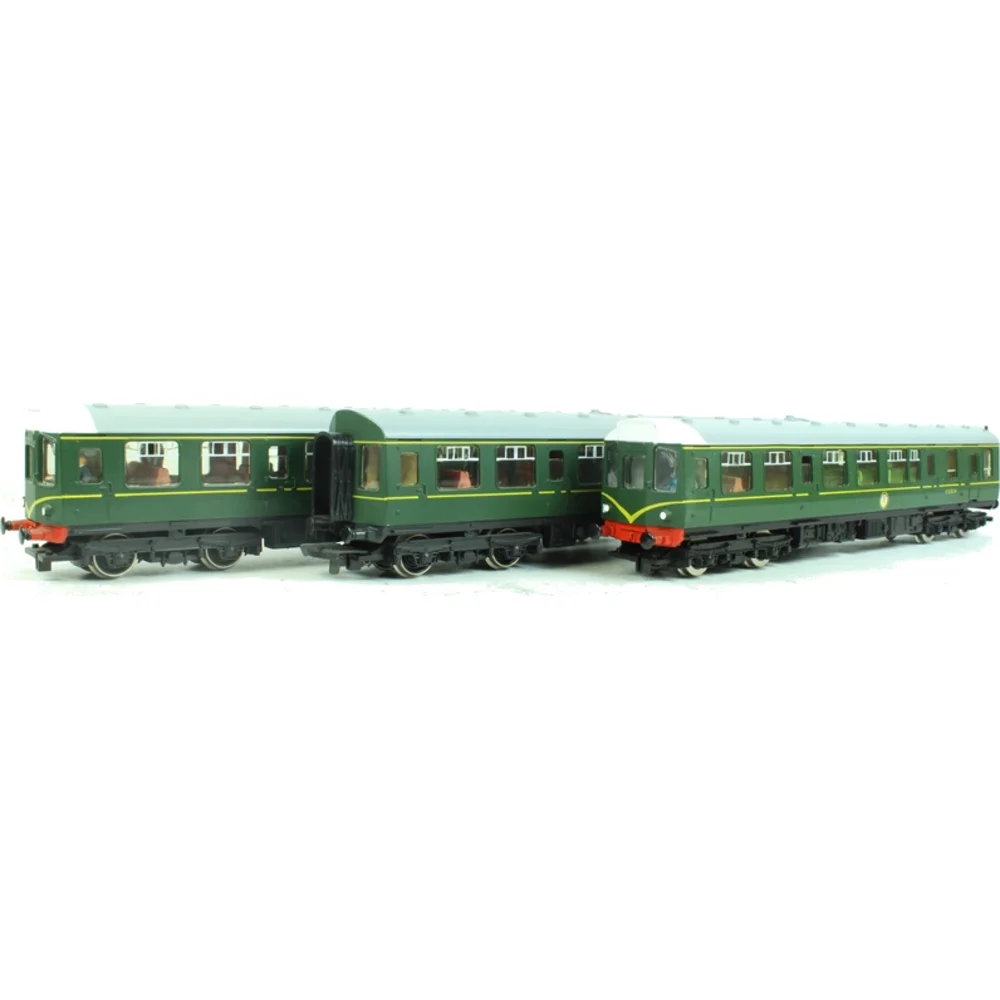

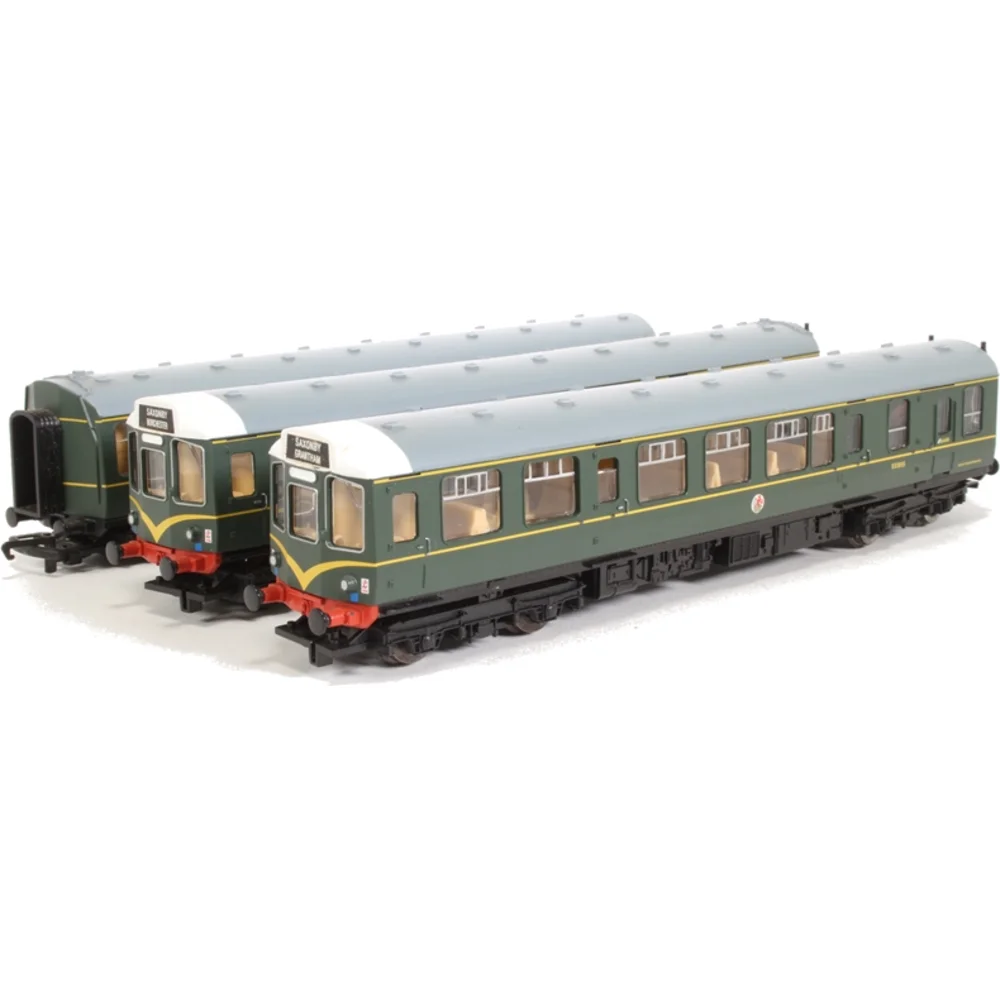

The current production R30170 represents three-car formations in BR Brunswick green livery with distinctive speed whiskers as delivered 1961-1962. This Era 6 model accurately captures early Calder Valley service appearance, with running numbers E51829, E59695, and E51812 representing a typical DMBC-TSL-DMCL formation. The thick-centered speed whiskers tapering to waist-height lining replicate the unique Class 110 application differing from standard DMU treatments. Red buffer beams and white cab roof domes complete the authentic early 1960s presentation.

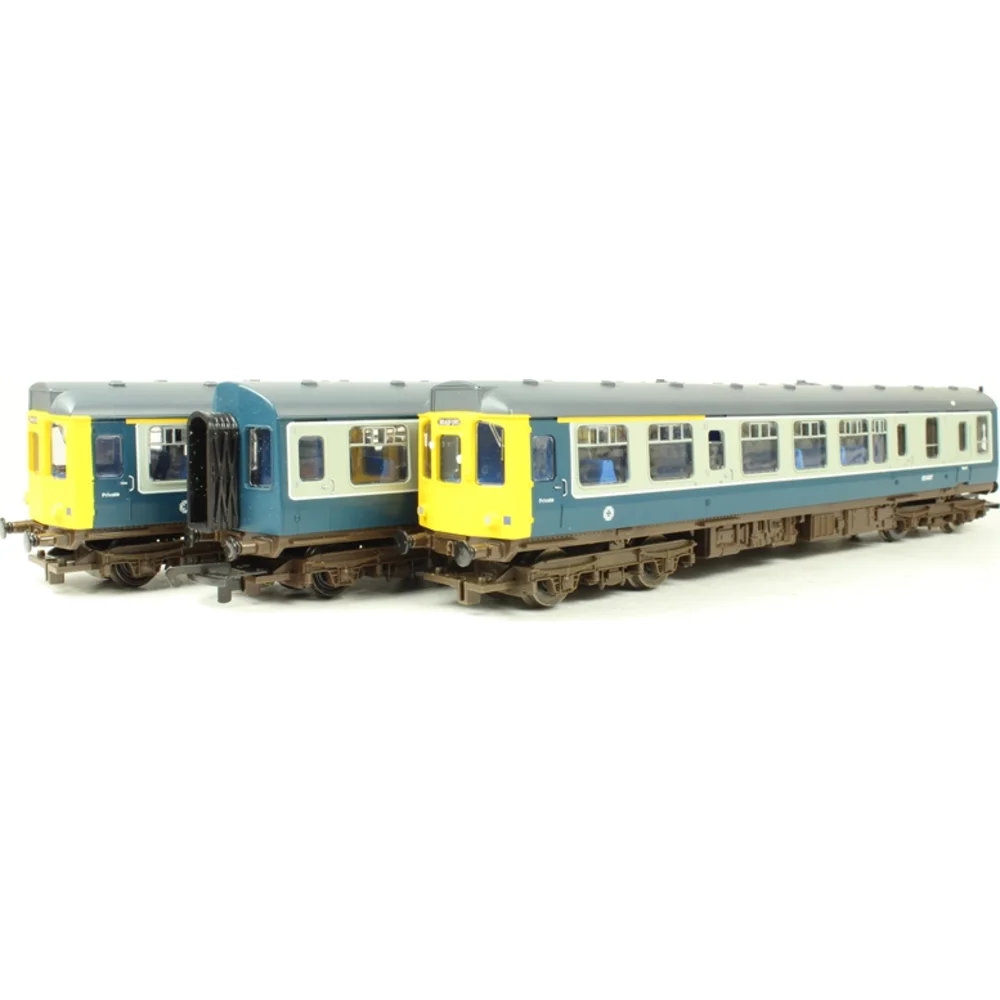

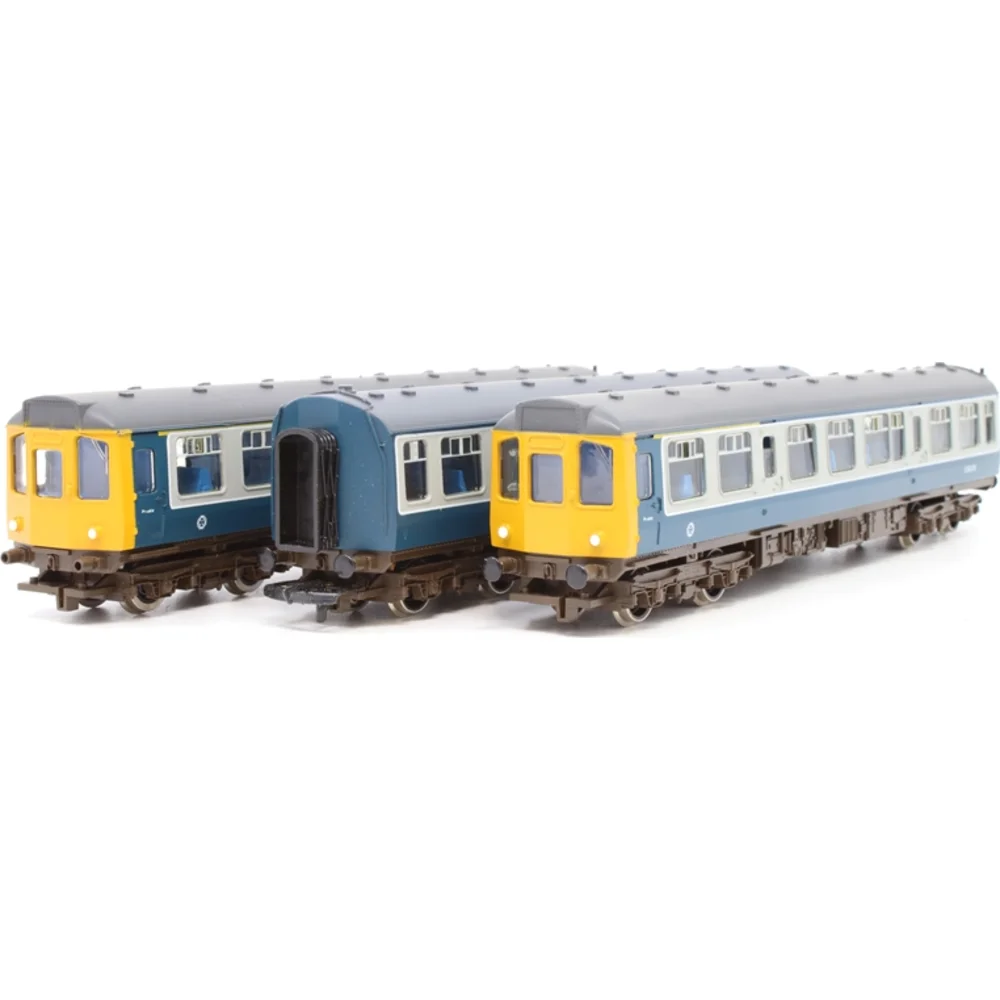

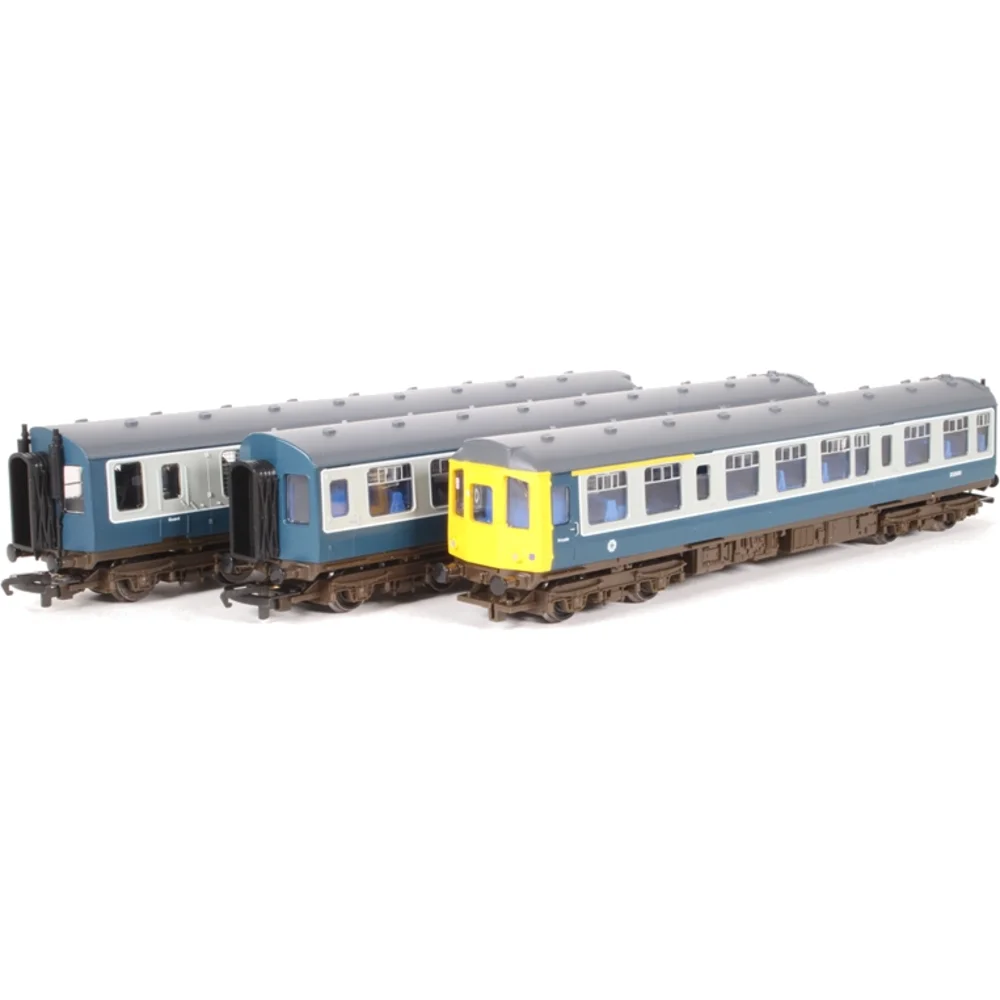

The R30171 depicts two-car formations operating 1983-1991 following centre trailer withdrawals. BR blue/grey livery with MetroTrain branding accurately represents late-service appearance under West Yorkshire PTE influence, with running numbers E52075 and E52084 forming a power twin configuration. The WYPTE logos appear on the driver's side, with BR double-arrows opposite—correctly replicating prototype practice. This Era 7 model suits layouts depicting the final decade of Class 110 operations from Leeds Neville Hill.
Both current models feature DCC Ready capability with 8-pin decoder sockets, enabling straightforward digital conversion for modellers operating DCC layouts. The decoder socket location provides adequate space for standard 8-pin decoders, though modellers should verify decoder dimensions before purchase to ensure physical fit within available space. Importantly, Hornby does not currently produce DCC Sound fitted Class 110 models—modellers seeking sound must undertake aftermarket decoder installation, accepting the additional complexity and expense involved.
Advanced Modelling: Authentic Period Details
Hornby's two current catalog numbers enable period-specific accuracy across the Class 110 service timeline. The R30170 three-car green formation suits Era 6 layouts (1962-1971) depicting early Calder Valley operations, Leeds-Liverpool expresses, and initial Trans-Pennine service expansion. The distinctive speed whiskers disappeared mid-1960s when yellow warning panels became mandatory—modellers can enhance authenticity by weathering and potentially adding yellow panels if depicting post-1965 operations. The R30171 two-car MetroTrain pack accurately represents Era 7-8 operations (1983-1991) following centre trailer withdrawals, with WYPTE branding appropriate for West Yorkshire services under PTE influence. Matching locomotive configuration and livery to specific layout era creates convincing operational authenticity.
Detail quality throughout the 2023 tooling reaches impressive standards for RailRoad Plus positioning. Separately applied components include handrails, door handles, lamp brackets, and detailed underframe equipment. Factory-fitted glazing incorporates cab interior detail with driver's seats and control desks visible through windows. The body moulding accurately captures BRCW styling including characteristic rounded cab fronts, distinctive ventilation grilles, and proper roof profile. Polished aluminium window frames provide attractive visual contrast, particularly effective in blue/grey livery application.
Livery application demonstrates careful research and execution. The Brunswick green scheme precisely replicates the distinctive Class 110 speed whisker treatment with thick central section above coupling tapering to become waist-height lining. Buffer beam red and cab roof dome white match photographic references. The MetroTrain blue/grey scheme shows accurate WYPTE logo placement and BR double-arrow positioning, with correctly rendered yellow warning panel coverage and black underframe treatment.
Pricing reflects the comprehensive feature set and improved tooling quality. The three-car R30170 carries £179.99 RRP, typically discounted to approximately £161.99 at major retailers including Rails of Sheffield, Hattons Model Railways, and Kernow Model Rail Centre. The two-car R30171 shows £149.99 RRP with substantial retail variation from £89.50 to £134.99 depending on retailer stock levels and promotional activity. Availability fluctuates—the R30170 green formation shows limited stock at most retailers as of December 2025, whilst R30171 MetroTrain remains more readily available.
Pre-owned examples from the 1982 original tooling appear regularly on the secondary market through eBay, model railway swap meets, and specialist dealers. These older models typically sell for £50-£100+ depending on condition, completeness, and specific catalog number. The lack of DCC compatibility and basic motor technology limit their appeal compared to current production, though for modellers operating conventional DC layouts, properly maintained examples provide serviceable performance at budget pricing.
Unique Modelling Tips and Layout Integration
Successfully incorporating British Rail Class 110 models into layout operation requires understanding their specialized nature as purpose-built Trans-Pennine units operating intensive cross-Pennine services. Unlike general-purpose first-generation DMUs suitable for diverse branch and secondary duties, Class 110s demand specific operational contexts reflecting their Calder Valley heritage and Trans-Pennine focus. This specificity creates both challenges and opportunities for modellers committed to authentic representation.
Era selection proves fundamental for authentic Class 110 deployment. The earliest appropriate timeframe begins January 1962 when the accelerated Calder Valley service launched, continuing through October 1989 when the majority of the fleet faced withdrawal. Era 6 layouts (1957-1971) suit the three-car Brunswick green formations, depicting pioneering Trans-Pennine DMU operations during the class's first decade. Era 7-8 layouts (1971-1991) accommodate blue/grey liveries, with two-car formations becoming mandatory from 1983 onwards following centre trailer withdrawals.
Authentic operating scenarios reflect the class's intensive Trans-Pennine focus. Primary duties involved hourly Leeds-Manchester Victoria workings via Bradford and the Calder Valley, with typical journey times around 75-80 minutes including intermediate stops at stations including Sowerby Bridge, Hebden Bridge, Todmorden, Rochdale, and numerous smaller communities. Extensions to Liverpool Exchange provided important Yorkshire-Lancashire connectivity, whilst York-Manchester services offered cross-Pennine links serving Sheffield and Huddersdale. These intensive diagrams created constant activity suitable for engaging operating sessions.
Layout design should accommodate the class's operational characteristics and typical Trans-Pennine infrastructure. Stations with modest platforms (3-4 car lengths), passing loops enabling intensive service frequency, water columns for periodic replenishment, and small DMU stabling facilities with basic maintenance provisions all contribute to authentic atmosphere. The infrastructure should suggest secondary importance compared to main line installations—functional facilities serving working-class communities rather than prestigious express passenger amenities.
Weathering Authenticity for Trans-Pennine Service
Class 110 weathering should reflect intensive Trans-Pennine operations whilst maintaining the relatively clean appearance expected of passenger-rated DMUs. Focus weathering effects on operational areas: brake dust accumulation around bogies and wheelsets, light oil staining around engine bay access panels and along underframe, exhaust residue above roof-mounted ventilators, and general road grime accumulated during service. Avoid heavy industrial weathering inappropriate for passenger units—Class 110s operated from depots with regular cleaning facilities and received attention between diagrams. The Pennine environment created distinctive weathering patterns with rain streaking from roof level downward, particularly prominent during winter operations when salt spray and moisture created characteristic vertical staining patterns along bodysides.
Formation selection requires careful attention to period authenticity. Three-car formations remained standard from 1962 through 1982, making the Hornby R30170 appropriate for this extended period with suitable livery modifications. The 1983 centre trailer withdrawals mandated two-car operation for the final eight years, making the R30171 exclusively appropriate for 1983-1991 layouts. Mixed formations incorporating Class 111 trailers occurred briefly during 1984-85, offering interesting operational variety for modellers with suitable Class 111 trailer stock.
Compatible rolling stock for mixed workings includes other Blue Square coded DMUs operated by the North Eastern and London Midland Regions during overlapping periods. Class 101, 104, 108, and 111 units all shared coupling compatibility and brake systems, enabling mixed formations when operational requirements demanded. However, the Class 110's superior power output meant they typically operated independently rather than strengthened with lower-powered units except during exceptional circumstances.
Timetable construction enables systematic operations reflecting intensive Trans-Pennine schedules. A realistic operating sequence might begin with departing Leeds Neville Hill depot for a morning peak Leeds-Manchester working, returning mid-morning for a Liverpool Exchange extension, working an afternoon York-Manchester diagram, and concluding with an evening peak Manchester-Leeds service before returning to depot. This varied workload creates interesting movements whilst remaining prototypically accurate for Class 110 deployment patterns.
Sound effects enhance operational realism when DCC sound decoders are installed. The Rolls-Royce C6NFLH diesel engines produced distinctive mechanical sounds differing noticeably from the Leyland and AEC units fitted to other first-generation DMUs. Programme sound decoders to emphasize realistic operational sequences: gentle idling at stations with characteristic Rolls-Royce mechanical ticking, increasing engine RPM during hard acceleration on gradients with transmission whine, steady cruising noise during running between stops, engine braking during deceleration, and air brake hissing during station stops. The intensive stop-start nature of Trans-Pennine services creates constant sound variation maintaining operational interest.
Depot scenes provide excellent static display opportunities whilst demonstrating Class 110 maintenance infrastructure. Model a section of Bradford Hammerton Street or Leeds Neville Hill depot featuring specialized DMU facilities including fueling points, engine bay access with drop pits for the unique inward-facing Rolls-Royce engine configuration, carriage washing facilities, and wheel lathe workshops. Including period-appropriate depot infrastructure creates authentic settings for Class 110 stabling between diagrams and during maintenance intervals.
Gradient modelling deserves particular attention given the Class 110's purpose-built role conquering Pennine gradients. Incorporating sustained 1 in 45-60 grades on model layouts (impractical at true scale but achievable through selective compression) allows demonstrating the class's exceptional hill-climbing capabilities. Operating sessions featuring hard acceleration up challenging grades showcase the 720 bhp power output that distinguished Class 110s from contemporary first-generation units, creating dramatic operating sequences impossible with standard DMUs.
Finally
The British Rail Class 110 represents far more than thirty diesel multiple unit sets; these machines embodied purpose-built engineering matched precisely to demanding operational requirements. BRCW's decision to specify powerful Rolls-Royce engines delivering 720 bhp per three-car set created the most capable first-generation DMU, enabling the accelerated Trans-Pennine timetables that transformed connectivity between Yorkshire and Lancashire during the modernization era. The distinctive inward-facing engine configuration—simultaneously enabling compact packaging and constraining maintenance flexibility—exemplified the engineering compromises inherent in specialized design.
For railway historians, the Class 110 provides fascinating insights into British Railways' 1960s modernization strategy and the practical realities of diesel multiple unit operations on challenging routes. The class validated the diesel-mechanical transmission approach for heavyweight applications, demonstrating that properly engineered mechanical transmissions could reliably handle substantial power outputs. The Rolls-Royce powerplants proved exceptionally durable, vindicating BRCW's selection despite maintenance access challenges. These lessons informed subsequent DMU development, though the industry progressively embraced hydraulic transmissions offering improved reliability.
The survival of just five vehicles from 90 constructed represents one of first-generation DMU preservation's most regrettable gaps. The 1982-1983 scrapping of all centre trailers eliminated one-third of the fleet before preservation possibilities matured, whilst wholesale withdrawals during 1987-1991 preceded the DMU preservation movement's expansion. The East Lancashire Railway's complete three-car set including the sole surviving TSL trailer provides irreplaceable reference material, whilst the Lakeside & Haverthwaite two-car formation represents late-service configuration following trailer withdrawals.
Hornby's exclusive OO gauge production ensures Class 110 models remain accessible to contemporary modellers despite the limited preservation representation. The 2023 retooling delivered substantial improvements over 1982 originals, with modern 3-pole motors, DCC Ready capability, and enhanced detail quality creating convincing representations of both early Brunswick green and late MetroTrain configurations. The absence of any other manufacturer across all scales makes Hornby's range essential for modellers depicting Trans-Pennine operations during the 1962-1991 period.
Model railway enthusiasts incorporating Class 110s into layout operations gain access to distinctive Trans-Pennine traction representing an important chapter in northern England's railway history. The intensive Calder Valley services, challenging gradient operations, and evolution through six livery variations create diverse modelling opportunities spanning three decades. Whether representing pioneering 1962 accelerated services in Brunswick green or final 1980s MetroTrain operations, Class 110 models bring authenticity and period character to any northern England themed layout.
As the railway preservation movement continues evolving and heritage DMU operations mature, the five surviving Class 110 vehicles stand as precious reminders of purpose-built engineering excellence. The sight and sound of these distinctive Trans-Pennine units operating over heritage railway metals demonstrates to modern audiences the capabilities that transformed cross-Pennine connectivity during British Railways' diesel modernization era. Their continued preservation ensures future generations can appreciate BRCW's engineering achievement and the Class 110's enduring significance within Britain's first-generation DMU heritage.
The British Rail Class 110 story ultimately celebrates the successful marriage of powerful propulsion with compact dimensions, creating specialized traction perfectly matched to demanding operational requirements. When standard first-generation DMUs lacked sufficient power for accelerated Trans-Pennine timetables, BRCW engineered a solution delivering 8.3 horsepower per ton—exceptional performance enabling the sustained gradient climbing essential for Calder Valley operations. Nearly three decades of reliable service validated this engineering approach, proving that purpose-built design precisely matched to specific duties could deliver exceptional results. These distinctive Trans-Pennine workhorses secured their place in British railway history through performance, longevity, and the indelible impression they left on countless passengers traversing the challenging routes connecting Yorkshire and Lancashire's great industrial cities.
Frequently Asked Questions
How many British Rail Class 110 DMUs were built and when?
Birmingham Railway Carriage and Wagon Company constructed thirty three-car sets totalling 90 vehicles between 1961 and 1963. The first contract dated 26 February 1959 covered twenty sets for the North Eastern Region, whilst a second contract from January 1961 added ten sets for the London Midland Region. Production proceeded at approximately one set per week through 1961, with concurrent delivery ensuring rapid fleet build-up ahead of the January 1962 Calder Valley service launch.
What made the Class 110 different from other first-generation DMUs?
Class 110s featured the highest power output of any first-generation DMU with four Rolls-Royce C6NFLH engines delivering 720 bhp per three-car set, achieving 8.3 hp/ton power-to-weight ratio. The unique inward-facing engine mounting arrangement enabled compact packaging but required specialized drop pit facilities for maintenance. Following 1983 centre trailer withdrawals, two-car formations achieved 11.2 hp/ton—the highest power-to-weight of any first-generation unit, enabling exceptional gradient climbing performance on demanding Trans-Pennine routes.
Why were Class 110s built specifically for Trans-Pennine routes?
The Calder Valley line connecting Leeds and Manchester via Bradford presented formidable challenges including sustained 1 in 45 gradients, tight curves, and restrictive clearances. Standard first-generation DMUs lacked sufficient power for accelerated timetables BR envisioned. Class 110s' 720 bhp output enabled 30 mph in 45 seconds from standstill on 1:261 gradients and 25 mph in 42 seconds on 1:45 sections—performance levels completely beyond standard units, transforming Trans-Pennine connectivity.
What routes did Class 110 DMUs typically operate?
Primary duties involved hourly Leeds-Manchester Victoria workings via Bradford and the Calder Valley from January 1962 onwards. Additional regular services included Leeds-Liverpool Exchange (up to seven daily initially), Leeds/Bradford-Blackpool Central via Copy Pit, York-Manchester Victoria, Sheffield-York via Huddersfield, and various Leeds-originating services to Morecambe, Ilkley, Harrogate, and Hull. This diverse working pattern demonstrated versatility beyond core Calder Valley operations whilst maintaining Trans-Pennine focus throughout service life.
Why were all the centre trailers withdrawn in 1982-1983?
British Rail withdrew all thirty TSL centre trailers during 1982-1983 to reduce maintenance costs whilst improving power-to-weight ratio for accelerated timetables. Removing unpowered 24-ton middle vehicles whilst retaining full 720 bhp output transformed power-to-weight from 8.3 to 11.2 hp/ton—the highest of any first-generation DMU. This modification enabled faster schedules despite reducing capacity from 183 to 111 seats per formation. Some sets briefly received Class 111 trailers during 1984-85 to restore capacity on heavily-loaded services.
What liveries did Class 110 DMUs carry during service?

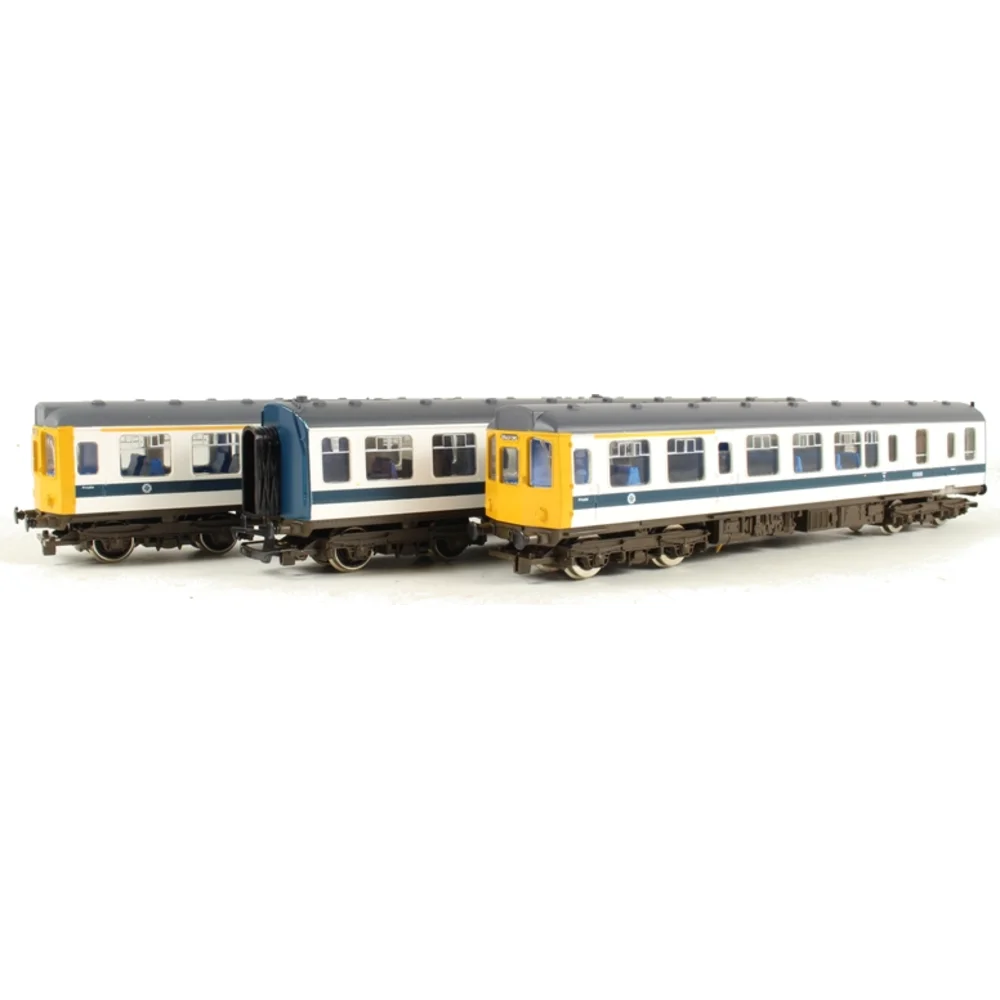

The fleet wore six distinctive liveries through 1961-1991 service: BR Brunswick green with speed whiskers (1961-mid 1960s), BR green with yellow warning panel (mid-1960s-1967), rail blue (late 1960s-1979), white with blue stripe refurbishment scheme (1979, three sets only), BR blue/grey with West Yorkshire PTE branding (1979-1991), and MetroTrain branding variations during late service. The distinctive green speed whisker treatment featured thick central sections tapering to waist-height lining, unique to Class 110 application.
Are any Class 110 DMUs preserved today?
Five vehicles survive from 90 constructed, representing a 5.5% survival rate. The East Lancashire Railway maintains the only complete three-car set: DMBC E51813, TSL E59701, and DMCL E51842 in BR Brunswick green. E59701 is the sole surviving centre trailer from thirty built. The Lakeside & Haverthwaite Railway operates two-car power twin DMBC 52071 and DMCL 52077. No Class 110 vehicles reside in museum collections, making these five operational heritage railway examples uniquely important for preservation and reference.
What OO gauge Class 110 models are currently available?
Hornby is the sole manufacturer worldwide, producing exclusively in OO gauge. Current production includes R30170 three-car set in BR Brunswick green with speed whiskers (£179.99 RRP, Era 6) and R30171 two-car formation in BR blue/grey MetroTrain livery (£149.99 RRP, Era 7). Both feature 3-pole motors with flywheel and DCC Ready capability via 8-pin sockets. No DCC Sound versions are available. The 2023 tooling represents substantial improvement over 1982 originals with enhanced detail and modern motor technology.
Are Class 110 models available in N gauge or O gauge?
No. Hornby's OO gauge exclusivity extends worldwide across all scales—no manufacturer produces Class 110 models in N gauge, O gauge, or any other scale. Even kit manufacturers have not addressed this gap; DC Kits offers extensive first-generation DMU coverage including numerous classes but no Class 110 kit exists. Modellers requiring other scales face scratch-building as their only option, making Hornby's OO gauge range uniquely essential for Class 110 representation.
What coaching stock formations should I operate with Class 110 models?
Class 110s operated exclusively as self-contained formations rather than hauling separate coaching stock. Standard consists comprised three-car sets (1962-1982) with DMBC, TSL, and DMCL vehicles, or two-car power twins (1983-1991) with DMBC and DMCL only. Brief mixed formations with Class 111 trailers occurred during 1984-85. Multiple-unit operation with other Blue Square coded classes (101, 104, 108, 111) was possible though uncommon given Class 110's superior power output making independent operation standard practice.
Can Class 110 models operate on typical model railway curves?
Yes, Hornby Class 110 models navigate second radius curves (438mm/17.25") successfully, suitable for most OO gauge layouts. The 57ft 6in prototype vehicle length scales to approximately 193mm in OO gauge, creating reasonable overhang on typical model railway curves. Tighter first radius operation may prove possible though prototype appearance suffers from excessive overhang. For authentic visual effect, third radius or broader curves better represent the flowing lines appropriate to Trans-Pennine main line operations Class 110s typically undertook.
How should I weather Class 110 models authentically?
Focus weathering on operational areas whilst maintaining relatively clean appearance appropriate for passenger-rated DMUs. Apply brake dust around bogies and wheelsets, light oil staining around engine bay access panels and underframe areas, exhaust residue above roof ventilators, and general road grime from intensive service. The Pennine environment created distinctive rain streaking patterns—vertical staining from roof level downward, particularly prominent during winter with salt spray effects. Avoid heavy industrial weathering; Class 110s received regular depot cleaning between diagrams maintaining acceptable passenger service standards.
