British Rail Mark 2 — The Coach That Launched InterCity

Quick Takeaways

• Built at Derby: Every production Mark 2 coach was assembled at BR Derby Litchurch Lane Works (BREL from 1969), a centralisation that delivered tighter quality control than the multi-site Mk1 programme.
• 1,876 vehicles across seven variants: The family ran from the original vacuum-braked Mk2 of 1964 through to the fully air-conditioned, fluorescent-lit Mk2F of 1975 — eleven years of continuous evolution.
• Three inches wider than the Mark 1: At 9 ft 3 in across the body, the Mk2 offered genuinely more shoulder room, a dimension passengers noticed immediately and manufacturers have consistently replicated in miniature.
• Pivotal design innovation: The switch from body-on-underframe to semi-integral construction eliminated the moisture trap that had corroded Mk1 coaches and slashed long-term maintenance costs.
• Air conditioning arrives with the Mk2D: From 1971 the Mk2D introduced sealed saloon windows and electric-only train heating, marking the definitive break with steam-era coaching stock technology.
• Named train heritage: Mk2 coaches worked the Manchester Pullman, Liverpool Pullman, The Flying Scotsman, The Cornish Riviera, and dozens of other named services across all BR regions.
• Surviving well into the 21st century: Over 150 regauged Mk2 coaches remain in daily service in New Zealand; DBSOs work Network Rail test trains; West Coast Railways operates original Pullman cars on mainline charters.

Historical Background and Introduction

By the early 1960s, British Railways faced an uncomfortable truth about the Mark 1 coaching stock that had formed the backbone of its passenger fleet since 1951. The Mk1's body-on-underframe construction — in which a separate steel body was bolted onto a distinct structural underframe — created a joint at their junction where moisture accumulated and corrosion took hold. Over a decade of service the consequences were severe: accelerating maintenance costs, premature body rot, and a reputation for unreliability that undermined BR's efforts to present a modern image.

The 1955 Modernisation Plan had funded the Mk1 fleet, but BR's carriage engineers at Derby were already working on its successor before the last Mk1 left the production line. The central ambition was a semi-integral structure in which body and underframe formed a single load-bearing unit, eliminating the vulnerable joint and improving structural stiffness simultaneously.

The first visible result of this design work was the experimental XP64 prototype set, completed at Derby in 1964. Eight coaches tested a range of innovations under real operating conditions: pressure ventilation with sealed roof dome vents rather than opening windows, new seating layouts offering greater legroom, wider bi-fold doors, and fluorescent lighting trials. The XP64 experiment was a direct ancestor of the production Mk2 — several of its features entered the specification largely unchanged.

The prototype First Corridor coach, numbered 13252, had been completed even earlier, in 1963, serving as a testbed for the new body construction technique. This vehicle survives today at the Mid-Norfolk Railway, on long-term loan from the National Railway Museum at York, where it represents the starting point of a design lineage that shaped British railway travel for four decades.

What the Mk2 inherited from its predecessor was judicious rather than wholesale. The B4 bogie — a lighter fabricated steel design with twin coil springs and roller bearings, weighing just five tonnes compared to the cast-iron Commonwealth bogie's seven — carried over with refinements. The 64 ft 6 in body length matched the longer Mk1 variants rather than the short-frame types. And the Mk2 retained the traditional slam-door arrangement that would not finally disappear from British coaching stock until the late 1990s.

What changed was decisive. The semi-integral body construction represented a genuine engineering advance. The 9 ft 3 in body width — three inches wider than the Mk1 — was achieved by pushing the structural members outward rather than inward, giving passengers more usable interior space without any increase in track gauge clearance issues. Pressure ventilation, in which tempered air was pumped into the saloon through roof-mounted ducts, replaced the draughty opening hopper windows of the Mk1, reducing noise at speed and improving winter comfort considerably.

Production was entirely consolidated at Derby Litchurch Lane Works, ending the dispersal across Wolverton, Swindon, Eastleigh, and Doncaster that had characterised Mk1 output. From 1969, following the 1968 Transport Act, Derby Litchurch Lane became part of the newly formed British Rail Engineering Limited — BREL — under which the later Mk2 sub-variants and the subsequent Mark 3 were all built.

Design, Construction, and Technical Specifications

The Mark 2's body shell represented a meaningful advance in British carriage engineering. The semi-integral construction dispensed with the underframe as a separate structural element; instead, the body sides, roof, and floor formed a stressed-skin box that carried both its own weight and the longitudinal buffing and draw forces transmitted through the couplings. This approach, borrowed from aircraft fuselage practice and pioneered for BR coaches by the Derby design office, proved highly effective. Corrosion inspection records show dramatically lower rates of structural deterioration compared to equivalent-age Mk1 stock.

The wider body profile of 9 ft 3 in required careful attention to the loading gauge envelope. BR's standard coaches had to negotiate numerous station platforms, tunnels, and overbridges built to Victorian dimensions, and the Mk2 design was developed in close coordination with the civil engineers to ensure clearance was maintained. The solution involved subtle reshaping of the body lower sections — the so-called tumblehome — to keep the lower body within gauge while maximising interior width at shoulder height.

Internally, the Mk2 introduced a significant shift in seating philosophy for second-class accommodation. Where the Mk1 had perpetuated the traditional British compartment layout — six or eight seats in a closed bay accessed from a side corridor — the Mk2 progressively moved toward open saloon seating with bay seating pairs either side of a central aisle. The First Corridor (FK) retained compartments in the Mk2 and Mk2A, but the Tourist Second Open (TSO) was an open-saloon vehicle from the outset, seating 64 passengers in a layout that would become the standard for British coaching stock.

Technical Specifications Table

The B4 bogie deserves particular attention for modellers seeking prototypical accuracy. It is frequently confused with the BT10 air-sprung bogie, which equipped the Mark 3 from 1975 and enabled 125 mph running. The B4, with its fabricated steel frame and conventional coil spring suspension, gave a smooth ride at up to 100 mph — more than adequate for the Mk2's role — but its springing characteristics would not permit the higher-speed certification that the Mk3 required. Both Bachmann and Accurascale have tooled accurate B4 bogies for their Mk2 models, and the difference between these and the older Lima models (which used an approximated bogie with no pretence of prototype accuracy) is immediately apparent to the trained eye.

Highlight Box — The XP64 Connection: The experimental XP64 set of 1964 is often credited as the Mk2's direct progenitor, and in many respects it was. However, it is worth noting that XP64 also trialled features that did not make it into the Mk2 — most notably buckeye automatic couplings, which would have allowed semi-permanent rakes but proved operationally incompatible with the rest of BR's locomotive-hauled fleet. The Mk2 retained conventional buffers and screw couplings, a conservative decision that paid dividends in the flexibility it offered operators throughout the coach's long career.

Sub-types, Diagrams, and Variants

The seven sub-variants of the Mk2 family each represent a discrete step in the design's evolution, with externally visible differences that allow confident identification in photographs and on the layout. For TOPS classification purposes, the original is sometimes designated Mk2Z internally, with subsequent variants running A through F — the suffix reflecting the alphabetical designation BR assigned to each batch's lot number group.

Mk2 (Original, 1964–1966)

Approximately 336 vehicles, including 29 purpose-built Pullman coaches. Vacuum braked, dual steam and electric heating, pressure ventilation with distinctive roof dome vents. Dark green glass-reinforced plastic (GRP) vestibule end panels. Interior wood panelling and armrests. Vehicle types: FK, BFK, TSO, SO, and BSO. The 29 Pullman coaches — designated PK (Kitchen First), PC (Parlour First), and PB (Brake First) — carried pearl grey and blue umber livery with walnut interior panelling and individual armchair seating, working the Manchester Pullman and Liverpool Pullman services from Euston.

Mk2A (1967–1968)

Around 209 vehicles introducing air brakes as standard equipment, a critical operational advance enabling formation in higher-performance train sets. Leaf green GRP end panels. Some vacuum-braked FKs were built for Boat Train services where compatibility with older Mk1 stock was required. The Mk2A also introduced electric fluorescent lighting in the saloon on later batches, though incandescent lighting remained on some vehicles.

Mk2B (1969)

A smaller batch of approximately 54 vehicles notable for two external changes: wrap-around corner entrance doors at each vehicle end, replacing the body-side doors of earlier variants; and repositioned toilets, one at each end rather than two grouped at one end. Orange-red GRP end panels. The Mk2B is also historically significant as the only Mk2 variant to include a dedicated dining car — No. 547 — built for Northern Ireland Railways' Enterprise service between Belfast and Dublin and regauged to the Irish 5 ft 3 in broad gauge. This is the only Mk2B dining vehicle ever built.

Mk2C (1969–1970)

The largest non-air-conditioned batch at approximately 250 vehicles, built primarily for London Midland Region Anglo-Scottish duties. Externally similar to the Mk2B, the Mk2C introduced a lowered ceiling incorporating a concealed void intended to house air conditioning equipment — equipment that was specified but never actually installed on UK-market vehicles. This omission makes the Mk2C something of a curiosity: a coach structurally prepared for air conditioning that never received it. The Mk2C also saw the introduction of the FO (First Open), marking the final transition away from compartment seating for first-class accommodation on new-build Mk2 stock. Approximately 30 TSOs were later converted to TSOT micro-buffet configuration.

Mk2D (1971–1972)

The most significant evolutionary step in the family. Full air conditioning was fitted as standard, with sealed double-glazed windows and a smooth roof profile concealing the refrigeration plant — a visual kinship with the Mark 3 that would follow three years later. Electric train heating became the only heating system; no steam heating capability was included. The Mk2D was the last Mk2 variant to include a First Corridor (FK) with compartment seating, making it the final compartment passenger coach built for BR passenger service (excepting sleeping cars). Around 150 vehicles served the Eastern Region. Ireland's CIÉ ordered 72 Mk2D-based coaches regauged to 5 ft 3 in.

Mk2E (1972–1973)

Approximately 146 vehicles, simplified to just three vehicle types: FO, TSO, and BSO. All seating was open saloon layout. Fluorescent lighting became standard throughout. Externally the Mk2E is the cleanest-looking of the non-Mk2F air-conditioned variants, with flush roof panels and the sealed-window profile established by the Mk2D.

Mk2F (1973–1975)

The final and most refined variant, approximately 193 vehicles. New-style seating with improved head restraints, plastic interior panelling replacing earlier vinyl over hardboard, and floor-sensor-operated automatic gangway doors previewing features that would become standard on the Mark 3. The Mk2F also saw the most remarkable conversions in the family's history: fourteen BSOs were rebuilt as DBSO (Driving Brake Standard Open) vehicles, incorporating a cab at the brake-van end with full push-pull driving capability. These DBSOs served Edinburgh–Glasgow services from 1979, later worked the Great Eastern Main Line with Anglia Railways, and several survive in departmental service with Network Rail as test train vehicles.

Service History and Operating Companies

The Mark 2 entered service first on the London Midland Region, where the original Mk2 Firsts and TSOs were allocated to the West Coast Main Line Anglo-Scottish services. By the time of the full corporate blue era from 1965, Mk2 coaches in Rail Blue and pearl grey were becoming the defining visual statement of BR's express passenger ambitions.

The Eastern Region deployed Mk2s behind Class 55 Deltics and Class 47s on East Coast Main Line workings, including the Flying Scotsman service between King's Cross and Edinburgh. The Western Region used Mk2C coaches in formations behind Class 47 and Class 50 locomotives on the Paddington–Plymouth corridor, where double-heading of Class 50s became particularly associated with Mk2C rakes in the mid-1970s.

In Scotland, the early Mk2s worked Edinburgh–Glasgow push-pull services with Class 27 locomotives fitted with remote control equipment. The later Mk2F DBSO conversions, coupled with Class 47/7 locomotives from 1979, gave Scotland a sophisticated and photogenic push-pull operation that became closely identified with ScotRail branding after sectorisation in 1982.

Under BR's sector management from the early 1980s, InterCity claimed the air-conditioned Mk2D, Mk2E, and Mk2F stock for express services on all four main corridors. Network SouthEast operated Mk2B and Mk2C coaches on the Waterloo–Exeter route — a service known informally as "The Mule" — while Provincial and Regional Railways sectors used Mk2 stock behind Class 37 locomotives on rural and semi-fast workings across Scotland, Wales, and northern England.

Three individual vehicles capture the breadth of operational experience. DBSO 9703, converted from a Mk2F BSO in 1979, began life on Edinburgh–Glasgow push-pull services in BR blue grey, transferred south to work Great Eastern push-pull turns, wore Anglia Railways turquoise and white, and eventually gained Network Rail yellow — three decades of continuous passenger and departmental service from a single vehicle. Pullman Car City of Manchester operated the Manchester Pullman from its 1966 introduction until the early 1980s, serving passengers in first-class luxury with at-seat meals before the Pullman service was absorbed into standard InterCity operations. It later passed to West Coast Railways and now runs charter services in traditional Pullman umber and cream livery. TSO 5800, one of the early batch of 1964 Mk2s, worked its entire mainline career on the London Midland Region before preservation at the Mid-Norfolk Railway, where it runs alongside the prototype FK 13252 in a unique concentration of early Mk2 survivors.

Post-privatisation from 1994 distributed Mk2 coaches across a complex array of franchised operators. Virgin Trains inherited substantial Mk2F fleets for West Coast and CrossCountry services, phasing them out between 2001 and 2003 as Class 390 Pendolinos and Class 220/221 Voyagers arrived. Anglia Railways invested in a high-quality refurbishment programme for its Mk2E/F coaches and DBSOs on Liverpool Street–Norwich services, introducing a smart turquoise and white livery and achieving punctuality and passenger satisfaction scores that made it one of the more admired franchises of the early privatisation era. Arriva Trains Wales ran Mk2 sets on the Holyhead–Cardiff and Manchester–Cardiff express workings until October 2012, effectively marking the end of Mk2 operation in regular franchised passenger service on the British national network.

Withdrawal, Preservation, and Surviving Examples

Withdrawals from mainline passenger service began in earnest during the mid-1980s as Mk3 coaches permeated InterCity operations, but the process was remarkably gradual. The non-air-conditioned Mk2A, Mk2B, and Mk2C variants were first to go from premier routes, cascading to provincial and departmental duties. Air-conditioned Mk2D–Mk2F coaches held their own against the Mk3 on many routes for another decade, their shorter length being an asset on platforms unsuited to the 75 ft Mk3.

The heritage railway sector has not absorbed Mk2 coaches in the same volume as Mk1s. The Mk2's semi-integral construction makes structural restoration more challenging and expensive, and the air conditioning systems of the later variants require specialist maintenance that few volunteer-staffed railways can sustain. Most major heritage railways — the Severn Valley, North Yorkshire Moors, West Somerset, and Swanage — operate predominantly Mk1 fleets.

The outstanding exception is the Mid-Norfolk Railway, which has assembled the most significant Mk2 preservation collection in Britain. Prototype FK 13252 (on NRM loan), early TSO 5800, and a selection of air-conditioned Mk2F coaches give visitors the opportunity to ride in every generation of the family. The Mid-Norfolk was also the first heritage railway to operate an air-conditioned Mk2 in regular service.

In Ireland, the Railway Preservation Society of Ireland at Whitehead maintains an exceptional collection including the unique Mk2B dining car No. 547 (restored to operational condition in 2008) and a fleet of ex-CIÉ Mk2D coaches. Visiting Whitehead during an open weekend offers a combination of Irish and British railway history rarely encountered elsewhere.

On the mainline, West Coast Railways at Carnforth operates the most extensive active Mk2 fleet in Britain, including the original Pullman car set and a large pool of Mk2F coaches for charter services including The Jacobite, Spirit of the Lakes, and various commemorative railtours. The company acquired approximately 60 additional coaches from Riviera Trains in 2024, securing the Mk2's mainline future for at least another decade.

Perhaps the most surprising survival story lies on the other side of the world. Over 150 regauged British Rail Mk2 coaches remain in daily passenger service in New Zealand, operating the Wairarapa Connection and Capital Connection services. Regauged to 3 ft 6 in Cape gauge and comprehensively refurbished, they carry their original BR vehicle numbers in the data system and are not scheduled for replacement by new rolling stock until approximately 2030 — making them, by some measures, the longest-serving fleet of Mk2 coaches anywhere in the world.

Modelling Significance and Scale Replications

The OO gauge Mk2 market in 2025 is genuinely remarkable in its comprehensiveness. Three manufacturers now cover every sub-variant in 4 mm scale, a situation that would have seemed improbable even fifteen years ago. For anyone modelling the BR blue era, the sectorisation years, or early privatisation, the Mk2 is simply indispensable — and the tooling now available makes prototypical accuracy entirely achievable.

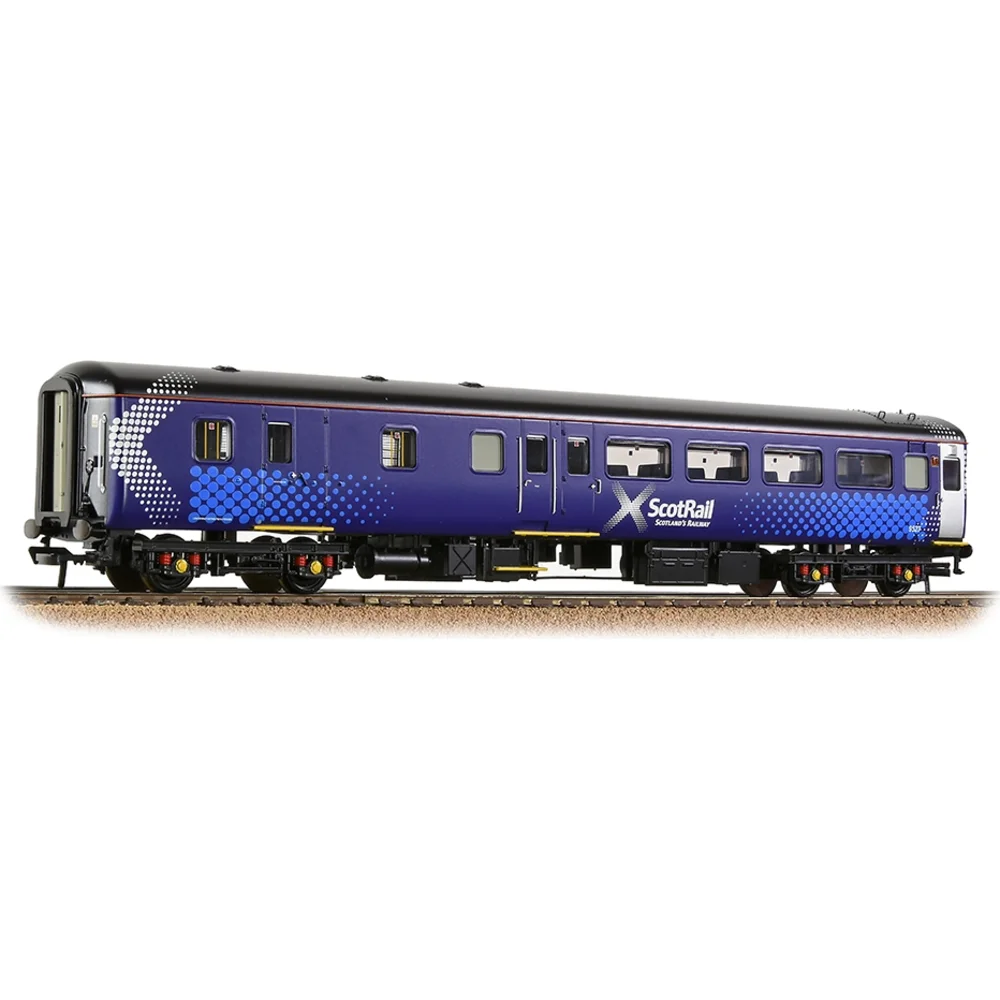

Bachmann Branchline has offered Mk2 coaches since 2006 and provides the widest range in terms of livery choice. Their early-variant models (catalogue numbers in the 39-3xx and 39-4xx series) cover the Mk2, Mk2A, and Mk2B with correctly modelled pressure-ventilation roof domes, opening window frames, and accurate B4 bogies. Their Mk2F range (39-6xx through 39-8xx series) covers the air-conditioned variants including TSO, FO, BSO, and both pre- and post-conversion DBSO. DCC-fitted versions (suffix "DC") offer five independently controllable lighting functions: passenger saloon, guard's compartment, and door interlock lights on each side, plus a configurable tail lamp — a genuinely useful feature for push-pull modelling. Prices range from approximately £40–55 for the older-tooled variants and £75–120 for the Mk2F range. Over 30 livery variations are catalogued, from BR maroon to ScotRail Saltire blue to Arriva Trains Wales.

Accurascale entered the Mk2 market in 2022 with the Mk2B and followed in 2023 with the Mk2C — the sub-variants most conspicuously absent from the Bachmann range. The Accurascale models are widely regarded as the most technically accurate Mk2 representations ever produced in OO gauge. The bodies are derived from 3D scanning of prototype vehicles, the B4/B5 bogies incorporate provision for re-gauging to EM (18.2 mm) or P4 (18.83 mm) standards, and every model includes integrated magnet-activated interior lighting with stay-alive capacitors as standard. A second production run announced for late 2026 will introduce Mk2C Phase 1 coaches with their variant roof vent configurations, never previously available in ready-to-run form. At £60–80 per coach, these are premium products aimed at the serious modeller. Available liveries include BR blue grey, Network SouthEast, Provincial, Trans-Pennine Express, InterCity, and Regional Railways, plus exclusive limited editions including RTC-liveried Mk2B twin packs.

Hornby covers the Mk2D (ex-Airfix tooling from the late 1970s, considerably dated), the retooled Mk2E (2014, catalogue numbers R4809–R4811), and Mk2F variants across various liveries. The 2014 Mk2E tooling is a competent modern product with NEM coupling pockets and metal wheels, though it lacks the detail density of the Bachmann and Accurascale equivalents. The older Mk2D bodyshell, still occasionally available at clearance, shows its age in roof profile accuracy but remains adequate for background coaches in a period formation. Hornby prices range from approximately £30–82.

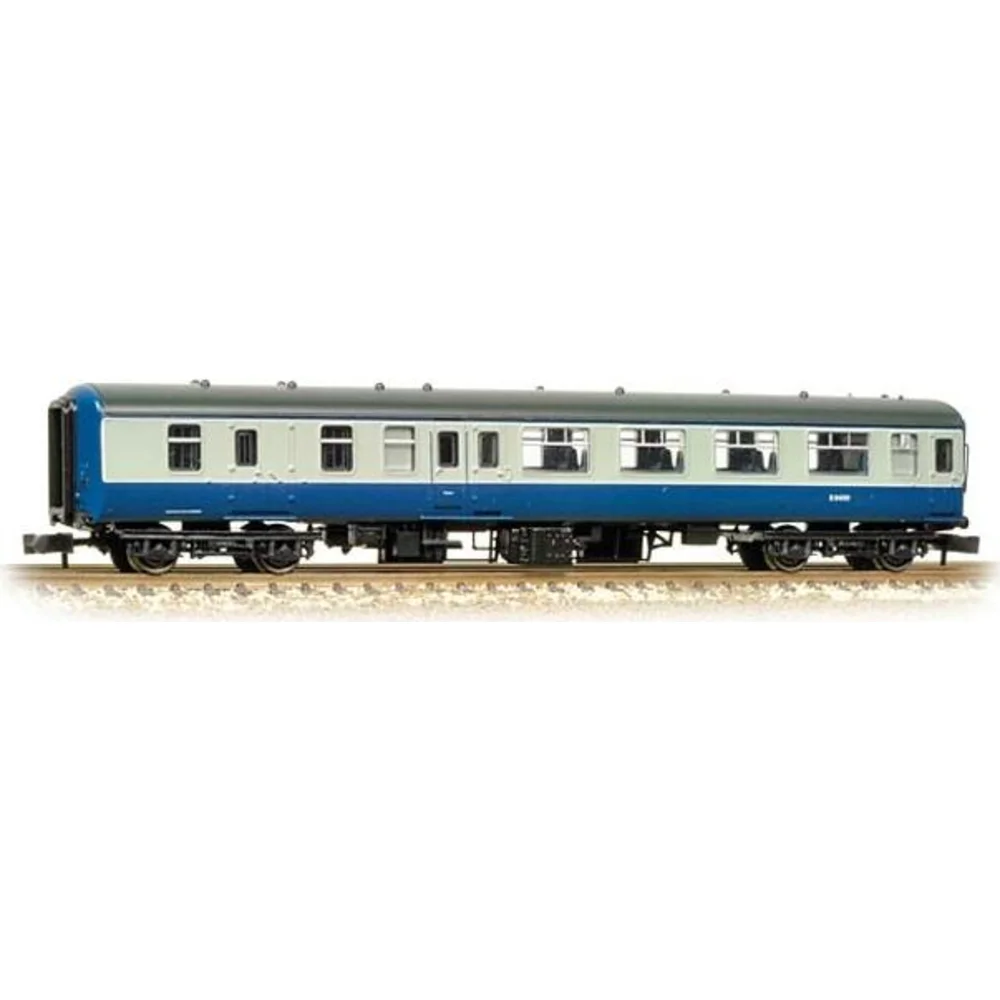

In N gauge, Graham Farish (Bachmann's N gauge brand) produces the Mk2F only, in the 374-6xx and 374-7xx catalogue series, covering TSO, FO, and BSO types in BR blue grey, InterCity Swallow, ScotRail, and Virgin Trains liveries. Prices are approximately £35–55. This leaves a substantial gap in N gauge: no manufacturer currently produces any Mk2 variant prior to the Mk2F, meaning N gauge modellers cannot replicate pressure-ventilated era formations without resort to scratch-building or conversion.

The Lima Mk2 models produced between approximately 1985 and 1995 are a known pitfall for the unwary. These coaches are approximately 8–12 mm too short compared to the prototype, a compression that makes them immediately conspicuous alongside correctly scaled modern models. They survive in collector hands and can occasionally be found at bargain prices at second-hand stalls, but combining them with Bachmann or Accurascale coaches in the same rake will only emphasise the discrepancy.

Unique Modelling Tips and Layout Integration

Achieving prototypical Mk2 rake formation is one of the more rewarding challenges in British outline coaching stock modelling, and the history of real-world train workings provides rich guidance.

Modelling Tip — Mixing Variants is Correct: One of the most common misconceptions among newcomers to Mk2 modelling is that only identical sub-variants were run together. In practice, mixing was entirely standard. Mk2, Mk2A, Mk2B, and Mk2C coaches regularly appeared in the same formation — all were pressure-ventilated, all used similar couplings and heating systems, and operational convenience took precedence over visual consistency. From a modelling perspective, this is liberating: you can populate a 1970s London Midland express with a mix of dark green and orange-red GRP end panels and still be entirely prototypical.

Catering provision deserves particular attention because it reveals an important constraint in Mk2 formation modelling: no Mk2 catering vehicle was ever built. Restaurant cars, mini-buffets, and full Buffet cars on Mk2-hauled trains were invariably converted Mk1 vehicles — the RMB (Restaurant Miniature Buffet), RFB (Restaurant First Buffet), and RBR (Restaurant Buffet Refurbished) were all Mk1-derived. For a prototypically accurate rake, you will need a Mk1 catering vehicle from Bachmann or Hornby's Mk1 range. The visual mismatch in body width is less pronounced in real life than on paper, and both types ran together throughout the Mk2's mainline career.

For a classic early 1970s London Midland Region express (perhaps a Class 47 or double-headed Class 50 working), a realistic eight-coach rake might be: locomotive + BFK (Mk2A) + TSO (Mk2A) + TSO (Mk2C) + FK (Mk2C) + Mk1 RMB + TSO (Mk2B) + TSO (Mk2B) + BFK (Mk2A). This formation legitimately combines three sub-variants and a Mk1 catering vehicle, exactly as BR would have assembled it.

For the Scottish push-pull operation of the early 1980s, the canonical formation is: Class 47/7 (driving end) + Mk2F TSO + TSO + FO + TSO + DBSO (driving end). Bachmann produces all the components including the Class 47/7 and DBSO with cab detail, and fitting DCC sound to the locomotive alongside the lighting functions in Bachmann's DCC-fitted DBSOs creates one of the more satisfying push-pull operations achievable on a home layout.

Modelling Tip — The Livery Transition Window: The period from approximately 1978 to 1985 is one of the most visually interesting for Mk2 modellers precisely because blue-and-grey was the only livery on express passenger stock. There were no sector colours, no operator branding, and no Pullman supplements — just the clean corporate blue grey rake behind a matching blue locomotive. This era is the easiest to model accurately because any combination of Mk2 coaches in blue grey with a Class 47, 50, or 87 in Rail Blue represents a plausible train. It is also an era where second-hand Bachmann Mk2s can be sourced relatively inexpensively, making it the most cost-effective entry point for Mk2 modelling.

For DCC modelling, the Bachmann DCC On Board Mk2F coaches offer a genuine operational advantage beyond simple interior lighting. The independently switchable door-lock indicator lights — which illuminate in amber when doors are locked — allow you to model the sequence of door-locking between stations using a DCC function output, something that catches the eye of any visitor familiar with 1980s and 1990s British coaching stock practice. This level of operational realism is difficult to achieve with any other manufacturer's equivalent product at a comparable price point.

If you are modelling in EM or P4 standards, Accurascale's bogie provision for re-gauging makes their Mk2B and Mk2C models particularly attractive. The combination of accurately scaled bodies and re-gaugeable bogies has made the Accurascale Mk2 range the default choice for finescale modellers, many of whom were previously obliged to modify Bachmann or Hornby bodies at considerable effort and expense.

Finally

The British Rail Mark 2 is, in the most direct sense, the coach that built InterCity. It carried the brand's early services, demonstrated that passengers would accept and welcome the open saloon layout that is now universal on British trains, and pioneered the semi-integral construction that has characterised British coaching stock design ever since. In doing so it connected the Victorian compartment-coach tradition with the modern open-plan carriage — a bridge across six decades of railway culture built from welded steel at Derby.

For historians and railway enthusiasts, the Mark 2's story is still being written. New Zealand's fleet continues in daily service. West Coast Railways' Pullman cars roll through the Lake District on charter workings that trace an unbroken line back to 1966. Network Rail's yellow-liveried DBSOs measure the track that carries HS2 preparatory works. And at the Mid-Norfolk Railway, prototype FK 13252 — the coach from which everything else descended — still takes passengers for a ride on summer weekends.

For modellers, the current production landscape represents a genuine golden era. Three manufacturers competing for the same prototype in OO gauge has driven detail levels, accuracy, and livery choice to standards unimaginable a decade ago. Whether you are building a 1968 blue-grey express, a 1982 ScotRail push-pull set, or a 1998 Anglia Railways Norwich commuter formation, the tools are now available to do it justice. The Mark 2's modelling story, like its operational one, is far from finished.

FAQs

When were the first British Rail Mark 2 coaches introduced into passenger service?

The prototype First Corridor coach was completed at Derby in 1963, with production vehicles entering service from 1964. The original Mk2 batch was vacuum braked and pressure ventilated, and the first air-conditioned sub-variant — the Mk2D — did not appear until 1971. Full production of all variants was complete by 1975.

What was the key structural improvement of the Mk2 over the Mark 1?

The semi-integral body construction was the decisive advance. By uniting body and underframe into a single stressed-skin structure, Derby's engineers eliminated the moisture-trapping joint between them that had caused severe corrosion in the Mk1 fleet. The result was dramatically lower maintenance costs and a longer effective service life per vehicle — a critical consideration given the scale of BR's investment.

Where can I see preserved Mark 2 coaches in Britain today?

The Mid-Norfolk Railway is the premier destination, operating prototype FK 13252 (on NRM loan) alongside operational Mk2F air-conditioned coaches, and representing the only heritage railway to run air-conditioned Mk2 stock in regular service. The Crewe Heritage Centre preserves DBSO 9711 alongside Class 47/7 47712, recreating the iconic Scottish push-pull pairing. The National Railway Museum at York holds the prototype FK in its collection and it is worth contacting them directly for current display arrangements.

Are Mk2 coaches still running on the main line?

Yes. West Coast Railways at Carnforth operates an extensive fleet of Mk2F coaches and original Mk2 Pullman cars on mainline charter services. Network Rail continues to use Mk2F DBSOs on test trains. In New Zealand, over 150 regauged Mk2 coaches remain in daily revenue service and are not scheduled for replacement until approximately 2030.

Which OO gauge manufacturer produces the most accurate Mark 2 models?

Accurascale's Mk2B and Mk2C models are widely regarded as the most dimensionally and detail-accurate Mk2 coaches ever produced in 4 mm/ft scale, featuring 3D-scanned bodies, re-gaugeable bogies, and integrated lighting with stay-alive capacitors. Bachmann's Mk2F range offers the widest livery choice and best value at the mainstream end of the market, with DCC On Board versions providing independently switchable lighting functions ideal for push-pull operation. Hornby's retooled Mk2E is a competent mid-market option. Avoid Lima Mk2 models for serious layout use — they are approximately 10 mm too short.

What TOPS codes were applied to Mark 2 coaches?

Under TOPS — the Total Operations Processing System introduced to coaching stock in the 1970s — Mk2 coaches received type codes reflecting their function regardless of sub-variant. Tourist Second Open coaches became TSO; First Opens became FO; Brake Second Opens became BSO; First Corridors became FK; Brake First Corridors became BFK; and the DBSO conversions from Mk2F BSOs became DBSO. Sub-variant was identified separately in engineering records by lot number and diagram number rather than by the TOPS vehicle type code itself.

What formations did Mk2 coaches run in on named express services?

Named services used whatever vehicles were serviceable and correctly heated, meaning formations were rarely fixed by type diagram. The Manchester Pullman used a dedicated set of 29 Mk2 Pullman vehicles in pearl grey and blue livery. Anglo-Scottish services such as the Royal Scot typically comprised eight to ten coaches including a Mk1 catering vehicle — usually a Restaurant Miniature Buffet — flanked by Mk2 TSOs, FOs or FKs, and brake composites. The Flying Scotsman on the East Coast ran predominantly Mk2A and Mk2C stock in the early 1970s before Mk2E and Mk2F air-conditioned coaches became available.

How does the Mark 2 compare to its predecessor and successor?

The Mk1 was heavier, narrower, and structurally more vulnerable to corrosion. Its maximum permitted speed of 100 mph matched the Mk2 but required more maintenance to sustain. The Mk3, which entered service from 1975, was significantly longer at 75 ft, fully monocoque in construction, air-suspended on BT10 bogies permitting 125 mph, and designed from the outset to pair with the High Speed Train power cars. The Mk2 sits precisely between them: more capable and durable than the Mk1, but unable to match the Mk3's speed ceiling. The Mk2F's interior detailing — automatic gangway doors, plastic panelling, revised seating — was a direct rehearsal for the Mk3, making the Mk2F the clearest link between the two generations.

Are Mk2 coaches available in N gauge?

Graham Farish produces the Mk2F only, in TSO, FO, and BSO types across BR blue grey, InterCity Swallow, ScotRail, and Virgin liveries. No N gauge manufacturer currently produces any Mk2 sub-variant prior to the Mk2F, which means N gauge modellers cannot yet build prototypical pressure-ventilated era formations in miniature. This represents a significant gap in the N gauge market, and one that manufacturers with existing OO gauge tooling would be well placed to address.

Can Mk1 and Mk2 coaches be combined in the same formation?

Absolutely — and this is essential prototypical practice. Because no Mk2 catering vehicle was ever built, all Mk2 passenger formations that included catering facilities used converted Mk1 restaurant, buffet, or miniature buffet cars. On the layout, pair Bachmann or Hornby Mk1 RMBs or RFBs in blue grey or InterCity livery with your Mk2 coaches without hesitation. Mk1 full brakes (BGs) also frequently ran at the rear of Mk2 formations for parcels traffic. The slight body-width difference between Mk1 and Mk2 is barely perceptible at arm's length and was entirely unremarkable to passengers at the time.
