GWR Autocoach — Sixty Years of Branch Line Brilliance

Quick Takeaways

• Introduced 1904: The first purpose-built GWR autocoach entered service in 1904, evolving from Churchward's steam rail motor programme begun in October 1903 — making it one of the earliest dedicated push-pull coaching vehicles on any British railway.
• 256 vehicles built: Swindon Works constructed autocoaches continuously from 1904 to 1954, spanning three Chief Mechanical Engineers and extending six years beyond nationalisation — an extraordinary commitment to a single design philosophy.
• Mechanical control system: The GWR's unique rotating shaft linkage beneath the coach floor allowed the driver to control regulator and vacuum brake from the driving vestibule, eliminating any need for run-round facilities at branch termini.
• Partner locomotives: The type worked principally with Collett's 14xx Class 0-4-2T and 64xx Class 0-6-0 pannier tank, both purpose-built for auto-working and capable of topping 50 mph on favourable stretches of branch line.
• Famous workings: The Chalford Auto (Gloucester–Chalford), the Tivvy Bumper (Tiverton Junction–Tiverton), and the Marlow Donkey (Bourne End–Marlow) were among the most celebrated auto-train services on the Western Region.
• Sixteen preserved examples: Survivors span every major design era from Diagram N (1907) to Diagram A43 (1954), with active push-pull services operating at the South Devon Railway, Didcot Railway Centre, and the Severn Valley Railway.
• Three OO gauge prototypes: Hornby (ex-Airfix A30 tooling), Bachmann (Hawksworth A38, 2015), and Dapol (Diagram N, 2025) collectively cover Edwardian, interwar, and post-nationalisation variants; N and O gauge options are equally comprehensive.

Historical Background and Introduction

The autocoach's origins lie in a transport crisis of the Edwardian era. By 1902, horse-drawn and electric tramways were devastating railway revenues on short suburban and rural routes, while motor buses threatened to do the same. The Great Western Railway faced a stark choice: abandon marginal routes or find a more economical way to operate them.

Chief Mechanical Engineer George Jackson Churchward investigated the steam rail motor — a self-propelled vehicle combining a small vertical-boilered power unit with a passenger saloon in a single frame — and ran a borrowed example over the Chalford–Stonehouse stretch of the Golden Valley line. Impressed enough to build his own, the GWR operated the first of its steam rail motors from 12 October 1903. By 1908 the fleet numbered 99 carriage units and 112 interchangeable power bogies.

The rail motors were victims of their own success. They generated more traffic than they could accommodate, struggled on gradients beyond about 1 in 60, were limited to roughly 30 mph, and — crucially — placed the entire vehicle out of service whenever the power unit needed maintenance. The integral design also made any flexibility of formation impossible. Churchward's response was elegant in its simplicity: retain the concept of driver control from either end, but separate the locomotive from the passenger vehicle entirely.

From 1904–05, purpose-built driving trailers were constructed alongside ordinary tank engines fitted with mechanical auto-control equipment. The mechanical control system — unique among British railways — used a rotating shaft running beneath the coach floor, engaged via telescopic coupling with a corresponding shaft beneath the locomotive. The driver in the autocoach cab operated a duplicate regulator lever, vacuum brake valve, and whistle; the fireman remained on the locomotive to control valve gear and maintain the fire. An electric bell system connected the crew, and a large mechanical gong on the cab exterior warned of the train's approach at halts and level crossings. By 1906, Plymouth suburban services were running four-coach formations with a locomotive sandwiched between pairs of trailers.

From 1914–15, now-redundant steam rail motors were progressively rebuilt as auto-trailers, with 85 of the 99 eventually converted. The last steam rail motor was withdrawn in 1934–35 and rebuilt as auto-trailer No. 212 — which survives today at Didcot, restored to represent Steam Railmotor No. 93.

Collett succeeded Churchward in 1922 and refined rather than redesigned the autocoach concept, producing more standardised and comfortable vehicles through the late 1920s and 1930s. Frederick Hawksworth, CME from 1941, designed the final generation of 64 ft vehicles built between 1951 and 1954. British Railways Western Region continued building new autocoaches to GWR designs until September 1954 — six full years after nationalisation — a remarkable tribute to the soundness of the original concept.

Design, Construction, and Technical Specifications

The GWR autocoach was always a purpose-built vehicle rather than a conversion of standard coaching stock. From the outset, Churchward specified an elliptical roof — never the clerestory profile seen on GWR express coaches until 1904 — and an open-saloon interior layout better suited to rapid boarding at unstaffed halts.

The driving vestibule at the cab end was the vehicle's most distinctive feature. A large curved windscreen gave the driver forward visibility; the duplicate regulator lever and vacuum brake handle were mounted on a bracket inside the vestibule, connected to the mechanical shaft beneath the floor. Retractable steps were fitted at the driving end to allow passengers to board from low-platform halts, a vital operational consideration on branch lines built to modest standards.

Body construction throughout the vehicle's production life remained largely traditional: hardwood framing with softwood lining, clad in teak or mahogany panelling. Even the 1954-built Diagram A43 vehicles retained wooden body construction, an anachronism by the standards of the period but entirely consistent with Swindon Works' preference for time-served techniques over novelty.

The vehicles evolved considerably in dimension and detail across fifty years of production. The principal specifications of the core diagrams are summarised below.

Specification	Diagram N (1907)	Diagram A27 (1928)	Diagram A30 (1933)	Diagram A38 (1951)	Diagram A43 (1954)
Builder	Swindon Works	Swindon Works	Swindon Works	Swindon Works	Swindon Works
Years built	1907	1928–29	1932–33	1951	1954
Quantity	6	12	10	15	10
Length over body	59 ft 6 in	59 ft 6 in	62 ft 8 in	~63–64 ft	~63–64 ft
Width	9 ft 0 in	9 ft 0 in	9 ft 0 in	8 ft 11 in	8 ft 11 in
Tare weight	c.26 tons	30 tons 7 cwt	33 tons 9 cwt	31 tons 1 cwt	31 tons 13 cwt
Seating	68 Third	72 Third	73 Third	68 Third	68 Third
Bogie type	9 ft American equal.	9 ft American equal.	9 ft American equal.	Modified GWR	Modified GWR
Lighting	Gas (to withdrawal)	Electric	Electric	Electric	Electric
Heating	Steam (loco supply)	Steam (loco supply)	Steam (loco supply)	Steam (loco supply)	Steam (loco supply)
Braking	Vacuum	Vacuum	Vacuum	Vacuum	Vacuum
Max speed	60 mph	60 mph	60 mph	60 mph	60 mph

One particularly striking detail of the Diagram N batch (Nos. 36–41, Lot 1126) is that these six vehicles retained gas lighting throughout their operational lives, making them the last gas-lit passenger vehicles in front-line WR service; the final example was not withdrawn until 1959. By contrast, the Collett and Hawksworth designs from the late 1920s onwards were electrically lit from new.

Historical Insight — The Mechanical Regulator Explained: The GWR's auto-control gear is frequently described but rarely explained. A square-section shaft ran the full length of the vehicle beneath the floor. When the locomotive coupled up, a telescopic square-section extension engaged with the corresponding shaft beneath the locomotive's footplate. Turning the regulator handle in the cab rotated the shaft, which opened the locomotive's regulator via a bevel gear arrangement. The vacuum brake pipe was standard; the auto-brake valve in the cab simply admitted air to the train pipe in the normal way. The fireman controlled cut-off (valve gear position) manually and was responsible for all firing — the driver could not adjust the fire from the cab. In practice, experienced crews learned to communicate by bell code (one ring = stop, two = go, three = caution) with considerable efficiency.

Sub-types, Diagrams, and Variants

The autocoach family embraces an extraordinary proliferation of diagram numbers reflecting fifty years of gradual evolution. The Churchward era (1904–1921) alone produced diagrams lettered A through Y plus numerous suffixed variants, covering both purpose-built trailers and the progressive rebuilding of steam rail motors. The Collett era (1922–1941) introduced the alphanumeric A-series system, and Hawksworth and BR continued from A38 to A44.

The principal diagram groups are:

Churchward purpose-built trailers (1904–1913). Diagrams A through Y (various), running numbers 1–98, built in small lots. The most significant survivors are from Diagram U (1912, Lot 1198, Nos. 81–92, 12 built at 70 ft length) and Diagram N (1907, Lot 1126, Nos. 36–41, six built at 59 ft 6 in). The 70 ft Diagram U coaches seated 70 Third class passengers on reversible transverse seats with longitudinal benches along the bodysides — an arrangement maximising capacity for standing-room loading at busy suburban halts.

Steam railmotor conversions (1914–1936). Diagrams Z, A6–A19, A23–A26, A29, A31, covering 85 rebuilt vehicles. Running numbers from the railmotor series, generally continuing from 99 upward into the 200s. The quality of conversion varied significantly across batches; later conversions (A31, 1935–36, Lot 1552) produced vehicles little distinguishable externally from purpose-built Collett stock.

Collett purpose-built designs (1928–1933).

• Diagram A27 — Lot 1394, Nos. 159–170 (12 built, December 1928 – January 1929). Length 59 ft 6 in, tare 30 tons 7 cwt, 72 Third. Collett's first purpose-built autocoach, featuring the characteristic large cab window and smooth-sided body. Three survive: Nos. 163, 167, 169.
• Diagram A28 — Lot 1410, Nos. 171–180 (10 built, February–March 1930). Length 62 ft 8 in, tare 30 tons 0 cwt, 72 Third. Two survive: Nos. 174, 178 (SVR).
• Diagram A30 — Lot 1480, Nos. 187–196 (10 built, December 1932 – April 1933). Length 62 ft 8 in, tare 33 tons 9 cwt, 73 Third. No. 190 preserved at Didcot Railway Centre.

Brake Third conversions (1938, 1953).

• Diagram A34 — Lot 1600, Nos. 1668–1671 (4 vehicles, 1938), rebuilt auto-fitted Brake Thirds.
• Diagram A44 — Nos. 245–256 (12 vehicles, 1953), rebuilt from existing Brake Thirds for lighter workings.

Hawksworth and BR designs (1951–1954).

• Diagram A38 — Lot 1736, fleet numbers W220W–W234W (15 built, May–August 1951). Length approximately 63–64 ft. Diagrams A39 and A40 were interior-layout variants within this batch (W220 and W221 respectively, with slightly different First/Third seating ratios). Five survive: Nos. 225, 228, 231, 232, 233.
• Diagram A43 — Lot 1766, fleet numbers W235W–W244W (10 built, June–September 1954). The final GWR-pattern autocoaches. Tare 31 tons 13 cwt, 68 Third class. Two survive: Nos. 238 (SVR) and 240 (South Devon Railway).

An important but little-remarked distinction between Collett and Hawksworth designs is the elimination of the intermediate passenger vestibule in the later vehicles. Collett coaches typically divided their saloons with a central vestibule containing the folding steps and lavatory; Hawksworth's A38 and A43 adopted a more open layout that improved passenger flow but reduced the stepped compartment feel that had characterised earlier stock.

Modelling Tip — Choosing Your Diagram: If you want to model the GWR steam era, the Diagram N (Dapol, 2025) or Diagram A30 (Hornby ex-Airfix) are the appropriate choices. For BR Western Region 1948–1960, the Bachmann A38 in crimson/cream or maroon, or the Dapol A30 in BR crimson, are prototypically correct. Only the A38 and A43 were built after nationalisation; the GWR-designed Collett vehicles gradually disappeared through the 1950s. Do not pair a Hawksworth A38 in BR maroon with a GWR-liveried 14xx — the liveries simply never co-existed on that vehicle.

Service History and Operating Companies

The autocoach's operational record spans sixty years and thousands of route miles. Its design was specifically suited to the short-journey rural passenger — someone travelling from a village halt to a market town for shopping or work, boarding from a low platform or open ground, paying a modest Third Class fare, and requiring no corridor, no dining car, and no first-class accommodation. The auto-train made such journeys economically viable by eliminating the cost of a run-round movement at each terminus.

The principal locomotive classes paired with autocoaches evolved across the type's life:

• 517 Class 0-4-2T (1868 onwards): The original auto-working locomotives, converted from 1904.
• 455/Metro Class 2-4-0T: Used on London suburban services.
• 2021 Class 0-6-0ST: Employed on South Wales valley branches.
• 44xx and 45xx Class 2-6-2T: Prairie tanks on longer or hillier routes from the early 1920s.
• 54xx Class 0-6-0PT (25 built from 1930): Auto-fitted panniers for London suburban and faster secondary branch workings.
• 48xx/14xx Class 0-4-2T (75 built from 1932): The definitive autocoach locomotive. Collett designed the class specifically for auto-working, with 5 ft 2 in driving wheels giving a top speed of around 60–65 mph on good track. Renumbered 1400–1474 in 1946. Four preserved: 1420, 1442, 1450, 1466.
• 64xx Class 0-6-0PT (40 built from 1932): The South Wales valleys partner, with 4 ft 7½ in wheels for hillier terrain. Three preserved: 6412, 6430, 6435.

Standard formation on most rural branches was one autocoach and one locomotive; on busier suburban routes or at peak periods, two coaches were common with the locomotive sandwiched between them, cab ends facing outward. This "locomotive between" formation was remarkably efficient — no brake van was required, and tail traffic (fitted vans, milk tanks, horseboxes) could be attached behind the locomotive without complication.

Among the most celebrated workings, the Chalford Auto on the Golden Valley line (Gloucester Central to Chalford, approximately 10 miles, eight halts) is perhaps the most photographed GWR auto-train service in existence. The Tivvy Bumper — connecting Tiverton Junction to Tiverton town with No. 1442 — became famous enough to warrant a preservation campaign in its own right. The Marlow Donkey (Bourne End to Marlow) survived almost to the end of steam on the Western Region. Other notable workings included the Wallingford branch, the Hemyock branch (where 14xx locomotives worked autocoaches alongside milk tank wagons, a uniquely mixed consist), and the Kemble branches to Cirencester and Tetbury.

Auto-trains also worked Plymouth suburban services in multi-coach formations, South Wales valleys throughout the 1930s–50s, the Brentford branch in west London, the Stourbridge Junction to Dudley service, and dozens more routes across the GWR system from Cornwall to the Welsh borders.

After nationalisation in 1948, all autocoaches passed to British Railways Western Region, receiving W prefix and suffix numbering (e.g., W178W, W238W). BR not only maintained but actively extended the fleet, building 25 new vehicles between 1951 and 1954 to designs only marginally updated from Hawksworth's 1940s drawings. The introduction of first-generation diesel multiple units from the late 1950s rendered auto-trains redundant on most routes, and bulk withdrawals occurred between 1957 and 1964. The 14xx class was fully withdrawn by early 1965, ending six decades of push-pull working in the Western Region.

Withdrawal, Preservation, and Surviving Examples

The survival rate of GWR autocoaches is remarkable by any standard — sixteen vehicles spanning every significant design era, from the 1907 Diagram N batch to the 1954 Diagram A43 batch. This reflects both the vehicles' inherent robustness and the passionate interest they attract from preservationists.

Didcot Railway Centre (Great Western Society) holds the largest concentration, with four to five vehicles including No. 92 (Diagram U, 1912, operational), No. 190 (Diagram A30/A33, 1933, operational in GWR chocolate and cream), No. 231 (Diagram A38, 1951, operational in BR crimson/cream), and the unique No. 212 — the last surviving steam rail motor conversion, restored to represent Steam Railmotor No. 93 with a replica power bogie. Didcot regularly operates push-pull auto-train services at open days; visiting is highly recommended for the authentic experience of riding behind a 14xx or 1450 in auto mode.

The South Devon Railway at Buckfastleigh operates the largest active auto-train fleet, with Nos. 225 and 228 (both Diagram A38) in regular service behind No. 1420 — one of only four preserved 14xx class locomotives. No. 240 (Diagram A43) is stored awaiting restoration, and No. 233 (A38) is also present. This is the best location for experiencing a post-nationalisation BR crimson/cream auto-train as it appeared in the early 1950s.

The Severn Valley Railway holds No. 178 (Diagram A28, 1930) in GWR chocolate and cream, and No. 238 (Diagram A43, 1954) restored to BR lined maroon — one of the few vehicles to confirm that autocoaches did indeed carry the later maroon livery with lining detail. These vehicles operate with No. 1450.

The Chinnor and Princes Risborough Railway operates No. 167 (Diagram A27, 1929) in push-pull service with the 64xx class. No. 38 (Diagram N, 1907) — the oldest surviving autocoach — is stored at the Telford Steam Railway awaiting restoration; its existence is of particular significance for Dapol's 2025 Diagram N model, which represents this very type.

Vehicle No.	Diagram	Built	Current Location	Livery / Status
38	N	1907	Telford Steam Railway	Stored — oldest survivor
92	U	1912	Didcot Railway Centre	Operational, GWR choc/cream
163	A27	1928	South Devon Railway	Operational
167	A27	1929	Chinnor & Princes Risborough Rly	Operational
169	A27	1929	West Somerset Railway	Under restoration
174	A28	1930	[VERIFY current location]	Under restoration
178	A28	1930	Severn Valley Railway	Operational, GWR choc/cream
190	A30/A33	1933	Didcot Railway Centre	Operational, GWR choc/cream
212	A26 conv.	1936	Didcot Railway Centre	Operational as Railmotor 93
225	A38	1951	South Devon Railway	Operational, BR crimson/cream
228	A38	1951	South Devon Railway	Operational, BR crimson/cream
231	A38	1951	Didcot Railway Centre	Operational, BR crimson/cream
232	A38	1951	[VERIFY current location]	Operational
233	A38	1951	South Devon Railway	Operational
238	A43	1954	Severn Valley Railway	Operational, BR lined maroon
240	A43	1954	South Devon Railway	Stored/under restoration

Modelling Significance and Scale Replications

Few coaching stock types inspire as much modelling enthusiasm as the GWR autocoach. A complete, prototypically correct auto-train is achievable with just one locomotive and one coach — making it uniquely accessible for small layouts and beginners — while the variety of diagrams, liveries, and eras ensures there is always something new to research and model. Three manufacturers have now invested in new OO gauge toolings of three separate prototype designs, reflecting the vehicle's enduring appeal.

OO Gauge (4mm:1ft scale)

Hornby — Collett Diagram A30/A33 (ex-Airfix tooling, 1978 onwards)

The longest-serving OO autocoach model dates to 1978, when Airfix released the first mass-market GWR autocoach. The tooling passed through Great Model Railways (GMR), then to Dapol (who used it briefly in the early 1990s), and finally to Hornby, who have released it in numerous livery variants. Key current and recent catalogue numbers include R4025/A/B (GWR chocolate/cream, various running numbers), R4100 series (BR crimson/cream and plain crimson), R4790 (GWR No. 191), and R4791 (BR crimson/cream W190W). All are discontinued but widely available second-hand at £15–45.

The model shows its age — thick glazing, crude pressed-tin bogies, no NEM coupling pockets, and no DCC provision. Body proportions are broadly representative, though window spacing is not precisely accurate to any single diagram. For budget modellers or those detailing and repainting, it remains a practical starting point; Dart Castings, MJT, and various 3D-print suppliers offer aftermarket detailing parts including improved bogies, lamp irons, and auto-gear detail.

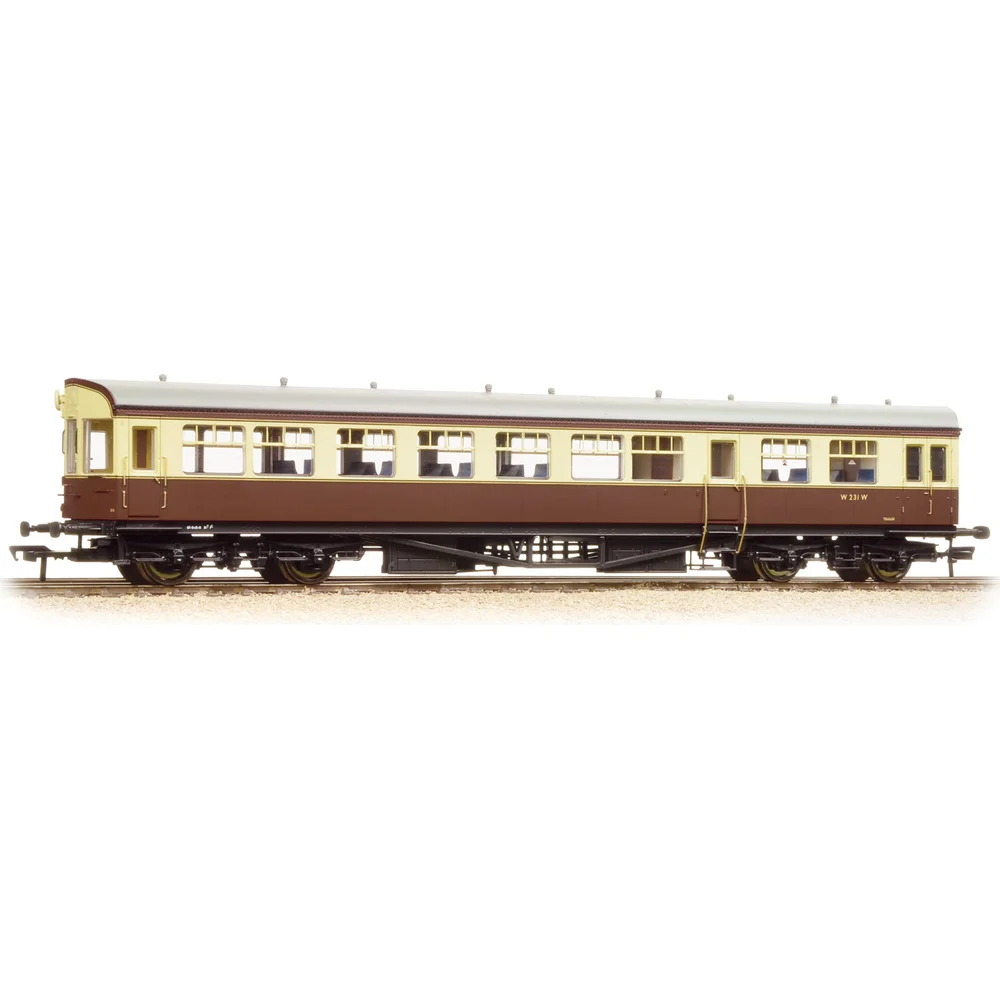

Bachmann Branchline — Hawksworth Diagram A38 (2015 tooling)

Bachmann produced an all-new Diagram A38 tooling in 2015, representing the 1951 Hawksworth vehicles — the correct companion for a BR-era Western Region branch line. Six variants were initially released: 39-575 through 39-580, covering BR crimson/cream (W225W), BR plain crimson (W232W), BR maroon (W238W), and GWR chocolate/cream (anachronistic — the A38 was built by BR but released to represent the GWR aesthetic, which is technically incorrect). Current prices where new stock remains are £60–80; many variants are now scarce at retail.

The model is of high quality: separately fitted handrails and lamp irons, chemically blackened wheels, a painted (though non-removable) interior, and NEM coupling pockets. The main criticism from enthusiasts is the absence of auto-gear mechanism detail beneath the solebar — aftermarket 3D-printed parts are available to address this. DCC conversion requires a blanking-plate removal and board fitting; the vehicle is not DCC-ready in the conventional sense.

Dapol — Diagram N (new tooling, 2025)

Dapol's Diagram N autocoach is the most significant new GWR coaching stock release in years, representing the six 1907 Edwardian vehicles (Nos. 36–41). Seven livery variants are available:

Catalogue No.	Livery	Running No.
4P-004-001	GWR crimson lake	37
4P-004-002	GWR choc/cream, plain lettering	40
4P-004-003	GWR choc/cream, Twin Cities crest	41
4P-004-004	GWR choc/cream, Twin Cities crest	38
4P-004-005	BR carmine and cream	41
4P-004-006	BR plain crimson	41
4P-004-007	BR maroon	W38W

DCC Ready versions carry an RRP of approximately £80 (street price ~£68); DCC Fitted _{£115 (}£98); DCC Sound Fitted _{£195 (}£166). Features include a 21-pin decoder socket, working interior lights, a removable roof for interior access and decoder fitting, sprung metal buffers, and extensive separately applied detailing. At approximately 10 inches long, a Diagram N coach paired with a 64xx pannier tank creates a complete train just 26 inches in length — remarkable for a layout with space constraints. Dapol is also developing a new 14xx/48xx 0-4-2T in OO gauge that will make the natural pairing complete.

N Gauge (2mm:1ft scale)

Dapol produces the Collett A30 autocoach in N gauge across multiple releases (catalogue numbers 2P-004-014 to 2P-004-019 and earlier batches), covering GWR chocolate/cream, GWR crimson lake, and BR liveries at approximately £22–28.

Graham Farish offers the Hawksworth A38 (374-610A to 374-614) in a full range of BR liveries including crimson/cream, maroon, plain crimson, and BR chocolate/cream, as well as a BR Research Department departmental variant, priced at approximately £45–53. Appropriate locomotive pairings include the Graham Farish 64xx pannier tank and Dapol's 14xx in N gauge.

O Gauge (7mm:1ft scale)

Dapol (incorporating the former Lionheart Trains range) produces the Diagram N autocoach in O gauge in GWR and BR liveries. Prices range from approximately £228 (basic) through £310 (DCC with lightbar) to £452 (DCC Sound with lightbar). Companion 64xx and 74xx pannier tanks are available in the same range. The Tower Brass GWR A30 autocoach kit (TGC7) is sold out; Blacksmith Models offered an A31 diagram kit, also now sold out. No current O gauge kit from Slater's covers the autocoach specifically, though scratchbuilding from Slater's sheet is feasible given the relatively simple body shape.

Unique Modelling Tips and Layout Integration

The GWR auto-train is one of the most layout-friendly of all British prototype subjects. Its minimal space requirements, strong visual identity, and wide availability in model form make it an ideal subject for layouts of almost any size.

Modelling Tip — The Smallest Complete Train: A single Diagram N autocoach (Dapol, approximately 10 in long in OO) paired with a Bachmann or Dapol 64xx pannier tank (approximately 6 in) gives you a complete, prototypically accurate train in just 16 inches — less than half a standard OO baseboard width. Add a short loop and a single platform and you have a functional auto-halt in about 3–4 square feet of layout space. This is arguably the most efficient use of prototype and scale of any British steam-era subject.

Choosing the right formation. The most common prototype formation was one autocoach and one locomotive. For busier services or to suggest a main-line suburban working (Plymouth, for example), two coaches with the locomotive between them is correct. The locomotive should always be at the country end of the train when propelling (coach leading), and at the town end when hauling. On a model, this means the coach runs cab-end first into the country terminus and loco-end first out.

Tail traffic. Auto-trains frequently carried tail traffic — fitted vans, milk tanks, and horseboxes — attached behind the locomotive rather than between coach and engine. Adding a single 1-plank open or a GWR milk tank wagon behind the 14xx immediately suggests a Hemyock or Clevedon working rather than a purely passenger service.

Livery selection by era. For layouts representing the GWR period (pre-1948), chocolate and cream with the appropriate GWR lettering style is essential. The crest changed several times: the Garter Arms (to 1927), the Twin Cities Coat of Arms (1928–1933), the circular "shirtbutton" roundel (1934–1942), and a return to the Twin Cities arms with "GREAT WESTERN" legend (1945–1947). Dapol's Diagram N release covers three different crest variants, making it possible to represent different sub-periods accurately. For early BR (1948–1956), all-over BR crimson (carmine) is correct for non-corridor stock; crimson and cream ("blood and custard") was used primarily on corridor stock. For late BR (1956 onwards), plain or lined maroon applies, as confirmed by preserved No. 238 at the SVR.

DCC and sound operation. Sound-fitted autocoaches offer a genuine operational novelty: with a DCC sound file featuring the pneumatic gong, bell codes, and the characteristic steam exhaust of a 14xx, you can recreate the sights and sounds of a typical halt stop. The Dapol Diagram N DCC Sound version includes a working lightbar for cab interior illumination. For DC layouts, dummy couplings (no motor) are normal — the locomotive does all the work.

Landscape and setting. Auto-trains worked almost exclusively on rural branches and suburban loops. The ideal scenic treatment includes a single-faced platform of modest height (GWR corrugated iron pagoda shelter preferred), a gradient or curve suggesting a wooded valley, and perhaps a crossing keeper's cottage or goods shed at the far end of the loop. The autocoach's cream upper panels and chocolate lower body make it one of the most visually striking vehicles on any GWR layout, even when stationary.

Modelling Tip — Pairing Locomotives and Coaches: Match your locomotive and coach both by era and by operational geography. The 14xx class (Hornby RailRoad Plus R30319; Bachmann 32-975 series; Dapol forthcoming 4S-006-0xx) is correct for most rural GWR and early BR branches from 1932 onwards. The 64xx pannier tank (Bachmann 31-635 series; Dapol 4S-013-0xx) is the appropriate choice for steeply graded South Wales valley and suburban workings. The 54xx pannier tank suits faster secondary branch services, particularly in the Home Counties. Do not use a 57xx or standard 0-6-0PT — these classes were not auto-fitted and could not operate in push-pull mode, an error seen occasionally on model layouts.

Finally

The GWR autocoach endured because it was right. From Churchward's first experiments in 1903–04 to the last BR-built Diagram A43 rolling out of Swindon in September 1954, the fundamental concept — a purpose-built, mechanically controlled driving trailer working with a small tank engine — was never bettered for its intended purpose. Fifty years of continuous production across three Chief Mechanical Engineers and the upheaval of nationalisation speaks not to institutional inertia but to genuine engineering success.

Sixteen preserved examples — one for every three and a half years of the type's production life — ensure the autocoach is far from a vehicle known only from photographs. The South Devon Railway's push-pull services with No. 1420, Didcot's regular auto-train running days, and the SVR's restored No. 238 in BR maroon all offer the chance to experience this uniquely GWR institution in motion. For modellers, the current market is better than at any previous point: three manufacturers covering three separate prototype designs across three scales, with authentic DCC sound now available for the first time.

Whether you want to recreate the Chalford Auto winding up the Golden Valley in the 1930s, a BR Western Region halt with a red-liveried A38 in the mid-1950s, or an Edwardian-era stopping service with a gas-lit Diagram N coach, the tools are available, the prototypes are well documented, and the preserved examples are accessible. The GWR autocoach was never glamorous. It never worked a named express or a royal train. But it served millions of ordinary passengers on ordinary journeys for sixty years, and it deserves its place at the heart of any serious Great Western layout.

FAQs

What is a GWR autocoach and how did push-pull working function?

A GWR autocoach was a purpose-built driving trailer designed to operate in push-pull mode with an auto-fitted tank locomotive. A mechanical rotating shaft beneath the vehicle connected to a corresponding shaft beneath the locomotive, allowing the driver at the coach cab end to operate the regulator and vacuum brake directly. This eliminated the need for run-round facilities at branch termini, making rural operation far more economical.

When were GWR autocoaches built, and who constructed them?

All GWR autocoaches were built at Swindon Works. Purpose-built trailers were constructed from 1904; steam rail motor conversions followed from 1914. The definitive Collett designs appeared from 1928, and British Railways continued building Hawksworth-designed A38 and A43 vehicles from 1951 to September 1954 — six years after nationalisation.

How many GWR autocoaches were built in total?

Approximately 256 vehicles were built across all diagrams from 1904 to 1954, including purpose-built trailers, railmotor conversions, and the BR-built post-nationalisation examples. This figure encompasses all variants from Diagram A through the final Diagram A44; exact totals for some early Churchward diagrams are difficult to confirm from available sources.

Which diagrams are the most important for modellers to know?

The three key diagrams are Diagram N (1907, 59 ft 6 in, six vehicles, now modelled by Dapol in OO and O gauge), Diagram A30/A33 (1932–33, 62 ft 8 in, Collett design, modelled by Hornby in OO), and Diagram A38 (1951, 63–64 ft, Hawksworth/BR design, modelled by Bachmann in OO and Graham Farish in N gauge). Each represents a distinct prototype era and requires different locomotive pairings.

Where can I see and ride behind a preserved GWR autocoach?

The best locations for active push-pull services are the South Devon Railway (Nos. 225/228 with No. 1420), Didcot Railway Centre (Nos. 190/231 with Nos. 1450/1466, plus the unique Steam Railmotor 93 with trailer No. 92), and the Severn Valley Railway (Nos. 178/238 with No. 1450). The Chinnor and Princes Risborough Railway also operates No. 167 in push-pull mode with a 64xx pannier tank.

Which GWR autocoach liveries are available in OO gauge ready-to-run models?

Available OO gauge liveries include: GWR crimson lake (Dapol Diagram N, 4P-004-001), GWR chocolate/cream with multiple crest variants (Dapol N and Hornby A30), BR carmine/cream (Dapol N 4P-004-005; Bachmann A38 39-575), BR plain crimson (Dapol N 4P-004-006; Bachmann A38 39-576), and BR maroon (Dapol N 4P-004-007; Bachmann A38 39-577). GWR green was never applied to autocoaches; any model so finished is not prototypically correct.

What locomotives should I pair with my OO gauge autocoach?

For GWR and early BR period, the Collett 14xx/48xx 0-4-2T (Hornby R30319; Bachmann 32-975 series; Dapol forthcoming) is the most prototypically correct partner for most rural branches from 1932 onwards. The 64xx 0-6-0PT (Bachmann 31-635 series; Dapol 4S-013 series) suits South Wales valley and suburban workings. For pre-1932 services, the 517 class 0-4-2T (no current RTR model; kit only) or 54xx pannier tank are appropriate.

Are DCC sound versions of the GWR autocoach available?

Yes. Dapol's 2025 Diagram N autocoach is available factory-fitted with DCC sound (4P-004-003S and equivalent across the range, approximately £195 RRP), including a working interior lightbar and 21-pin socket. The Bachmann A38 and Hornby A30 are not factory sound-fitted, though the Bachmann vehicle accepts standard DCC boards. Third-party sound projects for all three prototypes exist on DCC sound file libraries including Legomanbiffo and Zimo.

How does the GWR push-pull system compare with those of other Big Four railways?

The GWR's mechanical rotating-shaft system was unique in Britain. The LMS used vacuum pipe control of the regulator, which was simpler to install but slightly less precise. The Southern Railway inherited the LBSCR's Westinghouse compressed-air system, widely regarded as the most sophisticated of the four. The LNER used similar vacuum control to the LMS but operated push-pull on a much smaller scale, supplementing it with Sentinel steam railcars. The GWR's distinction was the sheer scale of its fleet and the fifty-year commitment to purpose-built, standardised vehicles.

What formation should I use for a realistic auto-train model?

For most rural branch workings, a single autocoach with one locomotive is correct. The coach should lead with its cab end first when the train is propelling (engine pushing). For busier suburban or market-day services, two coaches with the locomotive between them (cab ends facing outward) is prototypically accurate. Tail traffic — a GWR fitted van or milk tank wagon — can be attached behind the locomotive without requiring a brake van, as the autocoach guard's compartment provides the mandatory brake coverage at the leading end.

Is there a budget-friendly option for modelling a GWR auto-train?

Yes. The Hornby ex-Airfix Diagram A30 autocoach is widely available second-hand for £15–35, and the Hornby RailRoad Plus 14xx (R30319) costs approximately £55–65 new. This combination gives a complete auto-train for under £100, providing a good entry point before investing in the higher-detail Dapol or Bachmann offerings. Both manufacturers' locomotives will mechanically couple to either manufacturer's coach without modification.

What is the rarest or most unusual GWR autocoach variant for specialist modellers?

The Diagram U vehicles (1912, 70 ft, Nos. 81–92) are the most unusual and least-modelled Churchward design, distinguished by their exceptional 70 ft length — longer than many express corridor coaches of the period. No current ready-to-run model exists for this diagram; scratch-builders and 3D-print enthusiasts can work from preserved No. 92 at Didcot. The Diagram A34 auto-fitted Brake Thirds (Nos. 1668–1671, 1938) are another rarely noted variant, adding a luggage/brake section to the standard auto-working formation.
