GWR Dean Clerestory Coaching Stock — Victorian Masterpieces That Transformed Great Western Travel

Historical Background and Introduction

William Dean was born on 8 January 1840 in New Cross, London. Apprenticed at fifteen to Joseph Armstrong at Wolverhampton's Stafford Road Works, Dean climbed steadily through the Great Western Railway's engineering ranks. When Armstrong died in 1877, Dean assumed the role of Locomotive, Carriage & Wagon Superintendent, a position carrying responsibility for all rolling stock design and a workforce exceeding 13,000 men. It was an office that placed him among the most powerful engineers in Britain.

Dean's earliest years were dominated by an enormous engineering challenge that had nothing to do with coaching stock: the final elimination of Brunel's famous broad gauge. Until 20 May 1892, the GWR operated on 7ft ¼in gauge track, and an entire generation of rolling stock had been designed around dimensions impossible to replicate in standard gauge form. The completion of gauge conversion freed Dean entirely, and his department pivoted with remarkable speed towards a new generation of coaches. The clerestory design that emerged between 1893 and 1906 would define GWR passenger travel for the next three decades.

Several pressures converged to shape this new stock. Passenger traffic was rising sharply — first-class journeys across British railways grew from 30.8 million annually in 1870 to 58.1 million by 1900. An estimated 150,000 American tourists visited Britain each year before the First World War, bringing with them expectations of comfort formed by Pullman cars and the emerging luxuries of American long-distance travel. At the same time, inter-company competition was intense. The Races to the North of 1888 and 1895 created a climate in which every major railway was compelled to modernise.

The GWR possessed a unique structural advantage. Brunel's broad gauge infrastructure — his tunnels, bridges, and station platforms — had been engineered to far more generous dimensions than those on the rest of the national network. Even after conversion to standard gauge, the GWR retained a loading gauge capable of accommodating coaches wider and taller than those that could operate on other companies' routes. Dean exploited this advantage fully, producing coaches up to 9ft wide — significantly broader than anything the Midland or London & North Western could match.

The result was not merely a new generation of vehicles but a transformation in what railway travel meant. The first fully connected corridor train in Britain entered service under Dean's tenure on 7 March 1890. Restaurant cars followed in 1896. Sleeping accommodation, family saloons, a Royal Saloon, and electrically lit Ocean Specials all emerged from Swindon before the turn of the century. When George Jackson Churchward succeeded Dean in June 1902, he inherited a fleet of clerestory coaches that had comprehensively modernised the GWR's passenger offering and set a benchmark that rivals would spend years trying to match.

Design, Construction, and Technical Specifications

The clerestory roof is the feature that defines these coaches to every railway enthusiast at fifty yards. A raised central section runs along most of the coach's length, its vertical walls fitted with small glazed windows — the clerestory lights — that open outwards on pivoting ventilators. The main roof slopes away from this raised deck on both sides, creating the characteristic two-tier profile that became synonymous with late Victorian railway travel.

Three practical functions justified this distinctive arrangement. First, it provided essential clearance for gas lighting pendants — long fittings with fishtail burners that hung from ceiling-level brackets. Second, the openable clerestory windows created natural ventilation, allowing hot and potentially carbon-monoxide-laden air from the gas burners to rise and escape — a serious safety and comfort consideration in the days before electric lighting. Third, the additional glazing admitted natural daylight into compartments that would otherwise have been remarkably gloomy. The concept originated in American railroad practice, with Richard Imlay building clerestory cars in the 1830s and Webster Wagner reviving the design in 1859. Pullman coaches introduced it to Britain on the Midland Railway from 1874, and Dean adopted it enthusiastically for GWR's new standard stock.

Construction was entirely of timber. Wooden body panels with characteristic bolection mouldings — the raised, projecting panel surrounds that give clerestory coaches their architectural quality — were assembled on timber underframes with longitudinal solebars, headstocks, and truss rods providing structural rigidity. Steel panelling would not appear on GWR coaching stock until 1912, by which time the clerestory era was over. Coaches rode on Dean's distinctive centreless bogies, which dispensed with a conventional centre pivot: body weight was instead carried on scroll irons at the frame sides, resting on underslung transverse beams suspended from the bogie on springs. Three bogie wheelbase variants were used: 6ft 4in for smaller coaches, 8ft 6in for medium vehicles, and 10ft for the larger corridor stock.

Braking was by vacuum throughout, with screw handbrakes retained in guard's compartments. A small group of vehicles — six coaches of Diagram E52 — additionally carried Westinghouse air brakes for working through-carriages over other companies' routes, though these were removed in 1929. Heating on corridor and express stock was by steam piped from the locomotive. Lighting evolved in three distinct phases: original flat-flame oil-gas, conversion to incandescent gas mantles from around 1905, and electric lighting on selected premium workings — notably the Milford Boat Train sets from 1900, which were the first GWR coaches to carry electric lighting. The majority of clerestory vehicles, however, never received electric lighting at all.

Sub-types, Diagrams, and Variants

Churchward introduced a systematic diagram coding system around 1904–1910, retroactively classifying Dean's output with a prefix letter indicating type. A-series diagrams covered bogie first class coaches; C-series third class; D-series brake thirds; E-series composites and brake composites; F-series slip coaches; G-series saloons; H-series catering vehicles; J-series sleeping cars; and K-series passenger brake vans. Over 80 distinct diagrams cover the clerestory family in its entirety.

The single most numerous diagram was C10 — the 8-compartment non-corridor third class coach. Some 310 vehicles were built across 18 lots between 1894 and 1902, each measuring 46ft 6¾in long by 8ft wide and seating 80 passengers, ten to a compartment in five-a-side configuration. A single C10 cost £812 to construct in 1901. Lot 724, completed in July 1894 and numbered 2843–2862, was the first batch; Lot 1004 of October 1902 was the last. The closely related Diagram C22 added 55 further vehicles between 1902 and 1904 at 8ft 6in wide, while the 10-compartment Diagram C23 provided 100 seats per coach across 60 vehicles built in 1903–04.

Corridor stock was produced in remarkable variety. Diagram C17 corridor thirds ran to 80 vehicles (1897–1902), while corridor brake thirds to Diagram D29 totalled 54 coaches (1899–1903). Corridor composites spanned dozens of sub-diagrams — E53, E64, E68, E69, E70, E71, E73, E75 among them — covering various arrangements of first, second, and third class compartments with lavatories. Diagram E73 corridor composites alone numbered 38 vehicles.

Specialist stock demonstrated Dean's ambition. Sleeping cars to Diagrams J3–J5 were built between 1890 and 1897. Dining saloons to Diagram H2 (6 coaches, 1896–99) and H7 (4 coaches, 1903) served express passengers on-train meals. The Queen's Saloon (Diagram G1, 1897) and Royal Train saloons (G4/G5, 1897) provided for royal travel. Slip coaches — vehicles detached from a moving express at intermediate stations using a special slip guard's brake — formed an F-series, though most had their slip gear removed in 1917–18 as a wartime economy.

Later modifications transformed many survivors. Second class was abolished across the GWR around 1910–12, and all second class coaches were reclassified to third. Guard's projecting lookout domes were removed from many brake vehicles in the 1920s and 1930s, creating new diagram numbers in the process (D14 became D76, D24 became D75, D29 became D70). During the 1930s, clerestory windows were systematically painted over or plated shut — a visible and somewhat melancholy acknowledgement that the raised-roof era had passed. Many coaches were converted to departmental roles: mess vans, tool vans, engineering inspection saloons, camping coaches (renumbered into the 99xx series), and parcels vans to Diagrams M28–M31.

Service History and Operating Companies

GWR Dean clerestory coaches launched into service at the very apex of their company's ambitions. The four Bay Window corridor coaches that formed the first fully connected corridor train on 7 March 1890 were themselves a prototype run on the Paddington to Birkenhead service before the main production corridor vehicles arrived. Ocean Specials from 1896 ran eight-coach sets of corridor clerestories to Plymouth, meeting transatlantic liners and connecting passengers with the capital. South Wales corridor sets from the same year comprised nine clerestory vehicles.

The Cornish Riviera Limited, inaugurated on 1 July 1904, is the service most often associated with GWR coaching stock. Its opening formation of five Dean clerestories and one new Churchward Dreadnought dining car captures perfectly the moment of transition — clerestory coaches still doing the heavy lifting while the new generation began to arrive. The Flying Dutchman, the Cornishman, and various named West of England expresses all operated with Dean clerestory rakes during the Edwardian era.

The first decade of the twentieth century brought progressive displacement from top-link duties. Churchward's experimental Dreadnought coaches of 1904 and the definitive toplight design from 1907 were both larger and more modern, and they were naturally deployed first on prestige services. By the time Collett's bow-ended coaches began appearing from 1922, the clerestory fleet was well into its secondary service phase — relegated to local and semi-fast workings, strengthening duties, relief trains, and excursion services.

The view at Birmingham Snow Hill in 1947 captures their later career well: non-corridor Diagram C10 No. 3206 is photographed on the down main line, still in everyday service more than four decades after construction. On the Wye Valley line, the Banbury to Wolverhampton cross-country route, and countless Welsh branch lines, clerestory coaches were a familiar sight throughout the 1930s and into the 1940s. They served as workmen's coaches, on seasonal excursions, and on lightly used rural services where newer stock would have been uneconomical to deploy.

Wartime brought a final transformation. Surviving coaches were painted overall brown and pressed into wartime utility service. Some former camping coach conversions passed to engineers or military use. Withdrawal was gradual rather than systematic: individual coaches were condemned as they became life-expired rather than as part of a planned withdrawal programme. By 1947 most had left normal passenger service, though some non-corridor thirds survived on workmen's trains until approximately 1955. Following nationalisation on 1 January 1948, survivors passed to British Railways Western Region and received a "W" suffix, with some repainted in BR crimson lake livery before final withdrawal.

Withdrawal, Preservation, and Surviving Examples

Departmental vehicles lasted longest, some surviving into the late 1950s and early 1960s in roles as inspection saloons, mess vans, and engineering coaches. Most were scrapped with little ceremony. Approximately five coaches are known to survive today, representing a tiny fraction of the original fleet of over a thousand vehicles.

No. 1941 (Diagram C10, built Lot 993, 1901) is the jewel of clerestory preservation. Now resident at Didcot Railway Centre, this eight-compartment non-corridor third is fully operational and runs on selected Victorian Train days in original chocolate and cream livery with correct "Brown and White star" moquette upholstery in the compartments. It was converted to workman's use in 1938, condemned in May 1945, and became engineering mess van No. 14198. Preservationists discovered it at Newport marshalling yard before it could be cut up, and a lengthy restoration returned it to passenger-carrying condition. If you visit Didcot on a Victorian Train event day, you can sit in the same compartments that Edwardian travellers occupied on GWR suburban services over a century ago — a genuinely atmospheric experience.

No. 1357 (Diagram C22, built 1903) also resides at Didcot, stored awaiting restoration. Condemned in December 1937 and converted to departmental coach No. 14571, it is expected to be the next vehicle tackled by the Victorian Carriages Fund once No. 1941's ongoing maintenance programme permits.

No. 9520 (Diagram H7, built 1903) — the only surviving Dean corridor clerestory coach built for ordinary public service — is stored at Didcot with no current restoration timeline. This composite dining saloon has a remarkable post-railway life: after withdrawal in the 1930s it served for decades as a cobbler's shop in Newbury before rescue. Its body survives on a non-original underframe, with partial first class wall panelling remaining internally.

No. 9038 (Diagram J5, first class sleeping car, built 1896/97) resides at the West Somerset Railway Gauge Museum at Bishops Lydeard. Originally serving the Paddington to Fishguard sleeping car route, it was sold from railway service in 1931 to a Somerset farmer at Stogursey, who incorporated it into a bungalow called Journey's End. Extracted in 1985, a twenty-year restoration followed, and it returned to display in May 2006 presenting its 1925-condition interior: eight single-berth compartments, attendant's pantry, and original woodwork — some of it salvaged from sister vehicle No. 9039.

No. 80971 (the ex-No. 9035, converted to a Bristol Inspection Coach in 1941) survives at the Pontypool & Blaenavon Railway in unrestored condition.

Modelling Significance and Scale Replications

GWR Dean clerestory coaches occupy a special place in the model railway world. Their distinctive roofline, bolection-moulded panels, and chocolate and cream livery make them immediately recognisable on a layout, and they serve the late Victorian to early Grouping period that is chronically under-represented in ready-to-run production compared to the BR steam era. Getting a rake of clerestories right provides an authenticity of period that no amount of modern stock can replicate.

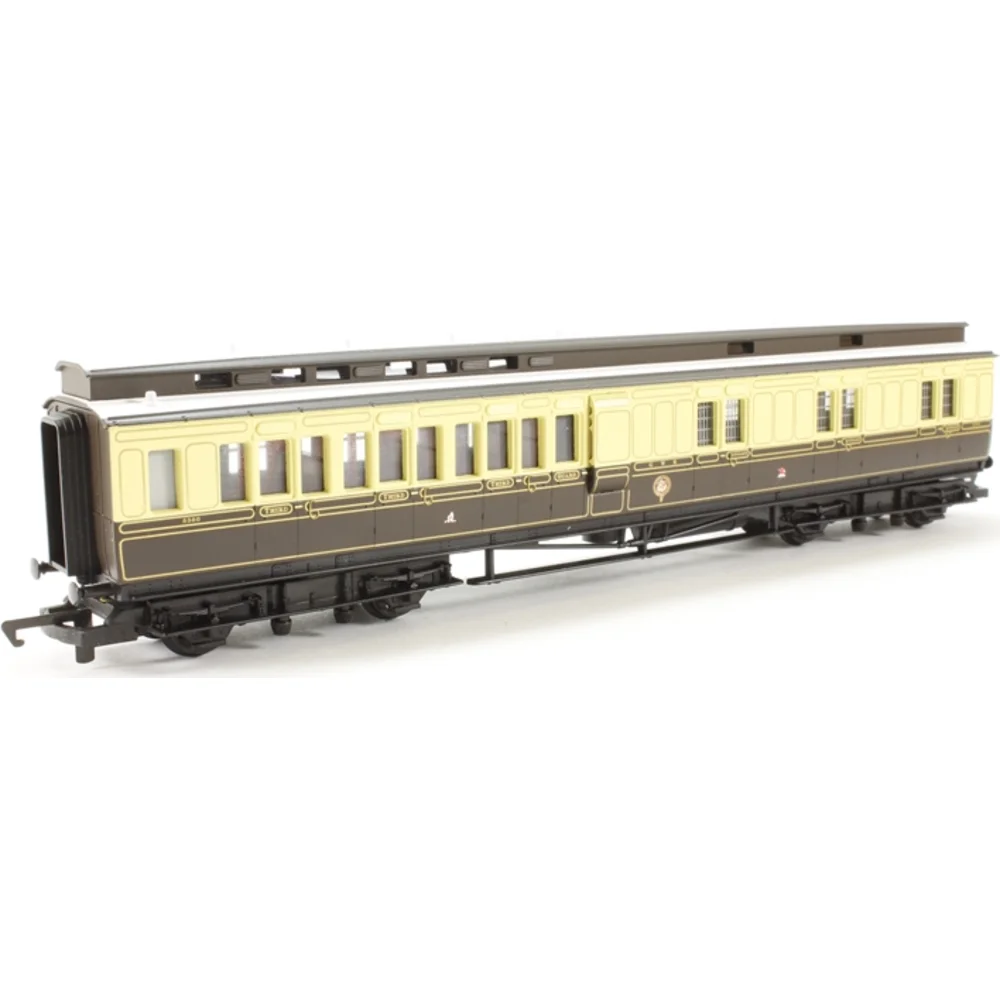

OO gauge (4mm:1ft) offers the widest choice. Hornby produces two quality tiers. The more detailed toolings — catalogue numbers R4899 (C15 corridor composite) and R4900 (D29 corridor brake third) — represent specific prototypes in correct chocolate and cream or all-over brown livery at approximately 236mm body length. These are well-regarded for general use and are DCC-ready. The Railroad range versions (R4913, R4914) are re-releases of the original Tri-ang 1962 tooling — affordable and useful as budget strengtheners, but not accurately modelled on any specific diagram and showing their age in the moulding detail.

For serious modellers, Worsley Works represents the gold standard. This Sheffield-based specialist produces an extraordinary etched brass range covering over 30 specific diagrams: A6, A7/8, C3, C4, C17, C22, D24, D30, D31, D33, E45, E72, E73, H2, H5, and many more, with kits priced at £45–£55. These are not beginner's projects — assembly requires soldering skill — but the resulting models are dimensionally and visually accurate to individual diagram specifications in a way no ready-to-run product can match. Worsley Works also produces some of the only models of the rarer coaching types: dining saloons, slip coaches, and composite diners that no mainstream manufacturer has ever produced.

Slater's Plastikard offers injection-moulded OO kits including reference 4C09 (Diagram E37 composite), though availability has been intermittent in recent years. Roxey Mouldings produces a niche Diagram F12 slip composite in etched brass for the finescale market.

O gauge (7mm:1ft) is exceptionally well served. Slater's Plastikard injection-moulded kits — 7C08 (Diagram C10 All Third), 7C09 (Diagram E37 Composite), and 7C015 (Diagram D14 Brake Third) — are the go-to choice, with turned buffers, fine-scale Mansell wheels, and correctly profiled Dean bogies. CRT Kits provides an extensive etched brass range covering D30, D31, C21, E75, D38, C19, F10, H7, and E24/E25, while Darstaed produces tinplate GWR suburban clerestory coaches for the collector and display market.

N gauge (2mm:1ft) is the most restricted scale. Only Blacksmith Models C19B (etched 46ft third) and OCWW 070 from Osborns offer kit options, and no ready-to-run N gauge Dean clerestory models currently exist. This is a significant market gap.

For transfers and lettering, HMRS Pressfix/Methfix transfers remain the enthusiast's gold standard for GWR coaching stock. Fox Transfers, Modelmaster, and Railtec all provide waterslide alternatives at various price points.

Unique Modelling Tips and Layout Integration

Choosing the right era and livery is the most important decision when modelling Dean clerestories. Three distinct livery periods apply:

• Chocolate and cream (pre-1908 and 1922–1947): The quintessential GWR passenger livery. Upper panels cream, lower panels chocolate brown, with ornate lining and shaded lettering. This is the most frequently modelled and the most commercially available finish.
• All-over lake/brown (1908–1922): An economy wartime and post-war period in which GWR adopted a uniform lake-brown finish. Rarely modelled commercially but historically important — any clerestory coach in a "First World War" layout scene should carry this livery.
• BR crimson lake (post-1948): A small number of surviving coaches received BR maroon before final withdrawal. Unusual and striking for a late-period layout depicting early nationalisation.

Modelling Tip — Building a Realistic Edwardian Express Rake: For an authentic Paddington to Bristol express circa 1903, combine a Diagram C17 corridor third (Worsley Works OO kit), a Diagram E73 corridor composite (Worsley Works), a Diagram D29 corridor brake third (Hornby R4900 or Worsley Works), and a Diagram H2 dining saloon (Worsley Works H2). All four vehicle types ran together in Edwardian expresses. Pair with a Dean Single or early Churchward 4-4-0 locomotive for complete period accuracy. Every vehicle should carry chocolate and cream with pre-1908 style lettering using HMRS Methfix transfers.

When modelling non-corridor suburban rakes, the Diagram C10 is your workhorse — historically they ran in sets of four to six coaches with a passenger brake van (Diagram K13 or K14) at one or both ends. A train of four C10 thirds and a K14 brake van behind a Dean 0-6-0 or early Churchward 2-6-0 represents a credible late Victorian or Edwardian mixed-traffic formation for almost any GWR cross-country or suburban route.

Historical Insight — The Clerestory Windows Problem: From the 1930s, the GWR systematically painted over the clerestory windows on its ageing stock — a cost-saving measure that eliminated glazing maintenance. This means any clerestory coach modelled for a 1935 or later scene should have white-painted or plated clerestory lights, not transparent glazing. It is a small detail that most ready-to-run and kit models get wrong, but it is immediately obvious to anyone who has seen period photographs of these coaches in their final years of service.

For layout integration, Dean clerestory coaches are period-specific but versatile within that period. A layout set in 1895–1925 can justifiably feature them on express, local, and branch line duties. After 1925 they belong on secondary services only. The coaches are relatively short by modern standards — a six-coach suburban formation of C10 thirds is still shorter than a three-coach BR Mk1 set — so they integrate well into medium-length layout designs without requiring enormous run-round loops or extended platform lengths.

Sourcing coaches with consistent roof profiles matters. Both Hornby toolings use slightly different roof heights, and mixing them in the same rake looks wrong. Within a single rake, use the same manufacturer's tooling or check measurements carefully before committing to a mixed build.

Finally

The Dean clerestory coaches of the Great Western Railway represent far more than a technical footnote in carriage history. They were the vehicles through which the GWR reinvented itself after the broad gauge — the rolling stock that announced, definitively, that the railway which had once seemed eccentric and isolated was now a modern, competitive enterprise capable of matching and often exceeding the best that any competitor could offer.

More than a thousand coaches, built across eighty diagrams in twelve years at Swindon, carried passengers from Paddington to Penzance, from Oxford to Birkenhead, from London to Fishguard. They inaugurated the corridor train, the on-board restaurant car, and electric lighting on British express services. They ran behind King George V and in front of the first Cornish Riviera Limited. They served two world wars, survived nationalisation, and continued to carry passengers into the 1950s — fifty years after their construction. That is an extraordinary service life for Victorian timber-framed vehicles.

Five survivors remain. If you have never visited Didcot Railway Centre on a Victorian Train day and stepped into the compartments of No. 1941, add it to your list. The smell of old varnish, the horsehair cushioning, the small-paned windows with their leather strap adjustors — it makes the whole history concrete in a way that no photograph or model can fully replicate. For those who prefer to engage with these coaches in miniature, the combination of Hornby's accessible ready-to-run range and Worsley Works' extraordinarily comprehensive kit range means that virtually any vehicle in the fleet can be recreated at 4mm:1ft. The GWR Dean clerestory coaching stock deserves a place on every layout that claims to represent the golden age of Great Western travel.

FAQs

When were GWR Dean clerestory coaches built, and who designed them?

GWR Dean clerestory coaches were designed by William Dean, the Great Western Railway's Locomotive, Carriage & Wagon Superintendent, and built at Swindon Works between 1893 and 1906. Dean took charge of all GWR rolling stock in 1877 following the death of Joseph Armstrong. The clerestory design represented his response to rising passenger expectations and the completion of the broad gauge conversion in 1892. Over one thousand coaches across more than eighty diagram numbers emerged from Swindon during this thirteen-year production run.

What is a clerestory roof and why did the GWR use it?

A clerestory roof is a raised central section running along a coach's length, with small glazed windows set into the vertical walls on each side. The GWR adopted it primarily for three reasons: it provided clearance for the tall gas lighting pendants then in use, the openable clerestory windows allowed hot and stale air to ventilate naturally, and the additional glazing admitted extra daylight into compartments. The concept originated in American railroad practice and reached Britain via Pullman cars on the Midland Railway from 1874. The GWR was among the most committed adopters of the design among British railways.

Where can I see surviving GWR Dean clerestory coaches today?

The best destination is Didcot Railway Centre in Oxfordshire, which holds three coaches including the operational No. 1941 (Diagram C10 third, built 1901), which runs on Victorian Train event days in chocolate and cream livery. Coach No. 1357 (Diagram C22) is stored there awaiting restoration funding. The Gauge Museum at Bishops Lydeard on the West Somerset Railway houses No. 9038, a first class sleeping car restored to 1925 condition. No. 80971, a converted inspection coach, survives unrestored at the Pontypool & Blaenavon Railway.

Which manufacturers make OO gauge Dean clerestory coach models?

Hornby produces the most accessible ready-to-run OO gauge versions: R4899 (C15 corridor composite) and R4900 (D29 corridor brake third) are the more detailed toolings, while the Railroad range R4913/R4914 offers a budget alternative based on older 1962 Tri-ang tooling. For diagram accuracy, Worsley Works provides etched brass kits in 4mm scale covering over thirty specific diagrams — the most comprehensive range available anywhere. Slater's Plastikard offers injection-moulded OO kits (reference 4C09, Diagram E37 composite) when available, and Roxey Mouldings produces a niche Diagram F12 slip composite for finescale modellers.

Are there O gauge or N gauge Dean clerestory models available?

Yes, O gauge (7mm:1ft) is particularly well served. Slater's Plastikard produces injection-moulded kits in three versions: 7C08 (Diagram C10 All Third), 7C09 (Diagram E37 Composite), and 7C015 (Diagram D14 Brake Third), with correctly profiled Dean bogies and turned buffers. CRT Kits offers an extensive etched brass range. For N gauge (2mm:1ft), only kit options exist — Blacksmith Models C19B and OCWW 070 from Osborns — and no ready-to-run N gauge Dean clerestory models are currently in production, representing a notable gap in the market.

What liveries did GWR Dean clerestory coaches carry?

Three principal liveries applied across these coaches' long lives. The GWR chocolate and cream passenger livery (upper panels cream, lower panels chocolate brown with lining) was carried from introduction to 1908 and again from 1922 to withdrawal. The all-over lake-brown economy livery applied between 1908 and 1922, covering both wartime years and the post-First World War period. A small number of late survivors received BR crimson lake after nationalisation in 1948. The chocolate and cream scheme is the most commonly modelled and the most commercially available in both ready-to-run and kit form.

How did GWR Dean clerestory coaches compare to those of rival companies?

The GWR's clerestory coaches were broadly contemporary with similar stock from the Midland Railway (from 1897), the London & North Western Railway, and the Great Eastern Railway. The GWR's principal advantage was its wider loading gauge — inherited from the broad gauge era — which allowed coaches up to 9ft wide, significantly broader than most rival stock. The GWR was also among the earliest major companies to move beyond the clerestory roof: Churchward's Dreadnought coaches arrived in 1904 and the definitive toplight design followed in 1907, whereas the Midland Railway did not abandon the clerestory until 1915.

What routes and named trains did Dean clerestory coaches work?

Dean clerestory coaches worked the full range of GWR services from their introduction in 1893. Express duties included Ocean Specials (1896), South Wales corridor services (1896), the first Cornish Riviera Limited formation (July 1904), and West of England expresses including the Flying Dutchman and Cornishman. The first fully corridor-connected British train (7 March 1890, Paddington–Birkenhead) used Bay Window clerestory vehicles. After displacement from express duties in the 1910s and 1920s, clerestory coaches cascaded to secondary routes including the Wye Valley line, Birmingham Snow Hill suburban services, and branch lines across Wales and the West Country, remaining in ordinary service until approximately 1955.
