Catalogue

Builder

Bachmann

Catalogue Number

36-569

Category

Control Systems & Decoders

Year

2022

Pages

Bachmann 2022 (10)

Decoder

Interface: NEM 660 21-pin MTC connector
NEM: 660
NMRA: 21MTC
Pins: 21
Continuous Load: 1.2A
Peak Load: 2.5A
Functions: 6
Function Load: 0.8A
Logic Level Outputs: 2
Energy Storage Support: 25V
SUSI: Yes
Back EMF: Yes
Length: 20.5 mm
Width: 15.5 mm
Height: 3.5 mm

Bachmann 36-569

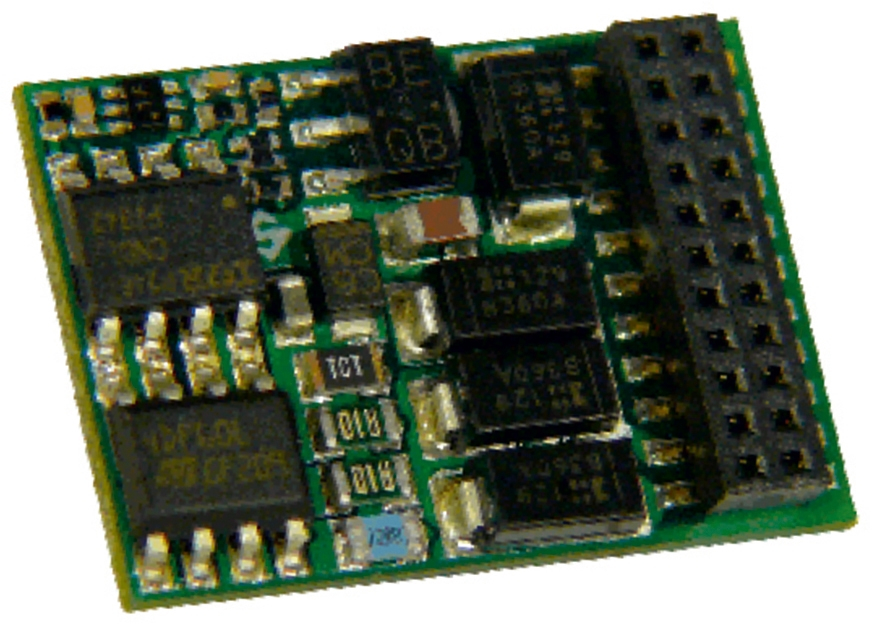

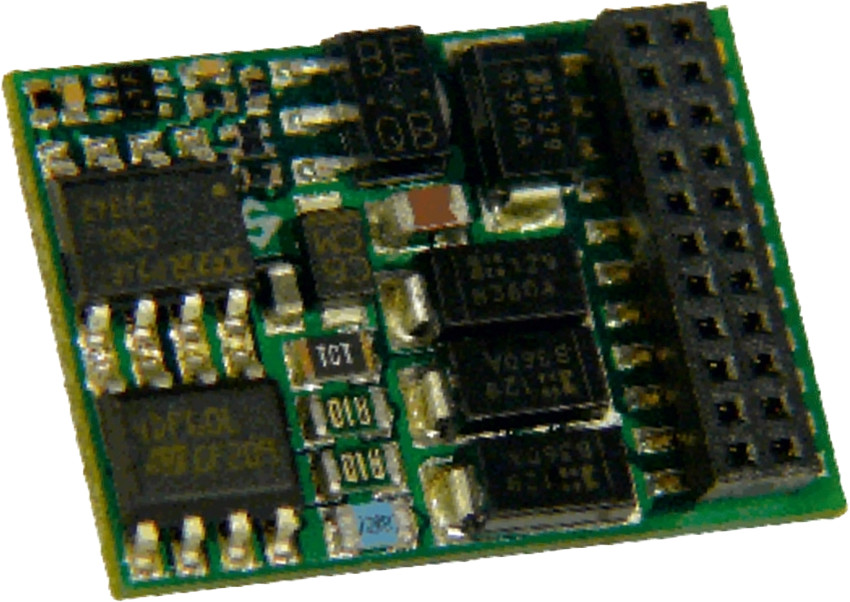

DCC Decoder for Branchline Class 90 with Pantograph & Brake functions

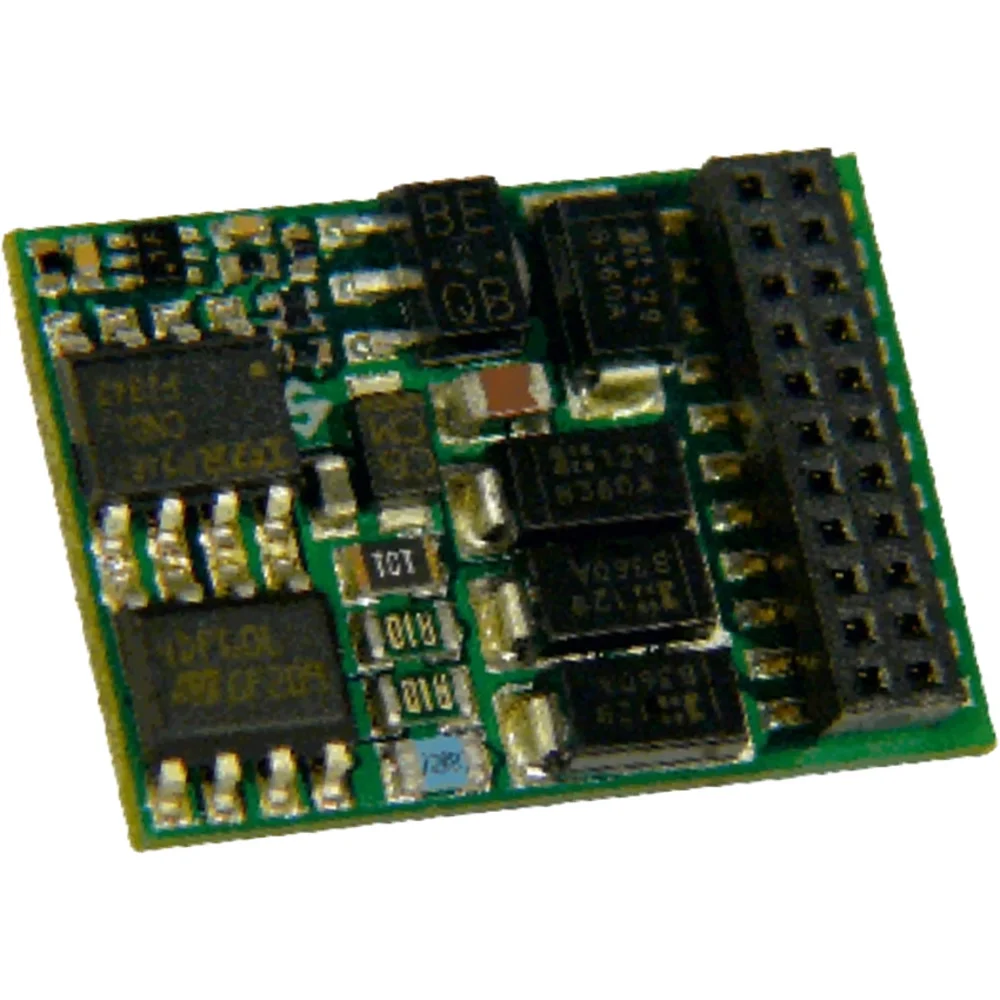

side-elevation by Bachmann

Side Elevation | © Bachmann
