Bachmann 32-255

Tooling

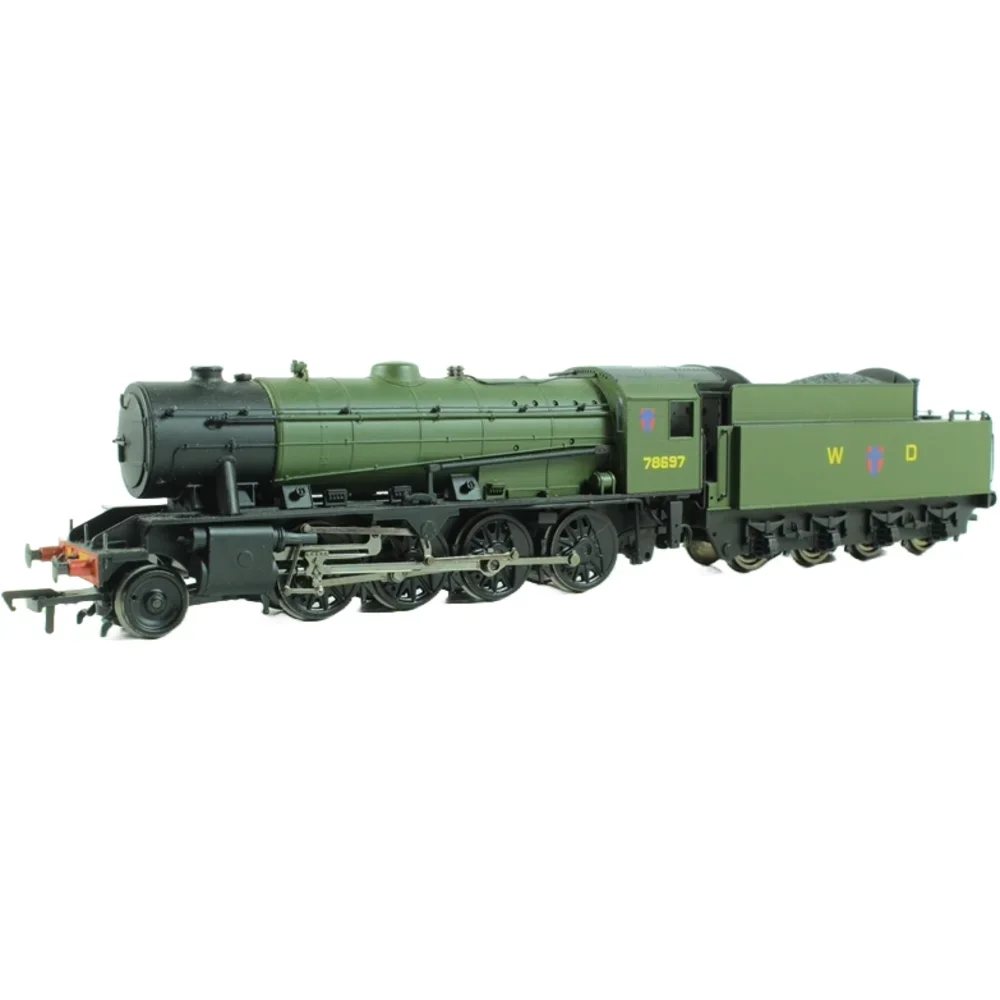

Bachmann Branchline introduced its OO gauge model of the War Department Austerity 2-8-0 in 1996. This model represented one of the most prolific wartime freight locomotives, originally designed by R.A. Riddles for the Ministry of Supply during World War II. The tooling was developed to capture the rugged and utilitarian nature of the prototype, which was based on the LMS 8F but simplified for wartime production.

Tooling Features

• Scale: OO gauge (1:76)
• Construction: Plastic body with separately fitted details; die-cast chassis
• Detailing: Includes handrails, valve gear, piping, and removable coal load; some versions featured additional region-specific details such as Westinghouse brake gear and window shutters
• Couplings: NEM pockets with Bachmann tension-lock or EZ-mate knuckle couplers depending on release

Mechanical & Electrical

• Motor: Five-pole skew-wound motor (CAN motor)
• Drive: All-wheel drive via central motor and gear tower
• Minimum Radius: Suitable for second radius curves (approx. 438mm)
• Lighting: Some versions included directional lighting; tender lighting on select models
• Weighting: Moderate weight for good traction; tender free-floating with drawbar connection

DCC Capability

The original tooling was DCC compatible but not DCC ready. No decoder socket was provided, requiring hard-wiring for digital conversion. Space inside the body was limited, and installation required removal of the factory PCB and careful placement of the decoder above the motor.

Liveries Produced

Numerous liveries were released using this tooling, including:

• War Department Khaki and Green
• Longmoor Military Railway Blue
• LNER Black
• BR Black (early and late crests)
• Nederlandse Spoorwegen Green
• Kowloon Canton Railway Green (Limited Edition)

Reviews

Contemporary reviews praised the model's pulling power, smooth running, and overall detailing, though some noted fragility in separately fitted parts and challenges with DCC conversion. The model was considered a strong performer for freight operations and well-suited to layouts depicting post-war or military themes.

Media & Commentary

The model has featured in various YouTube running sessions and enthusiast blogs. The KCR version, released around 2000, received particular attention for its unique packaging and commemorative nature. Social media commentary often highlights the model's historical significance and its role in representing wartime logistics on model railways.

Additional Notes

• Packaging for limited editions included wooden presentation boxes and certificates
• Some models included user-fit accessories such as brake rigging
• Despite its age, the tooling remained popular until its retooling in 2012
