Bachmann 32-103

Tooling

In 2000, Bachmann introduced its first entirely new OO-scale tooling for the iconic British Rail Class 08 0-6-0 diesel-electric shunters. Released under the “Blue Riband” / Branchline range, the new tooling marked a significant improvement over earlier offerings in terms of accuracy, build quality, and performance standards for mainstream British-outline models.

Tooling Features

• Scale & Construction: Precision injection-moulded body shell, die-cast metal chassis and weight, metal grab handles, etched cab and body details.
• Detail Variants: Multiple configurable parts including lamp brackets, buffer types, radiator access ladders, cab door styles (steel/wood), compressor boxes, and varied roof vents to accurately represent individual prototype variations.
• Couplings: Standard NEM tension-lock couplings in early releases; some later variants (post-sound versions) introduced optional auto-release couplings, although not part of the original tooling.

Mechanical & Electrical Performance

• Drivetrain: Five-pole motor with substantial flywheel, driving the rear axle through precise gearing; achieves excellent slow-speed control and real-world haulage capability.
• Chassis: Sprung centre axle enhances tracking on uneven or flexible track; all-wheel power pickup, with metal bearings on every axle.
• Minimum Radius: Suitable for standard OO tight radii, replicating prototype shunting performance.
• Weights: Metal construction contributes to robust, well-balanced feel and dependable traction.
• Lighting (Early Versions): Twin head/tail lamps at each end (analogue lighting configuration); cab light featured in later iterations.

DCC Capability

• Original tooling included provision for DCC conversion: factory-fitted decoder socket (PluX22) accessible via removable roof.
• Subsequent sound-fitted variants offered features like onboard speakers and stay-alive circuitry (“Bach-Up”) for flicker-free DCC operation, though these were deployed after the initial release.

Liveries Produced (Circa 2000–2004)

Early tooling produced a variety of prototypical liveries reflective of the Class 08 lineup during that period, including:

• BR Blue with yellow ends
• BR Green (late crest version)
• Provincial and Railfreight sectors
• Preservation liveries featured on early preserved examples

Reception and Reviews

The tooling set a new benchmark for Bachmann’s British-outline releases. Model Rail’s August 2025 retrospective identified the tooling’s debut as an “epochal moment,” praising its superior running smoothness and detailing compared to both Bachmann’s own legacy offerings and its competitors. Key Model World’s 2024 preview highlighted the full-suite lighting potential, stay-alive readiness, and robust chassis construction. Overall, reviews confirmed that the tooling delivered both in aesthetic fidelity and reliable operation.

Media & Online Commentary

• Online forums (e.g., RMweb) regularly discuss the tooling’s configurability, ease of DCC conversion via the removable roof, and accessory parts interchangeability; user reviews note the high quality of mouldings and low noise performance.
• YouTube unboxings and comparative reviews highlight the jump in detail and mechanical performance relative to earlier Bachmann Class 08 models, with particular praise for the clean motion of coupling rods and gearbox resilience.

Interesting Insights

• The modular design enabled Bachmann to issue a wide variety of accurate prototype versions without needing separate body shells—only detail sprue variants.
• Decay-resistant plastic and die-cast parts have helped maintain valued collectibility and running longevity over time.
• The inclusion of DCC-friendly features in the original tooling—rare for early 2000s models—speaks to foresight in embracing digital control trends.

Conclusion

Bachmann’s 2000 tooling of the Class 08 firmly raised expectations for OO-scale diesel shunters. With verifiable mechanical excellence and thoughtful detail accuracy, it quickly became a favourite among collectors and operators. Its flexible tooling suite, DCC-ready features, and strong media reception validated its status as a pivotal release—providing a solid foundation for the later 2005 retooling.

Class & Prototype

The British Rail Class 08 diesel-electric shunter represents Britain's most numerous locomotive class with 996 built 1952-1962. Powered by the reliable English Electric 6KT diesel engine producing 350-400hp, these 0-6-0 yard locomotives continue working after seven decades, with 100-170 still in active service alongside 87 preserved examples. The Class 08's universal deployment across freight yards, passenger stations, and industrial sidings from 1953 to present makes it the most versatile British diesel for model railway layouts.

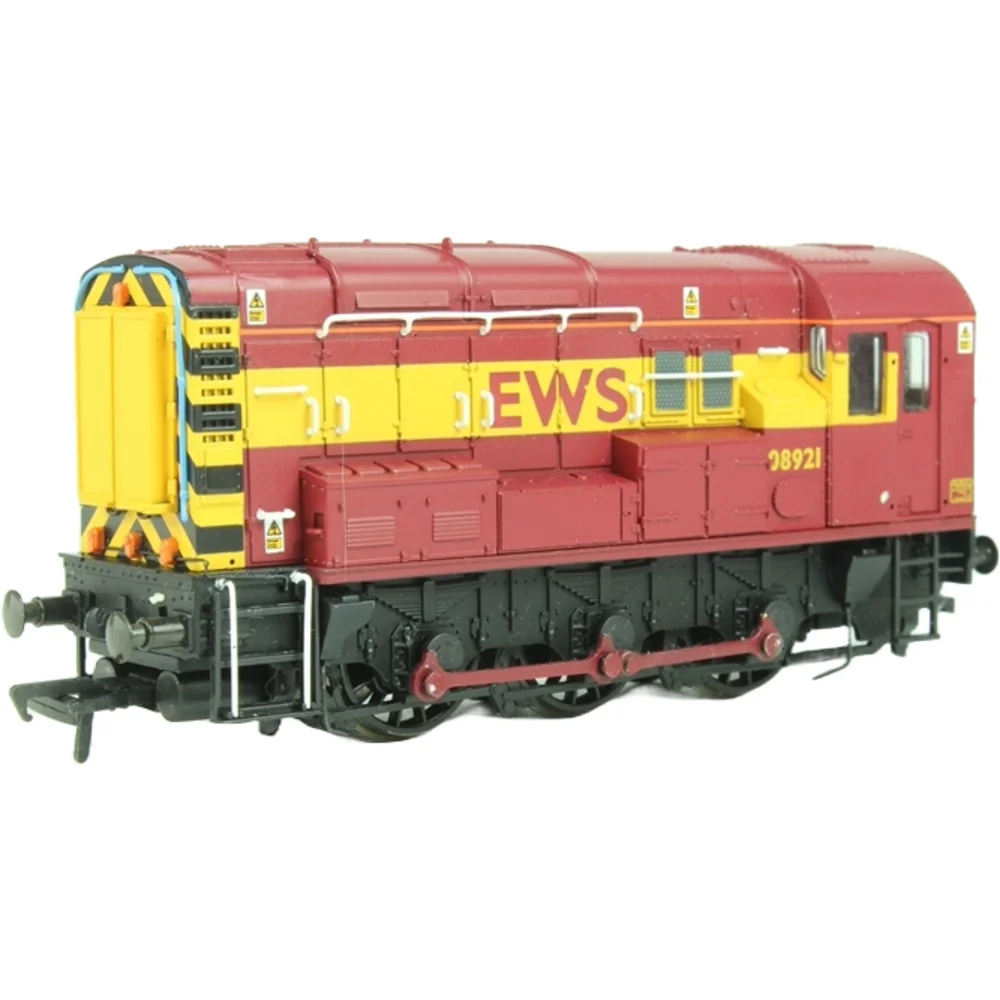

Operator & Livery

The English, Welsh & Scottish Railway (EWS) operated Britain's largest rail freight network from 1996-2007, controlling 90% of the UK freight market. Formed by Wisconsin Central through acquisition of five British Rail freight companies, EWS revolutionised British freight transport with 250 new General Motors Class 66 locomotives and distinctive maroon and gold livery featuring the famous "three beasties" logo. The company was acquired by Deutsche Bahn in 2007, eventually becoming today's DB Cargo UK while maintaining its freight market dominance.

The EWS maroon and gold livery was introduced in April 1996, with the first locomotive to receive the scheme being Class 37 number 37057, which emerged from Toton Depot on 25 April 1996 to coincide with the launch of the English, Welsh & Scottish brand. The colour specification featured maroon bodysides, roofs and ends with black underframes and buffer beams, standard UK yellow warning panels, and a distinctive gold stripe running centrally between the cab ends.

To ensure accurate colour consistency, a sample plate was flown from Wisconsin Central's American operations to Britain, where British paints were mixed to match this standard. Interestingly, when Class 66 and 67 locomotives were later built by General Motors, another sample plate was sent to the manufacturer, resulting in a slightly lighter shade than the original British mix.

The livery evolved through several variations. Early applications from April 1996 featured "EW&S" lettering (including the ampersand) in Arial typeface within the gold band. From January 1997, this was simplified to "EWS" with improved Gill Sans typeface - continuing a tradition established by the LNER in the 1920s and used by British Railways until the 1960s.

The gold band width varied by locomotive class - most received 600mm bands, but Classes 37, 58, and 73 looked better with 550mm bands due to their distinctive body shapes. Company lettering and locomotive numbers appeared in maroon within the gold stripe with 20mm clearance from the band edges, positioned at opposite ends on each side of the locomotive.

For model railway enthusiasts, specialist paint manufacturers like Phoenix Paints produce authentic colour matches, with their E.W.&S. Red (P193) and E.W.&S. Gold (P194) paints matched to original Wisconsin Central colour panels. Alternative options include RailMatch EWS Maroon (1255) which many modellers prefer for value and colour accuracy.

The EWS maroon and gold scheme became one of the most recognisable railway liveries in modern British history, remaining in use until Deutsche Bahn's acquisition in 2007 and the subsequent adoption of DB Schenker corporate red livery from 2009.
