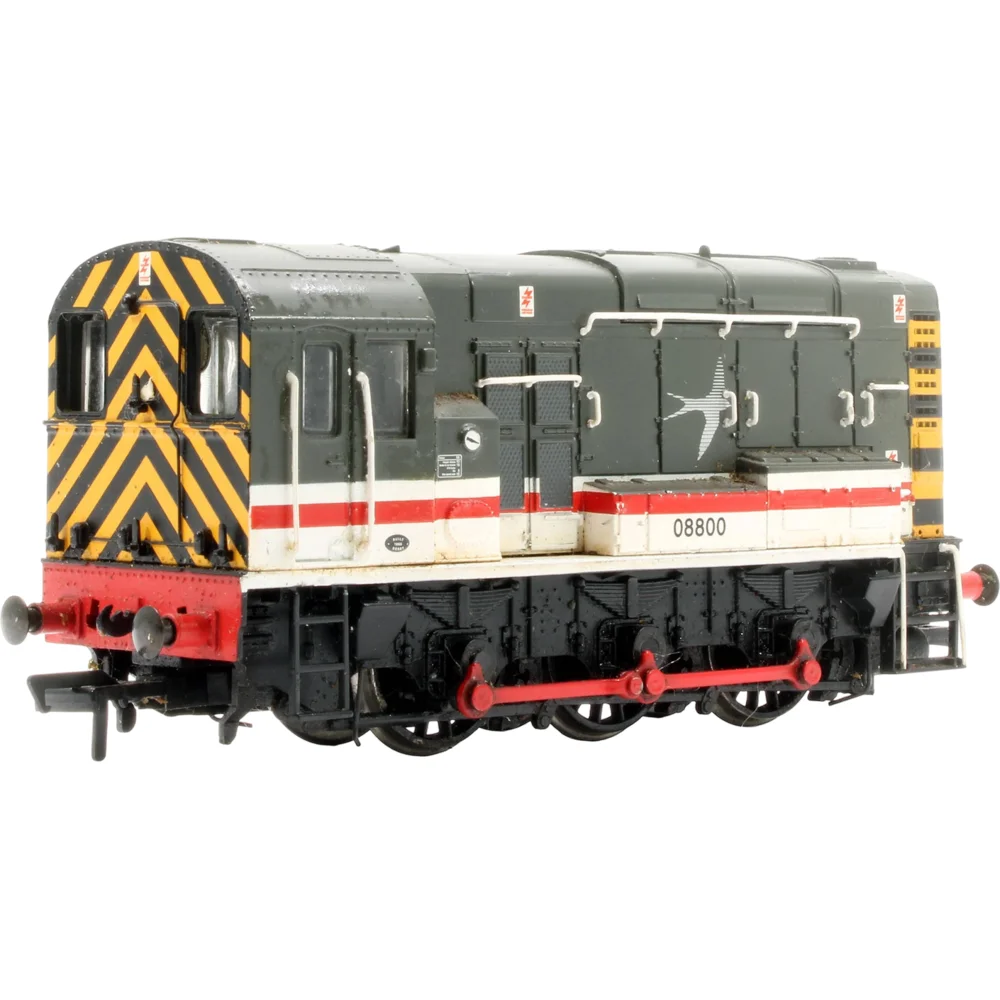

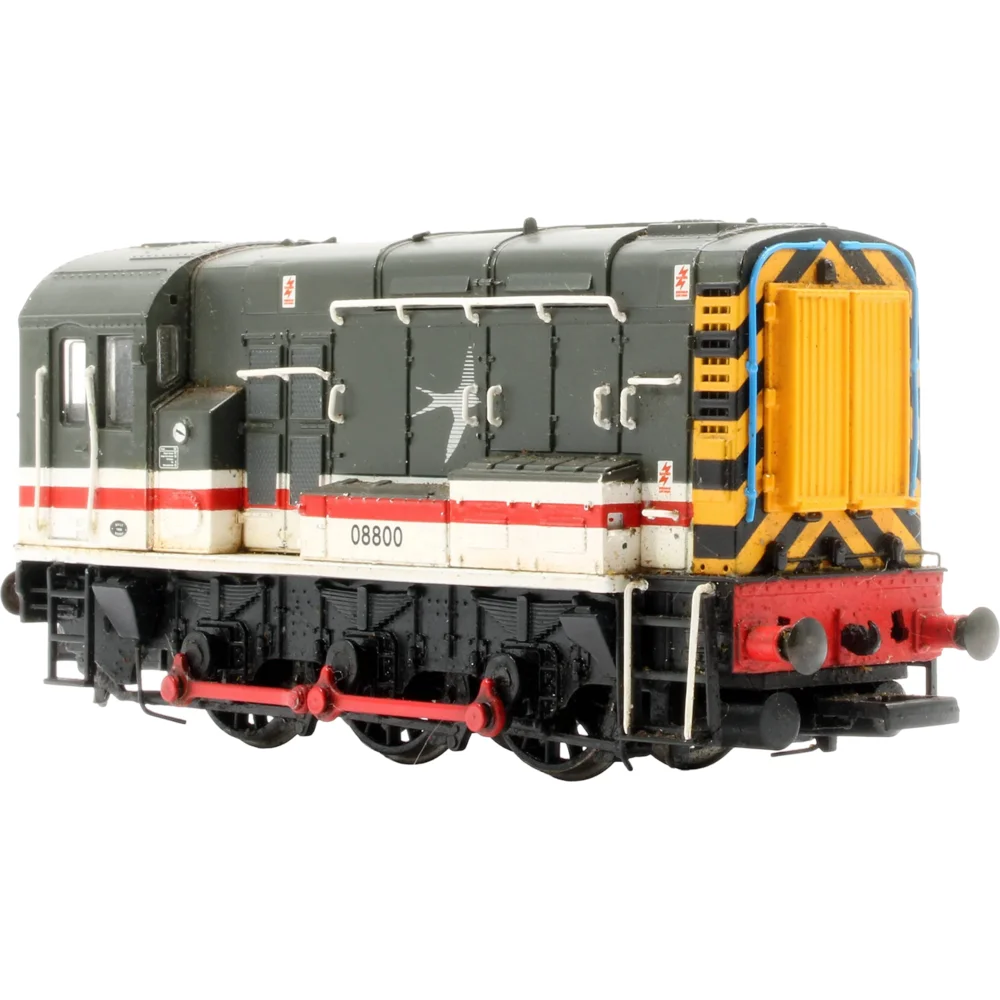

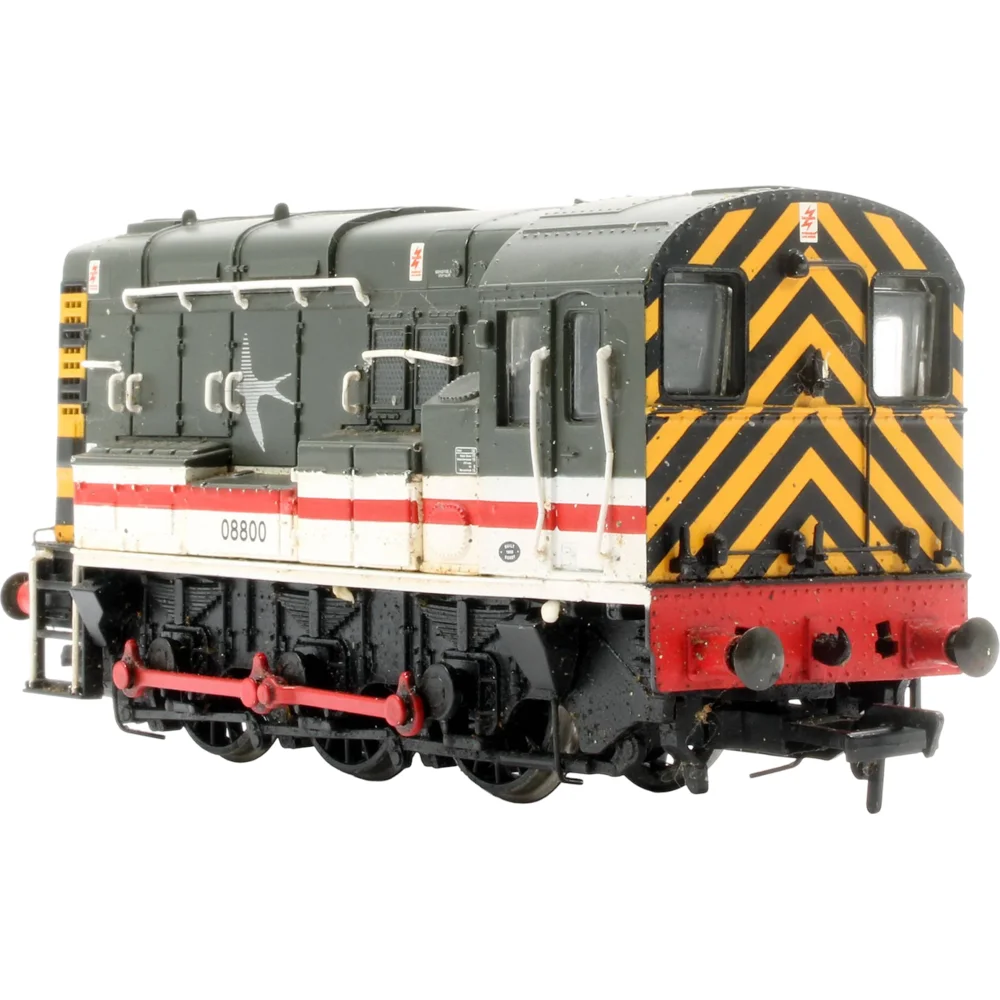

Bachmann 32-105

Tooling

In 2000, Bachmann introduced its first entirely new OO-scale tooling for the iconic British Rail Class 08 0-6-0 diesel-electric shunters. Released under the “Blue Riband” / Branchline range, the new tooling marked a significant improvement over earlier offerings in terms of accuracy, build quality, and performance standards for mainstream British-outline models.

Tooling Features

• Scale & Construction: Precision injection-moulded body shell, die-cast metal chassis and weight, metal grab handles, etched cab and body details.
• Detail Variants: Multiple configurable parts including lamp brackets, buffer types, radiator access ladders, cab door styles (steel/wood), compressor boxes, and varied roof vents to accurately represent individual prototype variations.
• Couplings: Standard NEM tension-lock couplings in early releases; some later variants (post-sound versions) introduced optional auto-release couplings, although not part of the original tooling.

Mechanical & Electrical Performance

• Drivetrain: Five-pole motor with substantial flywheel, driving the rear axle through precise gearing; achieves excellent slow-speed control and real-world haulage capability.
• Chassis: Sprung centre axle enhances tracking on uneven or flexible track; all-wheel power pickup, with metal bearings on every axle.
• Minimum Radius: Suitable for standard OO tight radii, replicating prototype shunting performance.
• Weights: Metal construction contributes to robust, well-balanced feel and dependable traction.
• Lighting (Early Versions): Twin head/tail lamps at each end (analogue lighting configuration); cab light featured in later iterations.

DCC Capability

• Original tooling included provision for DCC conversion: factory-fitted decoder socket (PluX22) accessible via removable roof.
• Subsequent sound-fitted variants offered features like onboard speakers and stay-alive circuitry (“Bach-Up”) for flicker-free DCC operation, though these were deployed after the initial release.

Liveries Produced (Circa 2000–2004)

Early tooling produced a variety of prototypical liveries reflective of the Class 08 lineup during that period, including:

• BR Blue with yellow ends
• BR Green (late crest version)
• Provincial and Railfreight sectors
• Preservation liveries featured on early preserved examples

Reception and Reviews

The tooling set a new benchmark for Bachmann’s British-outline releases. Model Rail’s August 2025 retrospective identified the tooling’s debut as an “epochal moment,” praising its superior running smoothness and detailing compared to both Bachmann’s own legacy offerings and its competitors. Key Model World’s 2024 preview highlighted the full-suite lighting potential, stay-alive readiness, and robust chassis construction. Overall, reviews confirmed that the tooling delivered both in aesthetic fidelity and reliable operation.

Media & Online Commentary

• Online forums (e.g., RMweb) regularly discuss the tooling’s configurability, ease of DCC conversion via the removable roof, and accessory parts interchangeability; user reviews note the high quality of mouldings and low noise performance.
• YouTube unboxings and comparative reviews highlight the jump in detail and mechanical performance relative to earlier Bachmann Class 08 models, with particular praise for the clean motion of coupling rods and gearbox resilience.

Interesting Insights

• The modular design enabled Bachmann to issue a wide variety of accurate prototype versions without needing separate body shells—only detail sprue variants.
• Decay-resistant plastic and die-cast parts have helped maintain valued collectibility and running longevity over time.
• The inclusion of DCC-friendly features in the original tooling—rare for early 2000s models—speaks to foresight in embracing digital control trends.

Conclusion

Bachmann’s 2000 tooling of the Class 08 firmly raised expectations for OO-scale diesel shunters. With verifiable mechanical excellence and thoughtful detail accuracy, it quickly became a favourite among collectors and operators. Its flexible tooling suite, DCC-ready features, and strong media reception validated its status as a pivotal release—providing a solid foundation for the later 2005 retooling.

Class & Prototype

The British Rail Class 08 diesel-electric shunter represents Britain's most numerous locomotive class with 996 built 1952-1962. Powered by the reliable English Electric 6KT diesel engine producing 350-400hp, these 0-6-0 yard locomotives continue working after seven decades, with 100-170 still in active service alongside 87 preserved examples. The Class 08's universal deployment across freight yards, passenger stations, and industrial sidings from 1953 to present makes it the most versatile British diesel for model railway layouts.

Operator & Livery

British Rail InterCity was the premium express passenger brand that operated from 1966 to 1997, transforming long-distance rail travel across Britain. Initially launched as a marketing brand for high-speed services, InterCity became an autonomous business sector in 1982 under the sectorisation programme, operating profitable express services from London to Scotland, Wales, the West Country, and extensive cross-country routes.

The brand pioneered revolutionary rolling stock including the iconic InterCity 125 HST (High Speed Train) from 1976, which achieved 125mph operations on existing infrastructure, and the electric InterCity 225 sets from 1989, capable of 140mph but limited to 125mph in service. InterCity also developed the ground-breaking Advanced Passenger Train (APT) with tilting technology that influenced modern high-speed trains worldwide.

Distinguished by its evolving livery schemes - from Rail Blue and Grey through the sophisticated Executive livery with dark grey upper bodies and red stripes - InterCity became synonymous with quality, speed, and reliability. All day services featured buffet cars and the majority operated at 100mph or above, making British Rail one of the world's most intensive high-speed operators.

The brand was divided among multiple operators during railway privatisation in the 1990s, but its technical innovations, operational excellence, and commercial principles continue influencing modern rail services. InterCity remains hugely popular with railway modellers, with extensive ranges of locomotives and coaching stock available in all major scales from manufacturers like Hornby, Bachmann, and Heljan.
