Bachmann 31-360K

Tooling

In 2010, Bachmann introduced an upgraded Branchline tooling for their OO gauge British Rail Class 03 shunter. This marked a significant evolution over the late 1990s ex-Mainline tooling, bringing coreless motors, enhanced detailing, and DCC-ready features to a model that had enjoyed great popularity. The upgrade bridged the gap between traditional analogue operation and modern digital flexibility, while maintaining scale fidelity and value.

Tooling Features

• Scale: OO gauge (1:76), first-radius curves (371 mm) capable.
• Construction: High-fidelity plastic bodyshell with separately-fitted items — handrails, chimney, roof-mounted horn, lamps, and windshield wipers. Chassis is die-cast with integrated split-frame design.
• Detailing: Engine cab interior complete with seated driver, glazing, underframe pipework, sandboxes, buffer beams, and accurate jackshaft mechanism visible from the chassis.
• Couplings: Fitted with NEM pockets. Standard tension-lock couplings removable in favour of deep buffer beam plates and scale couplings.

Mechanical & Electrical

• Motor & Drive: Installed with a coreless motor for more reliable low-speed performance; traditional jackshaft drive retained.
• Pickups & Wheels: Pickups on both wheels of each axle ensure good traction; all wheels driven and die-cast chassis provides essential weight.
• Minimum Radius: Handles first-radius curves (371 mm) with ease.
• Lighting: DCC operation supports cab lighting; analogue models remain without built-in lighting.
• Weighting: Heavier chassis delivers consistent traction and hauling capacity.

DCC Capability

• Comes factory-equipped with a 6-pin decoder socket, ready for DCC installation.
• Versions included "DCC Ready" format; a “sound-fitted” variant with factory-installed ZIMO decoder and speaker is available.
• Optional speaker space allows retrofitting of third-party sound and stay-alive decoders.

Liveries Produced

The 2010 tooling was offered across a range of authentic liveries, including:

• BR green with late crest (1957–1972)
• BR blue “wasp stripes” (1965–1990)
• Network Southeast (1986–1994)

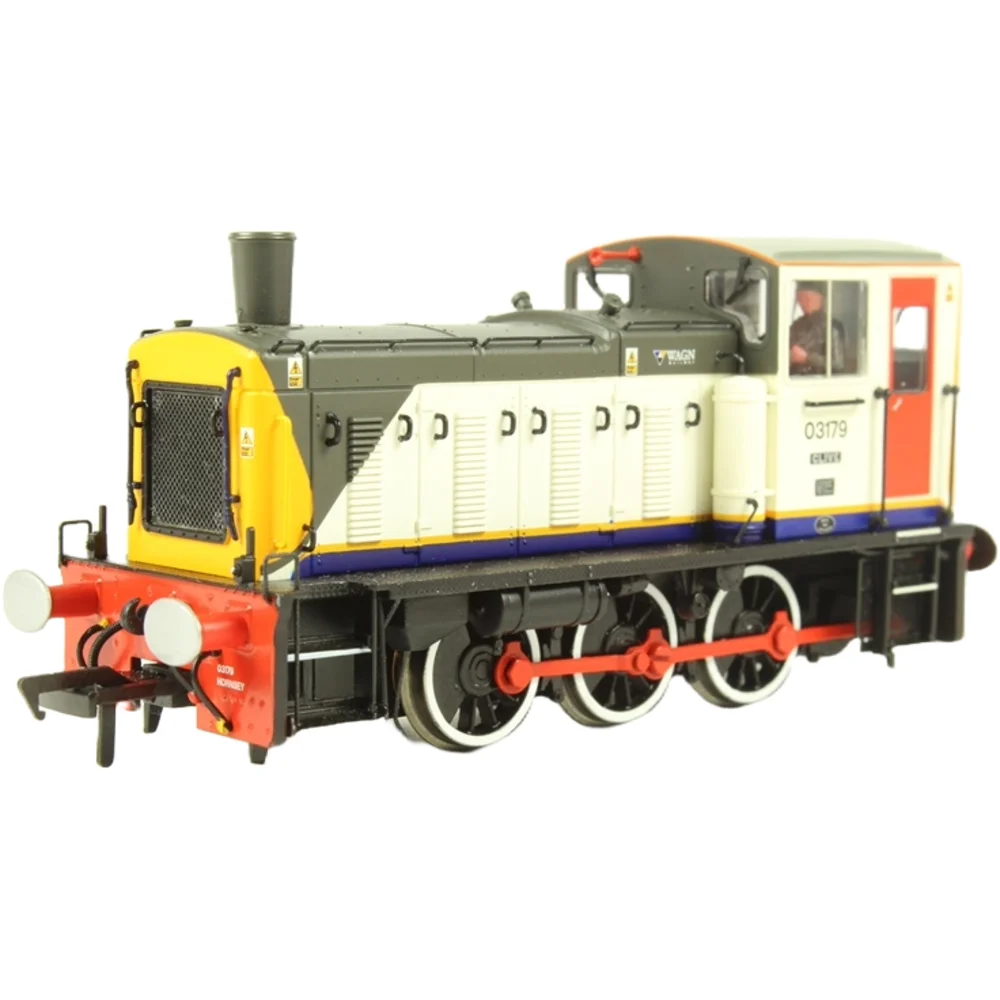

• WAGN (1997–2006)
• British Army/MoD variations

Reviews & Commentary

• Reviewers consistently praised the smooth, quiet operation courtesy of the coreless motor and enhanced gearbox tolerance.
• Detailing was applauded — notably flush glazing, separate handrails, and precise paint finishes.
• Some users flagged occasional mechanical noise in early batches, usually remedied via lubrication and running in.

Media & Social Media Insights

• YouTube “unboxing & review” videos highlight improved mechanical smoothness, DCC readiness, lighting, and overall visual fidelity.
• Forum discussions on RMweb and similar sites focus on the ease of fitting decoders and sound upgrades, and note strong performance on compact layouts thanks to first-radius capability.
• Owners often report that the factory-fitted sound variant delivers excellent audio realism combined with reliable mechanical performance.

Other Interesting Information

• Accessory packs include buffer beam plates and scale coupling kits to replace tension locks.
• A recommended 30–60 minute running-in on moderate speed helps smooth gearbox and drive components.
• Placing a stay-alive device (e.g., capacitor pack) inside the cab improves power pickup and stall resistance during shunting.
• The tooling remains a popular choice for small, realistic shunting layouts and has set a standard for later Bachmann diesel retooling.

Class & Prototype

The BR Class 03 was British Railways' standard light diesel-mechanical shunter, with 230 built at Doncaster and Swindon Works between 1957-1962. Powered by the legendary Gardner 8L3 engine and featuring distinctive jackshaft drive with coupling rods, these 30-ton locomotives excelled on weight-restricted lines, docks, and industrial sidings where heavier Class 08s couldn't operate. Notable variants included nine cut-down cab examples for the Burry Port & Gwendraeth Valley Railway and two for Isle of Wight tunnel clearance. With 56 preserved (24% survival rate) and the last example working until 2008, the Class 03 remains popular with heritage railways and modellers alike.

No prototype found.
