Heljan 2871

Tooling

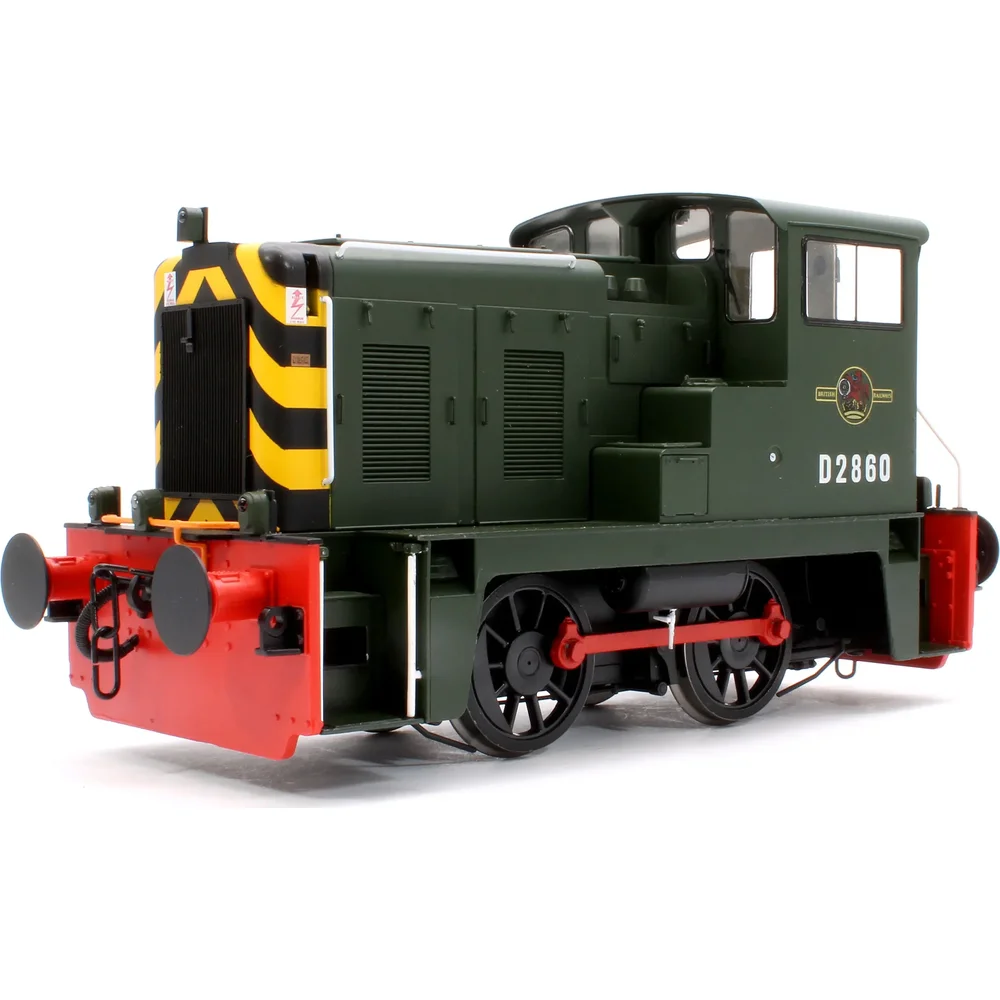

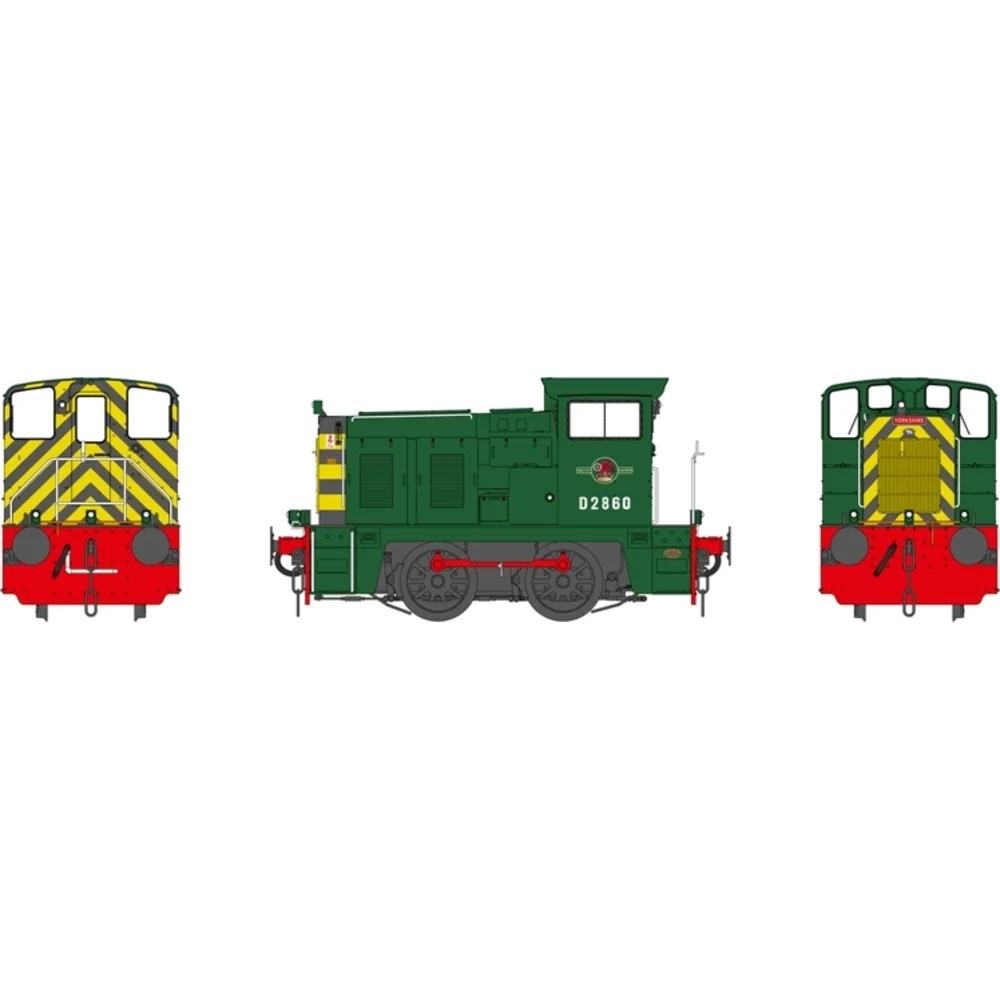

Heljan introduced its O gauge model of the British Rail Class 02 0-4-0 diesel-hydraulic shunter in 2024, with deliveries commencing in early 2025. The prototype locomotives were built by the Yorkshire Engine Company between 1960 and 1961 for dockside and yard duties where tight curves were common. With only 20 built, these compact shunters were primarily allocated to Liverpool and Manchester areas and later saw extended service in industry and preservation. Heljan’s tooling brings this distinctive locomotive to 7mm scale for the first time as a ready-to-run model, filling a long-standing gap in the O gauge market for small shunters.

Tooling Features

• Scale & Construction: O gauge (1:43.5), highly detailed injection-moulded body with a robust die-cast metal chassis for weight and stability.
• Detailing: Separately fitted wire handrails, lamp irons, wipers, pipework, door handles, etched Yorkshire Engine Co. worksplates, and a fully detailed cab interior with glazing and painted controls.
• Couplings: Screw-link couplings fitted to bufferbeams; three-link chains supplied for authentic appearance.
• Finish: Precision-applied liveries with authentic lining, printed data panels, and weathered options on selected models.

Mechanical & Electrical

• Drive System: Powerful motor with flywheel and all-wheel drive for smooth, quiet operation and excellent low-speed control.
• Weighting: Heavy die-cast chassis ensures strong traction for shunting duties.
• Minimum Radius: Designed for tight curves typical of O gauge layouts.
• Lighting: Separately switchable LED marker lights and cab interior lighting for added realism.

DCC Capability

• Interface: DCC-ready with 21-pin decoder socket.
• Sound: Factory-fitted speaker included; provision for full DCC sound installation.

Liveries Produced

Initial releases include a wide selection of BR and industrial schemes:

• BR Green (various bufferbeam colours, including weathered versions)
• BR Blue with wasp stripes
• Industrial Yellow (Arnott & Young)
• Industrial Green (‘SAM’, weathered)
• Redland Khaki (‘Diane’, Gaugemaster Collection)
• National Coal Board Pale Blue (Staffordshire Area)

Reviews & Commentary

Early reviews and social media feedback have praised the model’s exceptional detailing, robust mechanism, and smooth running qualities. The inclusion of separately switchable lighting and a factory-fitted speaker has been highlighted as a premium feature. Reviewers noted the model’s suitability for industrial and dockside layouts, with its compact size and authentic proportions making it a standout addition to Heljan’s O gauge range.

Interesting Notes

• The prototype Class 02 locomotives were fitted with Rolls-Royce C6NFL engines and hydraulic transmission, designed to replace the L&Y ‘Pug’ steam shunters.
• Seven examples of the class survive in preservation, including D2860 at the National Railway Museum.

Heljan’s O gauge Class 02 combines historical accuracy, fine detailing, and modern digital compatibility, making it an ideal choice for modellers seeking a highly detailed, compact shunter for industrial or heritage layouts.

Class & Prototype

Operator & Livery

British Railways transformed Britain's fragmented rail network into a unified national system following nationalisation on 1st January 1948. Created from the "Big Four" companies under the Transport Act 1947, BR operated most of Great Britain's railways until rebranding as British Rail in 1965, managing over 20,000 route miles and inheriting nearly 20,000 locomotives of diverse designs.

The organisation pioneered standardisation through its revolutionary BR Standard locomotive programme (1951-1960), producing 999 advanced steam engines under Robert Riddles' direction. These included the versatile Britannia Pacifics, mighty 9F freight engines, and mixed-traffic classes that incorporated the best features from all predecessor companies. The 1955 Modernisation Plan accelerated diesel and electric traction development, creating fascinating mixed-traction operations.

Notable achievements included establishing unified locomotive classification systems, introducing distinctive corporate liveries, and managing the complex transition from steam to modern traction. BR's six regional structure preserved operational diversity whilst enabling standardisation of practices, signalling, and rolling stock that had eluded private enterprise for over a century.

The BR era represents steam traction's final flowering alongside emerging diesel technology, creating unparalleled locomotive variety. Today, this heritage remains highly popular with railway enthusiasts through extensive preserved fleets, heritage railway operations, and comprehensive model ranges from manufacturers like Hornby, Bachmann, and Dapol, making BR subjects essential for authentic post-war British railway modelling across all scales.
