Robert John Billinton – The Practical Innovator Who Transformed LBSCR Motive Power

Robert John Billinton served as Locomotive, Carriage and Wagon Superintendent of the London, Brighton and South Coast Railway for nearly fifteen years, introducing the company's first bogie express locomotives and developing an influential family of radial tank engines. His practical approach to standardization—sharing components across multiple classes—established patterns that would serve the railway until grouping and beyond. Today, a single Billinton locomotive survives: E4 No. 473 "Birch Grove," preserved at the Bluebell Railway, representing the designer's most successful and numerous class.

Billinton inherited William Stroudley's celebrated legacy in January 1890 and faced the challenge of modernizing motive power for increasingly heavy trains while maintaining the high standards Brighton Works had become known for. His designs drew heavily from his fifteen years working under Samuel Waite Johnson at the Midland Railway, resulting in locomotives that prioritized reliability and maintainability over innovation—a philosophy that kept his engines working into the 1960s.

Quick Takeaways

• Birth and Death: Born 5 April 1844 in Westgate, Wakefield, Yorkshire; died 7 November 1904 at Brighton, aged 60, while still in office.
• Career Span: Served as LBSCR Locomotive, Carriage, Wagon and Marine Superintendent from January 1890 to November 1904, designing 263 locomotives across nine classes.
• Key Locomotive Classes: The E4 radial tanks (75 built, 1897-1903) became his most successful design, with all passing to British Railways and final withdrawal in 1963.
• Major Innovation: Developed a progressive family of 0-6-2T radial tank locomotives optimized for different duties through wheel diameter variations while sharing standardized components.
• Express Power: Introduced the LBSCR's first bogie express locomotives with the B2 class 4-4-0s (1895), followed by the successful B4 class (1899-1902).
• Preserved Example: Only one Billinton locomotive survives—E4 No. 473 "Birch Grove" at the Bluebell Railway, currently on static display requiring major overhaul.
• Modeling Availability: Bachmann produces ready-to-run OO gauge E4 models with multiple livery options (£140-£165); other classes available only as kits.

Early Life and Entry into Railway Engineering

Robert John Billinton was born on 5 April 1844 at Westgate, Wakefield, Yorkshire, the son of William Billinton, a civil engineer and railway contractor. His entry into engineering followed the established Victorian pattern of practical apprenticeship rather than academic study. From 1859 to 1863, young Robert served his apprenticeship at William Fairbairn & Sons in Manchester, the celebrated engineering firm that had trained many of Britain's leading mechanical engineers.

Fairbairn's works specialized in locomotive construction, structural ironwork, and mill machinery, providing comprehensive training in both design and manufacturing. This practical grounding would prove invaluable throughout Billinton's career, instilling an appreciation for buildability and maintenance that characterized his later locomotive designs. After completing his time at Fairbairn's, he continued his training at Simpson & Co. in Pimlico, London, followed by a period at S. Witham's Calderdale Iron Works back in Wakefield, gaining experience across different manufacturing environments.

Following his apprenticeship, Billinton worked briefly with Roland Child, a mining and civil engineer, before securing his first significant position in June 1866 as Assistant Works Manager at Munro, Walker & Easton in Sheffield. This firm designed and erected locomotives and general machinery, giving Billinton experience in project management and the commercial aspects of engineering manufacture. By age twenty-two, he had accumulated diverse experience across locomotive building, structural engineering, and industrial machinery—preparation that would serve him well when he entered railway service four years later.

The Sheffield years exposed Billinton to the realities of manufacturing economics: the importance of standardized components, the costs of bespoke solutions, and the value of designs that simplified production. These lessons would become hallmarks of his locomotive philosophy, distinguishing his approach from the more experimental tendencies of some contemporaries.

Career Progression and Railway Appointments

Billinton's railway career began in 1870 when he joined the London, Brighton and South Coast Railway as assistant to William Stroudley at Brighton Works. For four years, he took charge of the drawing office and oversaw the design and construction of locomotives and rolling stock—an intensive apprenticeship under one of Victorian Britain's most celebrated locomotive engineers. Stroudley's obsessive attention to detail, rigorous component standardization, and distinctive "Improved Engine Green" (actually yellow-ochre) livery profoundly influenced the young Billinton.

Under Stroudley's tutelage, Billinton learned the Brighton philosophy: locomotives should be reliable, economical to maintain, and built to exacting standards. Stroudley's 0-4-2 and 0-6-0 designs dominated LBSCR services during this period, establishing Brighton Works' reputation for quality. The experience of working in such a disciplined environment shaped Billinton's professional standards, though he would later demonstrate willingness to depart from some of Stroudley's design principles when circumstances demanded.

In November 1874, Billinton made a significant career move to the Midland Railway at Derby as assistant to Samuel Waite Johnson, starting at £225 annually. This appointment proved transformative. Johnson's elegant 4-4-0 express locomotives—with their leading bogies providing stability at speed—represented a different approach to express power than Stroudley's 0-4-2 "Gladstones." Johnson favored bogie designs for both tender and tank locomotives, recognizing their superior riding qualities and ability to negotiate curves at speed.

Billinton would remain at Derby for fifteen years, rising to chief draughtsman and gaining intimate knowledge of Johnson's design philosophy. The Midland Railway's emphasis on standardization, elegant proportions, and progressive development of locomotive classes mirrored Stroudley's approach while incorporating bogie technology. When Billinton eventually returned to Brighton, Johnson's influence would be immediately apparent in his first major designs.

Stroudley's sudden death from acute bronchitis in Paris on 20 December 1889—while exhibiting locomotive No. 214 Gladstone at the Universal Exhibition—left the LBSCR without a locomotive superintendent. The company's directors turned to Billinton, who had proven himself under both Stroudley and Johnson, combining Brighton's manufacturing standards with Derby's progressive design thinking. He was appointed in January 1890, taking the comprehensive title Locomotive, Carriage, Wagon and Marine Superintendent, reflecting the LBSCR's extensive cross-channel steamer operations.

At forty-five years old, Billinton faced the challenge of following a legendary figure while modernizing the railway's motive power for the increasingly heavy traffic of the 1890s. His dual experience at Brighton and Derby uniquely positioned him to bridge Stroudley's legacy with the demands of a new era.

Key Locomotive Designs and Classes

The Radial Tank Family: Progressive Development

Billinton's most successful and numerous designs were his radial tank locomotives—a family of 0-6-2T engines developed progressively for different traffic requirements. The "radial" designation referred to the trailing axle's mounting in curved hornguides, allowing it to move laterally on curves for improved tracking and distribution of weight over the trailing wheels. This arrangement, pioneered by William Adams on the London and South Western Railway, offered superior stability compared to rigid trailing axles.

E3 Class (0-6-2T): Completing Stroudley's Prototype

The E3 class bridged Stroudley and Billinton's tenures. Stroudley had designed prototype No. 158 "West Brighton" before his death, intending it for short-distance goods work. Billinton completed the prototype in 1891, then built sixteen production locomotives from Brighton Works between 1894 and 1895 with modified details reflecting his own preferences.

With 4ft 6in driving wheels, 18in × 26in cylinders, and 160 psi boiler pressure producing 21,216 lbf tractive effort, the E3s were powerful but limited by their small wheels. They weighed approximately 57 tons in working order and carried 1,200 gallons of water in side tanks. Their compact wheelbase made them suitable for sharply curved goods yards and sidings, though their small wheels restricted them to slower speeds, limiting passenger service applications.

The E3 class demonstrated Billinton's willingness to complete and refine Stroudley's concepts rather than immediately imposing his own designs. This diplomatic approach helped maintain continuity at Brighton Works while establishing his authority. The class served reliably until the 1920s, with Southern Railway withdrawals occurring between 1925 and 1933.

E4 Class (0-6-2T): The Workhorse That Outlasted All Others

The E4 class represented Billinton's most successful design and became one of the LBSCR's most numerous locomotive classes. Built between 1897 and 1903, seventy-five locomotives emerged from Brighton Works—an impressive production run demonstrating the design's utility and the company's satisfaction with performance.

With 5ft 0in driving wheels (larger than the E3's), 18in × 26in cylinders, and 160 psi boiler pressure (later raised to 170 psi in some rebuilds), they produced approximately 18,050-19,175 lbf tractive effort at 56-57.5 tons weight. The increased wheel diameter compared to the E3 made them suitable for suburban passenger services while retaining sufficient tractive effort for stopping trains on gradients.

The E4s handled suburban passenger services across LBSCR territory, proving versatile enough to work everything from branch line trains to station pilot duties at major terminals. Named after towns and villages in Sussex and Surrey—including Worthing, Littlehampton, Seaford, and Birch Grove—they became familiar sights across Southern England. Their water capacity of 1,350 gallons and coal capacity of 2.5 tons suited intensive suburban work with frequent servicing opportunities.

Their longevity was remarkable: all seventy-five passed to the Southern Railway at grouping in 1923, and all but one survived to British Railways ownership in 1948. The final withdrawal—No. 32479—came in June 1963, outlasting their designer by nearly sixty years. This extraordinary service life testified to sound basic design, robust construction, and suitability for the intensive suburban and branch line work that remained steam-hauled long after main line electrification.

E5 and E6 Classes: Optimizing for Specific Duties

The E5 class (thirty locomotives, 1902-1904) featured 5ft 6in driving wheels—the largest of the radial tanks—optimized for heavier passenger work as train weights increased in the new century. With otherwise similar dimensions to the E4, the larger wheels reduced tractive effort slightly (approximately 17,000 lbf) but allowed higher speeds and smoother running with longer-distance suburban trains. The E5s typically worked longer-distance commuter services where sustained speed mattered more than rapid acceleration.

The E6 class (twelve locomotives, 1904-1905) went the opposite direction: 4ft 6in driving wheels—matching the E3—provided maximum tractive effort for heavy freight acceleration in the congested London suburban area, where rapid starts from signals were essential. These locomotives represented freight-optimized versions of the successful radial tank concept, demonstrating Billinton's systematic approach to developing a family of related designs for specific duties.

The E6 class holds particular significance as Billinton's final design. He died in November 1904 before the last two locomotives—originally ordered as experimental 0-8-0 heavy shunters—were built. His successor Douglas Earle Marsh changed the order to standard E6 specification, completing Billinton's radial tank development program.

Express Locomotives: Midland Influence and Mixed Results

B2 Class (4-4-0): The Problematic "Grasshoppers"

The B2 class represented Billinton's first attempt at bogie express power—the LBSCR's first 4-4-0 tender locomotives, breaking decisively with Stroudley's preference for 0-4-2 wheel arrangement. Built between 1895 and 1897, twenty-five locomotives featured 18in × 26in cylinders, 6ft 9in driving wheels, and 170 psi boiler pressure for 15,028 lbf tractive effort. The Johnson influence from Billinton's Midland years was unmistakable in the bogie design, cylinder arrangement, and general proportions.

Unfortunately, the B2s gained the uncomplimentary nickname "Grasshoppers" due to unsteady riding and perceived weakness for the demanding Brighton main line expresses. While adequate for secondary services and lighter trains, they struggled with the increasingly heavy Brighton-London expresses that were growing heavier as Victorian comfort expectations increased. The riding quality issues stemmed from the relatively short wheelbase and weight distribution—problems Billinton would address in his subsequent express design.

All B2s were later rebuilt to B2X specification between 1907 and 1916 with larger C3-type boilers, significantly improving performance and transforming them into respectable express locomotives. In this rebuilt form, they served until Portsmouth line electrification, with withdrawals between 1929 and 1933. The rebuilding program testified to sound mechanical design despite the original boiler's inadequacy.

B4 Class (4-4-0): The Successful Response

The B4 class answered the B2's shortcomings comprehensively. Built between 1899 and 1902, thirty-three locomotives (eight from Brighton Works, twenty-five from Sharp, Stewart & Co. of Glasgow) featured larger 19in × 26in cylinders and increased 180 psi boiler pressure, producing 17,729 lbf tractive effort—substantially more powerful than the B2s.

Named after Boer War campaigns (Natal, Kimberley, Ladysmith) and British royalty, they carried distinctive brass safety valve covers nicknamed "Bathing Drawers" due to their shape. The enlarged boiler and improved weight distribution eliminated the riding problems that had plagued the B2s, and the B4s proved capable of handling the heaviest LBSCR express trains with confidence.

Railway historian O.S. Nock described the B4s as among the finest passenger locomotives of their day, praising their elegant proportions and reliable performance. Twelve were rebuilt to B4X specification between 1922 and 1924 by Robert's son Lawson Billinton, receiving K-class superheated boilers that transformed them into virtually new engines with significantly improved thermal efficiency. The B4/B4X class served until December 1951, with the superheated variants particularly valued for secondary passenger work in Southern Railway and early British Railways years.

Freight and Suburban Power

C2 Class (0-6-0): The Contract-Built "Vulcans"

With Brighton Works fully committed to radial tank construction during the 1890s, Billinton contracted his main-line freight locomotive design externally. The C2 class comprised fifty-five 0-6-0 goods engines built entirely by Vulcan Foundry, Newton-le-Willows, between 1893 and 1902—earning the nickname "Vulcans" among railway staff.

With 5ft 0in driving wheels, 17.5in × 26in inside cylinders, and 170 psi boiler pressure, they produced 19,175 lbf tractive effort—powerful machines for their era. The inside cylinder arrangement and 0-6-0 wheel configuration followed established British freight locomotive practice, prioritizing tractive effort and fuel economy over speed. At approximately 43 tons weight, they were substantial machines capable of moving heavy coal and goods trains across the LBSCR's system.

The C2s proved so successful that forty-five were rebuilt to C2X specification between 1908 and 1940 with larger boilers, becoming known as "Large Vulcans." Some C2X locomotives achieved over 1.3 million miles in service—extraordinary mileage demonstrating robust mechanical design and the benefits of progressive improvement through rebuilding. The class survived until February 1962, outlasting many more modern freight types.

D3 Class (0-4-4T): Pioneering Bogie Tank Design

The D3 class (thirty-six locomotives, 1892-1896) were the LBSCR's first production bogie-equipped tank locomotives, directly applying lessons Billinton had learned at Derby. The 0-4-4T wheel arrangement—with 5ft 6in driving wheels, 17in × 24in outside cylinders, and 160 psi boiler pressure—borrowed directly from Midland Railway practice.

Named after stations and locations across the LBSCR system, they served suburban and branch line passengers with superior riding qualities compared to Stroudley's rigid-wheelbase tank engines. The leading bogie provided excellent curve negotiation and smooth running, while the trailing bogie distributed weight over the coal bunker. Water capacity of 1,000 gallons and coal capacity of 1.75 tons suited intensive suburban services with frequent stops.

The D3s established bogie tank locomotives as standard LBSCR practice for passenger work, influencing subsequent designs by both Billinton and his successors. They served until 1955, with some achieving over sixty years of service—testament to sound design and the continuing suitability of the 0-4-4T arrangement for branch line and stopping passenger work well into the diesel era.

Summary Table: Billinton's Principal Locomotive Classes

Technical Innovations and Patents

Engineering Philosophy: Billinton prioritized evolutionary refinement over revolutionary innovation. His radial tank family demonstrated systematic development: the same basic 0-6-2T concept optimized for different traffic requirements through wheel diameter variations while sharing standardized components across classes.

Billinton's technical contributions were characterized more by intelligent standardization than groundbreaking invention. Unlike some contemporaries who pursued novel valve gears, compounding systems, or experimental boiler designs, Billinton focused on refining established technology and developing families of related designs that shared components for maintenance efficiency.

Component Standardization Across Classes

One of Billinton's most significant contributions was systematic component sharing across different locomotive classes. The C2 0-6-0 goods engines and D3 0-4-4T passenger tanks, though serving entirely different roles, shared the same cylinder castings (17.5in × 26in for the C2, 17in × 24in for the D3—close enough to use common patterns with minor modifications). This approach reduced pattern-making costs and simplified stores inventory at Brighton Works.

Similarly, the radial tank family shared boiler designs with minor dimensional variations. The E4 and D3 classes used interchangeable boiler tubes and fittings, while the larger E5 boiler was essentially an enlarged version of the same basic design. This standardization extended to motion work, valve gear components, and cab fittings, significantly reducing the variety of spare parts Brighton Works needed to stock.

The philosophy contrasted with the bespoke approach of some Victorian engineers who designed unique components for each class. Billinton recognized that in an era before precision mass production, reducing component variety meant better interchangeability, faster repairs, and lower inventory costs—practical advantages that outweighed marginal performance gains from class-specific optimization.

Radial Axle Application

While Billinton did not invent the radial trailing axle—that credit belongs to William Adams of the London and South Western Railway—he applied the principle more systematically than most contemporaries, developing four distinct classes around the 0-6-2T arrangement. The radial axle mounting in curved hornguides allowed lateral movement to accommodate curves while maintaining proper weight distribution over the trailing wheels.

This arrangement offered specific advantages for the intensive suburban and branch line work that dominated LBSCR traffic. The trailing radial axle supported the weight of large water tanks without adding a rigid wheelbase that would increase curve resistance. The 0-6-2T arrangement provided more adhesive weight than 0-4-4T designs while maintaining better riding qualities than 0-6-0T rigid-wheelbase tanks.

Billinton's systematic development of radial tanks with 4ft 6in (E3, E6), 5ft 0in (E4), and 5ft 6in (E5) driving wheels demonstrated engineering thinking: start with a proven basic design, then optimize it for specific duties through targeted modifications rather than creating entirely new designs for each requirement.

Boiler Development

Billinton's boiler designs reflected conservative but sound principles. He favored saturated steam at moderate pressures (160-180 psi) rather than experimenting with high-pressure or superheating—technologies that would only become reliable in the Edwardian era. His boilers featured generous heating surface areas and well-proportioned fireboxes that facilitated good steaming with the coal available to the LBSCR.

The progressive increase in boiler pressure across his designs—160 psi for early classes, 170 psi for the B2 and C2, 180 psi for the B4—tracked industry-wide improvements in boiler manufacturing standards rather than pushing boundaries. This conservative approach prioritized reliability and ease of maintenance over marginal efficiency gains, recognizing that a locomotive in the shops for boiler repairs earned no revenue.

Manufacturing Efficiency

Billinton's designs reflected his early experience in locomotive manufacturing at Munro, Walker & Easton. His locomotives featured straightforward construction with accessible components for maintenance. Cylinder blocks were designed for ease of casting and machining; motion work used robust, proven designs rather than complex mechanisms; and boiler mountings followed standard LBSCR practice to facilitate repairs.

The decision to contract C2 class construction to Vulcan Foundry demonstrated strategic thinking about capacity utilization. Rather than expanding Brighton Works or delaying radial tank production, Billinton specified a design suitable for external manufacture, freeing Brighton's capacity for the complex radial tanks while ensuring freight locomotive supply. This practical approach to resource management characterized his superintendency.

Engineering Philosophy and Approach

Billinton's engineering philosophy can be summarized as "evolutionary refinement through standardization"—a marked contrast to the experimental approaches pursued by some contemporaries. His fifteen years working under Samuel Waite Johnson at Derby had shown him the benefits of developing families of related designs, while his earlier time under Stroudley at Brighton had instilled appreciation for component standardization and manufacturing quality.

Stroudley's Legacy and Billinton's Departures

Billinton inherited a works culture that valued precision manufacturing, component interchangeability, and rigorous quality control. He maintained these standards while departing from some of Stroudley's design preferences. Most significantly, he embraced bogie locomotives—both 4-4-0 tender engines and 0-4-4T tanks—recognizing their superior riding qualities for passenger work, whereas Stroudley had favored rigid-wheelbase designs.

However, Billinton retained Stroudley's distinctive yellow-ochre "Improved Engine Green" livery and continued the practice of naming locomotives after Sussex and Surrey locations. He maintained Brighton Works' reputation for quality while modernizing the locomotive fleet for heavier traffic demands. This diplomatic balance between continuity and innovation helped him establish authority while respecting his predecessor's achievements.

Practical Reliability Over Experimental Innovation

Billinton consistently chose proven technology over experimental systems. While some contemporaries experimented with compounding, novel valve gears, or exotic boiler designs, Billinton refined established principles. His locomotives used straightforward two-cylinder simple expansion, Stephenson link motion valve gear, and saturated steam boilers—all proven, reliable technologies that Brighton Works staff understood thoroughly.

This conservative approach was not timidity but practical recognition of the LBSCR's operating environment. The railway ran intensive suburban services where reliability and rapid turnaround mattered more than marginal efficiency gains. A locomotive with 98% availability using proven technology served the railway better than one achieving 2% higher thermal efficiency but spending extra time under repair due to experimental systems.

The Influence of Contemporary Practice

Billinton maintained awareness of developments at other railways without slavishly copying them. His B4 class incorporated features from successful Great Western Railway and Midland Railway 4-4-0s—larger cylinders, higher boiler pressure, improved weight distribution—while adapting them to LBSCR requirements. He recognized good ideas when other engineers developed them and intelligently applied them to Brighton's circumstances.

His willingness to contract locomotive construction externally (the Vulcan-built C2 class, Sharp Stewart-built B4s) showed pragmatic resource management unusual for the era. Many Victorian locomotive superintendents insisted on building everything in-house; Billinton recognized that external contractors could deliver standard designs efficiently, freeing Brighton Works capacity for more complex projects.

Component Sharing and Maintenance Economics

Perhaps Billinton's most important contribution was systematic attention to maintenance economics through component standardization. By ensuring that multiple classes shared cylinder castings, boiler tubes, valve gear components, and fittings, he dramatically reduced the variety of spare parts Brighton Works needed to stock. This reduced inventory costs and improved parts availability—a broken component could be replaced immediately from stock rather than waiting for a custom part to be manufactured.

This philosophy extended beyond mechanical components to operating practices. The radial tank family's shared firing and handling characteristics meant footplate crews transferring between E3, E4, E5, and E6 classes faced familiar controls and responses. This standardization of experience reduced training requirements and improved operational flexibility.

Preserved Locomotives and Heritage

Of the 263 locomotives Robert John Billinton designed for the LBSCR, exactly one survives: E4 No. 473 "Birch Grove," preserved at the Bluebell Railway in East Sussex. This sole survivor represents not just Billinton's work but the entire LBSCR locomotive tradition, making it one of Southern England's most historically significant preserved locomotives.

E4 No. 473 "Birch Grove": The Last Billinton Survivor

Built in June 1898 at Brighton Works for £2,000, "Birch Grove" was the twenty-fifth member of the E4 class. Named after a hamlet near Horsted Keynes in East Sussex (whose residents would later include Prime Minister Harold Macmillan), the locomotive began life in LBSCR umber livery, working intensive suburban passenger services across the company's network.

The locomotive remarkably retains its original boiler No. 891 from 1898—one of the oldest working locomotive boilers in Britain when operational. This extraordinary survival testifies to the quality of Victorian boilermaking and the care taken during subsequent overhauls. The boiler has been re-tubed and patched over the decades, but its main structure dates from Billinton's superintendency.

"Birch Grove" passed to the Southern Railway at grouping in 1923, receiving SR olive green livery and the number 2473. Under British Railways from 1948, it became No. 32473 in BR lined black livery, continuing to work suburban and branch line services into the early 1960s. Unlike many LBSCR locomotives that received significant modifications under Southern Railway or BR ownership, "Birch Grove" remained largely as Billinton designed it, retaining original features that make it particularly valuable historically.

Preservation History and Current Status

The Bluebell Railway Preservation Society purchased "Birch Grove" directly from British Railways service in 1962 for £750, recognizing its significance as a representative LBSCR locomotive and its suitability for the railway's passenger services. The locomotive operated during three distinct periods:

• 1962-1971: Initial preservation period in SR olive green livery
• June 1998-May 2008: Following major overhaul, carrying LBSCR umber livery
• January 2010-May 2016: After lighter repairs, in BR black livery

During these operational periods, "Birch Grove" worked hundreds of passenger trains on the Bluebell Railway's eleven-mile line between Sheffield Park and East Grinstead, demonstrating the capabilities of Billinton's suburban tank design to thousands of visitors. The locomotive proved particularly suited to the railway's intensive summer timetable, with the radial axle arrangement handling the curves of this former LBSCR branch line with ease.

Current Status: "Birch Grove" has been a static display in the SteamWorks! exhibition at Sheffield Park since May/June 2016, withdrawn due to inner firebox cracks requiring major boiler and mechanical overhaul. The repairs require significant funding and skilled boilermaking work, with no completion date announced. The locomotive remains on display, allowing visitors to appreciate its construction details and historical significance even though it cannot currently steam.

Visiting Birch Grove at the Bluebell Railway

The Bluebell Railway operates Britain's first preserved standard-gauge passenger railway (founded 1960) and has become a major repository of LBSCR locomotives and rolling stock. Beyond "Birch Grove," the railway operates several Stroudley "Terrier" 0-6-0T locomotives and recently completed the 24-year new-build reconstruction of LBSCR H2 Atlantic No. 32424 "Beachy Head," which entered service in August 2024. The railway's carriage collection includes several Billinton-designed vehicles, providing a complete LBSCR operating experience.

Sheffield Park station itself is a restored LBSCR branch line terminus, featuring period architecture, gas lighting, and signal boxes, creating an authentic late Victorian/Edwardian railway atmosphere. The SteamWorks! museum provides detailed interpretation of locomotive construction and railway engineering, with "Birch Grove" forming a centerpiece of the LBSCR story.

Other Heritage Railway LBSCR Operations

While the Bluebell Railway holds the only Billinton locomotive, several Stroudley designs survive at other locations, providing context for understanding Billinton's inheritance and the LBSCR tradition:

• National Railway Museum, York: LBSCR B1 class 0-4-2 No. 214 Gladstone (Stroudley, 1882)—the locomotive Stroudley was exhibiting when he died
• Stephenson Railway Museum, North Shields: LBSCR A1X "Terrier" 0-6-0T No. 82 Boxhill (Stroudley, 1880)
• Kent & East Sussex Railway: LBSCR A1X "Terrier" 0-6-0T No. 3 Bodiam (Stroudley, 1872)
• Isle of Wight Steam Railway: Two LBSCR A1X "Terriers"—Nos. 11 Newport and 8 Freshwater (Stroudley, 1878/1876)

These surviving Stroudley locomotives allow comparison between the predecessor's compact, rigid-wheelbase designs and Billinton's larger, bogie-equipped machines, illustrating the evolution of LBSCR motive power across the late Victorian period.

Scale Models and Modeling Significance

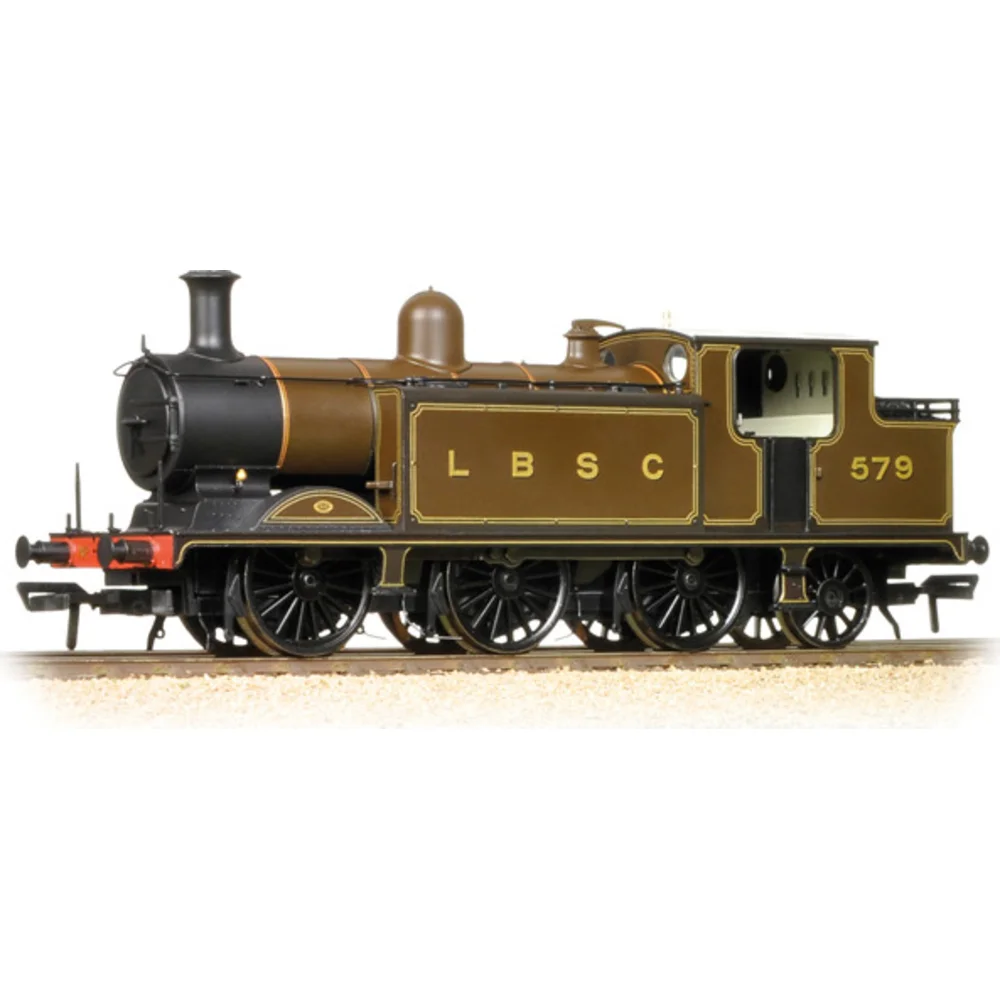

The Bachmann E4 class in OO gauge (4mm:1ft scale) represents the only ready-to-run model of any Robert John Billinton design currently in production. This situation reflects both the LBSCR's relatively small fleet compared to "Big Four" railways and the modeling market's traditional focus on main-line express power rather than suburban and branch line locomotives.

Ready-to-Run Options: Bachmann E4 Class

Bachmann introduced the E4 class to its OO gauge range in 2015, with upgrades announced for 2025 production featuring Next18 DCC socket and speaker provision for sound decoders. The model has proven popular with both LBSCR enthusiasts and modelers seeking Southern Railway/BR Southern Region suburban motive power.

Current 2025 Production Range:

Street prices typically run around £140 for DCC-ready versions through specialist retailers. The sound-fitted version includes factory-installed decoder and speaker with authentic LBSCR/Southern sounds recorded from preserved locomotives.

Model Features:

• Diecast metal chassis and body construction providing excellent weight and stability
• Detailed cab interior with separately applied backhead fittings and crew figures
• Separately applied Westinghouse air pump, sand boxes, and brake rigging
• Working front and rear lamps (directional lighting on DCC)
• Fine-scale wheels to NEM standards
• Compatible with OO/HO radius curves (second radius/18-inch minimum recommended)
• DCC socket allows easy decoder installation for analogue purchasers
• Speaker housing incorporated for sound installation

Discontinued Variants (Secondary Market):

The 2015-2016 initial production included versions now commanding premium prices:

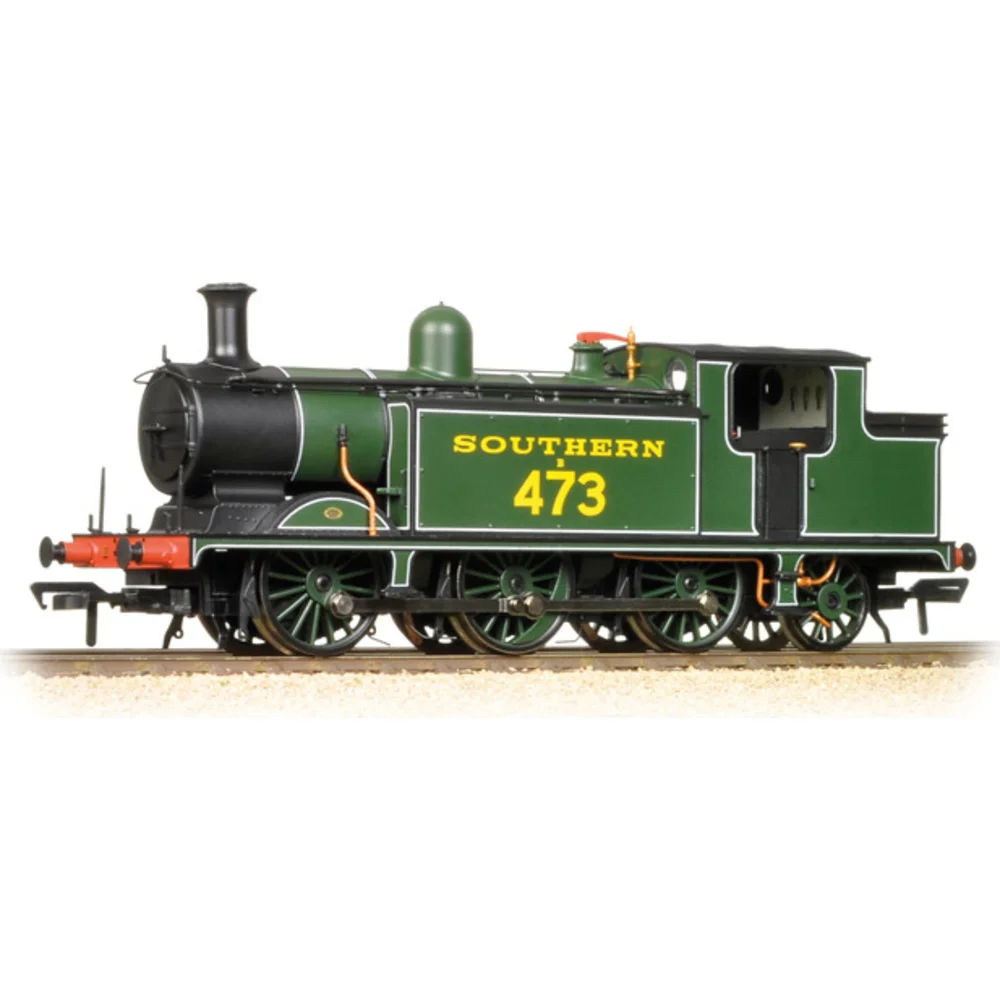

• No. 473 "Birch Grove" in SR Olive Green (35-077): £130-£200
• No. 473 "Birch Grove" in LBSCR Umber (2015 Bachmann Collectors Club Exclusive): £300+

These discontinued variants are sought by Bluebell Railway supporters and LBSCR modelers, with the Collectors Club exclusive particularly rare.

Performance and Accuracy:

The Bachmann E4 is generally regarded as an accurate model with good proportions and fine detail. The diecast construction provides reliable performance and smooth running. Minor criticisms from LBSCR purists include slight simplification of pipework and valve gear detail compared to the prototype, but the overall impression is convincing.

The model handles curves well, reflecting the prototype's radial axle arrangement. The 0-6-2T wheel arrangement and moderate wheelbase suit most OO gauge layouts, making it practical for suburban branch line modeling. The relatively compact size compared to tender locomotives allows operation on tighter-radius layouts than many steam models.

Kit-Built Alternatives for Other Billinton Classes

No ready-to-run models exist for other Robert John Billinton locomotive classes, creating significant gaps in LBSCR modeling availability. However, specialist kit manufacturers have produced etched brass and white metal kits for some classes:

B4 Class 4-4-0:

• London Road Models LOCO140 (etched brass kit, NEW tool)—most recent release
• Requires advanced modeling skills: etching, soldering, painting

C2/C2X Class 0-6-0:

• NuCast 154 (white metal kit)
• DJH K43 (white metal kit)
• Both require intermediate-to-advanced skills: assembly, painting, chassis construction

E3 Class 0-6-2T:

• E.B. Models (etched brass kit)
• Advanced skills required, limited availability

E5/E6 Classes 0-6-2T:

• Roxey Mouldings (etched brass kits for both classes)
• South Eastern Finecast F175 (E5) and F176 (E6) (white metal kits)
• All require advanced modeling skills

D3 Class 0-4-4T:

• No known current production kits
• Occasionally appears as secondhand vintage brass model

These kits typically cost £150-£300 depending on complexity and manufacturer, requiring significant additional expenditure for motor, gearbox, wheels, and detailing parts. Building time ranges from 50-200 hours depending on modeler experience and desired detail level.

N Gauge (2mm:1ft Scale) Modeling

No Billinton locomotives are available in N gauge either as ready-to-run models or kits, representing a significant gap for modelers of this scale who wish to model LBSCR subjects. The only LBSCR N gauge model currently available is the Dapol Stroudley A1X "Terrier" 0-6-0T, leaving Billinton's era entirely unrepresented.

Coaching Stock and Operational Context

For modelers seeking to create authentic LBSCR trains, Billinton-era coaching stock is available from specialist manufacturers:

• Caledonia Works: LBSCR Carriage Packs in OO gauge (etched brass kits)
• Roxey Mouldings: Various LBSCR coach types (etched brass kits)
• South Eastern Finecast: LBSCR coaches (white metal/resin kits)

These coaches feature the distinctive umber livery with white upper panels characteristic of LBSCR passenger stock, allowing modelers to assemble period-accurate trains. Billinton introduced steel-framed coach construction and the company's first bogie passenger carriages during his tenure, though detailed coach designs are typically attributed to the carriage department rather than the Locomotive Superintendent.

Gaps in the Modeling Market

Significant opportunities exist for manufacturers to expand LBSCR/Billinton representation:

1. Ready-to-run B4 class 4-4-0: The most successful Billinton express design with distinctive appearance
2. Ready-to-run C2X class 0-6-0: "Large Vulcans" served until 1962 and represent typical British freight power
3. Ready-to-run D3 class 0-4-4T: Pioneering LBSCR bogie tank, elegant design suitable for branch line modeling
4. N gauge E4 class: Would provide LBSCR representation in this popular scale
5. E5 and E6 ready-to-run variants: Complete the radial tank family

The success of Bachmann's E4 demonstrates market demand for quality LBSCR models beyond the well-known Stroudley "Terriers." The LBSCR's distinctive umber livery and Southern Railway's olive green and Maunsell green schemes provide attractive modeling subjects that stand out from the more common LMS and LNER prototypes that dominate the ready-to-run market.

Modeling Lawson Billinton's Designs

Robert Billinton's son Lawson became LBSCR Locomotive Engineer (1912-1922) and designed several significant classes. Sonic Models has announced a ready-to-run OO gauge K class 2-6-0 range exclusive to Rails of Sheffield, expected September 2025, with ten variants covering LBSCR, SR, and BR liveries at £179.95-£189.95. This will be the first ready-to-run model of any L.B. Billinton design, potentially indicating renewed manufacturer interest in LBSCR subjects.

Legacy and Influence on Railway Engineering

Robert John Billinton's legacy rests not on revolutionary innovation but on practical standardization and evolutionary refinement—qualities less celebrated than dramatic technical breakthroughs but arguably more valuable to railway operation. His systematic development of locomotive families optimized for specific duties while sharing standardized components established patterns that served the LBSCR and its successor, the Southern Railway, for decades.

The Longevity Record

The extraordinary service lives of Billinton's designs testify to sound engineering fundamentals. The final E4 withdrawal in 1963—59 years after his death—demonstrated that well-proportioned, robustly built locomotives designed for specific duties could outlast more sophisticated but specialized types. The C2X "Large Vulcans" serving until 1962 and achieving over 1.3 million miles individually showed similar longevity.

This durability reflected Billinton's emphasis on accessibility for maintenance, use of proven components, and design for the actual coal and water conditions the LBSCR faced rather than theoretical maximum efficiency. His locomotives could be maintained by ordinary workshop staff using standard tools and techniques—a crucial advantage for a medium-sized railway without the specialized facilities available to larger companies.

Influence on Subsequent LBSCR/Southern Railway Practice

Billinton's successors built on his foundations. Douglas Earle Marsh (1905-1911) continued the radial tank tradition with the E4X superheated rebuilds and developed larger 4-4-2T locomotives for increasingly heavy suburban work. Lawson Billinton (1912-1922) expanded his father's component standardization philosophy with the K class 2-6-0 mixed-traffic design that shared parts across multiple related classes.

The Southern Railway after grouping in 1923 perpetuated the Billinton approach through Richard Maunsell's standardization program. Maunsell had worked under Billinton at Brighton as Chief Draughtsman (1896-1897) before moving to the Great Southern and Western Railway in Ireland. His Southern Railway designs reflected Brighton Works' emphasis on component sharing, practical reliability, and evolutionary development—the philosophy Billinton had championed.

Comparison with Contemporary Engineers

Billinton's contemporaries pursued varied philosophies. John Aspinall at the Lancashire and Yorkshire Railway favored inside-cylinder 4-4-0s with advanced superheating. S.W. Johnson at the Midland Railway developed elegant 4-4-0s and pioneered compound locomotives in Britain. William Dean at the Great Western Railway experimented with double-framing and convertible broad/standard gauge designs.

Compared to these engineers, Billinton appears conservative—yet his locomotives typically outlasted theirs in service. The E4 radial tanks worked beyond Dean's broad gauge convertibles, Aspinall's early inside-cylinder 4-4-0s, and many Johnson compounds. Billinton's practical approach prioritized longevity and reliability over technical sophistication, recognizing that the LBSCR's intensive suburban operations demanded dependable locomotives available for service, not experimental types frequently requiring repair.

His relationship with predecessor William Stroudley was complex. While retaining Brighton's manufacturing standards and component standardization, Billinton decisively broke with Stroudley's preference for rigid-wheelbase locomotives, recognizing that bogie designs offered superior riding for passenger comfort and higher speeds. This willingness to evolve while preserving valuable traditions demonstrated mature engineering judgment.

The Component Standardization Legacy

Perhaps Billinton's most enduring contribution was demonstrating how systematic component sharing could reduce costs and improve maintenance efficiency without compromising performance. The radial tank family—four classes with different wheel diameters but shared cylinders, boilers (with variations), valve gear, and fittings—showed that standardization need not mean monotonous uniformity but could enable targeted optimization for specific duties.

This philosophy influenced British locomotive practice well beyond the LBSCR. The "family of standard designs" concept that characterized many successful British locomotive fleets—Gresley's LNER Pacifics and their derivatives, Stanier's LMS "Black Fives" and related types, the BR Standard classes—all reflected principles Billinton had applied at Brighton: start with sound basic designs, optimize through targeted modifications, and share components wherever practical.

The Forgotten Victorian

Robert Billinton remains less celebrated than contemporaries like Aspinall, Churchward, or even his predecessor Stroudley, partly because his achievements were practical rather than dramatic. He introduced no revolutionary valve gear, pioneered no compound system, and designed no record-breaking express locomotives. Yet his E4 class served until 1963, outlasting many more celebrated designs, and his component standardization principles anticipated modern manufacturing efficiency concepts.

His legacy survives in railway preservation: every time "Birch Grove" steams at the Bluebell Railway (when operational), visitors experience Billinton's engineering philosophy—a locomotive designed not for maximum performance or technical innovation but for reliable, economical service in intensive suburban operations. That this 1898-built locomotive remained capable of daily service work into the 1960s and preservation service until 2016 speaks more eloquently than any technical specification about the value of Billinton's practical approach to locomotive engineering.

Finally

Robert John Billinton served the London, Brighton and South Coast Railway for nearly fifteen years as Locomotive, Carriage, Wagon and Marine Superintendent, inheriting William Stroudley's legendary reputation and modernizing the railway's motive power for the demands of Edwardian traffic growth. His 263 locomotives—spanning nine principal classes from powerful E4 suburban radial tanks to elegant B4 express 4-4-0s—reflected a consistent philosophy: evolutionary refinement through practical standardization.

Billinton's engineering approach prioritized reliability and maintenance economy over experimental innovation, recognizing that the LBSCR's intensive suburban operations demanded locomotives consistently available for service. His systematic development of radial tank families optimized for different duties through wheel diameter variations while sharing standardized components established maintenance efficiency principles that influenced British railway practice for decades. The extraordinary service lives of his designs—E4s until 1963, C2X "Vulcans" until 1962—testified to sound engineering fundamentals and robust construction.

The sole surviving Billinton locomotive, E4 No. 473 "Birch Grove" at the Bluebell Railway, represents both the designer's most successful class and the entire LBSCR locomotive tradition. Currently on static display requiring major overhaul, the locomotive retains its original 1898 boiler—one of Britain's oldest locomotive boilers—demonstrating Victorian engineering quality. When restored to service, "Birch Grove" will once again show visitors Billinton's practical philosophy embodied in working metal: a locomotive designed not for maximum performance but for reliable, economical suburban service.

Billinton died on 7 November 1904, aged sixty, while still in office—denied the opportunity to see how his designs would serve the Southern Railway and British Railways for decades beyond his tenure. His son Lawson continued the family tradition, becoming LBSCR Locomotive Engineer and developing the successful K class 2-6-0s that perpetuated his father's component standardization principles. Today, the Brighton Circle preserves LBSCR history through research, publications, and archival collections, ensuring that practical engineers like Robert Billinton receive recognition alongside more celebrated but sometimes less enduringly successful contemporaries.

For modelers, the Bachmann E4 class provides accessible representation of Billinton's work in OO gauge, though significant gaps remain for his express and freight designs. For railway historians, Billinton represents the valuable but often overlooked tradition of practical evolutionary engineering—less dramatic than revolutionary innovation but frequently more enduring in service. For visitors to the Bluebell Railway, "Birch Grove" stands as tangible connection to the intensive suburban railway operations of late Victorian and Edwardian Southern England, when Billinton's radial tanks shaped the daily commuting experience of thousands.

Frequently Asked Questions

What made Robert John Billinton's E4 class radial tanks so successful?

The E4 class succeeded through practical design optimization for intensive suburban service. The 5ft 0in driving wheels balanced sufficient tractive effort (18,050-19,175 lbf) for gradient starts with adequate speed for suburban schedules. The radial trailing axle arrangement provided superior curve negotiation and riding quality compared to rigid-wheelbase tanks, crucial for passenger comfort on the LBSCR's curved routes. Robust construction using proven components and standardized parts ensured reliability and economical maintenance. The class's versatility—handling everything from branch passenger trains to station pilot duties—made them invaluable across the system, explaining why all seventy-five passed to British Railways and the final example survived until 1963.

How did Billinton's designs differ from his predecessor William Stroudley's locomotives?

Billinton decisively departed from Stroudley's rigid-wheelbase preference by embracing bogie locomotives for both express (B2/B4 4-4-0s) and suburban (D3 0-4-4T) work, recognizing superior riding qualities and higher-speed capabilities. While Stroudley favored 0-4-2 express engines, Billinton adopted Midland Railway-influenced 4-4-0 designs with leading bogies. Billinton also designed larger locomotives with higher boiler pressures (180 psi versus Stroudley's typical 150 psi) to handle increasing train weights. However, he retained Stroudley's distinctive umber livery, component standardization philosophy, and Brighton Works' quality manufacturing standards, diplomatically balancing innovation with continuity. This evolution reflected changing traffic demands while respecting Stroudley's legacy.

Where can I see the only surviving Billinton locomotive today?

E4 No. 473 "Birch Grove" is displayed at the Bluebell Railway's SteamWorks! museum at Sheffield Park Station, East Sussex TN22 3QL. Currently on static display since 2016 requiring major boiler overhaul, the locomotive remains accessible to visitors within the museum exhibition. The Bluebell Railway operates an eleven-mile heritage line from Sheffield Park to East Grinstead, featuring authentic LBSCR infrastructure and several Stroudley locomotives alongside "Birch Grove." Rover tickets include unlimited train travel and museum access. The railway typically operates 10:00-17:00 with seasonal timetable variations. Contact: 01825 720 800, www.bluebell-railway.com. The site offers wheelchair accessibility, disabled parking, and EV charging facilities.

What ready-to-run model railway options exist for Billinton's locomotives?

Only the Bachmann E4 class is available as ready-to-run OO gauge models, with 2025 production featuring Next18 DCC socket and speaker provision. Five livery variants cover LBSCR umber (£164.95), SR green/black (£164.95), and BR black (£164.95), with sound-fitted versions at £274.95. Street prices typically around £140. The discontinued "Birch Grove" variants command premium prices (£130-£300+) on the secondary market. No ready-to-run models exist for Billinton's B4 4-4-0s, C2 0-6-0s, or other radial tanks, though specialist brass and white metal kits are available requiring advanced modeling skills. N gauge modelers have no Billinton options whatsoever, representing a significant market gap.

Why did Billinton's B2 "Grasshopper" 4-4-0s prove unsuccessful initially?

The B2 class suffered from inadequate boiler capacity relative to increasing train weights and unstable riding characteristics. The original boiler with 170 psi pressure and relatively small heating surface struggled to maintain steam for heavy Brighton expresses climbing the demanding South Downs gradients. The short wheelbase and weight distribution created unsteady riding at speed, earning the uncomplimentary "Grasshopper" nickname. These deficiencies reflected Billinton's first attempt at express bogie design—he had spent fifteen years designing smaller locomotives at Derby. His response, the larger-boilered, heavier B4 class with improved proportions, proved highly successful. All B2s were rebuilt to B2X specification (1907-1916) with C3-type boilers, transforming them into respectable performers.

What happened to Billinton's locomotives after the 1923 railway grouping?

All Billinton locomotives passed to the Southern Railway at grouping, receiving new liveries (Maunsell olive green or unlined black) and renumbering with "2" prefix (e.g., E4 No. 473 became 2473). The radial tanks continued intensive suburban work, while B4 4-4-0s handled secondary passenger services. Many received significant rebuilds under L.B. Billinton and Richard Maunsell, including superheating and enlarged boilers (B2X, B4X, C2X variants), extending service lives. Under British Railways from 1948, they received "32xxx" series numbers and BR black livery. The robust E4s and C2X "Vulcans" survived until the early 1960s, outlasting many more modern types, testament to sound basic design and successful progressive rebuilding.

How did Billinton's Midland Railway experience influence his LBSCR designs?

Billinton's fifteen years under Samuel Waite Johnson at Derby (1874-1889) fundamentally shaped his design philosophy. Johnson's elegant 4-4-0 express locomotives with leading bogies directly influenced Billinton's B2 and B4 classes, which brought bogie express power to the LBSCR for the first time. The D3 0-4-4T suburban tanks directly borrowed Midland Railway bogie tank practice. Johnson's approach to developing families of related designs sharing standardized components became Billinton's hallmark at Brighton, exemplified by the radial tank progression. However, Billinton also retained Stroudley's Brighton manufacturing standards and quality control, synthesizing Derby's progressive design thinking with Brighton's precision engineering culture.

What technical innovations did Robert Billinton contribute to locomotive development?

Billinton's contributions were more systematic application than revolutionary invention. He did not invent the radial trailing axle but developed it more comprehensively than contemporaries, creating four distinct 0-6-2T classes optimized for different duties through wheel diameter variations. His component standardization across classes—shared cylinders, boiler tubes, valve gear components—anticipated modern manufacturing efficiency principles while reducing maintenance costs. He pioneered systematic external contracting (Vulcan Foundry C2s, Sharp Stewart B4s) to balance workshop capacity strategically. Rather than experimental technologies, Billinton refined proven designs for reliability and maintenance economy—a practical philosophy that enabled his locomotives to outlast many more technically sophisticated contemporaries in everyday service.

Who was Lawson Billinton and how did he continue his father's work?

Lawson Butzkopfski Billinton (1882-1954)—the unusual middle name from his Polish mother Alice—was Robert's son and successor tradition. Beginning as a pupil under his father at Brighton Works in 1900, Lawson rose to LBSCR Locomotive Engineer (1912-1922) following Douglas Earle Marsh. He designed notable classes including the K class 2-6-0 mixed-traffic locomotives and L class 4-6-4T "Brighton Baltics," continuing his father's component standardization philosophy. Lawson also supervised the B2X, B4X, and C2X rebuilding programs that extended his father's designs' service lives. He retired aged forty when the LBSCR was absorbed into the Southern Railway at grouping in 1923.

What reference materials and historical societies support LBSCR research?

The Brighton Circle (www.lbscr.org) serves as the definitive historical society for LBSCR research, publishing the Brighton Circular journal three times yearly with scholarly articles, archival photographs, and locomotive histories. They maintain extensive photographic collections and documentary archives. Klaus Marx's 2008 biography Robert Billinton: An Engineer Under Pressure (Oakwood Library of Railway History) provides the most comprehensive modern account, though it focuses primarily on his father's influence and career pressures. The Bluebell Railway archives at Sheffield Park contain significant LBSCR documentation and technical drawings. Contemporary sources include obituaries in the Proceedings of the Institution of Mechanical Engineers (1905) and Minutes of Proceedings of the Institution of Civil Engineers (1905).

What were Billinton's responsibilities beyond locomotive design?

As Locomotive, Carriage, Wagon and Marine Superintendent, Billinton held comprehensive responsibilities unusual for locomotive engineers. Beyond designing and maintaining steam locomotives, he oversaw carriage and wagon design and construction, introducing the LBSCR's first steel-framed coaches and first bogie passenger carriages (1894). His "Marine Superintendent" role covered the company's extensive cross-channel steamer fleet operating from Newhaven to Dieppe, requiring knowledge of marine engineering and ship maintenance. He managed Brighton Works expansion and reorganization to handle increased production demands. He also supervised the extensive LBSCR network of locomotive depots, running sheds, and maintenance facilities across Southern England. This comprehensive role explained his professional memberships in both mechanical and naval architect institutions.

Why are so few Billinton locomotives preserved compared to other railways?

Only one Billinton locomotive survives because the LBSCR's entire fleet was relatively small (approximately 550 locomotives total at grouping versus thousands for the "Big Four"), reducing preservation opportunities. Most E4s and other classes were withdrawn in the early 1960s during British Railways' rapid dieselization program when preservation was less established—many went directly to scrapyards before societies could save them. The Bluebell Railway's 1962 purchase of "Birch Grove" represented exceptional foresight. Additionally, several Stroudley "Terrier" 0-6-0Ts survived for departmental and industrial use, but Billinton's larger locomotives had less non-passenger utility. The LBSCR's medium size and Southern England location meant fewer locomotives compared to northern industrial railways where preservation efforts rescued more examples.
