Charles Edward Fairburn – The Electrical Engineer Who Revolutionised British Tank Locomotive Design

Quick Takeaways

• Brief Tenure, Lasting Impact: Served as LMS Chief Mechanical Engineer for just 18 months (1944-1945) before dying suddenly aged 58, yet designed one of Britain's most successful tank locomotive classes.
• The Fairburn 2-6-4T: Designed 277 of these versatile tank engines with improved route availability through reduced coupled wheelbase (15ft 4in vs Stanier's 16ft 6in), maintaining full 24,670 lbf tractive effort.
• Electrical Engineering Pioneer: Britain's first Oxford Engineering School graduate who spent 15 years directing railway electrification projects for 49 railways worldwide before joining LMS in 1934.
• Diesel Traction Visionary: Developed diesel-electric shunter designs that became the basis for over 1,400 British Railways shunters, including the lineage leading to the iconic Class 08.
• Limited Preservation: Only two Fairburn tanks survive, both at Lakeside & Haverthwaite Railway in Cumbria – Nos. 42073 and 42085, both currently awaiting overhaul.
• Strong Model Representation: Bachmann Branchline dominates OO gauge with comprehensive range (£130-185); Graham Farish covers N gauge (£90-145); O gauge limited to DJH kits only.
• Transitional Figure: Bridged the gap between Stanier's steam legacy and Ivatt's modernisation programme, bringing industrial management practices from English Electric to traditional railway engineering.

Early Life and Entry into Railway Engineering

Charles Edward Fairburn was born in Bradford, Yorkshire on 5 September 1887, entering a world where the Victorian railway boom had already transformed Britain's industrial landscape. His early education at Bradford Grammar School demonstrated exceptional mathematical ability, earning him an Open Scholarship to Brasenose College, Oxford in 1905. This marked the beginning of an academic career distinguished by consistent brilliance.

At Oxford, Fairburn achieved First Class Honours in both Mathematical Moderations and the Final Honour School, demonstrating the analytical rigour that would later characterise his engineering approach. More significantly, he became the first student to graduate from Oxford's newly established Engineering School, again securing First Class Honours. This distinction positioned him uniquely at the intersection of theoretical mathematics and practical engineering – a combination that would prove invaluable in his future career. His MA followed in 1912, completing his formal academic credentials.

Following Oxford's tradition of practical training, Fairburn undertook a two-year apprenticeship at Derby Locomotive Works on the Midland Railway under Henry Fowler, who would himself later become LMS Chief Mechanical Engineer. This apprenticeship provided Fairburn with hands-on experience in traditional steam locomotive construction, though his career would soon diverge from this path. In 1912, he joined Siemens Brothers Dynamo Works as a researcher in railway engineering, beginning his specialisation in electrical traction.

His work at Siemens included significant involvement in the Shildon-Newport electrification of the North Eastern Railway – Britain's pioneering 1,500-volt overhead line system. This project represented the cutting edge of railway electrification technology in the early 1910s, and Fairburn's contribution established his credentials in this emerging field. The experience would prove foundational for his subsequent career in electrical engineering.

Character Insight: E.S. Cox, who worked under Fairburn at the LMS, later described him as having "a brain like a calculating machine, and liked to arrive at all his results by the operation of pure logic." This mathematical precision, whilst invaluable for complex engineering calculations, sometimes created friction with traditionally-trained steam locomotive men who relied more heavily on empirical experience and mechanical intuition.

Career Progression and Railway Appointments

The First World War dramatically redirected Fairburn's career trajectory. In 1916, he joined the Royal Flying Corps as an Experimental Officer, rapidly mastering aviation to become a skilled pilot who commanded an experimental squadron. His analytical mind proved particularly valuable in developing dive-bomber tactics using the Sopwith Camel, as well as pioneering techniques for formation flying, night flying, and cloud flying. This period demonstrated Fairburn's remarkable ability to rapidly master entirely new technical domains – a characteristic that would later enable his transition from electrical engineering to locomotive design.

The English Electric Years (1919-1934)

Returning to civilian life in 1919, Fairburn joined English Electric to head their railway electrification department. This appointment initiated the most formative period of his professional development. Over the next fifteen years, Fairburn rose steadily through English Electric's management hierarchy: General Manager of the Dick, Kerr works at Preston (1926), additionally assuming responsibility for the Stafford works (1927), election to the Executive Committee (1929-1931), and finally Chief Engineering Manager of the Traction Department (1931).

During his English Electric tenure, Fairburn directed electrification projects for 49 different railways worldwide. His portfolio included work for the Southern Railway, New Zealand Government Railways, Great Indian Peninsula Railway, London Post Office Railway, and Danske Statsbaner (Danish State Railways). Foreign governments sought his consultation on major electrification schemes, establishing his international reputation. This extensive experience instilled the industrial management practices and efficiency focus that would later distinguish – and sometimes frustrate – his approach at the LMS.

Fairburn introduced "unit drawings" showing every component systematically, a practice standard at English Electric but unfamiliar to traditional railway drawing offices. Colleagues noted he was "a scourge of the inefficient in the shops" who expected staff to match his own dedication to precision and thoroughness. This management style, effective in industrial manufacturing, would require careful adaptation to railway workshop culture.

The LMS Appointment (1934-1945)

The London Midland and Scottish Railway recruited Fairburn in 1934 as Chief Electrical Engineer – considered "quite a catch" for the company. The appointment represented something genuinely new: an engineer whose primary expertise lay in industrial electrical systems rather than steam locomotive design. By 1938, he had progressed to Deputy CME under Sir William Stanier, with special responsibility for locomotive and carriage workshops.

When Stanier departed for war work at the Ministry of Production in 1942, Fairburn became Acting CME, officially confirmed in the role upon Stanier's retirement in 1944. His wartime coordination of LMS railway workshops for aircraft construction earned special thanks from the Board. The shops produced thousands of pairs of fighter aircraft wings and repaired hundreds of damaged aircraft – a significant contribution utilising Fairburn's industrial management expertise.

Key Locomotive Designs and Classes

Fairburn's tenure as Chief Mechanical Engineer produced just one steam locomotive class – yet that single design proved remarkably successful and influential. The LMS Fairburn 2-6-4T Class 4MT emerged from wartime pragmatism rather than revolutionary ambition, representing a refined development of Stanier's existing 2-6-4T design.

The Fairburn 2-6-4T Tank Engine

The design challenge was specific: improve route availability on the tightly-curved lines of the LMS network without sacrificing power output. Fairburn's solution demonstrated his analytical approach. He reduced the coupled wheelbase from Stanier's 16 ft 6 in to just 15 ft 4 in – a seemingly modest change that enabled the locomotives to negotiate curves of 5 chains radius compared to the 6 chains minimum required by Stanier's design.

Simultaneously, Fairburn reduced the locomotive's weight by 3 tons 8 cwt, achieving a total weight of 85 tons 5 cwt through thinner frame plates and streamlined bunker construction. Critically, tractive effort remained identical at 24,670 lbf, maintaining the design's power output. This combination of improved route availability, reduced weight, and unchanged power represented exactly the kind of optimisation that Fairburn's mathematical approach enabled.

The first locomotive, No. 2673, emerged from Derby Works in 1945. Between 1945 and 1951, 277 Fairburn tanks entered service: 236 built at Derby Works and 41 at Brighton Works for Southern Region use. The Brighton-built locomotives became familiar on Kent routes, with the Maidstone to Ashford line serving as a particular "stamping ground."

Visually, enthusiasts can distinguish Fairburn locomotives from Stanier's by the gap in the running plate ahead of the cylinders, a consequence of the shortened wheelbase design. This detail provides an immediate identification feature when examining photographs or preserved examples.

Operational Success and Longevity

The Fairburn tanks proved versatile and reliable in service, working suburban passenger trains, secondary main lines, and freight duties across the LMS system and later British Railways. Their improved route availability meant they could operate on lines previously restricted to lighter locomotives, genuinely expanding operational flexibility.

Withdrawals occurred between 1961 and 1967, with No. 42152 famously hauling the last steam train on the Eastern Region on 1 October 1967 – reportedly reaching 74 mph on the Bradford to Leeds service. This final duty demonstrated the class's enduring capabilities even in the twilight years of British steam.

The design's influence extended beyond the LMS. When British Railways developed its Standard locomotive designs, the BR Standard Class 4 2-6-4T (introduced 1951) drew heavily from the Fairburn design, representing the culmination of a lineage running: Fowler 2-6-4T (1927) ? Stanier 2-6-4T (1934-35) ? Fairburn 2-6-4T (1945) ? BR Standard Class 4 (1951).

Engineering Excellence: The Fairburn 2-6-4T's design exemplifies the principle that great engineering often involves careful optimisation rather than revolutionary innovation. By reducing the coupled wheelbase by just 14 inches, Fairburn enabled these locomotives to access 20% tighter curves whilst maintaining full power output – a significant practical improvement achieved through meticulous calculation rather than dramatic redesign.

Technical Innovations and Patents

Whilst Fairburn's steam locomotive design represented evolutionary rather than revolutionary development, his broader contributions to railway technology demonstrated genuine innovation, particularly in diesel and electrical traction.

Diesel-Electric Shunter Development

Fairburn championed diesel-electric shunters when most British engineers remained committed to steam for all duties. His designs for the LMS formed the basis for over 1,400 shunters subsequently used by British Railways. This lineage ultimately evolved into the iconic BR Class 08 – the most numerous British locomotive class ever built, with 996 constructed between 1952 and 1962.

The diesel shunter design philosophy reflected Fairburn's industrial background. He specified standardised components, simplified maintenance procedures, and robust construction suited to the harsh environment of marshalling yards. His 1941 paper "Diesel shunting locomotives" and 1944 paper "Maintenance of diesel electric shunting locomotives" established best practices that influenced subsequent British diesel development.

Mainline Diesel Locomotive Proposals

More ambitiously, Fairburn initiated proposals for Britain's first mainline diesel locomotives. Though he did not live to see their completion, his groundwork was carried forward by his successor H.G. Ivatt. The resulting locomotives, LMS 10000 and 10001, entered service in December 1947 and July 1948 respectively – Co-Co diesel-electric machines rated at 1,600 hp.

These pioneering machines featured English Electric diesel engines and electrical equipment – reflecting Fairburn's longstanding connections with his former employer. Their streamlined design and practical performance influenced subsequent British diesel development, validating Fairburn's vision that diesel traction represented the future for non-electrified routes.

Electrical Engineering Contributions

Fairburn's published papers reveal his forward-looking focus and cross-disciplinary expertise:

• "The trend of design of electric locomotives" (1938)
• "Diesel shunting locomotives" (1941)
• "Maintenance of diesel electric shunting locomotives" (1944)
• The Faraday Lecture (1940)

His membership of the Institution of Mechanical Engineers (elected 1944), Institution of Civil Engineers, and Institution of Electrical Engineers reflected unusual cross-disciplinary expertise. Few British railway engineers could claim such comprehensive understanding of steam, diesel, and electric traction technologies.

Engineering Philosophy and Approach

Fairburn's engineering philosophy diverged significantly from traditional British railway practice, reflecting his industrial background and mathematical training. E.S. Cox, who worked directly under Fairburn at the LMS, provided valuable insights into his working methods and management style.

Cox described Fairburn as having "a brain like a calculating machine" who "liked to arrive at all his results by the operation of pure logic." This analytical approach contrasted sharply with the empirical methods favoured by traditionally-trained locomotive engineers, who relied heavily on accumulated workshop experience and incremental development of proven designs.

Industrial Management Methods

Fairburn introduced several practices from English Electric that proved controversial in traditional railway workshops:

Unit Drawings: Every component received systematic documentation showing all variations and applications. This standardisation, routine in industrial manufacturing, required significant cultural adjustment in railway drawing offices accustomed to more individualised approaches.

Efficiency Metrics: Fairburn expected measurable productivity improvements and challenged inefficient practices directly. Colleagues noted he was "a scourge of the inefficient in the shops" – effective for driving improvements but occasionally abrasive in application.

Logical Systematisation: Rather than accepting "we've always done it this way" explanations, Fairburn demanded logical justification for every practice. This approach identified genuine improvements but sometimes undervalued tacit knowledge accumulated over decades.

View of Steam Technology

Ron Jarvis, who worked with Fairburn, later recalled that he viewed the steam locomotive as fundamentally "out-of-date" technology. This perspective, whilst ultimately vindicated by railway history, created tensions with colleagues dedicated to perfecting steam traction. Cox acknowledged that whilst Fairburn was a "first-class administrator" and "brilliant mathematician," he lacked "the knowledge, feel and instinct of a true steam locomotive man."

Yet this outsider perspective also enabled insights. Fairburn's 2-6-4T design succeeded precisely because he approached it as an optimisation problem: what minimum changes would achieve maximum practical improvement? Traditional steam engineers might have designed more extensively modified locomotives; Fairburn identified the single critical parameter – coupled wheelbase – and focused his efforts there.

Personal Working Style

Colleagues described Fairburn as demanding but fair. E. Langridge recorded that he was "a man of strong opinions" who "needed diplomatic handling at times." Ron Jarvis noted he was "not a fit man" who "could at times be quite irritable" – observations consistent with the heart condition that would ultimately claim his life. Yet Jarvis also acknowledged Fairburn's technical brilliance and willingness to give "endless time and trouble" to important tasks.

His wartime leadership demonstrated broader capabilities. Coordinating LMS workshops for aircraft production required diplomatic skills and flexibility beyond pure engineering – qualities Fairburn evidently possessed despite his reputation for logical rigour.

Management Philosophy: Fairburn's approach exemplified the challenges of introducing industrial management practices to traditional craft-based railway workshops. His insistence on systematic documentation and measurable efficiency ultimately benefited British Railways, but the cultural adaptation required careful handling. His relatively brief tenure meant some initiatives remained incomplete at his death.

Preserved Locomotives and Heritage

Of the 277 Fairburn 2-6-4T locomotives built, only two survive – a remarkably low preservation rate compared to other successful locomotive classes. Both surviving examples reside at the Lakeside & Haverthwaite Railway in Cumbria, and remarkably, both are Brighton-built examples rather than Derby products.

No. 42073

No. 42073 was constructed at Brighton Works in 1950 and withdrawn from Normanton shed in 1967 after seventeen years of service. During its working life, the locomotive served various depots including Stewarts Lane, Ashford, Dover, Gateshead, Bradford, York, and Leeds. This varied allocation pattern demonstrates the class's versatility across different routes and duties.

The locomotive achieved unwanted notoriety through a collision with V2 No. 60968 at Newcastle Central station on 19 April 1955 – an incident that caused significant damage to both locomotives. Following preservation in 1967, No. 42073 operated as the Lakeside & Haverthwaite Railway's primary steam locomotive, providing reliable service for many years until its boiler certificate expired following extensive use.

As of early 2026, No. 42073 awaits overhaul. The locomotive remains at Haverthwaite but is currently out of service pending major mechanical work and boiler recertification. Heritage railway enthusiasts hoping to see this locomotive in steam should monitor the railway's website for restoration progress updates.

No. 42085

No. 42085 was built at Brighton Works in 1951, though interestingly fitted with a boiler manufactured in 1949 – presumably a spare originally intended for an earlier locomotive. Like its sister, No. 42085 served various depots during its British Railways career before withdrawal from Normanton in 1967.

The locomotive is currently under overhaul at Lakeside & Haverthwaite, with its boiler returned from Carnforth in 2023. Restoration work continues, though progress remains subject to funding constraints and volunteer availability – familiar challenges for heritage railway projects. The railway's engineering team must balance ongoing operational requirements with longer-term restoration projects.

Visiting Preserved Examples

Heritage railway visitors wishing to see Fairburn locomotives should visit:

Lakeside & Haverthwaite Railway
Haverthwaite Station
Near Ulverston
Cumbria LA12 8AL
Telephone: 015395 31594
Website: www.lakesiderailway.co.uk

The 3.2-mile line runs through attractive Lakeland scenery, connecting with Windermere Lake Cruises steamers at Lakeside. This makes it a popular tourist attraction combining railway heritage with Lake District natural beauty. The railway typically operates on selected days from April through October, with Santa Specials in December.

The engine shed at Haverthwaite provides public access during operating days, enabling visitors to view both Fairburn locomotives even when they're not in steam. Photography is permitted, and knowledgeable volunteers can usually provide historical information about the locomotives and their restoration.

Important note: Neither locomotive is currently operational. Visitors hoping to ride behind a Fairburn tank should monitor the railway's website for restoration completion announcements. The railway typically provides several months' notice when major restorations approach completion, allowing enthusiasts to plan visits accordingly.

The Preservation Gap

The survival of just two Fairburn tanks – both Brighton-built, none Derby-built – represents a significant preservation gap. By comparison, three Stanier 2-6-4Ts survive and two Fowler 2-6-4Ts remain. The disproportionately low Fairburn preservation rate likely reflects several factors:

• Timing: Withdrawals occurred 1961-1967, before preservation became widespread
• Competition: The visually similar BR Standard Class 4 tanks (seven preserved) may have seemed adequate representatives of the lineage
• Location: Many operated in areas with limited preservation infrastructure
• Recognition: The class lacked the glamour of express passenger locomotives that typically attracted preservation attention

The two surviving locomotives therefore represent precious connections to Fairburn's engineering legacy and to the thousands of passengers who travelled behind these versatile machines during British Railways' transition from steam to diesel operation.

Scale Models and Modeling Significance

The Fairburn 2-6-4T enjoys strong representation in the model railway market, particularly in OO and N gauges. This availability reflects the class's popularity among modellers seeking authentic LMS and early British Railways motive power for suburban and secondary passenger services.

OO Gauge (4mm scale)

Bachmann Branchline dominates OO gauge Fairburn production with tooling introduced in 2011 that remains the definitive model. The manufacturer has released numerous versions covering both LMS and BR liveries:

Current/Recent Production:

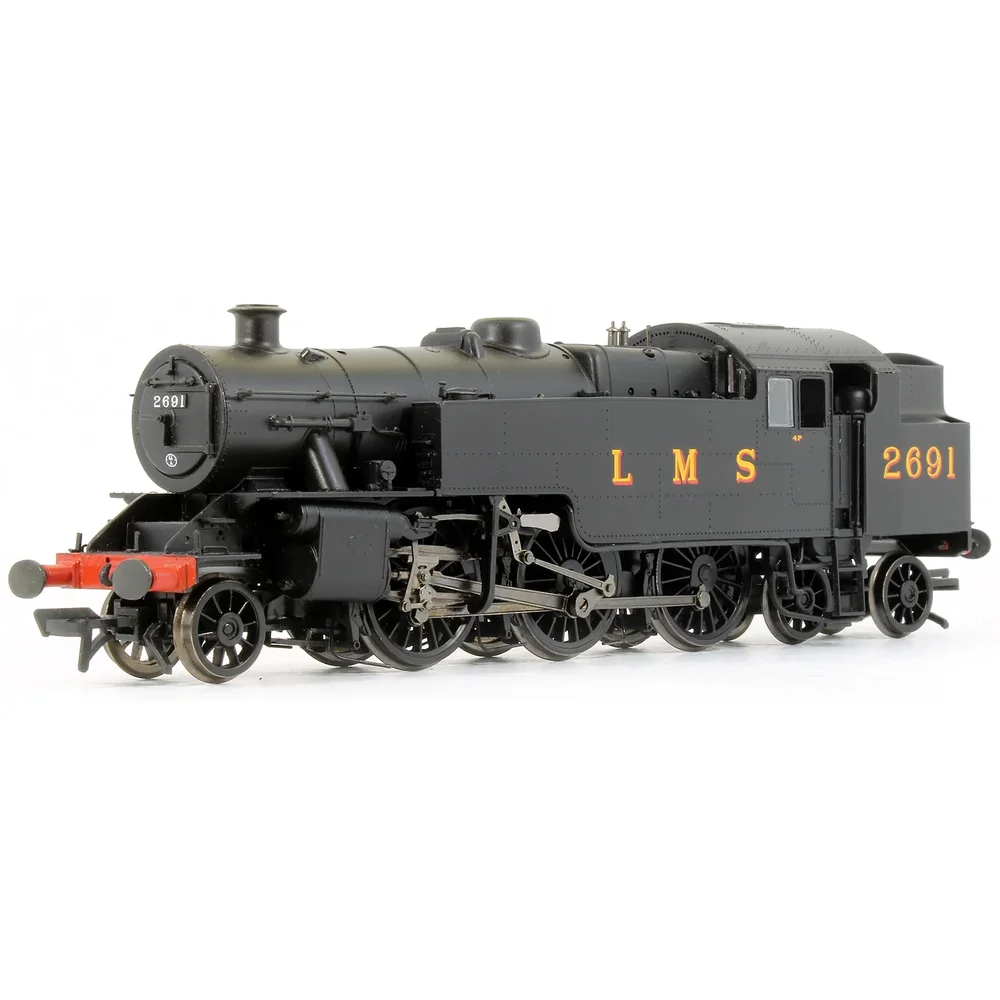

• 32-875A (No. 2245, LMS Black) – Available at approximately £150-185
• 32-880 (No. 2278, LMS Black Weathered) – Available
• 32-883 (No. 42107, BR Lined Black) – Currently in stock at approximately £130-150
• 32-883A (No. 42073, BR Lined Black – preserved locomotive livery)
• 32-884 (No. 42085, BR Lined Black – preserved locomotive livery)

Discontinued/Limited Editions:

• 32-875 Original LMS Black version
• 32-876 (No. 42112, BR Lined Black Early Emblem)
• 32-877 (No. 2085, LMS Crimson Lake) – Limited edition, now commands premium prices
• 32-879 (No. 42199, BR Lined Black Late Crest)
• 32-881 (No. 42073, BR Lined Black Late Crest)
• 32-875K (No. 14, Caledonian Railway Blue) – Highly sought limited edition

The Bachmann model features a die-cast chassis weighing 385g, providing excellent traction and haulage capacity. Specification includes fine metal handrails, turned brass safety valves, fine valve gear detail, separate lamp irons, and an 8-pin DCC socket for decoder installation. The model accepts 21-pin decoders with appropriate adapter boards.

Performance Reviews: Modellers consistently praise the Bachmann Fairburn as "built like a tank" with exceptional haulage power – capable of pulling 8-10 coaches on level track. The model runs smoothly at low speeds and maintains excellent electrical pickup through its comprehensive current collection system. Some early production runs exhibited minor gear noise, but this was addressed in later batches.

Notable Detail Features: The model accurately represents the gap in the running plate ahead of the cylinders that distinguishes Fairburn tanks from Stanier's design. Separate detail parts include whistle, safety valve cover, and lamp irons – though these require careful handling during unpacking. The bunker coal load is removable, enabling modellers to add realistic coal representations if desired.

N Gauge (2mm scale)

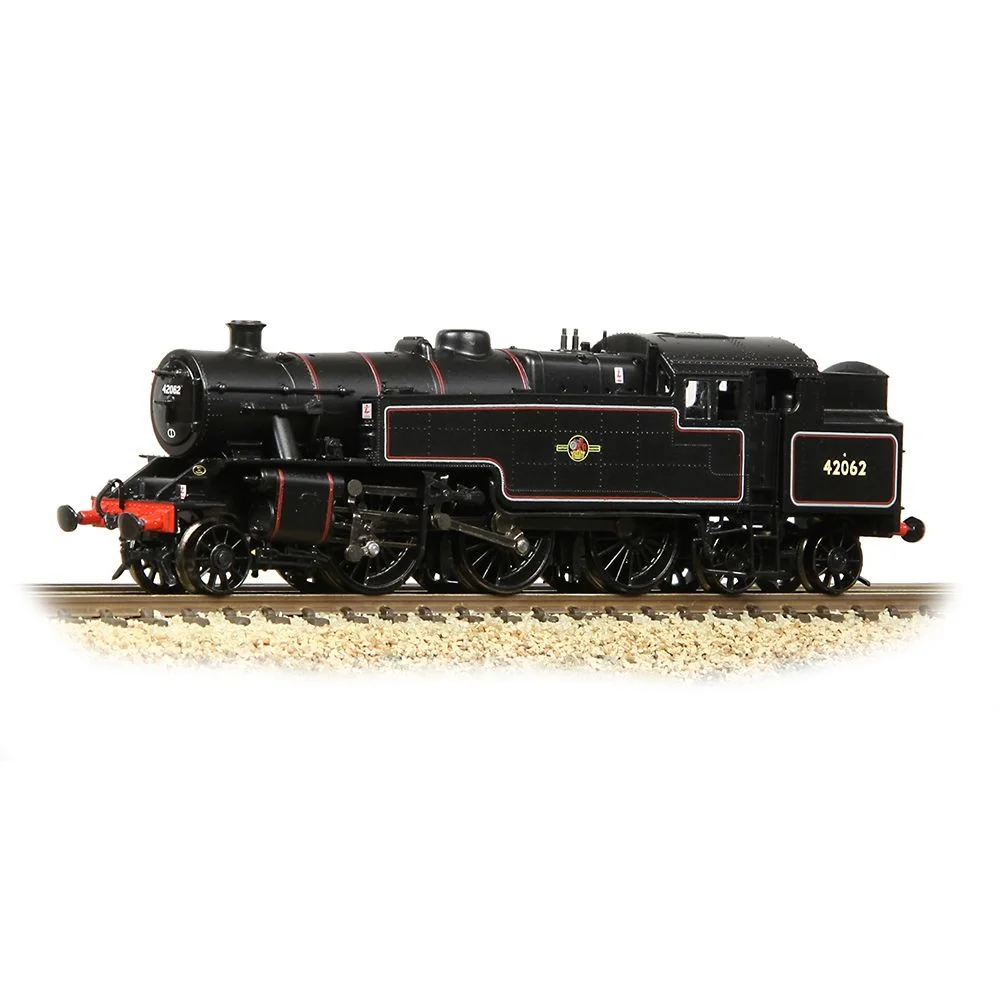

Graham Farish (Bachmann's N gauge brand) produces Fairburn tanks with tooling from 2014. Current availability includes:

• 372-752 (No. 42073, BR Black Late Crest) – Available at approximately £90-145
• 372-753 (No. 42267, BR Black Late Crest Weathered) – Available
• 372-754 (Pre-order – check current availability)
• 372-755 (Pre-order – check current availability)

The Graham Farish model maintains the quality standards expected from the manufacturer, with a metal chassis providing good weight and electrical pickup. Detail level is appropriate for N gauge, though necessarily less comprehensive than the OO gauge equivalent. The model features an 8-pin DCC socket and performs well on curves down to first radius (228mm/9").

O Gauge (7mm scale)

O gauge modellers have significantly more limited options. DJH Model Loco produces kit K303 (approximately £316-400), featuring etched brass construction requiring intermediate to advanced modelling skills. The kit includes white metal castings for major components, etched brass frames and body parts, and detailed assembly instructions.

No ready-to-run O gauge Fairburn model exists, reflecting the limited market for 7mm scale models generally. The DJH kit enables experienced modellers to build highly detailed representations, but requires soldering skills, mechanical ability, and considerable time investment.

Manufacturer Gap: Why No Hornby Model?

Notably, Hornby does not produce a Fairburn model – despite manufacturing the related Fowler and Stanier 2-6-4T tanks. This gap likely reflects commercial considerations: Bachmann's comprehensive Fairburn range occupies the market niche, making a competing Hornby tooling investment difficult to justify. Modellers seeking Fairburn tanks therefore have a straightforward choice: Bachmann in OO, Graham Farish in N, or DJH kits in O gauge.

Modeling Historical Accuracy

For modellers seeking authentic period operation:

LMS Period (1945-1947): Use LMS black livery versions (Bachmann 32-875A, 32-880). Locomotives numbered 2673-2949 (Derby-built) and 2050-2090 (Brighton-built). Operated primarily on London Division suburban services and Midland Division secondary routes.

Early BR Period (1948-1956): Use BR lined black with early emblem (Bachmann 32-876). Locomotives renumbered into 42050-42299 and 42673-42949 series. Widespread across former LMS routes plus Southern Region (Brighton-built examples).

Late BR Period (1957-1967): Use BR lined black with late crest (Bachmann 32-879, 32-881, Graham Farish 372-752). Many locomotives received simplified lining during this period. Withdrawals commenced 1961; final examples survived until October 1967.

Preserved Era (1970s onwards): Both preserved locomotives (42073 and 42085) wear BR lined black with late crest – accurately represented by Bachmann 32-883A and 32-884.

Layout Suitability

The Fairburn 2-6-4T suits various layout types:

• Suburban layouts: London Division commuter services
• Branch lines: Secondary passenger and freight duties
• Mixed traffic layouts: Versatile enough for passenger and goods work
• Transition period: Perfect for late steam/early diesel era layouts (1960s)
• Heritage railways: Both preserved examples enable authentic Lakeside & Haverthwaite Railway modelling

The prototype's 5-chain minimum curve radius translates to relatively modest curve requirements in model form, making Fairburn tanks suitable for space-constrained layouts.

Legacy and Influence on Railway Engineering

Charles Edward Fairburn's influence on British railway engineering extended far beyond his brief eighteen-month tenure as LMS Chief Mechanical Engineer. His legacy encompasses three distinct but interconnected areas: steam locomotive design evolution, diesel traction development, and the introduction of industrial management practices to traditional railway workshops.

The Steam Locomotive Lineage

The Fairburn 2-6-4T represented the penultimate stage in a design evolution spanning nearly a quarter-century:

1. Fowler 2-6-4T (1927): The original LMS design, introducing the wheel arrangement to the company
2. Stanier 2-6-4T (1934-35): Refined version with improved boiler and increased power
3. Fairburn 2-6-4T (1945): Enhanced route availability through shortened coupled wheelbase
4. BR Standard Class 4 2-6-4T (1951): Final development incorporating Fairburn's improvements into nationalised railway standards

This lineage demonstrates railway engineering's fundamentally evolutionary nature. Each engineer built upon predecessors' work, making incremental improvements that cumulatively transformed the original design. Fairburn's contribution – improved route availability whilst maintaining power – represented exactly the kind of practical refinement that characterised successful railway engineering.

When British Railways developed Standard locomotive designs following nationalisation in 1948, the design team led by R.A. Riddles and E.S. Cox drew heavily from Fairburn's work. The BR Standard Class 4 2-6-4T incorporated the shortened coupled wheelbase and weight reductions that had proven successful in the Fairburn design. Between 1951 and 1957, 155 of these locomotives were built – testament to the soundness of Fairburn's engineering approach.

Diesel Traction Development

Fairburn's more substantial and lasting contribution lay in diesel traction. His diesel-electric shunter designs became the foundation for British Railways' entire diesel shunting fleet. The LMS 0-6-0 diesel-electric shunters developed under Fairburn's direction (introduced 1934 onwards) established design principles that directly influenced the BR Class 08 – 996 locomotives built between 1952 and 1962, making it the most numerous British locomotive class ever constructed.

The Class 08 remained in production for a decade and in widespread service for over six decades. Many continue operating in industrial service today, nearly 90 years after Fairburn initiated the design lineage. This longevity vindicates his view that diesel traction represented the future for non-electrified railway operations.

His mainline diesel proposals, brought to fruition by successor H.G. Ivatt as LMS 10000 and 10001, demonstrated that diesel-electric traction could successfully handle express passenger duties. These pioneering locomotives influenced subsequent British diesel development, particularly the emphasis on diesel-electric transmission and English Electric components – both reflecting Fairburn's technical background and professional connections.

Industrial Management Practices

Perhaps Fairburn's most subtle but pervasive influence involved introducing industrial management practices to traditional railway workshops. His insistence on systematic documentation, unit drawings showing all component variations, measurable efficiency metrics, and logical justification for working practices represented a cultural shift from craft-based traditions toward industrial manufacturing methods.

Whilst some colleagues found this approach abrasive, the long-term benefits proved substantial. British Railways inherited these systematised practices following nationalisation, facilitating the standardisation programme that produced the BR Standard locomotive classes. The ability to track component interchangeability, measure workshop efficiency, and optimise maintenance procedures became increasingly important as the railway system faced growing economic pressures in the 1950s and 1960s.

E.S. Cox, who experienced Fairburn's management firsthand, acknowledged that whilst he lacked "the knowledge, feel and instinct of a true steam locomotive man," he was nevertheless a "first-class administrator" whose systematic approach benefited the organisation. This assessment captures Fairburn's essential contribution: bringing rigorous industrial engineering discipline to railway mechanical engineering.

Comparisons with Contemporary Engineers

Fairburn occupies a distinctive position among LMS Chief Mechanical Engineers:

Sir William Stanier (CME 1932-1942) came from Great Western Railway Swindon traditions, designing magnificent locomotives including Princess Coronation Pacifics, Black Fives, and 8F freight engines that transformed LMS motive power. His approach emphasised proven steam technology refined to excellence.

H.G. Ivatt (CME 1945-1947) represented traditional railway mechanical engineering, working his way through LNWR and LMS ranks. He completed Fairburn's diesel proposals whilst also designing practical steam locomotives including the successful Class 2 2-6-0 and 2-6-2T designs.

R.A. Riddles (Stanier's Principal Assistant, later BR CME) applied for the CME position upon Fairburn's death but was instead promoted to LMS Vice-President. He later became British Railways' first CME, where his team designed the BR Standard locomotives incorporating Fairburn's innovations.

Fairburn stood apart from these colleagues through his electrical engineering background and industrial manufacturing experience. Where others saw railway engineering as a specialised discipline requiring long apprenticeship in traditional methods, Fairburn viewed it as engineering generally – subject to the same analytical approaches and industrial practices applicable elsewhere. This perspective enabled both insights and occasional blind spots.

What Might Have Been

Fairburn's sudden death at age 58 cut short what colleagues recognised as exceptional potential. Speculation about alternative histories proves ultimately futile, but several possibilities warrant consideration:

Accelerated Dieselisation: Had Fairburn lived into the 1950s, British Railways' transition from steam to diesel might have occurred more rapidly. His conviction that steam represented obsolescent technology and his existing diesel designs could have influenced the Modernisation Plan more substantially.

Electrification Advocacy: Given his fifteen years directing railway electrification projects worldwide, Fairburn might have advocated more strongly for electric traction on high-density routes. His technical expertise and international experience uniquely positioned him to champion comprehensive electrification.

Management Reforms: Extended tenure could have embedded his industrial management practices more deeply in railway culture, potentially improving efficiency and competitiveness during the challenging 1950s-1960s period.

These possibilities remain inherently speculative. What remains certain is that Fairburn's actual achievements – one successful locomotive class, diesel traction foundations, and management innovations – substantially influenced British railway development despite his tragically abbreviated tenure.

Personal Life and Character

Charles Edward Fairburn married Eleanor Cadman of Bradford in 1914, shortly after completing his MA at Oxford. They had two children, maintaining what colleagues described as a stable family life despite the demands of Fairburn's increasingly senior positions. Eleanor provided important support throughout his career transitions from Siemens to English Electric to the LMS.

Colleagues' recollections reveal a complex personality combining exceptional intellectual ability with sometimes difficult interpersonal dynamics. E. Langridge, working in the LMS drawing office, described him as "a man of strong opinions" who viewed the steam locomotive as fundamentally "out-of-date" – a perspective that, whilst ultimately vindicated by railway history, created tensions with dedicated steam engineers.

Ron Jarvis offered more nuanced assessment: Fairburn "had his own definite views and needed diplomatic handling at times" and was "not a fit man" who "could at times be quite irritable." Yet Jarvis also acknowledged his technical brilliance and willingness to invest "endless time and trouble" in important projects. These observations suggest someone whose demanding standards applied equally to himself and others, but whose health challenges occasionally affected his temperament.

E.S. Cox's description of Fairburn having "a brain like a calculating machine" who "liked to arrive at all his results by the operation of pure logic" captures both his analytical power and his occasional limitations. This mathematical precision proved invaluable for complex engineering calculations but sometimes undervalued the tacit knowledge accumulated through decades of workshop experience.

Despite these challenges, Fairburn commanded genuine respect. His wartime coordination of LMS workshops for aircraft production earned special thanks from the Board – recognition reflecting both technical achievement and the diplomatic skills required to coordinate complex organisations toward common purposes. His election to the Institution of Mechanical Engineers (1944) and existing memberships in the Institutions of Civil Engineers and Electrical Engineers demonstrated professional standing across multiple engineering disciplines.

Health and Final Illness

References to Fairburn being "not a fit man" suggest longstanding health challenges, though specific details remain limited in available sources. His sudden death from a heart attack on 12 October 1945 – barely eighteen months into his tenure as CME – shocked colleagues who recognised his potential contributions remained largely unrealised.

The timing proved particularly unfortunate. Fairburn died just as the Second World War concluded and British railways faced the enormous challenges of reconstruction, modernisation, and impending nationalisation. His unique combination of electrical expertise, industrial management experience, and growing familiarity with steam locomotive engineering positioned him to potentially guide this critical transition period.

Recognition and Honours

Fairburn's professional recognition included:

• Member, Institution of Mechanical Engineers (1944)
• Member, Institution of Civil Engineers
• Member, Institution of Electrical Engineers
• Delivered the prestigious Faraday Lecture (1940)
• Published numerous papers on electrical and diesel traction

His untimely death precluded the honours and recognition that typically accompany long careers. Had he lived into the 1950s-1960s, professional honours would likely have followed – particularly if his diesel designs proved successful in widespread service.

Publications and Written Works

Fairburn's published papers reveal his technical interests and forward-looking perspective on railway traction. Unlike many traditional locomotive engineers whose publications focused exclusively on steam technology, Fairburn wrote primarily about electrical and diesel traction – reflecting his conviction that these represented railways' future.

Major Publications

"The trend of design of electric locomotives" (1938) – Presented to the Institution of Electrical Engineers, this paper synthesised Fairburn's fifteen years' experience directing electrification projects for 49 railways worldwide. It examined emerging trends in electric locomotive design, including power ratings, transmission systems, and applications to different traffic types.

"Diesel shunting locomotives" (1941) – Published in the midst of wartime constraints, this paper advocated diesel-electric shunters as superior to steam for marshalling yard duties. It established design principles subsequently adopted for LMS and later British Railways diesel shunter construction.

"Maintenance of diesel electric shunting locomotives" (1944) – Building on his earlier work, this paper addressed practical maintenance requirements for diesel shunters. It emphasised standardised components and simplified maintenance procedures – principles reflecting his industrial manufacturing background.

The Faraday Lecture (1940) – Delivered to the Institution of Electrical Engineers, this prestigious annual lecture demonstrated Fairburn's standing within electrical engineering circles. The lecture examined electrical technology applications across industry, including but not limited to railway traction.

Technical Philosophy in Writing

Fairburn's publications emphasised logical analysis, quantitative comparison, and systematic evaluation – consistent with colleagues' descriptions of his analytical approach. He avoided the anecdotal style sometimes found in traditional railway engineering writing, preferring data-driven arguments and mathematical analysis.

His writing also reflected international perspective. Unlike some British engineers whose experience remained largely domestic, Fairburn drew upon projects across Europe, India, and New Zealand. This global viewpoint enabled comparative assessments of different technical approaches and operating conditions.

Limited Steam Locomotive Writing

Notably, Fairburn published relatively little about steam locomotive engineering – reflecting both his brief tenure in that role and his view that steam represented declining technology. This gap distinguishes him from contemporaries like Stanier and Riddles, who published extensively about steam locomotive design and operation.

The absence of a definitive memoir or autobiography represents a significant loss. Had Fairburn lived to retirement, his unique career trajectory – from Oxford mathematics to Royal Flying Corps to international electrification to LMS CME – would have generated fascinating autobiographical material. His perspectives on the transition from steam to diesel/electric traction would have provided valuable historical insight.

Finally

Charles Edward Fairburn's life and career defy simple categorisation. An Oxford mathematics scholar who became a Royal Flying Corps pilot, then an international railway electrification expert, before ultimately leading British Railways' largest mechanical engineering department – his trajectory seems almost improbable in its diversity. Yet each phase built logically upon predecessors, creating unique expertise combining theoretical rigour, practical engineering, and industrial management.

His eighteen-month tenure as LMS Chief Mechanical Engineer produced just one steam locomotive class, yet that class proved remarkably successful: 277 built, reliable service through the challenging 1940s-1960s period, and direct influence on British Railways' standard designs. The Fairburn 2-6-4T remains instantly recognisable to railway enthusiasts through its distinctive running plate gap – a visual signature of Fairburn's analytical approach to optimising route availability.

His diesel traction legacy ultimately proved more substantial. The shunter designs that became foundations for over 1,400 British Railways locomotives, and the mainline diesel proposals brought to fruition by his successor, demonstrated prescient recognition that steam's dominance was ending. Fairburn saw this reality clearly when many colleagues remained emotionally invested in perfecting steam technology. History vindicated his judgment within two decades.

For today's heritage railway visitors, the two surviving Fairburn tanks at Lakeside & Haverthwaite Railway represent accessible connections to this transitional moment in British railway history. Standing beside these locomotives – currently silent whilst awaiting overhaul – one can reflect on the engineer who designed them during history's most destructive war, who died before seeing their full service lives, yet whose analytical precision and forward-looking vision shaped British railway development for decades afterward.

For model railway enthusiasts, Bachmann's comprehensive OO gauge range and Graham Farish's N gauge offerings provide opportunities to operate Fairburn locomotives on home layouts. These models – detailed, reliable, and available in multiple liveries – enable modellers to recreate the LMS and early British Railways periods when Fairburn tanks handled suburban passenger services, branch line duties, and the countless unglamorous but essential tasks that kept Britain's railway system functioning.

For railway historians, Fairburn remains a fascinating study in cultural transition: what happens when industrial engineering expertise meets traditional railway craft practice, when mathematical precision encounters empirical workshop knowledge, when an outsider's fresh perspective reveals both insights and blind spots. His colleagues' mixed assessments – brilliant mathematician but not a "true steam locomotive man," first-class administrator but sometimes abrasive – capture this complexity honestly.

Few engineers with such brief tenures have left such enduring marks. Fairburn's locomotives outlasted him by over two decades in revenue service. Two continue to exist in preservation nearly 80 years after his death. His diesel designs influenced Britain's railway motive power for six decades. And his management innovations – systematic documentation, measurable efficiency, logical justification – became embedded in British Railways practice.

Charles Edward Fairburn died at 58, his potential incompletely realised, his tenure cut tragically short. Yet what he achieved in those eighteen months as Chief Mechanical Engineer, combined with his diesel traction groundwork and industrial management innovations, secured his position among British railway engineering's influential figures. Not all engineering legacies require lengthy tenures – sometimes analytical brilliance, practical vision, and impeccable timing prove sufficient.

Frequently Asked Questions

What was Charles Fairburn's most significant contribution to British railway engineering?

Whilst the Fairburn 2-6-4T tank engine bears his name, Fairburn's most significant contribution was pioneering diesel-electric shunter designs that formed the basis for over 1,400 British Railways diesel shunters, including the lineage leading to the iconic Class 08. His early advocacy for diesel traction, when most engineers remained committed to steam, demonstrated prescient recognition of railways' future. These designs remained in widespread use for over six decades, far outlasting his steam locomotive work.

How many Fairburn 2-6-4T locomotives were built and how many survive today?

A total of 277 Fairburn 2-6-4T locomotives were constructed between 1945 and 1951, with 236 built at Derby Works and 41 at Brighton Works. Tragically, only two survive in preservation – both Brighton-built examples located at the Lakeside & Haverthwaite Railway in Cumbria (Nos. 42073 and 42085). This represents a remarkably low preservation rate compared to other successful locomotive classes, likely because withdrawals occurred 1961-1967 before preservation became widespread.

What distinguished the Fairburn 2-6-4T from Stanier's earlier design?

The Fairburn 2-6-4T featured a reduced coupled wheelbase of 15 ft 4 in compared to Stanier's 16 ft 6 in, enabling negotiation of curves as tight as 5 chains radius versus Stanier's 6 chains minimum. Fairburn also reduced weight by 3 tons 8 cwt through thinner frame plates and streamlined construction, whilst maintaining identical 24,670 lbf tractive effort. Visually, the Fairburn design shows a distinctive gap in the running plate ahead of the cylinders. These changes substantially improved route availability without sacrificing power – exactly the practical optimisation Fairburn's analytical approach enabled.

Did Charles Fairburn have any background in steam locomotive engineering before becoming LMS Chief Mechanical Engineer?

Fairburn's background was primarily in electrical engineering and railway electrification rather than traditional steam locomotive design. After a two-year apprenticeship at Derby Works under Henry Fowler (1910-1912), he spent time at Siemens Brothers working on electrification projects, then fifteen years at English Electric directing electrification projects for 49 railways worldwide. This unconventional background – combined with his Oxford mathematics degree and Royal Flying Corps service – made him unique among British railway CMEs. Colleagues noted he lacked "the knowledge, feel and instinct of a true steam locomotive man," though his analytical skills proved valuable.

Where can I see preserved Fairburn locomotives today?

Both surviving Fairburn 2-6-4T locomotives reside at the Lakeside & Haverthwaite Railway in Cumbria (Haverthwaite Station, near Ulverston, LA12 8AL). The 3.2-mile heritage railway operates through scenic Lakeland countryside, connecting with Windermere Lake Cruises steamers. The engine shed at Haverthwaite provides public access during operating days, enabling visitors to view both Nos. 42073 and 42085. However, neither locomotive is currently operational – both await overhaul. No Fairburn examples exist in the National Railway Museum or any other UK museum, making these two locomotives particularly precious.

What model railway versions of the Fairburn 2-6-4T are available?

OO gauge (4mm scale) is comprehensively covered by Bachmann Branchline, with current models priced £130-185 including various LMS and BR liveries (catalog numbers 32-875A, 32-880, 32-883). The Bachmann model features die-cast chassis, fine detail, and excellent performance. N gauge (2mm scale) is served by Graham Farish with models priced £90-145 (catalog numbers 372-752, 372-753). O gauge (7mm scale) has only the DJH kit K303 (£316-400) requiring advanced modelling skills. Notably, Hornby does not manufacture a Fairburn model, making Bachmann the sole RTR option in OO gauge.

Why was Charles Fairburn's tenure as LMS Chief Mechanical Engineer so brief?

Fairburn served as LMS Chief Mechanical Engineer for just eighteen months (1944-1945) before dying suddenly from a heart attack aged 58 on 12 October 1945. Colleagues had noted he was "not a fit man," suggesting longstanding health problems, though specific details remain limited. His untimely death occurred just as the Second World War concluded and British railways faced enormous reconstruction and modernisation challenges. Many contemporaries believed his death "perhaps robbed the railway world of someone who could have equalled (or even bettered) his predecessor."

How did the Fairburn 2-6-4T influence British Railways' Standard locomotive designs?

When British Railways developed Standard locomotive designs following nationalisation in 1948, the design team led by R.A. Riddles and E.S. Cox drew heavily from Fairburn's work. The BR Standard Class 4 2-6-4T (introduced 1951) incorporated the shortened coupled wheelbase and weight reductions that had proven successful in the Fairburn design. Between 1951 and 1957, 155 of these locomotives were built, representing the culmination of a lineage running: Fowler 2-6-4T (1927) ? Stanier 2-6-4T (1934-35) ? Fairburn 2-6-4T (1945) ? BR Standard Class 4 (1951).

What was unusual about Fairburn's educational and early career background?

Fairburn was the first student to graduate from Oxford's newly established Engineering School, achieving First Class Honours in mathematics, engineering, and ultimately an MA – exceptional academic credentials for a railway engineer. Following his apprenticeship, he joined the Royal Flying Corps in 1916 as an Experimental Officer, becoming a skilled pilot who commanded an experimental squadron and pioneered dive-bomber tactics, formation flying, and night flying techniques. This unconventional wartime service demonstrated remarkable versatility before he returned to civilian engineering at English Electric in 1919.

What happened to the last Fairburn 2-6-4T in British Railways service?

No. 42152 hauled the last steam train on the Eastern Region on 1 October 1967, working the Bradford to Leeds service. The locomotive reportedly reached 74 mph during this final duty – an impressive performance for a tank engine designed primarily for suburban and secondary services. This final working demonstrated the class's enduring capabilities even in the twilight years of British steam, over two decades after Fairburn's death and nearly 75 years after his birth. Sadly, No. 42152 was not preserved.

How did Fairburn's colleagues view his management style and engineering approach?

Colleagues offered mixed but revealing assessments. E.S. Cox described Fairburn as having "a brain like a calculating machine" who "liked to arrive at all his results by the operation of pure logic" – brilliant mathematically but lacking "the knowledge, feel and instinct of a true steam locomotive man." E. Langridge called him "a man of strong opinions" who viewed steam as "out-of-date." Ron Jarvis noted he "needed diplomatic handling at times" and could be "quite irritable" but also acknowledged his technical brilliance and willingness to invest "endless time and trouble" in important projects. Overall: respected for analytical ability, sometimes challenging interpersonally.

What was Fairburn's view on the future of railway traction?

Fairburn firmly believed steam traction was obsolescent and that diesel and electric traction represented railways' future – a view ultimately vindicated but controversial among colleagues in the 1940s. His published papers focused almost exclusively on electrical and diesel technology rather than steam. He championed diesel-electric shunters when most British engineers remained committed to steam for all duties, and initiated proposals for Britain's first mainline diesel locomotives. This forward-looking perspective reflected his electrical engineering background and international experience with various traction systems, setting him apart from traditionally-trained steam engineers.
