The North Eastern Railway Class ES1 represents one of British railway history's most remarkable achievements in pioneering electric traction. Just two small locomotives, built specifically to conquer the smoke-choked tunnels of Newcastle's Quayside Branch, served continuously for 59 years hauling freight through some of the most challenging conditions any railway faced. Constructed in 1904-1905 by British Thomson-Houston with mechanical components from Brush Electrical Engineering, these Bo-Bo electric locomotives were Britain's first electric freight locomotives in regular revenue service, demonstrating that electric traction could handle steep gradients and intensive duty cycles that defeated conventional steam power.
For model railway enthusiasts, the NER Class ES1 offers compelling prototype appeal: historically significant as Britain's electric freight pioneer, visually distinctive with its American-influenced steeplecab design, and blessed with a fascinating operational story on Newcastle's extraordinary tunnelled branch line. Though only one locomotive survived into preservation at Locomotion Shildon, late 2022 finally brought ready-to-run OO gauge models through a collaboration between Locomotion Models, Rails of Sheffield, and Heljan—ending decades when this important prototype remained accessible only through etched brass kit construction.
From hauling 150-ton freight trains up gradients as steep as 1 in 27 through smoke-free tunnels to pioneering dual power collection systems combining third-rail and overhead catenary, the ES1s proved that Wilson Worsdell's vision of practical electric freight traction could deliver remarkable longevity. The sole survivor's preservation and exceptional ready-to-run model availability ensures this pioneering chapter of British railway electrification remains accessible to enthusiasts and historians seeking authentic early 20th-century traction for North Eastern Railway themed layouts.
Quick Takeaways
- Two locomotives built: Constructed by British Thomson-Houston and Brush Electrical Engineering in 1904-1905, numbered NER 1 and 2, becoming Britain's first mainline electric freight locomotives
- Dual power collection innovation: Revolutionary system combining 600V DC third-rail collection in tunnels with overhead catenary in yards, preventing worker electrocution hazards during shunting operations
- 59-year service span: From 1905 debut until February 1964 withdrawal, encompassing North Eastern Railway, LNER, and British Railways eras on Newcastle's challenging Quayside Branch
- Extreme gradient capability: Designed specifically to start 150-ton trains on 1 in 27 (3.7%) gradients without wheelslip, solving problems that defeated steam traction in smoke-filled tunnels
- American technical heritage: Based on General Electric/Thomson-Houston steeplecab designs originally developed for Italian and French railways, adapted for British clearances and operational requirements
- National Collection preservation: No. 26500 survives at Locomotion Shildon in authentic NER lined green livery, whilst sister locomotive 26501 was scrapped in 1966
- Ready-to-run model availability: Heljan OO gauge models released late 2022 through Locomotion Models and Rails of Sheffield partnership, featuring DCC-ready capability, working pantographs, and five livery variants at £159.50-£219.95
Historical Background and Context
The genesis of the Class ES1 lay in the North Eastern Railway's desperate struggle with operating conditions on the Newcastle Quayside Branch. This three-quarter-mile freight route connected Trafalgar Yard at Manors with Newcastle Quayside Yard via three tunnels, navigating gradients as steep as 1 in 27 through sharp curves with minimal clearances. The horseshoe-shaped alignment descended from the upper level at Manors down to the riverside quays below, serving the vital Port of Tyne coal export trade and general goods traffic.
Steam locomotive operations on this route proved almost unworkable. The confined tunnel spaces—built with just sufficient clearance for loaded freight wagons—provided virtually no room for exhaust gases to disperse. Smoke and steam accumulated so thickly that drivers reportedly held shovels against tunnel walls to confirm their trains were actually moving. Wet rails became treacherously slippery on the fierce gradients. Sparks from locomotive chimneys regularly ignited packing straw in open wagons, creating serious fire hazards. Train crews suffered severe respiratory problems from prolonged exposure to toxic fumes.
The North Eastern Railway had attempted various palliatives. Typical motive power comprised Class L 0-6-0T and later J73 0-6-0T tank locomotives, chosen for their compact dimensions and adhesive weight. The railway installed spring-operated catch points nicknamed "The Runaway" to divert any out-of-control trains into safety sidings. Special 20-ton brake vans equipped with sand gear controlled descending trains. Nothing fundamentally solved the smoke problem that made the route genuinely hazardous for operating staff.
Wilson Worsdell, who served as the NER's Chief Mechanical Engineer from 1890 to 1910, recognised that electric traction offered the perfect solution. Worsdell was already implementing Britain's pioneering Tyneside third-rail electrification scheme for suburban passenger services between Newcastle and Benton. Electric locomotives produced no smoke, generated no sparks, and delivered instant power for steep gradient starts without the wheelslip that plagued steam traction on wet rails. The technology existed; it simply needed adaptation to freight operations.
Insider Tip: The Quayside Challenge
Understanding the ES1's significance requires appreciating just how extreme the Quayside Branch truly was. The 1 in 27 gradient equals 3.7%—steeper than most preserved railway inclines. Combine this with sharp curves, minimal clearances, and three separate tunnels, and you understand why the NER desperately needed a solution. Steam locomotives not only filled the tunnels with choking fumes but also struggled for adhesion on the wet rails. The ES1s solved both problems simultaneously, proving electric traction's viability for challenging freight operations decades before it became mainstream.
On 15 December 1902, the North Eastern Railway signed a contract with British Thomson-Houston for two revolutionary electric locomotives. The timing proved fortuitous—BTH had recently completed electrical equipment for electric locomotives operating on the Milan-Varese railway in Italy, which had opened in 1901 using 650V DC third-rail electrification. This provided proven technology that could be adapted to British requirements whilst maintaining confidence in reliability and performance.
The contract specified locomotives capable of meeting demanding operational requirements. They needed to start 150-ton trains on the 1:27 gradient without wheel slip, sustain 300-ton loads at 14 mph on level track, and complete the end-to-end journey in just 4.5 minutes. These specifications demanded high tractive effort combined with precise control—characteristics that electric traction could deliver but steam struggled to match on such severe gradients with restricted visibility.
British Thomson-Houston based the design on American General Electric/Thomson-Houston steeplecab patterns originally developed for European mountain railways. The mechanical components—frames, bogies, and bodywork—were subcontracted to the Brush Electrical Engineering Company at Loughborough, which had established expertise in railway vehicle construction. This Anglo-American collaboration combined proven European electrical technology with British manufacturing quality to create locomotives specifically optimised for the unique challenges of the Quayside Branch.
Design and Technical Specifications
The engineering excellence of the North Eastern Railway Class ES1 lay in the innovative dual power collection system that solved a fundamental operational conflict. Inside the confined tunnels, limited overhead clearance demanded third-rail current collection positioned safely below the loading gauge. However, in the yards at each end of the branch, exposed live rails would create unacceptable electrocution hazards for workers walking between wagons during shunting operations. The ES1s therefore collected current from 600V DC third rail in the tunnels and switched to overhead catenary in the yards, with short changeover sections enabling seamless transition between power sources.
The locomotive configuration followed the Bo-Bo wheel arrangement—described as 0-4+4-0 in contemporary NER and LNER terminology—with two four-wheeled bogies featuring central pivots specifically designed for navigating the branch's sharp curves. Each bogie carried two traction motors, providing four-wheel drive with power distributed evenly across all axles. At the time of construction, these were the largest electric locomotives built in the United Kingdom, though their dimensions remained compact by later standards to fit the restricted Quayside clearances.
The distinctive steeplecab design placed the driver's cab centrally, elevated above the running gear to provide maximum visibility in the challenging tunnel environment. Sloping bonnets at each end contained the electrical resistances used for speed control, separated from the cab by thick leather curtains as protection against potential electrical faults. This arrangement—borrowed directly from American mountain railway practice—provided excellent sightlines in both directions whilst keeping hazardous electrical equipment isolated from the crew compartment.
The four British Thomson-Houston traction motors each delivered 160 horsepower, providing a combined output of 640 bhp—substantially more than contemporary steam shunting locomotives whilst delivering it with far superior control characteristics. Electric motors produce maximum torque at zero speed, precisely the characteristic needed for starting heavy trains on steep gradients. The sophisticated resistance control enabled infinitely variable speed adjustment between zero and maximum, avoiding the jerky starts that characterised steam locomotive operation and reducing wheelslip incidents on wet rails.
The electrical control system utilised series-parallel switching of the four traction motors, providing multiple speed ranges whilst maintaining efficient power utilisation. At starting and during slow-speed operation, all four motors connected in series, maximising tractive effort. At higher speeds, the motors switched to parallel configuration, reducing voltage drop across each motor and enabling higher sustained speeds. This arrangement—standard practice on early electric locomotives—delivered excellent performance across the speed range required for Quayside operations.
Technical Innovation: Dual Power Collection
The ES1's dual power collection system represented genuine engineering innovation. Third-rail shoes mounted on the bogie frames collected current in the tunnels, where overhead clearance made catenary impossible. At each end of the branch, special transition sections enabled crews to raise the bow collectors (later replaced by pantographs) to collect from overhead wires whilst the shoes automatically lifted clear of the third rail. This seamless switching between power sources—unusual for the era—demonstrated sophisticated understanding of electric traction requirements and safety considerations. The system operated reliably for 59 years with minimal modification.
The bogies featured substantial fabricated steel frames with central pivot mountings enabling the tight curve negotiation essential for the horseshoe-shaped route alignment. Three-foot diameter wheels provided adequate adhesion through their relatively large contact patches whilst maintaining acceptable rotational inertia for rapid acceleration and braking. The wheel profile and tread width matched standard British freight vehicle wheels, ensuring compatibility with existing track and pointwork throughout the Quayside system.
Braking systems combined air brakes for the locomotive with automatic vacuum brakes for controlling train braking throughout the consist. The substantial weight of 56 tons provided excellent adhesion for both traction and braking, crucial when controlling descending trains on the 1 in 27 gradient. Sanding gear fitted to the outer edges of each bogie delivered additional adhesion during starting and braking operations, with sand boxes positioned for gravity feed to the rail surface.
Current collection equipment evolved during the locomotives' service lives. Originally fitted with bow collectors mounted on the sloping bonnets for overhead wire collection, these proved somewhat unreliable and were replaced in 1908 with diamond-pattern pantographs positioned on the cab roof. This modification improved current collection reliability and reduced maintenance requirements. The third-rail collector shoes were relocated during the late 1930s from the outer ends of the shoe beams to the centres of the bogies, coinciding with improved sanding gear installation.
Electric headlights mounted on each bonnet provided illumination for tunnel working—a significant safety improvement over the oil lamps that steam locomotives carried. The lights drew power directly from the 600V supply through appropriate resistance, providing far superior illumination compared to any contemporary steam locomotive whilst eliminating the fire hazard that oil lamps presented in the inflammable tunnel atmosphere.
Service History and Operations
The NER Class ES1 locomotives entered service with remarkable efficiency, validating Wilson Worsdell's confidence in electric freight traction. Electric operations on the Quayside Branch commenced on 5 June 1905, just weeks after the North Eastern Railway's pioneering Tyneside passenger electrification had begun operation on 29 March 1904. The ES1s immediately transformed working conditions on the route, eliminating the choking smoke and steam that had made tunnel operations genuinely hazardous whilst demonstrating superior adhesion and control on the severe gradients.
Operational patterns established during the first months would continue essentially unchanged for six decades. The locomotives operated under the "one engine in steam" principle—or more accurately, "one engine in circuit"—using a wooden staff with brass sheath stamped "NEWCASTLE QUAYSIDE BRANCH" kept at Argyle Street signal box. Only one ES1 worked at any time whilst the second remained in the depot as a spare, typically switching weekly to equalise mileage and maintenance requirements. This arrangement ensured continuous availability whilst providing standby capacity for breakdowns or maintenance.
Despite their official "Electric Shunting" classification assigned in 1945, the ES1s were not primarily shunters in the conventional sense. Their principal role involved hauling freight trains through the tunnels between the upper yard at Trafalgar (Manors) and the lower Quayside Yard, where steam locomotives—typically Y7 0-4-0T or J72 0-6-0T tanks—handled the actual wagon sorting and train formation. The ES1s even hauled these steam shunters through the tunnels each morning and returned them in the evening, avoiding any steam working in the confined spaces.
Train formations followed specific patterns dictated by the extreme gradient. The electric locomotive always positioned at the upper (head) end of the train, ready to haul loaded wagons up the steep incline. A special 20-ton brake van equipped with additional sand gear occupied the lower (tail) end to control descending movements. Trains were generally propelled down the branch under gravity with careful brake control, then hauled back up the hill by the ES1. The spring-operated catch points nicknamed "The Runaway" stood ready throughout the route's operational life to divert any out-of-control trains into safety sidings.
Operational Insight: Two-Person Crews and Power Switching
ES1 operations always required two-person crews for two critical reasons. First, switching between third-rail and overhead power collection at the transition sections demanded considerable dexterity—one crew member operated the controller whilst the other managed the power collection equipment. Second, the ES1s were never fitted with deadman's handles, meaning the controller could remain in the "on" position if a driver became incapacitated. The second crew member provided essential safety backup. This reflected early electric traction practice before sophisticated safety systems became standard equipment.
Performance in service exceeded all expectations. The ES1s routinely started 150-ton trains on the 1 in 27 gradient without wheelslip, achieved 14 mph with 300-ton loads on level track, and completed the journey in the specified 4.5 minutes. They proved capable of handling up to six goods trains per hour—double the throughput achievable with steam traction. Maintenance requirements proved surprisingly modest, with the simple electrical equipment and robust mechanical components requiring only routine attention. The locomotives' reliability vindicated Wilson Worsdell's faith in electric traction for demanding freight operations.
Minor modifications enhanced reliability and crew comfort during the early years. In 1906, electric heaters were fitted after crews complained about cold conditions during winter mornings—an early recognition of staff welfare considerations. The 1908 replacement of bow collectors with pantographs improved overhead current collection reliability. During the late 1930s, the relocation of third-rail collector shoes to the bogie centres and fitting of improved sanding gear enhanced adhesion. Exposed knife switches used for power selection were enclosed in wooden cases for safety—originally they had posed risks of accidental operation.
The locomotives passed through multiple ownership changes with Britain's railway reorganisations, each bringing new number schemes whilst operational patterns remained constant. The North Eastern Railway's original Nos. 1 and 2 continued under London and North Eastern Railway ownership from 1923, though they finally received new identities as 6480 and 6481 on 14 June 1946. British Railways renumbered them 26500 and 26501 in April 1948, the identities they would carry through final withdrawal.
One curious numbering incident occurred on 30 September 1944 when No. 1 temporarily exchanged numbers with Class D3 steam locomotive No. 4075. When the steam locomotive was subsequently renumbered to 2000, the electric locomotive resumed its original number on 24 October 1944. This temporary confusion reflected the wartime pressures that occasionally created administrative anomalies in LNER numbering records.
Traffic patterns on the Quayside Branch reflected the Port of Tyne's vital role in Britain's coal export trade. The Durham coalfields produced enormous tonnages destined for loading onto collier vessels at the riverside quays, with the Quayside Branch serving as the final link in this coal distribution chain. General goods traffic—imported materials arriving by ship for distribution inland, and manufactured goods moving to port for export—provided additional loadings. At peak periods, this represented substantial traffic volumes justifying the electric infrastructure investment.
The post-war decades brought inexorable decline in Quayside traffic. Port of Tyne coal exports fell from approximately 20 million tonnes in the 1930s to just 8.5 million tonnes by 1952. Deindustrialisation progressively reduced industrial freight flows. Port modernisation favoured larger vessels requiring deeper-water facilities at newer terminals. Road transport competition captured increasing shares of general goods traffic. By the early 1960s, the Quayside Branch handled just a fraction of its former loadings, raising questions about continued electrification costs for diminishing returns.
Electric operations finally ceased on 29 February 1964 after 59 years of continuous service. Class 03 diesel shunters assumed the diminished workload, providing adequate power for the reduced traffic whilst eliminating electric infrastructure maintenance costs. Both ES1s were placed in storage at South Gosforth car sheds before official withdrawal in September 1964. The locomotives had outlasted not only countless steam locomotives but also the first generation of main line diesels, testament to sound original engineering and the inherent longevity of electric traction when properly maintained.
Withdrawal and Preservation Legacy
The withdrawal of the North Eastern Railway Class ES1 locomotives in September 1964 marked the end of an extraordinary chapter in British railway electrification. After 59 years of continuous service hauling freight through Newcastle's Quayside tunnels, the two pioneers that had demonstrated electric traction's viability for demanding freight operations finally faced retirement. The decision to withdraw both locomotives simultaneously—rather than retaining one for standby duties—reflected British Railways' determination to eliminate the costs associated with maintaining unique electric infrastructure serving minimal traffic.
The immediate replacement came in the form of Class 03 diesel shunters, which provided adequate power for the Quayside Branch's diminished traffic whilst eliminating all electric infrastructure maintenance costs. These 0-6-0 diesel-mechanical locomotives could handle the gradients and curves without requiring specialised power supply equipment or trained electric traction crews. From British Railways' perspective, dieselisation delivered acceptable operational capability at substantially reduced cost—a calculation repeated across Britain as unique electric installations faced replacement by standardised diesel traction.
The Quayside Branch itself survived just five more years after electric operations ceased. Freight traffic continued its decline as port operations concentrated at modern deep-water terminals and road transport captured remaining general goods flows. The line closed completely on 16 June 1969, ending nearly a century of railway service to Newcastle's riverside quays. During construction of the Tyne and Wear Metro in the late 1970s, the northern tunnel portal was removed and the tunnels filled in, eliminating the physical infrastructure that had necessitated the ES1s' creation.
Preservation prospects for the two ES1s diverged dramatically. No. 26501 was sold for scrap in April 1966 and did not survive, disappearing into a scrapyard just two years after withdrawal. This represented a tragic loss—had preservation awareness developed just slightly earlier, both locomotives might have survived to tell their pioneering story. The destruction of 26501 eliminated any possibility of returning both ES1s to operational condition for heritage railway demonstration, though in reality the specialised 600V DC electrical system would have made such operation extraordinarily challenging.
Preservation's Fortunate Survivor
No. 26500 narrowly escaped its sister locomotive's fate through timely recognition of its historical significance. Set aside for preservation in January 1965—whilst still officially in service—the locomotive was transferred to Leicester Railway Museum in 1968. When that museum closed, 26500 joined the National Collection in 1977, eventually finding a permanent home at Locomotion, Shildon in County Durham. The locomotive is displayed in authentic NER lined green livery applied during its final operational years, complete with NER and BR crests on the cabsides. This sole survivor ensures future generations can appreciate Wilson Worsdell's pioneering electric freight locomotive design.
No. 26500 benefited from prescient preservation planning. The locomotive was set aside for preservation in January 1965—remarkably, whilst still officially in service—demonstrating that railway historians recognised its significance even before formal withdrawal. Transfer to Leicester Railway Museum in 1968 provided temporary accommodation during the formative years of Britain's railway preservation movement. When Leicester Railway Museum closed, 26500 joined the National Collection in 1977, gaining the long-term security that comes with national museum status.
The locomotive's current home at Locomotion, Shildon proves particularly appropriate. Located in County Durham, close to where the North Eastern Railway's later EF1 electric locomotives once operated on the Shildon-Newport electrification, Locomotion specialises in North Eastern Railway heritage. The museum's extensive collection of NER and LNER locomotives provides ideal context for understanding the ES1's role in the railway's progressive adoption of electric traction. Visitors can examine 26500 alongside other pioneering designs, appreciating the engineering innovation that characterised the NER's approach to operational challenges.

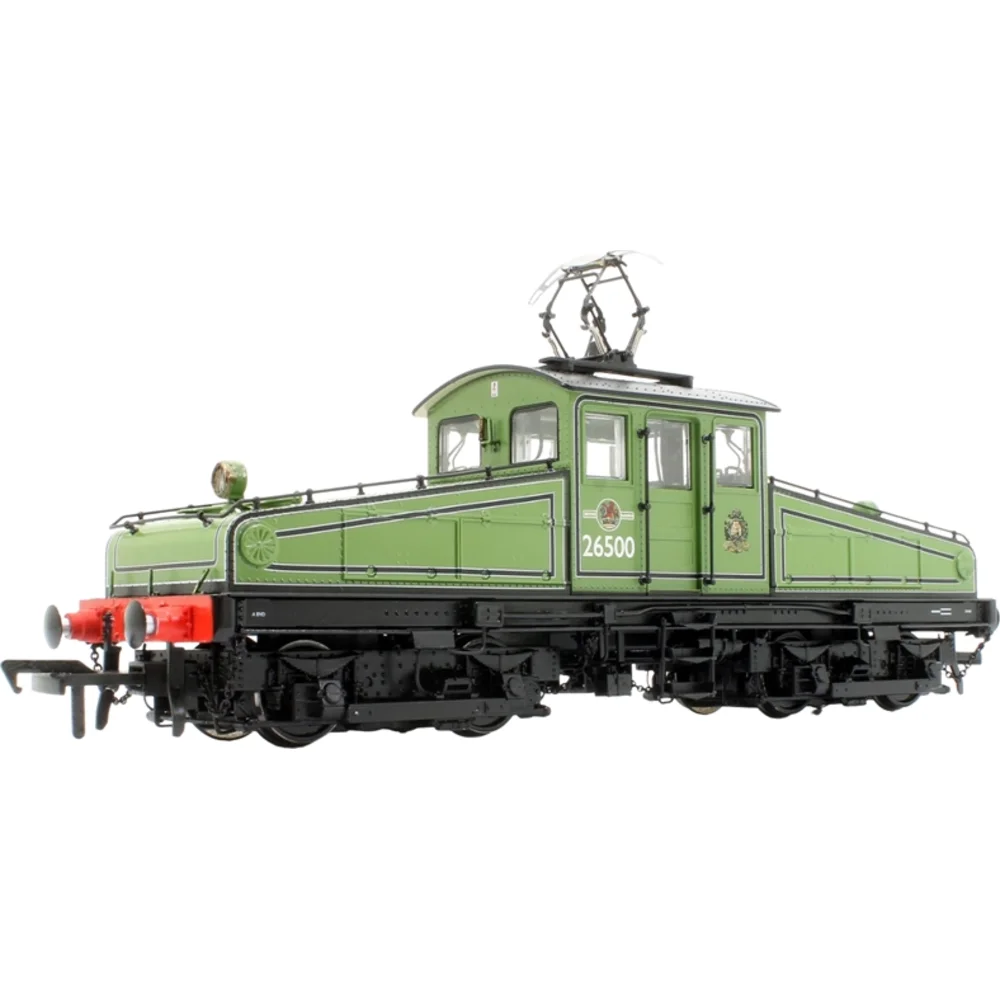

The locomotive's livery preserves its final operational appearance. Both ES1s were repainted in NER-style lined green during 1961-1962—No. 26500 in June 1961, No. 26501 in March 1962—replacing the unlined black that had characterised their LNER and early BR years. This attractive livery features the traditional NER green with black and white lining, NER crests on the cabsides, and BR "lion and wheel" emblems acknowledging the 1948 nationalisation. The preserved locomotive thus represents both NER heritage and BR-era operation, bridging multiple periods of British railway history.
The engineering legacy of the ES1s extends far beyond the preserved locomotive. These two machines demonstrated that electric traction could handle demanding freight operations on severe gradients with reliability and efficiency superior to steam power. The 59-year service life validated early electric traction technology and encouraged further electrification investments. The innovative dual power collection system—combining third-rail and overhead catenary—showed that creative engineering could solve apparently conflicting operational requirements. These lessons informed subsequent British electric locomotive design through the nationalisation era and beyond.
Contemporary significance of the preserved ES1 grows as electric traction returns to prominence in Britain's railway decarbonisation plans. Modern railway operators rediscovering electric operation's environmental and operational advantages follow paths pioneered by Wilson Worsdell and the ES1s over a century ago. The preserved locomotive serves as tangible evidence that electric freight traction offers proven reliability, efficiency, and longevity—lessons as relevant in the 2020s as they were in 1905. For railway historians and engineers, 26500 represents living proof that innovative solutions to operational challenges can deliver extraordinary long-term value.
Modelling Significance and Scale Replications
The North Eastern Railway Class ES1 presents exceptional modelling significance due to its unique position as Britain's first mainline electric freight locomotive and its extraordinary 59-year service span encompassing four corporate identities. For railway modellers seeking authentic North Eastern Railway, LNER, or early British Railways motive power, the ES1 provides a visually distinctive prototype with fascinating operational stories. The American-influenced steeplecab design creates immediate visual interest, whilst the dual power collection system offers modelling challenges and scenic opportunities for enthusiasts seeking technically accurate representations.
The modelling landscape remained frustratingly limited for decades despite the ES1's historical importance. For most of the class's existence and long after withdrawal, only etched brass kit options provided access to this prototype. Judith Edge Kits produced well-regarded brass and nickel silver body shells requiring scratch-built chassis and mechanisms—firmly specialist modeller territory demanding considerable skill and patience. This situation meant most modellers interested in NER or LNER electric traction simply couldn't access ES1 models without substantial kit-building experience.
This changed dramatically in late 2022 when a remarkable collaboration between Locomotion Models, Rails of Sheffield, and Danish manufacturer Heljan produced the first-ever ready-to-run ES1 as part of the "National Collection in Miniature" series. This partnership combined Locomotion's museum expertise and historical knowledge, Rails of Sheffield's retail experience and market understanding, and Heljan's manufacturing capability to deliver a model that finally made this historically significant prototype accessible to mainstream modellers rather than just skilled kit builders.
Heljan's approach demonstrates exemplary commitment to prototype accuracy and livery variety. Rather than producing a single generic model, the collaboration created five distinct livery variants representing the ES1 across its entire service career. This comprehensive coverage enables modellers to select schemes matching their specific layout periods and aesthetic preferences, whilst ensuring accurate period representation rather than compromised "close enough" approximations that undermine authentic layouts.
Advanced Modelling: Livery Authenticity and Period Selection

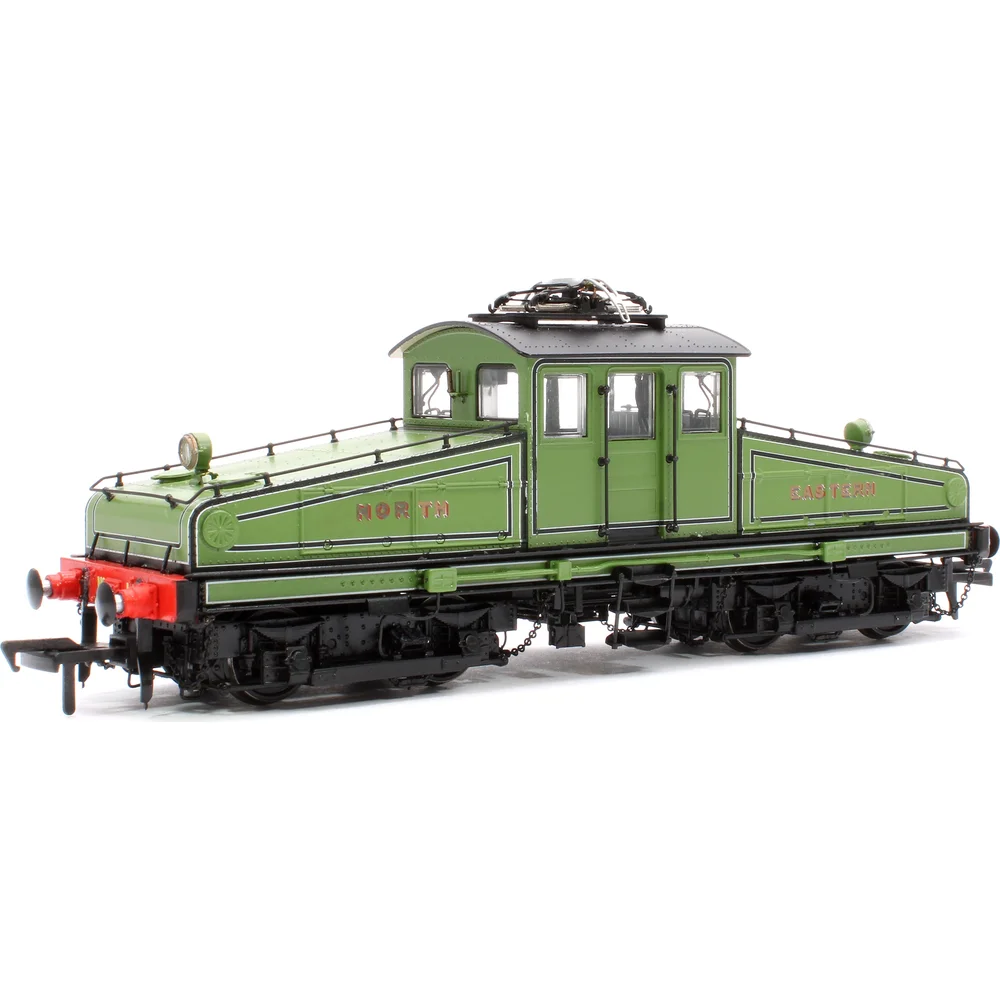

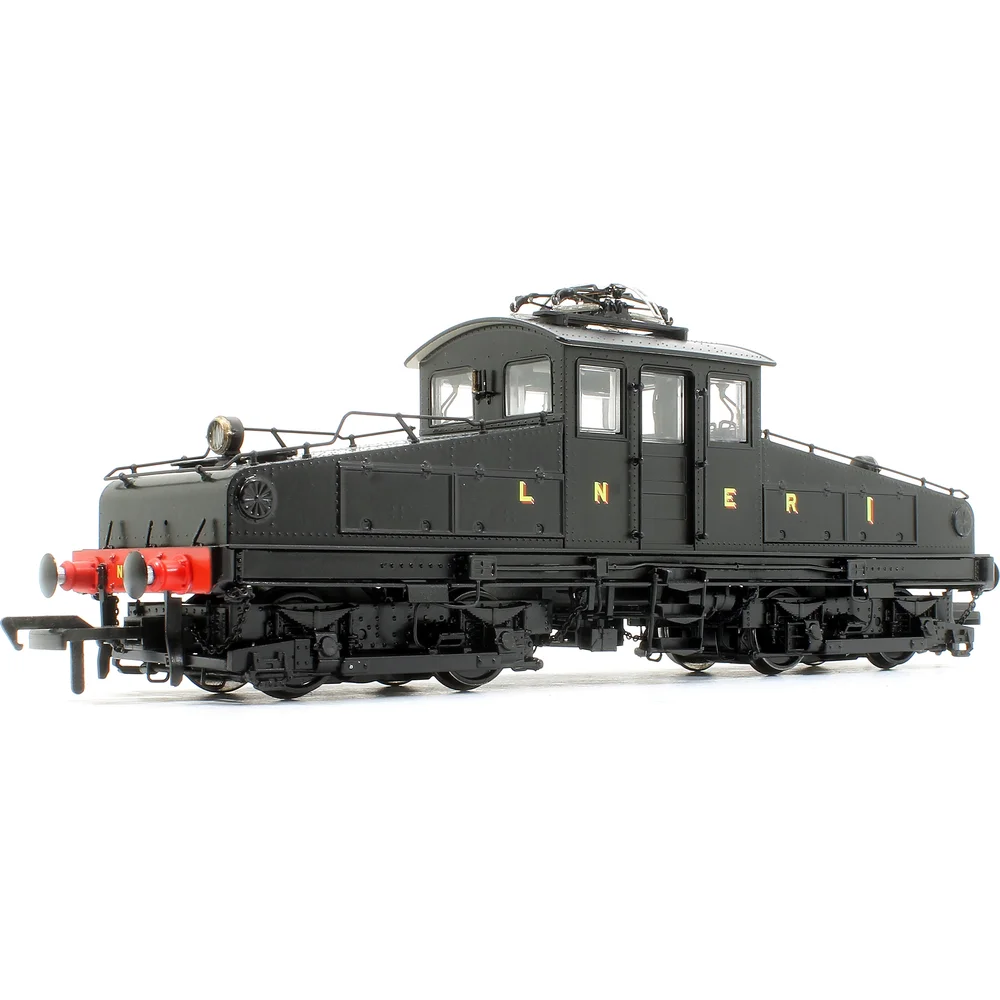

Selecting appropriate ES1 liveries requires understanding the class's appearance evolution. NER lined green (catalogue 1200-1201) represents 1905-1923 operations under original ownership. LNER unlined black (1202) covers 1923-1946 LNER ownership before late renumbering. BR black with early emblem (1203) depicts 1948-1961 nationalised appearance. BR lined green with late crest (1204) shows the final 1961-1964 livery applied shortly before withdrawal. Matching locomotive appearance to layout period creates authentic atmosphere, though the visually striking preservation livery (1200) proves popular regardless of strict chronological accuracy.
The OO gauge models feature comprehensive technical specifications meeting contemporary ready-to-run standards whilst remaining accessible to modellers of varying experience levels. DCC-ready capability with Next18 decoder socket enables straightforward digital conversion without requiring chassis modifications or complex wiring. The five-pole motor drives all wheels through precision gearing, ensuring smooth operation at realistic crawling speeds appropriate for shunting and slow freight movements. Working directional LED headlamps with cab interior lighting create authentic illumination effects for both day and night operating sessions.
Mechanical features include NEM coupling pockets accepting standard couplings whilst providing easy conversion to alternatives. The finescale sprung metal pantograph proves fully poseable, enabling modellers to depict either third-rail or overhead collection modes. Die-cast bonnet sections provide excellent weight—reported at approximately 180-200 grams—ensuring reliable adhesion and stable running characteristics. The substantial weight proves particularly valuable when hauling trains up gradients, matching the ES1's prototype capability for starting heavy loads on steep inclines.
Detail quality reaches impressive standards for ready-to-run models in this price bracket. British Railway Modelling's comprehensive May 2023 review praised the model as an "excellent recreation" with "museum quality detail," specifically highlighting separately fitted handrails, lamp irons, underframe chains, footsteps, and headlamps. The reviewer described "exquisite bogie frame and underframe detail" that rewards close examination. Factory-fitted glazing includes cab interior detail visible through windows, whilst the decorated machine room shows through body grilles. Sprung metal buffers provide authentic appearance and cushioning during coupling operations.
Running quality exceeded reviewer expectations despite initial concerns about the prototype's modest size. The British Railway Modelling assessment reported the model "comfortably handling a dozen Mk1 coaches"—far beyond any realistic ES1 duty but demonstrating that the mechanism delivers reliable performance. Smooth low-speed operation enables realistic shunting movements, whilst higher speed running remains stable and controlled. The all-wheel drive and substantial weight combine to provide adhesion characteristics matching the prototype's reputation for steep gradient capability.
Livery application demonstrates meticulous research and execution across all five variants. The NER lined green versions feature correct lining patterns with authentic NER crests on cabsides. LNER unlined black shows appropriate weathering and wear patterns. BR black with early emblem correctly represents the 1948-1956 "cycling lion" design before the revised "ferret and dartboard" emblem introduction. The BR lined green with late crest accurately depicts the attractive livery applied 1961-1964, complete with correct lining patterns and BR corporate identity elements. Paint finish quality proves uniformly excellent with crisp lining, accurate lettering, and appropriate semi-gloss sheen.
Pricing reflects current clearance of initial production stock, creating exceptional value opportunities for interested modellers. Rails of Sheffield currently offers standard versions at £159.50 (reduced from £220 RRP), weathered versions at £199.95, and detailed weathered versions at £219.95. Pre-owned examples appear occasionally at £139.50-£169.50. These substantial discounts—approximately 25-30% below original retail—suggest final clearance of initial production batches, making this an opportune moment for acquisition before stocks exhaust.
DCC sound enthusiasts face somewhat limited options. Whilst the models feature Next18 decoder sockets enabling straightforward DCC installation, Heljan did not produce factory-fitted sound versions. However, a separate DCC sound upgrade pack is available at £125, providing authentic electric locomotive sounds including motor whine, compressor operation, and appropriate control sounds. Installing this upgrade requires basic DCC knowledge but delivers significantly enhanced operational realism for modellers seeking ultimate authenticity.

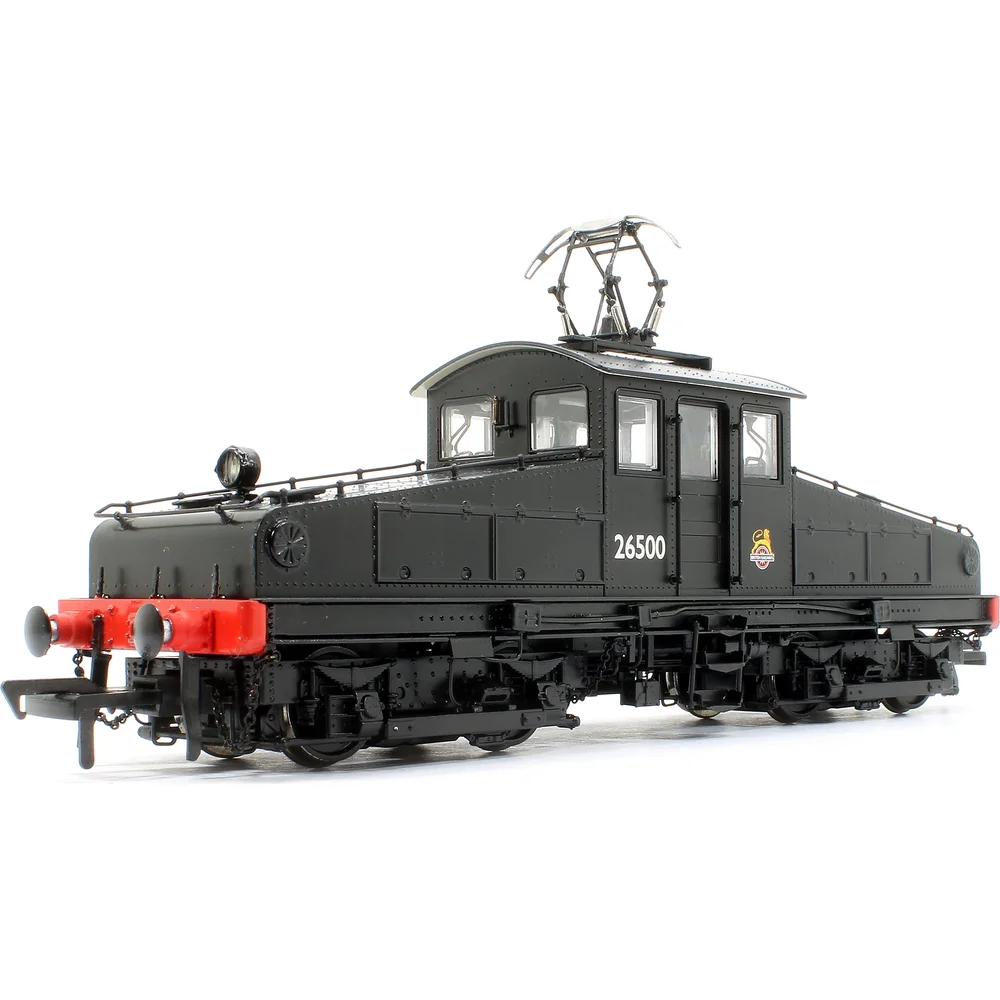

Weathered variants (catalogue numbers 1202W, 1202DW, 1203W) offer additional variety for modellers preferring realistic operational appearance over pristine factory-fresh finish. The standard weathered versions (1202W, 1203W at £199.95) feature moderate weathering representing locomotives in regular service with accumulated grime, brake dust, and operational wear. The detailed weathered version (1202DW at £219.95) shows more extensive weathering including rust streaking, paint chips, and heavily soiled running gear—appropriate for depicting locomotives approaching withdrawal or operating under intensive wartime conditions.
Unique Modelling Tips and Layout Integration
Successfully incorporating North Eastern Railway Class ES1 models into layout operation requires understanding the specialised nature of their prototype duties and the specific infrastructure that characterised Quayside Branch operations. Unlike general freight locomotives that might work diverse routes across a railway system, the ES1s spent their entire careers on a single three-quarter-mile branch line with unique operational patterns. This specificity creates both challenges and opportunities for modellers seeking authentic representation rather than generic "electric shunter" deployment.
Authentic operating scenarios should reflect the intensive shuttle operations between upper and lower yards that characterised Quayside working. A typical ES1 duty involved collecting a loaded freight train from the lower Quayside Yard, hauling it through the tunnels to the upper Trafalgar Yard at Manors, then returning with empty wagons or a different loaded consist. This pattern repeated throughout operating hours with trains propelled down the gradient and hauled back up. Modellers can recreate this shuttle operation using continuous circuits or end-to-end layouts with fiddle yards representing the upper and lower termini.
Layout design accommodating ES1 operations benefits from incorporating the distinctive infrastructure elements that made the Quayside Branch so challenging. Steep gradients—whilst impractical to model at full 1 in 27 prototype severity—can be suggested through careful scenic treatment showing track climbing or descending between levels. Tunnel portals at different elevations emphasise the vertical separation between upper riverside and lower quayside locations. Sharp curves reflecting the horseshoe alignment create visual interest whilst testing the ES1 model's curve-negotiating capability inherited from the prototype's well-designed bogies.
The dual power collection system presents fascinating modelling opportunities for electrically-minded enthusiasts seeking technical authenticity. Third-rail pickup shoes are visible on the Heljan model's bogies, whilst the poseable pantograph can be raised to represent overhead collection mode. Modellers with electrical skills can install working third-rail sections in tunnel areas and overhead catenary in yard zones, creating transition sections where the model switches between power sources. This ambitious approach demands considerable wiring expertise but delivers unmatched operational authenticity for serious North Eastern Railway modellers.
Weathering Authenticity for Electric Locomotives
ES1 weathering should reflect electric locomotive characteristics rather than steam locomotive patterns. Electric traction produces no coal dust, ash, or smokebox residue, resulting in generally cleaner appearance than steam contemporaries. Focus weathering on operational areas: brake dust along solebar edges, oil staining around bogies and traction motor housings, general road grime on lower body panels, and rust streaking on metal fittings. The tunnels' damp atmosphere would promote rust on exposed metalwork. Avoid heavy soot weathering inappropriate for electric traction—the ES1's purpose was eliminating smoke, not generating it!
Period-appropriate freight stock proves essential for authentic ES1 consists. The Quayside Branch primarily handled coal traffic in open wagons—the numerous private owner wagon models from Dapol, Bachmann, and Hornby provide excellent choices representing Durham coalfield operators. General goods traffic used standard RCH opens, vans, and covered wagons readily available from multiple manufacturers. The special 20-ton brake van with sand gear that occupied the tail of Quayside trains can be represented using Bachmann or Dapol 20-ton brake van models, perhaps with added sanding pipe detail for ultimate accuracy.
Steam shunting locomotives complement ES1 operations by handling the yard duties at each end of the branch. The NER Y7 0-4-0T and J72 0-6-0T classes frequently worked Quayside yards, with Bachmann producing an excellent ready-to-run J72 in multiple NER, LNER, and BR liveries. Depicting a J72 being hauled through the tunnels by an ES1—a documented daily practice avoiding steam working in confined spaces—creates a fascinating operational vignette demonstrating the electric locomotives' versatility beyond simple freight haulage.
Operating patterns should emphasise the "one engine in circuit" practice that characterised actual Quayside operations. Whilst modellers naturally wish to display both ES1s simultaneously, prototype practice kept one locomotive working whilst the second remained as a spare. Layout operations can reflect this by running just one ES1 during operating sessions, with the second locomotive displayed in a depot scene or spare siding. This authentic approach also prevents the jarring sight of both ES1s working simultaneously—something that never occurred in 59 years of prototype operation.
Depot scenes provide excellent static display opportunities whilst demonstrating maintenance infrastructure appropriate for small electric locomotive fleets. The ES1s were maintained at South Gosforth car sheds alongside the NER's electric multiple units, creating potential for fascinating depot vignettes combining electric locomotives and passenger units. Model the charging equipment, inspection pits, and electrical testing apparatus characteristic of early electric traction maintenance facilities. Include figures of maintenance staff examining bogies, checking pantographs, or attending to electrical equipment—activities specific to electric traction rather than steam locomotive servicing.
Era selection proves crucial for authentic ES1 representation. North Eastern Railway period layouts (1905-1922) demand NER lined green livery with period-appropriate infrastructure, signalling, and rolling stock. LNER layouts (1923-1947) should show the unlined black livery adopted under LNER ownership, though some modellers choose to retain attractive NER green for visual interest despite chronological inaccuracy. British Railways layouts (1948-1964) require either early BR black with "cycling lion" emblem (1948-1956) or the attractive BR lined green applied 1961-1964. The preservation livery (NER green with BR crests) technically represents only the final few years but proves popular across periods.
Gradient operations deserve special attention given the ES1's specific design for steep incline working. The Heljan model's all-wheel drive and substantial weight enable impressive adhesion, reportedly handling twelve coaches in testing—far beyond realistic ES1 duties but demonstrating strong gradient capability. Modellers with challenging gradients on their layouts can confidently deploy ES1s for steep incline duties, matching the prototype's reputation for starting heavy trains on 1 in 27 grades. This makes the ES1 particularly suitable for industrial branch line layouts featuring severe gradients often avoided by less powerful locomotives.
Lighting effects enhance ES1 operations, particularly for modellers depicting tunnel working. The model's working headlights illuminate track ahead, whilst cab interior lighting creates atmosphere during evening operating sessions. Modellers with electrical skills can install additional marker lights or cab instrument lighting for enhanced realism. The electric headlights represented genuine innovation in 1905—substantially superior to steam locomotive oil lamps—and their operation on models reinforces the ES1's technological advancement over contemporary steam traction.
Timetable construction should reflect the intensive frequency that characterised peak Quayside operations. The ES1s were capable of handling up to six freight trains per hour, creating constant activity rather than occasional movements. Operating sessions can feature multiple train movements with tight turnaround times, providing engaging operation within limited physical space. This intensive pattern suits small-to-medium layouts where the ES1's shuttle operations create interest without requiring extensive trackwork or multiple locomotives.
Finally
The North Eastern Railway Class ES1 represents far more than two small electric locomotives serving a three-quarter-mile branch line; these machines embodied visionary engineering that recognised electric traction's potential for solving operational challenges that defeated conventional steam power. Wilson Worsdell's decision to deploy electric locomotives on the Newcastle Quayside Branch demonstrated that innovative technology, thoughtfully applied to specific operational problems, could deliver extraordinary long-term value. The 59-year service life validated early electric traction whilst pioneering techniques and technologies that informed British railway electrification for decades.
For railway historians, the ES1s provide fascinating insights into the transition from steam to electric traction during Britain's Edwardian era. The collaboration between British Thomson-Houston and Brush Electrical Engineering combined American electrical expertise with British mechanical engineering, creating locomotives specifically optimised for uniquely challenging British operational conditions. The innovative dual power collection system—switching between third-rail and overhead catenary—demonstrated sophisticated understanding of both technical requirements and safety considerations. These achievements occurred barely a decade after electric traction emerged from experimental status to practical railway application.
The tragic loss of No. 26501 to scrappers in 1966 represents one of British railway preservation's regrettable gaps, eliminating any possibility of demonstrating both ES1s together or returning them to operational condition. However, No. 26500's survival in the National Collection at Locomotion Shildon ensures future generations can appreciate Worsdell's pioneering design. The locomotive's excellent condition, displayed in attractive NER lined green livery, enables detailed examination of construction techniques, electrical equipment, and mechanical components that characterised early 20th-century electric locomotive technology.
The 2022 arrival of Heljan's ready-to-run OO gauge ES1 models transformed the class's accessibility to model railway enthusiasts. For decades, only skilled kit builders using Judith Edge brass components could model these historically significant locomotives. The Locomotion Models/Rails of Sheffield/Heljan collaboration finally brought ready-to-run ES1s to mainstream modellers, complete with DCC-ready capability, working lights, poseable pantographs, and comprehensive livery variety spanning four corporate owners. Current discounted pricing creates exceptional value for modellers seeking distinctive North Eastern Railway motive power.
Model railway enthusiasts find in the ES1 an ideal subject that balances historical significance with practical modelling opportunities. The compact size suits layouts of all scales, the intensive shuttle operations provide engaging operational scenarios, and the variety of liveries offers choices matching different period preferences. Whether depicting Edwardian-era NER operations in elegant lined green, interwar LNER service in utilitarian black, or British Railways twilight years in attractive late-career green, ES1 models bring character and authenticity to any North Eastern Railway or LNER themed layout.
The ES1's contemporary relevance grows as Britain's railways undergo decarbonisation requiring massive electrification expansion. Modern railway operators rediscovering electric traction's environmental and operational advantages follow paths pioneered by Wilson Worsdell and the ES1s over a century ago. The lessons these locomotives taught—that electric traction delivers superior efficiency, eliminates harmful emissions, provides excellent control characteristics, and offers remarkable longevity when properly maintained—prove as relevant in the 2020s as they were in 1905. The preserved locomotive serves as tangible evidence that innovative solutions to operational challenges create lasting value.
As the railway preservation movement continues evolving and new generations discover the fascination of early electric traction, the North Eastern Railway Class ES1 stands as perfect exemplar of an era when visionary engineers weren't afraid to adopt radical solutions for challenging operational problems. These machines prove that engineering excellence emerges not from following conventional approaches, but from thoughtful analysis of specific requirements matched with innovative application of emerging technologies. The sole survivor at Locomotion Shildon, combined with excellent ready-to-run models, ensures this pioneering chapter of British railway electrification remains accessible and celebrated by enthusiasts, historians, and modellers for generations to come.
Frequently Asked Questions
How many North Eastern Railway Class ES1 locomotives were built and when?
Just two Class ES1 locomotives were constructed under a contract signed 15 December 1902 between the North Eastern Railway and British Thomson-Houston. The mechanical components were subcontracted to Brush Electrical Engineering Company at Loughborough. The locomotives entered NER stock in July 1905 and commenced electric operations on 5 June 1905 on the Newcastle Quayside Branch. This made them Britain's first mainline electric freight locomotives in regular revenue service, pioneering electric traction for demanding freight duties.
What made the Newcastle Quayside Branch so challenging that it required electric traction?
The three-quarter-mile Quayside Branch featured three tunnels with gradients as steep as 1 in 27 (3.7%), sharp curves, and minimal clearances. Steam locomotives filled the confined tunnels with choking smoke and steam so thick that drivers held shovels against walls to confirm movement. Wet rails caused wheelslip on severe gradients. Sparks ignited straw packing in open wagons. Train crews suffered respiratory problems from toxic fumes. Electric traction eliminated smoke whilst providing superior adhesion and control.
What was innovative about the ES1's power collection system?
The ES1s pioneered a dual power collection system combining 600V DC third-rail pickup in tunnels with overhead catenary collection in yards. Inside tunnels, limited clearance demanded third-rail current collection. In yards, exposed live rails would endanger workers during shunting operations. The locomotives switched between power sources at transition sections, solving conflicting operational and safety requirements. This innovative system operated reliably for 59 years with minimal modification, demonstrating sophisticated early electric traction engineering.
Did the ES1s work alone or were steam locomotives still needed?
The ES1s hauled freight trains through the tunnels between upper and lower yards, where steam shunting locomotives—typically NER Y7 0-4-0T or J72 0-6-0T tanks—handled wagon sorting and train formation. The ES1s even hauled these steam shunters through the tunnels each morning and returned them in the evening, avoiding any steam working in confined tunnel spaces. This division of duties maximised efficiency whilst eliminating smoke accumulation that had made the route hazardous under pure steam operation.
How long did the ES1 locomotives remain in service?
The ES1s served continuously for 59 years from June 1905 until February 1964, encompassing North Eastern Railway, LNER, and British Railways ownership. Electric operations ceased 29 February 1964 when Class 03 diesel shunters assumed the diminished Quayside traffic. Both locomotives were officially withdrawn September 1964. This extraordinary service life validated early electric traction technology and demonstrated remarkable longevity when properly maintained, outlasting countless steam locomotives and even first-generation main line diesels.
Are any ES1 locomotives preserved today?
One locomotive survives. No. 26500 was set aside for preservation in January 1965, transferred to Leicester Railway Museum in 1968, and joined the National Collection in 1977. It is now displayed at Locomotion, Shildon in County Durham, preserved in NER lined green livery with NER and BR crests. Sister locomotive No. 26501 was tragically sold for scrap in April 1966, eliminating any possibility of preserving both locomotives or demonstrating them together in heritage railway operations.
What ready-to-run ES1 models are currently available?
Heljan produces ready-to-run OO gauge ES1 models through a collaboration with Locomotion Models and Rails of Sheffield. Five livery variants cover the class's entire service career: NER lined green as preserved (1200), NER lined green 1908-23 (1201), LNER unlined black (1202), BR black with early emblem (1203), and BR lined green with late crest (1204). Weathered versions are also available. Current pricing at Rails of Sheffield shows standard versions at £159.50, representing substantial discounts from original £220 RRP.
Are ES1 models available in N gauge or O gauge?
No ready-to-run N gauge ES1 models exist, and none have been announced by Graham Farish, Dapol, or other N gauge manufacturers. Judith Edge Kits offers a 2mm scale etched brass body kit requiring scratch-built chassis and mechanism. For O gauge, ETS of Prague is mentioned as producing an ES1 in their tinplate O gauge range, though current production status remains unconfirmed. Heljan has not announced O gauge plans, though they might consider it if OO gauge sales prove successful.
What wagons should I run with ES1 models for authentic consists?
Quayside Branch traffic primarily comprised coal in open wagons—private owner wagon models from Dapol, Bachmann, and Hornby represent Durham coalfield operators. General goods used standard RCH opens, vans, and covered wagons from multiple manufacturers. The essential 20-ton brake van with sand gear can be represented using Bachmann or Dapol 20-ton brake van models, perhaps detailed with added sanding pipe. Typical consists ranged from 150-300 tons, translating to approximately 12-25 wagons plus brake van.
Did both ES1s work simultaneously on the Quayside Branch?
No, operations followed the "one engine in circuit" principle using a wooden staff system. Only one ES1 worked at any time whilst the second remained as a spare, typically switching weekly to equalise mileage and maintenance. This arrangement ensured continuous availability whilst providing standby capacity for breakdowns. The locomotives were capable of handling up to six freight trains per hour, providing adequate capacity without requiring both locomotives in simultaneous service throughout their 59-year operational lives.
What happened to the Quayside Branch after the ES1s were withdrawn?
Class 03 diesel shunters replaced the ES1s in 1964, handling diminished traffic until complete closure on 16 June 1969. Port of Tyne coal exports had fallen from approximately 20 million tonnes in the 1930s to just 8.5 million tonnes by 1952, with further declines through the 1960s. During construction of the Tyne and Wear Metro in the late 1970s, the northern tunnel portal was removed and the tunnels filled in, eliminating the physical infrastructure that had necessitated the ES1s' creation.
How do Heljan's ES1 models perform compared to the prototype?
British Railway Modelling's May 2023 review praised running quality as exceeding expectations, reporting the model "comfortably handling a dozen Mk1 coaches" despite the prototype's modest freight duties. The five-pole motor, all-wheel drive, and substantial die-cast weight deliver smooth low-speed operation suitable for realistic shunting movements whilst maintaining stable higher-speed running. The model successfully captures the prototype's reputation for steep gradient capability through excellent adhesion characteristics matching the ES1's documented ability to start 150-ton trains on 1 in 27 grades.
