Wilson Worsdell – The Engineer Who Shaped North Eastern Railway's Golden Age

Quick Takeaways:

• Career Span: Served as Chief Mechanical Engineer of the North Eastern Railway from 1890-1910, designing over 1,000 locomotives across 26 classes during Britain's late Victorian and Edwardian railway expansion.
• Historic First: Introduced Britain's first passenger 4-6-0 locomotive design (Class S/LNER B13) in 1899, pioneering the wheel arrangement that would dominate 20th century express power.
• Technical Philosophy: Systematically abandoned his brother's compound locomotive experiments, converting 171 compounds to simple expansion and favouring robust American-influenced designs over theoretical efficiency gains.
• American Training: Spent four and a half years at Pennsylvania Railroad's Altoona Works (1866-1871), bringing transatlantic locomotive practice to British railways including large boilers and powerful simple expansion engines.
• Preserved Examples: Three operational survivors include J27 0-6-0 No. 65894 at North Yorkshire Moors Railway and J72 0-6-0T No. 69023, plus static displays at Locomotion Museum including express 4-4-0 D17 No. 1621.
• Modelling Availability: Bachmann produces excellent ready-to-run J72 0-6-0T (£145) and G5 0-4-4T (£180-280) in OO gauge; Oxford Rail offers J27 0-6-0 (£110-190) with sound options; significant gaps remain for D20 4-4-0 and C6 Atlantic classes.
• Lasting Legacy: His J27 and J72 freight designs proved so successful that examples remained in British Railways service until 1967, making them the last pre-Grouping locomotives in regular operation, while J72 construction continued until 1951—53 years after the original design.

Wilson Worsdell stands among Britain's most significant locomotive engineers, responsible for introducing the first passenger 4-6-0 locomotive design in British history and overseeing construction of more than 1,000 steam locomotives during his twenty-year tenure at the North Eastern Railway. His approach—favouring simple expansion, large boilers, and practical reliability over theoretical efficiency—established the design philosophy that powered East Coast Main Line express services into the LNER era. Born into a Quaker engineering dynasty that helped build the Liverpool and Manchester Railway, Worsdell brought American locomotive practice to British railways and created machines that remained in service until 1967, making his designs among the longest-lived of any pre-Grouping engineer.

Early Life and Entry into Railway Engineering

Wilson Worsdell was born on 7 September 1850 at Monks Coppenhall near Crewe, the tenth child and fourth son of Nathaniel Worsdell, a carriage superintendent for the Grand Junction Railway and later the London and North Western Railway. The family's railway heritage ran extraordinarily deep—Wilson's grandfather, Thomas Clarke Worsdell, had worked alongside George Stephenson during the dawn of the railway age, building the wooden tender for Rocket and constructing the first passenger carriages for the Liverpool and Manchester Railway in 1827. Nathaniel himself gave 52 years' devoted service to the Grand Junction Railway and LNWR, while his eldest son Thomas William (born 1838) would become a distinguished locomotive engineer in his own right, eventually serving as Wilson's predecessor at the North Eastern Railway.

The Worsdells were members of the Society of Friends, and Wilson received his education at Ackworth School in Yorkshire from 1860 to 1866, an institution with strong Quaker connections. This grounding in Quaker values—honesty, simplicity, and practical service—would inform his later engineering philosophy.

After leaving school, Wilson spent a brief six-month period in the LNWR drawing office at Crewe in 1866, gaining his first exposure to formal locomotive design work. However, the truly formative period of his education came when he followed his brother Thomas to America, spending four and a half years at the Pennsylvania Railroad's Altoona Works from approximately 1866 to 1871. This American experience proved transformative for the young engineer. The Pennsylvania Railroad under J. Edgar Thomson and later Alexander J. Cassatt represented the cutting edge of American locomotive practice, favouring large, simple, powerful locomotives with substantial boilers—a philosophy Wilson would carry back to Britain and champion throughout his career.

The contrast between American and British practice was stark. Where British engineers pursued theoretical efficiency through compound expansion and sophisticated valve gear systems, American practice emphasised brute strength, generous proportions, and mechanical simplicity that minimised maintenance and maximised availability. Wilson absorbed these lessons thoroughly during his Pennsylvania years, working his way through the shops and gaining practical experience with construction and repair.

Engineering Education in Two Worlds: Wilson Worsdell's career trajectory—British apprenticeship followed by extended American training—was relatively unusual for Victorian engineers. Most contemporary British locomotive superintendents rose entirely through domestic railway workshops. His transatlantic experience gave him a broader perspective on locomotive design philosophy, ultimately leading him to favour American-style simplicity over Continental European complexity.

Career Progression and Railway Appointments

Returning to England in 1871 at age 21, Wilson rejoined the LNWR and began working his way methodically through the company's organisational hierarchy. His progression followed the typical Victorian railway career ladder: he served as assistant foreman at Stafford, then advanced to foreman at Bushbury Junction, before taking charge of the locomotive running sheds at Chester, where he remained until 1883. These appointments gave him comprehensive experience in locomotive operation and maintenance—practical knowledge that would prove invaluable when he later assumed design responsibilities.

The pivotal moment in Wilson's career came in 1883 when he accepted appointment as Assistant Mechanical Engineer to the North Eastern Railway at Gateshead under Alexander McDonnell. Moving to the northeast represented both a professional advancement and a homecoming of sorts—the Worsdell family had maintained strong connections with Quaker communities across northern England. Wilson took up residence in the house at Greenesfield Works, Gateshead, that had previously been home to the legendary Edward Fletcher, the NER's long-serving locomotive superintendent who had retired in 1882 after 43 years of service.

On 1 June 1882, Wilson married Mary Elizabeth Bradford, daughter of a Staffordshire draper. The couple established their family home in Gateshead and had at least one son, maintaining the Worsdell tradition of combining professional railway service with stable family life.

In July 1885, Alexander McDonnell died suddenly after less than three years in office, and the NER appointed Thomas William Worsdell as his successor. Wilson thus found himself once again working under his elder brother, now serving as his deputy and principal assistant. This fraternal partnership lasted five years, during which Thomas William energetically promoted compound expansion and built over 250 compound locomotives for the NER using the Worsdell-von Borries two-cylinder system.

However, Thomas William's health began failing in the late 1880s, and Wilson increasingly deputised during his brother's absences through illness. When Thomas retired on 1 October 1890 due to continued ill health, Wilson succeeded him as Locomotive Superintendent—described by contemporary accounts as a "popular choice" among NER staff. He was 40 years old and would hold the position for the next twenty years. In 1902, his title formally changed to Chief Mechanical Engineer, reflecting the broader scope of his responsibilities beyond locomotive design alone.

Contemporary accounts paint Wilson as a markedly different character from his brother. Where Thomas William was intense and driven, Wilson was described as "invariably genial and usually had a joke in reserve not far below the surface." A.R. Bennett, who knew both brothers, observed that Wilson "was in the happy position of a man whose profession is exactly what he would have chosen for himself, and when he succeeded his brother as Chief Mechanical Engineer he justified the fulfilment of his highest ambition by a devotion to the exacting duties of the position which has not often, I opine, been exceeded."

Wilson proved exceptionally capable at delegation, a quality that served him well. R. Bell's Twenty-five years of the North Eastern Railway observed that he "had little bent for administrative work. That was left largely to his capable assistant, Vincent L. Raven." This willingness to delegate administrative duties freed Wilson to focus on engineering matters while developing a strong design office team. Vincent Raven would eventually succeed him in 1910, providing continuity in NER locomotive policy.

Key Locomotive Designs and Classes

Wilson Worsdell's locomotive designs displayed an unmistakable family resemblance—clean lines, standardised components, large boilers, and a consistently practical engineering philosophy. During his twenty-year tenure, he oversaw construction of 1,016 steam locomotives across 26 distinct classes, an extraordinary output that established the motive power backbone for the North Eastern Railway's transition into the twentieth century.

The Express Passenger 4-4-0s: From M1 to D20

Wilson's first major express passenger design came in 1892 with the Class M1 (later LNER Class D17), of which 20 locomotives were built between 1892 and 1894. These handsome 4-4-0s featured 7ft 1¼in driving wheels, 160psi boiler pressure (later increased to 175psi), and 19in × 26in cylinders producing approximately 13,840 lbf tractive effort. A further 30 slightly modified Class Q locomotives (D17/2) followed in 1896-1897. These engines handled the principal NER express duties throughout the 1890s, representing Wilson's earliest statement of design intent—larger boilers and simpler valve gear than his brother's designs.

The culmination of Wilson's 4-4-0 development came with the Class R (LNER D20) introduced in 1899. Sixty locomotives were constructed between 1899 and 1907, and they represented a major technical advance. Wilson specified 200psi boiler pressure—among the highest in Britain at the time—pioneered the use of piston valves from new construction rather than as retrofits, and employed 6ft 10in driving wheels with 19in × 26in cylinders to produce approximately 17,460 lbf tractive effort.

The D20s proved remarkably capable machines that outperformed locomotives with theoretically superior specifications. Contemporary performance assessments noted that they actually exceeded Wilson's larger 4-6-0 designs in express service, demonstrating that successful locomotive design involved more than simply maximising power output. Their combination of free steaming, reliable piston valves, and balanced proportions made them favourites with enginemen. Remarkably, these 1899-vintage locomotives remained in regular service until 1957, with the final examples withdrawn only after 58 years of work—a testament to the fundamental soundness of Wilson's design approach.

No. 1621, built in 1893 as one of the original M1 class, participated in the famous 1895 Railway Race to the North, when East Coast and West Coast companies competed for the fastest London-Aberdeen timings. This locomotive survives today in the Locomotion Museum at Shildon, offering modern enthusiasts the opportunity to appreciate Wilson's elegant express passenger designs firsthand.

Britain's First Passenger 4-6-0: The Class S

In 1899, Wilson Worsdell made railway history by introducing the Class S (LNER B13)—Britain's first 4-6-0 locomotive designed primarily for passenger service. The 4-6-0 wheel arrangement, with its six coupled driving wheels and trailing carrying wheels to support a large firebox, would eventually dominate British express locomotive development throughout the twentieth century, but Wilson pioneered its passenger application.

Forty Class S locomotives were built between 1899 and 1909, featuring 200psi boiler pressure, 19in × 26in cylinders (later enlarged to 20in × 26in on some engines), and 6ft 1in driving wheels producing approximately 21,200 lbf tractive effort. The design incorporated Wilson's characteristic large boiler mounted between substantial frames, with piston valves and Stephenson link motion.

However, the B13s disappointed expectations. Despite their theoretical power advantage, they failed to match the performance of the smaller D20 4-4-0s in express passenger service. The shallow grate area—constrained by the 6ft 1in driving wheels—impaired steaming capacity, particularly at the high sustained speeds required for East Coast Main Line expresses. The locomotives proved heavy on coal, and enginemen found them less responsive than the nimbler 4-4-0s.

Wilson responded with a modified design featuring 6ft 8in driving wheels—the Class S1 (LNER B14)—but only five were constructed in 1907, and they shared the steaming limitations of their predecessors. Both classes found their métier in fast perishable freight and excursion work rather than premier expresses, demonstrating that pioneering new wheel arrangements involved inevitable development difficulties.

The B13/B14 experience taught valuable lessons about grate area limitations and boiler design that would inform Vincent Raven's later and more successful 4-6-0 developments. While not wholly successful themselves, Wilson's first 4-6-0s established the wheel arrangement's viability for British conditions and paved the way for the famous Pacifics and 4-6-0s that would dominate express services after Grouping.

Pioneering the 4-6-0: Wilson Worsdell's Class S represented an ambitious attempt to apply American locomotive practice—where the 4-6-0 "Ten-Wheeler" had proven highly successful—to British express services. However, American locomotives typically operated at lower sustained speeds and pulled heavier trains over longer distances, while British express work demanded sustained high-speed running. The shallow British loading gauge, which prevented the deep fireboxes common on American practice, created steaming challenges that Wilson's initial 4-6-0 design couldn't fully overcome. His pioneering effort nonetheless established that six-coupled express engines were viable, even if refinement was needed.

Atlantic Power: The Class V

After a visit to America in 1901 by senior NER staff including Wilson himself, the company adopted a "Big Engine Policy" centred on 5ft 6in diameter boilers. This decision was influenced partly by competitive pressures—the large Atlantics of H.A. Ivatt's design arriving at York on Great Northern Railway expresses demonstrated the capabilities of the 4-4-2 wheel arrangement, which Ivatt had introduced to Britain in 1898.

Wilson's response came in November 1903 with the Class V (LNER C6) Atlantic. Twenty magnificent locomotives were constructed—ten in 1903 and a further ten in 1910—featuring 200psi boiler pressure, 20in × 28in cylinders, 6ft 10in driving wheels, and the large 5ft 6in diameter boiler that produced approximately 20,000 lbf tractive effort. With 28.6 square feet of grate area, these were substantial machines capable of handling the heaviest East Coast expresses.

Contemporary technical assessments ranked the C6 among the most powerful locomotives in Britain when introduced. They proved their worth on the difficult gradients and fast schedules of the York-Edinburgh route, particularly after Schmidt superheaters were fitted from 1914 onwards, improving thermal efficiency significantly. The Atlantics represented Wilson's locomotive design philosophy at its mature peak—generous proportions, simple reliable mechanisms, and substantial reserves of power.

The C6 Atlantics continued in frontline express service through World War I and into the LNER era, with several examples receiving Gresley's ACFI feed water heating equipment in the 1930s. They were not withdrawn until 1944-1945, giving over forty years of service. Sadly, none survived into preservation—a significant loss given their historical importance and impressive appearance.

The Freight Workhorses: Progressive Development

Wilson's approach to freight locomotive design showed careful evolutionary development rather than revolutionary leaps. His 0-6-0 freight designs progressed through four distinct classes, each building on experience with its predecessor:

Class P (LNER J24) of 1894-1898: 70 locomotives with 160psi boiler pressure, 4ft 7¼in driving wheels, 18½in × 26in cylinders producing approximately 19,365 lbf tractive effort. These replaced older Fletcher designs and established Wilson's freight locomotive template.

Class P1 (LNER J25) of 1898-1902: 120 locomotives maintaining 160psi pressure but with improved boiler design and slightly larger dimensions, demonstrating incremental refinement.

Class P2 (LNER J26) of 1904-1905: 50 locomotives with increased 200psi boiler pressure and 18½in × 26in cylinders producing approximately 23,160 lbf tractive effort, reflecting the NER's move toward higher working pressures.

Class P3 (LNER J27) of 1906-1923: The culmination of Wilson's 0-6-0 development. 115 locomotives were built with 180psi boiler pressure, deeper fireboxes, and sloping grates producing 24,640 lbf tractive effort.

The Class P3/J27 represented Wilson's freight design philosophy perfected through practice. These locomotives proved so successful that Vincent Raven continued their construction unchanged after Wilson's retirement, with final examples built in 1923. Remarkably, J27s survived in regular British Railways service until 1967—the last pre-Grouping locomotives in everyday operation. Their longevity stemmed from rugged simplicity, ease of maintenance, and perfectly matched specifications for the mineral and coal traffic dominating northeast England.

One J27, No. 65894 (originally NER 2392), survives in working order at the North Yorkshire Moors Railway, maintained by the North Eastern Locomotive Preservation Group. This remarkable locomotive continues operating heritage services today, over 110 years after Wilson's initial design.

Heavy Mineral Power: The 0-8-0 Development

The North Eastern Railway's vast coal traffic from Durham and Northumberland collieries demanded locomotives capable of hauling heavy trains over severe gradients. Wilson responded with the Class T/T1 (LNER Q5) introduced in 1901. Ninety 0-8-0 locomotives were constructed over the decade 1901-1911, divided between 40 with piston valves (Class T proper) and 50 with slide valves (Class T1).

These powerful machines featured 160psi boiler pressure, 20in × 26in cylinders, 4ft 7¼in driving wheels, and produced approximately 28,000 lbf tractive effort—the most powerful freight engines Wilson designed. The eight-coupled wheel arrangement provided excellent adhesion for starting heavy trains on gradients, while the relatively small driving wheels prioritised tractive effort over speed.

The Q5s established the 0-8-0 as the NER's standard heavy mineral locomotive type. Vincent Raven would build on Wilson's pioneering work with his even more numerous Q6 and Q7 classes, but the original Q5 design proved its worth throughout the LNER era and into British Railways days. The last Q5s were not withdrawn until 1962, demonstrating once again that Wilson's practical engineering approach produced genuinely long-lived designs.

Tank Engines and Suburban Services

Wilson's Class O (LNER G5) 0-4-4T of 1894-1901 became the standard NER suburban passenger tank engine. 110 locomotives were built, featuring 160psi boiler pressure (later increased), 18in × 26in cylinders, and 5ft 1¼in driving wheels. The 0-4-4 wheel arrangement—with four coupled driving wheels and a four-wheel trailing truck carrying the bunker—provided good adhesion for starting combined with comfortable riding for passengers.

The G5s proved ideally suited to suburban services around Newcastle, Middlesbrough, and Hull, where frequent stops demanded good acceleration combined with moderate maximum speeds. Several received push-pull apparatus for branch line operation. One example, No. 67345, survives at the Locomotion Museum, while another occasionally operates in preservation.

Perhaps Wilson's most enduring tank engine design was the Class E1 (LNER J72) 0-6-0T shunting locomotive of 1898-1923. This achieved the remarkable distinction of remaining in production for 53 years—British Railways built new J72s to Wilson's original 1898 design in 1949-1951, a testament to how perfectly the specification matched requirements for marshalling yards and goods depot shunting work.

113 J72s were constructed, featuring 140psi boiler pressure, 17in × 24in cylinders, 4ft 1¼in driving wheels, and producing approximately 16,760 lbf tractive effort. The compact dimensions allowed operation in restricted spaces, while substantial coal and water capacity enabled extended shunting turns. These locomotives formed the backbone of NER, LNER, and BR(NE) shunting operations for over six decades.

One J72, No. 69023 "Joem," survives in operational condition at the Wensleydale Railway—the sole survivor of Wilson's most numerous tank engine design. Built in 1951 to the 1898 specification, it represents both the longevity of Wilson's designs and British Railways' reluctance to invest in entirely new shunting locomotive designs when a fifty-year-old specification still performed adequately.

Electrification Pioneer

Wilson Worsdell also pioneered British main-line railway electrification. The North Tyneside suburban services between Newcastle and Benton (later extended to Tynemouth) were electrified using 600V DC third rail from 1903-1904—the first main-line electric railway in Britain.

Two Class ES1 Bo-Bo electric locomotives were ordered for the Newcastle Quayside branch in 1905, built by British Thomson-Houston. These pioneering electric locomotives could haul 300 tons at 25 mph, demonstrating Wilson's willingness to embrace new technologies when circumstances warranted. No. 26500 survives in the Locomotion Museum collection—Britain's oldest main-line electric locomotive.

Technical Innovations and Patents

Wilson Worsdell's most significant "innovation" was actually a systematic rejection of his brother's technical choices. Thomas William had been an enthusiastic advocate of compound expansion, building over 250 compound locomotives using the Worsdell-von Borries two-cylinder system between 1885 and 1890. The theoretical advantage of compound working—expanding steam first in a high-pressure cylinder, then in a larger low-pressure cylinder—promised fuel economy through more complete heat extraction.

However, Wilson commissioned a detailed report in 1893 examining "coal consumption and failures to start and stop" for the NER's compound fleet. The findings were damning: coal savings from compounding "tended to be overstated in controlled trials compared to normal operation." Starting difficulties proved endemic—compounds required precise handling and could stick on dead centre. Crew training was more complex, maintenance costs were higher due to additional valves and passages, and the theoretical efficiency gains seldom materialised in everyday service.

By 1894, the NER Locomotive Committee had decided to convert all compounds to simple expansion, and Wilson began this conversion programme systematically. All 171 Class C compounds (LNER J21) were rebuilt as simples between 1901 and 1913. This represented Wilson's most significant technical policy decision: choosing operational reliability and driver acceptance over marginal theoretical efficiency. It proved the right choice—the J21s served reliably as simples until the 1960s.

Wilson's adoption of piston valves represented genuine technical innovation rather than rejection of predecessors' work. Chief Draughtsman Walter M. Smith had experimented with piston valves from 1888, and Wilson gradually extended their application. The D20 class of 1899 introduced outside admission piston valves as standard equipment, enabling later application of superheating (which slide valves could not accommodate due to distortion at high temperatures).

On superheating itself, Wilson proved initially sceptical. At the November 1910 Association of Railway Locomotive Engineers meeting, he stated he did not think "there would be much in the superheater." This proved an unfortunate prediction—Schmidt superheaters were fitted to NER locomotives from 1912 onwards, delivering the 15-25% efficiency improvements Wilson had doubted. His successor Vincent Raven enthusiastically embraced superheating, retrofitting Wilson's locomotives and incorporating the technology as standard. This rare instance of Wilson being demonstrably wrong on a technical question demonstrates that even highly capable engineers can misjudge emerging technologies.

Wilson's variable blastpipe patent (GB190716980, jointly with Walter Reuben Preston, published July 1908) addressed exhaust drafting optimisation. The patent described a mechanism allowing enginemen to vary the blastpipe orifice area, theoretically improving efficiency by matching exhaust ejection to steaming requirements. While not universally adopted, the patent demonstrated Wilson's continued engagement with technical improvement throughout his career.

The NER dynamometer car, built at Darlington Works in 1906 under Wilson's direction, marked a significant advance in locomotive testing methodology. This specialised coach, fitted with precision instruments for measuring drawbar pull, speed, and coal/water consumption, enabled scientific performance evaluation rather than relying on enginemen's subjective impressions. Contemporary engineering journals noted it "marked the beginning of a new era in the creation of accurate data regarding tractive efforts." The same dynamometer car would later record Mallard's 126 mph world speed record in 1938, demonstrating the longevity of Wilson's investment in testing infrastructure.

The Compound Controversy: Wilson Worsdell's systematic conversion of all NER compounds to simple expansion represented one of British railway engineering's most significant policy reversals. While Continental European railways continued using compound locomotives successfully into the diesel era, and the Midland Railway under S.W. Johnson built compounds until 1905, Wilson concluded that British operating conditions—frequent stops, intensive scheduling, and moderate coal costs—favoured simple reliability over compound efficiency. His decision proved commercially sound for the NER, though engineering historians continue debating whether more sophisticated compound designs might have succeeded where the Worsdell-von Borries system failed.

Engineering Philosophy and Approach

Wilson Worsdell's engineering philosophy can be summarised in a single phrase: "American simplicity over Continental complexity." His four years at Pennsylvania Railroad's Altoona Works indelibly shaped his approach to locomotive design, leading him to favour generous proportions, simple mechanisms, and practical reliability.

Where Continental European engineers pursued theoretical efficiency through compound expansion, sophisticated valve gears (Walschaerts, Joy, Gooch), and carefully optimised dimensions, Wilson chose American-style simplicity: straightforward two-cylinder simple expansion, reliable Stephenson link motion, and boilers larger than strictly necessary to ensure free steaming under all conditions. This philosophy particularly contrasted with his brother Thomas William's embrace of compounding and Joy valve gear.

Several principles characterised Wilson's mature design approach:

Standardisation and interchangeability: Wilson pursued component standardisation relentlessly. Many of his classes shared boilers, cylinders, motion components, and other parts, reducing stores inventory and simplifying maintenance. The progression from Class P through P3 showed careful evolution rather than wholesale redesign, allowing workshops to accumulate expertise.

Generous boiler capacity: Following Pennsylvania Railroad practice, Wilson specified boilers with substantial reserves above nominal requirements. This approach ensured reliable steaming even with indifferent coal quality or less skilled firing, trading theoretical efficiency for practical reliability. His 5ft 6in boiler for the Atlantics exemplified this philosophy—contemporaries noted the C6s were "never short of steam."

Simple, robust mechanisms: Wilson favoured proven Stephenson link motion over more sophisticated alternatives. While Walschaerts valve gear offered theoretical advantages in accessibility and lighter reciprocating masses, Wilson valued the Stephenson gear's simplicity and accumulated experience base. Similarly, his systematic rejection of compound expansion favoured straightforward operation over fuel economy.

High boiler pressure: Wilson pioneered 200psi working pressure in British practice with his 1899 designs, recognising that higher pressure enabled smaller cylinders (reducing reciprocating masses and hammer blow) while maintaining power output. This technical choice aligned with American practice, where high pressure had proven successful.

Operator acceptance: Unlike some engineers who prioritised technical elegance over driver preferences, Wilson valued enginemen's opinions. His rejection of compounds partly reflected drivers' complaints about starting difficulties and unfamiliar handling characteristics. The D20s' popularity with crews validated his approach—locomotives that drivers liked tended to perform better in service.

Evolutionary development: Wilson rarely pursued revolutionary designs. Instead, he refined and improved existing concepts through successive classes. The progression P to P3 exemplified this approach—each class incorporated lessons from its predecessor while maintaining fundamental design continuity.

Delegation and team building: Colleagues consistently noted Wilson's willingness to delegate. He relied heavily on capable assistants including Chief Draughtsman Walter M. Smith and future successor Vincent Raven, fostering a strong design office culture. This approach contrasted with autocratic contemporaries who insisted on personal control of every detail.

Wilson's approach proved commercially successful for the NER's specific circumstances—intensive coal traffic, relatively modest passenger speeds, and operations concentrated in the northeast with established workshop practices. However, his initial scepticism toward superheating demonstrated the limitations of overly conservative engineering philosophy. The lesson from Wilson's career is that successful engineering requires both fundamental sound principles and openness to proven innovations—a balance Wilson generally achieved, despite occasional misjudgements.

Preserved Locomotives and Heritage

Several Wilson Worsdell designs survive in preservation, offering modern railway enthusiasts the opportunity to experience his engineering philosophy firsthand:

Operational Locomotives

J27 0-6-0 No. 65894 (originally NER 2392) represents the pinnacle of Wilson's freight locomotive development. Built at Darlington Works in March 1923 (under Vincent Raven's tenure but to Wilson's 1906 design), this locomotive spent its working life on coal and mineral traffic around the northeast. After withdrawal by British Railways in 1967, it was purchased by the North Eastern Locomotive Preservation Group and eventually restored to operational condition.

No. 65894 returned to service in May 2018 after an extensive overhaul costing over £400,000 and requiring ten years of work. The locomotive operates regular services on the North Yorkshire Moors Railway, hauling trains through spectacular moorland scenery on the 24-mile heritage line between Pickering and Grosmont. Its powerful exhaust beat and characteristic appearance provide authentic insight into Wilson's freight locomotive philosophy—simple, robust, and effective.

J72 0-6-0T No. 69023 "Joem" offers a fascinating preservation story. Built by British Railways at Darlington in October 1951—53 years after Wilson's original 1898 design—this locomotive demonstrates the extraordinary longevity of his shunting tank concept. After withdrawal in 1964, it was preserved and eventually arrived at the Wensleydale Railway in North Yorkshire, where it operates passenger trains and demonstration goods workings.

"Joem" represents the sole surviving example of Wilson's most numerous tank engine class, with 113 built over more than five decades. Its compact dimensions, powerful performance, and economical operation explain why British Railways saw no reason to develop a replacement design when Wilson's 1898 specification still met requirements perfectly.

Static Display at Locomotion Museum, Shildon

The Locomotion Museum at Shildon houses the finest collection of North Eastern Railway locomotives, including three significant Wilson Worsdell designs:

D17 4-4-0 No. 1621 was built at Gateshead Works in September 1893 as one of Wilson's first express passenger designs. This elegant locomotive participated in the famous 1895 Railway Race to the North, when East Coast and West Coast railway companies competed for the fastest London-Aberdeen timings. The locomotive is displayed in NER lined green livery, showing Wilson's characteristic clean lines and well-proportioned appearance. Examining No. 1621 reveals details of late Victorian express locomotive practice—the large 7ft 1¼in driving wheels, outside cylinders, and compact boiler.

"Aerolite" 2-2-4T No. 66 represents an unusual tank locomotive substantially rebuilt by Wilson Worsdell in 1892 and again in 1902. Originally built in 1869 to Edward Fletcher's design, Wilson's rebuilds transformed it into essentially a new locomotive while retaining the distinctive wheel arrangement. The locomotive is displayed in its final 1902 configuration, demonstrating Wilson's willingness to rebuild and modernise older designs rather than simply scrapping them.

ES1 Electric Locomotive No. 26500 (originally NER 1 and 3) dates from Wilson's pioneering North Tyneside electrification of 1905. This Bo-Bo electric locomotive represents Britain's first main-line electric traction application, demonstrating Wilson's forward-thinking approach to new technologies. The locomotive is displayed with one electric locomotive from the 1903 passenger multiple unit stock, showing the complete electrification system.

The Locomotion Museum (Dale Road West, Shildon, County Durham, DL4 2RE) is open daily from 10:00-17:00 in summer months (10:00-16:00 in winter). Admission is free. The museum's New Hall, opened in May 2024, houses Europe's largest undercover collection of historic railway vehicles. Excellent interpretation panels explain the technical features and historical context of the Worsdell locomotives.

Visiting Information

North Yorkshire Moors Railway (Pickering Station, Park Street, Pickering, North Yorkshire, YO18 7AJ) operates steam services over 24 miles of spectacular moorland scenery. The 2025 season runs from 31 March through 2 November. Adult return fares cost approximately £40, with 10% discounts available for advance online booking. The J27 operates regularly during the season, offering authentic experience of Wilson's freight locomotive design hauling passenger trains through dramatic landscapes.

Services depart Pickering approximately hourly during peak season, with the journey to Grosmont taking about 75 minutes each way. The railway offers excellent dining options including lunch and afternoon tea services. Advanced booking is strongly recommended during school holidays and special events.

Wensleydale Railway (Leeming Bar Station, Leases Road, Leeming Bar, Northallerton, DL7 9AR) operates the J72 on a more limited basis, typically during special events and gala weekends. The 22-mile heritage line runs from Leeming Bar through Leyburn to Redmire, offering scenic journeys through the Yorkshire Dales. Check the railway's website for current J72 operating dates, as the locomotive undergoes periodic maintenance.

The Lost Atlantics

Sadly, none of Wilson's magnificent Class V (C6) Atlantics survived into preservation. All 20 were withdrawn between 1944 and 1945, with scrapping completed before the preservation movement gained momentum. This represents a significant loss—the Atlantics were historically important as Britain's most powerful pre-1914 locomotives, and their impressive appearance would have made them outstanding heritage attractions.

Scale Models and Modelling Significance

Scale modellers enjoy excellent ready-to-run coverage of several Wilson Worsdell classes, though significant gaps remain:

OO Gauge (4mm:1ft scale, 16.5mm track gauge)

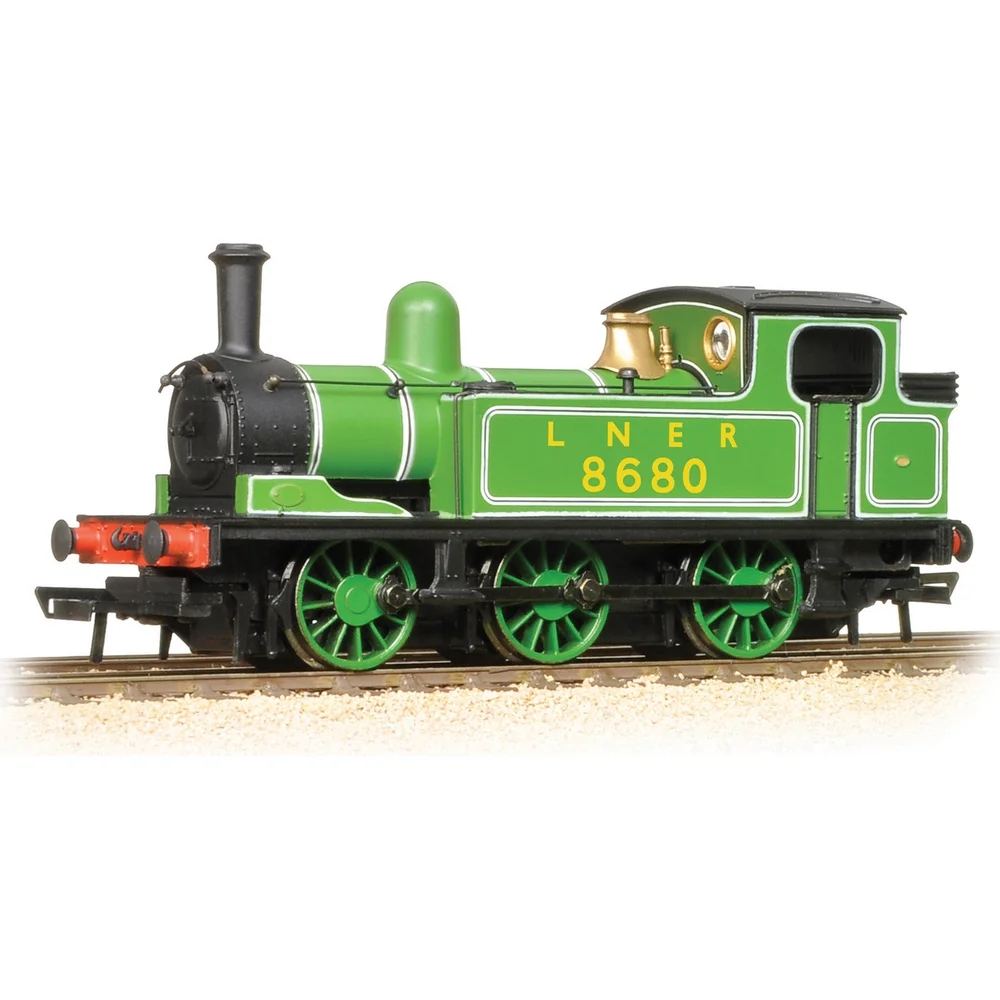

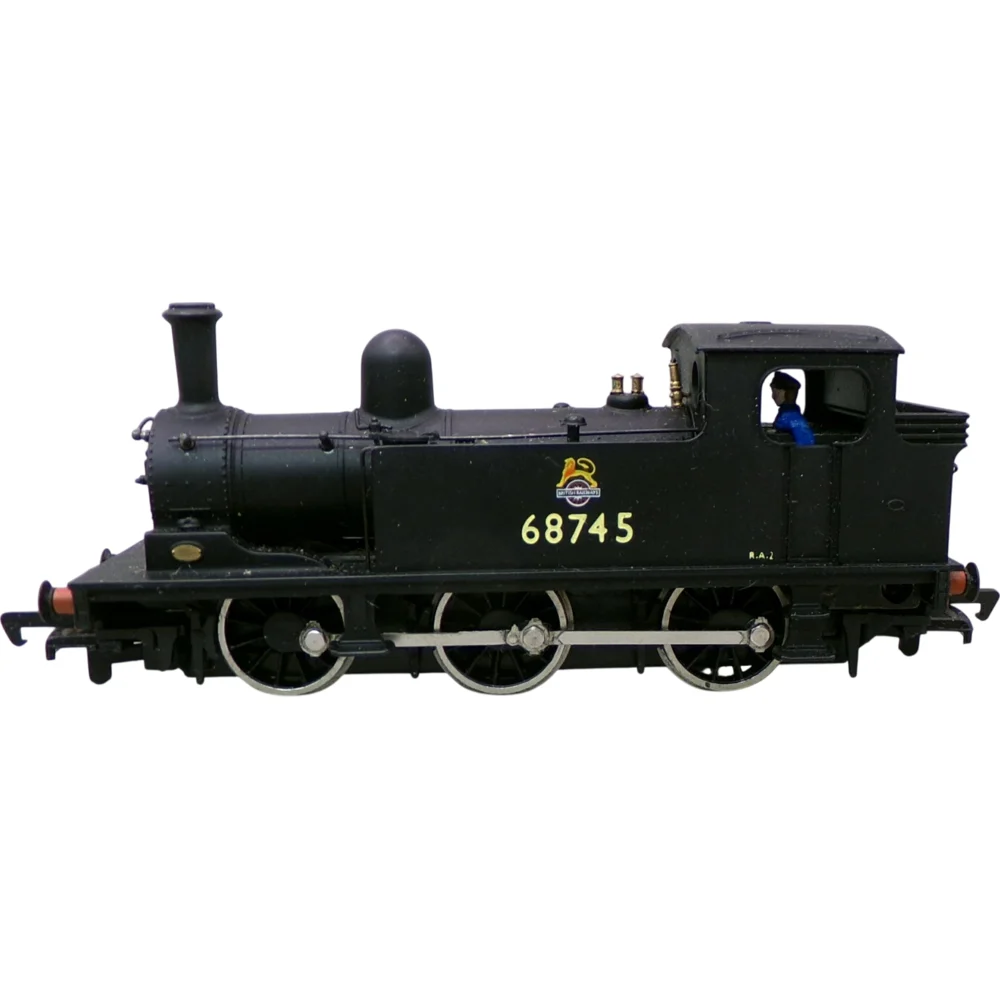

Bachmann J72 0-6-0T: Bachmann's 2019 release features entirely new tooling with exceptional detail including visible inside valve gear, LED firebox flicker effect, and sprung buffers. Multiple livery variants cover NER, LNER, and BR periods. The model features Next18 DCC socket and measures approximately 82mm length over buffers. Current retail price approximately £145. This represents the finest ready-to-run J72 ever produced, capturing Wilson's compact shunting locomotive perfectly.

Bachmann/TMC G5 0-4-4T: The 2023 release offers ten variants capturing prototype differences including bunker styles, cab window arrangements, and push-pull equipment configurations. The model features Next18 DCC socket with pre-fitted speaker cavity, working lights, and detailed valve gear. Offered in both standard and sound-fitted versions across NER, LNER, and BR liveries. Prices range from approximately £180 for standard versions to £280 for factory sound-fitted models. The G5 fills a long-standing gap in NER modelling and is proving highly popular with enthusiasts.

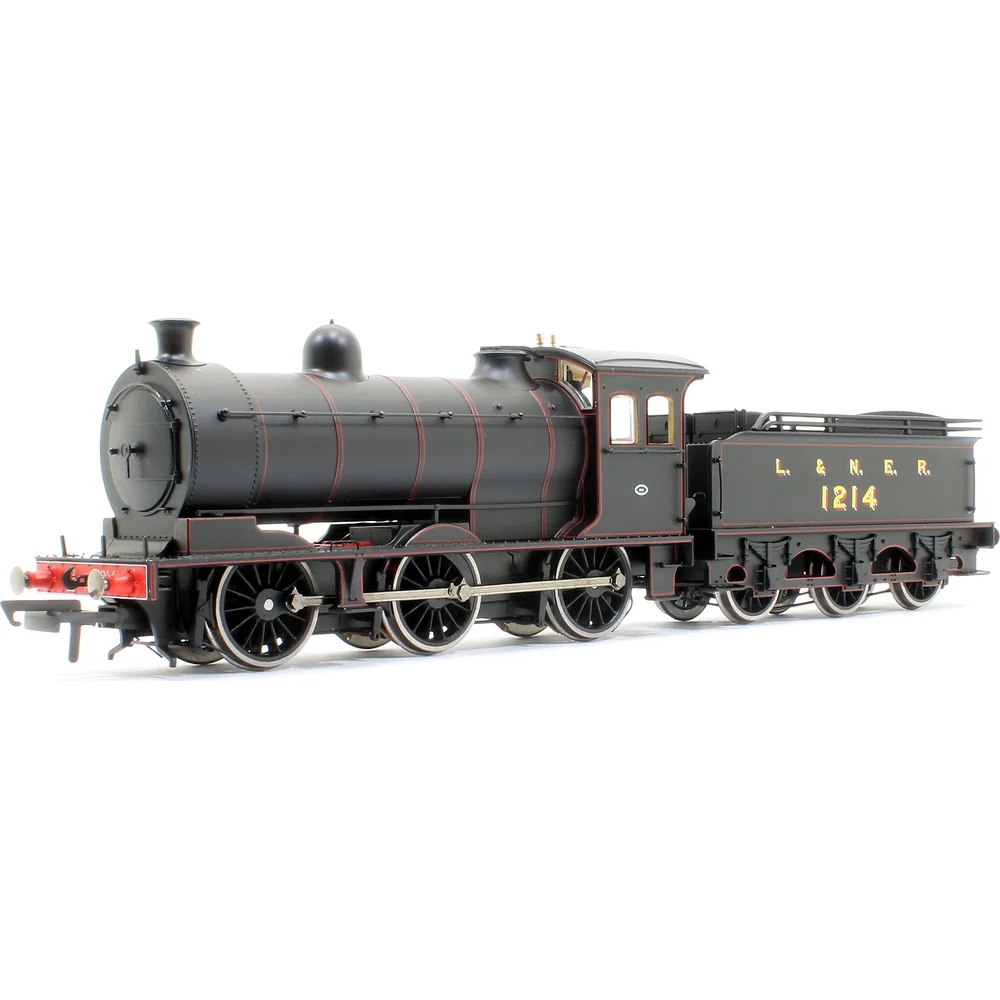

Oxford Rail J27 0-6-0: Released in 2021 with standard 8-pin DCC socket. Available in both DCC-ready (£110) and ESU LokSound factory-fitted versions (£190). Multiple livery variants cover LNER and BR periods. The model captures the J27's purposeful appearance and runs smoothly at slow speeds suitable for mineral train operation. While not quite matching Bachmann's detail standards, it represents excellent value for money and has proven popular for freight train operation.

Dapol J21 0-6-0: Announced for late 2025 release. This will be the first ready-to-run model of Wilson's converted compound design (originally his brother's Class C). Specifications not yet finalised, but Dapol's recent LNER releases suggest pricing around £120-140.

N Gauge (2mm:1ft scale, 9mm track gauge)

Dapol J72 0-6-0T: Announced for Q4 2025 release with eight livery variants spanning NER through BR periods. Expected pricing approximately £75-85. This will be N gauge's first Wilson Worsdell locomotive model, filling a significant gap for northeastern England modellers in smaller scales.

Significant Modelling Gaps

Several historically important Wilson Worsdell designs lack ready-to-run models:

D20 4-4-0: Despite strong modeller demand and 60 locomotives built, no mainstream manufacturer has produced this class. The D20's importance as Wilson's most successful express design and 58-year service life make this a glaring omission. Kit options exist from Dave Bradwell and Nu-Cast.

C6 Atlantic 4-4-2: No model exists in any scale from mainstream manufacturers despite the Atlantic's historical significance as NER's premier express locomotive. The C6's impressive appearance and power would make an attractive model. Some specialist brass manufacturers have produced very limited runs.

B13/B14 4-6-0: Britain's first passenger 4-6-0 design lacks representation, though modelling interest is limited given the class's relative lack of success.

Q5 0-8-0: The powerful freight locomotives remain unmodelled despite 90 built and service until 1962.

Kit builders can address these gaps through products from Nu-Cast (whitemetal kits), Dave Bradwell (etched brass kits), Dave Alexander (3D-printed components), and others. However, kit building requires considerably more skill and time than assembling ready-to-run models.

Modelling Wilson Worsdell's NER

Creating an authentic North Eastern Railway layout featuring Wilson Worsdell's designs requires attention to several factors:

Era selection: Wilson's locomotives operated from 1892 through 1967 (J27s), spanning NER, LNER, and BR periods. Modellers must choose their preferred era and ensure locomotives carry appropriate liveries and modifications for that period.

Traffic types: Wilson designed for both express passenger (D20, C6) and heavy freight (P3/J27, Q5), so authentic operation requires both train types. The NER handled enormous coal traffic—mineral trains should predominate on a prototypical layout.

Infrastructure: NER infrastructure featured distinctive architectural styles including substantial stone-built stations, coal staithes, and goods facilities. Signal boxes followed NER patterns. Trevor Booth's The North Eastern Railway: A Guide for Modellers provides excellent reference material.

Liveries: NER locomotives wore variations of "invisible green" (a dark bronze-green) with lining. LNER reclassified Wilson's designs and applied various livery schemes from apple green (express passenger) through black (freight). BR applied lined black initially, then plain black with or without early or late crests.

Operating practice: NER trains were typically hauled by single locomotives—double-heading was relatively uncommon compared to other companies. Freight trains were loose-coupled with single brake vans.

The combination of available models now makes authentic NER modelling more accessible than ever before. The Bachmann J72 and G5 alongside Oxford Rail's J27 provide excellent starting points, while Dapol's forthcoming J72 will bring Wilson's designs to N gauge modellers.

Legacy and Influence on Railway Engineering

Wilson Worsdell retired in May 1910 at age 59, succeeded by his longtime assistant Vincent Raven. He settled at "The Glebe" in South Ascot, Sunninghill, Berkshire, approximately 25 miles west of London. On 14 April 1920, he died suddenly at his residence, aged 69 years. He was buried at All Souls Church, South Ascot, leaving a widow and one son.

The Institution of Mechanical Engineers published an obituary noting: "He was thus connected with the North Eastern Railway during one of the most important periods of British locomotive history." The Institution of Locomotive Engineers published a lengthy tribute, while Nature recorded that "up to the time of his retirement in 1910 he supervised the construction of more than 1,000 engines for the North-Eastern Railway"—an extraordinary output representing approximately one locomotive every week for twenty years.

Contemporary assessments placed Wilson firmly in the first rank of British locomotive engineers. C.M. Jenkin Jones included him in his "pantheon of great locomotive engineers of the NER" alongside Edward Fletcher and Vincent Raven—notably excluding his brother Thomas William. The distinction was significant: Thomas William's compound experiments were regarded as theoretically interesting but practically unsuccessful, while Wilson's simple, robust designs proved their worth through decades of reliable service.

Wilson's influence extended through his successor Vincent Raven, who had worked closely with him for twenty years. Raven continued many Worsdell design principles—simple expansion, large boilers, standardisation—while embracing superheating more enthusiastically than Wilson had. Raven's successful three-cylinder designs (including the famous T2/Q6 0-8-0 and the pioneering A2 Pacific) built on foundations Wilson had established.

The ultimate measure of Wilson's legacy lies in locomotive longevity. His J27 0-6-0 and J72 0-6-0T designs both remained in British Railways service until the 1960s, with J27s surviving until 1967—the last pre-Grouping locomotives in regular operation. More remarkably, British Railways built new J72s to Wilson's 1898 design in 1949-1951, 53 years after the original specification. This unprecedented longevity stemmed from fundamental design soundness—locomotives perfectly matched to requirements, constructed for durability, and simple enough for economic maintenance.

British Railways acknowledged Wilson's contribution by naming Peppercorn A1 Pacific No. 60127 "Wilson Worsdell" in September 1950. The nameplate, removed when the locomotive was withdrawn in June 1965, is now preserved in the Science Museum Group Collection.

Comparing Wilson Worsdell with contemporary engineers illuminates his distinctive approach:

Versus his brother Thomas William: Wilson systematically reversed Thomas's technical choices (compounds to simples, Joy to Stephenson valve gear), demonstrating that fraternal succession didn't guarantee design continuity. Wilson's simpler approach proved more commercially successful.

Versus G.J. Churchward (GWR): Both men embraced American influences and large-engine policies. Churchward's standardised 4-6-0 designs proved substantially more successful than Wilson's B13/B14, but both engineers shared fundamental philosophy favouring generous proportions and simple mechanisms. The two were personal friends who exchanged ideas.

Versus H.A. Ivatt (GNR): Direct contemporaries and rivals on East Coast services, both introduced large Atlantics within months of each other. Ivatt's C1/C2 Atlantics with 6ft 8in drivers versus Wilson's C6 with 6ft 10in drivers represented convergent evolution toward similar solutions for similar problems.

Versus S.W. Johnson (MR): Represented opposite philosophies—Johnson favoured small, numerous, elegantly proportioned locomotives, while Wilson pursued maximum individual locomotive power. The contrast reflected different traffic requirements: the Midland's passenger-dominated operations versus the NER's coal-heavy traffic mix.

Versus contemporaries generally: Wilson's American influences distinguished him from most British contemporaries, who looked to Continental European practice or developed indigenous traditions. His Pennsylvania Railroad training gave him perspectives few British engineers shared.

Wilson Worsdell's lasting legacy is practical engineering that worked. His locomotives lacked the theoretical sophistication of Continental compounds or the innovative elegance of Churchward's designs, but they performed reliably for decades with minimal fuss. For a railway company whose primary business was moving coal from Durham pits to shipping staithes, reliability and economy mattered more than engineering novelty. Wilson understood this profoundly, and his designs reflected priorities appropriate to circumstances—the hallmark of genuine engineering wisdom.

Finally

Wilson Worsdell's career spanned the transition from Victorian railway expansion to Edwardian maturity and the eve of World War I's transformative impact on British society. His twenty-year tenure at the North Eastern Railway produced over 1,000 locomotives that served reliably for half a century, with some designs remaining in service until the twilight of British steam in the 1960s.

His engineering philosophy—favouring American-influenced simplicity, generous proportions, and practical reliability over theoretical efficiency—proved ideally suited to the NER's specific circumstances. While he made mistakes (initial scepticism toward superheating, the somewhat disappointing B13/B14 4-6-0s), his overall approach demonstrated sound engineering judgement that prioritised operational success over technical novelty.

Three aspects of Wilson's career merit particular emphasis. First, his willingness to reverse his brother's technical policies showed intellectual independence and practical wisdom—converting 171 compounds to simple expansion represented a major policy decision that proved commercially sound. Second, his introduction of Britain's first passenger 4-6-0, while not wholly successful itself, pioneered the wheel arrangement that would dominate twentieth-century express locomotive development. Third, the extraordinary longevity of his designs—with J27s built to his 1906 specification operating until 1967 and J72s constructed to his 1898 design built new in 1951—validated his emphasis on fundamental engineering soundness.

For modern railway enthusiasts and modellers, Wilson Worsdell's work remains accessible. The J27 and J72 operating in preservation offer tangible connections to late Victorian engineering practice, while the static displays at Locomotion Museum enable detailed examination of his designs. The growing availability of ready-to-run models in OO and N gauges makes authentic NER modelling increasingly achievable.

Wilson Worsdell stands among the significant figures of British railway engineering not for revolutionary innovations but for consistently sound practical engineering that served its purpose reliably for generations. In an era when some engineers pursued theoretical efficiency or mechanical sophistication, Wilson chose what worked—and half a century later, his locomotives were still working when more sophisticated contemporaries had long since been scrapped. That represents perhaps the finest endorsement any engineer could receive.

Frequently Asked Questions

What was Wilson Worsdell's relationship to Thomas William Worsdell?

Wilson Worsdell was the younger brother of Thomas William Worsdell, both being sons of Nathaniel Worsdell. Thomas William served as Locomotive Superintendent of the North Eastern Railway from 1885-1890, with Wilson working as his assistant. When Thomas retired due to ill health in 1890, Wilson succeeded him. Despite their fraternal relationship, Wilson systematically reversed many of his brother's technical decisions, particularly converting all of Thomas's compound locomotives to simple expansion and abandoning Joy valve gear in favour of Stephenson link motion.

Why did Wilson Worsdell convert all the compound locomotives to simple expansion?

Wilson commissioned a detailed 1893 report on the NER's compound locomotive fleet which revealed that theoretical coal savings "tended to be overstated in controlled trials compared to normal operation." Compounds suffered from starting difficulties, required more complex crew training, incurred higher maintenance costs, and seldom delivered promised efficiency gains in everyday service. Wilson concluded that operational reliability and driver acceptance were more valuable than marginal theoretical fuel economy, and between 1894 and 1913, all 171 compound locomotives were systematically converted to simple expansion.

What locomotives did Wilson Worsdell design that are still preserved?

Three Wilson Worsdell designs survive in operational condition: J27 0-6-0 No. 65894 at the North Yorkshire Moors Railway and J72 0-6-0T No. 69023 at the Wensleydale Railway, both in working order. Static displays at Locomotion Museum include D17 4-4-0 No. 1621 (which participated in the 1895 Railway Race to the North), the rebuilt "Aerolite" 2-2-4T No. 66, ES1 electric locomotive No. 26500, and G5 0-4-4T No. 67345. Unfortunately, none of Wilson's impressive Class V (C6) Atlantic locomotives survived into preservation, representing a significant loss to railway heritage.

Which Wilson Worsdell locomotive class had the longest service life?

The Class P3 (LNER J27) 0-6-0 freight locomotives hold this distinction, with examples remaining in regular British Railways service until 1967—the last pre-Grouping locomotives in everyday operation. Built between 1906 and 1923 (with construction continuing under Vincent Raven), these robust freight engines gave over 60 years of service. The J72 0-6-0T shunting tank achieves a different longevity record: British Railways built new examples to Wilson's 1898 design in 1949-1951, 53 years after the original specification, demonstrating how perfectly the design matched requirements.

What was Wilson Worsdell's most successful express passenger locomotive?

The Class R (LNER D20) 4-4-0 of 1899-1907 represented Wilson's most successful express design. Sixty locomotives were built featuring 200psi boiler pressure and pioneering piston valve application. Contemporary performance assessments noted they actually outperformed Wilson's larger 4-6-0 designs in express service, demonstrating that successful locomotive design involved more than simply maximising power. The D20s remained in regular service until 1957, giving 58 years of reliable work on East Coast Main Line express services.

Why were Wilson Worsdell's first 4-6-0 locomotives disappointing?

The Class S/S1 (LNER B13/B14) 4-6-0s, while historically significant as Britain's first passenger 4-6-0 design, suffered from inadequate grate area constrained by the relatively small driving wheels (6ft 1in and 6ft 8in respectively). The shallow grates impaired steaming capacity, particularly at the sustained high speeds required for East Coast Main Line express work. The locomotives proved heavy on coal and less responsive than the smaller D20 4-4-0s, finding their métier in fast perishable freight and excursion work rather than premier express services. Despite disappointing performance, they pioneered the 4-6-0 wheel arrangement's viability for British conditions.

What American influences shaped Wilson Worsdell's engineering philosophy?

Wilson spent four and a half years (1866-1871) at the Pennsylvania Railroad's Altoona Works, absorbing American locomotive practice that favoured large, simple, powerful locomotives with substantial boilers. This contrasted sharply with British and Continental European approaches emphasising theoretical efficiency through compound expansion and sophisticated valve gear. Wilson brought back American preferences for straightforward two-cylinder simple expansion, generous boiler capacity ensuring free steaming under all conditions, high working pressures, and robust mechanisms prioritising reliability over marginal efficiency gains. His entire design philosophy reflected this Pennsylvania Railroad training.

What ready-to-run scale models are available of Wilson Worsdell's locomotives?

In OO gauge (4mm:1ft), Bachmann produces excellent J72 0-6-0T (£145) with 2019 tooling and G5 0-4-4T (£180-280) with 2023 tooling in multiple livery variants. Oxford Rail offers J27 0-6-0 (£110-190) with optional factory sound fitting. Dapol has announced J21 0-6-0 for late 2025 release. In N gauge (2mm:1ft), Dapol announced J72 0-6-0T for Q4 2025 with eight livery variants. Significant gaps remain: no ready-to-run D20 4-4-0 despite strong demand, no C6 Atlantic in any scale, and no Q5 0-8-0. Kit options exist from specialist manufacturers.

How did Wilson Worsdell pioneer British railway electrification?

Wilson oversaw the North Tyneside suburban services electrification from 1903-1904, using 600V DC third rail—the first main-line electric railway in Britain. Services ran between Newcastle and Benton (later extended to Tynemouth), using electric multiple unit stock. For the Newcastle Quayside branch in 1905, Wilson ordered two Class ES1 Bo-Bo electric locomotives built by British Thomson-Houston, capable of hauling 300 tons at 25 mph. One ES1 locomotive survives in preservation at Locomotion Museum, representing Britain's oldest main-line electric locomotive and demonstrating Wilson's willingness to embrace new technologies when circumstances warranted.

What was Wilson Worsdell's view on superheating?

Wilson proved notably sceptical about superheating, stating at the November 1910 Association of Railway Locomotive Engineers meeting that he did not think "there would be much in the superheater." This unfortunate prediction proved wrong—Schmidt superheaters were fitted to NER locomotives from 1912 onwards (after Wilson's retirement), delivering 15-25% efficiency improvements. Wilson's successor Vincent Raven enthusiastically embraced superheating, retrofitting many of Wilson's locomotives and incorporating the technology as standard in new designs. This represents Wilson's most significant technical misjudgement, demonstrating that even highly capable engineers can underestimate emerging technologies.

How did Wilson Worsdell's locomotive designs compare with his main rival H.A. Ivatt at the Great Northern Railway?

Wilson Worsdell and H.A. Ivatt were direct contemporaries and rivals on East Coast Main Line services, with their respective companies competing for traffic and prestige. Both engineers responded to increasing train weights with large Atlantic (4-4-2) designs introduced within months of each other—Ivatt's C1/C2 Atlantics in 1902-1903 versus Wilson's Class V (C6) in 1903. The designs showed convergent evolution: both featured large boilers (though Wilson's at 5ft 6in diameter was larger), 200psi working pressure, and 6ft 8in-6ft 10in driving wheels. Both proved highly capable express locomotives. The rivalry demonstrated how similar operating requirements produced similar engineering solutions from competent designers working independently.

Where can I see Wilson Worsdell locomotives operating today?

The North Yorkshire Moors Railway operates J27 0-6-0 No. 65894 regularly during their season (31 March - 2 November 2025), hauling passenger trains over 24 miles of spectacular moorland scenery between Pickering and Grosmont. Adult return fares cost approximately £40 with advance booking discounts available. The Wensleydale Railway operates J72 0-6-0T No. 69023 during special events and gala weekends on their 22-mile line through the Yorkshire Dales. Both heritage railways offer authentic experiences of Wilson's freight locomotive designs adapted for passenger service, demonstrating the robust simplicity that enabled their decades of reliable work.
