Matthew Holmes – The Scottish Engineer Whose Locomotives Outlasted Them All

Quick Takeaways

• Career Span: Served as Locomotive Superintendent of the North British Railway from 1882 to 1903, overseeing 21 years of steady expansion and standardisation at Cowlairs Works in Glasgow.
• Signature Design: Created the legendary J36 Class 0-6-0 freight engines (168 built 1888–1900), nicknamed "Eighteen Inchers," which became the last steam locomotives in regular service in Scotland when withdrawn on 5 June 1967 after nearly 80 years.
• Express Locomotives: Designed multiple 4-4-0 classes including the Class M (D31) and Class N (D25) that hauled East Coast expresses across the Forth Bridge and competed in the 1895 Race to the North.
• Engineering Philosophy: Favoured robust, standardised designs with larger boilers and higher pressures than his predecessor Dugald Drummond, producing locomotives built for longevity rather than headline-grabbing innovation.
• Preserved Examples: Two Holmes locomotives survive at the Bo'ness and Kinneil Railway: J36 No. 673 "Maude" (built 1891) and Y9 "Pug" No. 42 (built 1887), both maintained by the Scottish Railway Preservation Society.
• Modeling Availability: Only the J36 is well-represented in OO gauge (Hornby), with limited options for other classes; N gauge modellers have no Holmes designs available commercially.
• Legacy: Holmes's quiet competence and methodical approach produced locomotives that served longer than those of more celebrated contemporaries, with the J36 outlasting designs built decades later during the diesel era.

Early Life and Entry into Railway Engineering

Matthew Holmes was born in 1844 in Paisley, Renfrewshire, Scotland, though no precise birth date has been recorded in surviving sources. His early years were shaped by economic hardship: his father had owned a business in Paisley, but the depression of the early 1840s forced him to abandon commerce and enter railway service as foreman at the Edinburgh and Glasgow Railway Company's Haymarket Works in Edinburgh. The family relocated to Edinburgh while Matthew was still very young, and he received the greater part of his education in the Scottish capital.

At the age of fifteen, around 1859, Holmes left school and began his engineering career with a dual apprenticeship. He was articled to Hawthorn and Company, engineers, of Leith – a respected firm where he learned the fundamentals of mechanical engineering – whilst simultaneously entering service with the Edinburgh and Glasgow Railway at Haymarket, following in his father's footsteps. This combination of formal engineering training and practical railway experience would prove invaluable throughout his career.

When the Edinburgh and Glasgow Railway was absorbed by the North British Railway in 1865, the twenty-one-year-old Holmes continued at his post, quietly accumulating expertise in locomotive construction and maintenance. For the next decade, he worked steadily at Haymarket, mastering the practical details of locomotive operation without attracting particular notice. By approximately 1873, at the age of twenty-nine, his competence had earned him promotion to foreman of his department.

This steady progression continued when, in 1875, Holmes was appointed Chief Inspector of the North British Railway and nominally assistant to Dugald Drummond at Cowlairs Locomotive Works in Glasgow. It was during this seven-year period under Drummond's often abrasive leadership that Holmes gained his deepest education in locomotive design. He collaborated with Drummond on the express engines that would later compete in the famous railway races between London and Scotland, learning the forceful Scotsman's design philosophy whilst developing his own more measured approach.

The contrast between the two men could scarcely have been greater. Drummond was brilliant, temperamental, and frequently at odds with railway management; Holmes was diplomatic, methodical, and universally liked. When Drummond departed for the Caledonian Railway in 1882 after yet another dispute with the NBR board, the choice of his successor was straightforward. Matthew Holmes, at thirty-eight years old, became Locomotive Superintendent of the North British Railway – a position he would hold for the next twenty-one years.

Career Progression and Railway Appointments

Holmes inherited control of one of Scotland's largest and most complex railway operations. His domain centred on Cowlairs Works in Springburn, northeast Glasgow – a sprawling complex of high brick buildings covering twenty-two acres where locomotives, carriages, and wagons were built and maintained. In addition to Cowlairs, Holmes oversaw branch works at St. Margaret's in Edinburgh, Burntisland on the Firth of Forth, and Monkland. This network of facilities employed thousands of men and handled all aspects of locomotive and rolling stock construction, repair, and management for the NBR's growing system.

The scale of operations expanded dramatically during Holmes's tenure. In 1889, the NBR operated 618 engines across 1,023 route miles. By 1899, those figures had grown to 764 engines and 1,140 miles, with annual train mileage exceeding 17.7 million miles and a workforce of nearly 7,000 men. Under Holmes's direction, Cowlairs turned out approximately thirty new engines, one hundred carriages, and three thousand wagons per year whilst simultaneously repairing 850 engines, 8,600 carriages, and 80,000 wagons annually. Managing this industrial behemoth required extraordinary organisational skills and systematic delegation.

Holmes managed his vast responsibilities through carefully structured systems. He held regular Monday morning meetings with foremen, department heads, and candidate engine drivers, ensuring clear communication throughout the organisation. His senior deputy throughout his entire tenure was Robert Chalmers, who served as Assistant Locomotive Superintendent and Chief Draughtsman for twenty-eight consecutive years. Chalmers handled much of the detailed design work, allowing Holmes to focus on strategic planning, budgeting, and the political navigation required to secure resources from the notoriously parsimonious NBR board.

Contemporary accounts paint a picture of Holmes as both physically imposing and personally approachable. He was described as "a tall man and wiry, of fresh complexion, keen features, and clear eyes" – still vigorous in his fifties. His management style stood in stark contrast to the autocratic methods common among Victorian railway superintendents. Railway historian John Thomas called him "a mild-mannered man much liked by all who came in contact with him," whilst obituaries praised him as someone in whom "the imperious tyrant had no part" and who "was beloved by the men under him."

This personal popularity proved crucial to Holmes's success. The NBR workforce faced demanding conditions and tight budgets, yet under Holmes the workshops ran efficiently with minimal labour disputes. He secured loyalty through fairness and consistency rather than fear, and his systematic approach to promotion ensured that talented men advanced on merit. When he selected candidates for driver training, he looked for intelligence and reliability rather than mere seniority – a progressive approach for the era.

The most transformative event of Holmes's superintendency came on 4 March 1890 when the Forth Bridge opened to traffic. This magnificent cantilever bridge – at the time the longest in the world – eliminated the slow ferry crossing at Queensferry and gave Edinburgh direct rail access to Perth, Dundee, and Aberdeen. The East Coast route via the NBR suddenly became sixteen miles shorter than the rival Caledonian Railway's West Coast path to Scotland, transforming the NBR from a struggling regional railway into a genuine competitor for long-distance Anglo-Scottish traffic. Holmes immediately faced pressure to provide more powerful locomotives for the anticipated surge in express passenger services.

His response was characteristic: methodical expansion of existing designs rather than radical innovation. He enlarged the boilers of his express 4-4-0s, increased their boiler pressures, and built them in sufficient numbers to handle the traffic. When the famous 1895 Race to the North erupted – a high-speed competition between East Coast and West Coast operators for the fastest journey from London to Aberdeen – Holmes's locomotives performed credibly, though they were hampered by the NBR's sections of single-track north of Edinburgh and by slow engine changes at Waverley station.

The opening of the West Highland Line in 1894 presented different challenges. This spectacular 100-mile route from Glasgow to Fort William traversed some of Scotland's wildest terrain with sustained gradients of 1 in 50. Holmes designed a specific class of 4-4-0 – the "West Highland Bogies" – but their poor adhesion on the steep grades made them inadequate, and they were quickly relegated to easier duties. This was Holmes's most conspicuous design failure, though the challenging operating conditions would have tested any engineer's locomotives.

Holmes retired in May 1903 due to heart problems. After forty-four years in railway service and twenty-one as locomotive superintendent, his health had begun to fail. He died at his home in Lenzie, near Glasgow, on 3 July 1903, aged fifty-nine. In a touching tribute, one of his own locomotives hauled his funeral train from Lenzie to Haymarket. His successor was William Paton Reid, initially appointed on a six-month probationary basis and confirmed permanently in June 1904. Reid would build directly upon Holmes's foundations, refining and enlarging his predecessor's designs to create some of the most celebrated locomotives in Scottish railway history.

Key Locomotive Designs and Classes

Matthew Holmes's design philosophy evolved steadily over two decades but remained rooted in principles of robustness, standardisation, and gradual improvement. Unlike his predecessor Drummond, who created entirely new locomotive types, Holmes preferred evolutionary development – taking proven concepts and systematically enhancing them through larger boilers, higher pressures, and improved details. He consistently replaced Drummond's sloping fire grates with flat grates, progressively adopted modern features including piston valves and Westinghouse air brakes, and standardised cylinder sizes across multiple classes. His use of interchangeable boilers between related designs reduced costs and simplified maintenance across the growing fleet.

All Holmes designs used inside cylinders with Stephenson valve gear – standard Scottish practice of the era – and featured a characteristic visual appearance with prominent splashers over the driving wheels, tall chimneys, and functional cabs that offered minimal weather protection to their crews. His colour scheme evolved from Drummond's olive green to bronze green with red lining for passenger engines and unlined black for goods engines, though the NBR's chronic financial constraints meant repainting intervals were long and many locomotives ran in faded, work-worn condition.

The J36 Class – Holmes's Masterwork

The NBR Class C (later LNER Class J36) was Holmes's most numerous, most successful, and ultimately most celebrated design. Between 1888 and 1900, an extraordinary 168 locomotives were built in almost continuous small batches – 138 at Cowlairs Works with fifteen each contracted to the outside firms of Neilson and Company and Sharp, Stewart and Company. These 0-6-0 freight engines featured 18-inch diameter by 26-inch stroke inside cylinders, 5-foot diameter driving wheels, and boiler pressures that rose from 140 psi in the first 144 engines to 150 psi in the final 24.

The J36's wheel arrangement and proportions were perfectly suited to Scottish freight operations. The 0-6-0 configuration provided maximum adhesion for starting heavy trains on the NBR's numerous severe gradients, whilst the 5-foot driving wheels gave sufficient speed for mixed traffic work whilst maintaining low piston speeds and economical coal consumption. The inside cylinders were set well back from the smokebox, giving excellent weight distribution, and the long boiler provided ample steam generation for sustained hard work.

These locomotives became the backbone of NBR freight operations, handling coal trains from Fife and Lothian collieries, fish trains from Aberdeen, livestock traffic from Highland markets, and general merchandise across the entire system. Their reputation for reliability was extraordinary. During World War I, twenty-five J36s were requisitioned for service in France with the Railway Operating Division, where British troops found them "capable, easy to maintain, and relatively comfortable" compared to many French locomotives. Upon their return to Britain, these engines were named after First World War battles, generals, and the popular cartoon soldier "Old Bill" – names like Somme, Ypres, Haig, Jellicoe, and Maude.

When William Paton Reid succeeded Holmes, he immediately began a systematic rebuilding programme for the J36 fleet, fitting them with larger boilers operating at 165 psi and extended smokeboxes. These rebuilt engines developed a tractive effort of 20,240 pounds-force – a significant increase over the original specification. The rebuilding programme extended through the 1920s and transformed the J36 into an even more capable machine whilst retaining all its inherent reliability.

The longevity of the J36 class is without parallel in British steam locomotive history. An astonishing 123 of the original 168 locomotives entered British Railways ownership in 1948 – forty-eight years after the last was built. They continued hauling freight across Scotland through the 1950s and into the 1960s, outlasting far more modern designs from the LNER and British Railways Standard eras. The last pair remained in regular service until their final withdrawal on 5 June 1967 – making the J36 the last class of steam locomotive in regular service in Scotland after nearly eighty years of continuous operation. No Victorian-era British locomotive class can match this record of durability and utility.

Express Passenger 4-4-0 Classes

Holmes produced several sub-classes of 4-4-0 express passenger locomotives, each representing a step forward in power and capability as traffic demands grew following the Forth Bridge opening.

The Class N "592 Class" (LNER D25) represented Holmes's first wholly original express design. Twelve locomotives were built between 1886 and 1888 with 7-foot driving wheels, 18-inch by 26-inch cylinders, and 150 psi boiler pressure. These elegant machines featured the characteristic Holmes profile with large splashers and tall chimneys. No. 592 was exhibited at the Edinburgh International Exhibition of 1886, where it was hauled through city streets on temporary track laid for the purpose – a remarkable publicity exercise. Two years later, No. 602 hauled the Royal Train carrying the Prince of Wales to the ceremonial opening of the Forth Bridge. These engines handled the principal East Coast expresses through the 1890s and proved reliable performers, though their relatively small boilers limited them on the heaviest trains.

The Class M (LNER D31) evolved through three distinct sub-types, reflecting Holmes's methodical approach to development. The initial "574 class" comprised just six engines built in 1884 with 17-inch cylinders and 6-foot-6-inch driving wheels for Edinburgh–Glasgow passenger services. The larger "633 class" expanded to twenty-four engines built between 1890 and 1895 with 18-inch cylinders, specifically designed for the increased traffic across the Forth Bridge. The final "729 class" – eighteen engines from 1898 to 1899 – pushed dimensions further with 18¼-inch cylinders and 175 psi boiler pressure, making them Holmes's most powerful express engines until his ultimate design. Seven D31s survived long enough to enter British Railways service in 1948, with the last withdrawn in December 1952 after nearly seventy years' service.

The Class N "West Highland Bogies" (LNER D35) was Holmes's least successful design. Twenty-four engines were built between 1894 and 1896 specifically for the newly opened West Highland Line from Glasgow to Fort William. Designed with moderate-sized driving wheels for the line's severe gradients, they nevertheless suffered from poor adhesion and proved unable to handle the demanding mountain route reliably. They were quickly relegated to secondary duties on easier routes and were withdrawn relatively early. This rare misstep demonstrated the challenges of designing for extreme operating conditions – even David Jones's celebrated 4-6-0s on the neighbouring Highland Railway struggled with similar gradients.

The Class K (LNER D26) was Holmes's final and most advanced design, representing a clear transition toward twentieth-century practice. Twelve engines were ordered in March 1902 and built in 1903 with 19-inch cylinders, piston valves (a notable departure from Holmes's usual slide valves), and 200 psi boiler pressure – the highest of any Holmes locomotive. They featured a lengthened boiler, modern side-window cab, and improved weight distribution. Holmes died on 3 July 1903 having seen only the first four enter traffic, but his successor William Paton Reid recognised their excellence and used the D26 as the direct template for his celebrated Glen class (D34), of which thirty-two were eventually built. The D26 thus represents Holmes's most important legacy in express locomotive design – a bridge between Victorian practice and Edwardian advancement.

Freight and Shunting Types

Beyond the dominant J36, Holmes produced several other freight and shunting designs that, whilst less celebrated, served the NBR with equal reliability.

The Class D (LNER J33) comprised thirty-six 0-6-0 locomotives built between 1883 and 1887 as Holmes's adaptation of Drummond's earlier freight engines. The key modification was replacing Drummond's sloping fire grate with Holmes's preferred flat grate, which simplified firing and improved steaming consistency. These engines handled lighter freight duties and secondary passenger trains across the NBR system.

The Class G "Pugs" (LNER Y9) were diminutive 0-4-0 saddle tank shunters built in batches totalling thirty-eight engines between 1882 and 1899. Based on a Neilson and Company standard design with 14-inch by 20-inch cylinders and tiny 3-foot-8-inch driving wheels, these locomotives were purpose-built for dock and goods yard shunting where their small size allowed them to navigate tight curves and restricted sidings. Several served at Leith Docks throughout their careers, rarely venturing beyond the immediate port area.

The Class D 0-6-0T (LNER J83) represented a significant technical advancement when forty were built in 1900–1901. These were Holmes's first design to use piston valves rather than traditional slide valves, marking his embrace of modern valve gear technology late in his career. With 17-inch by 26-inch cylinders, 4-foot-6-inch driving wheels, and 150 psi boiler pressure, they proved phenomenally successful for shunting, banking, and short-distance freight work. Thirty-seven of the forty exceeded one million miles in service, with one reaching two million miles, and they recorded the lowest maintenance costs of any LNER 0-6-0 tank class – a remarkable achievement.

Locomotive Classes Specifications Table

Technical Innovations and Patents

Matthew Holmes was not a prolific innovator in the manner of a Patrick Stirling or a John Aspinall, nor did he pursue patents with the enthusiasm of some contemporaries. No Holmes patents have been definitively traced in surviving records, and his approach to locomotive design was fundamentally conservative – favouring proven technology, systematic refinement, and reliability over novelty. This does not mean his work lacked technical merit; rather, his innovations were incremental improvements to established practice rather than radical departures.

Holmes's most consistent technical advancement was his progressive adoption of larger boilers and higher working pressures. When he succeeded Drummond in 1882, most NBR locomotives operated at 140 psi or below. By the end of his career, his D26 class ran at 200 psi – a forty-three per cent increase that translated directly into greater power output without increasing cylinder dimensions or overall locomotive weight proportionally. This steady pressure escalation reflected improvements in boiler construction techniques, better steel quality, and growing confidence in high-pressure operation. Holmes applied these advances systematically across his designs, giving the NBR one of the most modern locomotive fleets in Scotland by 1903.

The replacement of sloping fireboxes with flat grates was another Holmes hallmark. Drummond had favoured sloping grates, believing they improved combustion by allowing coal to fall forward toward the firebox door. Holmes rejected this, finding that flat grates were easier for firemen to work, gave more even combustion, and simplified firebox design and maintenance. Every Holmes locomotive featured a flat grate, and this became NBR standard practice throughout the LNER period.

Holmes's late adoption of piston valves in the J83 class (1900–1901) and D26 class (1903) marked his recognition of this technology's advantages. Piston valves eliminated the traditional flat slide valve's friction against the cylinder ports, reducing wear and improving steam distribution. They became universal on British express locomotives within two decades, and Holmes's willingness to adopt them – despite their novelty and his own advancing age – demonstrated pragmatic flexibility rather than rigid adherence to outdated practice.

The standardisation of cylinder sizes and interchangeable boilers across related classes represented Holmes's most significant contribution to NBR efficiency. By using 17-inch, 18-inch, and 19-inch cylinder diameters as standards, and designing boilers that could fit multiple chassis types, he reduced the spare parts inventory required at Cowlairs and outlying depots. Locomotive fitters could maintain a J36 and a J83 using many of the same skills and tools, and boilers could be swapped between related classes during heavy repairs. This rationalisation cut costs significantly across a fleet that exceeded 700 engines by 1900.

Holmes conducted only one experiment with compound expansion – the rebuild of Wheatley 4-4-0 No. 224 as a four-cylinder tandem compound in 1885. This locomotive, recovered from the Firth of Tay after the 1879 Tay Bridge disaster, was fitted with 13-inch high-pressure and 20-inch low-pressure cylinders in tandem arrangement. It proved unsatisfactory and was eventually converted back to simple expansion. This was one of only three tandem compounds ever built in Britain, and Holmes drew the obvious conclusion: compound expansion was not worth the added complexity and maintenance burden for the modest efficiency gains it offered. He never attempted compounding again, and the NBR remained a simple-expansion railway throughout his tenure.

Similarly, superheating – the great efficiency breakthrough of the early twentieth century – arrived too late for Holmes to adopt. The Schmidt superheater was first applied to British locomotives in 1906, three years after Holmes's death. Reid would systematically apply superheating to new and rebuilt NBR locomotives from 1910 onwards, but this represented the next generation's advancement rather than Holmes's work.

Engineering Philosophy: Holmes believed that locomotives should be built to survive decades of hard service with minimal modification. He consistently over-engineered critical components, used generous safety margins in boiler design, and insisted on thorough testing before releasing new designs to traffic. This conservative philosophy sometimes frustrated NBR directors seeking dramatic performance breakthroughs, but it ensured that Holmes's engines remained in service long after more spectacular contemporaries had been scrapped. The J36's eighty-year service life vindicated this approach completely.

Engineering Philosophy and Approach

Understanding Matthew Holmes's engineering philosophy requires recognising the constraints under which he worked. The North British Railway was chronically short of capital throughout Holmes's tenure, competing against the wealthier Caledonian Railway for Scottish traffic whilst struggling with an overextended route mileage and numerous lightly-trafficked branch lines. NBR directors scrutinised every locomotive order, demanding detailed justifications for expenditure and favouring modest incremental improvements over expensive innovations. Holmes operated within these constraints with remarkable skill, producing locomotives that maximised utility per pound spent whilst avoiding the embarrassing failures that had plagued earlier NBR locomotive superintendents.

Holmes's core principle was robust simplicity. Every design used proven, well-understood technology that locomotive fitters at country sheds could maintain with basic tools. Inside cylinders with Stephenson valve gear were familiar to every NBR mechanic; exotic valve gears like Joy's or Walschaerts would have required specialist training and unique spare parts. Flat fireboxes were simpler to construct and repair than complex slopeback designs. Slide valves were replaced with piston valves only when the benefits clearly outweighed the costs. This was not technological timidity but intelligent pragmatism – Holmes understood that a locomotive spending less time under repair generated more revenue for the railway.

Standardisation extended beyond cylinder sizes to include axleboxes, coupling rods, brake gear, and cab fittings. A J36 and a D31 shared remarkably few interchangeable parts due to their different roles, but both used standardised components that simplified inventory management. When locomotives required heavy repairs at Cowlairs, worn components could often be refurbished and refitted to different engines, extending their service life economically. This systematic approach reduced the NBR's maintenance costs below those of railways operating more diverse locomotive fleets.

Holmes's approach to testing and refinement was methodical. New designs typically appeared in small batches – six to twelve engines – which entered service whilst Holmes and Chalmers monitored their performance closely. Modifications would be incorporated into subsequent batches, creating evolutionary sub-classes that improved progressively. The D31 class's three sub-types exemplify this: the 1884 "574 class" proved the basic concept, the 1890–1895 "633 class" scaled it up for heavier traffic, and the 1898–1899 "729 class" pushed dimensions to their practical limit. This incremental development minimised the risk of wholesale design failures whilst allowing continuous improvement.

Holmes rarely pursued maximum performance at the expense of reliability. His express 4-4-0s were adequate rather than exceptional – fast enough for the schedules required but not dramatically superior to Caledonian Railway competitors. This reflected deliberate choice: the NBR's routes included numerous sections of steeply graded single track where rapid acceleration mattered less than steady, dependable climbing ability. Holmes's engines excelled at maintaining schedule on difficult routes rather than setting speed records on favourable alignments.

The absence of named locomotives in Holmes's designs (aside from the post-1918 naming of returned War Department J36s) reflects both his personality and NBR practice. Holmes was not interested in personal glorification, and the NBR saw no commercial value in the romantic locomotive naming favoured by some English railways. Engines were identified by numbers, workmanlike and functional – a fitting metaphor for Holmes's entire approach.

His willingness to learn from mistakes distinguished him from more dogmatic contemporaries. The D35 "West Highland Bogies" failure prompted Holmes to reconsider adhesion calculations for heavily graded routes. The unsuccessful compound experiment convinced him that simplicity was preferable to marginal efficiency gains. These lessons informed his later designs, and he never repeated the same error twice.

Perhaps most tellingly, Holmes designed for his successor. The D26 class, ordered mere months before his retirement, incorporated piston valves and high boiler pressure specifically to provide a foundation for future development. Holmes knew his health was failing and that Reid would inherit the locomotive department. Rather than clinging to outdated practice, he deliberately created designs that the next generation could build upon – a generosity of spirit rare among Victorian engineers. Reid repaid this by systematically rebuilding Holmes's J36 fleet with improved boilers, extending their service lives by decades and ensuring that Holmes's most important design would outlast them both.

Preserved Locomotives and Heritage

Only two Matthew Holmes-designed locomotives survive into preservation, both held by the Scottish Railway Preservation Society at the Bo'ness and Kinneil Railway in Bo'ness, West Lothian, Scotland. This paucity of surviving examples stands in unfortunate contrast to Holmes's enormous output of over 350 locomotives, but reflects the reality that his engines worked so hard and so long that most were literally worn out beyond economical restoration by the time preservation movements gathered momentum in the 1960s.

NBR No. 673 "Maude" – The Sole J36 Survivor

North British Railway No. 673 "Maude" (LNER Class J36, 0-6-0) represents Holmes's most important design and is the only survivor from the class of 168 locomotives built between 1888 and 1900. She was constructed in December 1891 by Neilson and Company of Glasgow (Works No. 4392) as one of fifteen J36s subcontracted to that firm, and emerged in the NBR's bronze green passenger livery with red lining – unusual for a freight engine but reflecting Neilson's practice of applying their standard finish to all locomotives.

No. 673 spent her early years hauling coal trains from Fife collieries and general freight across the Edinburgh and Glasgow districts. In November 1917, she was one of twenty-five J36s requisitioned by the War Department for service in France with the Railway Operating Division, where she hauled ammunition trains, troop transports, and supply convoys behind the Western Front. British soldiers found the J36s notably superior to many French locomotives, praising their reliability and relatively comfortable cabs. Upon repatriation to Britain in June 1919, she was named "Maude" after Lieutenant General Sir Frederick Stanley Maude, commander of British forces in Mesopotamia who had died of cholera in Baghdad in 1917.

Throughout the 1920s and 1930s, "Maude" was rebuilt by William Paton Reid with a larger boiler operating at 165 psi, extended smokebox, and improved cab – modifications that transformed her appearance and substantially increased her power output. She served throughout the Second World War hauling essential freight traffic, entered British Railways ownership in 1948 as No. 65243, and continued working from Edinburgh's St. Margaret's depot through the 1950s and into the 1960s. When the final pair of J36s were withdrawn on 5 June 1967, "Maude" had already been selected for preservation as the sole representative of her class.

The Scottish Railway Preservation Society purchased "Maude" in 1967 for £1,250 – a substantial sum reflecting growing recognition of her historical importance. She was restored to working order in North British Railway livery and returned to steam for preserved railway operations. Highlights of her preservation career include representing Scotland at the Rocket 150 cavalcade at Liverpool in August 1980, where she shared the stage with Flying Scotsman and other legendary locomotives, and starring in the 2000 ITV remake of The Railway Children, filmed on the Keighley and Worth Valley Railway. She last steamed in 2002 and has since been on static display at the Bo'ness Museum of Scottish Railways.

"Maude" currently requires a major overhaul including new boiler tubes, cylinder work, replacement tyres for her driving wheels, new bearing shells, and comprehensive valve gear restoration – a project estimated to cost several hundred thousand pounds. The SRPS actively raises funds for her eventual return to steam, though no definitive timeline exists. In the meantime, she remains beautifully presented on static display, her bronze green livery and distinctive Reid-pattern cab allowing visitors to appreciate the engineering that kept her class working for eighty years.

NBR No. 42 – A Cowlairs-Built Pug

North British Railway No. 42 (LNER Class Y9, 0-4-0ST) represents Holmes's smallest design – the diminutive shunting engines nicknamed "Pugs" that worked dock sidings and goods yards across the NBR system. She was built at Cowlairs Works in 1887 early in Holmes's superintendency, and spent the majority of her working life shunting at Leith Docks, the NBR's principal port facility on the Firth of Forth near Edinburgh. Her tiny 3-foot-8-inch driving wheels, 14-inch cylinders, and saddle tank gave her the compact dimensions needed to navigate tight curves between warehouses and along quayside tracks where larger locomotives could not venture.

Unlike the widespread J36s, the Y9 Pugs worked limited territories and were rarely photographed or documented individually. No. 42 served quietly and uneventfully through seven decades, entering LNER ownership in 1923 as No. 9042 and British Railways in 1948 as No. 68095. She was withdrawn in December 1962, one of the last of her class, and initially passed into private preservation before spending time at Lytham Transport Museum. The Scottish Railway Preservation Society acquired her in 1992, recognising her as the sole surviving Holmes shunting engine.

No. 42 is currently on static display at Bo'ness, painted in NBR bronze green livery – though the SRPS notes that the North British Railway actually painted goods engines black, and she wears green for display purposes to differentiate her from the black-liveried locomotives of other railways on site. She represents an important but often overlooked aspect of Victorian railway operation: the unglamorous yard shunting that kept freight flowing through docks, goods depots, and marshalling yards. Without engines like No. 42, the celebrated express locomotives could not have run to schedule.

Visiting the Bo'ness and Kinneil Railway

The Bo'ness and Kinneil Railway operates on a section of the former NBR branch from Manuel Junction to Birkhill, using the historic Bo'ness station as its headquarters. The site includes the Scottish Railway Exhibition, which houses the SRPS's collection of locomotives, carriages, and railway artefacts in a purpose-built museum building. Both "Maude" and No. 42 are prominently displayed alongside other Scottish locomotives including Reid's NBR K-class 4-4-0 Glen Douglas and the Caledonian Railway's famous blue 4-2-2 No. 123.

The railway typically operates passenger services at weekends and during school holidays from March through October, with more intensive timetables during summer months and special events. The Scottish Railway Exhibition is open during operating days, and special heritage railway events including steam galas, diesel days, and family events occur throughout the season. The railway's website at www.bkrailway.co.uk provides current timetables, admission fees, and special event information.

Bo'ness is easily accessible by road from Edinburgh (approximately thirty-five minutes via the M9) and Glasgow (approximately forty-five minutes via the M876 and M9). The nearest mainline railway station is at Linlithgow, approximately four miles distant, though no regular public transport connection exists. Visitors planning a trip should verify opening times in advance, as the railway operates seasonally and opening hours vary.

Scale Models and Modeling Significance

Matthew Holmes's locomotives are significantly under-represented in the commercial model railway market, with only his most famous design – the J36 – receiving comprehensive treatment. Modellers interested in recreating North British Railway operations during the late Victorian and Edwardian periods face frustrating gaps in available products, particularly in N gauge where no Holmes designs exist at all.

OO Gauge (4mm Scale) – The Best Option

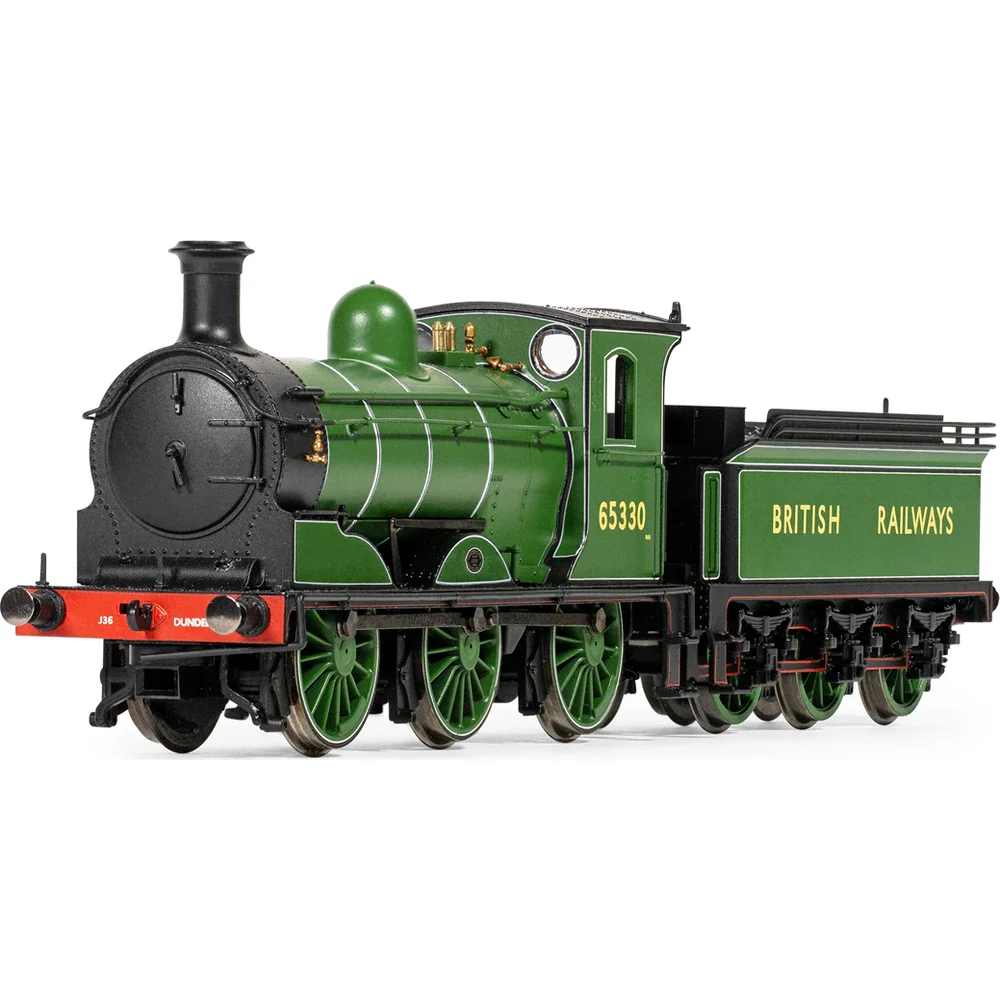

Hornby's J36 is the standout model of any Holmes locomotive in any scale. Introduced in 2018 as part of Hornby's premium range, this is an exceptionally fine representation tooled from measurements taken directly from preserved "Maude" at Bo'ness, with research assistance from the NBR Study Group ensuring historical accuracy. The model represents the rebuilt Reid condition from 1913 onwards with extended smokebox, larger boiler, and side-window cab, and features a five-pole skew-wound motor, all-wheel electrical pickup, NEM coupling pockets, directional lighting, and excellent proportions that capture the J36's characteristic workmanlike appearance.

Multiple variants have been produced catering to different periods and liveries. The flagship model is Hornby R3600TTS – NBR No. 673 "Maude" in bronze green with full TTS sound (currently retailing around £164.99). Alternative versions include LNER black livery examples (both named and unnamed), British Railways unlined black examples, and a particularly striking ROD khaki variant (R3735) representing War Department service in France during World War I with military markings. These typically retail between £95–£135 depending on features and livery.

The model's quality is excellent by modern standards. The separate lamp irons, wire handrails, fine cab details, and accurately proportioned boiler mountings create a convincing miniature. The five-pole motor provides smooth slow-speed running suitable for realistic freight operations, and the model negotiates second-radius curves easily despite its 0-6-0 rigid wheelbase. The TTS sound-fitted version offers authentic exhaust beats, whistle sounds, and brake effects operated via standard DCC functions. This is genuinely one of the finest British freight locomotive models available in OO gauge and an essential purchase for any NBR or LNER Scottish modeller.

Hornby's J83 has been produced in multiple tooling generations since 1983, though none approaches the J36's quality. The original Ringfield-motored toolings from the 1980s through early 2000s are recognisable but dated, with thick handrails, simplified valve gear, and crude motor mechanisms. The current RailRoad range model (R30378) depicts LNER apple green livery and retails around £44.99 – a budget offering that is acceptable for junior modellers or those seeking an inexpensive Scottish shunter, but not finescale quality. The proportions are compromised, details are moulded rather than applied, and the motor performance is basic. No premium-quality J83 has been produced to match Hornby's J36 standard, leaving this significant Holmes design poorly served.

For kit builders, several options exist though all require substantial skill and patience. Etched brass and whitemetal body kits for the J36 are available from Crownline and PDK Models in 4mm scale, designed to fit proprietary chassis mechanisms. Full kits for the J83 are produced by 52F Models and Gem Loco Kits, requiring builders to construct chassis, motion work, and bodies from components. These demand competent soldering skills and careful alignment but allow representation of specific NBR or early LNER variants not available ready-to-run.

O Gauge (7mm Scale) – For Serious Modellers

Connoisseur Models offers etched brass kits for both the J36 (approximately £450+) and J83 (approximately £220–280) in O gauge. These are comprehensive kits including chassis frames, body sides, boiler, motion work, and fittings, but require advanced metalworking skills including silver-soldering, precision filing, and mechanical assembly. The finished models can be superbly detailed but represent a significant investment in both money and time – typically 80–150 hours of work for an experienced builder. No ready-to-run O gauge Holmes locomotives exist from any manufacturer.

N Gauge (2mm Scale) – A Complete Absence

No N gauge models of any Matthew Holmes design exist from any manufacturer – a significant and frustrating gap for 2mm scale modellers. The J36's importance to Scottish railway history and its suitability for freight operations would make it an ideal candidate for N gauge production, yet neither Graham Farish (Bachmann's N gauge brand) nor Dapol has produced one. Modellers of the NBR or LNER Scottish lines in N gauge must make do with Great North of Scotland Railway and Caledonian Railway types, none of which accurately represent Holmes's NBR fleet. This represents the single greatest gap in Holmes locomotive availability.

The Missing 4-4-0s – A Glaring Omission

None of Holmes's express passenger 4-4-0 designs – the D25, D31, D35, or D26 classes – has ever been produced as a commercial model in any scale by any manufacturer. This is particularly surprising given the D31's participation in the 1895 Race to the North, the D26's importance as the direct ancestor of Reid's celebrated Glen class, and the general popularity of Victorian 4-4-0s among railway modellers. The West Highland Line's fame makes the D35 a natural candidate for production, despite the class's operational shortcomings.

For modellers wishing to represent Holmes express locomotives, the only option is scratch-building or commissioning a custom-built model from specialist builders – an expensive and time-consuming route accessible only to wealthy collectors or highly skilled craftsmen. Given that Hornby has successfully produced several Victorian and Edwardian 4-4-0 types for other railways, a Holmes D31 or D26 would seem a commercially viable project, particularly if offered in NBR, LNER, and British Railways liveries to maximise market appeal.

Modelling Tips and Historical Accuracy

Modellers building NBR layouts set during Holmes's era (1882–1903) should note several details:

• Livery: Holmes-era NBR passenger engines wore bronze green with red lining and black frames. Goods engines were unlined black. Bufferbeams were red until the 1890s, then changed to black with white lining.
• Numbers: NBR locomotives carried numbers on buffer beams and cab sides, with company initials on tender sides or tank sides.
• Condition: The NBR's financial constraints meant locomotives often ran in faded, work-worn condition. Weathering models heavily is historically accurate.
• Operations: J36s hauled coal, fish, livestock, and general merchandise trains. D31s and D25s worked Edinburgh–Aberdeen expresses and Forth Bridge services. J83s shunted goods yards and assisted banking duties on steep grades.

The Hornby J36 in NBR bronze green hauling a rake of NBR six-wheeled coal wagons represents an achievable and historically accurate late-Victorian Scottish freight train that would have been utterly typical of Holmes's railways.

Legacy and Influence on Railway Engineering

Assessing Matthew Holmes's place in British locomotive history requires separating achievement from celebrity. Holmes never filed groundbreaking patents, never built Britain's first anything, never set speed records, and never attracted the public adulation showered upon more flamboyant engineers. Railway journals of his era gave him respectful but limited coverage compared to contemporaries like Patrick Stirling, William Dean, or John Aspinall. Yet by one crucial metric – the longevity and utility of his designs – Holmes arguably outperformed them all.

The J36's eighty-year service life is unmatched by any other Victorian-era British locomotive class. To put this in perspective: engines designed in 1890 were still hauling revenue freight in 1967, having outlasted not just Edwardian contemporaries but also supposedly superior LNER designs from the 1920s–1930s and even some British Railways Standard classes from the 1950s. This was not accidental preservation of obsolete machinery but genuine economic utility – BR kept J36s running because they remained cheaper to operate and maintain than available alternatives for certain duties. Holmes built locomotives so robust, so easily repaired, and so fundamentally sound that successive generations of engineers found it uneconomical to replace them.

This durability stemmed from Holmes's conservative design philosophy: generous safety margins, proven technology, standardised components, and systematic testing. Where John McIntosh sought maximum power from minimal weight – producing spectacular but relatively short-lived Dunalastair 4-4-0s – Holmes favoured strength and longevity. Where Dugald Drummond experimented with exotic valve gears and complex mechanisms – sometimes brilliantly, sometimes disastrously – Holmes stuck with simple inside cylinders and Stephenson valve gear that any competent fitter could maintain. Holmes understood that a locomotive spending eighty per cent of its time in service and twenty per cent under repair was vastly preferable to one that performed brilliantly for forty years then required replacement.

Holmes's influence on William Paton Reid was profound and direct. Reid explicitly built upon Holmes's foundations, taking the D26 4-4-0 as his template for the Glen class, systematically rebuilding the J36 fleet with improved boilers, and continuing Holmes's standardisation philosophy across the NBR's growing locomotive fleet. The magnificent Glen class – widely considered among the finest British 4-4-0s ever built – owed its existence to Holmes's final design. Reid acknowledged this debt, and the continuity between Holmes and Reid contrasts sharply with the clean breaks that occurred when Drummond left the NBR or when Churchward succeeded Dean on the Great Western Railway. Holmes prepared the ground for his successor in ways that speak to both engineering competence and personal character.

Within the North British Railway, Holmes's twenty-one-year tenure brought unprecedented stability. The five locomotive superintendents before Holmes served an average of just six years each, with three dismissed for incompetence or financial irregularities. Holmes worked harmoniously with NBR management, secured consistent if modest funding for locomotive construction, and maintained workforce morale through fairness and systematic delegation. The NBR's locomotive fleet grew from 618 to 764 engines under his watch whilst maintaining reliability standards that allowed the railway to compete effectively against the wealthier Caledonian Railway. This administrative achievement receives less attention than spectacular locomotive designs but was equally important to the railway's success.

The broader British railway industry took note of Holmes's methods. His standardisation of cylinder sizes and boiler types anticipated the systematic component rationalisation that would become industry practice under the LNER and British Railways. His adoption of higher boiler pressures – rising from 140 psi in 1882 to 200 psi in 1903 – mirrored trends across British railways as metallurgy improved and engineers grew more confident in high-pressure operation. His late embrace of piston valves demonstrated that even conservative engineers could adopt new technology when its advantages became clear.

Quiet Competence: Holmes's obituaries praised his character more than his locomotives – "beloved by the men under him," "the imperious tyrant had no part in his life," "left the railway world better than he found it." This reflected Victorian values that esteemed duty, reliability, and quiet competence over showmanship. Holmes epitomised these virtues, and his locomotives embodied them in steel and steam. The J36's eighty-year service record is Holmes's monument – more enduring than any statue, more eloquent than any published paper.

Perhaps the truest measure of Holmes's legacy is this: when the last steam locomotive worked in regular service in Scotland on 5 June 1967, it was a Matthew Holmes J36. Not a Reid Atlantic, not a Gresley Pacific, not a BR Standard – but an 1890s freight engine designed by a self-effacing Scotsman who never sought fame. That locomotive is preserved at Bo'ness, where visitors can still see the engineering that proved more durable than engines designed generations later. In the end, Holmes's quiet approach succeeded brilliantly – his locomotives literally outlasted them all.

Finally

Matthew Holmes served the North British Railway for forty-four years and led its locomotive department for twenty-one, transforming it from a struggling regional operator into a competitive player in Anglo-Scottish traffic. He did so without patents, without publicity, and without the flamboyant personality that attracted public attention to contemporaries like Dugald Drummond or John McIntosh. Instead, he offered systematic competence, robust engineering, and locomotives built to survive decades of hard service on a notoriously parsimonious railway.

His J36 class 0-6-0 – 168 engines built over twelve years – proved to be the most durable British locomotive design of the Victorian era, remaining in regular service for eighty years and outlasting far more modern types. His express 4-4-0s hauled East Coast expresses across the Forth Bridge and competed creditably in the 1895 Race to the North. His shunting and tank engines handled millions of miles of unglamorous but essential yard work. And his final design – the D26 class with piston valves and 200 psi boiler pressure – gave his successor the foundation for one of Scotland's most celebrated locomotive families.

Today, just two Holmes locomotives survive: J36 No. 673 "Maude" and Y9 No. 42, both at Bo'ness. They represent over 350 engines built under Holmes's direction, nearly all worked literally to destruction over six, seven, or eight decades of continuous service. For modellers, the Hornby J36 offers an excellent OO gauge representation, though Holmes's express 4-4-0s remain frustratingly absent from commercial catalogues.

Matthew Holmes died at fifty-nine, worn out by two decades of managing one of Britain's largest locomotive fleets. One of his own engines hauled his funeral train from Lenzie to Edinburgh – a fitting tribute from the machines he created. His successor William Paton Reid built upon his foundations, and the LNER inherited locomotives that would serve into the diesel age. The quiet engineer from Paisley may not have sought fame, but he achieved something more valuable: he left the railway world better than he found it, and his locomotives outlasted them all.

Frequently Asked Questions

What was Matthew Holmes's most successful locomotive design?

The NBR Class C (LNER J36) 0-6-0 freight engine was Holmes's masterwork. Between 1888 and 1900, 168 were built, making it his most numerous class and one of the largest single locomotive classes built for any pre-grouping Scottish railway. The J36's extraordinary longevity – with the final pair withdrawn on 5 June 1967 after nearly eighty years' service – makes it the most successful Holmes design by any measure. Its robust construction, simple maintenance requirements, and adaptability to modernisation through rebuilding allowed it to outlast locomotives designed decades later, becoming the last steam class in regular service in Scotland.

How did Holmes's locomotives perform in the 1895 Race to the North?

Holmes's Class M (D31) and Class N (D25) 4-4-0s hauled NBR portions of East Coast racing trains between Edinburgh and Aberdeen during August 1895. On the climactic night of 22 August, a Holmes engine covered Edinburgh to Dundee (59.2 miles) in 59 minutes and Dundee to Aberdeen (71.3 miles) in 77 minutes – respectable if not spectacular performance. The NBR was handicapped by slow engine changes at Edinburgh Waverley, sections of single-track north of Edinburgh, and less powerful locomotives than the Great Northern Railway's Stirling Singles. Nevertheless, Holmes's engines proved reliable and capable, maintaining their part in the overall East Coast effort creditably.

Can I visit preserved Matthew Holmes locomotives?

Yes, both surviving Holmes locomotives are at the Bo'ness and Kinneil Railway in Bo'ness, West Lothian, Scotland. J36 No. 673 "Maude" (built 1891) and Y9 No. 42 (built 1887) are on static display at the Scottish Railway Exhibition. The railway operates seasonally, typically weekends and holidays March–October with intensive summer timetables. Bo'ness is approximately thirty-five minutes from Edinburgh via the M9 motorway. Check www.bkrailway.co.uk for current opening times, admission fees, and special events. "Maude" is the sole survivor from 168 J36s and represents Holmes's most important design.

What scale models of Holmes locomotives are available?

OO gauge offers the best options: Hornby's J36 (introduced 2018) is an excellent model available in multiple liveries including NBR bronze green, LNER black, BR black, and WWI ROD khaki, with sound-fitted and standard versions (£95–£165). Hornby also produces a budget-range J83 tank engine (around £45), though quality is modest. O gauge builders can access Connoisseur Models' etched brass kits for J36 (£450+) and J83 (£220–280). N gauge has no Holmes locomotives from any manufacturer – a significant gap. None of Holmes's express 4-4-0 classes (D25, D31, D35, D26) exist as commercial models in any scale.

How did Matthew Holmes compare to his contemporary John McIntosh?

Holmes and John F. McIntosh (Caledonian Railway locomotive superintendent 1895–1914) worked as rivals on competing Scottish railways. McIntosh's Dunalastair 4-4-0s (from 1896) were more powerful and attracted greater publicity, "setting the fashion" for large-boilered express engines across Britain. However, McIntosh worked for the wealthier Caledonian Railway with more generous budgets. Holmes, constrained by NBR parsimony, produced more modest but equally reliable designs. The ultimate comparison favours Holmes: his J36s served eighty years versus the Dunalastairs' thirty-five to forty years. McIntosh was more celebrated; Holmes built machines that lasted longer.

What happened to the North British Railway after Holmes retired?

Holmes retired in May 1903 due to heart problems and died on 3 July 1903. His successor was William Paton Reid, initially appointed on six-month probation and confirmed in June 1904. Reid built directly on Holmes's foundations, using the D26 class as his template for the celebrated Glen class (D34) and systematically rebuilding the J36 fleet with larger boilers. The NBR continued until the 1923 Grouping when it became part of the London and North Eastern Railway (LNER). Cowlairs Works continued building and maintaining locomotives under LNER and later British Railways ownership until closure in the 1960s.

Why did Holmes's J36 locomotives last so long?

The J36's extraordinary longevity resulted from robust conservative design with generous safety margins, simple maintenance requirements, and adaptability to modernisation. Holmes over-engineered critical components, used proven inside-cylinder configuration with Stephenson valve gear that any fitter could maintain, and designed boilers with ample steam generation capacity. When Reid rebuilt them with larger boilers (1913 onwards), tractive effort increased seventeen per cent whilst retaining all inherent reliability. The combination of original soundness and intelligent modernisation meant J36s remained economical to operate through the diesel era. They were finally withdrawn not because they were worn out, but because diesel locomotives had displaced all Scottish steam.

What was the West Highland Bogies design failure?

The NBR Class N (D35) "West Highland Bogies" – twenty-four 4-4-0s built 1894–1896 – were Holmes's least successful design. Built specifically for the newly opened West Highland Line from Glasgow to Fort William, they suffered poor adhesion on the line's severe gradients (sustained 1 in 50 in places) and could not reliably handle the demanding mountain route. They were quickly relegated to easier secondary services and withdrawn relatively early. This rare misstep reflected the extreme difficulty of designing for such challenging terrain – even David Jones's celebrated Highland Railway 4-6-0s struggled with similar gradients. Holmes learned from the failure and never repeated it.

Did Matthew Holmes invent any significant railway innovations?

Holmes filed no known patents and pursued no radical innovations. His contributions were incremental improvements: progressively larger boilers and higher pressures (from 140 to 200 psi across his career), replacement of sloping fireboxes with flat grates, standardisation of cylinder sizes and interchangeable components, and late adoption of piston valves. His conservative philosophy favoured proven reliability over novelty. He conducted one unsuccessful compound experiment in 1885 and never attempted compounding again. Holmes's genius lay in systematic refinement and robust engineering rather than groundbreaking invention – but his locomotives' eighty-year service life vindicated this approach completely.

Are there any books specifically about Matthew Holmes?

No comprehensive biography of Matthew Holmes exists. His career is covered in broader works on Scottish locomotive history and the North British Railway, including studies of the LNER's Scottish constituent companies and general locomotive histories. The NBR Study Group publishes detailed technical histories of NBR locomotive classes including Holmes's designs. Contemporary obituaries from 1903 provide character insights but limited technical detail. For modellers, the Hornby J36 release materials (2018) include historical background researched with the NBR Study Group's assistance. Holmes remains an under-documented figure compared to more flamboyant contemporaries, though his locomotives' longevity speaks eloquently.

How can I research my local North British Railway history?

Start with the Scottish Railway Preservation Society at Bo'ness (www.srps.org.uk), which maintains archives and can direct researchers to relevant resources. The National Records of Scotland in Edinburgh holds NBR company records including staff records, technical drawings, and board minutes. The National Railway Museum at York holds locomotives and technical literature. Local history societies in former NBR territory (Edinburgh, Glasgow, Fife, the Borders) often maintain photographic and documentary collections. The NBR Study Group publishes detailed research on NBR operations, locomotives, and infrastructure. Online resources include the LNER Encyclopedia (www.lner.info) which comprehensively covers NBR locomotive classes with technical specifications and histories.

What made the North British Railway different from the Caledonian Railway?

The North British Railway and Caledonian Railway were fierce rivals for Scottish traffic but differed significantly. The Caledonian was wealthier, operated the shorter West Coast route to London (via Carlisle), and could afford more powerful locomotives and better infrastructure. The NBR operated the longer East Coast route (via Berwick and the Forth Bridge from 1890), served more lightly-trafficked rural areas, and struggled with chronic capital shortages. Holmes had to work within tighter budgets than his Caledonian counterpart John McIntosh, producing simpler, cheaper locomotives that nonetheless proved remarkably durable. The rivalry persisted until the 1923 Grouping absorbed both into the LNER.
