GWR Siphon — The Milk Vans That Outlived Their Purpose

Quick Takeaways

• Telegraphic origins: "Siphon" was the GWR's telegraphic code word for "milk van," part of a company-wide system of code words used to compress operational messages from 1839.
• Siphon G production: 365 Siphon Gs were built between 1908 and 1955 across six diagrams, making it the most numerous GWR non-passenger coaching stock type.
• Coaching stock classification: Built on recycled passenger carriage chassis, Siphons were classified as coaching stock rather than goods wagons, enabling express passenger train speeds.
• Wartime conversion: During 1938–39, 60 Siphon Gs were converted into Ward Cars for Casualty Evacuation Trains at a remarkably low cost of just £82 per vehicle.
• Milk traffic significance: The GWR handled the largest share of milk traffic among the Big Four railways, with Paddington's milk dock processing over 3,000 churns daily at its peak.
• Preservation: Approximately 17–20 Siphon Gs survive in preservation; the only outside-framed example is No. 1257 at the Severn Valley Railway; the sole example in national museum care is No. 2775 at Locomotion, Shildon.
• Modelling: Accurascale's 2023 OO gauge range offers sixteen diagram-specific Siphon G variants; Dapol covers the type extensively in N gauge; Hornby's Siphon H remains the only RTR option for that sub-type.

Historical Background and Introduction

"Siphon" was the Great Western Railway's telegraphic code word for "milk van." The GWR pioneered railway telegraphy from 1839 and developed an extensive system of single-word codes to compress operational messages between stations and control offices. While most British railways agreed on standardised codes after the 1923 grouping, the GWR maintained its own extended list until 1943. Under this system, each vehicle type received a code word — "Siphon" for milk vans, "Monster" for bogie flat wagons, "Mink" for covered goods vans. The suffix letter distinguished each variant within the family: B, C, E, F, G, H, and J. These codes were painted prominently on the vehicles' sides and became so embedded in railway vocabulary that crews and shunters continued using them decades after the telegraphic system was abolished.

The origins of dedicated railway milk transport on the GWR stretch back to April 1873, when three converted broad-gauge third-class carriages began running between the West Country and London specifically for milk traffic. Purpose-built four-wheel vans followed from Swindon Works in the 1870s, eventually assigned Diagram O.1. Approximately 75 vehicles were constructed under Lot numbers 180 and 217, carrying 17-gallon churns stacked two high in open-sided bodies with wide-gapped planking for maximum ventilation and canvas roofs. All were withdrawn by the outbreak of the First World War.

A fundamental commercial and operational decision made at the outset shaped the entire Siphon family's history. Because the early vans were built on recycled passenger carriage chassis rather than purpose-built goods wagon frames, they were classified as coaching stock rather than goods wagons. This classification entitled them to run at express passenger speeds, to be marshalled in passenger and parcels trains, and later to benefit from steam heating connections. It was a decision that would prove extraordinarily far-sighted. The same logic applied to every Siphon variant that followed, right through to the final BR-built Diagram O.62 vehicles constructed in 1955.

The GWR dominated British railway milk traffic from the Victorian era through nationalisation. Its network reached deep into Somerset, Devon, Cornwall, and West Wales — precisely the regions supplying the bulk of Britain's liquid milk to London and the major cities. The creation of the Milk Marketing Board in 1933, which took central control of all milk distribution, actually strengthened the GWR's position by consolidating flows onto its main arteries. Rail-borne milk traffic peaked in the late 1930s at over 280 million gallons annually across all companies, with the GWR handling the largest individual share.

Design, Construction, and Technical Specifications

The Siphon G represented the mature expression of the GWR milk van concept. The type appeared in prototype form in October 1908 as vehicle No. 1502, built at Swindon to Diagram O.10 with end vestibule doors to test the gangwayed bogie arrangement before committing to series production. The prototype's success led directly to Diagram O.11 — the first production outside-framed Siphon G — which entered service from 1913 and remained in production through 1927, with approximately 130 vehicles built across six lots. The final O.11 lot (Lot 1378, 1927) was the only one constructed by an outside contractor, Metro-Cammell, all preceding lots having been Swindon-built.

The transition to inside framing came with Diagram O.22 (1928), which gave the body a smooth-sided appearance by concealing the structural members within the walls. The single transitional example, No. 1199, rode on 9-foot Churchward "American" bogies — a bogie design originally influenced by contemporary American practice and characterised by its plate-frame construction and external equalising beams. This bogie became the defining underframe feature of the Siphon G family and distinguishes the prototype from some of the models available in miniature, where incorrect bogie types have been a recurring rivet-counter concern.

Diagram O.33, introduced with vehicles built from July 1930, became the dominant production standard with 115 vehicles built across four lots through May 1945. The key visible change was a switch from horizontal to vertical body planking, which was cheaper to produce and easier to source during the lean inter-war years. The O.33 vehicles were also 2 inches wider than their predecessors. Running numbers for this diagram spanned several series, with Lot 1578 (50 vehicles, Nos. 2751–2800, built 1936–37) being the most numerous single lot. Tare weight was 14 tons.

British Railways continued production after nationalisation, ordering 80 vehicles to Diagram O.62 in three lots: Lot 1721 (30 vehicles, Nos. 1310–1339, from October 1950), Lot 1751 (30 vehicles, Nos. 1001–1030), and Lot 1768 (20 vehicles, Nos. 1031–1050, the final batch delivered in October 1955). These retained the O.33 body profile but added eight sliding louvre ventilators per side on the lower body half, intended for improved airflow around the churns.

The ventilation system was the Siphon G's most distinctive design feature and the one most visible to railway photographers. Early outside-framed vehicles had body-top louvres running the length of the roof line. The O.33 retained these upper vents, creating a characteristic roofline break. The BR-built O.62 added the lower sliding louvres as a supplement. Inside, collapsible racking along both walls held churns upright but could fold flat to accommodate bulkier cargo — an engineering flexibility that proved essential to the Siphon's remarkably long second career as a parcels and departmental vehicle.

Specification	Siphon G (Dia. O.33)	Siphon G (Dia. O.62)
Builder	Swindon Works	Swindon Works
Years built	1930–1945	1950–1955
Quantity	115	80
Length over headstocks	50 ft 0 in	50 ft 0 in
Tare weight	14 tons	[Data unavailable]
Bogie type	9 ft American-pattern	9 ft American-pattern
Lighting	Gas/Electric (lot-dependent)	Electric
Body framing	Internal (smooth-sided)	Internal (smooth-sided)
Ventilation	Upper roof louvres	Upper louvres + lower sliding vents
Gangways	Scissors-pattern end gangways	Scissors-pattern end gangways

Historical Insight — The Cost of Conversion: When the government ordered Casualty Evacuation Trains in 1938–39, the War Office selected 60 Siphon Gs for conversion into Ward Cars. Each could carry 42 stretchers. The conversion cost was just £82 per vehicle — a testament to the simplicity of the Siphon G's body structure and the ease with which its interior could be reconfigured. After the war, 36 of these vehicles were rebuilt back to Diagram O.59 milk vans, with subtle differences in roof ventilation detail that still catch out modellers today.

Sub-types, Diagrams, and Variants

The Siphon family spans a wider range of vehicle types than most casual observers appreciate. The sequence of suffix letters does not run consecutively and does not represent a simple linear development — several variants were introduced in overlapping periods for specific operational purposes.

The Siphon C (Diagrams O.8 and O.9) appeared from 1906 to 1910 as a four-wheeled enclosed van. Approximately 61 vehicles were built across four lots (1125, 1133, 1162, and 1183), running in the number series 1482–1542. The change from Diagram O.8 (28 ft 6 in over headstocks) to O.9 (29 ft 6 in) occurred partway through Lot 1133, making individual vehicle histories important for accurate modelling. The Siphon C proved a long-lived design, with the final survivors not withdrawn until 1958.

The Siphon F (Diagram O.7) was the first bogie Siphon, introduced in August 1906, establishing the 50-foot bogie format that would define all subsequent designs. Only a small number were built, and none survives.

The Siphon H (Diagram O.12) appeared from approximately 1919 as a non-gangwayed bogie van with a distinctively high roof and end doors rather than gangway connections. This functional difference — no through gangway — meant Siphon Hs could not be marshalled within passenger train rakes but only at the outer ends where gangway continuity was not required. The Siphon H is the prototype modelled by Hornby alongside the Siphon G in OO gauge, and the two types appear superficially similar, making diagram awareness important for accurate fleet composition.

The Siphon J (Diagrams O.31 and O.40) was the family's most specialised member — a fully insulated vehicle cooled by dry ice (solid carbon dioxide) for chilled dairy transport. Introduced in the early 1930s in response to dairy companies demanding temperature control, it survived into the 1960s, with one vehicle reportedly lasting until 1969.

Type	Diagram(s)	Period	Approx. Qty	Wheels	Key feature
Siphon C	O.8, O.9	1906–1910	~61	4	Enclosed four-wheel body
Siphon F	O.7	1906	Small	8 (bogie)	First bogie Siphon
Siphon G	O.10–O.62	1908–1955	365	8 (bogie)	Gangwayed, most numerous
Siphon H	O.12	c.1919	Unknown	8 (bogie)	Non-gangwayed, high roof
Siphon J	O.31, O.40	1930s	Small	8 (bogie)	Dry-ice insulated

The Siphon G itself subdivides into six diagrams, each with visible differences that matter for modelling accuracy: O.10 (prototype only, end doors), O.11 (outside framing, horizontal planking), O.22 (inside framing, transitional), O.33 (inside framing, vertical planking, the main production standard), O.59 (post-war ambulance rebuilds), and O.62 (BR-built, lower sliding vents). Additionally, Diagram M.34 covered Siphon Gs officially reclassified as parcels vans rather than milk vans from the late 1940s onwards.

Service History and Operating Companies

The Great Western Railway held the largest share of milk traffic among the Big Four railways that emerged from the 1923 grouping. Its network reached into Somerset, Devon, Cornwall, and West Wales — the heartland of Britain's liquid milk production — and its express timings offered dairy companies a reliable overnight service between farm and processing depot. Paddington's dedicated milk dock, constructed in 1881 and continuously expanded, processed over 3,000 churns daily at its inter-war peak.

The operational method was straightforward. Farmers delivered 17-gallon churns to local stations by horse-drawn float or motor lorry. Station staff loaded them into Siphons attached to the rear of passenger trains. At Bristol, Exeter, or Swindon, dedicated milk workings were assembled from these individual portions. The most important daily milk services ran from West Wales, Somerset, and Cornwall. In the late 1950s, four daily milk train paths operated from West Wales to London, with the 3:50 pm from Whitland sometimes receiving a King class locomotive from Swindon onwards. The Devon and Cornwall run collected churns at St Erth, Lostwithiel, and Totnes before running express from Exeter to Kensington Olympia, where the Milk Marketing Board's processing facilities were located.

Siphon Gs appeared regularly on the Cornish Riviera Express, attached as parcels and perishables vehicles ahead of the passenger brake. They also appeared on named workings that have largely escaped published railway histories: The Milky (the 12:00 from Penzance, predominantly milk tanks but with Siphons in the parcels portion), and The Murphy (the 11:00 from Penzance, primarily parcels).

Wartime brought the most dramatic operational transformation. Between 1938 and 1939, 60 Siphon Gs were converted into Ward Cars for government Casualty Evacuation Trains at £82 each. A further 42 vehicles served in Overseas Ambulance Trains Nos. 32–35 and 45–46, and 12 formed US Army Ambulance Trains Nos. 69 and 70. The low conversion cost reflected the Siphon G's uncluttered interior — the collapsible churn racking was simply replaced with stretcher brackets.

After nationalisation in 1948, British Railways inherited the full GWR fleet and continued building to the O.62 diagram until October 1955. As bulk milk tank wagons took over dairy traffic through the 1960s and 1970s — the last churn collection occurring in 1979 and the final rail milk contract lost in May 1980 — the Siphon G found new roles. Under TOPS coding, 34 vehicles became NNV Newspaper Vans, fitted with steam heating and later Electric Train Heating connections, running sealed rakes of newspapers from London printing centres to provincial distribution depots. Others received codes NMV (general non-passenger coaching stock) and QRV (departmental stores vans). A fleet of ENPARTS vehicles (ADB975xxx series) transported locomotive spare parts between Swindon Works and major traction maintenance depots including Old Oak Common, Cardiff Canton, Landore, and Laira — a role as far removed from Somerset dairy farms as it is possible to imagine, yet one that kept wooden-bodied vehicles built to a 1930s design running into the mid-1980s.

Withdrawal, Preservation, and Surviving Examples

The outside-framed O.11 Siphon Gs were the first to disappear, all withdrawn by 1962. The inside-framed O.33 fleet lasted into the late 1970s in revenue service. The BR-built O.62 vehicles, particularly those converted to NNV Newspaper Vans, survived until 1982–84. Departmental ENPARTS vans operated until approximately 1985. The most tenacious survivor of all — No. 2793, repurposed as Internal User van 041552 at Doncaster Works — had its chassis scrapped as late as March 1991, 83 years after the Siphon G prototype entered service.

No Siphon C, H, F, or J vehicle is known to survive. All preserved examples are Siphon Gs, numbering approximately 17–20 vehicles across heritage railways, museums, and private sites in varying condition. The most significant and accessible survivors are:

No. 1257 (Diagram O.11, Lot 1378, 1927) at the Severn Valley Railway at Kidderminster is the only surviving outside-framed Siphon G and the only Metro-Cammell-built example. Rated of regional importance by the National Railway Museum, it currently wears GWR brown livery and is an exceptional vehicle — the sole representative of the earliest production standard.

No. 2775 (Diagram O.33/O.59, Lot 1578, 1936) forms part of the National Collection and is displayed at Locomotion, Shildon. This is the sole Siphon in formal national museum care and worth a visit if you are researching the post-war rebuilt ambulance variant.

No. 2796 (Diagram O.33, Lot 1578, 1937) at the Didcot Railway Centre attended the Rail 150 Cavalcade at Shildon in 1975 behind No. 7808 Cookham Manor and currently serves as an upholstery store within the site. It carries 1930s GWR roundel livery.

No. 2926 (Diagram O.33, Lot 1651, 1940) also at the Severn Valley Railway has a particularly distinguished wartime history, having served as US Army Medical Corps vehicle US7009 in Ambulance Train No. 70.

No. 1199 (Diagram O.22, Lot 1396, 1928) at the Swindon & Cricklade Railway is the only surviving example of the transitional horizontally planked inside-framed diagram.

Further confirmed locations include the Dean Forest Railway (Nos. 2790 and 2988), Gloucestershire Warwickshire Steam Railway (No. 2983), West Somerset Railway (No. 2980), Bodmin & Wenford Railway (No. 2994), Buckinghamshire Railway Centre (No. 1037), Cholsey & Wallingford Railway (No. 1043), South Devon Railway (No. 1316), and Cambrian Railway Trust at Llynclys (No. 1019). Several vehicles at remote sites are likely derelict, including No. 1009 at Creagan Station in Argyll and No. 1025 at Lower Ruddle Wharf in Cornwall. No. 1046 at Wooler survives as a chassis only after its body was scrapped in 2014.

Modelling Significance and Scale Replications

Few GWR non-passenger vehicle types have attracted as much modelling attention as the Siphon G, and the reasons are easy to understand. The type spans the entire GWR steam era and runs well into the BR diesel period, allowing a single vehicle design to appear on layouts set anywhere from 1913 to 1984. It can be marshalled at the rear of a named express, at the head of a humble milk working, or as a lone departmental van in an engineering siding. It is instantly recognisable to any GWR enthusiast yet rarely dominates a scene — it is background detail that rewards careful attention.

OO gauge — the Airfix/Hornby tooling (1980 onwards)

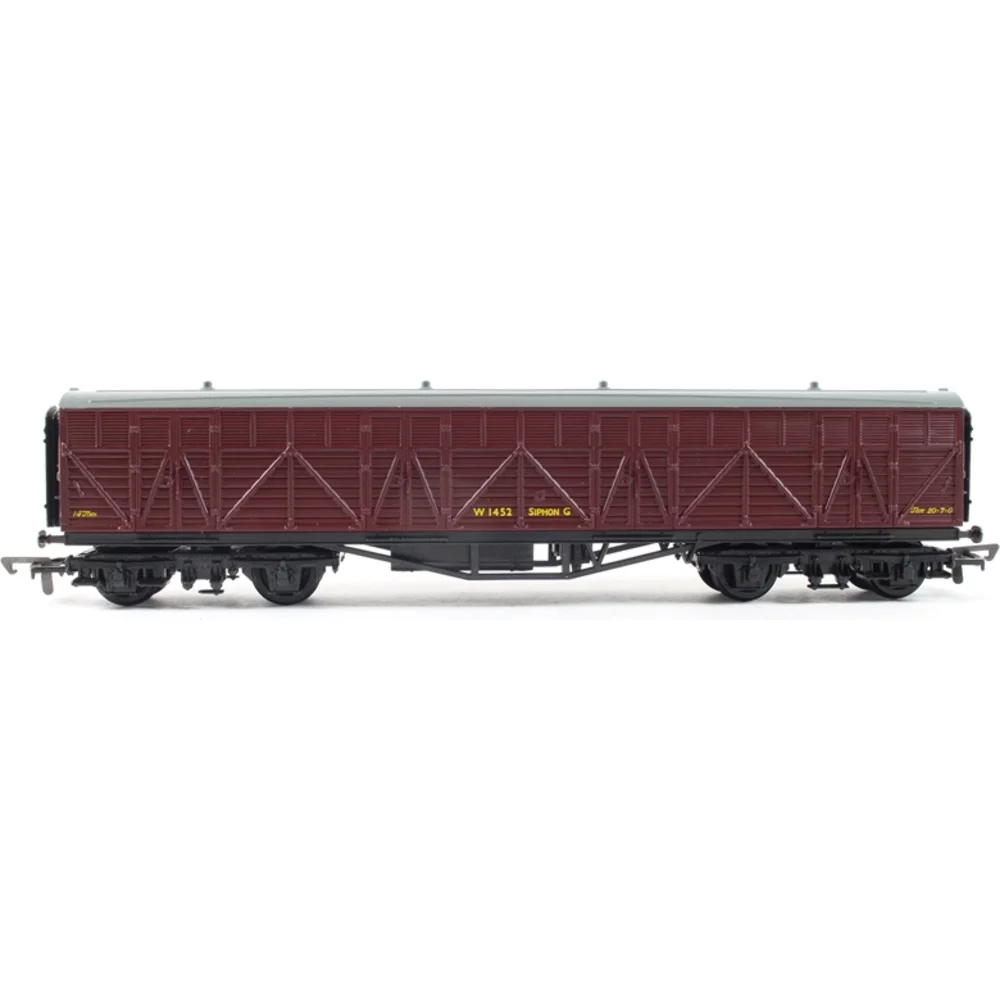

The original OO gauge Siphon G tooling was cut for Airfix GMR in 1980 and represents the outside-framed Diagram O.11. It subsequently passed through Mainline Railways, Dapol, and Hornby, with numerous livery variations across all incarnations. The Siphon H was produced from the same era's tooling. Current Hornby releases include R6980 (GWR brown, No. 1433, Era 3) and R6981 (BR crimson, No. W1429, Era 4/5) for the Siphon H, and earlier Siphon G releases including R6055 (GWR brown, No. 1359) and R6055A (GWR brown, No. 1447). All earlier Mainline and Airfix releases are now long discontinued and available only secondhand.

The critical rivet-counter issue with the entire Airfix lineage is incorrect bogies. The models use Collett-style bogies rather than the prototype's 9-foot American-pattern bogies. Replacement 3D-printed bogies in the correct pattern are available from Stafford Road Model Works via Shapeways, referenced under their GWR 7-foot Collett Bogie (Airfix fit) listing — an accessible upgrade that makes a noticeable visual difference.

OO gauge — Accurascale (2023)

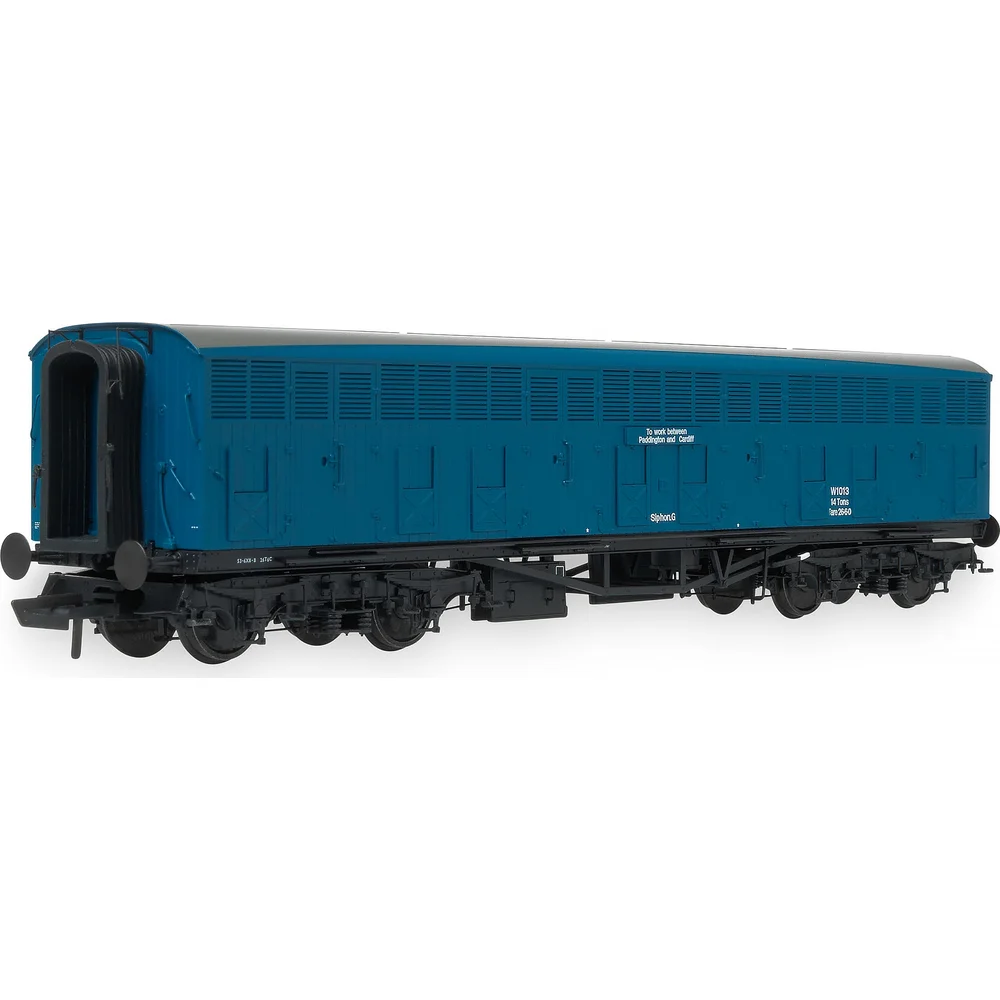

Accurascale's 2023 range represents the current state of the art and has effectively superseded the older tooling for inside-framed variants. The range covers Diagrams O.33, O.59, O.62, M.34, and NNV conversions with sixteen individual SKUs, each with diagram-specific body and underframe detailing, correct American-pattern bogies, NEM coupling sockets, and separately applied etched metal parts. Representative releases include ACC2412 (Diagram O.33, GWR brown, No. 2789), ACC2419 (Diagram O.62 NNV, BR rail blue, No. W1013), ACC2420 (Diagram O.62 QRV, departmental olive, ENPARTS van ADB975784), and ACC2423 (Diagram O.33, olive/Red Cross ambulance livery, No. A5 3207). RRP was approximately £55. Most primary retail stock has now sold through; the secondary market is the main source for this range.

Lima produced an inside-framed Siphon G (catalogue L305351W and variants) from 1978 — now discontinued and a budget secondhand option.

N gauge — Dapol

Dapol dominates the N gauge market with an extensive Siphon G range (catalogue prefix 2F-024, over 30 variants) covering the inside-framed design in GWR brown, BR bauxite, BR maroon, weathered, and unpainted finishes. Dapol also produced at least one Siphon H variant (NC004BDap, GWR dark brown). Graham Farish has not produced any Siphon models.

O gauge (7mm scale) — kits only

No RTR O gauge Siphon exists. Kit options include Slaters 7C03 (the six-wheeled Siphon, Diagram O.4 predecessor), the Ian Kirk Siphon H injection-moulded plastic kit, and Diagram3D's 3D-printed Siphon O.1 four-wheeled body kit. The Minerva model railway company announced an O gauge Siphon G at some point, though availability should be confirmed directly before ordering.

Modelling Tip — Getting the Livery Right: GWR Siphons were always painted in the standard Non-Passenger Carrying Coaching Stock colour — described variously as "chocolate brown," "dark brown," or simply "GWR brown" — never in chocolate and cream passenger livery. Under British Railways, the fleet progressively moved through carmine red (BR crimson lake), maroon, rail blue, and finally departmental olive. If you are modelling a 1950s transition-era layout, a mix of GWR brown survivors and early BR carmine red repaints in the same milk working is entirely prototypical.

Unique Modelling Tips and Layout Integration

The Siphon G offers exceptional modelling versatility precisely because it operated across such a wide range of contexts and eras. The tips below address the most common questions from modellers building GWR and Western Region layouts.

Choosing the right diagram for your era

If you are modelling the GWR period (pre-1948), the Hornby Siphon G (outside-framed O.11 type) or Accurascale O.33 variants in GWR brown are your principal options. The O.11 type was not withdrawn until 1962, so it can appear alongside BR-liveried locomotives in early 1950s transition layouts. If your layout is set in the 1960s or later, the O.33 and O.62 vehicles in BR maroon or rail blue are correct. NNV newspaper van conversions in BR blue are appropriate from the early 1970s through to the early 1980s.

Formation guidance — milk trains

A realistic inter-war West Country milk working might comprise two to four Siphon Gs at the rear of a passenger express, with a Passenger Brake Van at the outer end for the guard. Dedicated milk trains in the late 1950s and 1960s increasingly included six-wheeled milk tank wagons alongside Siphon Gs in the same working — a mixed formation that gives a layout a period-authentic look. The Siphon would typically be at the London end of the formation, closest to the passenger vehicles, with the tank wagons trailing.

Formation guidance — newspaper and parcels workings

From the 1970s, NNV newspaper vans typically ran in small sealed rakes of two to six vehicles, hauled by a Class 47 or Class 50 on the Western Region. These were usually night workings, arriving at provincial stations in the small hours. On a layout, a trio of Accurascale NNV-liveried Siphon Gs behind a Class 47 in large-logo blue makes a convincing late-1970s scene that doesn't require a full passenger train formation.

Departmental ENPARTS vans

The olive green departmental ENPARTS vans (ADB975xxx series) are a modeller's gift — unusual enough to attract attention, prototypically justified at almost any Western Region motive power depot from the mid-1960s through to the mid-1980s, and now available in ready-to-run form from Accurascale (ACC2420). These vans would typically appear as one or two isolated vehicles in a loco servicing area or attached to a light engine working rather than in a formed rake.

Modelling weathering on Siphons

The timber-bodied construction of the Siphon G means that weathering tells a different story from steel-sided coaching stock. The body planking absorbs grime unevenly — the lower panels and around the ventilation louvres accumulate dirt fastest, while the upper panels under the eaves stay relatively cleaner. Roof weathering should show rust staining from the ventilator metalwork and general grime streaking from the rainwater gutters. Under-frame soiling from brake dust and track grime is heavy by BR standards, as these vehicles often sat in sidings for extended periods between workings.

Modelling Tip — The Ambulance Variant: Accurascale's ACC2423 reproduces the wartime ambulance conversion in olive green with Red Cross markings — a vehicle type entirely absent from the model market until 2023. Used with a 1940s passenger express formation, this adds a powerful historical dimension to wartime layout scenarios. The ambulance conversions ran alongside standard GWR passenger coaches in Casualty Evacuation Trains, so a mixed formation is entirely prototypical.

Siphon H vs Siphon G — getting formations right

Because the Siphon H lacks gangway connections, it could not be marshalled within the body of a train in a position requiring passengers or crew to pass through it. In practice, Siphon Hs appeared at the outer ends of formations, with the Siphon G occupying positions within the rake where through gangway access was needed. Avoid positioning a Siphon H between two other gangwayed vehicles — it is a detail that the knowledgeable observer will notice immediately.

Named Trains and Notable Workings

The Siphon G's operational life was woven through some of the most celebrated named trains on the Western Region. On the Cornish Riviera Express, Siphon Gs regularly appeared in the parcels portion attached ahead of the passenger brake van, carrying cut flowers from the Isles of Scilly, early strawberries from the Tamar Valley, and general perishable goods from Cornwall and Devon. The Royal Duchy and The Mayflower carried similar parcels portions on summer Saturdays.

In Wales, the Red Dragon and Capitals United Express between Paddington and Cardiff did not themselves carry Siphon Gs, but the milk workings that shadowed the main expresses through the Severn Tunnel from Carmarthen and Pembrokeshire were heavy users of the type. The 3:50 pm from Whitland — unofficially known along the line as "The Dairy" — was a significant Siphon working throughout the 1950s and 1960s.

The Milk Empties diagram — the returning empty-churn working from London to the West Country — was operationally essential but less photogenic and consequently less documented. These workings typically ran overnight or in the small hours, making them natural candidates for modellers interested in atmospheric night or dusk scene composition.

By the 1970s, the Siphon G's headline working was newspaper distribution. Sealed rakes of NNV vans departed London Paddington after the presses closed, serving Bristol, Exeter, Plymouth, and Swansea. These workings were usually Class 47 or Class 50 hauled, and by the early 1980s they were among the last regular locomotive-hauled coaching stock workings on the Western Region main line — a poignant final chapter for a vehicle designed when Castle class locomotives were still a distant aspiration.

Finally

The GWR Siphon family stands as a remarkable testament to the value of sound fundamental engineering combined with operational adaptability. A vehicle designed in the Edwardian era to carry milk churns at express speeds went on to carry casualties in two world wars, haul overnight newspapers to provincial Britain, and transport locomotive spare parts between Swindon and Laira until Margaret Thatcher's second term in office. No other type of British coaching stock can claim such a breadth of roles across so long a timespan.

For modellers, the Siphon G is close to the ideal GWR vehicle. It is distinctive yet unobtrusive, historically significant yet operationally flexible, and now exceptionally well served in OO gauge by Accurascale's 2023 range, which offers a level of diagram specificity — sixteen variants spanning five decades — that was unimaginable when the original Airfix tooling appeared in 1980. The older Hornby Siphon G and H models remain useful entry points, especially for the outside-framed O.11 type not covered by Accurascale, though the bogie inaccuracy should be addressed on any layout where close inspection is invited. In N gauge, Dapol's extensive range provides comparable coverage for modellers working at 2mm scale.

The definitive reference work for prototype researchers is Great Western Siphons: Design, Development & Operation by John Lewis (Wild Swan Publications). The earlier HMRS monograph GW Siphons by Slinn and Clarke (1986) remains a useful secondary source. Both are worth seeking out before committing to a specific diagram variant for your layout.

Frequently Asked Questions

Why are GWR milk vans called Siphons?

"Siphon" was the GWR's telegraphic code word for milk van, part of an extensive company-wide code system developed from 1839 to compress operational messages. The code became so embedded in railway culture that staff continued using it long after the telegraphic system was abolished in 1943. The suffix letters (G, H, C, etc.) distinguished individual variants within the family.

How many Siphon Gs were built, and who built them?

A total of 365 Siphon Gs were built across six diagram variants between 1908 and 1955. The vast majority were constructed at Swindon Works. The exception is the final lot of Diagram O.11 vehicles (Lot 1378, 1927), which was contracted to Metro-Cammell. The type was the most numerous non-passenger coaching stock design the GWR ever produced.

What is the difference between a Siphon G and a Siphon H?

The Siphon G is a gangwayed bogie milk van — it has scissors-pattern end gangways allowing through passage between vehicles. The Siphon H is a non-gangwayed design with end doors rather than gangways, and also features a distinctively higher roof profile. The Siphon H could only be marshalled at the outer ends of train formations. Both types were built from the same broad design era and appear superficially similar in photographs.

Where can I see a preserved Siphon G?

The most accessible examples are No. 1257 (the only surviving outside-framed O.11 vehicle, in GWR brown) and No. 2926 (a former wartime US Army ambulance van) at the Severn Valley Railway at Kidderminster. No. 2796 is at the Didcot Railway Centre in Oxfordshire. The sole example in national museum care, No. 2775, is at Locomotion in Shildon, County Durham. Several further examples survive at the Dean Forest Railway, West Somerset Railway, and Gloucestershire Warwickshire Steam Railway.

Which OO gauge ready-to-run Siphon G models are currently available?

Accurascale's 2023 range (ACC2410–ACC2425) is the highest-specification OO gauge option, covering Diagrams O.33, O.59, O.62, M.34, and NNV conversions across sixteen variants in GWR brown, BR carmine, BR maroon, BR rail blue, departmental olive, and ambulance liveries. Most primary retail stock has sold through and the secondhand market is now the main source. Hornby produces the Siphon G (R6055 series, outside-framed O.11 type) and Siphon H (R6980, R6981) from the older Airfix tooling — widely available new and secondhand.

Are there Siphon models in N gauge or O gauge?

In N gauge, Dapol offers an extensive Siphon G range under catalogue prefix 2F-024, with over 30 variants covering the inside-framed design in multiple liveries, plus at least one Siphon H variant. Graham Farish has not produced any Siphon models. In O gauge (7mm scale), no ready-to-run models exist; kit options include the Slaters six-wheeled Siphon (7C03), the Ian Kirk Siphon H injection-moulded plastic kit, and Diagram3D's 3D-printed Siphon O.1 body.

What liveries did Siphon Gs carry in real life?

GWR Siphons were always painted in the standard Non-Passenger Carrying Coaching Stock brown — never chocolate and cream. Under British Railways, the fleet progressed through carmine red (crimson lake) from approximately 1948, then BR maroon, then corporate rail blue from the early 1970s. Departmental conversions received olive green with yellow warning ends (ENPARTS vans) or general departmental grey. Ambulance conversions during the Second World War wore olive green with prominent Red Cross markings.

What named trains did Siphon Gs work on?

Siphon Gs appeared on the Cornish Riviera Express in the parcels portion, carrying cut flowers and perishable goods from Devon and Cornwall. They worked named milk services including The Milky (12:00 from Penzance) and The Murphy (11:00 from Penzance). In the late 1950s, four daily West Wales milk workings used Siphon Gs, with the 3:50 pm from Whitland being particularly noted for heavy loadings. NNV newspaper van conversions worked unnamed overnight services from London Paddington to the West Country and South Wales from the 1970s.

How were Siphon Gs used in dedicated milk train formations?

In GWR and early BR practice, a typical milk working included two to four Siphon Gs at the rear of a passenger express, with a Passenger Brake Van at the outer end for the guard. By the late 1950s, dedicated milk trains mixed Siphon Gs with six-wheeled milk tank wagons. The Siphon Gs generally ran closest to the passenger vehicles, with tank wagons trailing. This mixed formation is the most prototypically accurate choice for modellers depicting milk workings of the 1955–1970 period.

How do GWR Siphons compare to milk vans on other railways?

The GWR Siphon G was a significantly more sophisticated vehicle than contemporary London Midland & Scottish Railway and London & North Eastern Railway milk vans, which were largely non-gangwayed four-wheeled or six-wheeled designs rather than bogie vehicles. The coaching stock classification and the adoption of gangways at an early date gave the Siphon G greater operational flexibility, allowing it to be marshalled within passenger train rakes where other companies' milk vans could only run at the outer ends. This design advantage contributed directly to the GWR's dominance of milk traffic among the Big Four.
