Southern Railway Maunsell 59ft Coaches — The Standard Bearers of the Southern Railway

Historical Background and Introduction

When the Southern Railway came into being on 1 January 1923 under the Railways Act 1921, it inherited a coaching stock crisis of the first order. Three predecessor companies — the London & South Western Railway (LSWR), the London, Brighton & South Coast Railway (LBSCR), and the South Eastern & Chatham Railway (SE&CR) — had each built to their own dimensions, traditions, and varying standards of modernity. The combined fleet numbered some 7,200 vehicles, most of them non-corridor, wooden-bodied, and in the later stages of their service lives. Worse still, the three companies had operated to different structural loading gauges: the SE&CR lines through Kent and Sussex included tunnels so constricted — particularly on the Hastings route — that standard-width stock simply could not run through them.

Richard Edward Lloyd Maunsell, who had served as Locomotive, Carriage and Wagon Superintendent of the SE&CR since 1913, became the Southern's first Chief Mechanical Engineer. Maunsell was not a flamboyant innovator. He was an organiser and consolidator of rare ability, and his approach to coaching stock reflected this precisely. Rather than impose one predecessor's design on the others, he set about creating a single standard coach family that could serve every corner of the system. The detailed design work was largely carried out by his Chief Draughtsman for Carriages and Wagons, Lionel Lynes, who would prove one of the most important unsung figures in Southern history, providing design continuity through both the Maunsell and subsequent Bulleid eras.

The new standard coach did not emerge from thin air. The most modern coaching stock in the inherited fleet was the LSWR "Ironclad" type, introduced in July 1921, which pioneered flush galvanised steel sheeting screwed to a wooden body frame — a significant departure from traditional panelled construction. Ironclad production actually continued until January 1926 while the new design was being finalised, and the Maunsell coach evolved directly from the Ironclad rather than from any GWR or outside influence. A critical early policy decision, taken in January 1924, was to adopt Pullman-type gangways with retractable buckeye (knuckle) couplers as standard across all new stock — a progressive choice that gave SR coaching rakes their characteristically snug, close-coupled appearance.

The first ten three-coach sets, numbered 390–399, entered service in October 1926 on West of England expresses from Waterloo to Exeter. Construction was shared between Eastleigh Works in Hampshire, which built and finished the bodywork, and Lancing Carriage Works in West Sussex, which produced the steel underframes. No outside contractors were involved in the main building programme. Production of standard passenger stock continued until 1936, with the final Maunsell-designed vehicles — eight Post Office sorting and tender vans — completed in 1939, two years after Maunsell's retirement and technically under Bulleid's tenure as CME.

Design, Construction, and Technical Specifications

The Maunsell 59-foot coach was a corridor vehicle built on a steel truss-bar underframe with a wooden body frame clad in galvanised steel sheeting — robust, practical, and entirely conventional in British terms for its era. The body length of 59 feet gave a generous passenger-carrying capacity while remaining within the SR's operational constraints. All standard vehicles were gangwayed corridor stock fitted with Pullman-type gangways and retractable buckeye couplers at each end.

The three-gauge body-width system was one of the most innovative aspects of the design and something no other grouped railway needed to replicate. Full-width Restriction 4 (R4) coaches at 9 ft 0 in wide, with a pronounced tumblehome (inward taper above the solebar), served the former LSWR Western Section and the former LBSCR Central Section. Narrower Restriction 1 (R1) stock at 8 ft 6 in ran on Eastern Section lines toward Dover and Folkestone, where tunnel and platform clearances were tighter. The ultra-narrow Restriction 0 (R0) coaches, at just 8 ft 0¾ in and with almost no tumblehome at all, were purpose-built for the Hastings line and its notoriously constricted running through Bo-Peep and Mountfield tunnels. While all three gauges used the same 59-foot underframe and the same basic internal layout, the visual difference between a broad R4 coach and a narrow, almost slab-sided R0 vehicle is immediately apparent to even a casual observer.

The roof was a timber-framed arc profile, covered in canvas and painted white or cream. Electric lighting, supplied from axle-driven dynamos charging battery boxes mounted under the underframe, replaced the gas lighting still used on much pre-Grouping stock. Steam heating from the locomotive was standard throughout the class.

The one persistent criticism of the design, voiced by passengers and later by Bulleid himself, concerned the low-set corridor windows of the original pattern, which made it difficult to see the passing scenery without ducking. This was addressed progressively from 1928 onward through higher window positioning in subsequent production batches — one of several detail revisions that give the Maunsell family its four distinct external patterns.

Historical Insight — The Pullman Gangway Decision: The adoption of Pullman-type retractable gangways with buckeye couplers in 1924 was a bold call. Buckeye couplers gave each set its characteristic tight, seamless appearance — the coaches sat closer together than the loose-coupled vehicles of rival railways. It also meant sets had to be worked as complete units; individual coaches could not simply be slipped in and out of a formation without the correct coupler equipment. This drove the SR's famously disciplined set-train working system, where each numbered set was a fixed entity subject to strict marshalling instructions.

Sub-types, Diagrams, and Variants

The Maunsell 59-foot family encompassed an unusually wide range of vehicle types, each identified by a Southern Railway diagram number reflecting its interior layout. A critical distinction that trips up many modellers is the difference between diagram (interior arrangement — compartments, seating, toilet and luggage provision) and external pattern (body-side window style). Any given diagram could be built to multiple patterns as production evolved, and the same pattern could appear in R4, R1, or R0 width variants. Understanding this matrix is essential for accurate modelling.

The four external patterns ran in sequence: Pattern 1 (1926–1929) with low-set corridor windows set in wooden frames; Pattern 2 (1929–1934) with raised corridor windows, though compartment-side windows on corridor coaches remained at the original height; Pattern 3 (1935) with virtually flush-sided bodies, large-radius window corners, visible screw-heads, frameless droplights, and two offset battery boxes; and Pattern 4 (1936) with fixed window lights in neat moulded frames, small-radius corners, and a cleaner overall appearance that many enthusiasts consider the most handsome of the series. Approximately 46 sets were built to Pattern 4.

Key diagram types

Corridor Thirds (TK, approximately 418 vehicles) were the most numerous sub-type, built to Diagrams 2001 (R4, the standard full-width version), 2003 (R1), 2004 (R0 for the Hastings line), 2008 (Pattern 3), and 2011 (Pattern 4). An R4 Corridor Third to Diagram 2001 offered eight compartments seating 64 passengers.

Open Thirds (TO, approximately 153 vehicles) to Diagrams 2005 and 2007 were an important innovation. Diagram 2005, introduced from 1930, pioneered the open-plan saloon layout — two saloons separated by a central vestibule and toilet compartment, with no individual compartments at all and large windows that could be fully lowered. These were genuinely revolutionary coaches for British practice, and the preserved examples at the Bluebell and Swanage railways remain among the most visitor-friendly vehicles on either line.

Brake Thirds (BTK, approximately 254 vehicles) came in two principal compartment configurations — four-compartment (Diag. 2101, 32 seats) and six-compartment (Diag. 2102, 48 seats) — each built to R4, R1, and R0 variants. The Brake Third was the workhorse end vehicle of virtually every standard Maunsell set.

Composites (CK, approximately 159 vehicles) to Diagrams 2301–2308 combined First and Third Class accommodation, typically four First and three Third compartments (Diag. 2301). Corridor Firsts (FK, approximately 73 vehicles, Diags. 2501–2503) provided pure First Class accommodation across seven compartments and were heavily allocated to boat train and named express workings.

Brake Composites (BCK, approximately 121 vehicles) to Diagrams 2401–2403 were perhaps the most characteristic Maunsell vehicle of all — the multi-purpose through coach that made the Atlantic Coast Express possible. Combining a guard's and luggage brake section with both First and Third Class compartments, the BCK was the essential building block of the SR's complex multi-portion train working.

Nondescript Open saloons (approximately 82 vehicles) to Diagrams 2653 and 2654 were unclassed open vehicles intended primarily for boat train use, where passenger loadings were unpredictable. They were classified First or Third as required, hence the title.

Restaurant and dining cars (approximately 50 vehicles original build) to Diagrams 2651–2656 included Kitchen/Dining Firsts, Dining Saloon Thirds (later reclassified as Open Thirds), and later Kitchen/Buffet conversions.

Service History and Operating Companies

From the moment they entered traffic in October 1926, Maunsell coaches were the SR's flagship passenger stock, and they remained so for the better part of two decades. Their deployment reflected the Southern's meticulous set-train working: each numbered set had a diagram specifying its formation, allocation, and the services it worked. Sets were reformed seasonally to match traffic demand but were otherwise kept intact.

On the Western Section — the former LSWR main line from Waterloo through Basingstoke and Salisbury to Exeter — full-width R4 stock dominated the premier services. The Atlantic Coast Express was the most celebrated working. Inaugurated on 19 July 1926, the ACE was at its peak the most complex named train in Britain: a single departure from Waterloo that divided en route to serve nine separate destinations — Ilfracombe, Torrington, Bude, Padstow, Plymouth, Exmouth, Sidmouth, Seaton, and Lyme Regis. Each portion was typically a Maunsell BCK, detached at Exeter or Barnstaple Junction for its separate final destination. As many as eight of the ten vehicles making up the formation at Waterloo could be brake composites. New Maunsell restaurant cars joined the ACE from 1928, cementing the standard coach as the principal vehicle for the railway's most prestigious working. By 1930, Maunsell coaches were also well established on Waterloo–Bournemouth–Weymouth expresses and Southampton Ocean Liner boat trains.

On the Eastern Section — the former SE&CR routes from Victoria and Charing Cross through Kent — narrower R1 stock worked express services to Dover, Folkestone, and Ramsgate. The specialised R0 fleet was dedicated entirely to the Hastings line, working between Charing Cross and Hastings via the restricted Tonbridge–Battle route. On the Central Section (former LBSCR), Maunsell coaches appeared on Victoria and London Bridge departures to Brighton, Horsham, and Eastbourne.

The outbreak of World War II in September 1939 removed the Atlantic Coast Express and other named trains from the timetable overnight. Maunsell coaches found themselves carrying vastly increased loadings of evacuees, service personnel, and essential workers under wartime restrictions. Sixteen coaches were destroyed in enemy action between 1940 and 1944, and many more required bomb-damage repair. Notoriously, four coaches were also lost in the Sevenoaks derailment of August 1927 and four more in the Catford accident of September 1946.

Nationalisation in January 1948 brought Maunsell stock into British Railways service as Southern Region property. The coaches were renumbered with an "S" prefix (e.g. S1309S) in the BR system. Displacement began almost immediately as Bulleid coaches ordered in 1944 entered traffic, and accelerated with the arrival of BR Mk1 coaches from 1951. Maunsell vehicles were progressively cascaded from principal expresses to secondary and semi-fast duties — Brighton–Bournemouth services, cross-country workings, summer Saturday reliefs — where they could still be found operating alongside Bulleid and Mk1 stock into the early 1960s.

Modelling Tip — Authentic Set Formations: The SR worked its coaches in rigidly prescribed numbered sets rather than the more flexible rakes common on other railways. A typical three-coach main-line set consisted of a Brake Third, Corridor Composite, and Brake Third (BTK–CK–BTK). The five-coach express formation added a Corridor Third and Corridor First: BTK–TK–CK–FK–BTK. For a convincing Atlantic Coast Express model, use a Corridor First or First/Third Composite followed by several BCKs, all in matching olive green or malachite. Hornby produces all these types in compatible toolings; catalogue numbers R4297 through R4318 cover the core range.

The 1959 Kent Coast electrification triggered mass withdrawal of the R0 Hastings-gauge fleet, now surplus as electric multiple units took over. Twenty BCKs and Open Thirds were given a new lease of life, converted to push-pull sets (numbered 600–619) at Lancing Works between 1959 and 1961. Fitted with end driving cabs, they worked branch lines with M7 and H class tank engines until the last push-pull set was withdrawn in October 1964. The Atlantic Coast Express itself ran for the last time on 5 September 1964. Standard Maunsell passenger coaches were finally withdrawn from British Railways service in 1967.

Withdrawal, Preservation, and Surviving Examples

Approximately 30 Maunsell 59-foot coaches survive in preservation across several heritage railways. No examples are held by national museum collections. The majority were rescued from departmental or internal user service — converted to tool coaches, weedkilling train stock, or mess vehicles — rather than directly from passenger traffic, which explains why survival is patchy across diagram types. Around ten are currently operational.

Bluebell Railway, Sheffield Park, East Sussex

The Bluebell Railway holds the largest and most representative Maunsell collection, with ten vehicles spanning multiple diagram types and patterns.

Four are currently operational in SR olive green: 1309 (Open Third, Diag. 2007, ARPS Coach of the Year 1984), 1336 (Open Third, Diag. 2005, a pattern 2 pioneer restored after a decade-long programme and re-entered service 2009), 3687 (Brake Third, Diag. 2105, the unique surviving R0 Hastings-gauge vehicle, returned to service in May 2025 after a remarkable 32-year restoration), and 6686 (Brake Composite, Diag. 2403, a flush-sided Pattern 3 vehicle).

Under active restoration is 7864 (Kitchen First, Diag. 2656, a major rebuild commenced February 2024). Stored awaiting attention are 7866 (Dining Saloon, Diag. 2652, the oldest surviving Maunsell coach, built 1927), 5644 (Corridor Composite, Diag. 2301, affected by significant dry rot after departmental service), 6575 (Brake Composite, Diag. 2401, one of the very first two coaches to arrive at the Bluebell in 1960), 4441 (Nondescript Brake, Diag. 2654, planned for wheelchair-accessible conversion), and 3724 (Brake Third, Diag. 2101, currently stripped).

To visit, the Bluebell Railway operates year-round from Sheffield Park station, accessible from the A275 between East Grinstead and Lewes. Maunsell coaches run regularly on advertised services.

Swanage Railway, Dorset

The Swanage Railway has six Maunsell vehicles, focused on the Open Third type. S1381S (Open Third, Diag. 2005) re-entered service in July 2019 after recovery from departmental use; S1346S (Open Third, Diag. 2005) joined it in October 2022. S1323S (a third Open Third) is earmarked for a recreation of one of the push-pull sets 600–619 alongside 6699 (ex-Driving Brake Composite, Diag. 2403, one of the original push-pull conversions). Two further vehicles survive as underframes only.

The Swanage Railway operates from Swanage station in Dorset, with connections at Wareham on the main line during the peak season.

Kent & East Sussex Railway, Tenterden, Kent

The Kent & East Sussex Railway holds six Maunsell vehicles across multiple diagram types, including the only surviving low-window corridor composite. 4432 and 4443 (both Nondescript Brakes, Diag. 2654) operate regularly in SR olive green, having been purpose-built for boat train service and since converted for public use. 5618 (Corridor Composite, Diag. 2302, R1 Eastern Section stock with high corridor windows) is also operational. The unique 5153 — the only surviving low-window composite, to Diag. 2302, and one of just two Pattern 1 coaches known to survive — is currently stored and represents an irreplaceable piece of the pattern evolution story.

The KESR operates from Tenterden Town station in Kent, with a northern terminus at Bodiam adjacent to the National Trust castle.

Other locations

4920 (Post Office Sorting Van) is preserved at the Nene Valley Railway in Cambridgeshire; 4958 (Post Office Tender Van) at the Pontypool & Blaenavon Railway in South Wales. 3690 (Brake Third, Diag. 2105, R0 Hastings gauge) is stored at the Rother Valley Railway in East Sussex.

Modelling Significance and Scale Replications

The Maunsell 59-foot coach is among the most comprehensively modelled prototype families in British outline model railways. Any Southern Railway layout from the late 1920s through the mid-1960s effectively requires Maunsell coaches — there was no realistic alternative for express and semi-fast work across that entire period — and manufacturers have responded accordingly.

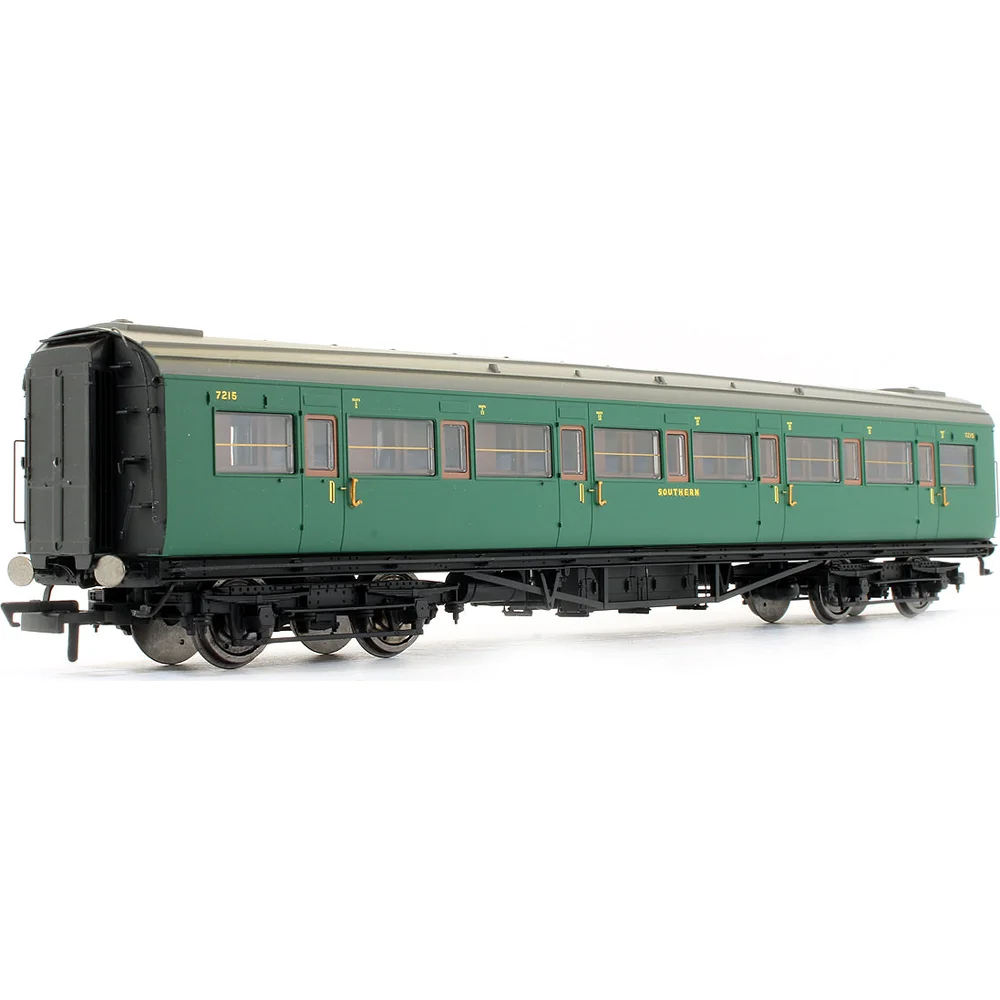

OO gauge (4mm scale)

Hornby provides the definitive OO gauge range. The tooling was introduced in 2007 and has been developed continuously, now encompassing over 130 individual products. The range covers all the principal types:

Hornby models are well regarded for accuracy at the mass-market RTR level. Rivet-counters note occasional oversizing of brake-gear bolt detail, and a single tooling cannot capture every nuance of the four external patterns — the models most closely represent Pattern 2/3 proportions. For close-coupling, Hornby's R8220 shortenend tension-lock couplers produce a convincingly tight corridor-connected rake. No other major RTR manufacturer produces Maunsell 59-foot coaches in OO gauge — neither Bachmann, Accurascale, nor Dapol has an equivalent product.

For types not covered by Hornby RTR, Roxey Mouldings offers etched brass and whitemetal kits including the R0 Corridor Composite (Diag. 2304) and the Nondescript Brake (Diag. 2654). Comet Models/Wizard Models supplies essential components: ECS1 (SR gangwayed carriage end castings with Pullman gangways) and BS1 (SR 8 ft wheelbase steam stock bogies) for scratch-builders and kit converters. Ratio produces the SR 8ft Steam Bogie pair (Ref. 104) as a separate component.

N gauge (2mm scale)

Dapol is the sole N gauge manufacturer, with a range introduced from 2015 that now extends to over 60 individual products. Both low-window (series 2P-012) and high-window (series 2P-014) toolings are available, covering Corridor First, Corridor Third, Corridor Composite, Brake Third, and Brake Van types. Coach sets and individual vehicles are stocked across SR olive green, BR crimson & cream, and BR(S) green liveries. Features include NEM coupler pockets, gold door handles, and compatible plug-in light bars. Graham Farish does not produce Maunsell coaches.

O gauge (7mm scale)

Slater's Plastikard offers the only O gauge coverage, with five injection-moulded polystyrene kits:

Each kit is available with etched brass or plastic bogie options in Scale Seven or Coarse Scale specifications, at approximately £207–213 per kit. No ready-to-run O gauge Maunsell coaches exist, representing a significant gap in the market.

Livery coverage

SR olive green and BR(S) green are the best-represented liveries across all scales. BR crimson and cream is well covered by both Hornby and Dapol. SR malachite green is available from Hornby but in fewer catalogue variants. BR blue and grey is correctly absent from the standard coach range — no standard Maunsell passenger coach ever carried this livery, all having been withdrawn by 1967 before it reached Southern Region locomotive-hauled stock. Only the four ambulance car conversions and the Post Office vehicles received blue and grey, and these are not currently produced in model form.

Unique Modelling Tips and Layout Integration

Getting the pattern right

The single most rewarding piece of research a Southern modeller can undertake is identifying the correct external pattern for the period being modelled. A pre-war layout set in 1932 demands Pattern 1 or Pattern 2 coaches; a BR(S) green scene from 1960 might appropriately feature Pattern 3 or Pattern 4 stock. The Hornby tooling most closely represents a Pattern 2–3 body, which suits most layouts from the mid-1930s onward. For Pattern 1 low-window stock, a light modelling of the corridor-side windows (carefully masking the upper portion) can suggest the original appearance.

Mixing the three gauges on one layout

Restriction 0, R1, and R4 stock were never mixed in normal service — the gauge restrictions existed for good operational reasons. However, a layout representing a junction station such as Tonbridge or Ashford, where Eastern Section R1 and R0 workings could be observed alongside R4 through coaches off the Western Section, offers an authentic reason to roster coaches of different widths. Note that Hornby's current tooling is R4 full-width stock only; R0 and R1 Maunsell coaches in OO must be sought from Roxey Mouldings or scratch-built.

The set-train discipline

Model the Southern's set-working system to add operational authenticity. Keep your Maunsell coaches in correct numbered-set formations rather than mixing diagram types at random. A useful reference: Sets 390–399 (the first batch) were three-coach formations of BTK–CK–BTK. Sets in the 800 and 900 series were typically five-coach. Running a mixed rake of Maunsell and Bulleid stock is entirely correct for the 1948–1962 period, when both types frequently appeared together on summer Saturday reliefs.

Modelling Tip — The Maunsell Crimson Livery Quirk: When applying or selecting BR crimson and cream models, note that deep-windowed Maunsell coaches had insufficient space above the corridor-side window lights for the standard-depth cream upper band. The cream panel therefore extended all the way to the cant rail on the corridor side — a higher cream band than on the compartment side — creating an asymmetric appearance that is technically correct but surprises modellers unfamiliar with the prototype. Hornby reproduces this correctly on its crimson & cream releases; check before assuming the two sides should match.

Rake-building on a budget

Building a convincing SR express rake need not require purchasing every variant. A compelling Atlantic Coast Express consist for a 1930s–40s layout can be assembled from three products: a pair of Hornby BCKs (R4318 series) flanking a Corridor First (R4298), all in SR olive green. Add a Kitchen/Dining First (R4816 or R4817) to create a four-vehicle named train portion. For a BR 1950s scene, the same formation in BR crimson and cream or BR(S) green reads convincingly when headed by a Hornby or Bachmann Schools or West Country class locomotive.

Heritage railway modelling

The Bluebell Railway's collection offers a ready-made layout concept: four Maunsell coaches in SR olive green (1309, 1336, 3687, and 6686) on a preserved line setting provides a visually unified and historically accurate consist that also reflects real vehicles you can photograph during a visit. The Swanage Railway's two operational Open Thirds (S1381S and S1346S) similarly inspire a Dorset branch setting.

Finally

The Maunsell 59-foot coach is one of the great unsung achievements of British railway engineering. It lacks the glamour of Gresley's teak-clad coaches or the headline-grabbing modernity of Bulleid's subsequent designs, but in terms of sheer operational importance, systematic engineering, and longevity of service, it stands comparison with anything built in Britain during the interwar period.

The challenge Maunsell faced was formidable: create a single standard vehicle that could serve three structurally different operating sections, replace thousands of life-expired vehicles in short order, and do so under the financial pressures facing a newly formed grouped railway. The solution — the three-gauge body width system, the standardised internal diagrams, the disciplined set-train working, and the evolutionary four-pattern development — was elegant in its practicality. These were coaches that worked, year after year, hauling expresses to Devon, boat trains to Dover, and branch trains across Surrey, Kent, and Sussex.

For the railway modeller, the Maunsell coach is both a prototype necessity and a genuine pleasure to work with. The variety of diagram types, liveries, and external patterns gives depth to any collection, while the comprehensive coverage from Hornby in OO and Dapol in N means that assembling a convincing SR or BR(S) rake is more achievable than for almost any other pre-nationalisation coaching stock family. Visit the Bluebell Railway to see the best collection under one roof — the sight of a rake of SR olive green Maunsell coaches arriving behind a Maunsell or Bulleid locomotive is as close as it is possible to get to the Southern Railway in its prime.

Frequently Asked Questions

When were the Maunsell 59-foot coaches first introduced, and who built them?

The first ten three-coach sets entered service in October 1926 on West of England expresses from Waterloo to Exeter. All vehicles were constructed by the Southern Railway itself, with Eastleigh Works in Hampshire handling bodywork and assembly and Lancing Carriage Works in West Sussex producing the steel underframes. No outside contractors were involved in the main build programme.

What are the four external patterns, and why do they matter to modellers?

The Maunsell 59-foot coach evolved through four distinct body-side designs between 1926 and 1936. Pattern 1 (1926–1929) had low-set corridor windows in wooden frames. Pattern 2 (1929–1934) raised the corridor windows significantly. Pattern 3 (1935) introduced virtually flush sides with visible screw-heads and frameless droplights. Pattern 4 (1936) featured neat framed fixed windows with small-radius corners, widely regarded as the most handsome variant. For modellers, identifying the correct pattern for the period being represented adds significant authenticity — the Hornby tooling most closely matches Patterns 2–3.

What named trains did Maunsell coaches work, and in what formations?

The Atlantic Coast Express was the defining working — a multi-portion departure from Waterloo to up to nine Devon and Cornwall destinations, with Maunsell Brake Composites (BCKs) serving as the through coaches to each destination. Maunsell coaches also appeared on Waterloo–Bournemouth–Weymouth expresses, Victoria–Dover boat trains (using narrower R1 stock), and the Southampton Ocean Liner trains. Restaurant cars accompanied the Atlantic Coast Express from 1928. The Bournemouth Belle and Golden Arrow were Pullman workings and did not use standard Maunsell coaches in their regular formations.

How did the three loading gauge variants differ, and which routes did each serve?

Full-width Restriction 4 (R4) coaches at 9 ft 0 in wide served the former LSWR Western Section and former LBSCR Central Section — Waterloo–Exeter, Waterloo–Bournemouth, Victoria–Brighton, and similar routes. Restriction 1 (R1) stock at 8 ft 6 in worked the former SE&CR Eastern Section lines to Dover, Folkestone, and Ramsgate. The ultra-narrow Restriction 0 (R0) coaches at just 8 ft 0¾ in were purpose-built for the Hastings line, required because Bo-Peep and Mountfield tunnels on that route imposed clearances that precluded any wider vehicle. The three gauge types were never interchanged in normal service.

Where can I see surviving Maunsell 59-foot coaches today?

The Bluebell Railway in East Sussex has the largest collection, with four currently operational in SR olive green — including the unique Hastings-gauge Brake Third 3687, which returned to service in May 2025 after a 32-year restoration. The Swanage Railway in Dorset operates two Open Thirds (S1381S and S1346S). The Kent & East Sussex Railway at Tenterden runs Nondescript Brakes 4432 and 4443 and Corridor Composite 5618 in regular service, and also holds the unique surviving low-window composite 5153. Post Office vehicles survive at the Nene Valley Railway and the Pontypool & Blaenavon Railway.

Which OO gauge models are available, and how accurate are they?

Hornby dominates the OO gauge market with over 130 individual products covering virtually every principal diagram — Corridor Third, Corridor First, Corridor Composite, Brake Third, Brake Composite, Open Third, Kitchen/Dining First, Composite Dining Saloon, and the Push-Pull Set conversions. All four main liveries (SR olive green, SR malachite, BR crimson & cream, BR(S) green) are represented. The models are generally well regarded; minor rivet-counter concerns include the inherent limitation that a single tooling cannot capture every variation across four external patterns. No other major RTR manufacturer produces OO gauge Maunsell 59-foot coaches.

Are there N gauge or O gauge Maunsell coach models?

Yes to both scales. Dapol produces a comprehensive N gauge range exceeding 60 products, covering Corridor First, Third, Composite, Brake Third, and Brake Van types in both low-window and high-window toolings, across SR olive green, BR crimson & cream, and BR(S) green liveries. In O gauge (7mm scale), Slater's Plastikard offers five injection-moulded kits — BCK, TK, BTK (four-compartment), CK, and BTK (six-compartment) — at approximately £207–213 each, with etched brass or plastic bogie options. No ready-to-run O gauge Maunsell coaches currently exist.

How do Maunsell coaches compare to the equivalent stock on other grouped railways?

The Maunsell design was broadly contemporary with early LNER Gresley coaches and LMS non-corridor stock, though both the LNER and GWR benefited from wider loading gauges allowing more spacious vehicles. GWR Collett stock shared the trend toward buckeye couplers and curved-profile roofs. The LNER used exterior teak construction rather than steel-over-wood. The LMS had equivalent standardisation challenges but Stanier's later all-steel coaches (from 1932) represented a more modern structural approach. The Maunsell design's most distinctive contributions were the three-gauge body-width system — unique in British practice — and the rigorous set-train working method that it made possible.

When were Maunsell coaches finally withdrawn from British Railways service?

Displacement accelerated from the late 1940s as Bulleid coaches entered traffic, and from 1951 as BR Mk1 coaches arrived. The 1959 Kent Coast electrification triggered mass withdrawal of R0 Hastings-gauge stock. Twenty surplus vehicles were converted to push-pull coaches (Sets 600–619) for branch line use, the last of which was withdrawn in October 1964. Standard Maunsell passenger coaches were finally withdrawn from BR service in 1967, giving the design a service life of over 40 years.

What is the best reference book for serious research into Maunsell coaching stock?

The definitive reference is David Gould's Maunsell's SR Steam Carriage Stock (Oakwood Press, third edition 2000), which covers diagram numbers, lot numbers, running number ranges, and build quantities in authoritative detail. Mike King's An Illustrated History of Southern Coaches (OPC, 2003) provides excellent photographic coverage of liveries and external patterns. For online research, bloodandcustard.net and sremg.org.uk provide detailed diagram lists and formation data, and srg.org.uk offers pattern-by-pattern analysis invaluable for modellers.
