Common Features:
- Highly detailed OO scale model, 1:76.2
- Heavy die-cast metal chassis
- Accurate tumbleholme, nose, cab roof and cantrail curves taken from 3D Laser scan and extensive surveys
- Timeframe specific details, including but not limited to;
- Bogies (Fabricated and three variations of Cast)
- Fuel tanks (As built and with later smooth-sided long range fuel tank)
- Early Class 37/0 features frost grille, boiler filler panel and access steps
- Early Class 37/0 features illuminated split headcode displays with a selection of different four-character headcodes
- Class 37/6 have operational WIPAC light clusters and top headlight and numerous different nose slides all including multiple working socket
- Three styles of buffer: large round Oleo, oval and squared oval
- Three styles of nose grilles: as built, refurbished ‘split’ and refurbished ‘single piece’
- Boiler exhaust, and two styles of plated boiler panel
- With or without bufferbeam skirts
- With or without cab roof vents and bodyside windows
- Nose and roof aerials and antennas (where applicable)
- Three styles of windscreen: standard, centre toughened and all toughened
- Three styles of cab interior: as built, refurbished and modern DRS locos
- Four bufferbeam variations with different piping configurations
- Door kickplates where applicable
- Multiple body and nose slides to accurately represent almost every member of the class, including three variations of cantrail grille: early EE (for D6700-D6704), later EE and RSH
- Four roof styles: Original double riveted, single riveted, welded and welded with antennas
- Separately applied etched metal and high fidelity plastic detail parts, including grab handles, aerials, steps, wipers, nameplates, crests and more.
- Etched metal door kickplates (where applicable), ‘frost’ grille (where applicable) & super fine etched metal roof grille
- Scale width wire handrails
- Turned brass roof-mounted horns on centre headcode examples
- Full underbody tank detail with brackets and pipework
- Bogies feature separate footsteps, etched footsteps, brake cylinders, speed recorder, end brake rigging and very fine brake chain
- Brake blocks on trucks (bogies) in line with wheels (can be moved for EM/P4 gauges)
- Numerous other locomotive-specific details yet to be revealed!
- RP25-110 profile OO gauge wheels with fine scale ‘drop in’ EM (18.2mm gauge) and P4 (18.83mm gauge) wheels available separately
- Accurate high-fidelity miniature snowploughs
- Fully sprung metal buffers, extra-fine factory-installed pipework and screw couplings
- Correct height mini-tension-lock couplers with NEM socket as well as a fully detailed bufferbeam
- Provided DCC ready [21Pin MTX Socket] or Factory DCC Sound Fitted [ESU LokSound 5]
- Every model includes PowerPack / Backup Power Capacitor Bank for up to ten seconds of power free running, flicker free lighting and continuous sound
- DCC Sound Versions include:
- ESU LokSound V5 DCC Chip
- Customised Dual-Speaker Technology with;
- Large EM2 Style Bass Speaker
- Smaller 'iphone' style cube for higher frequencies
- High Performance traction, to include:
- High-quality five-pole motor with two flywheels
- Metal Helical Gear box for maximum performance and slow speed running
- Gearing arranged so locomotive can achieve a scale top speed of 100 mph (160 km/h)
- DCC ready with PowerPack Super-capacitor for uninterrupted power and super low speed running
- All wheel drive and all wheel pickup
- Fully detailed Lighting Pack, including:
- Directional lighting on DC and DCC
- Fully functional Headlights per prototype
- Engine Bay Lighting (with visible Prime Mover)
- WIPAC light clusters where appropriate with day and night-time settings
- Separately switched cab lighting and illuminated, details driver’s console, auto off on movement
- Switchable red tail lights
- RP25-110 wheels OO wheels with provision for re-gauging to p4 and EM gauge
- Minimum Radius 438mm (2nd Radius Set-track)

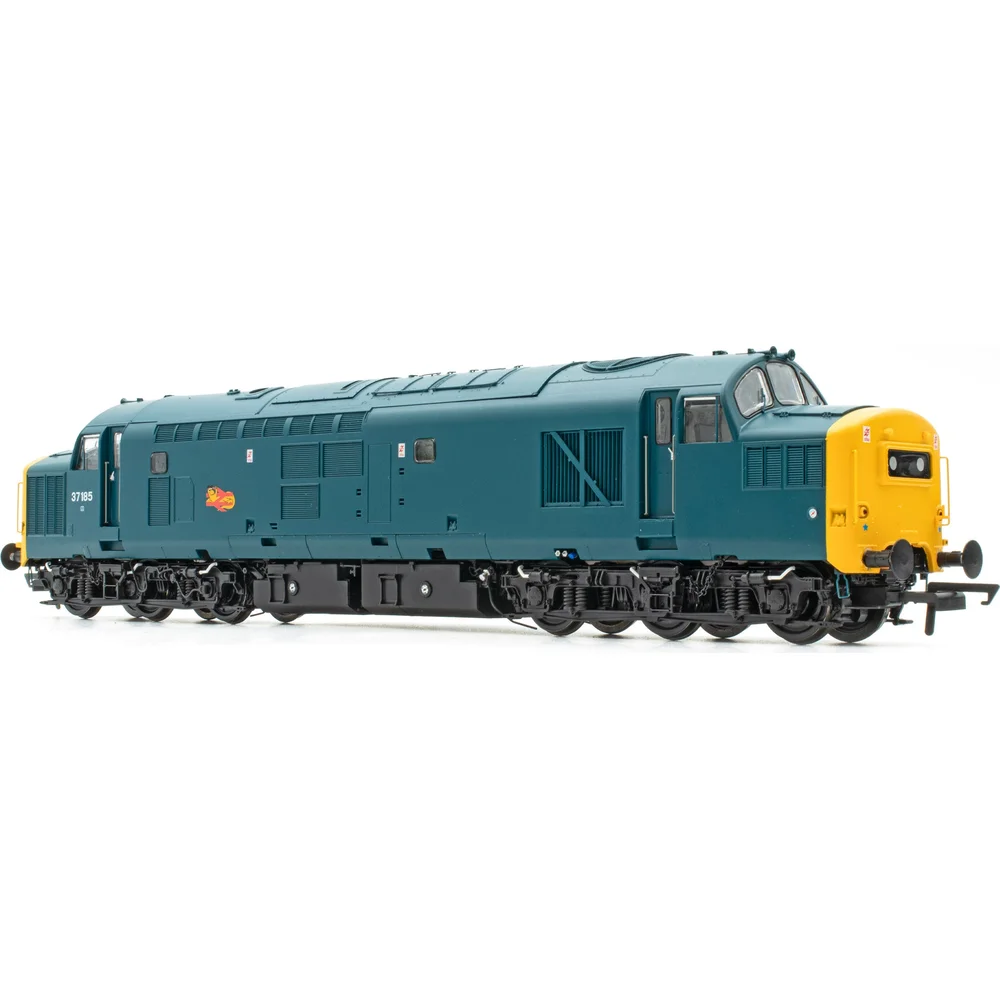

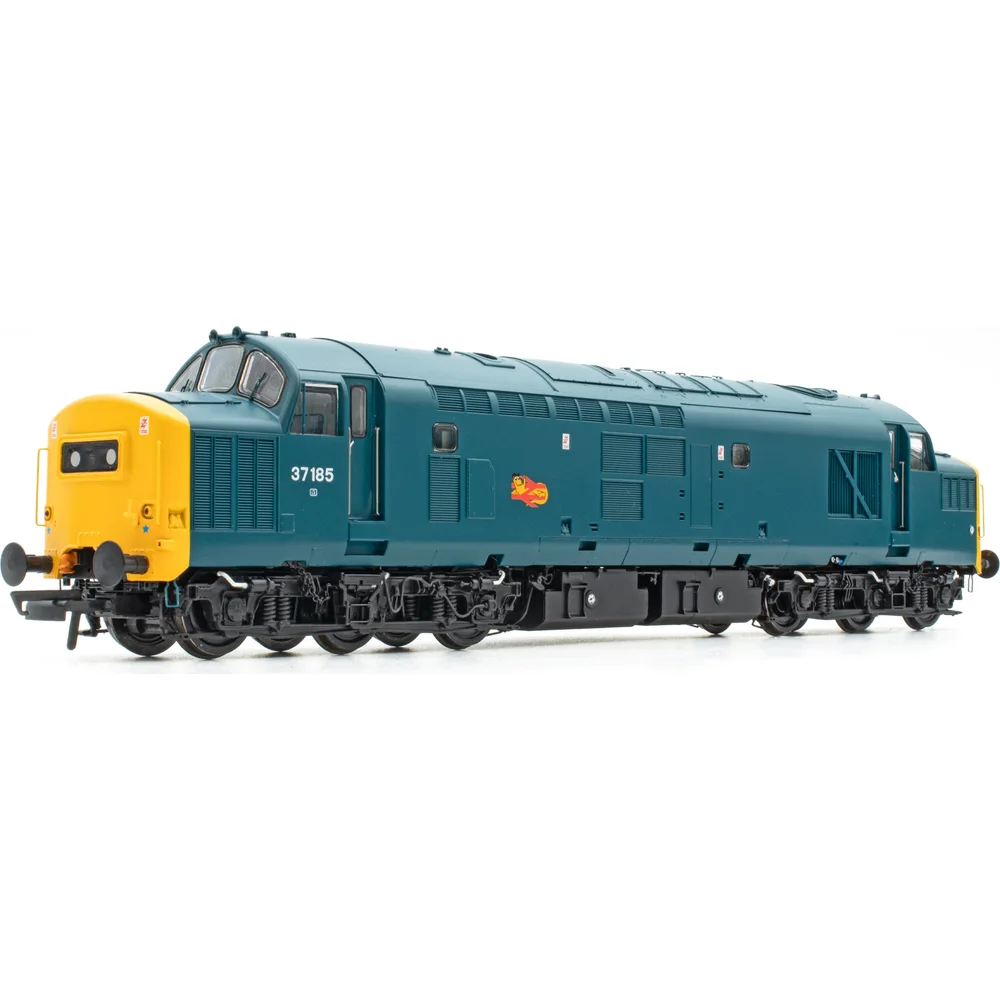

37185 (ex-D6885) BR Blue w/Wizzy the Lizard logo
While 37207 William Cookworthy is the most famous of the Cornish-themed Class 37s with its local hero name and full set of nose regalia and ‘Wizzy the lizard’ arrow logos, there were three other Laira-based members of the fleet that also gained painted embellishments courtesy of St Blazey guard and celebrated artist Vic Millington. Of the other trio, 37247 gained Cornish Railways lettering, and 37181 and 37185 were the lucky recipients of the red BR arrow and its intertwined lizard wearing the period British Rail peaked cap.
With a gorgeous range of china clay ‘hoods’ having just joined the Accurascale range we knew we wanted the perfect partner in our run 4 of the Class 37 and 37185 fit the bill perfectly. As a Robert Stephenson & Hawthorns-built centre headcode machine it would fill another useful gap in our range. For added attractiveness it carried miniature snowploughs and retained its bufferbeam cowling right up to the middle of 1986, and once transformed it left the Western Region after 23 years for a new life up north. Built in December 1963 and initially allocated to 87E Swansea Landore it was only based at one other depot, 86A Cardiff Canton, before joining Plymouth Laira in April 1983.
It received the ‘Wizzy’ arrows ahead of a railtour into the region exactly a year later and retained them for around 14 months, only losing them after transferring to Bristol Bath Road. While its next stop was Thornaby, it is also fondly remembered as one of Tinsley’s ‘banger blue’ unofficial namers, Phil Hodgkiss and colleagues giving it the painted dedication Buccaneer with TI rose emblems in November 1989. In January 1991 it was outshopped in Railfreight Distribution colours. After moving to Toton via Bescot and freshly repainted in ‘Dutch’ livery, it finally gained a cast name, Lea & Perrins at Worcester, in May 1993. It was stored in September 1999 and disposed of at CF Booth, Rotherham, in January 2006.
