Frederick Hawksworth — The GWR's Last CME and the Constrained Moderniser of Swindon

Frederick William Hawksworth occupies a peculiar position in British railway history. As the sixth and final Chief Mechanical Engineer of the Great Western Railway, he inherited George Jackson Churchward's legendary design tradition during the Second World War, attempted to modernise it under severe constraints, and watched nationalisation dissolve the independence of Swindon Works just as peacetime finally allowed him creative freedom. His five locomotive classes — totalling 391 engines — represented pragmatic evolution rather than revolution, yet they restored Swindon's reputation after years of stagnation and introduced manufacturing innovations that outlasted steam itself. Born in Swindon in 1884, apprenticed there at fourteen, and serving the GWR for fifty-one years until retirement in 1949, Hawksworth was very much "a Swindon man" whose career spanned the final golden age of steam locomotive development.

Quick Takeaways

• Career Span: Served the Great Western Railway for 51 years (1898–1949), rising from apprentice to Chief Mechanical Engineer, but held the top position for only eight years during wartime and nationalisation.
• Locomotive Designs: Designed five steam locomotive classes totalling 391 locomotives: Modified Hall 4-6-0s (71 built), County 4-6-0s (30 built), and three pannier tank classes — the 9400 (210), 1500 (10), and 1600 (70).
• Technical Innovations: Introduced plate frame construction, welded fabrication, outside Walschaerts valve gear, and Britain's first mainline gas turbine locomotives (Nos. 18000 and 18100), demonstrating genuine technological ambition.
• Preservation Status: Eleven original locomotives survive in preservation across Britain's heritage railways, with three or four currently operational; notably, all 30 County Class locomotives were scrapped, though a replica is under construction.
• Modeling Availability: Best represented in OO gauge by Bachmann's 9400 Class and Rapido's 1500/1600 panniers (now sold out); N gauge coverage is virtually non-existent for all Hawksworth designs — a significant gap in the market.
• Unique Contribution: The only GWR Chief Mechanical Engineer born in Swindon, Hawksworth modernised the Churchward tradition with simplified construction methods while maintaining traditional two-cylinder simplicity and robust engineering.
• Historical Context: Constrained by wartime austerity, denied permission to build express Pacifics, and overtaken by nationalisation, Hawksworth never completed his lifelong ambition to design a GWR Pacific locomotive despite preparing drawings for The Great Bear as a young draughtsman.

Early Life and Entry into Railway Engineering

Frederick William Hawksworth was born on 10 February 1884 in Swindon, Wiltshire — uniquely among the Great Western Railway's six Chief Mechanical Engineers, he was a native of the town dominated by the great locomotive works. His father worked as a draughtsman in the GWR drawing office, ensuring that Frederick grew up immersed in the railway culture that defined Swindon. Family railway connections ran deep: a relative (sources differ on whether an uncle or grandfather) served as a GWR foreman at Shrewsbury and reportedly introduced young Frederick to steam power via a steam launch on the River Severn. These early experiences planted the seeds of a lifelong devotion to locomotive engineering.

Hawksworth's education followed the path typical of aspiring railway engineers in late Victorian Britain. He attended Sanford Street Boys' School in Swindon before progressing to the Swindon Technical Institute, where his exceptional aptitude for technical drawing became evident. He won the Gooch Prize for machine drawing — named after Sir Daniel Gooch, the GWR's first locomotive superintendent — a prestigious honour that marked him as a student of exceptional promise. Seeking to broaden his theoretical knowledge beyond the practical focus of technical education, he then studied at the Royal College of Science, Kensington in London, where he received first-class honours in machine design. This combination of practical local training and advanced theoretical study would serve him well throughout his career.

In August 1898, aged just fourteen, Hawksworth began his apprenticeship at Swindon Works under William Dean, who was then in the final years of his tenure as Locomotive Superintendent. The timing placed the young apprentice at the cusp of revolutionary change. When George Jackson Churchward succeeded Dean in 1902, he embarked on the wholesale modernisation of GWR locomotive practice, introducing standardised boilers, two-cylinder simplicity, long-travel valve gear, and tapered boilers — innovations that would define British locomotive design for half a century. Hawksworth absorbed these principles during his formative years, spending approximately seven years working in the testing house where Churchward's scientific approach to locomotive development was most evident. The testing house experience — measuring drawbar pull, analysing indicator diagrams, and recording coal and water consumption under controlled conditions — gave Hawksworth an empirical foundation that would characterise his entire approach to engineering.

In 1905, Hawksworth transferred to the drawing office, where Churchward personally recognised him as one of his "Bright Young Men." This informal group of talented young engineers would go on to shape GWR locomotive development for decades. One of Hawksworth's earliest significant assignments was preparing the general arrangement drawings for No. 111 The Great Bear, Britain's first Pacific locomotive, completed in 1908. Working on this groundbreaking design planted an ambition that would haunt Hawksworth for the rest of his career: to design a Pacific of his own. He also contributed to valve gear layouts for Churchward's revolutionary standard locomotive family, mastering the intricate geometry of long-travel piston valves and Stephenson link motion that gave Churchward's engines their exceptional free-running characteristics.

Engineering Foundation: Hawksworth's seven years in the testing house under Churchward provided him with a scientific approach to locomotive development rarely matched among British railway engineers. This empirical methodology, emphasising measurable performance over theoretical elegance, would define his later work on boiler development and valve event optimisation.

Career Progression and Railway Appointments

Hawksworth's progression through the GWR hierarchy was methodical but frustratingly slow for a man of his abilities. The rigid seniority system and the longevity of his superiors meant that talent alone could not accelerate advancement. He became Assistant Chief Draughtsman in 1923 under C.B. Collett, who had succeeded Churchward in 1922. Two years later, in 1925, he was promoted to Chief Draughtsman, a position that placed him at the centre of locomotive design activity. In this role, he coordinated the detail drawings for the King Class — Collett's four-cylinder 4-6-0 express passenger locomotives that were, at their introduction in 1927, the most powerful locomotives in Britain. The Kings represented evolutionary development of Churchward's principles rather than innovation, a pattern that would characterise the Collett era.

The critical moment came in 1932 when William Stanier — then Collett's principal assistant — departed for the London Midland & Scottish Railway to become their Chief Mechanical Engineer. Stanier's move left a vacancy for Assistant to the CME, and Hawksworth, aged 48 and with nearly 34 years of GWR service, was the natural successor. This position made him Collett's deputy and heir apparent, responsible for overseeing major projects and deputising when Collett was absent. However, it also began a nine-year wait for the top job that tested Hawksworth's patience and, some historians argue, cost the GWR valuable years of innovation.

C.B. Collett, though a competent engineer who had maintained Churchward's standards through the 1920s, became increasingly conservative in his later years. The 1930s saw what railway historian K.J. Cook described as "stagnation" at Swindon, with few genuinely new designs and a reluctance to adopt modern developments being embraced elsewhere. Collett showed little interest in retirement, and the GWR board seemed unwilling to force the issue. Meanwhile, rival railways were forging ahead: Sir Nigel Gresley's streamlined A4 Pacifics were setting speed records on the London & North Eastern Railway, Stanier was transforming the LMS with powerful new Pacifics and mixed-traffic engines, and even Oliver Bulleid at the Southern was preparing radical innovations. Hawksworth, possessing detailed knowledge of Swindon's capabilities and burning with ideas for modernisation, could only watch and wait.

Collett finally retired in July 1941, and Hawksworth, aged 57, became the sixth and final Chief Mechanical Engineer of the Great Western Railway. His appointment came at the worst possible moment. Britain had been at war for nearly two years. Coal quality had deteriorated dramatically as the best Welsh steam coal was prioritised for export to earn foreign currency. Locomotive construction was severely restricted by the Ministry of War Transport, which allocated materials and determined production priorities. Swindon Works had been turned over substantially to war production: manufacturing 60,000 bombs, landing craft components, parts for midget submarines, and Hurricane aircraft components. The dream job Hawksworth had waited decades to attain came with unprecedented constraints on his freedom to design.

The Collett Delay: Hawksworth's nine-year wait as assistant CME (1932–1941) while Collett clung to office had profound consequences for the GWR. Had he succeeded in the mid-1930s, Hawksworth might have had a decade to develop new express designs and modernise Swindon practice before nationalisation. Instead, he inherited the position at 57, with war restricting innovation and nationalisation looming.

Despite these constraints, Hawksworth set about modernising both locomotive design and works practice with characteristic thoroughness. He updated Swindon's testing plant to modern standards, introducing techniques that would eventually be adopted as British Railways national standards. He simplified traditional GWR construction methods, replacing complex bar-frame assemblies with continuous plate frames that were easier and faster to manufacture. He investigated new technologies ranging from diesel traction to gas turbines. And he designed five new locomotive classes that, while constrained by wartime and post-war austerity, represented genuine advances over their Collett-era predecessors. His tenure proved brief — nationalisation on 1 January 1948 ended the GWR's independence, and while Hawksworth continued as Western Region CME until 31 December 1949, real power had shifted to the Railway Executive's central design authority under R.A. Riddles.

Key Locomotive Designs and Classes

Hawksworth's locomotive portfolio comprised five steam locomotive classes totalling 391 engines built between 1944 and 1956, supplemented by two experimental gas turbine-electric locomotives. Each design reflected his philosophy of evolutionary improvement: retaining proven GWR principles while introducing manufacturing simplifications and addressing specific operational deficiencies. Unlike revolutionary designers such as Bulleid or Gresley, Hawksworth believed in incremental progress backed by systematic testing.

The Modified Hall Class (6959 Class) — The Quiet Revolution

Hawksworth's first and most successful design appeared in March 1944 as a superficial variant of Collett's successful Hall Class 4-6-0 mixed-traffic locomotives. Outwardly similar — sharing the same 6ft 0in driving wheels, two outside cylinders, and general dimensions — the Modified Hall was, in the words of one contemporary assessment, "nearly everything new underneath." This class embodied Hawksworth's core philosophy: maintain proven proportions and wheelbase, but simplify construction and improve details.

The most significant innovation was abandoning Churchward's traditional bar-frame front end in favour of continuous plate frames running the full length of the locomotive from buffer beam to cab. This fundamental redesign simplified manufacturing enormously. The cylinders were cast separately and bolted to the frames rather than being cast integrally with the smokebox saddle — a change that reduced the cost and complexity of both initial construction and subsequent repairs. When a cylinder wore out on a traditional GWR locomotive, replacing it meant major frame surgery; on a Modified Hall, it was a straightforward unbolt-and-replace job. The plate-frame bogie featured individual coil springs for each wheelset rather than the bar-framed design with compensating beams, improving riding quality.

The three-row superheater was larger than on earlier Halls, addressing the deteriorating coal quality that plagued wartime and post-war operations. A header-type regulator in the proven Swindon No. 1 boiler provided better steam flow control. The combination of improved steaming and simplified maintenance made the class popular with both footplate crews and workshop staff. Running freely and steaming well even on poor coal, the Modified Halls quickly proved their worth on heavy mixed-traffic duties.

Performance records vindicated the design. No. 7903 Foremarke Hall deputised for a failed Castle on a Paddington–Plymouth express, completing the demanding run in under four hours — exceptional work for a mixed-traffic locomotive. The class handled everything from empty coaching stock to heavy freight, and several became regular performers on summer holiday expresses to the West Country. Modified Halls lasted in British Railways service until 1965, with several examples accumulating over two million miles.

Six survive in preservation, forming the backbone of Hall Class representation on Britain's heritage railways. No. 6990 Witherslack Hall — famous for participating in the 1948 Locomotive Exchange Trials — operates on the Great Central Railway, while 6989 Wightwick Hall works extensively across multiple heritage lines. No. 6998 Burton Agnes Hall holds particular historical significance, having worked the last scheduled steam-hauled service on the Western Region on 3 January 1966, and has recently been selected for filming in the upcoming Harry Potter television series.

The County Class (1000 Class) — Maximum Power, Maximum Controversy

The County Class represented Hawksworth's most ambitious design and his most controversial legacy. Conceived as a testbed for his long-planned Pacific locomotive, the Counties were intended to demonstrate that two-cylinder simplicity could match four-cylinder complexity. The design brief was challenging: deliver Castle-class power and performance from a simpler, cheaper two-cylinder layout suitable for mixed-traffic work.

Hawksworth's solution centred on a new Standard No. 15 boiler operating at the unprecedented (for the GWR) pressure of 280 pounds per square inch. This boiler evolved from detailed study of LMS practice when 80 Stanier 8F 2-8-0s were built at Swindon during the war, giving Hawksworth insights into LMS boiler design philosophy. The high pressure enabled two 18½-inch cylinders to produce a tractive effort of 32,580 pounds-force — exceeding the four-cylinder Castle by 1,000 pounds despite the simpler cylinder arrangement. Driving wheels of 6 feet 3 inches diameter — a non-standard size for the GWR, larger than the Hall's 6ft 0in but smaller than the Castle's 6ft 8½in — reflected the mixed-traffic design intent.

The Counties entered service between August 1945 and April 1947, immediately attracting both praise and criticism. They steamed powerfully and hauled heavy trains with apparent ease, particularly on the demanding Wolverhampton–Shrewsbury route where steep gradients suited their characteristics. However, crews reported rough riding at speed, and steaming could be problematic with poor-quality coal. The two-cylinder layout produced heavier hammer blow forces than four-cylinder equivalents, causing track maintenance concerns. Critics argued that for only marginally less cost than a Castle, the railway had acquired locomotives inferior in refinement if not raw power.

The class's reputation improved dramatically following post-1956 modifications. Double chimneys designed by Swindon's test engineer Sam Ell transformed exhaust arrangements, while boiler pressure reduction to 250 psi reduced maintenance issues. Modified Counties rode more smoothly and steamed freely. One reached 99 miles per hour during testing — remarkable for a mixed-traffic locomotive. However, British Railways' modernisation plan doomed the class. All 30 were withdrawn between 1962 and 1964, victims of dieselisation and their non-standard boiler. Not a single example survived into preservation — the only Hawksworth class to be completely eradicated.

The tragic loss of all 30 locomotives has driven the 1014 County of Glamorgan new-build project at Didcot Railway Centre. Using frames from scrapped Modified Hall No. 7927 Willington Hall and an LMS Stanier 8F boiler (from No. 48518), the project team is constructing a working replica incorporating salvaged components from original scrapped Counties. Progress has been steady but requires an estimated £100,000–200,000 for completion. When finished, it will restore the sight and sound of Britain's most powerful two-cylinder 4-6-0 to the nation's heritage railways.

The Pannier Tanks — Three Classes for Different Duties

Hawksworth designed three 0-6-0 pannier tank classes addressing distinct operational needs. Each represented thoughtful engineering responses to specific problems rather than general-purpose solutions.

The 9400 Class was conceived when GWR General Manager Sir James Milne demanded "a more modern appearance" for heavy shunting locomotives than the veteran 5700 Class panniers dating back to 1929. Hawksworth obliged with a taper-boilered design featuring enclosed cabs, improved crew protection, and detail refinements while retaining proven 5700 Class dimensions and the reliable Swindon Standard No. 10 boiler at 200 psi. The class was intended for heavy yard shunting and banking duties on steep gradients.

Only the first ten locomotives (Nos. 9400–9409) were built by the GWR at Swindon before nationalisation. British Railways ordered a further 200 from private contractors — Robert Stephenson & Hawthorns (75), W.G. Bagnall (75), and Yorkshire Engine Company (50) — making this one of the largest post-war steam locomotive contracts. No. 3409, completed in October 1956, holds the distinction of being the last steam locomotive built to a pre-nationalisation design for British Railways. The class served into the mid-1960s, with several examples accumulating impressive mileages on South Wales valley freight and colliery workings.

The 1500 Class represented Hawksworth's most radical departure from GWR tradition. These ten heavy shunting panniers (Nos. 1500–1509, built 1949) featured outside Walschaerts valve gear — virtually unprecedented on a GWR locomotive where Stephenson link motion had reigned supreme since the 1840s. The design philosophy broke with convention at every level: no running plate (the footplate extended between the wheels), extensive welded construction replacing traditional riveted assembly, and an extremely short wheelbase of just 12 feet 10 inches enabling navigation of curves as tight as 3½ chains radius.

The appearance below the footplate suggested American influence, specifically resembling the USATC S100 Class 0-6-0Ts used on British railways during wartime. Whether this represented deliberate copying or parallel evolution remains debated. Designed as "24-hour shunters" serviceable from trackside without visiting a locomotive depot, they featured strategically placed lubrication and inspection points. At 58 tons 4 cwt, they were the heaviest tank engines the GWR ever built — ironically, this weight restricted their route availability, and most spent their careers on empty coaching stock workings at Paddington rather than the heavy yard shunting for which they were designed.

The 1600 Class addressed a simpler requirement: replacing life-expired Dean 2021 Class 0-6-0 pannier tanks from the 1890s that had served on lightly-laid branch lines for half a century. Hawksworth produced a lightweight design specifically cleared for routes unable to bear heavier motive power. The 70 locomotives (Nos. 1600–1669, built 1949–1955) featured small 4-foot 1½-inch driving wheels, reduced boiler pressure of 165 psi, and a weight of just 41 tons 12 cwt. No. 1669, completed in May 1955, was the last GWR-design locomotive constructed at Swindon Works — fittingly, a design whose basic lineage stretched back over 80 years to the Armstrong 850 Class of 1874, demonstrating the extraordinary longevity of fundamental GWR tank engine proportions.

Technical Innovations and Patents

Hawksworth's innovations extended beyond individual locomotive designs to encompass fundamental changes in manufacturing methodology, testing practice, and motive power technology. His contributions were evolutionary rather than revolutionary, but several represented genuine advances that influenced British railway practice beyond the Great Western Railway.

The shift from bar frames to plate frames constituted his most significant structural innovation. Traditional GWR practice since Churchward's time employed bar frames: thick steel bars laboriously machined from forgings, with complex intersections bolted and riveted together. The front end featured an elaborate smokebox saddle casting integral with the cylinder block, creating a rigid but complex assembly. Hawksworth recognised that continuous plate frames — flat steel plates cut, drilled, and bent to shape — could be manufactured more quickly and cheaply while offering comparable strength. The separate cylinder casting bolted to the frames simplified both initial construction and subsequent repairs. When cylinder bores wore out on traditional locomotives, replacement required cutting the frames apart; on Hawksworth designs, four bolts per cylinder enabled straightforward replacement. This represented significant maintenance economy over a locomotive's 30-40 year service life.

Welded construction replaced riveting on several components of the 1500 Class panniers and Hawksworth coaches. Welding offered superior strength-to-weight ratios, eliminated rivet holes as potential stress concentration points, and required fewer skilled workers than traditional riveting gangs. While not unique to Swindon — the Southern Railway's Bulleid had embraced welding earlier, and the LMS used it extensively on locomotive boilers — Hawksworth's systematic application to frames, tanks, and bunkers demonstrated confidence in the technology at a time when many engineers remained conservative. Post-war economic pressures made these manufacturing economies increasingly important.

The adoption of outside Walschaerts valve gear on the 1500 Class broke with decades of GWR orthodoxy. Stephenson link motion, located between the frames, had characterised GWR practice since the broad gauge era. It was compact, protected from the elements, and well-understood by Swindon fitters. However, Walschaerts gear offered significant advantages: accessibility for adjustment and maintenance, simpler setting of valve events, and adaptability to various cylinder positions. Continental and American railways had adopted it universally by the 1920s; British railways remained largely conservative. Hawksworth's willingness to abandon tradition demonstrated pragmatism over dogma — though only ten locomotives benefited, the precedent was established.

Manufacturing Innovation: Hawksworth's introduction of plate frames and welded construction to Swindon Works modernised manufacturing methods that had remained essentially unchanged since Churchward's era. The productivity gains — particularly in repair work where separate cylinder castings could be replaced in days rather than weeks — justified the initial retooling investment.

Perhaps Hawksworth's most forward-looking innovation involved modernising Swindon's testing facilities. The GWR had maintained a locomotive testing plant since Churchward's day, but equipment and procedures had aged. During the 1930s, as Collett's assistant, Hawksworth oversaw systematic upgrades: improved dynamometer cars for measuring drawbar performance under service conditions, enhanced indicator equipment for recording cylinder pressure diagrams, and standardised procedures for coal and water consumption testing. These improvements enabled rigorous comparison of different designs, valve settings, and firing techniques. His testing methodology was "eventually accepted by British Railways as a national Standard" — arguably his most enduring technical legacy, as it influenced locomotive development and crew training across all regions into the diesel era.

In boiler development, the Standard No. 15 boiler for the County Class incorporated several advances. The 280 psi working pressure exceeded any previous GWR design, requiring careful attention to plate thickness, staying arrangements, and tube joint integrity. Hawksworth's study of LMS 8F boiler practice — 80 of which were built at Swindon during wartime — influenced his thinking on firebox design and superheater arrangements. The subsequent pressure reduction to 250 psi reflected pragmatism rather than failure: maintenance costs at extreme pressures proved excessive given marginal performance gains. This willingness to modify designs based on service experience characterised Hawksworth's empirical approach.

The oil-firing conversion programme (1945–1950) represented a government-mandated experiment rather than Hawksworth's initiative, but his implementation demonstrated technical competence. Thirty-seven GWR locomotives were converted, including 20 heavy freight 28XX 2-8-0s, five Castles, and eleven Halls. The Anglo-Iranian Oil Company assisted Swindon with conversion design and burner development. Oil firing offered theoretical advantages: elimination of manual firing labour, reduced servicing time, and cleaner exhaust. However, rising oil prices and post-war coal supply improvements rendered the programme uneconomical by 1950. All locomotives reverted to coal firing, though the technical knowledge gained informed later British Railways diesel development.

Beyond Steam: Gas Turbines and Diesel Development

Hawksworth recognised that steam's days were numbered. His personal visit to Brown Boveri in Switzerland to evaluate gas turbine technology demonstrated unusual technological curiosity for a British steam locomotive engineer in the 1940s. The engineering case appeared compelling: the best steam locomotives produced approximately 2,250 horsepower intermittently with thermal efficiency around 10%, whereas a gas turbine could deliver 2,500 horsepower continuously at roughly 20% efficiency. Maintenance requirements theoretically favoured turbines — fewer moving parts, no reciprocating mechanisms, reduced vibration.

Hawksworth ordered two experimental gas turbine-electric locomotives for evaluation. No. 18000, built by Brown Boveri at Baden, Switzerland, was delivered in February 1950 as a 2,500 horsepower A1A-A1A design. It featured a closed-cycle turbine burning heavy fuel oil with a heat exchanger for improved economy, plus an auxiliary Saurer diesel engine for starting and low-speed manoeuvring. The angular, functional bodywork earned it the nickname "Kerosene Castle" among footplate crews. Testing on Paddington–Bristol and Plymouth expresses demonstrated adequate performance but highlighted fundamental limitations: gas turbines only approached their design efficiency at full load, and railway service involved extensive part-load running, station stops, and idling. Fuel consumption proved disappointing, and maintenance complexity exceeded expectations.

No. 18100, built by Metropolitan-Vickers, represented a more powerful but simpler approach. Rated at 3,500 horsepower, it used an open-cycle turbine exhausting directly to atmosphere rather than through a heat exchanger. This sacrificed thermal efficiency for reduced mechanical complexity. Performance testing revealed similar characteristics to 18000: impressive maximum output but poor fuel economy in typical service. Neither locomotive proved practical for commercial operation. No. 18000 was withdrawn in December 1960 after a decade of experimental running. No. 18100 survived longer, being converted to a 25kV AC electric locomotive (renumbered E2001) for crew training on the West Coast Main Line electrification before withdrawal in 1968.

Despite their commercial failure, the gas turbines demonstrated genuine technological ambition. While rival railways remained focused on squeezing final increments of efficiency from steam, Hawksworth was investigating fundamentally different technologies. The experience gained informed British Railways' later evaluation of alternative traction systems and contributed to the knowledge base supporting main-line electrification decisions.

Hawksworth also ordered the first GWR diesel shunters, introducing the technology to Swindon before nationalisation. While these were modest 0-4-0 and 0-6-0 designs for yard work rather than mainline locomotives, they represented practical acknowledgment of diesel's suitability for specific applications. Unlike some steam loyalists who resisted diesel traction on principle, Hawksworth assessed each technology on its engineering merits.

His coach designs incorporated innovations pointing toward modern practice: aluminium body panels reducing weight, domed roof-ends improving aerodynamics, and bodies built directly onto underframes rather than traditional separate body and chassis construction. These "Hawksworth coaches" featured improved ride quality from revised suspension, better lighting, and enhanced passenger amenities. Significant quantities survive in preservation, with major collections at the Severn Valley Railway, Didcot Railway Centre, and South Devon Railway, where they continue to provide period-correct stock for heritage train formations.

Engineering Philosophy and Approach

Frederick Hawksworth's engineering philosophy represented pragmatic evolution rather than revolutionary upheaval. Unlike Churchward, who had fundamentally reimagined GWR locomotive practice in the 1900s, or Bulleid, who pursued radical innovation sometimes at the expense of reliability, Hawksworth believed in incremental improvement backed by systematic testing. His approach reflected both personal temperament — methodical, cautious, empirical — and contextual constraints — wartime scarcity, government restrictions, impending nationalisation.

Central to his philosophy was two-cylinder simplicity. While other railways pursued three- and four-cylinder layouts for smoother running and reduced hammer blow, Hawksworth maintained that properly-designed two-cylinder engines offered the best compromise between performance and maintenance economy. The County Class represented the ultimate expression of this belief: demonstrating that two large cylinders with adequate steam supply could match four-cylinder power. Critics argued this oversimplified the issue — ignoring ride quality, track maintenance costs, and operational refinement — but Hawksworth's position had merit in an era of declining locomotive maintenance standards and workshop labour shortages.

Standardisation drove many design decisions. By retaining the Standard No. 1 boiler for Modified Halls, Hawksworth ensured parts compatibility with existing locomotives, simplified spare parts stocking, and allowed leveraging decades of operating experience. Even the controversial County boiler shared dimensions and fittings wherever possible with existing patterns. This parts commonality reduced production costs and simplified depot maintenance — practical considerations often overlooked by designers focused on maximum theoretical efficiency.

Hawksworth placed enormous weight on testing and measurement. Every significant design decision referenced indicator diagrams, drawbar pull measurements, coal consumption figures, or evaporation rates. This empiricism traced directly to his formative years in Churchward's testing house, where scientific method displaced the rule-of-thumb practices of Victorian locomotive engineering. When County Class locomotives exhibited problems, Hawksworth mandated systematic testing to identify root causes rather than relying on anecdotal footplate reports. The double chimney modification emerged from this process: test engineer Sam Ell's careful analysis of exhaust characteristics identified inadequate blast pipe arrangements, leading to a modification that transformed class performance.

His willingness to abandon tradition when justified appeared selectively. The adoption of outside Walschaerts gear, plate frames, and welded construction broke with decades of GWR orthodoxy — but only where clear economic or technical advantages existed. He retained Stephenson link motion on most designs because it worked reliably and Swindon fitters understood it thoroughly. This selective conservatism balanced innovation with operational pragmatism: changing for change's sake risked introducing teething troubles without compensating benefits, but refusing to modernise courted obsolescence.

Pragmatic Modernisation: Hawksworth's engineering philosophy can be summarised as "retain what works, improve what doesn't, and test rigorously before committing." This approach lacked the glamour of revolutionary innovation but produced reliable, economical locomotives that restored Swindon's reputation after the stagnation of Collett's final years.

The influence of wartime experience shaped his thinking profoundly. Watching Swindon build 80 Stanier 8F locomotives exposed him directly to LMS practice, challenging assumptions about GWR superiority. The 8Fs demonstrated that simpler construction methods could produce capable, reliable locomotives — a lesson Hawksworth absorbed in developing the Counties and Modified Halls. Wartime restrictions on materials and labour forced creative problem-solving: finding ways to maintain output with reduced resources, accepting "good enough" solutions rather than pursuing theoretical perfection, and focusing on maintainability as much as performance. These constraints ironically fostered innovation.

Post-war austerity reinforced these lessons. When nationalisation ended GWR independence on 1 January 1948, Hawksworth's room for manoeuvre contracted further. R.A. Riddles, appointed Member of the Railway Executive for Mechanical Engineering, began developing British Railways Standard locomotive designs that would supersede regional practices. Hawksworth's final two years as Western Region CME (1948–1949) involved navigating the transition while completing locomotives already under construction. His testing methodologies were adopted as BR standards, and his emphasis on two-cylinder simplicity influenced Standard Class development — modest but real legacies beyond the locomotives themselves.

Preserved Locomotives and Heritage

Eleven original Hawksworth locomotives survive in preservation, scattered across Britain's heritage railways. Their preservation status ranges from full operational condition through long-term restoration to static display. No Counties survived the 1960s scrapping holocaust, though the new-build project at Didcot aims to fill this painful gap.

Modified Hall Class — Six Survivors

No. 6960 Raveningham Hall resides at the One:One Collection in Margate, Kent, stored in the Dreamland heritage complex. Its boiler certificate expired in July 2021, and the locomotive currently awaits overhaul funding. Future plans remain uncertain, though the One:One Collection has expressed commitment to eventual restoration. The locomotive spent many years at the Tyseley Locomotive Works in Birmingham before moving to Kent.

No. 6984 Owsden Hall has been under long-term restoration at Buckinghamshire Railway Centre, Quainton Road, for over two decades. This locomotive has never steamed in preservation, having arrived from Barry scrapyard in very poor condition. Progress has been slow but steady, with frame repairs, wheelset work, and boiler component restoration all advanced. Completion depends on volunteer availability and funding.

No. 6989 Wightwick Hall represents the success story of Modified Hall preservation. Based at Buckinghamshire Railway Centre but frequently on hire to other heritage railways, it works regularly across the preservation movement. After 29 years as a Barry scrapyard hulk, it became the 150th Barry locomotive to return to steam in December 2018 following a comprehensive restoration. Its reliability and relatively modest operating costs make it a popular hire locomotive for railways needing a capable mixed-traffic engine.

No. 6990 Witherslack Hall operates on the Great Central Railway, Loughborough, following a 14-year overhaul completed in October 2015. This locomotive holds particular historical significance, having participated in the famous 1948 Locomotive Exchange Trials where locomotives from different railway companies were tested against each other. During the trials, it worked on the Southern Railway, providing valuable comparative data on GWR versus Southern practice. Its preservation ensures this important historical locomotive remains accessible to railway historians and enthusiasts.

No. 6998 Burton Agnes Hall recently returned to operational condition at Didcot Railway Centre after overhaul. It has been selected to appear in the upcoming Harry Potter television series, continuing the tradition of GWR locomotives appearing in Harry Potter productions. This engine holds the distinction of working the last scheduled steam-hauled service on the Western Region on 3 January 1966, a Paddington–Banbury stopping train that marked the end of an era.

No. 7903 Foremarke Hall operates on the Gloucestershire Warwickshire Steam Railway based at Toddington. This locomotive set a notable post-war performance record when it deputised for a failed Castle on a Paddington–Plymouth express, completing the demanding run in under four hours — exceptional work demonstrating the Modified Hall's capability on express passenger duties despite its mixed-traffic classification.

No. 7927 Willington Hall exists as a frames-only survivor at Didcot Railway Centre, serving as the foundation for both the 1014 County of Glamorgan new-build project and donating components to the 6880 Betton Grange reconstruction. Its frames, cut to County dimensions, now support the growing structure of the replica County — ensuring that at least part of an original Hawksworth locomotive will carry the County nameplate.

County Class — None Survive, One Under Construction

The complete extinction of all 30 County Class locomotives represents one of preservation's greatest losses. These locomotives were withdrawn between 1962 and 1964 when barely 15–20 years old, victims of the British Railways modernisation plan and their non-standard boiler design. Several were allocated to Woodham Brothers scrapyard at Barry, South Wales, which ultimately preserved 213 locomotives through benign neglect, but no County received even this temporary reprieve. All were cut up promptly.

The 1014 County of Glamorgan new-build project began in 2010 when the Great Western Society recognised that recreating a County was technically feasible using Modified Hall frames and an LMS 8F boiler. The frames from 7927 Willington Hall were cut down to County dimensions. The boiler from scrapped 8F No. 48518 provides the 280 psi steam supply (Counties originally used 280 psi). Components from original scrapped Counties have been incorporated wherever possible: a double chimney from 1006 County of Cornwall, a regulator handle from the original 1014, coupling rods, and various cab fittings.

Progress has been steady but funding-limited. The chassis is substantially complete with frames, axles, horn blocks, and motion brackets fitted. The boiler requires comprehensive rebuilding and re-certification. An estimated £100,000–200,000 remains needed for completion, covering boiler work, cylinder casting, valve gear fabrication, cab construction, and final assembly. When complete, it will restore the sight and sound of Britain's most powerful two-cylinder 4-6-0 to operating condition — a fitting memorial to Hawksworth's most ambitious design.

Pannier Tanks — Four Survivors Across Three Classes

No. 1501 (1500 Class) resides at the Severn Valley Railway, Bridgnorth, stored awaiting overhaul. Its boiler certificate expired in January 2023, placing it out of service. As the sole survivor of the distinctive outside-valve-gear 1500 Class, its preservation importance exceeds its operational condition. The SVR has expressed commitment to eventual restoration, though timescale remains uncertain given competing priorities and the specialist nature of Walschaerts valve gear setup.

No. 1638 (1600 Class) is under restoration at the Kent & East Sussex Railway, Tenterden. A £163,800 fundraising appeal launched in March 2024 aims to complete the overhaul and return this unique lightweight pannier to service. As the sole survivor of 70 locomotives designed specifically for lightly-laid branch lines, its historical significance justifies the substantial restoration investment. The K&ESR's infrastructure — including many lightly-laid sections — makes 1638 ideally suited to the railway's operational needs.

No. 9400 (9400 Class) forms part of the National Collection at STEAM Museum, Swindon. Displayed in static condition, the class leader represents the final flowering of GWR pannier tank development and the last completely new design to emerge from Swindon before nationalisation (the first ten were GWR; subsequent examples were BR). Its preservation in Swindon — the town where both Hawksworth and the locomotive were born — provides fitting symmetry.

No. 9466 (9400 Class) operated at the West Somerset Railway, Minehead, until withdrawn in November 2024 with cylinder block problems requiring major repairs. The locomotive had provided reliable service for several years on the WSR's extensive network, demonstrating the class's continued utility for heritage railway operations. Repair plans remain under discussion, with decisions pending engineering assessment and cost estimates.

Numerous Hawksworth coaches survive across the heritage railway movement. The Severn Valley Railway operates a significant rake in regular service, the Didcot Railway Centre collection includes several restored examples, and the South Devon Railway preserves additional vehicles. An auto-trailer (W231) at Didcot represents the small number of push-pull coaches built to Hawksworth designs for branch line services. These coaches provide period-correct stock for 1940s–1950s formations and demonstrate Hawksworth's contributions beyond pure locomotive engineering.

Preservation Geography: Hawksworth locomotives are scattered from Kent to Somerset, with concentrations at Didcot Railway Centre (three Modified Halls plus the County project) and Buckinghamshire Railway Centre (two Modified Halls). This distribution ensures multiple heritage railways can operate authentic GWR trains from the final steam era, while the geographical spread prevents any single catastrophe from eliminating entire classes.

Scale Models and Modelling Significance

Model railway availability for Hawksworth classes varies dramatically by gauge and class, with surprising gaps in coverage despite the historical importance of these locomotives. The market has shifted substantially over the past decade, with several important models now discontinued and commanding premium prices on the second-hand market.

OO Gauge (4mm:1ft scale) — Best Overall Coverage

Modified Hall Class: Bachmann's retooled model from 2012 represented a significant upgrade from the previous Mainline tooling, featuring improved chassis detail, separately-fitted handrails, and optional DCC sound. Production has largely ceased, with occasional limited reruns. Secondhand examples typically sell for £80–150 depending on condition and sound fitment. The earlier Mainline tooling occasionally appears at £30–50 but lacks the refinement of the Bachmann version. Brassmasters offers an etched nickel silver frame set and detailing etch (approximately £10) for builders wishing to improve the Bachmann model's underside appearance. This represents the best value upgrade path for serious modellers.

County Class: Only the Hornby RailRoad R30376 train pack offers a County in OO gauge, using the elderly 1984 Dapol tooling. The model is crude by modern standards, lacking separately-fitted details and featuring simplified valve gear. Retail prices hover around £130–180 for the complete set (locomotive, three coaches, oval of track). For a class as historically significant as the County — and with a new-build project actively under construction — this represents a serious gap in the market. No manufacturer has announced plans to produce a modern, accurate County model.

1500 Class: Rapido's 904xxx series models (released 2022–2023) set new standards for British OO gauge pannier tanks, featuring coreless motors, Next18 DCC decoder sockets, separately-fitted cab details, and prototypically-accurate Walschaerts valve gear. All 22 versions (covering different numbers and BR periods) sold out rapidly. Secondhand prices range from £128 to over £250 depending on rarity. Rapido has not announced repeat production. No kit exists for this class.

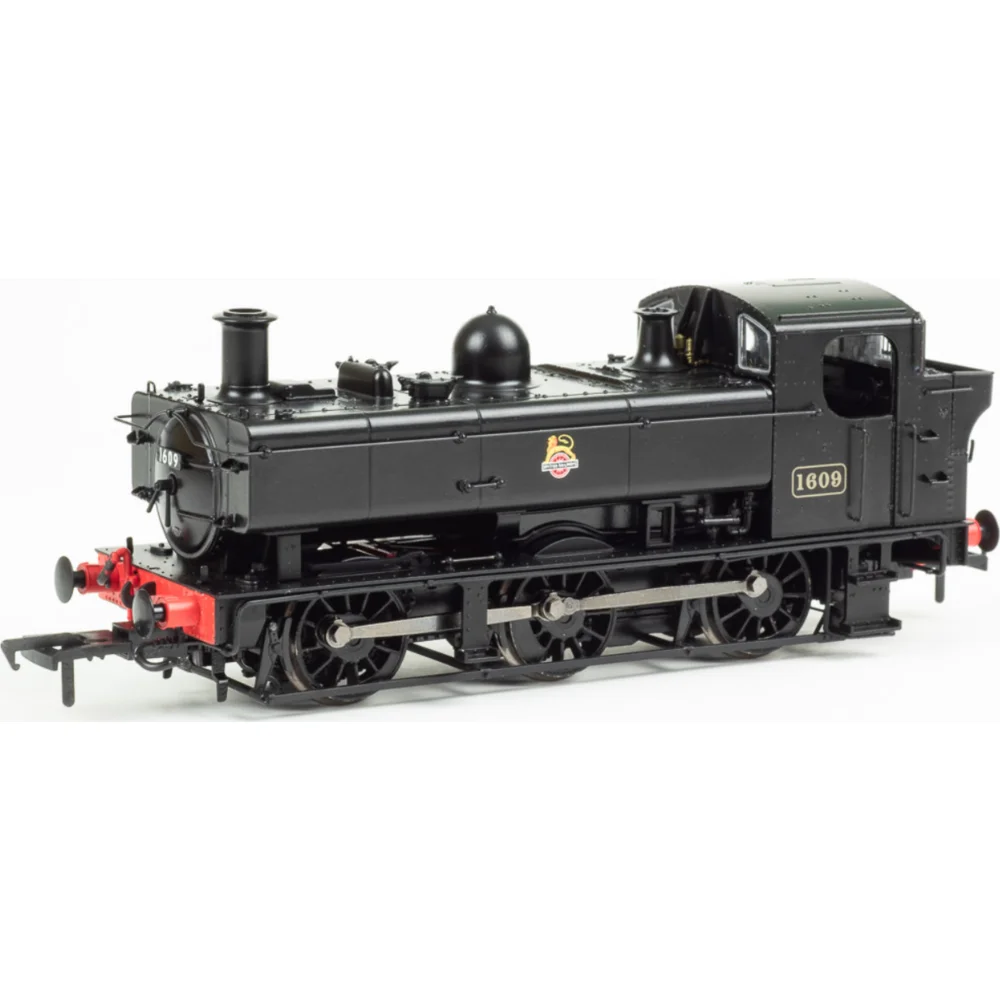

1600 Class: Rapido produced this class as a Model Rail magazine exclusive in partnership with specialist retailers. All versions sold out quickly at original prices of £134–149. Secondhand market prices remain strong at £150–200. The models share the same high detail standards as the 1500 Class but adapted to the smaller 1600's proportions. Again, no repeat production announced and no kit alternative exists.

9400 Class: The most comprehensively covered Hawksworth design, with Bachmann's brand-new tooling (35-025/026/027 series) representing the current state of the art. Features include coreless motor, Next18 decoder socket, working firebox glow, exceptionally fine valve gear, separately-applied pipework, and weighted die-cast chassis. Retail prices range from £130 to £250 depending on sound/DCC fitment. The model represents excellent value for the quality delivered. An older Wills white metal body kit exists for budget-conscious builders willing to provide their own chassis, though this requires significant modelling skill.

N Gauge (2mm:1ft scale) — Virtually Unserved Market

N gauge modellers face near-total absence of Hawksworth locomotives. The only representation is Graham Farish's vintage 1104 model of the 9400 Class, discontinued decades ago and rarely appearing even on the secondhand market. When examples do surface, they typically sell for £40–80 — reflecting scarcity rather than quality, as the model predates modern fine-scale N gauge standards.

No manufacturer produces N gauge versions of the Modified Hall, County, 1500, or 1600 classes. This represents a significant market gap given N gauge's popularity for space-constrained layouts and the importance of Hawksworth types to post-war Western Region modelling. Speculation suggests manufacturer reluctance stems from limited sales potential compared to more numerous classes like Halls or Castles, though the success of Dapol's County Class in 1980s OO suggests latent demand exists.

O Gauge (7mm:1ft scale) — Kit and Specialist Market

O gauge relies primarily on kits and limited-run productions. Finney7 offers laser-cut kits for both the Modified Hall and the new 9400 Class (the latter released 2025), aimed at experienced builders with soldering skills and patience. Prices typically range from £400–600 depending on specification and options. Masterpiece Models produces premium factory-built brass Modified Halls at £1,000+ — museum-quality models for serious collectors rather than typical operators.

The County, 1500, and 1600 classes lack O gauge representation entirely. Given O gauge's emphasis on accurate scale models of specific prototypes, this absence is surprising, though the small production runs typical of O gauge make commercial risk higher than in OO.

Gaps and Opportunities

The most glaring market gaps are:

1. Modern OO County Class — With only the crude Hornby RailRoad model available and an active new-build project generating publicity, a quality County from Bachmann, Heljan, or Rapido would likely succeed commercially.

2. N gauge everything — The complete absence of modern N gauge Hawksworth types disadvantages an entire segment of modellers. Even a single well-chosen class (Modified Hall or 9400) would address a significant need.

3. Reissues of Rapido 1500/1600 — The rapid sell-out and strong secondhand prices demonstrate sustained demand. Repeat production would benefit both manufacturer and customers.

For modellers seeking Hawksworth locomotives, the current recommendation is:

• OO gauge: Bachmann 9400 (readily available), secondhand Bachmann Modified Hall (£80–150), or wait for potential County announcement
• N gauge: Accept the absence or scratchbuild
• O gauge: Finney7 kits if competent builder; otherwise commission Masterpiece Models

Legacy and Influence on Railway Engineering

Frederick Hawksworth's legacy suffers from unfortunate timing. As one historian concluded, he "had the ability, experience and vision to put the GWR back in its former respected position, but the circumstances were to conspire against him." Appointed at 57 during wartime, constrained by material shortages and government restrictions, and overtaken by nationalisation before he could complete his design programme, Hawksworth never enjoyed the creative freedom granted to predecessors like Churchward or contemporaries like Bulleid. Yet within these constraints, he achieved substantial, if understated, successes.

His most visible legacy is the 391 locomotives carrying his design stamp. The Modified Halls, in particular, vindicated his philosophy of evolutionary improvement, proving more economical to maintain than earlier Collett designs while offering superior performance on poor-quality coal. Their 20-year service lives under British Railways testified to fundamental soundness. The Counties, despite mixed reception and early withdrawal, demonstrated that two-cylinder simplicity could deliver power previously requiring four cylinders — a principle that influenced British Railways Standard Class development, particularly the BR Standard Class 5 4-6-0 which shared similar thinking.

Manufacturing methodology changes arguably exceed locomotive designs in long-term significance. The shift to plate frames, widespread adoption of welding, and simplified assembly processes modernised Swindon Works practices that had remained essentially static since Churchward's era. These changes reduced production costs and, crucially, slashed repair times — benefits that accumulated across hundreds of locomotives over decades. When Swindon built its final steam locomotive in 1960 (BR Standard 9F No. 92220 Evening Star), many manufacturing processes bore Hawksworth's fingerprints.

His testing plant modernisation influenced British railway engineering beyond the Western Region. The systematic approach to locomotive evaluation, instrumentation standards, and data analysis methodologies were "eventually accepted by British Railways as a national Standard," shaping how locomotives were tested, modified, and optimised across all regions. This empirical culture — measure, analyse, modify, measure again — became embedded in BR practice, influencing everything from valve gear optimisation to coal quality specifications.

The gas turbine experiments, though commercial failures, demonstrated technological ambition rare among British steam locomotive engineers in the 1940s. While Hawksworth's contemporaries focused on extracting final increments of efficiency from steam, he was evaluating fundamentally different technologies. The knowledge gained informed British Railways' later assessment of alternative traction systems and contributed to the analytical framework for evaluating main line electrification versus dieselisation.

The Unrealised Pacific: Perhaps Hawksworth's greatest disappointment was never designing the Pacific locomotive that had captivated him since preparing drawings for The Great Bear in 1908. He produced outline designs — a four-cylinder Pacific developing 40,000 pounds tractive effort using the County's Standard No. 15 boiler at 280 psi — but wartime restrictions and post-war austerity prevented authorisation. Had he succeeded Collett in the mid-1930s rather than 1941, British railway history might remember a Hawksworth Pacific alongside Gresley's A4 and Stanier's Coronation.

Comparisons with contemporary CMEs highlight what circumstances allowed and denied. Oliver Bulleid at the Southern Railway designed 140 Merchant Navy and Light Pacific locomotives with revolutionary features — air-smoothed casings, chain-driven valve gear, welded fireboxes — despite wartime constraints, by classifying them as "mixed traffic" to circumvent restrictions on express passenger types. Hawksworth, more scrupulous or less politically adroit, accepted restrictions and designed tanks and mixed-traffic engines. Edward Thompson at the LNER (1941–1946) similarly rebuilt and simplified Gresley's complex designs, though Thompson had the advantage of inheriting a Pacific fleet already in existence. H.G. Ivatt at the LMS (1945–1947) shared Hawksworth's emphasis on maintenance economy and two-cylinder simplicity, producing the lightweight Class 2 and Class 4 2-6-0s that anticipated BR Standard philosophy.

When R.A. Riddles — from the LMS tradition — became Member of the Railway Executive for Mechanical Engineering in 1948, he drew on experience from multiple railways in developing the BR Standard programme. Hawksworth's two-cylinder philosophy, simplified construction, and testing methodologies influenced the Standard designs, particularly the Class 5 4-6-0 which represented a national synthesis of proven regional practice. Had circumstances allowed Hawksworth a full decade as CME with freedom to design, his influence might have been more direct and visible.

Personal Life and Character

Unlike many prominent locomotive engineers who published technical papers, delivered presidential addresses, or wrote memoirs, Frederick Hawksworth left remarkably little personal record. He never married — a circumstance he shared with his mentor George Jackson Churchward — and devoted his life to railway engineering and civic duty with little time for broader public profile. What emerges from fragmentary evidence is a picture of a conscientious, methodical man more comfortable with drawing boards and test results than public speaking or politics.

Colleagues described him as approachable but reserved, demanding high standards but fair in judgement. His relationship with subordinates appears to have been professional rather than paternal — contrasting with Churchward's mentoring style or Collett's more distant formality. He trusted his department heads and allowed them considerable autonomy, intervening decisively when tests revealed problems but avoiding micromanagement of detail. This management style suited wartime conditions when Swindon's workforce expanded dramatically to handle munitions production alongside locomotive construction.

His interests beyond railways centred on his church and garden. He sang in the choir at St Mark's Church, Swindon — the "Railway Church" built adjacent to the locomotive works to serve railway families — for most of his adult life. This involvement reflected both genuine faith and deep integration into Swindon's railway community, where church membership reinforced workplace relationships. His garden at his Swindon home received similar devotion: he won first prize for beetroot at the GWR Staff Association Show, suggesting both skill and competitive spirit applied to horticulture with the same seriousness he brought to boiler design.

Post-retirement, Hawksworth dedicated himself to public service in Swindon. He served as Chairman of Swindon Magistrates (1951–1959), where his engineering background and systematic thinking proved applicable to legal reasoning. He sat as a town councillor, contributed to local building society management, and participated in various civic organisations. This pattern of public service was common among senior railway officers of his generation, who often formed the educated professional class in railway towns and bore corresponding civic responsibilities.

The absence of national honours stands in curious contrast to his contributions. C.B. Collett received the CBE for supervising wartime production during the First World War; Hawksworth, who oversaw even larger wartime output including 60,000 bombs, landing craft, Hurricane parts, and midget submarine components alongside locomotive construction, received nothing. Whether this reflected bureaucratic oversight, his own indifference to honours, or other factors remains unclear. In 1960, Swindon Borough recognised his contributions by making him Freeman of the Borough of Swindon — an honour he appears to have valued more than any national recognition.

His membership in the Institution of Mechanical Engineers and service on its Council provided professional recognition and enabled contribution to engineering discourse beyond railways. However, his publication record remains sparse compared to predecessors like Churchward or contemporaries like Bulleid who actively promoted their ideas through technical papers. This reticence may have reflected temperament, or perhaps recognition that wartime and nationalisation circumstances left little scope for theoretical innovation worth publishing.

Hawksworth's retirement lasted 27 years — far longer than his eight years as CME. He lived quietly in Swindon, tending his garden, attending church, and serving on magistrates' bench until 1959. His death on 13 July 1976, aged 92, came at a moment when steam preservation was flowering: the Modified Halls and Counties he designed were being rescued from Barry scrapyard, heritage railways were multiplying, and interest in GWR history was intensifying. He did not live to see 6990 Witherslack Hall restored, or the Modified Halls operational on preserved railways, or the County new-build project begun.

He was cremated at Kingsdown Crematorium on 16 July 1976, with ashes interred at St Mark's Church — ensuring that in death he remained in Swindon, beside the works where he spent his entire working life, among the railway community he served for half a century. The grave location holds symbolic weight: a Swindon man, born and bred, who served the Great Western Railway from apprenticeship to retirement, returned to rest beside the institution that defined him.

Frequently Asked Questions

What were Frederick Hawksworth's major locomotive designs and how many were built?

Hawksworth designed five steam locomotive classes totalling 391 locomotives. The Modified Hall Class (6959) produced 71 mixed-traffic 4-6-0s between 1944–1950. The County Class (1000) yielded 30 powerful two-cylinder 4-6-0s in 1945–1947, all subsequently scrapped. His three pannier tank classes comprised the 9400 Class (210 built 1947–1956), the radical 1500 Class with outside Walschaerts gear (10 built 1949), and the lightweight 1600 Class (70 built 1949–1955). He also ordered two experimental gas turbine-electric locomotives, Nos. 18000 and 18100, demonstrating interest in alternative traction technologies.

How did Hawksworth's County Class differ from the Castle Class it was meant to supplement?

The County Class used two large outside cylinders (18½" × 30") versus the Castle's four smaller cylinders, simplifying construction and maintenance but producing rougher running. Counties operated at 280 psi boiler pressure — the highest on any GWR locomotive — compared to the Castle's 225 psi, generating 32,580 lbf tractive effort versus 31,625 lbf. Driving wheels measured 6'3" rather than 6'8½", reflecting mixed-traffic rather than pure express intent. The Counties proved powerful but suffered steaming problems with poor coal and rough riding until post-1956 modifications with double chimneys improved performance substantially.

Where can I see preserved Hawksworth locomotives today?

Six Modified Halls survive: 6960 at One:One Collection (Margate), 6984 and 6989 at Buckinghamshire Railway Centre, 6990 at Great Central Railway (operational), 6998 at Didcot Railway Centre (operational), and 7903 at Gloucestershire Warwickshire Railway (operational). Four pannier tanks exist: 1501 (1500 Class) at Severn Valley Railway, 1638 (1600 Class) at Kent & East Sussex Railway, and 9400 plus 9466 (9400 Class) at STEAM Museum Swindon and West Somerset Railway respectively. No Counties survived, though Didcot Railway Centre is constructing replica 1014 County of Glamorgan using Modified Hall frames.

What scale model options exist for Hawksworth locomotives?

OO gauge offers the best coverage: Bachmann's Modified Hall (mostly discontinued, £80–150 secondhand), Hornby's crude County (£130–180 in train sets), Rapido's excellent 1500/1600 panniers (sold out, £128–250 secondhand), and Bachmann's superb 9400 (current production, £130–250). N gauge is virtually unserved except for Graham Farish's vintage 9400 (rarely available). O gauge relies on Finney7 kits (Modified Hall, 9400) at £400–600 or Masterpiece Models brass at £1,000+. The absence of a modern County model in any gauge represents the most significant gap.

Why were all 30 County Class locomotives scrapped without a single preservation?

The Counties were withdrawn between 1962–1964, victims of British Railways' dieselisation programme and their non-standard Standard No. 15 boiler which complicated maintenance logistics. Being only 15–20 years old, they lacked the veteran status that sometimes saved older classes from scrapping. Their withdrawal coincided with a period before widespread preservation consciousness — the mass rescue of Barry scrapyard locomotives hadn't begun. Several factors combined: non-standard parts, relatively young age, mixed service reputation, and simple bad timing. The 1014 County rebuild project at Didcot aims to rectify this preservation gap.

How did wartime constraints affect Hawksworth's designs?

Wartime restrictions prevented new express passenger locomotive construction, forcing Hawksworth to design mixed-traffic and tank engines instead of the Pacific he desired. Material shortages mandated economies in construction — the Modified Hall's simplified plate frames partly reflected steel scarcity. Deteriorating coal quality due to export of premium Welsh steam coal drove emphasis on improved steaming through larger superheaters and better draughting. Government-mandated oil-firing experiments diverted resources from core development. The Ministry of War Transport allocated materials and determined production priorities, severely constraining Hawksworth's design freedom until 1945.

What innovations did Hawksworth introduce to locomotive construction?

Hawksworth pioneered continuous plate frame construction on GWR locomotives, replacing traditional bar frames with flat steel plates that simplified both manufacture and repair. He introduced extensive welded construction on the 1500 Class panniers and coaches, reducing weight and improving strength-to-weight ratios. Outside Walschaerts valve gear appeared on the 1500 Class — virtually unprecedented for GWR practice. He modernised Swindon's testing facilities with improved dynamometer cars and standardised testing procedures that "eventually became British Railways national standards." His coach designs used aluminium panels and bodies built directly onto underframes, anticipating modern construction methods.

How did Hawksworth compare to contemporary CMEs like Bulleid and Stanier?

Bulleid pursued revolutionary innovation with air-smoothed Pacifics and radical valve gear, accepting teething troubles for performance gains; Hawksworth preferred evolutionary improvement with proven reliability. Stanier at LMS (and later Riddles at BR) shared Hawksworth's two-cylinder philosophy and maintenance-economy emphasis. Thompson at LNER similarly simplified inherited designs by eliminating conjugated valve gear complexity. The critical difference was opportunity: Bulleid built 140 new express Pacifics during wartime by creative classification; Hawksworth, denied permission for express types, designed mixed-traffic engines and tanks. Had circumstances allowed equal creative freedom, comparisons might favour Hawksworth differently.

What happened to Hawksworth after nationalisation in 1948?

Hawksworth continued as Western Region Chief Mechanical Engineer until retirement on 31 December 1949, though real design authority shifted to British Railways central organisation under R.A. Riddles. His final year involved completing locomotives under construction and transitioning Swindon to BR Standard practices. Post-retirement, he devoted 27 years to civic service: Chairman of Swindon Magistrates (1951–1959), town councillor, building society director, and continuing his lifelong choir membership at St Mark's Church. He was made Freeman of the Borough of Swindon in 1960, recognising both railway service and civic contributions.

Why is Hawksworth considered "the forgotten CME" of the Great Western?

Hawksworth's eight-year tenure was brief compared to Churchward (20 years), Collett (19 years), or even Dean (26 years). Wartime and post-war constraints prevented headline-grabbing achievements like record-breaking runs or revolutionary designs. Nationalisation overshadowed his final years and prevented his Pacific locomotive project. His pragmatic, evolutionary approach lacked the glamour of Bulleid's innovations or Gresley's streamliners. The complete scrapping of all 30 Counties eliminated his most ambitious design from physical preservation. Yet his manufacturing innovations, testing methodologies, and 391 reliable locomotives represent substantial achievement deserving greater recognition.

What was Hawksworth's planned Pacific locomotive design?

Hawksworth prepared outline drawings for a four-cylinder Pacific developing approximately 40,000 pounds tractive effort using the County's Standard No. 15 boiler at 280 psi operating pressure. The design would have featured 6'8½" driving wheels matching the Castle, four cylinders likely sized around 16" × 28", and incorporated the plate frame construction and simplified manufacturing methods proven in his other designs. Wartime restrictions prevented authorisation, and post-war austerity combined with nationalisation killed the project before detailed design commenced. Had circumstances permitted, it might have represented the culmination of Churchward's two-cylinder tradition scaled to Pacific proportions.

How accurate are the available scale models of Hawksworth locomotives?

Bachmann's 9400 Class and Rapido's 1500/1600 panniers represent excellent accuracy with prototypical valve gear, correct body proportions, and fine detail. Bachmann's Modified Hall is generally accurate though some enthusiasts note frame depth and cylinder position compromises. The Hornby County uses crude 1984 tooling with simplified details and incorrect proportions — adequate for play value but disappointing for serious modellers. No N gauge model approaches modern accuracy standards. In O gauge, Finney7 kits allow prototype accuracy if built carefully. The absence of a modern, accurate OO or N gauge County represents the most significant gap for modellers seeking comprehensive Hawksworth representation.
