Charles Collett – GWR's Master of Practical Engineering Excellence

Charles Benjamin Collett shaped British railway history not through radical invention but through the systematic refinement of proven locomotive designs into some of the finest steam engines ever to run on British metals. As Chief Mechanical Engineer of the Great Western Railway from 1922 to 1941, Collett produced the legendary Castle and King classes—locomotives whose performance embarrassed the competition and whose graceful forms still thunder across heritage railways today. His practical development engineering philosophy created over 2,400 locomotives that served Britain's railways for six decades, while his diesel railcar programme pioneered concepts that would transform British rail travel a generation later.

Quick Takeaways

• Career Span: Served the Great Western Railway for 48 years from 1893 to 1941, rising from junior draughtsman to Chief Mechanical Engineer in January 1922.
• Castle Class Triumph: Created Britain's most powerful passenger locomotive in 1923, which humiliated Nigel Gresley's A1 Pacifics in the 1925 Locomotive Exchange Trials and forced LNER to redesign their valve gear.
• King Class Supremacy: Designed the heaviest and most powerful 4-6-0 ever to run in Britain, with 40,300 lbf tractive effort and 250 psi boiler pressure—a locomotive that crossed the Atlantic in 1927.
• Mixed-Traffic Revolution: The Hall Class became Britain's definitive mixed-traffic design, influencing both the LMS "Black Five" and LNER Thompson B1 classes that would themselves number in hundreds.
• Preservation Legacy: Over 30 Collett locomotives survive in preservation, including eight Castle class, three King class, eleven Hall class, and all nine preserved Manor class locomotives.
• Model Railway Availability: Comprehensively represented across OO, N, and O gauges by Bachmann, Hornby, Dapol, Accurascale, Graham Farish, and Heljan with prices from £119.95 to £550.
• Development Philosophy: Perfected Churchward's standardization programme through systematic refinement rather than radical innovation, reducing GWR's locomotive class complexity by 29% while maintaining comprehensive route coverage.

Early Life and Entry into Railway Engineering

Born on 10 September 1871 at 33 Tavistock Crescent, Westbourne Park, London—mere minutes from Paddington station—Charles Benjamin Collett grew up in the shadow of Britain's railway revolution. He was the son of William Collett, a journalist covering horse racing for the Sporting Life, and Mary Helen Cooke. Some sources incorrectly cite Grafton Manor in Worcestershire as his birthplace, but contemporary records confirm the London location, which aligned with his father's professional circumstances in the capital's sporting journalism world.

Charles had an older brother, William, born in 1869, who tragically died aged just 10 in 1879. This loss left Charles effectively an only child through his formative years, potentially contributing to the somewhat reserved and contemplative personality that would characterize his later professional life. His mother's influence on his education proved substantial, ensuring he received the rigorous technical training that would define his engineering philosophy.

Collett's education followed a trajectory specifically designed to create precision engineers for Britain's expanding industrial economy. He attended Merchant Taylors' School in Charterhouse Square, one of London's historic independent schools with a strong emphasis on mathematics and the sciences. From there, he progressed to the City and Guilds College of London University at South Kensington—an institution founded in 1884 specifically to apply scientific principles to industrial practice. This theoretical grounding was complemented by practical pupilage at Maudslay, Sons and Field in Lambeth, a prestigious marine engine builder renowned throughout the Victorian engineering world for precision manufacturing.

The Maudslay apprenticeship proved pivotal. This company had been founded by Henry Maudslay, the legendary engineer who pioneered the screw-cutting lathe and established manufacturing accuracy as a fundamental engineering principle. Working amid Maudslay's culture of exacting standards—where tolerances were measured in thousandths of an inch and component interchangeability was gospel—instilled in young Collett an absolute insistence on manufacturing precision that would later manifest in his introduction of Zeiss optical alignment systems at Swindon Works. Unlike many railway engineers who trained exclusively within railway workshops, Collett's exposure to marine engineering's demanding standards gave him a broader perspective on what modern engineering practice could achieve.

Career Progression and Railway Appointments

Collett joined the Great Western Railway in May 1893 as a junior draughtsman in the legendary Swindon Drawing Office, beginning an association that would span 48 years and encompass the transition from Victorian railway expansion through two world wars. His career progression through the GWR hierarchy reveals a methodical ascent built on steady competence, attention to detail, and absolute reliability rather than meteoric brilliance:

In 1897, just four years after joining, he was placed in charge of the Buildings Section, responsible for designing and maintaining the railway's architectural infrastructure. By 1898, he had progressed to Assistant to the Chief Draughtsman, working directly under George Jackson Churchward who would profoundly influence his engineering philosophy. June 1900 saw his appointment as Technical Inspector at Swindon Works, a role requiring encyclopaedic knowledge of manufacturing processes and quality control. Later that same year, he advanced to Assistant Works Manager, gaining operational experience managing Swindon's vast workforce.

The promotion to Works Manager in 1912 marked Collett's entry into senior management, controlling the day-to-day operations of what was effectively a small industrial city employing over 12,000 men. This decade-long tenure managing Britain's largest railway workshop gave him unparalleled understanding of manufacturing economics, labour relations, and the practical constraints that theoretical designs must accommodate. In May 1919, he was appointed Deputy Chief Mechanical Engineer under Churchward, serving as second-in-command during the post-war reconstruction period when the GWR struggled with outdated locomotive stock and severe material shortages.

His appointment as Chief Mechanical Engineer in January 1922 followed Churchward's retirement after 21 years in the role. Where Churchward had been the radical innovator who revolutionized British locomotive practice by introducing tapered boilers, long-travel piston valves, and Belpaire fireboxes adapted from American and French practice, Collett would prove the consummate development engineer—taking proven concepts and systematically refining them to achieve superior performance through incremental improvement.

Personal Context and Working Methods

Personal tragedy struck in 1923 when Collett's wife Ethelwyn May Simon, whom he had married on 4 November 1896 at St George's Bloomsbury, died prematurely. The couple had no children. Her death "came as a great shock" and profoundly affected Collett's subsequent social engagement and working habits. Sources indicate he pursued spiritualism and vegetarianism thereafter, and became somewhat hypochondriacal regarding his own health. Remarkably, he launched the first Castle class locomotive—his greatest achievement—in the same year his wife passed, suggesting he channelled his grief into engineering excellence.

Unlike Churchward who visited the drawing office daily and maintained close personal relationships with his design team, Collett adopted a more distant management style. W.N. Pellow observed that Collett never entered the drawing office as CME, preferring instead to review drawings and reports in his office. He reportedly discouraged staff from visiting other locomotive works—a stark contrast to Churchward's practice of studying French and American designs firsthand. This isolation from professional bodies extended to showing "contempt for the Institution of Locomotive Engineers" and notably not participating in the Association of Railway Locomotive Engineers, limiting his exposure to wider engineering debates.

Key Locomotive Designs and Classes

Collett's locomotive legacy rests on systematic development of Churchward's standardization principles, producing designs that combined proven reliability with performance superiority that embarrassed rival companies' more radical experiments.

Castle Class (4073): Britain's Most Powerful Passenger Locomotive

The Castle class represented Collett's first and arguably finest achievement as CME. Introduced in August 1923—mere months after his appointment—it developed Churchward's Star class by enlarging the boiler while maintaining the critical 19½-ton axle load limit that determined route availability. Through careful weight distribution and component optimization, Collett created what he could legitimately advertise as "Britain's most powerful passenger locomotive."

The Castle's superiority was spectacularly demonstrated in the legendary 1925 Locomotive Exchange Trials when No. 4079 Pendennis Castle outperformed the London & North Eastern Railway's A1 Pacific on the challenging East Coast Main Line. The GWR engine achieved superior coal consumption of 2.83 lb per drawbar-horsepower hour compared to the A1's 3.5 lb—a 19% efficiency advantage that mortified LNER management. More embarrassingly, Pendennis Castle regularly made the King's Cross to Finsbury Park ascent in under 6 minutes—a feat the supposedly more powerful A1s could not match despite their larger dimensions and higher nominal tractive effort.

The humbled Nigel Gresley was forced to redesign his locomotives' valve gear to GWR specifications, achieving a 20% reduction in coal consumption that made possible the later A3 and record-breaking A4 classes. This single exchange trial established GWR engineering supremacy so thoroughly that it influenced British locomotive practice for the next three decades. The Castle's combination of adequate power, exceptional economy, and proven reliability made it the backbone of GWR express services until dieselization—the last examples weren't withdrawn until 1965, four decades after the first entered service.

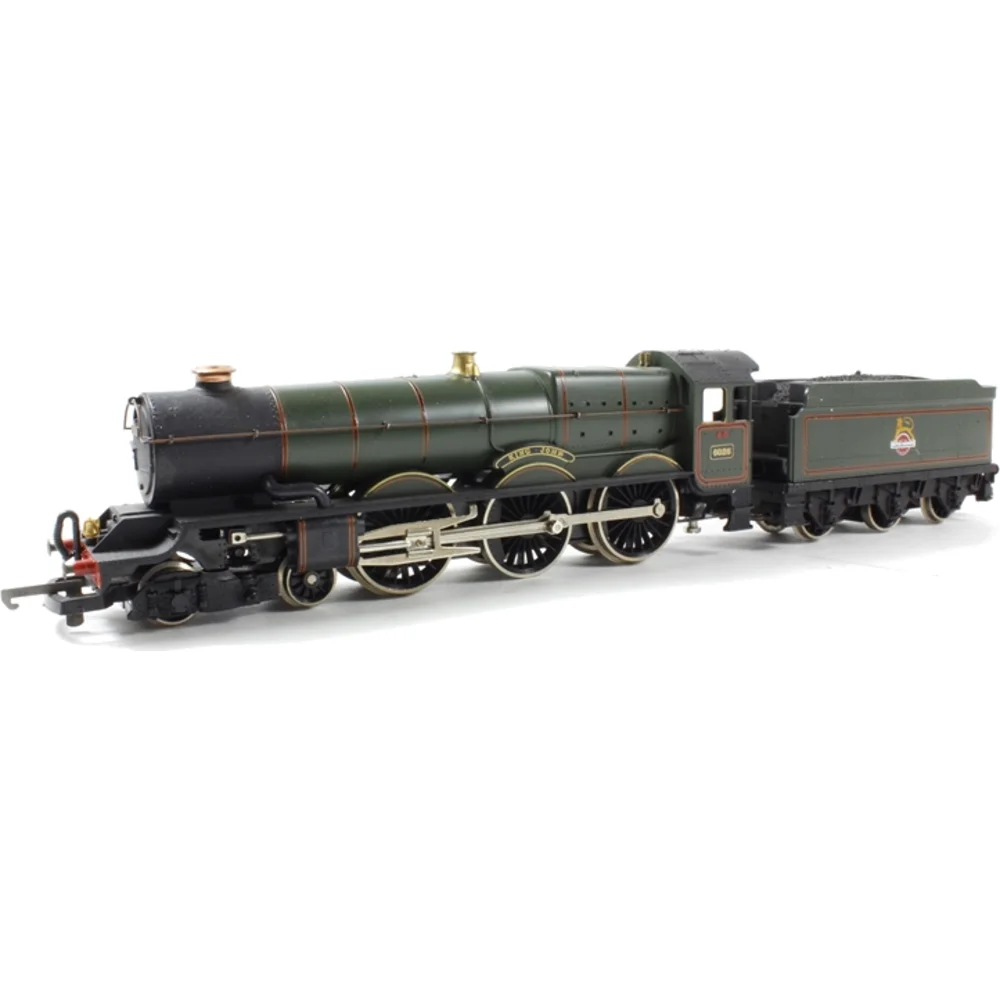

King Class (6000): The Ultimate British 4-6-0

When the Southern Railway's Lord Nelson class threatened GWR's supremacy in 1926 by claiming the title of Britain's most powerful locomotive, General Manager Sir Felix Pole instructed Collett to develop a "Super-Castle" that would definitively reclaim the crown. The result was the King class—the heaviest and most powerful 4-6-0 ever to run in Britain, and a locomotive whose specifications would not be exceeded by any British 4-6-0.

The first locomotive, No. 6000 King George V, crossed the Atlantic in 1927 for the Baltimore & Ohio Railroad's centenary celebrations—a prestigious international showcase of British engineering. American railroaders expressed genuine admiration for the locomotive's smooth performance and mechanical refinement, qualities often lacking in more powerful but crudely designed American engines. The locomotive returned bearing a commemorative brass bell mounted on the running plate, which remains attached to the preserved engine at the National Railway Museum today.

However, historical fairness requires noting complexities in attribution. Frederick Hawksworth, then Chief Draughtsman, is credited by some sources with significant detailed design work on the King class—a contribution often oversimplified in popular accounts that attribute all design credit to Collett personally. This reflects the reality that major locomotive designs were collaborative efforts, though the CME naturally received public credit.

The King class's 22½-ton maximum axle loading restricted it to the principal main lines between London, Bristol, and Plymouth, limiting its operational flexibility compared to the lighter Castle class. This route restriction meant only 30 were built—far fewer than the 171 Castles—but their prestige value was immense. They hauled the GWR's premier expresses including the "Cornish Riviera Limited" until replaced by diesel-hydraulics in the early 1960s.

Hall Class (4900): The Mixed-Traffic Revolution

The Hall class may represent Collett's most influential design, though it originated from experimental work rather than premeditated planning. The class developed from Churchward Saint No. 2925 Saint Martin, experimentally fitted with reduced 6 ft 0 in driving wheels (down from 6 ft 8½ in) to create a dual-purpose locomotive capable of both passenger and heavy freight work. The conversion's success led Collett to develop this into a production class that would revolutionize British mixed-traffic locomotive practice.

The Hall's balanced capabilities—sufficient power for express passenger work yet with the tractive effort for heavy freight trains—established a new locomotive category that other railways quickly emulated. William Stanier's LMS "Black Five" 4-6-0, which would become the most numerous British locomotive class with 842 built, directly channelled Hall class principles. Similarly, Edward Thompson's LNER B1 class acknowledged the Hall's influence in combining passenger speed with freight hauling capacity.

The prototype, renumbered 4900 and named Saint Martin, accumulated an astonishing 2,092,500 miles before withdrawal—testament to the design's fundamental soundness and longevity. Perhaps the most famous Hall today is No. 5972 Olton Hall, which portrays "Hogwarts Castle" in the Harry Potter film series, introducing millions of cinema-goers worldwide to the graceful lines of Collett's most versatile design.

Modified Hall Class (6959): Wartime Refinement

Built during World War II from 1944-1950, the Modified Hall incorporated several improvements including increased superheat, improved draughting, and higher-pitched boilers. These 71 locomotives represented the final development of the Hall concept and were highly regarded for improved performance over the original class.

Grange Class (6800): Heavy Mixed-Traffic for Secondary Routes

Introduced in 1936 to replace life-expired 4300 class 2-6-0s, the Grange class featured reduced 5 ft 8 in driving wheels for higher tractive effort (28,875 lbf) suitable for slower, heavier duties on secondary routes. These 80 locomotives were built economically using reconditioned boilers, cylinders, and other components salvaged from withdrawn 4300 class moguls—a characteristic example of Collett's practical approach to meeting operational requirements within tight budgets.

None of the original 80 Grange class locomotives survived into preservation, representing a significant gap in the preserved GWR fleet. However, this gap has been dramatically filled: new-build No. 6880 Betton Grange steamed for the first time in April 2024 after a remarkable 16-year construction project, bringing a Grange back to British metals for the first time in over half a century.

Manor Class (7800): Lightweight Express Power

The Manor class addressed a specific operational requirement: providing 4-6-0 power for "Blue" restricted routes with weak bridges and limited civil engineering capacity. With a maximum axle load of just 17 tons 5 cwt, these 30 locomotives could operate over nearly the entire GWR system including the challenging Cambrian lines in Wales.

Initial performance proved disappointing with poor steaming characteristics, but modifications in 1952—after Collett's retirement—involving a modified blastpipe and jumper-top chimney resolved these issues. Nine of the original 30 survive in preservation, and remarkably, all nine have steamed in preservation service—a unique distinction reflecting the class's popularity with heritage railways requiring versatile, route-compatible locomotives.

5700 Class Pannier Tank: The Ubiquitous Shunter

While less glamorous than express passenger locomotives, the 5700 class 0-6-0 pannier tank represents Collett's most numerous design with 863 locomotives built between 1929 and 1950. These distinctive side-tanked engines with their characteristic "pannier" tanks slung beside the boiler served throughout the GWR system for yard shunting, freight transfer, and light branch passenger duties. Sixteen survive in preservation, found at virtually every heritage railway with a GWR connection.

2884 Class Heavy Freight: Development of Churchward's 28XX

Collett's development of Churchward's 2800 class 2-8-0 heavy freight locomotive produced 83 units of the 2884 class built between 1938 and 1942. These incorporated detail improvements including higher boiler pressure (225 psi versus 200 psi) and modified valve gear. No. 3803 achieved the lowest coal consumption per mile of four different 2-8-0 types tested in the comprehensive 1948 Locomotive Exchange Trials—a final vindication of GWR engineering economy even after nationalization.

Technical Innovations and Patents

While Collett's reputation rests primarily on locomotive development rather than radical invention, his contributions extended across multiple technical domains:

Diesel Railcar Programme (1934-1942)

Collett took "active interest" in specifying the GWR's pioneering diesel railcar programme, which introduced 38 streamlined units between 1934 and 1942. These "Flying Banana" units—nicknamed for their distinctive chocolate-and-cream livery and streamlined ends—employed AEC diesel engines and Wilson epicyclic gearboxes, technology adapted from bus practice.

The programme achieved several British firsts: the GWR operated Britain's first long-distance diesel express service (Birmingham to Cardiff, 117.5 miles in 2 hours 20 minutes) with railcars regularly achieving 80 mph. These vehicles directly influenced British Railways' first-generation diesel multiple units that transformed branch line economics in the 1950s, proving that internal combustion traction could offer economic advantages over steam for lighter passenger services.

Automatic Train Control Development

As a member of the 1927 Pringle Committee investigating automatic train control systems, Collett advocated strongly for national ATC adoption and ensured the GWR completed main line installation covering 2,852 route miles by November 1939—the most comprehensive implementation in Britain. The committee unanimously recommended the GWR's system as best suited for British adoption, though other railways failed to implement it despite the recommendation.

The GWR system employed trackside ramps that mechanically contacted a shoe on the locomotive, providing both audible cab warnings and automatic brake application if the driver failed to acknowledge a distant signal at caution. This pioneering safety system formed the basis for British Railways' Automatic Warning System (AWS) that protected British railways until AWS/TPWS integration in the 1990s—a technical legacy extending seven decades beyond Collett's involvement.

Standardization and Interchangeability Programme

Collett systematically continued Churchward's standardization philosophy, reducing the GWR's locomotive fleet complexity from 17 types and 52 classes in 1921 to just 13 types and 37 classes by 1941—a 29% reduction in class variety while maintaining comprehensive route coverage. This was achieved through:

• Standardized boiler types (seven standard boilers shared across multiple classes)
• Interchangeable components (cylinders, valve gear, motion parts)
• Common wheelsets and axleboxes across classes with similar dimensions
• Standardized cab layouts and fittings to reduce driver training requirements

The economic benefits were substantial: reduced spare parts inventory, simplified maintenance procedures, greater locomotive availability through component swapping, and reduced manufacturing costs through longer production runs of standard components.

Precision Manufacturing Methods

Collett introduced Zeiss optical alignment systems for locomotive frame and cylinder alignment—a direct influence from his Maudslay apprenticeship where precision manufacturing was gospel. He insisted on absolute accuracy in boiler dimensions to ensure true interchangeability between locomotives, allowing boilers to be swapped between engines during heavy repairs without requiring time-consuming fitting adjustments.

This obsession with manufacturing precision distinguished GWR practice from other British railways where component "fitting" remained common. A Castle class boiler could be lifted from one locomotive and fitted to another in a single shift, whereas LMS practice often required several days of adjustment and modification—a practical advantage that significantly improved workshop productivity and locomotive availability.

Engineering Philosophy and Approach

Collett's Development Engineering Philosophy

Collett's engineering approach fundamentally differed from both his predecessor Churchward and his great rival Nigel Gresley. Where Churchward pursued radical innovation through studying French and American practice, and Gresley experimented with three-cylinder conjugated valve gear and high-pressure boilers,ColLett perfected existing designs through systematic incremental improvement. His Castle enlarged Churchward's Star boiler; his King stretched the Castle dimensions; his Hall adapted the Saint for mixed-traffic work. This conservative approach was derided by some contemporaries as lacking originality, but it delivered exactly what GWR management required: proven reliability, economic operation, and performance superiority over rival companies' more adventurous experiments.

Collett's development philosophy rested on several core principles:

Proven Technology Over Innovation: Rather than pursuing radical new concepts like high-pressure boilers or exotic valve gear arrangements, Collett refined proven designs to extract maximum performance. His locomotives employed entirely conventional technology—four-cylinder simple expansion, long-travel piston valves, outside Walschaerts valve gear for the Halls, Stephenson link motion for the pannier tanks—but executed with absolute precision.

Economic Operation as Primary Metric: The 1925 Exchange Trials' emphasis on coal consumption per drawbar-horsepower hour reflected Collett's belief that locomotive efficiency mattered more than raw power. His designs consistently achieved superior fuel economy compared to ostensibly more powerful rival locomotives, translating directly into reduced operating costs over millions of miles of service.

Manufacturing Practicality: Unlike some contemporary engineers whose designs challenged workshop capabilities, Collett ensured his locomotives could be efficiently manufactured at Swindon Works using existing tooling and workforce skills. This practical consideration meant his designs entered production quickly and could be built in large numbers without extensive capital investment in new machinery.

Component Interchangeability: Collett extended Churchward's standardization philosophy to its logical conclusion. A Hall class employed the same cylinders as a Castle, which shared motion parts with Kings, which used boiler fittings common to Manors. This web of interchangeable components dramatically simplified maintenance and reduced spare parts inventory costs.

Incremental Rather Than Revolutionary Change: Collett avoided the dramatic redesigns that characterized some contemporary engineers' careers. His classes evolved gradually from their predecessors, incorporating lessons learned from service experience rather than pursuing theoretical advantages. This conservative approach minimized developmental problems and ensured new classes entered reliable service quickly.

Preserved Locomotives and Heritage Railway Operations

Collett locomotives survive in remarkable numbers throughout Britain's heritage railway movement, providing modern enthusiasts with opportunities to experience his engineering excellence firsthand:

Castle Class (8 Preserved)

No. 4073 Caerphilly Castle: The first of the class, built August 1923, resides at STEAM Museum, Swindon in static display as part of the National Collection. This locomotive carried the "Britain's most powerful passenger locomotive" claim plates that sparked the competitive drive leading to the King class development.

No. 4079 Pendennis Castle: The locomotive that humiliated the LNER in 1925, this engine spent decades displayed in Australia before repatriation and restoration. Based at Didcot Railway Centre, it returned to steam in August 2021 and now operates heritage services, allowing modern passengers to experience the locomotive that changed British railway engineering.

No. 5043 Earl of Mount Edgcumbe: Based at Tyseley Locomotive Works, Birmingham, with current mainline certification for operating on Network Rail infrastructure. This engine regularly hauls charter trains over former GWR routes.

No. 7029 Clun Castle: The most famous working Castle, based at Tyseley with mainline certification. This locomotive has achieved celebrity status through frequent mainline operation and appears regularly at heritage railway galas.

Additional preserved Castles at various stages of restoration include No. 5029 Nunney Castle (under overhaul at Crewe), No. 5051 Earl Bathurst (Didcot, awaiting overhaul), No. 5080 Defiant (Tyseley, under overhaul), and No. 7027 Thornbury Castle (Great Central Railway, under restoration).

King Class (3 Preserved)

No. 6000 King George V: The Atlantic-crossing locomotive resides at the National Railway Museum, York in static display in its original 1927 condition complete with commemorative bell. This locomotive represents arguably the single most important preserved British express locomotive.

No. 6023 King Edward II: Based at Didcot Railway Centre, though its boiler certificate expired in 2020 and the locomotive currently awaits decision on future restoration.

No. 6024 King Edward I: Currently under overhaul at Crewe with expected mainline return, potentially bringing a King back to active service on Britain's national network for the first time since the 1960s.

Hall Class (11 Preserved)

Notable examples include:

No. 4930 Hagley Hall: Based at the Severn Valley Railway in operational condition. This locomotive regularly hauls passenger services over the scenic 16-mile line between Kidderminster and Bridgnorth.

No. 5972 Olton Hall: The "Hogwarts Castle" locomotive from the Harry Potter films, now on static display at the Warner Bros. Studio Tour London. This engine has introduced millions of international visitors to GWR locomotive design.

No. 4936 Kinlet Hall: Based at Tyseley, currently under overhaul with anticipated return to service.

No. 6960 Raveningham Hall: A Modified Hall variant, operational at the Severn Valley Railway.

Manor Class (9 Preserved—All Have Steamed)

The Severn Valley Railway hosts the largest Manor collection with Nos. 7802 Bradley Manor, 7812 Erlestoke Manor, and 7819 Hinton Manor. The West Somerset Railway maintains Nos. 7822 Foxcote Manor and 7828 Odney Manor in operational condition. This remarkable survival rate—30% of the original class—reflects both the Manor's route versatility for heritage railways and their popularity with preservationists.

Grange Class (1 New-Build)

No. 6880 Betton Grange: This remarkable new-build locomotive, completed in April 2024 after 16 years of construction, represents one of the most ambitious mainline steam locomotive construction projects undertaken in modern Britain. It fills the gap left by the loss of all 80 original Grange class locomotives.

Museum and Heritage Railway Visitor Information

STEAM Museum, Swindon: Located in the historic railway works, open Monday-Saturday 10am-5pm, Sunday 11am-4pm. Adult admission approximately £13.80. The museum is 10-15 minutes' walk from Swindon station and houses the National Railway Museum's GWR collection including Caerphilly Castle.

Didcot Railway Centre: Open weekends and selected dates throughout the year. Access via subway from Didcot Parkway station only. This 21-acre site includes three demonstration lines and the largest operational collection of GWR locomotives in Britain, including Castles, Kings, Halls, and Prairies. Steam days typically feature multiple locomotives in operation.

Severn Valley Railway: Operating over 16 miles between Kidderminster and Bridgnorth, this premier heritage railway hosts Britain's largest working GWR locomotive fleet. Services operate most weekends and daily during summer months. The autumn steam gala typically features up to six GWR locomotives operating simultaneously.

Tyseley Locomotive Works, Birmingham: Home to Castles 5043 and 7029, this working steam maintenance facility offers guided tours showing locomotive restoration and maintenance in progress. The annual open day features multiple GWR locomotives under steam.

Scale Models and Modeling Significance

The British model railway industry comprehensively supports Collett locomotive modeling across all scales, offering modelers options from budget-friendly starter sets to premium, highly detailed museum-quality pieces:

OO Gauge (1:76) – The Primary Market

OO gauge dominates British railway modeling, and Collett designs receive exceptional coverage:

Castle Class: Hornby produces the Castle (catalog R30328 Caerphilly Castle, £189.95, 21-pin DCC ready) with improved 2016+ tooling featuring separately applied detail parts and fine-scale wheels. Earlier Hornby Castles from the 1970s-1990s remain available secondhand at £50-80 but lack the detail refinement of current models.

King Class: Also from Hornby (R30363 King Stephen, £199.95, 2016+ improved tooling with metal connecting rods and separately applied pipework). The King's imposing size makes it one of the most visually impressive British OO gauge locomotives.

Hall Class: Bachmann Branchline produces the definitive OO gauge Hall (catalog 32-002B Pitchford Hall, £189.95) featuring metal valve gear, separately applied detail parts, and the company's characteristic fine running qualities. These models capture the Hall's graceful proportions superbly.

Modified Hall Class: Also from Bachmann (catalog 32-280 series, £189.95) with the distinctive higher-pitched boiler and improved details differentiating it from the original Hall variants.

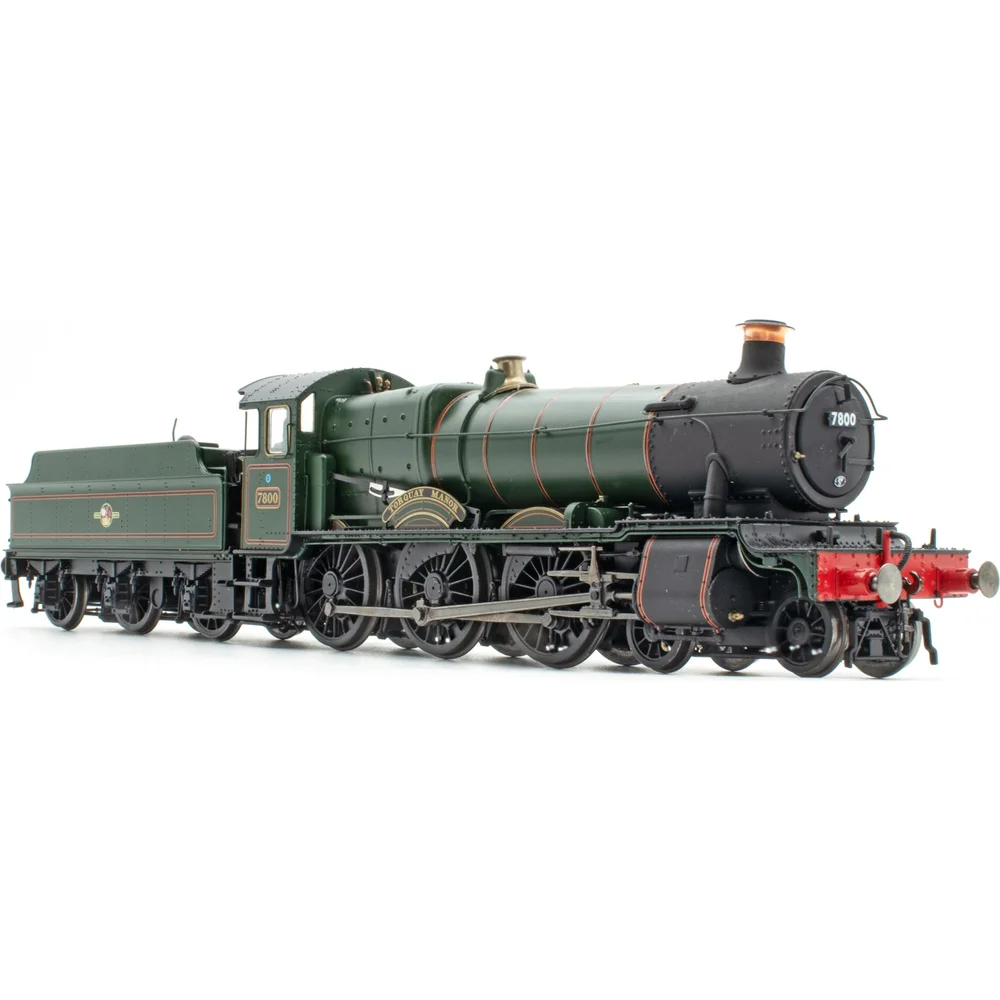

Manor Class: This represents the most competitive segment with three manufacturers offering distinctly different approaches:

• Accurascale (ACC2500 series, £145-220): Based on a 3D scan of preserved 7808 Cookham Manor, widely considered the most accurate OO gauge Manor available. Features scale 7mm buffers, superb valve gear detail, and accurate cab interior.

• Dapol (4S-001 series, £144.50-159.95 DCC ready): Award-winning design with innovative slide-out PCB for easy decoder fitting, 30:1 gear ratio for smooth slow-speed running, and excellent value for money. Slightly less detailed than Accurascale but offers superior running characteristics.

• Bachmann Branchline (31-308 series, £179.95): The traditional choice, featuring metal valve gear and Bachmann's reliable mechanism, though some details are less refined than the Accurascale version.

5700 Class Pannier Tank: Multiple manufacturers including Hornby (R3810 series, £129.95), Bachmann (32-227 series, £179.95), and Dapol. The Dapol version (4S-047 series, £139.95) offers particularly good value with DCC ready fitting and smooth running.

Grange Class: Currently no ready-to-run models available despite the 2024 completion of new-build 6880 Betton Grange—representing a significant gap in the market and potential future release opportunity. Modelers seeking Grange class must turn to brass kits from Tower Models or Malcolm Mitchell Engineering (£400-600 requiring significant modeling skill).

N Gauge (1:148) – Growing Market

N gauge has expanded dramatically in recent years with improved detail levels:

Castle Class: Graham Farish (catalog 372-030 series, £119.95 DCC ready, £189.95 DCC sound fitted) with fine detail including separately applied handrails and lamp irons. The sound-fitted version includes authentic GWR whistle and motion sounds.

Hall/Modified Hall: Graham Farish (372-450 series) announced for late 2025 release with improved detail levels matching recent Castle tooling standards. Pre-orders already exceeded initial production allocation, demonstrating strong demand.

Manor Class: Dapol produces the N gauge Manor (catalog 2S-001 series, £153.40) with impressive detail for the scale including fine valve gear and separately applied detail parts.

Pannier Tank: Graham Farish 57XX (372-977 series, £89.95 DCC ready) offers excellent value and smooth running qualities suitable for shunting and branch line duties.

O Gauge (1:43.5) – Premium Market

O gauge offers the ultimate in detail and presence, with prices reflecting the significant engineering required:

61XX Prairie Tank: Heljan (catalog numbers vary by variant, £450-550) with DCC ready 21-pin socket and ESU sound compatibility. These large 2-6-2T locomotives make impressive models with their substantial boilers and detailed motion.

2251 Collett Goods 0-6-0: Heljan (catalog 2251-2264 series, approximately £500) with fine detail including separately applied brake rigging and handrails. These handsome goods engines saw widespread service throughout the GWR system.

5700 Class Pannier: Dapol O gauge (approximately £300-350 DC, £450-500 DCC sound fitted) with superb detail including separately applied rivets, detailed cab interior, and working buffer beams.

Castle Class: Currently no ready-to-run O gauge Castle available, though Tower Models offers etched brass kits (£800-1,200) requiring advanced modeling skills but producing museum-quality results.

Model Selection Guidance

For beginners entering GWR modeling, the Bachmann Hall or Dapol Manor in OO gauge offer excellent starting points with reliable mechanisms and appropriate detail levels. More experienced modelers seeking the finest accuracy should consider Accurascale's Manor or invest in brass kits from specialist manufacturers. Heritage railway modelers benefit from the Manor's wide route availability—the low axle loading means it operates convincingly on branch lines that the larger Castles and Kings could never access.

DCC sound fitting transforms these models, particularly in OO gauge where numerous aftermarket sound projects replicate authentic GWR locomotive sounds including the distinctive four-cylinder beat of Castles and Kings. Zimo, ESU, and Howes sound decoders all offer GWR-specific sound projects in the £80-150 range.

Legacy and Influence on British Railway Engineering

Charles Collett's contribution to railway engineering transcends his individual locomotive designs. His systematic development of Churchward's standardization philosophy—emphasizing component interchangeability, proven designs, and manufacturing precision—provided the Great Western Railway with a locomotive fleet ideally matched to its operational requirements while minimizing costs. This philosophy's success influenced British locomotive practice for three decades.

The 1925 exchange trials' impact extended far beyond GWR publicity. Nigel Gresley's forced adoption of GWR-style valve settings improved LNER locomotive efficiency by 20%, enabling the development of the A3 and A4 classes. When William Stanier moved from Swindon to the London Midland & Scottish Railway in 1932 as Chief Mechanical Engineer, he carried Collett and Churchward's engineering principles to Britain's largest railway company. Stanier's Princess Royal and Duchess Pacifics employed King class cylinder dimensions and valve gear arrangements; his famous "Black Five" 4-6-0 directly channeled Hall class mixed-traffic philosophy, becoming Britain's most numerous locomotive class with 842 built.

The mixed-traffic 4-6-0 concept—perfected in Collett's Hall class—became the foundation of British locomotive standardization. Edward Thompson's LNER B1 class (410 built) and the post-nationalization British Railways Standard Class 5 (172 built) both acknowledged the Hall's success in combining passenger speed with freight hauling capacity. This versatile design philosophy dominated British locomotive practice through the final decades of steam.

Collett's diesel railcar programme, though often overlooked in accounts focusing on his steam locomotives, pioneered internal combustion traction for British passenger services. The operational experience gained with the 38 GWR railcars directly influenced British Railways' first-generation diesel multiple units that transformed branch line economics in the 1950s, proving diesel traction's economic advantages for lighter passenger services. The Metropolitan-Cammell and British United Traction DMUs that replaced steam on thousands of miles of secondary routes owed substantial technical debt to GWR's pre-war diesel railcar development.

The Automatic Train Control system championed by Collett formed the basis for British Railways' Automatic Warning System that protected British railways for seven decades. The GWR's pioneering work in automatic train protection—completed to 2,852 route miles by 1939—established safety principles that would only be superseded by the Train Protection & Warning System introduced in the 1990s following the Clapham Junction disaster.

For modelers and enthusiasts, Collett's locomotives offer unparalleled variety spanning every aspect of railway operation—from express Kings hauling the "Cornish Riviera Limited" to humble pannier tanks shunting goods yards. The exceptional preservation numbers (over 30 locomotives) mean modern enthusiasts can experience Collett's engineering excellence firsthand through heritage railway visits, while comprehensive model availability across all scales enables accurate representation on model layouts. His practical engineering philosophy produced machines that looked magnificent, performed superbly, and proved remarkably durable: characteristics that continue to captivate railway enthusiasts seven decades after the end of his career.

Finally: The Quiet Engineer's Enduring Achievement

Charles Benjamin Collett remains an enigmatic figure in British railway engineering history. Unlike the flamboyant Nigel Gresley with his record-breaking streamliners, or the charismatic Oliver Bulleid with his radical innovations, Collett pursued excellence through systematic incremental improvement rather than dramatic innovation. His personal reserve, professional isolation from engineering institutions, and the absence of a definitive biography have left his personality somewhat shadowed compared to more colorful contemporaries.

Yet his achievements speak with absolute clarity. The Castle class that humiliated the competition and forced British locomotive practice onto a more efficient course; the King class that represented the absolute zenith of British 4-6-0 development; the Hall class that established the mixed-traffic concept dominating British locomotive design for three decades; the comprehensive standardization programme that maximized economic efficiency while maintaining operational capability—these accomplishments established Collett as one of the most consequential figures in British railway history.

His engineering philosophy—emphasizing proven technology, systematic refinement, manufacturing precision, and economic operation—may have lacked the glamorous appeal of radical innovation, but it delivered exactly what railway management required: reliable, economical locomotives that performed their duties superbly for decades. That his Castles remained in front-line express service until 1965, four decades after introduction, and his Halls served until the final weeks of Western Region steam in 1965, testifies to fundamental design soundness that more adventurous experiments often lacked.

Collett died on 23 August 1952 in Wimbledon, aged 81, and was buried per his own request in an unmarked grave at Gap Road Cemetery, shared with two unrelated persons. This self-effacing departure matched his reserved personality—a sharp contrast to the lasting visibility of his engineering legacy. Today, when heritage railway passengers thrill to a Castle in full cry up a Cotswold gradient, or model railway enthusiasts run a perfectly detailed Manor around their layouts, or preservation volunteers restore yet another of his remarkably durable designs to working order, Charles Collett's quiet genius continues to enrich British railway culture in ways that more self-promoting engineers might envy.

Frequently Asked Questions

What were Charles Collett's greatest achievements as GWR Chief Mechanical Engineer?

Collett's greatest achievements include designing the Castle class that proved Britain's most efficient express locomotive in the 1925 exchange trials, creating the King class as Britain's most powerful 4-6-0, and developing the Hall class mixed-traffic locomotive that influenced British locomotive standardization for three decades. His systematic refinement of Churchward's standardization programme reduced GWR locomotive class complexity by 29% while maintaining comprehensive operational capability. He also pioneered diesel railcar development and championed automatic train control adoption across 2,852 miles of GWR routes by 1939.

How did Collett's locomotives compare to those of his great rival Nigel Gresley?

The 1925 Locomotive Exchange Trials provided direct comparison when Collett's Castle class outperformed Gresley's supposedly more powerful A1 Pacific on coal consumption (2.83 vs 3.5 lb per drawbar-horsepower hour) and climbing ability. This forced Gresley to redesign LNER valve gear to GWR specifications, improving efficiency by 20%. Collett emphasized proven technology and systematic refinement while Gresley pursued radical innovations like three-cylinder conjugated valve gear and high-pressure steam. Both approaches succeeded brilliantly in their contexts, but Collett's conservative philosophy delivered superior economic operation and exceptional reliability.

Where can I see preserved Collett locomotives in operation today?

The Severn Valley Railway hosts the largest operational collection with multiple Hall and Manor class locomotives in regular service over their scenic 16-mile route. Didcot Railway Centre maintains working Castle, King, and Hall class examples with frequent demonstration runs. Tyseley Locomotive Works operates mainline-certified Castles 5043 and 7029 on charter trains over Network Rail infrastructure. The West Somerset Railway runs Manor class locomotives on their 23-mile line. Over 30 Collett locomotives survive in preservation, with at least 15 currently operational or under restoration to working order.

What scale models of Collett locomotives are available for railway modelers?

Collett locomotives receive comprehensive coverage across all scales. In OO gauge, Hornby produces Castle and King classes (£189.95-£199.95), while Bachmann offers definitive Hall and Modified Hall models (£189.95). The Manor class is available from three manufacturers: Accurascale (most accurate, £145-220), Dapol (best value, £144.50-159.95), and Bachmann (£179.95). N gauge options include Graham Farish Castle (£119.95-£189.95) and Dapol Manor (£153.40). O gauge features Heljan's Prairie and Collett Goods (£450-550) and Dapol panniers (£300-500). The main gap is ready-to-run Grange class models, though the 2024 completion of new-build 6880 may inspire future releases.

Why is the Hall Class considered Collett's most influential locomotive design?

The Hall class established the mixed-traffic 4-6-0 concept that dominated British locomotive practice for three decades. Its balanced capabilities—6 ft 0 in driving wheels providing both passenger speed and freight tractive effort—proved ideally suited to British operating conditions. William Stanier's LMS "Black Five" (842 built) directly channeled Hall principles, while the LNER Thompson B1 (410 built) and BR Standard Class 5 (172 built) acknowledged its influence. With 259 Halls built plus 71 Modified Halls, this became the second-most numerous GWR tender locomotive class. Eleven survive in preservation, including celebrity locomotive 5972 Olton Hall ("Hogwarts Castle" from Harry Potter films).

What happened to Collett's diesel railcar programme after his retirement?

Collett's 38 GWR diesel railcars (1934-1942) pioneered internal combustion passenger traction in Britain, operating services up to 80 mph including the Birmingham-Cardiff express (117.5 miles in 2 hours 20 minutes). These "Flying Banana" units using AEC engines and Wilson gearboxes provided operational experience that directly influenced British Railways' first-generation diesel multiple units. The Metropolitan-Cammell and British United Traction DMUs that transformed branch line economics in the 1950s owed substantial technical debt to GWR's pre-war railcar development. Several GWR railcars survived into the 1960s; one (W20W) is preserved at STEAM Museum, Swindon.

How did Collett's engineering philosophy differ from his predecessor Churchward?

Churchward was the radical innovator who revolutionized British practice by studying French and American designs, introducing tapered boilers, long-travel piston valves, Belpaire fireboxes, and comprehensive standardization. Collett was the development engineer who systematically refined Churchward's proven concepts to achieve superior performance through incremental improvement. His Castle enlarged the Star boiler; his King stretched Castle dimensions; his Hall adapted the Saint for mixed-traffic work. This conservative approach delivered proven reliability and economic operation rather than pursuing untested innovations, exactly matching GWR management requirements for consistent, economical performance.

What technical innovations did Collett introduce at Swindon Works?

Beyond locomotive design, Collett introduced Zeiss optical alignment systems for precision frame and cylinder alignment—a direct influence from his Maudslay apprenticeship in marine engineering. He insisted on absolute manufacturing accuracy for boiler dimensions to ensure true interchangeability, allowing Castle boilers to be swapped between engines in a single shift (versus several days of adjustment required at other railways). He championed automatic train control adoption, completing 2,852 miles of GWR main line installation by November 1939. His manufacturing precision distinguished GWR practice from competitors where component "fitting" remained standard procedure.

Why are Manor Class locomotives so popular with heritage railways?

The Manor class's 17 tons 5 cwt maximum axle load makes them compatible with virtually all heritage railway infrastructure, including lines with weight restrictions that preclude larger Castle and Hall classes. Their 5 ft 8 in driving wheels provide adequate tractive effort for heritage railway gradients while maintaining respectable passenger speeds. All nine preserved Manors have steamed in preservation—a unique distinction. Their versatility and route availability make them ideal heritage railway locomotives, equally at home on branch passenger services or demonstration freight trains. This practical utility explains why 30% of the original 30 locomotives survive versus just 4.7% of Castle class.

What books or resources exist for researching Charles Collett further?

Unlike Churchward, Gresley, or Bulleid, no comprehensive Collett biography exists—a significant gap in railway literature. Primary sources include Institution of Mechanical Engineers obituaries and contemporary railway journals. K.J. Cook's "Swindon Steam 1921-1951" covers his CME period. The Great Western Railway Society publishes detailed studies of individual locomotive classes. Grace's Guide to British Industrial History provides biographical details. For locomotive technical specifications, the RCTS locomotive history series remains definitive. STEAM Museum, Swindon archives hold Swindon Works records. This research gap represents an opportunity for railway historians to produce the comprehensive Collett biography his significant achievements deserve.

How did Collett's personal life affect his professional work?

Collett's wife Ethelwyn died in 1923, the same year he introduced the Castle class—his greatest achievement. The loss "came as a great shock" and profoundly affected his subsequent social engagement. Sources indicate he pursued spiritualism and vegetarianism thereafter, becoming somewhat reclusive. Unlike Churchward who maintained close relationships with design staff and visited the drawing office daily, Collett adopted a more distant management style, never entering the drawing office as CME and reportedly discouraging staff from visiting other works. His effectiveness "declined in later years" before retirement in 1941, with most matters delegated to assistants. He died 23 August 1952 and was buried per his request in an unmarked grave.

What makes King Class locomotives historically significant beyond their GWR service?

No. 6000 King George V crossed the Atlantic for the Baltimore & Ohio Railroad's 1927 centenary celebrations, showcasing British engineering internationally and returning with the commemorative bell still mounted on the preserved locomotive today. The King class represented the absolute zenith of British 4-6-0 development with 40,300 lbf tractive effort and 250 psi boiler pressure—figures never exceeded by any British 4-6-0. Their 22½-ton axle loading restricted them to premier main lines, making them prestigious rather than ubiquitous. Only 30 were built versus 171 Castles, enhancing their exclusivity. Three survive in preservation including the Atlantic-crossing 6000 at the National Railway Museum—arguably Britain's single most important preserved express locomotive.
