GWR 4073 Castle Class — Britain's Most Celebrated Express Passenger Locomotive

Quick Takeaways

• Production Total: 171 locomotives built across 27 years (1923-1950), including 16 converted from other classes
• Technical Innovation: Featured Collett's refined No. 8 boiler design with four-cylinder layout and 225 psi working pressure
• Operational Triumph: Outperformed LNER Pacifics in 1925 trials, achieving superior fuel economy and timekeeping performance
• Royal Recognition: No. 4082 Windsor Castle hauled King George V's funeral train in 1936, cementing royal approval
• Modelling Excellence: Available from multiple manufacturers including Hornby R30328 and numerous specialist producers
• Preservation Success: Eight locomotives preserved, with three currently operational on heritage railways
• Legacy Impact: Final Castle withdrawal in 1965 marked end of an era, with No. 7029 Clun Castle the last survivor

Historical Background and Context

The origins of the Castle Class can be traced directly to George Churchward's revolutionary Star Class of 1907, which established the fundamental four-cylinder 4-6-0 layout that would characterise Great Western express passenger design for decades. By 1922, however, the post-war resurgence in traffic demanded locomotives with greater power and capacity than even the successful Stars could provide.

Charles Collett, who had succeeded Churchward as Chief Mechanical Engineer in 1922, faced the challenge of creating a locomotive that could handle increasingly heavy express trains whilst maintaining the reliability and economy that distinguished Great Western practice. The solution lay in enlarging the proven Star design, incorporating the larger No. 8 boiler that Churchward had originally intended for the class but never implemented.

The timing of the Castle Class introduction proved fortuitous, coinciding with the Great Western Railway's aggressive marketing campaign to promote itself as the premier passenger railway in Britain. The company's confidence in the new design was demonstrated by Collett's decision to order ten locomotives straight from the drawing board, with production beginning at Swindon Works in August 1923.

The first locomotive, No. 4073 Caerphilly Castle, represented a quantum leap in Great Western locomotive power. Developing 31,625 lbf of tractive effort compared to the Stars' 27,800 lbf, the Castle could handle 500-ton trains unassisted where Stars required double-heading. This capability transformation would prove crucial as train weights continued to increase throughout the 1920s and 1930s.

The class's introduction also reflected broader changes in British railway operation. The 1921 Railways Act had created the "Big Four" companies, intensifying competition for prestigious express passenger traffic. The Great Western's claim to operate "Britain's most powerful express passenger locomotive" became a vital marketing tool, particularly when competing against the larger and more impressive-looking LNER Pacifics.

Design Philosophy: Collett deliberately prioritised practical improvements over visual drama. Where other railways pursued larger driving wheels and imposing dimensions, the Great Western focused on thermal efficiency, mechanical reliability, and operational economy - principles that would vindicate themselves throughout the class's service life.

Design and Technical Specifications

The technical excellence of the Castle Class stemmed from Collett's methodical refinement of proven Great Western engineering principles. The four-cylinder simple expansion layout, inherited from the Star Class, provided smooth power delivery and reduced hammer blow on the track, whilst the inside Walschaerts valve gear offered accessibility for maintenance combined with precise steam distribution.

The heart of the Castle's superior performance lay in its boiler design. The No. 8 standard boiler featured a larger grate area (30.3 sq ft versus 27.07 sq ft for the Stars) and increased heating surface, enabling sustained high-power output essential for non-stop runs. The adoption of a Belpaire firebox, characteristic of Great Western practice, provided excellent steam-raising capacity whilst offering superior structural strength compared to round-top alternatives.

The Castle's frame design incorporated lessons learned from decades of Great Western locomotive development. The robust plate frame construction, typical of GWR practice, provided exceptional rigidity whilst the wheelbase spacing (6 ft 6 in + 7 ft 2 in + 8 ft 6 in) offered an excellent compromise between riding quality and curve-taking ability on the sinuous routes west of Newton Abbot.

One of the most significant innovations was the adoption of improved valve timing and port dimensions. The inside Walschaerts valve gear, operated through rocking shafts, provided superior steam distribution compared to the Stephenson valve gear used on earlier classes. This contributed directly to the Castle's exceptional fuel economy, with coal consumption averaging just 2.83 pounds per drawbar horsepower hour - significantly better than contemporary designs from other railways.

Engineering Insight: The Castle's success stemmed from thermal efficiency rather than brute force. Careful attention to cylinder proportions, valve events, and boiler design created a locomotive that could sustain high power output with remarkable fuel economy - a crucial consideration given the GWR's long-distance routes and limited coaling stops.

The cab design represented a significant advance in crew comfort, featuring side windows that provided improved visibility and weather protection. The introduction of copper-capped chimneys and polished brass safety valve covers restored the visual elegance that had been sacrificed during wartime austerity, making the Castles among the most handsome locomotives ever built.

Later modifications enhanced the class's capabilities further. From 1926, larger 4,000-gallon tenders replaced the original 3,500-gallon units, extending range for non-stop workings. The fitting of double chimneys to 65 locomotives from 1956 onwards, combined with four-row superheaters, improved high-speed performance and enabled sustained 100 mph running when required.

Service History and Operations

The operational history of the Castle Class reads like a chronicle of Great Western Railway excellence. From their initial allocation to premier express duties, these locomotives quickly established themselves as the backbone of the company's passenger services, handling everything from the prestigious "Cornish Riviera Express" to royal funeral trains with equal distinction.

The class entered service at a time when the Great Western was expanding its express passenger network and competing aggressively for luxury travel markets. The ability of a single Castle to handle 500-ton trains that previously required double-heading transformed timetable planning and operational efficiency. Routes like the Cheltenham Flyer, which achieved fame as "the world's fastest train" with a schedule averaging 81.7 mph between Swindon and Paddington, showcased the Castle's high-speed capabilities.

Throughout the 1920s and 1930s, Castle Class locomotives dominated the principal express services radiating from London Paddington. The "Cornish Riviera Express," "Royal Duchy," and "Torbay Express" all relied on Castle power for their demanding schedules over the challenging gradients west of Newton Abbot. The class proved equally capable on the Birmingham and Worcester routes, where their ability to maintain time over the Lickey Incline approaches earned them widespread respect among operating staff.

The outbreak of World War II transformed the Castle's operational patterns dramatically. Peacetime express schedules gave way to heavily loaded troop trains and freight workings, often grossly exceeding the locomotives' designed capacity. Yet the robust construction and reliable mechanical design enabled the class to cope with these exceptional demands whilst maintaining acceptable levels of availability.

Operational Excellence: Castle No. 5069 Isambard Kingdom Brunel achieved fame in 1958 when it hauled "The Bristolian" at a sustained 100 mph near Little Somerford, demonstrating that even 35-year-old Castles remained capable of exceptional performance when required.

The post-war period brought new challenges as British Railways standardisation policies favoured newer designs over inherited locomotive classes. However, the Castle's proven reliability and fuel economy ensured continued front-line service well into the 1960s. Many locomotives received modifications including improved draughting arrangements and updated cab equipment, enabling them to compete effectively with early diesel multiple units on secondary express duties.

Perhaps the most poignant operational milestone came on 11th November 1965, when No. 7029 Clun Castle worked the final steam-hauled express passenger service on the Western Region. This symbolic moment marked the end of an era that had begun with Caerphilly Castle's debut 42 years earlier, concluding one of the longest and most successful locomotive careers in British railway history.

Individual locomotives within the class achieved particular distinction through their operational assignments. No. 4082 Windsor Castle gained lasting fame through its association with royal duties, most notably hauling King George V's funeral train in 1936. No. 5000 Launceston Castle's successful trial on the London Midland & Scottish Railway in 1926 demonstrated the design's versatility beyond its home territory.

Withdrawal, Preservation, and Legacy

The withdrawal of the Castle Class locomotives began tentatively in the early 1950s but accelerated rapidly during the 1960s as diesel traction replaced steam across the Western Region. The first withdrawal, No. 4000 North Star (a Star Class rebuild), occurred in February 1950, but large-scale scrapping did not commence until the dieselisation programme gathered momentum in the late 1950s.

By 1962, steam's days were clearly numbered, and the pace of withdrawals increased dramatically. The final year of Castle operations, 1965, saw the last twelve locomotives removed from service, culminating in Clun Castle's final run on 27th December. The rapidity of this conclusion reflects both the efficiency of the diesel replacement programme and British Railways' determination to eliminate steam traction completely.

Fortunately, preservation efforts ensured that eight Castle Class locomotives survived the cutter's torch, representing approximately 4.7% of the total fleet - a respectable survival rate for a class so completely displaced by modernisation. The preserved locomotives span the class's construction period from the original 1920s examples to the final British Railways-built locomotives of 1950.

The preservation story of individual locomotives adds fascinating chapters to the Castle legacy. No. 4079 Pendennis Castle's extraordinary journey to Australia in 1977 and subsequent repatriation in 2000 demonstrates the international appeal of these locomotives. Its successful operation on the Hamersley Railway in Western Australia proved that British steam technology could adapt to completely different operating conditions.

The Castle Class legacy extends far beyond the preserved locomotives themselves. Their influence on locomotive design principles, operational practices, and public perception of steam railways continues to resonate throughout the heritage railway movement. Modern preservation standards for steam locomotive maintenance often reference the meticulous practices developed during the Castle's operational heyday.

Heritage Significance: The Castle Class represents the pinnacle of British express passenger locomotive design. Their preservation ensures that future generations can experience the sight, sound, and engineering excellence that made these locomotives legendary among railway enthusiasts worldwide.

Modelling Significance and Scale Replications

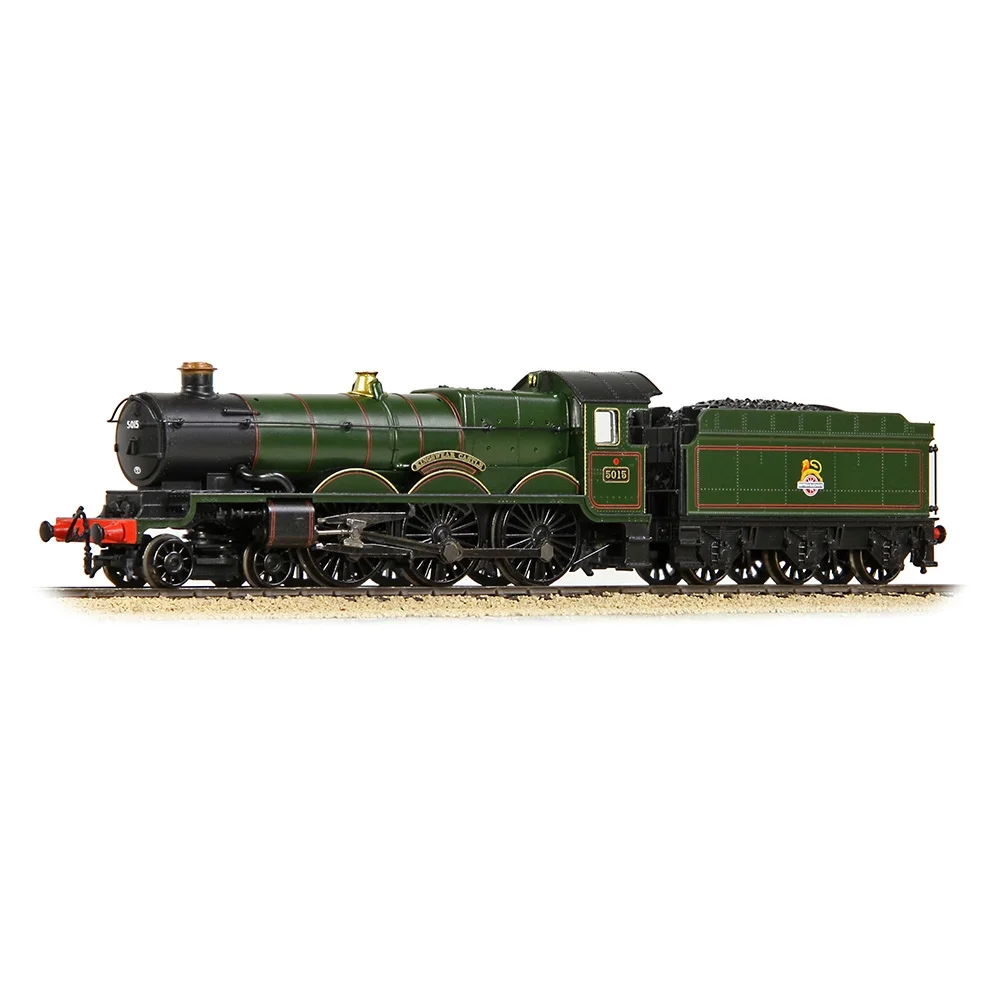

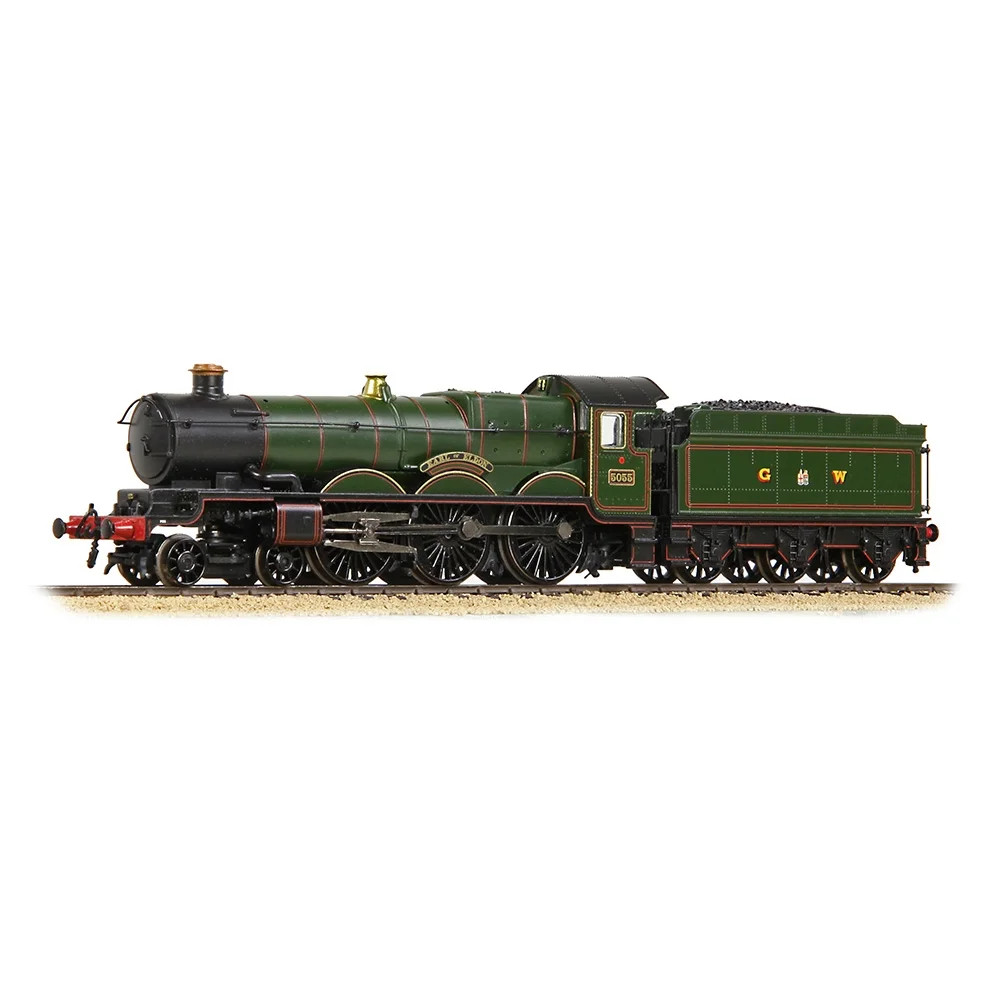

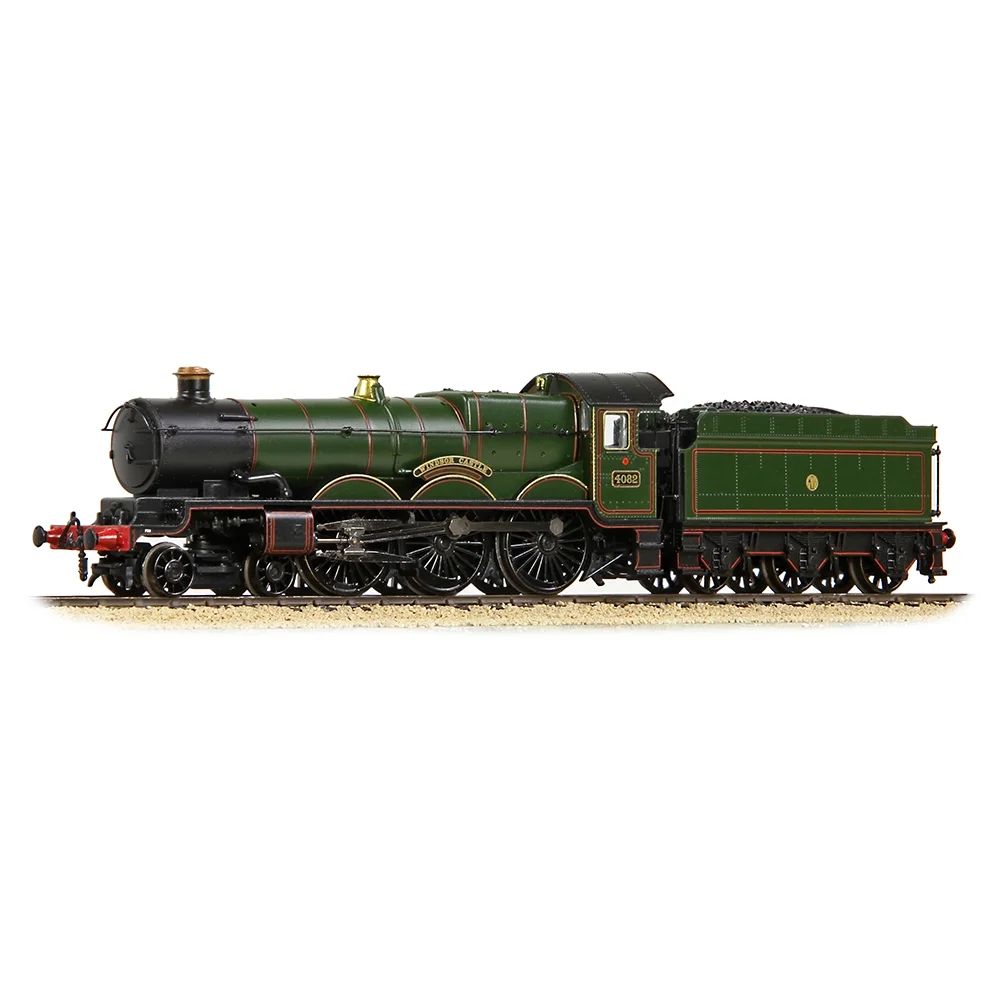

For model railway enthusiasts, the Castle Class represents the quintessential Great Western Railway locomotive, offering authentic express passenger operations combined with universal recognition and appeal. The class's importance to GWR modelling cannot be overstated - any layout attempting to represent Great Western operations between 1923 and 1965 requires Castle Class representation to achieve historical accuracy.

The modelling appeal of the Castle Class stems from several factors beyond mere historical significance. Their elegant proportions translate beautifully to model form, whilst their operational versatility allows realistic use on layouts of varying complexity. A Castle can convincingly handle anything from a single coach branch line train to a full rake of Collett coaches on the "Cornish Riviera Express."

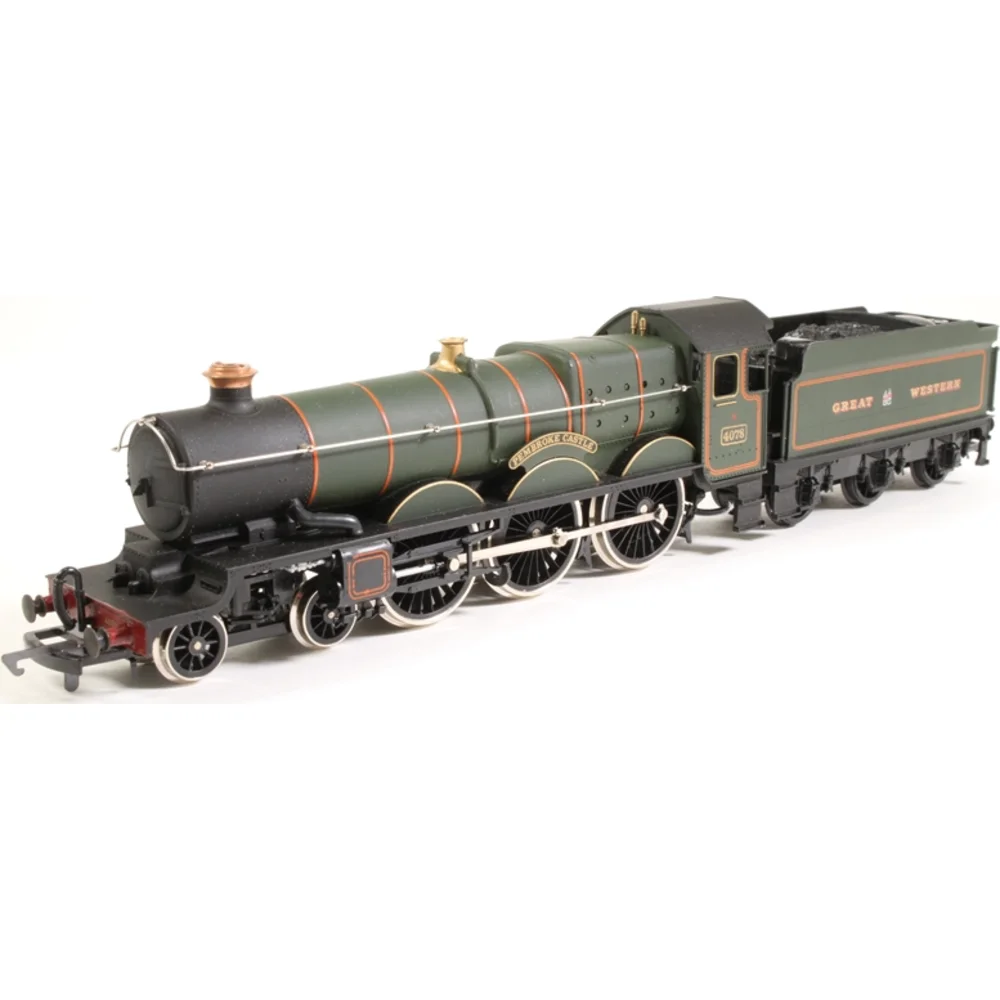

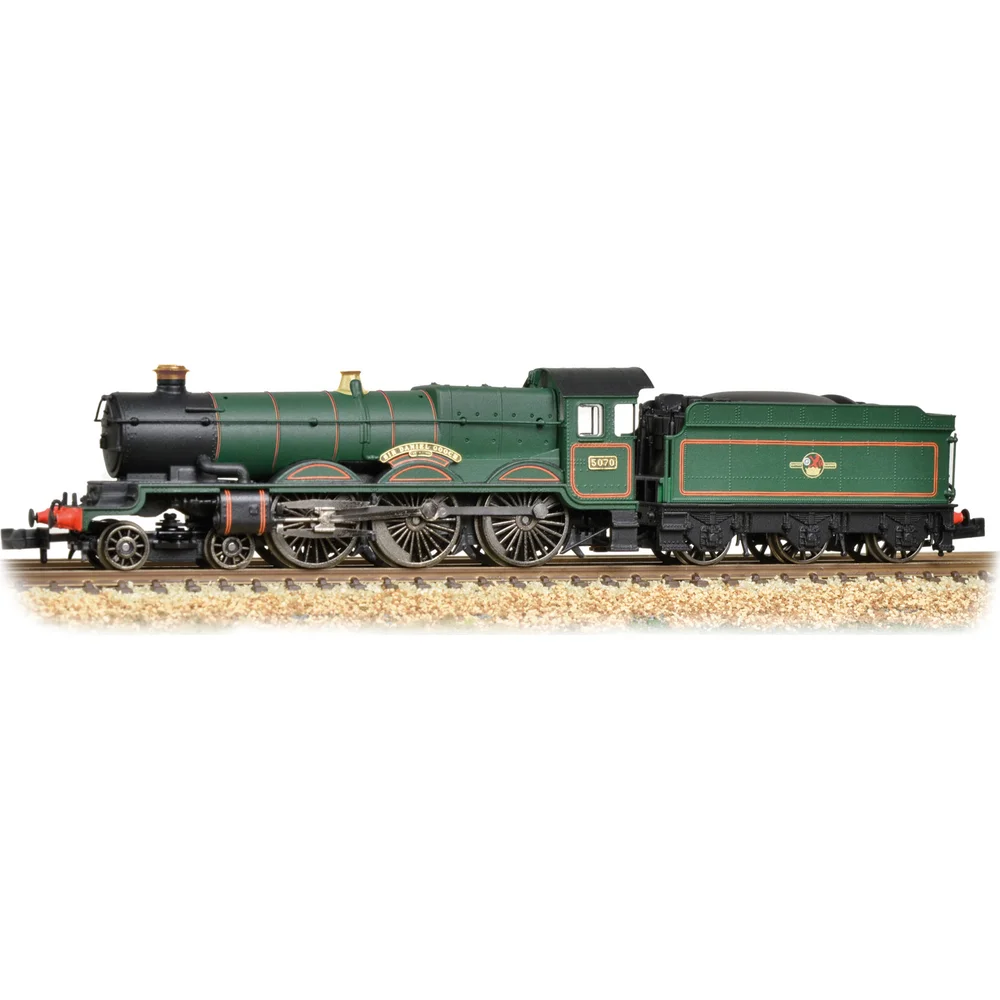

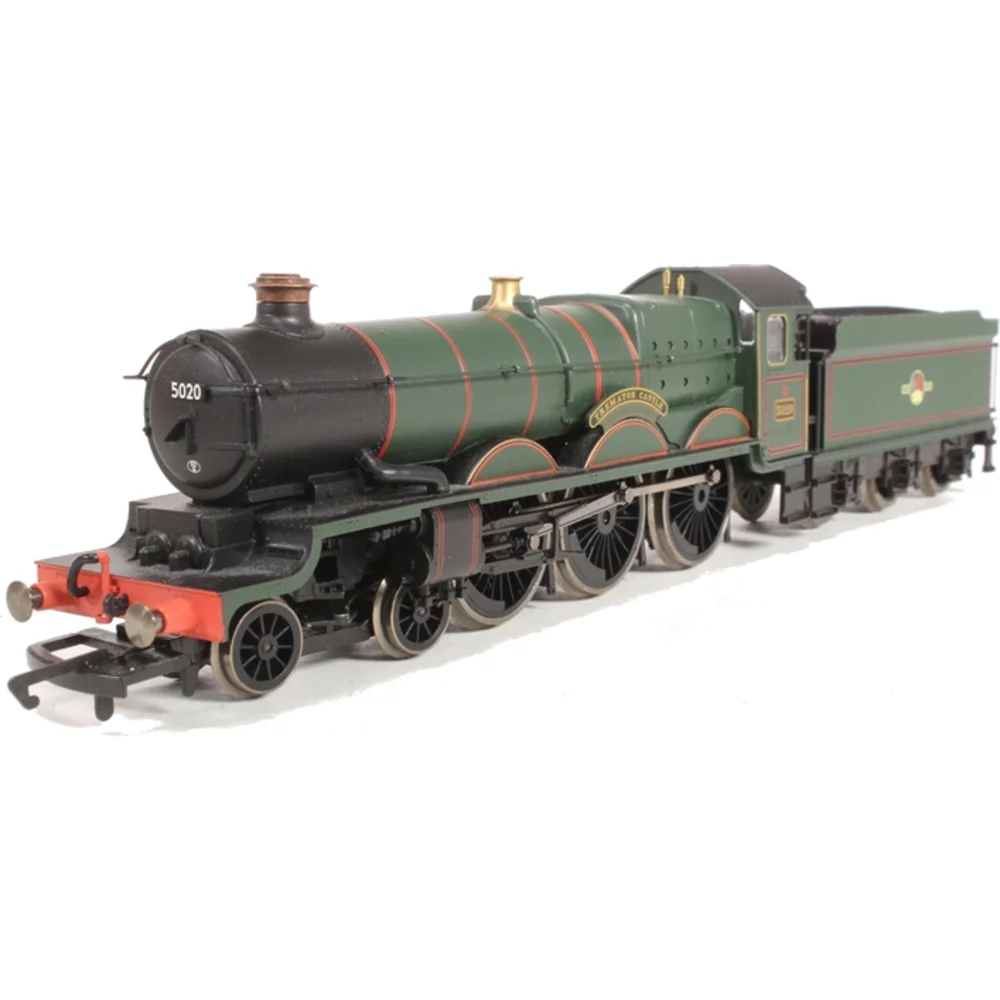

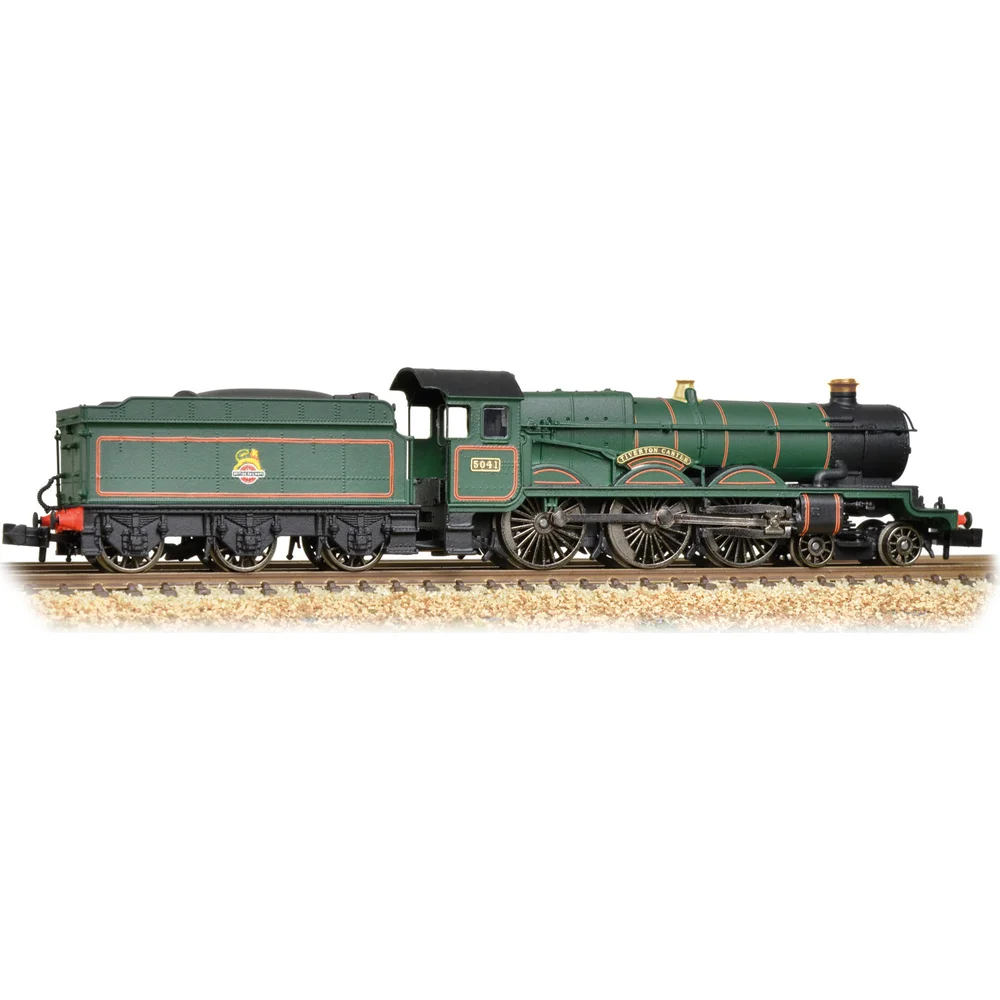

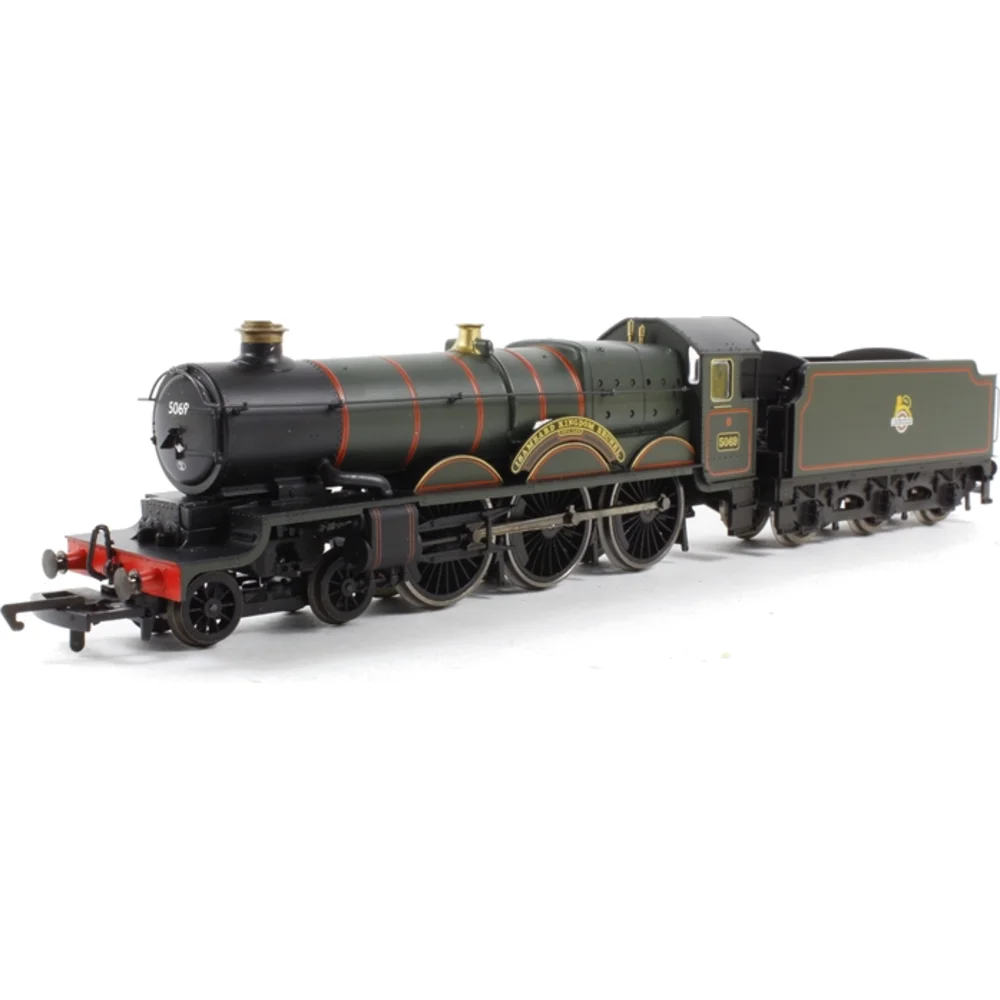

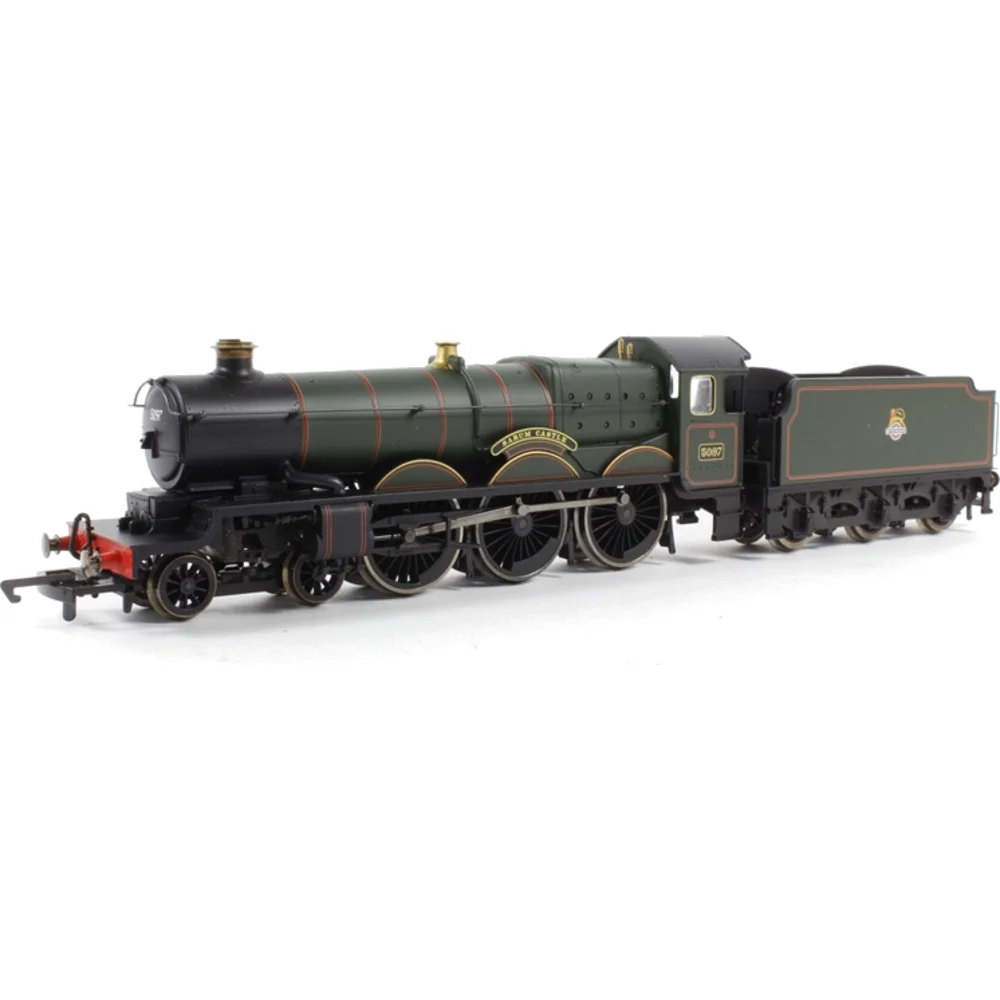

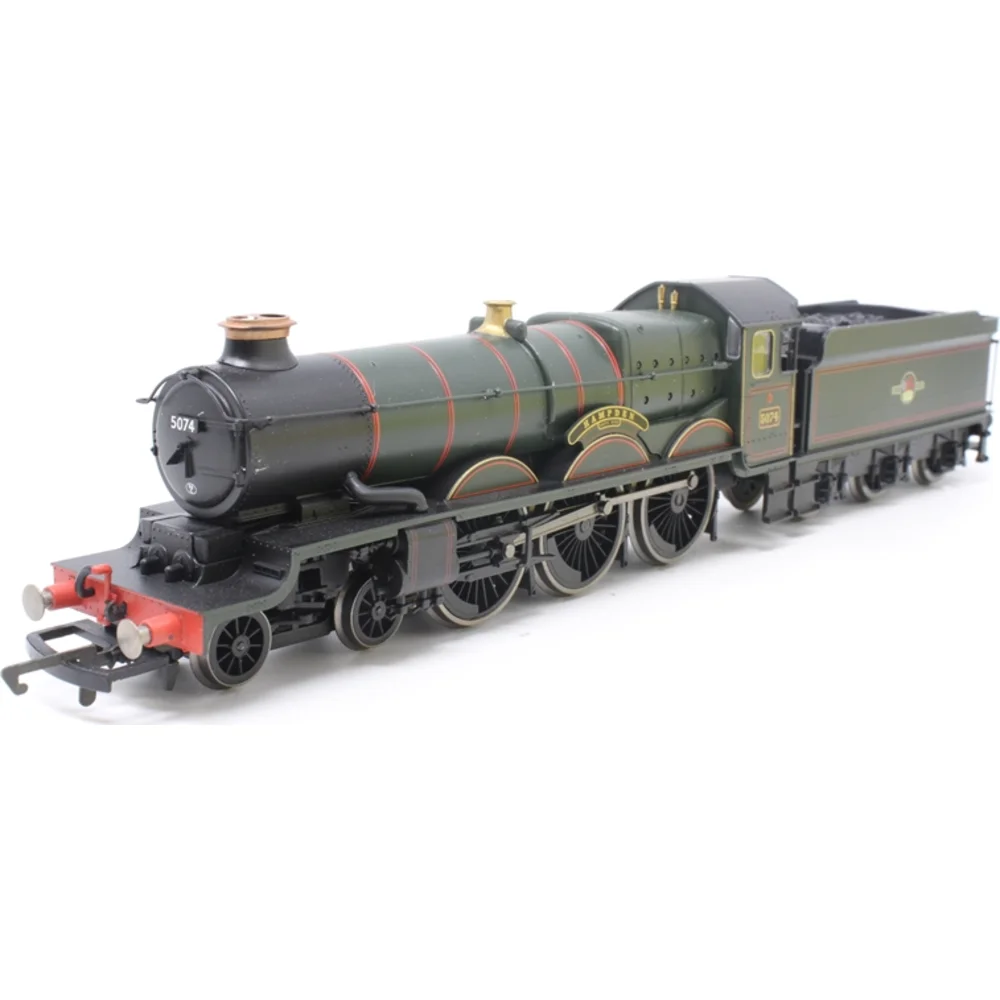

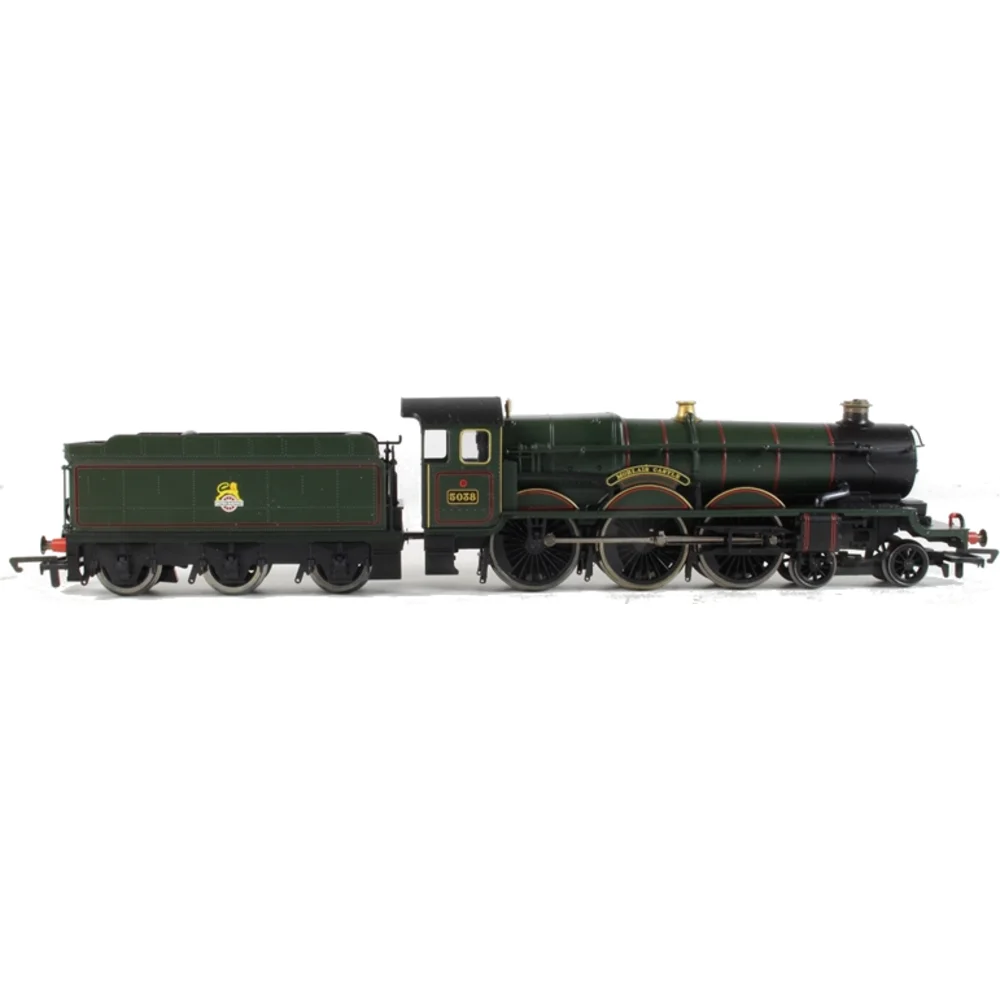

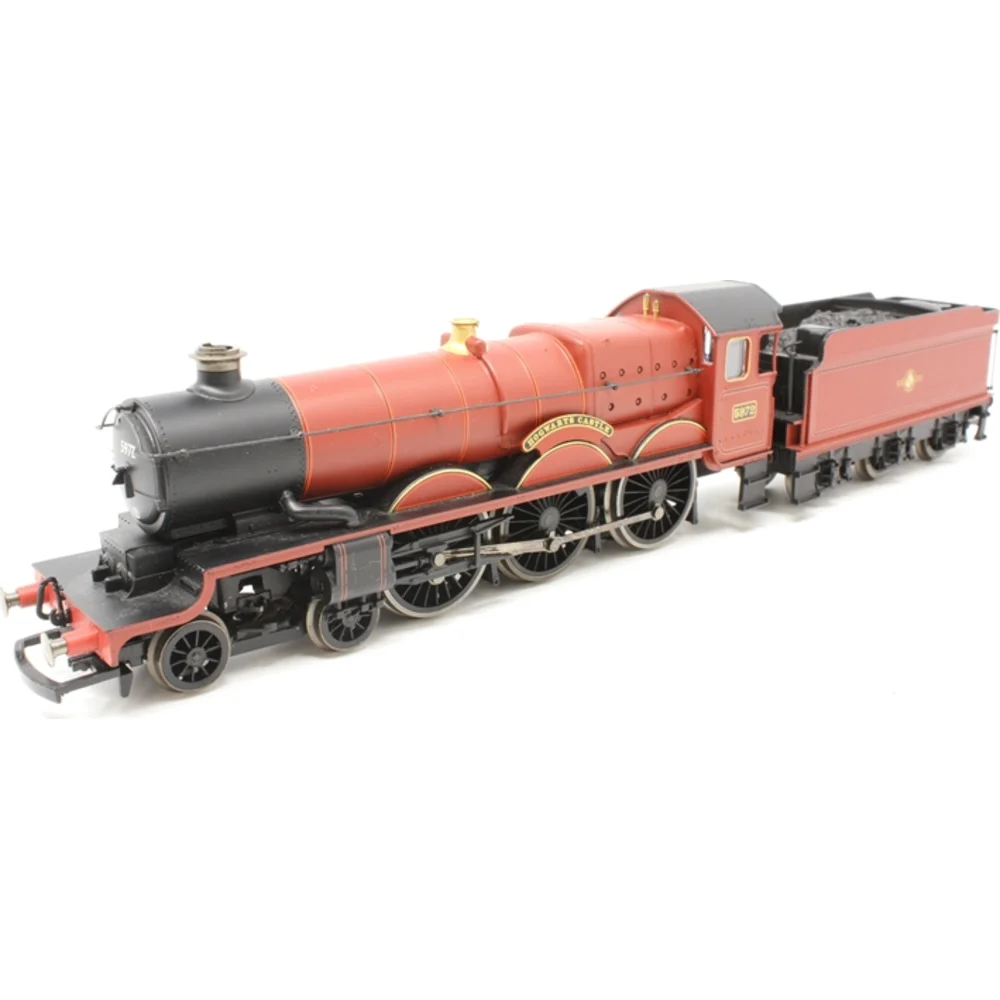

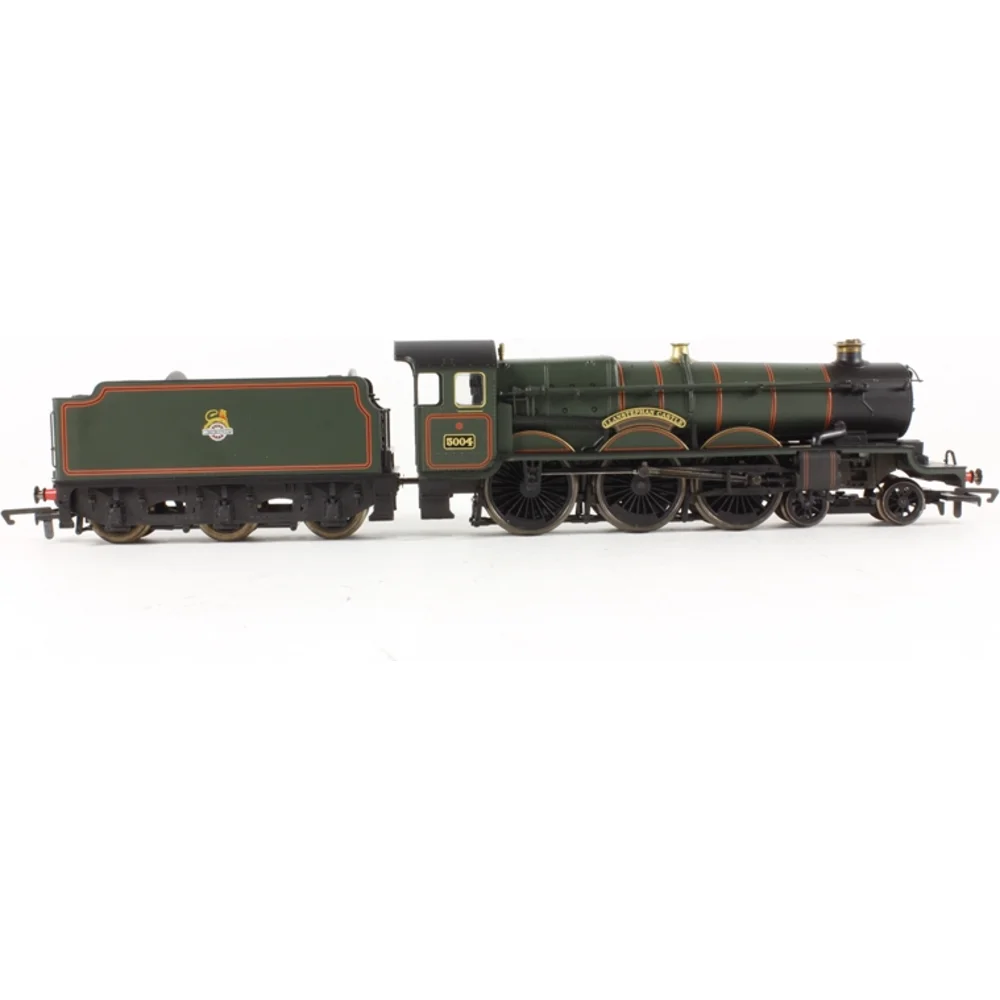

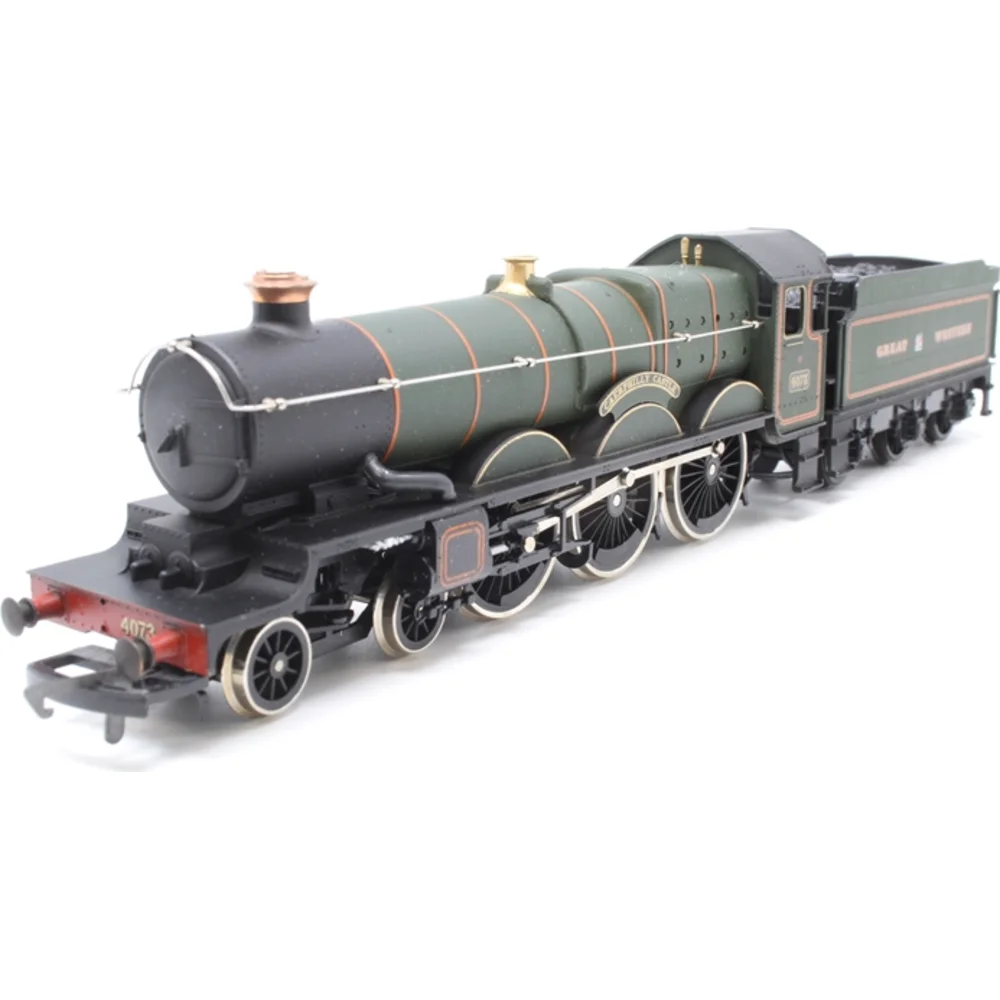

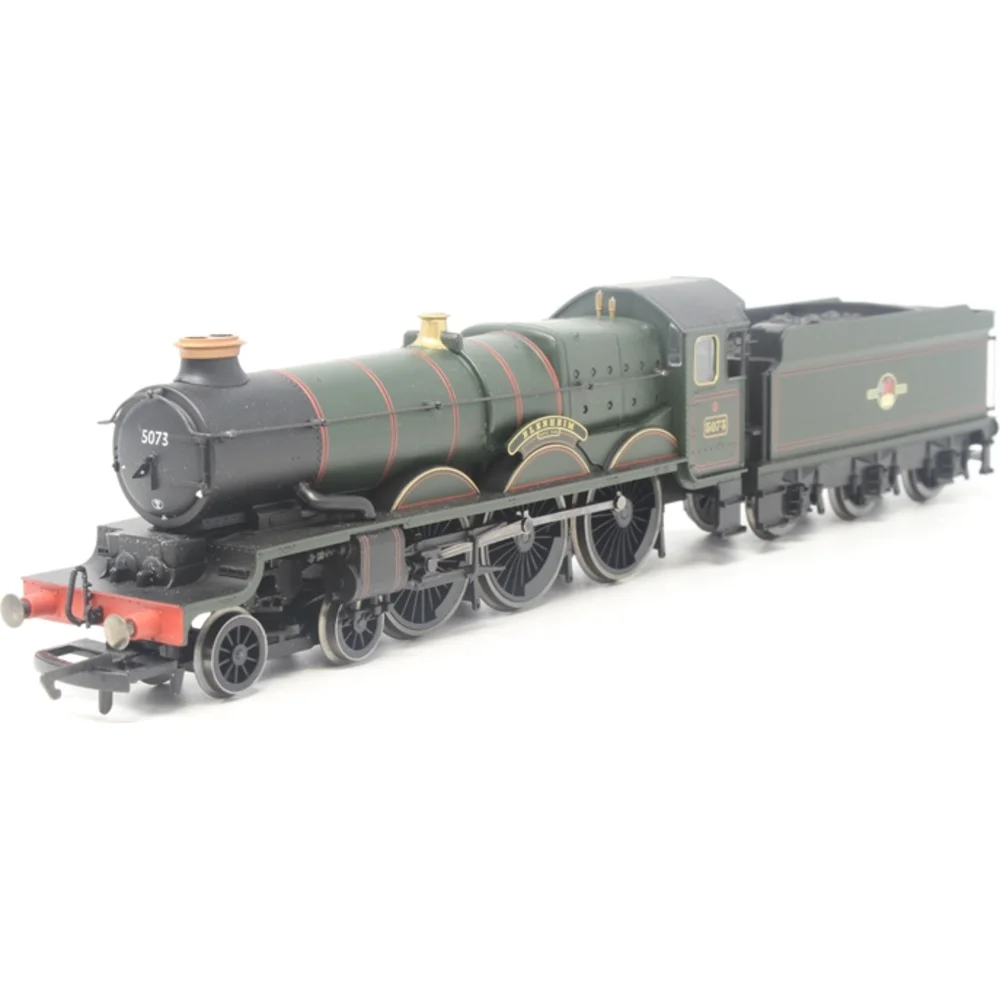

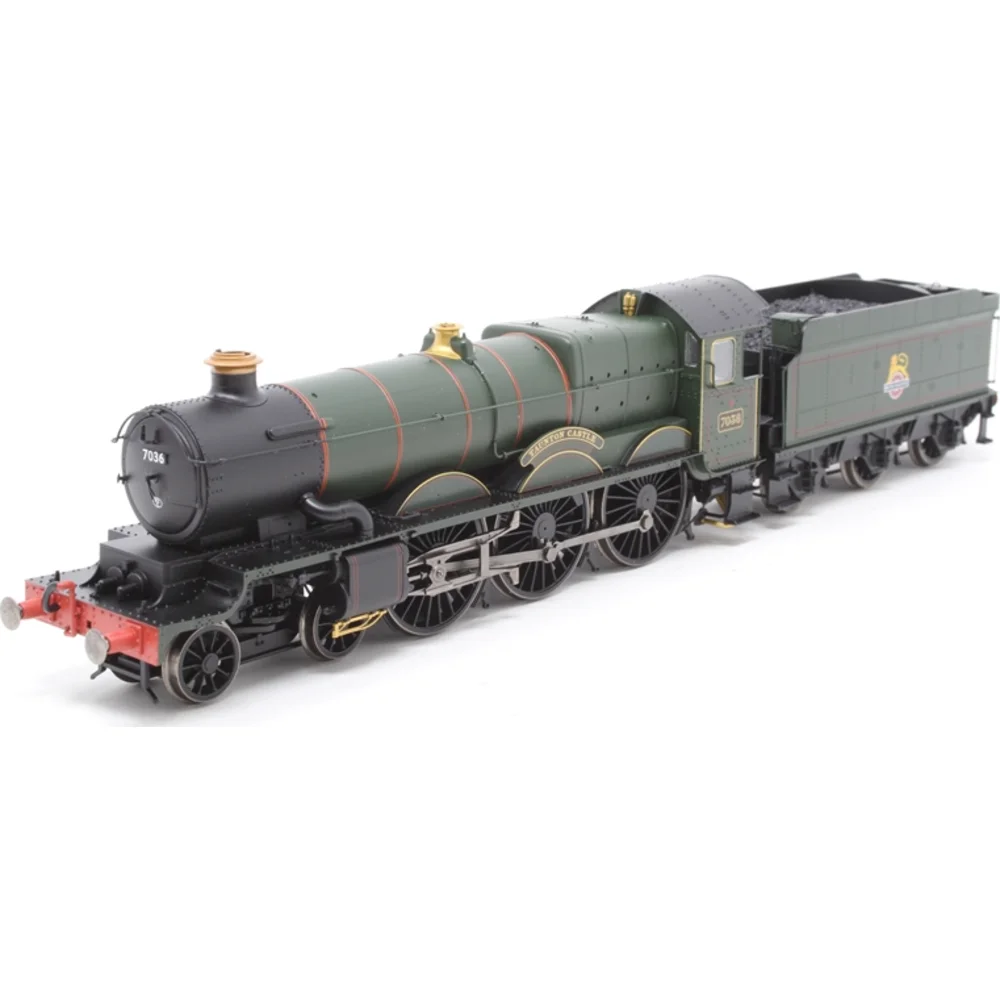

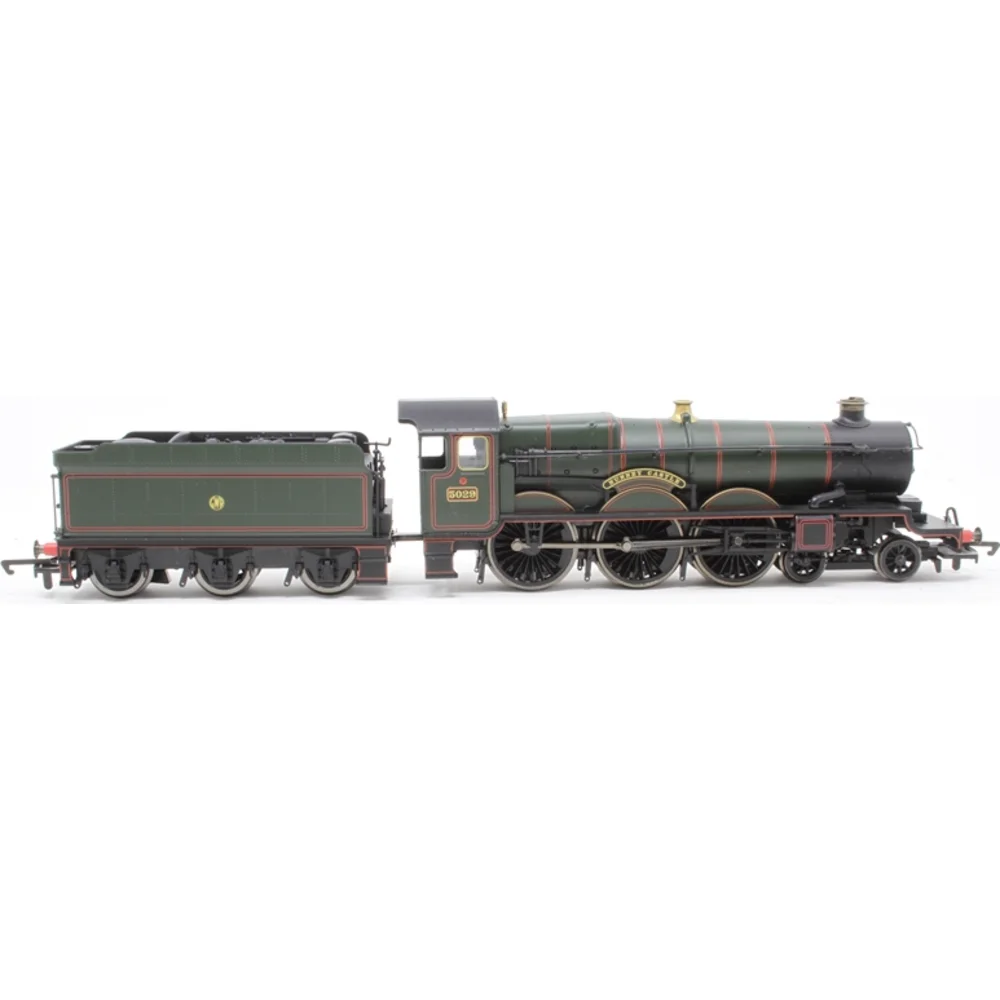

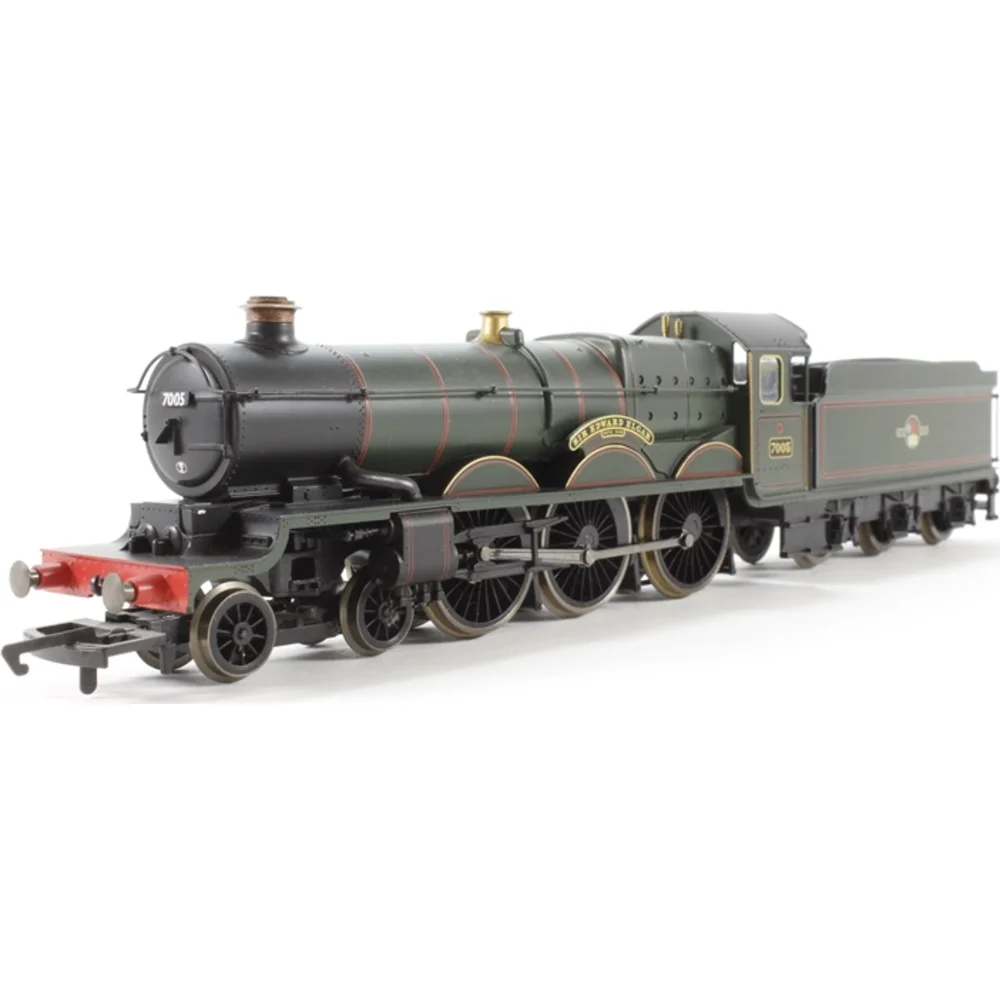

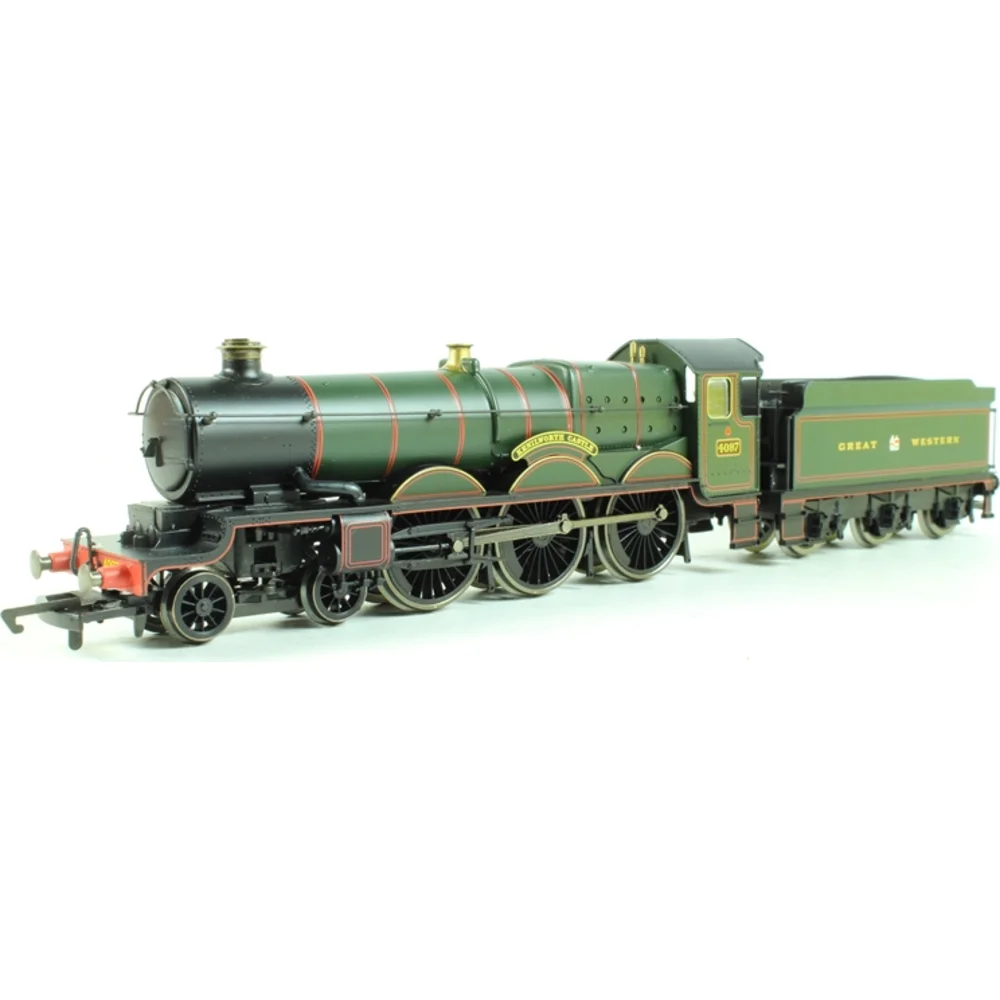

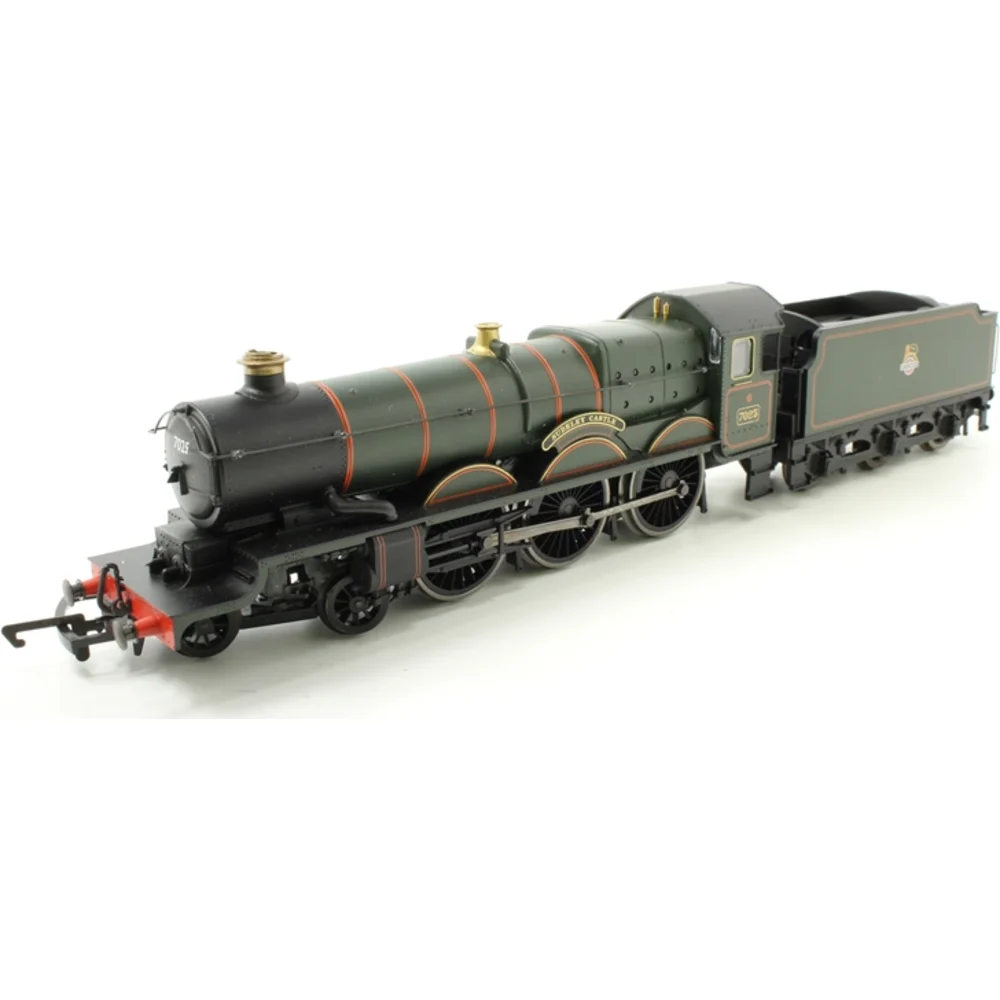

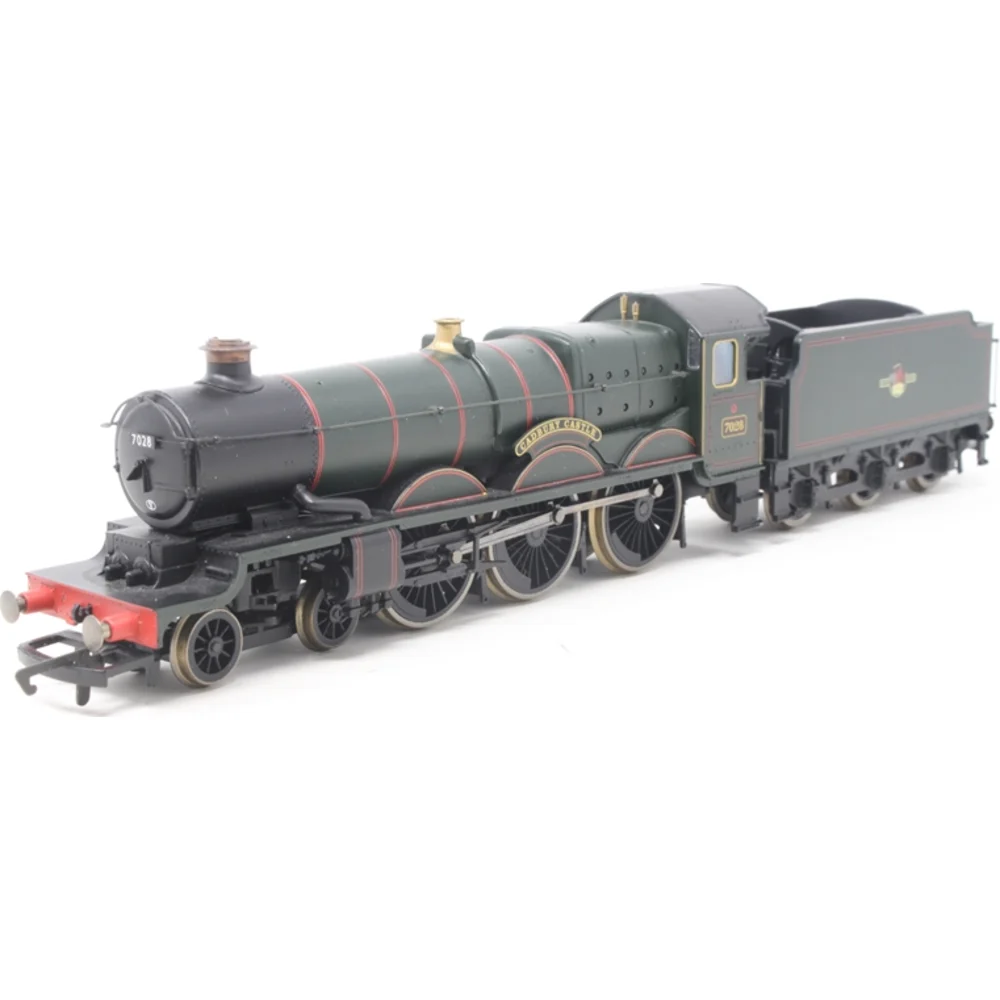

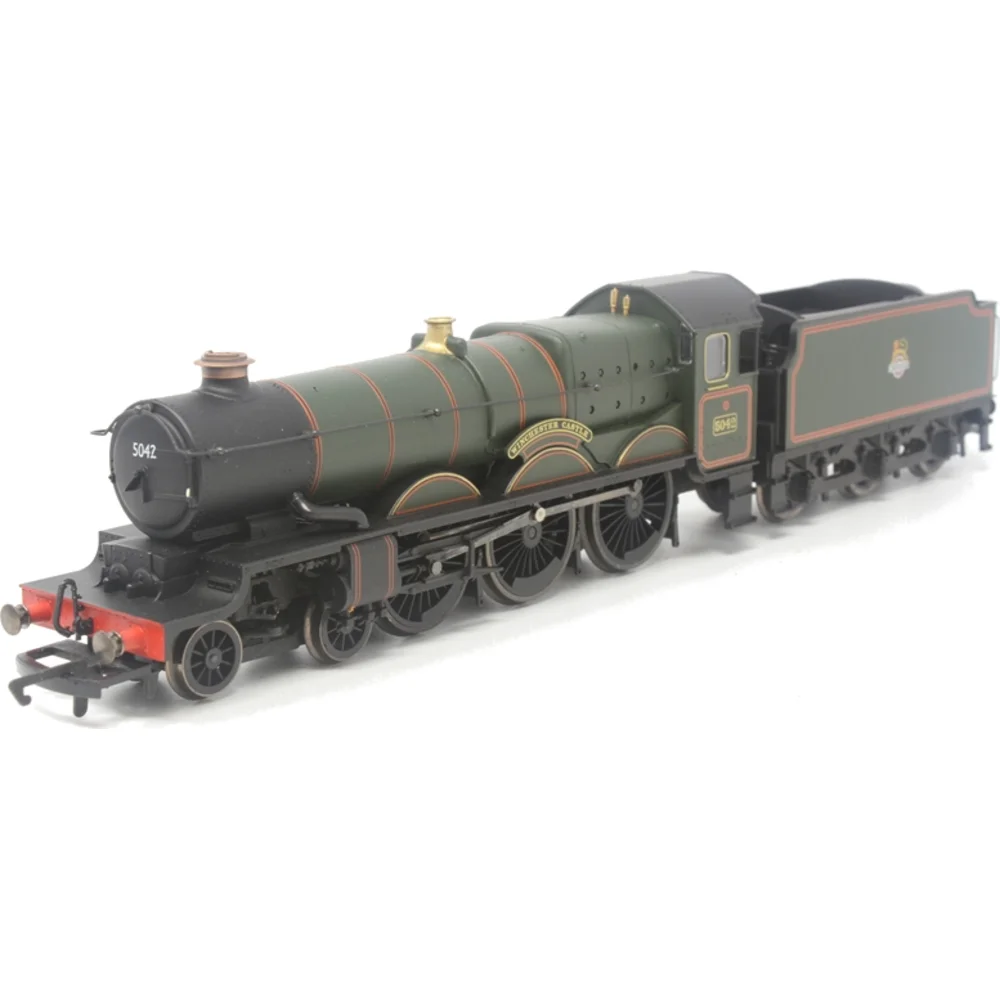

Hornby has dominated Castle Class production in OO scale for decades, with their current R30328 representing excellent value for entry-level modellers. The model features DCC Ready capability with an 8-pin socket, five-pole motor for smooth running, and sprung metal buffers. At £184.99, it offers accessible Castle Class modelling for layouts focusing on operational satisfaction rather than ultimate detail.

Modelling Tip: Castle Class locomotives work superbly with Collett corridor coaches in chocolate and cream livery. Hornby R4526A-C provides an excellent starter set, whilst Bachmann offers individual coaches with opening doors and detailed interiors for the ultimate in realism.

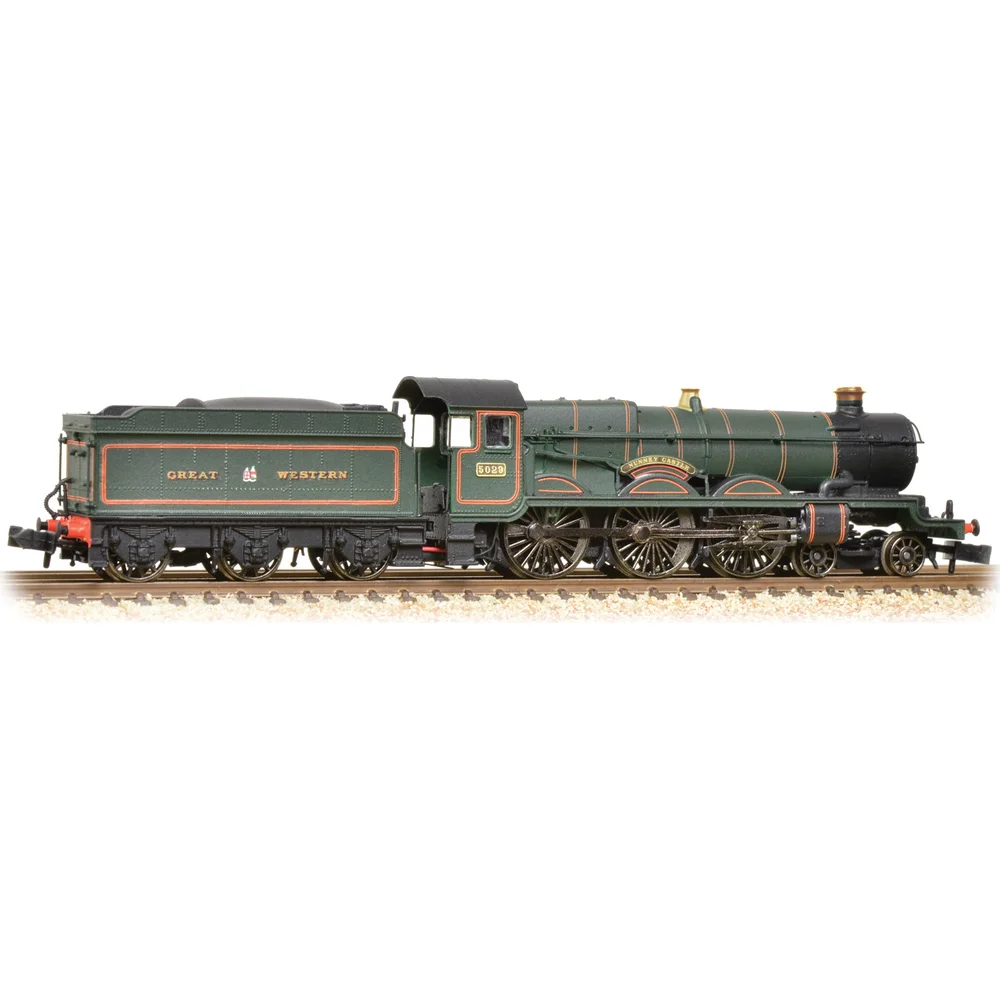

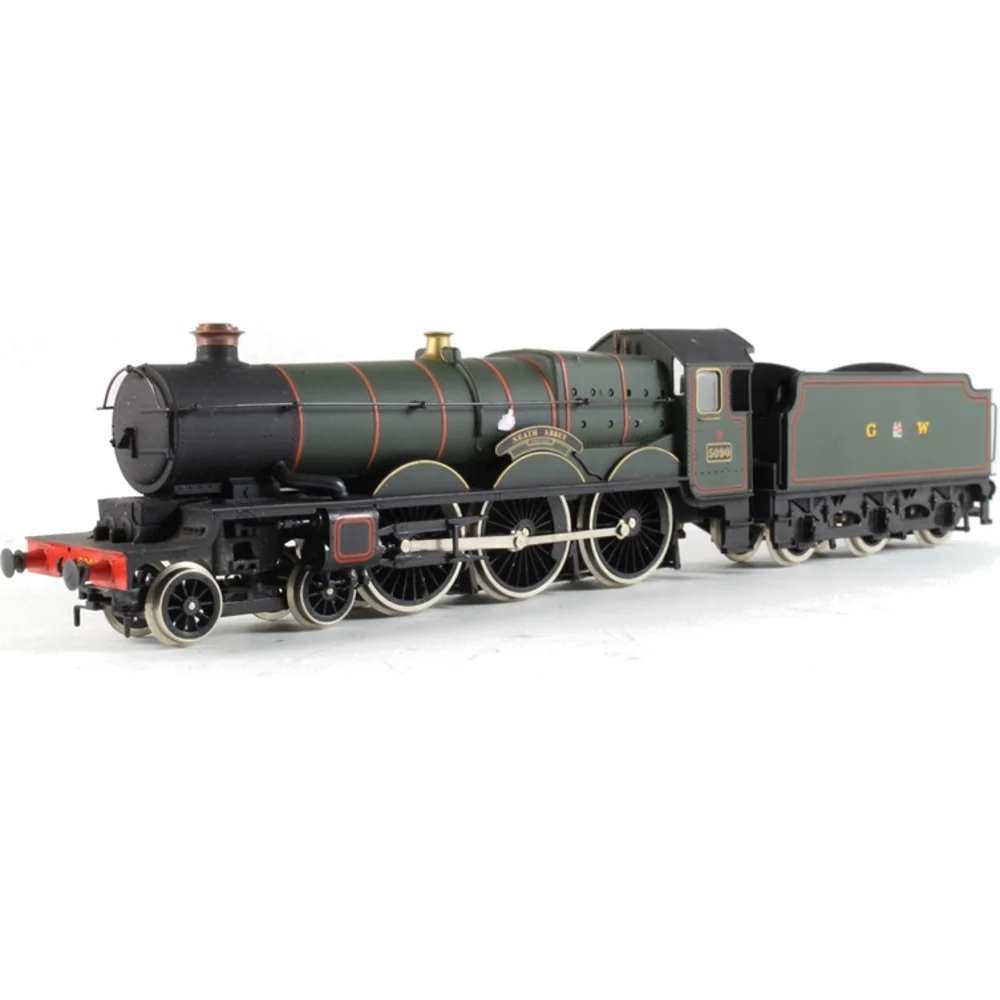

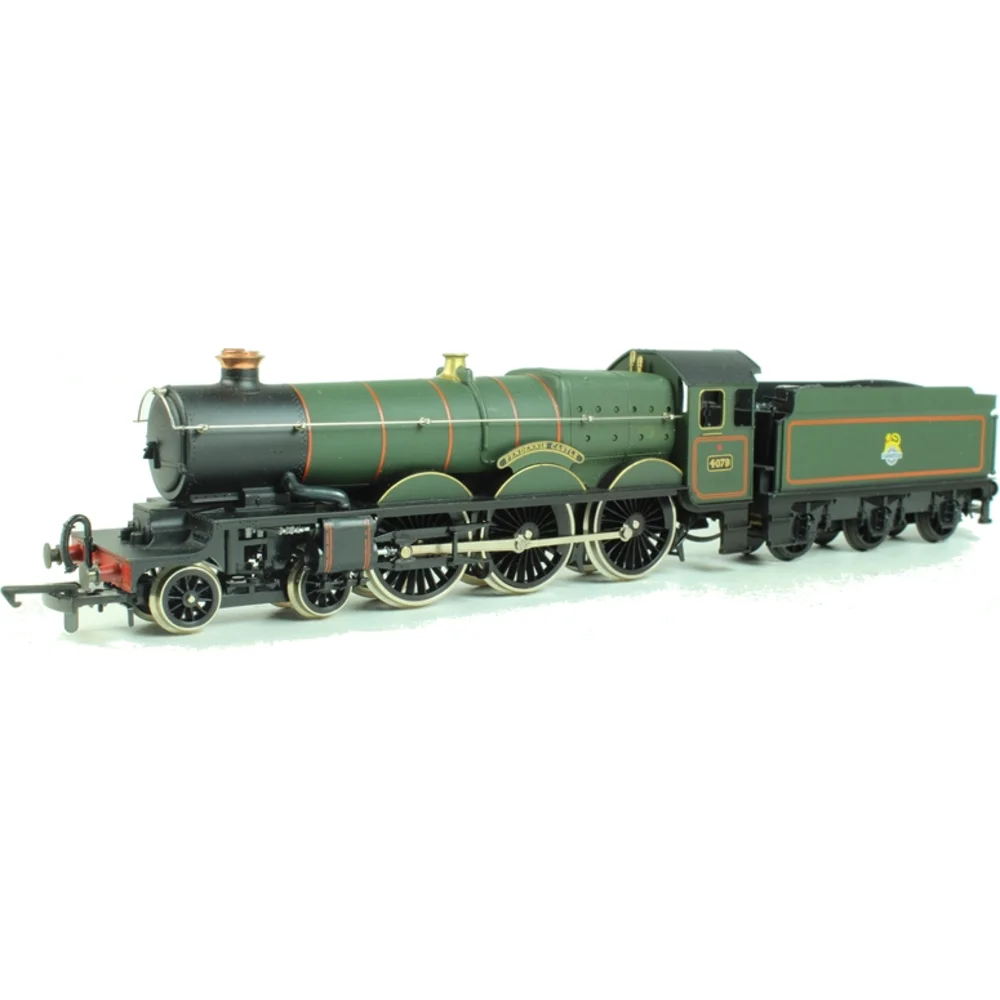

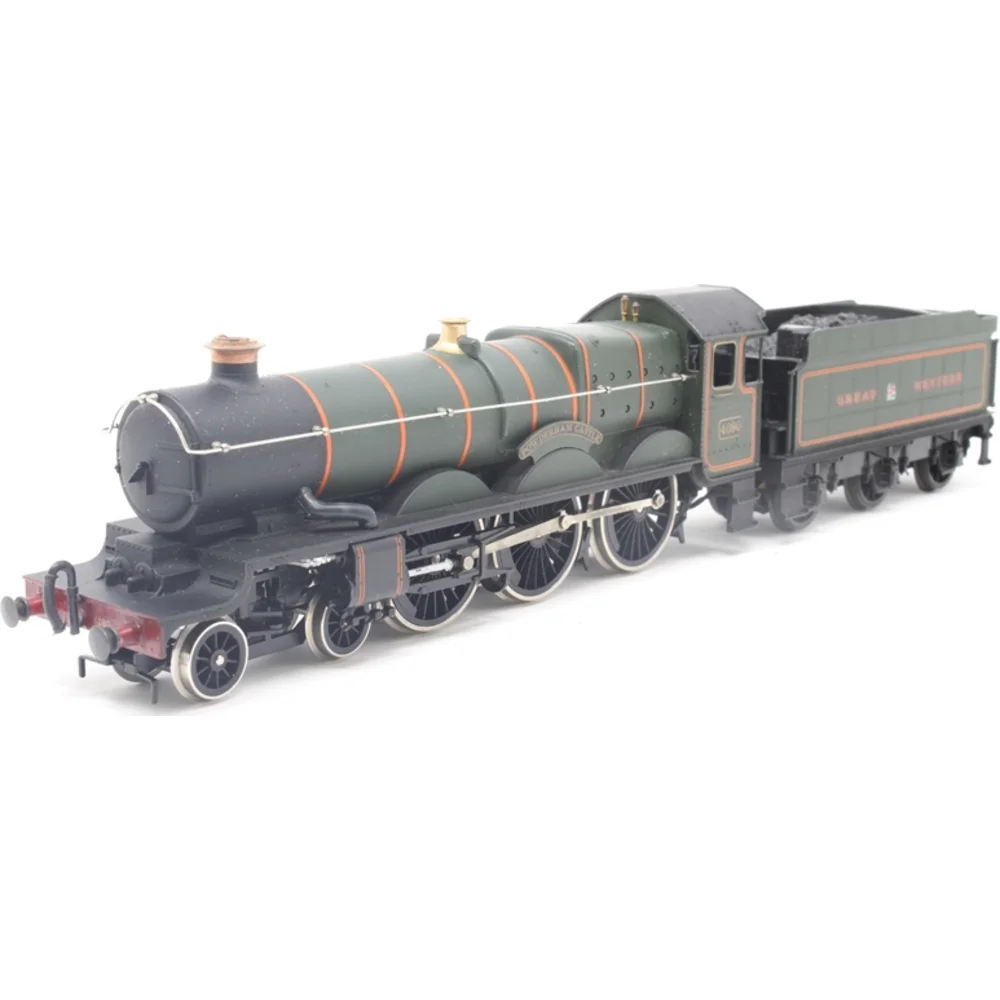

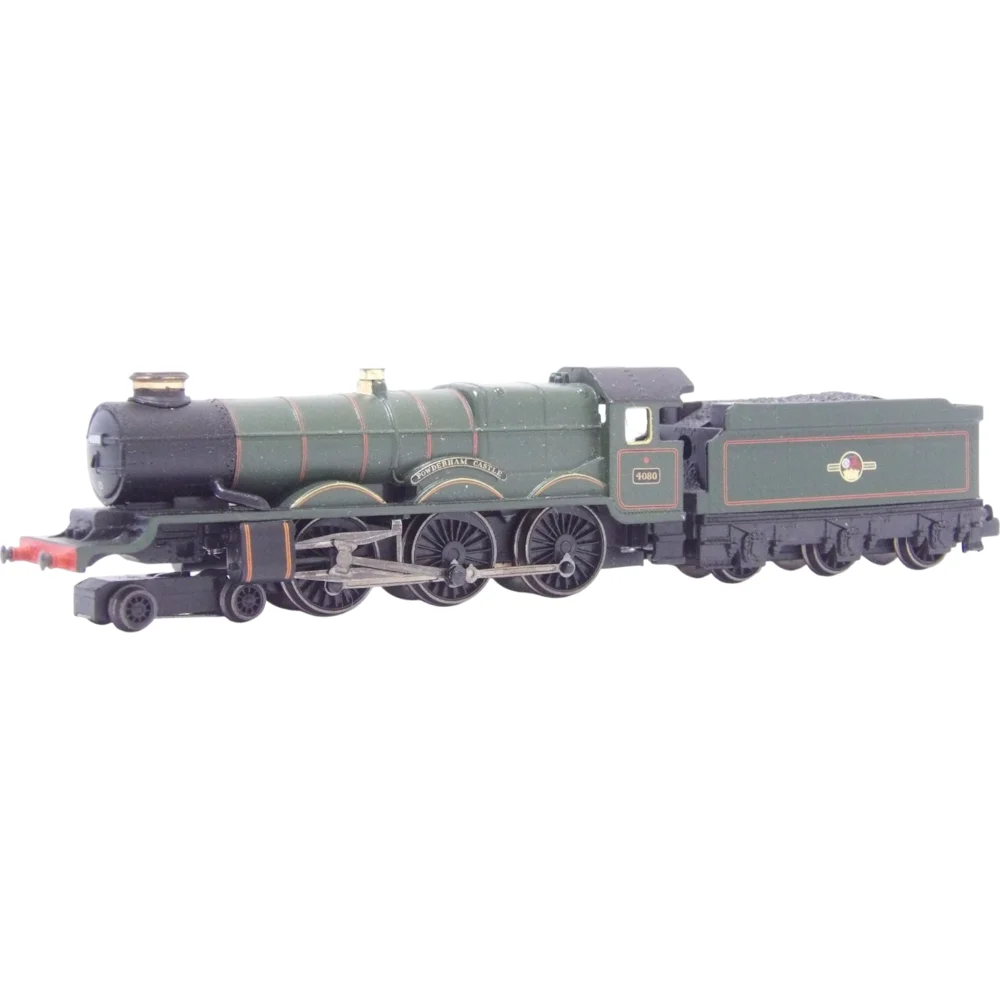

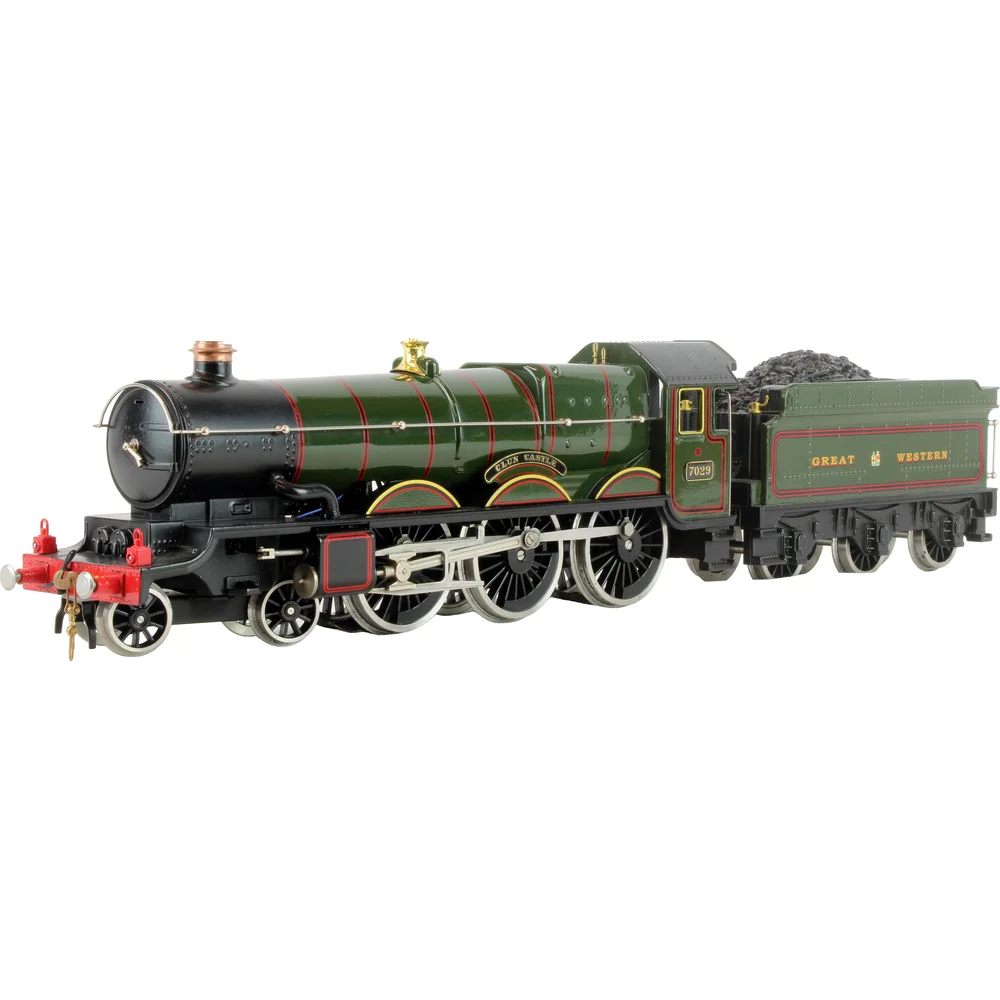

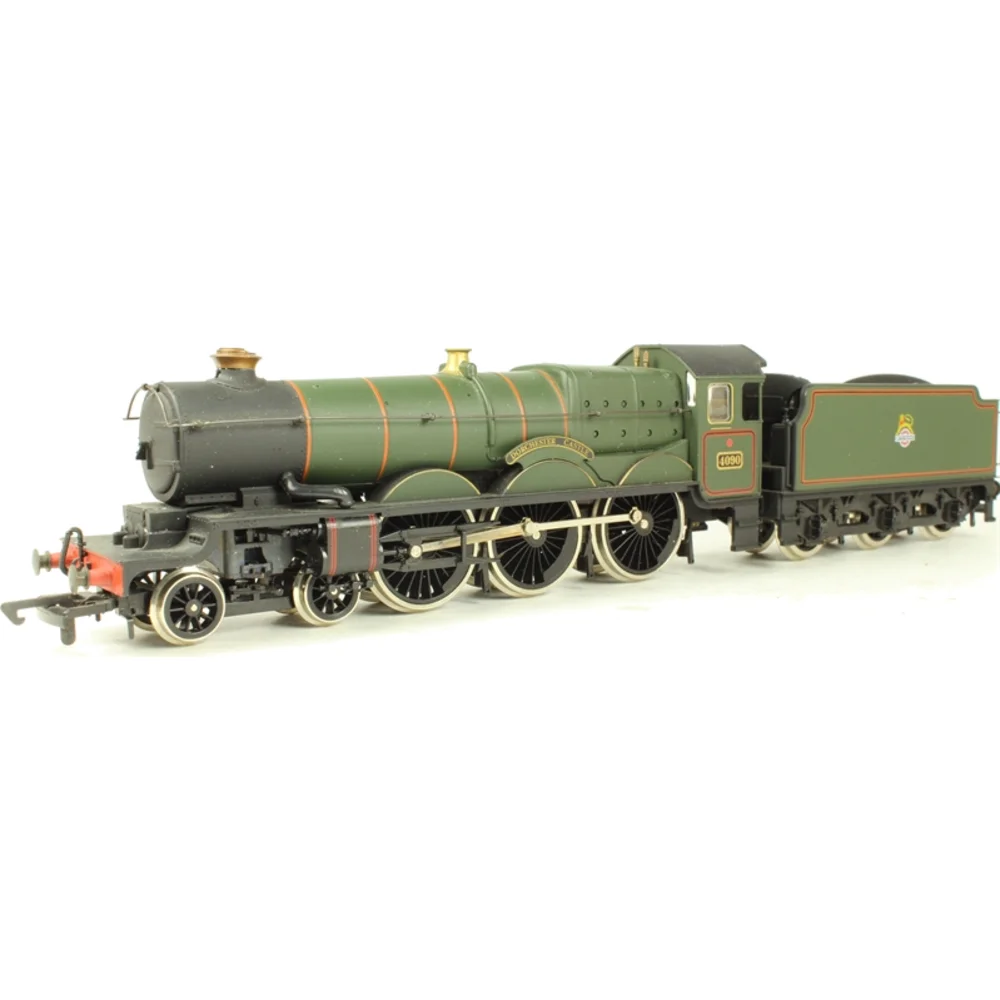

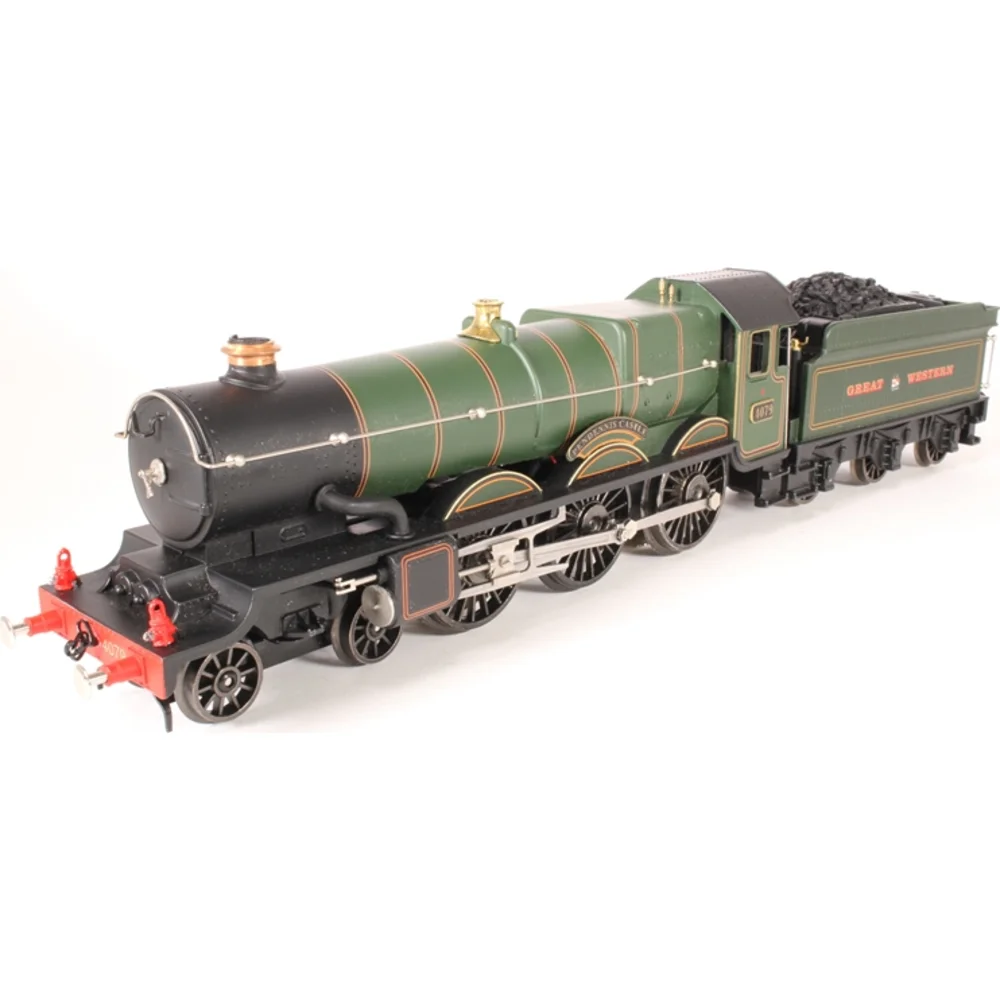

Scale manufacturers have not neglected the Castle Class either. Golden Age Models produces exquisite brass models in OO scale, hand-built to the highest standards with individually sprung axleboxes and opening smokebox doors. At £1,250 plus VAT, these models target serious collectors seeking museum-quality representation.

The class's digital era compatibility makes it particularly attractive for modern model railway operations. Most current productions feature DCC Ready interfaces, enabling advanced operating features like realistic acceleration, momentum effects, and sound synchronisation. ESU LokSound decoders specifically programmed for Castle Class locomotives provide authentic whistle tones and mechanical sounds recorded from preserved examples.

Unique Modelling Tips and Layout Integration

Successfully incorporating Castle Class locomotives into model railway layouts requires understanding both their operational patterns and the infrastructure requirements of Great Western Railway express services. These locomotives were designed for speed and capacity, meaning your track planning should emphasise main line running with gentle curves and substantial stations capable of handling lengthy express trains.

When planning layouts featuring Castle Class operations, consider the prototype's preference for long, sustained runs between major stations. Minimum curve radii of 24 inches (OO scale) allow realistic high-speed operation, whilst broader curves of 30 inches or more enable the graceful running that characterises prototype Castle performance. Avoid tight curves and complex trackwork that would compromise the visual impact of these impressive locomotives.

Authentic Castle Class operations require appropriate coaching stock and realistic train formations. The "Cornish Riviera Express" typically comprised 10-12 Collett coaches during peak summer periods, making realistic train lengths of 10-12 feet (OO scale) necessary for authentic representation. Consider terminus-to-terminus layouts where long trains can be accommodated and appreciated properly.

Expert Modelling Advice: Paint weather-side buffer beams in weathered black rather than pristine red to reflect prototype practice. Castle Class locomotives accumulated considerable grime during long-distance runs, particularly on the smokebox front and lower boiler bands around the motion.

Digital Command Control (DCC) programming allows realistic Castle Class operation through careful attention to momentum and acceleration settings. Configure CV3 (acceleration) to 15-20 and CV4 (deceleration) to 10-15 to simulate the gradual acceleration and confident braking characteristic of heavy express trains. Sound-equipped models benefit from extended whistle sequences programmed to function F2, reflecting the Castle's distinctive three-note chime.

For ultimate realism, consider installing working smoke generators in Castle Class models. Seuthe smoke units designed for OO scale provide convincing exhaust effects without the maintenance issues of liquid-based systems. The visual impact of a Castle Class locomotive climbing a gradient with realistic exhaust plume adds tremendous atmosphere to layout operations.

Weathering Castle Class models requires restraint to maintain their dignified appearance whilst acknowledging operational realities. Focus on subtle coal dust accumulation around the smokebox, oil stains on running plates around motion areas, and general grime on lower boiler surfaces. Avoid heavy weathering that would be inappropriate for premier express locomotives maintained to high standards.

Layout scenarios that showcase Castle Class capabilities include recreating famous named trains like the "Cheltenham Flyer" or "Torbay Express." Use appropriate period rolling stock - chocolate and cream coaches for the 1930s, crimson and cream for the late 1940s, or maroon for British Railways era. Hornby and Bachmann both offer comprehensive coach ranges enabling authentic train formations.

Consider the operational possibilities offered by multiple Castle Class locomotives. Large depots like Old Oak Common or Newton Abbot often accommodated several Castles simultaneously, creating opportunities for realistic shed scenes and locomotive exchanges. Modern layout designs incorporating engine sheds with inspection pits and coaling facilities provide authentic settings for Castle Class modelling.

Finally

The Great Western Railway 4073 Castle Class represents one of the most successful and influential locomotive designs in British railway history. From Charles Collett's inspired engineering to their triumphant performance in the 1925 exchange trials, these remarkable locomotives established benchmarks for express passenger operation that remained unsurpassed throughout the steam era.

Their technical excellence stemmed from methodical refinement of proven principles rather than revolutionary innovation. The combination of four-cylinder propulsion, efficient boiler design, and meticulous attention to thermal efficiency created locomotives capable of sustained high-power output with exceptional fuel economy. This engineering philosophy influenced locomotive design well beyond the Great Western Railway, establishing principles that remained relevant throughout British steam development.

For railway modellers and enthusiasts, the Castle Class offers the perfect combination of historical significance, aesthetic appeal, and operational versatility. Whether represented by Hornby's accessible ready-to-run models or Golden Age Models' museum-quality brass productions, these locomotives bring authentic Great Western Railway atmosphere to layouts of every scale and complexity.

The preservation of eight Castle Class locomotives ensures that future generations can experience these magnificent machines in operation, whilst the continuing popularity of Castle Class models demonstrates their enduring appeal among railway enthusiasts. From Caerphilly Castle's pioneering debut in 1923 to Clun Castle's final passenger working in 1965, the Castle Class story encapsulates the golden age of British express passenger operation.

Their legacy extends far beyond preserved locomotives and model railways. The Castle Class established standards of reliability, efficiency, and performance that influenced railway operation throughout Britain and beyond. As we continue to appreciate their engineering excellence and operational achievements, the Castle Class remains a fitting testament to the skill and dedication of the men who designed, built, and operated these legendary locomotives.

Frequently Asked Questions

How many Castle Class locomotives were built and when?

A total of 171 Castle Class locomotives were constructed between 1923 and 1950. This included 155 newly built examples and 16 conversions from other classes, including the unique Pacific No. 111 The Great Bear.

What made the Castle Class superior to the LNER Pacifics in the 1925 trials?

The Castle's superior fuel economy and thermal efficiency gave them decisive advantages. Pendennis Castle consumed significantly less coal and water whilst maintaining faster schedules than the larger LNER locomotives during comprehensive trials.

Which Castle Class locomotives can I see in preservation today?

Eight Castle Class locomotives survive in preservation. Caerphilly Castle is displayed at STEAM Museum Swindon, whilst operational examples include Pendennis Castle (Didcot), Earl of Mount Edgcumbe and Clun Castle (both Tyseley).

What's the best ready-to-run Castle Class model for beginners?

Hornby's R30328 Caerphilly Castle offers excellent value at £184.99, featuring DCC Ready capability and reliable five-pole motor. It provides authentic Castle Class operation without premium pricing for entry-level layouts.

How fast could Castle Class locomotives run in service?

Castle Class locomotives were capable of 100 mph operation, with several recorded instances of sustained high-speed running. The class was designed for 90 mph service speeds on express passenger duties throughout the GWR network.

Were any Castle Class locomotives used outside Great Western Railway territory?

Yes, notably Launceston Castle worked trials on the LMS in 1926, whilst Pendennis Castle operated exchange trials on LNER metals in 1925. Several locomotives also worked heritage lines after preservation in different regions.

What's the difference between single and double chimney Castle Class locomotives?

Sixty-five locomotives received double chimneys from 1956 onwards, combined with improved superheaters for enhanced high-speed performance. Double chimney examples showed superior steaming at sustained high power outputs compared to single chimney variants.

Which Castle Class locomotive was involved with royal duties?

Windsor Castle (4082) gained fame through royal associations, notably hauling King George V's funeral train in 1936. The locomotive became permanently associated with royal ceremonies and was considered a "royal engine" thereafter.

What operational routes were Castle Class locomotives primarily used on?

Castle Class locomotives dominated express passenger services from London Paddington, including the "Cornish Riviera Express," "Cheltenham Flyer," and "Torbay Express." They operated throughout the GWR network from Cornwall to Birmingham and Worcester.

Are there any Castle Class locomotives currently under restoration?

Yes, several Castle Class locomotives are currently undergoing restoration. Nunney Castle is receiving a mainline standard overhaul, whilst Defiant and Thornbury Castle are also undergoing restoration work at various heritage railway locations.

What makes the Castle Class design so influential in locomotive history?

The Castle Class established benchmarks for thermal efficiency, fuel economy, and reliability that influenced British locomotive design for decades. Their four-cylinder layout and advanced valve gear became standard practice for express passenger locomotives across multiple railways.

Where can I find detailed technical drawings and specifications for Castle Class locomotives?

The National Railway Museum archives hold comprehensive Castle Class technical documentation, whilst the Great Western Society maintains extensive records. Several specialist publishers offer detailed drawings and technical specifications for modellers and historians.
