British Rail Class 33 – The Crompton's Enduring Southern Legacy 1960-2001

Quick Takeaways

• 98 locomotives built: Constructed by Birmingham Railway Carriage and Wagon Company at Smethwick Works between January 1960 and May 1962 in four batches
• Three distinct sub-classes: 86 standard Class 33/0 mixed-traffic locomotives, 19 Class 33/1 push-pull "Bagpipes" with electro-pneumatic control, and 12 narrow-bodied Class 33/2 "Slim Jims" for Hastings line restrictions
• Sulzer power and Crompton electrics: 1,550 hp 8LDA28-B diesel engine driving four Crompton Parkinson traction motors in Bo-Bo arrangement with 26,000 lbf tractive effort
• First BR diesels with ETH: Electric train heating (800V DC, 235 kW) fitted from new, eliminating problematic steam heating boilers and supporting Kent Coast electrification scheme
• 40+ years continuous service: From October 1960 debut until final EWS freight workings circa 2001, spanning BR Green, Blue, Railfreight, Network SouthEast, and privatisation eras
• Revolutionary push-pull operations: Class 33/1 locomotives with 4TC sets transformed Bournemouth-Weymouth corridor from 1967-1988, eliminating time-consuming run-rounds through electro-pneumatic control from driving trailer
• Exceptional preservation success: 29 survivors including four mainline certified locomotives (33012, 33025, 33029, 33207) and operational examples at Swanage Railway, West Somerset Railway, Severn Valley Railway, and other heritage lines

Historical Background and Context

The Class 33 emerged from an unusual requirement: supporting an electrification scheme rather than directly replacing steam. When British Railways published its ambitious Modernisation Plan in December 1954, the Kent Coast electrification became one of five major schemes requiring interim diesel power. The Southern Region needed 98 locomotives of 1,000-1,250 hp initially, but by April 1956, this specification evolved into the more powerful Type 3 category (1,500-1,750 hp) after the decision to eliminate problematic steam heating boilers in favour of electric train heating (ETH).

Birmingham Railway Carriage and Wagon Company won the tender in September 1957, offering a design based on their successful Scottish Region Type 2 locomotives (Class 26) but uprated with an 8-cylinder Sulzer engine instead of the 6-cylinder version. The winning formula: proven diesel-electric transmission, reliable Crompton Parkinson electrical equipment, and ETH as standard—making the Class 33 the first BR diesel locomotives fitted with electric train heating from new. This innovation proved crucial for the Southern Region's electrification strategy.

Construction proceeded in four batches at BRCW's Smethwick works between January 1960 and May 1962. The first locomotive, D6500, entered service on 29th October 1960. The fleet comprised 86 standard-width locomotives (D6500-D6585, later Class 33/0), plus 12 narrow-bodied "Slim Jims" (D6586-D6597, later Class 33/2) built specifically for the restricted loading gauge of the Hastings line, where tunnels had been strengthened with additional brickwork reducing clearances to just 8 ft 1½ in.

Insider Tip: The "Slim Jim" Hastings Line Specials

The 12 Class 33/2 narrow-bodied locomotives represent one of BR's most specialized designs. At just 8 ft 1½ in over the body (8 ft 8 in over steps), these machines could navigate Restriction 0 loading gauge routes between Tunbridge Wells and Hastings where Victorian-era tunnel strengthening reduced clearances. For modellers recreating Hastings line operations, note these locomotives received distinctive slow-speed control equipment from 1971 for merry-go-round coal trains, adding cables and equipment boxes visible beneath the bodyside. Heljan's OO gauge Class 33/2 models accurately capture the narrower profile with correctly scaled body width—a subtle but crucial detail distinguishing them from standard 33/0 variants.

Design and Technical Specifications

At the heart of every Class 33 lay the Sulzer 8LDA28-B diesel engine, built under licence by Vickers-Armstrong at Barrow-in-Furness. This 8-cylinder inline turbocharged powerplant delivered 1,550 bhp at 750 rpm, making the Class 33 the most powerful Bo-Bo diesel locomotive in the BR fleet. The engine drove a Crompton Parkinson CG391-B1 main generator, which fed four nose-suspended traction motors—one per axle—giving the Bo-Bo wheel arrangement.

The Bo-Bo configuration (two bogies, each with two powered axles) provided the ideal balance for Southern Region requirements. Unlike the A1A-A1A arrangement used on Class 31 locomotives—which featured unpowered idler axles to reduce axle loading—the Class 33's Bo-Bo design delivered maximum traction from all four axles whilst maintaining acceptable axle loading of approximately 19.4 tons. This configuration was lighter than Co-Co designs like the Class 37 (which weighed approximately 30% more) yet provided sufficient power for mixed-traffic duties including 8-10 coach passenger trains or 20-30 wagon freight consists.

The Crompton Parkinson electrical equipment proved exceptionally reliable throughout the class's service life. The ETH generator capacity of 235 kW provided heating for up to 10 coaches, supporting both BR's standard two-pole system and Continental single-pole arrangements for boat train operations. This dual capability proved invaluable on Dover and Southampton boat trains carrying through Continental stock.

Technical Innovation: Electric Train Heating Revolution

The Class 33's electric train heating system represented a watershed moment in BR diesel development. Previous Type 2 and early Type 3 designs retained problematic steam heating boilers requiring additional fuel, water capacity, and maintenance. The ETH system—generating 800V DC at 235 kW—eliminated these complexities whilst supporting the Southern Region's electrification strategy. The distinctive humming sound of the ETH generator became synonymous with Class 33 operation. For sound-equipped DCC models, ensure your decoder includes authentic ETH generator whine alongside the Sulzer engine note for complete operational atmosphere.

Service History and Operations

The Class 33 family divided into three distinct sub-classes, each optimised for specific operational requirements. Class 33/0 comprised the standard mixed-traffic locomotives, 86 built with full 9 ft 3 in width. Under the TOPS renumbering scheme introduced in 1968, survivors became 33001-33065 (accounting for accident casualties and push-pull conversions).

Class 33/1, nicknamed "Bagpipes" due to prominent jumper cables fitted at each end, represented 19 locomotives converted for push-pull operation between 1966 and 1967. The prototype, D6580, underwent trials in 1965 on the Wimbledon Park-Basingstoke route before full conversion commenced at Eastleigh Works. These locomotives received buck-eye couplers, retractable buffers, high-level brake pipes, and electro-pneumatic control equipment compatible with 4TC unpowered EMU sets. The push-pull innovation eliminated time-consuming locomotive run-rounds at termini, revolutionising Bournemouth-Weymouth services from July 1967.

Class 33/2 "Slim Jims" were the 12 narrow-bodied locomotives (33201-33212) built specifically for the Hastings line, where Victorian-era tunnels between Tunbridge Wells and Hastings had been strengthened with additional brickwork, reducing clearances. At 8 ft 1½ in over the body (8 ft 8 in over steps), these locomotives could navigate Restriction 0 loading gauge routes impossible for standard-width stock. From 1971, the class received slow-speed control equipment for merry-go-round coal train operation, adding freight versatility to their passenger duties.

Class 33 locomotives transformed Southern Region operations from their 1960 introduction. Initially allocated to Hither Green depot, the entire class began working boat trains from London Victoria to Dover Western Docks via Chatham, replacing steam on the prestigious "Man of Kent" and "Night Ferry" international sleeping car services. By summer 1960, sufficient Type 3s were available for most Charing Cross-Dover trains to run diesel-hauled, marking the beginning of steam's end on the South Eastern Division.

The locomotives proved supremely versatile. Typical duties included express passenger services from Waterloo to Southampton, Salisbury, and Exeter; freight work from Hither Green to Dover; and the celebrated push-pull operations. Class 33/1s dominated the Bournemouth-Weymouth corridor for three decades, typically working 4TC+4TC+Class 33/1 formations (eight coaches with the locomotive at the country end). At Bournemouth, the 4REP electric unit detached for return to London whilst the Class 33/1 propelled the 4TC sets onwards to Weymouth, eliminating the need for run-round manoeuvres.

Beyond their Southern Region heartland, Class 33s worked inter-regional diagrams including Cliffe-Uddingston cement trains (featured in the 1963 documentary "High, Wide and Faster"), Fawley oil refinery traffic to Western Region destinations, and aggregate flows from North Kent to Angerstein Wharf. Fifteen locomotives were allocated to Fawley oil traffic from 1962, successfully handling 1,000-ton trains. The cement workings saw pairs of Class 33s working 30-wagon, 1,050-ton trains on the 44-hour round trip to Lanarkshire—at £104 per train, half the cost of steam operation.

Withdrawal commenced in 1985 as Sprinter DMUs displaced them from secondary passenger services and Class 60 locomotives assumed heavy freight duties. The final British Rail Class 33 passenger workings ended in May 1993, though approximately 40 locomotives passed to EWS at privatisation in 1998 for aggregate and engineering duties. The very last revenue-earning Class 33s, 33025 and 33030, worked Aberdeen area freight traffic until circa 2001, concluding over 40 years of continuous service.

Operational Insight: Push-Pull Revolution on the Bournemouth Line

The Class 33/1 push-pull operation represented British Rail engineering at its finest. From July 1967, these locomotives worked with 4TC unpowered EMU sets on Waterloo-Weymouth services. The standard formation—4REP electric unit from Waterloo to Bournemouth, then 4TC+4TC+Class 33/1 onwards to Weymouth—eliminated time-consuming run-rounds whilst maintaining service frequency. The driver controlled the locomotive from the 4TC driving trailer via electro-pneumatic control, with the Class 33/1 either hauling or propelling depending on direction. This system operated until Weymouth electrification in 1988. For authentic model railway operation, Bachmann's 4TC sets and Heljan's Class 33/1 "Bagpipes" enable recreation of this iconic Southern Region practice.

Withdrawal and Preservation Legacy

The Class 33's popularity ensured remarkable preservation success: 29 locomotives survive from the original 98, representing nearly 30% of the class. This includes 17 Class 33/0 standard locomotives, eight Class 33/1 push-pull variants, and four Class 33/2 "Slim Jims." The National Railway Museum at York holds 33116 as the only Sulzer-powered Type 2/3 in their collection, whilst the remaining 28 locomotives operate across Britain's heritage railway network.

Notable preserved examples include:

• D6501 (33002) – Oldest surviving Crompton, operational at South Devon Railway
• D6515 (33012) "Lt Jenny Lewis RN" – Mainline certified, regularly hauls railtours from London to Swanage Railway
• 33111 – Hauled the last 4TC push-pull passenger train from Wareham to Swanage in September 1971
• D6566 (33048) and D6575 (33057) – Both operational in authentic BR Green livery at West Somerset Railway

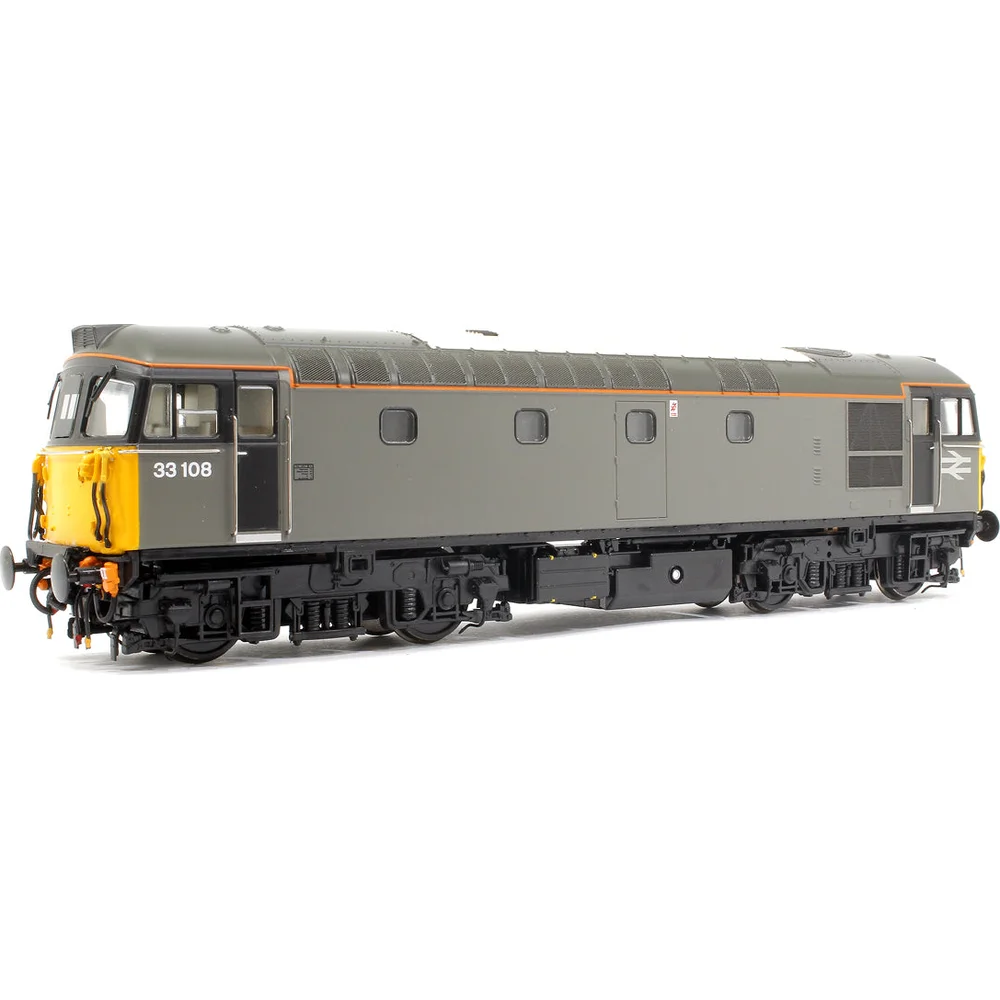

• 33108 – Recently repainted in "Dutch" grey/yellow civil engineers livery at Severn Valley Railway

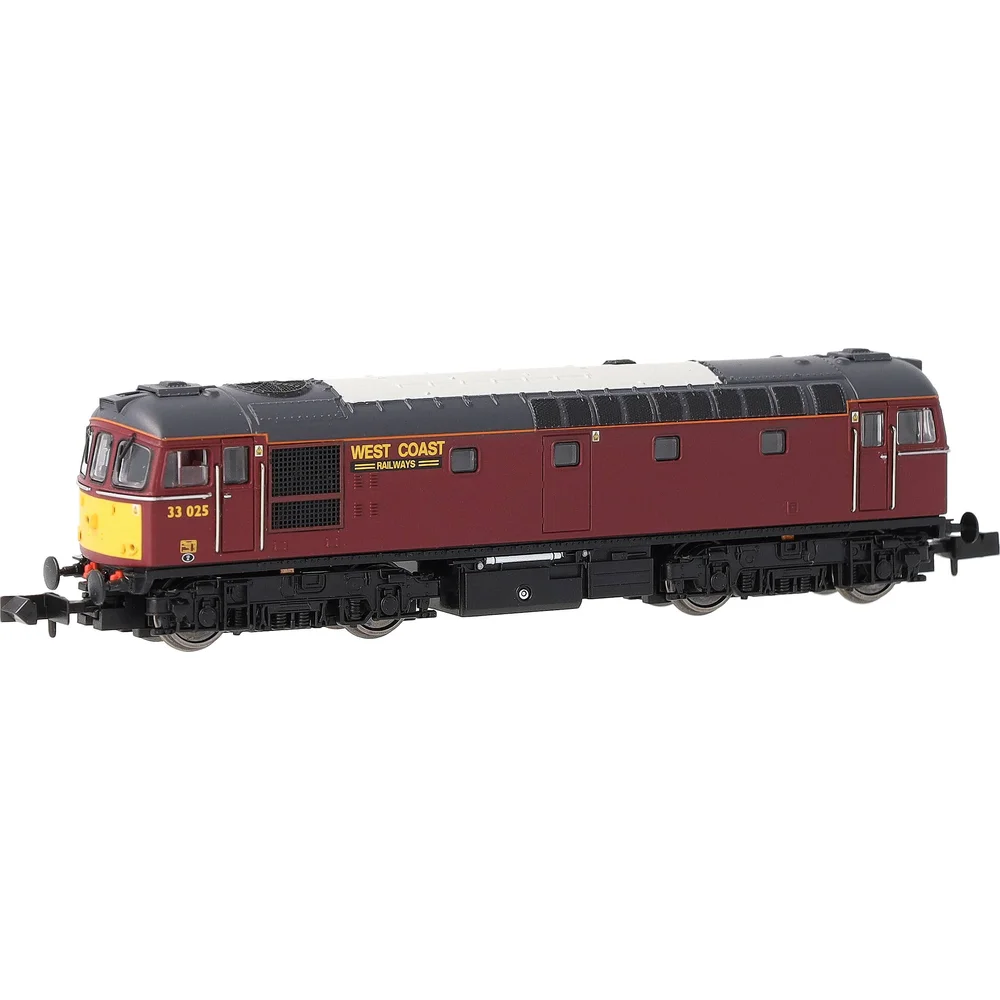

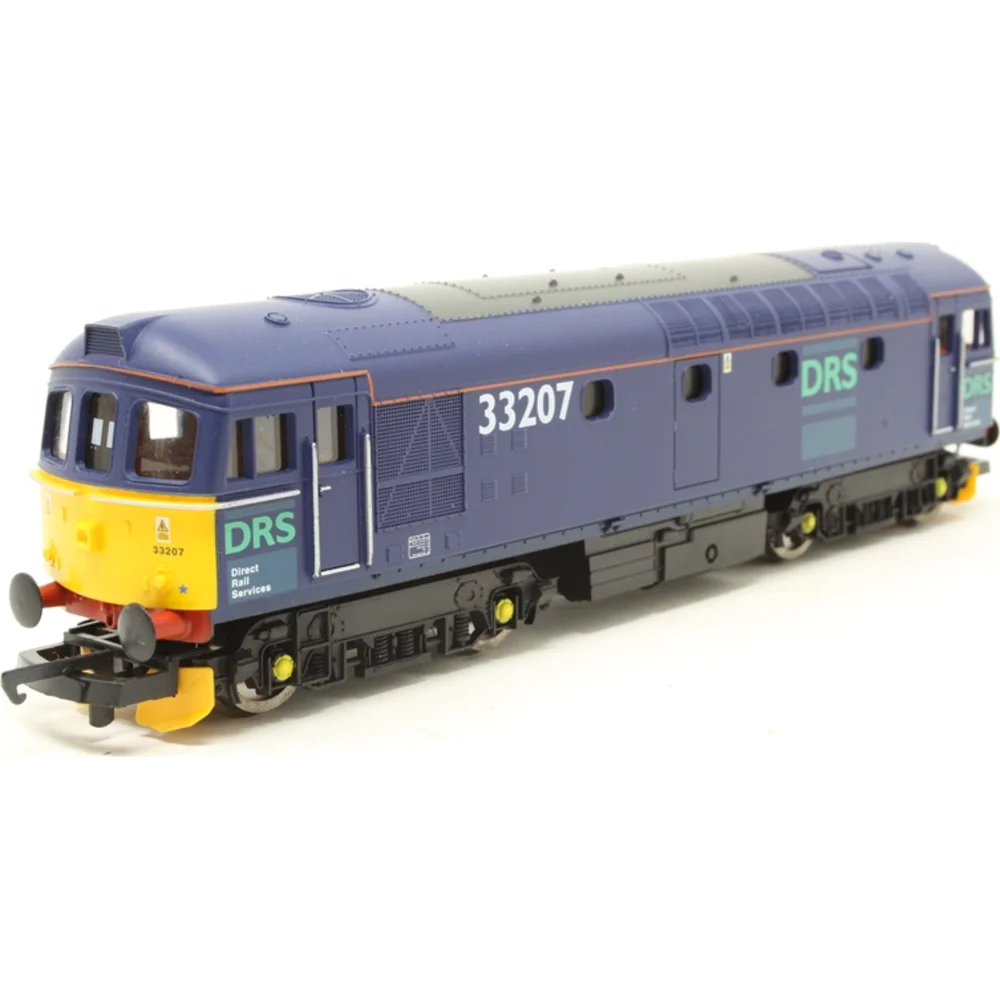

• 33029 and 33207 – West Coast Railways mainline certified fleet

Four locomotives remain certified for mainline operation (33012, 33025, 33029, 33207), regularly hauling heritage railtours across the national network. Enthusiasts can ride behind Class 33s at Swanage Railway (two operational), West Somerset Railway (two operational), Severn Valley Railway, East Lancashire Railway, and South Devon Railway. The annual Swanage Railway Diesel Gala in May represents the premier Class 33 event, featuring multiple locomotives including visiting examples.

Preservation's Triumph: Nearly 30% Survival Rate

The Class 33's exceptional preservation success—29 survivors from 98 built—reflects both the type's popularity and its practical advantages for heritage railways. The compact 50 ft 9 in length suits heritage line infrastructure, whilst the reliable Sulzer/Crompton Parkinson combination ensures maintainability. The diversity of preserved examples spans all three sub-classes and decades of livery evolution, from early BR Green through Network SouthEast to DRS blue. This variety enables heritage railways to authentically represent different Southern Region eras. Modellers benefit equally: with preserved examples regularly appearing at diesel galas, photographic reference material for weathering and detailing remains abundant and accessible.

Modelling Significance and Scale Replications

Model railway manufacturers have served Class 33 enthusiasts exceptionally well, with comprehensive offerings across multiple scales. Heljan dominates OO gauge (4mm scale, 1:76) with highly detailed ready-to-run models covering all three sub-classes in numerous liveries. Their Class 33/0, 33/1, and 33/2 models feature separately fitted handrails, etched grilles, full underframe detail, illuminated headcode panels, 21-pin DCC sockets (latest versions), and heavy die-cast chassis for excellent running characteristics.

OO Gauge availability (current):

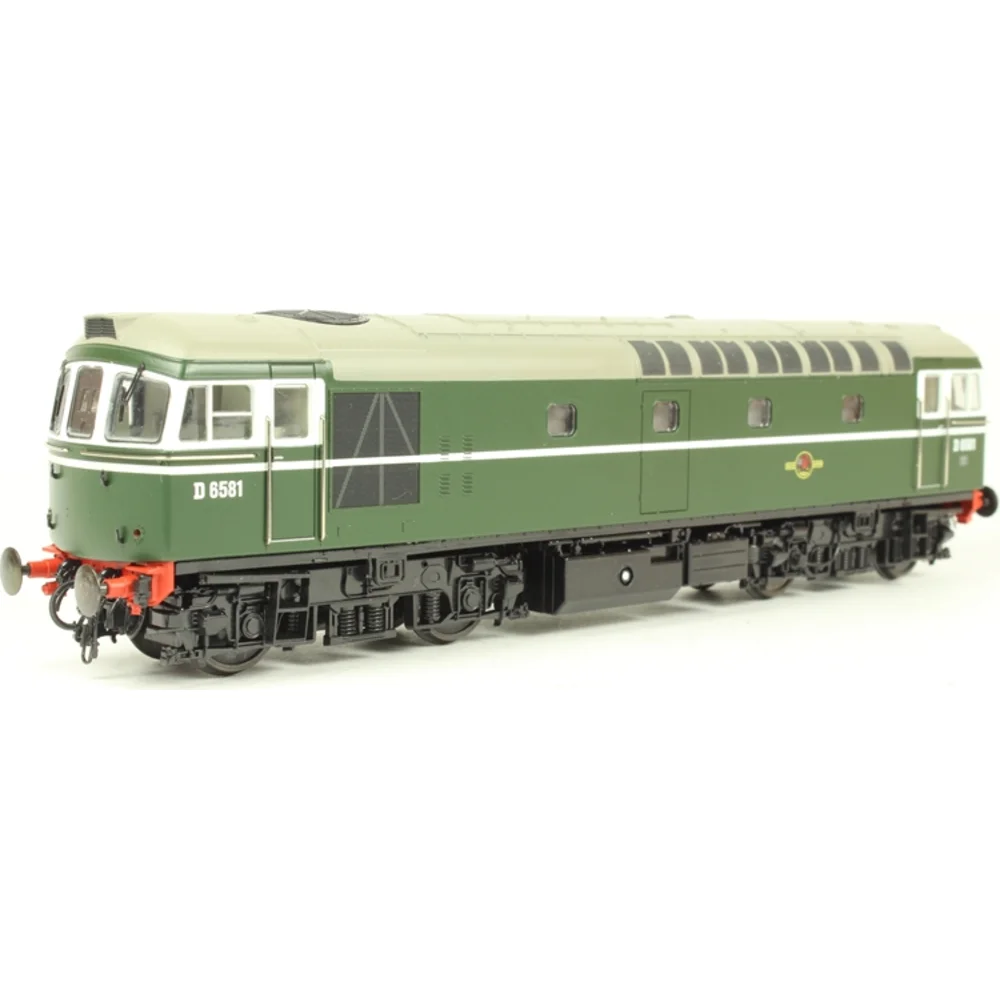

• Heljan Class 33/0 – £99-£219.95 RRP (retailers offering significant discounts). Catalog numbers include 3421-3425 series. DCC Sound versions available £270-320. Available in BR Green (various yellow panel configurations), BR Blue, Railfreight variants, Network SouthEast, EWS, DRS blue, West Coast Railways maroon
• Heljan Class 33/1 "Bagpipes" – £199-£219.95. Catalog numbers 3371-3373, 3364. Features push-pull pipework. Liveries include BR Green, BR Blue, Network SouthEast, Civil Engineers grey
• Heljan Class 33/2 "Slim Jims" – £169.95-£219.95. Catalog numbers 3375-3379, 3325, 3339. Narrow body correctly modelled. BR Green, BR Blue, BR General Grey available

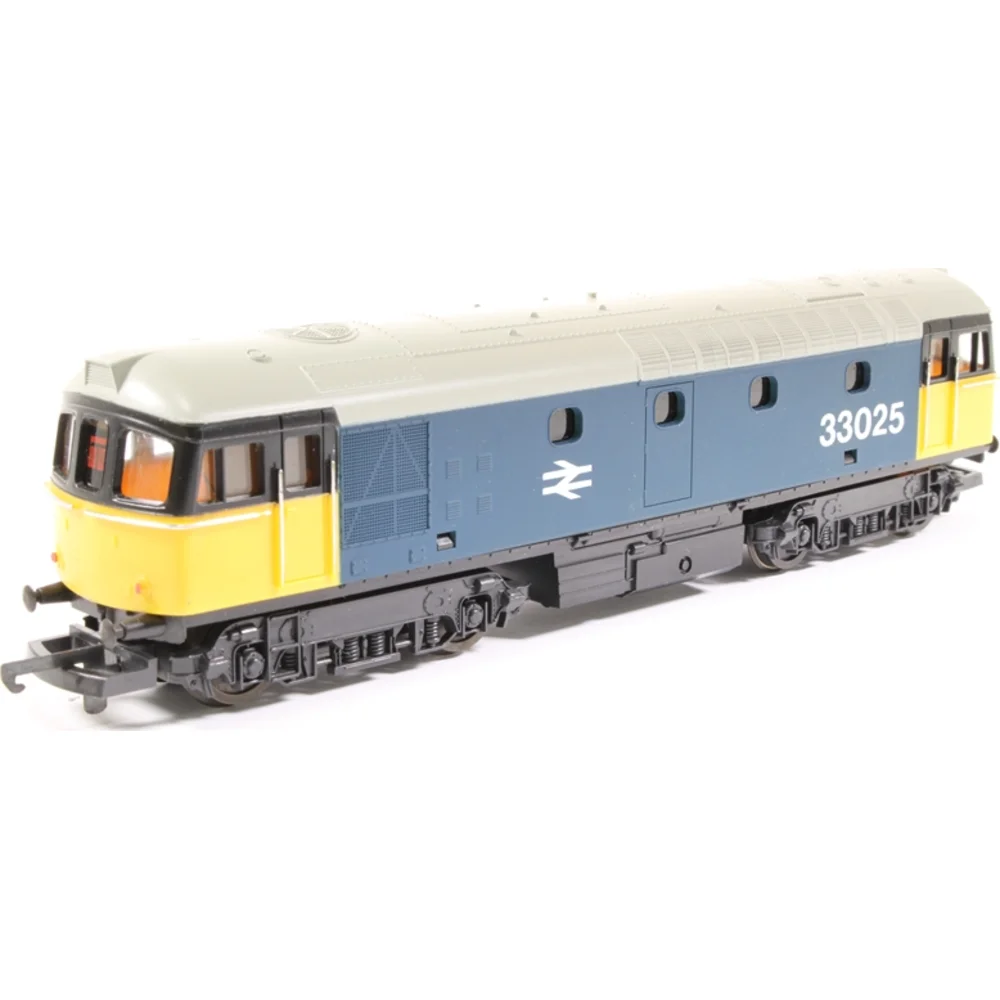

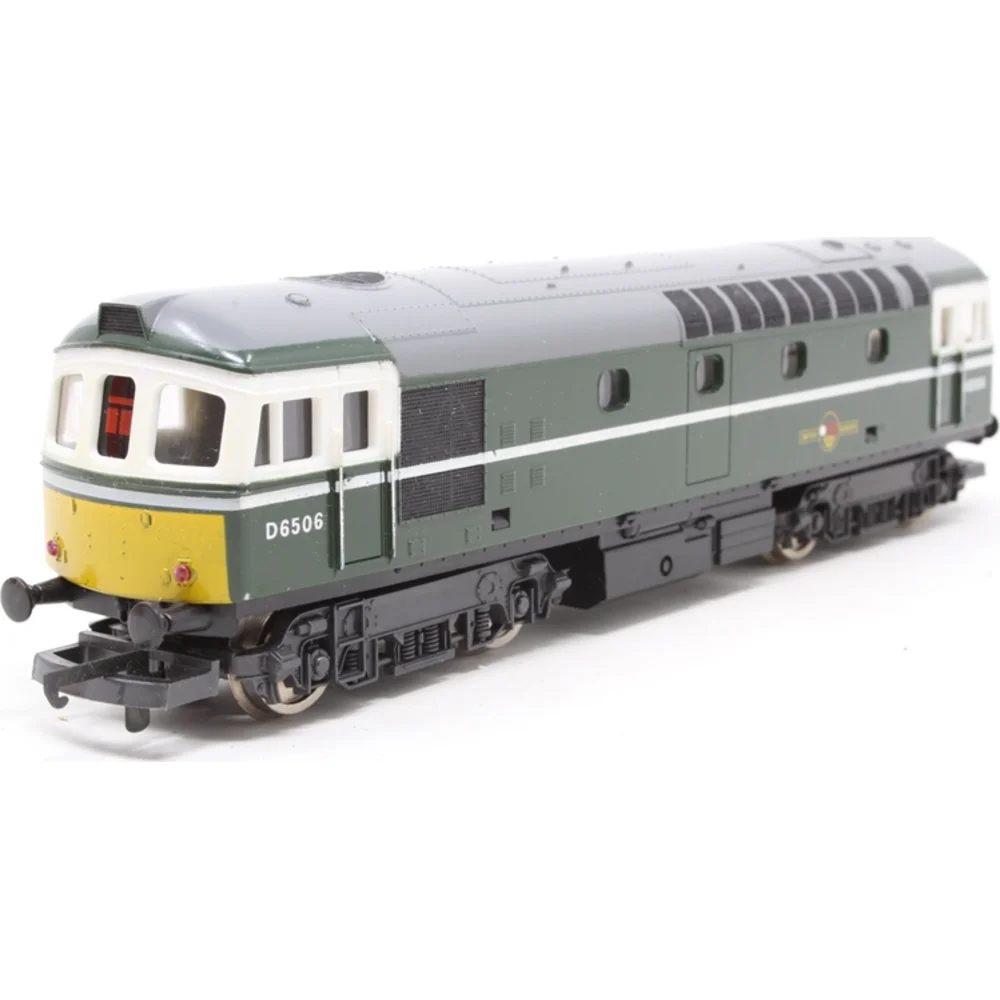

• Hornby Railroad R2939 – Discontinued (based on 1977 Lima tooling). Budget range, basic detail. Available second-hand £30-50

N Gauge (2mm scale, 1:148) options:

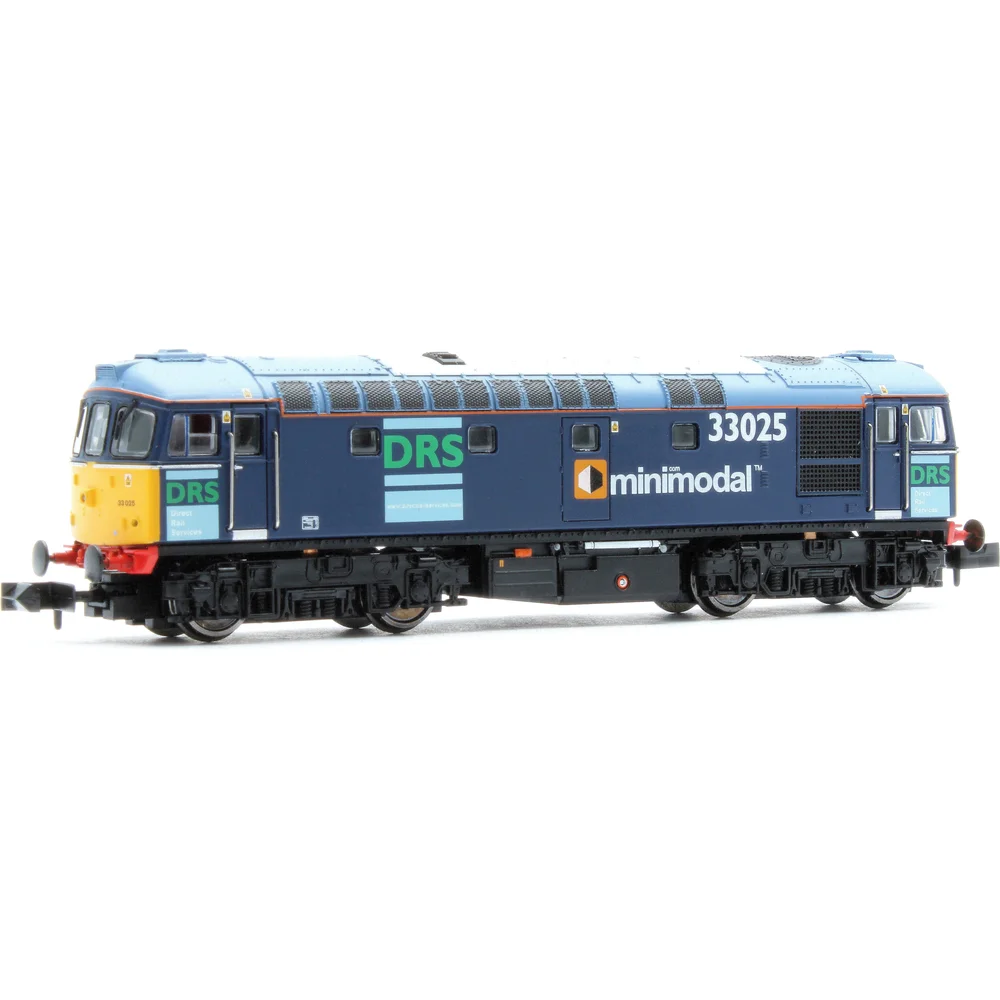

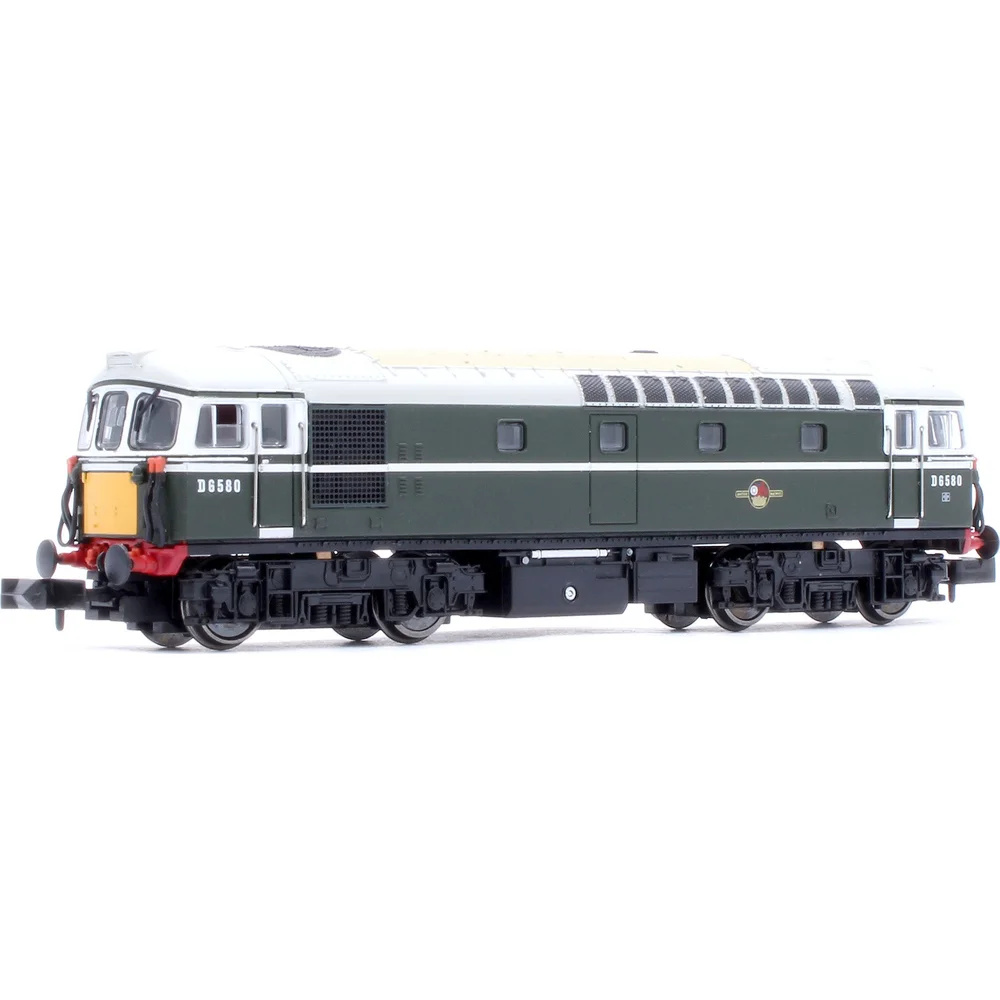

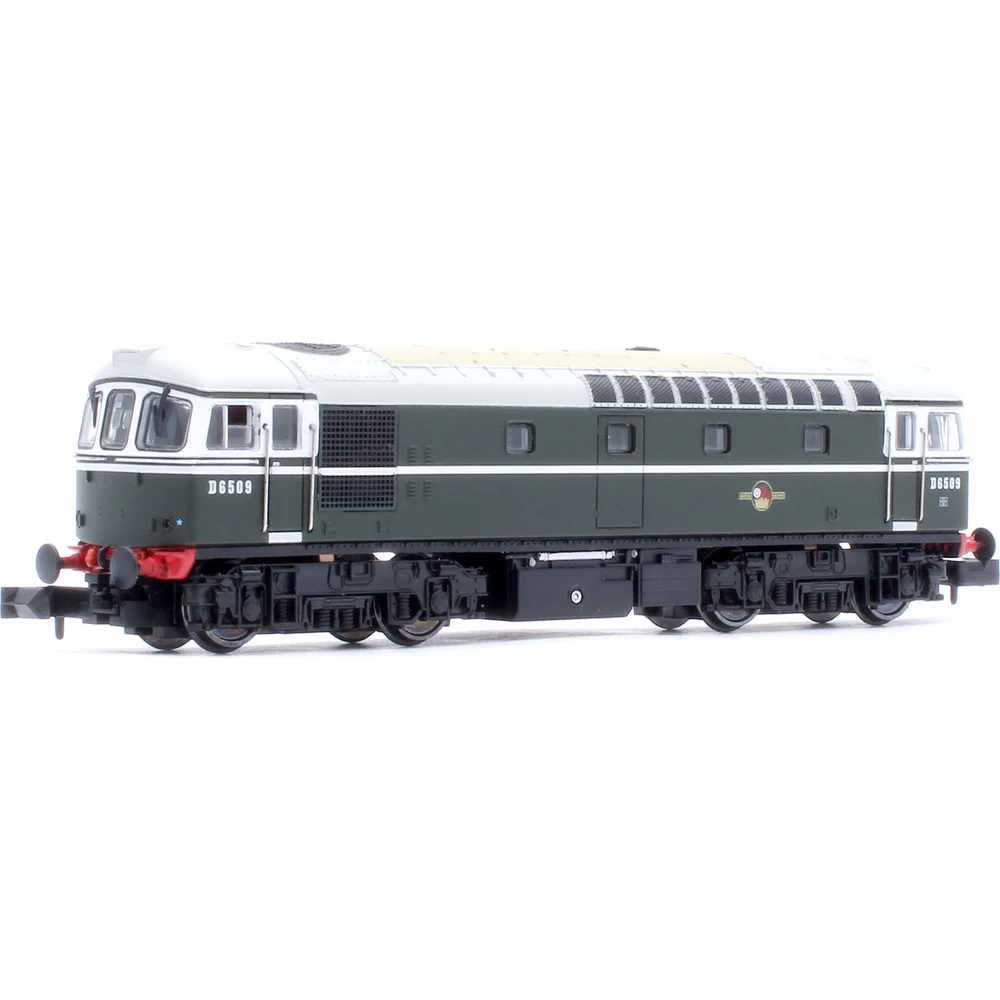

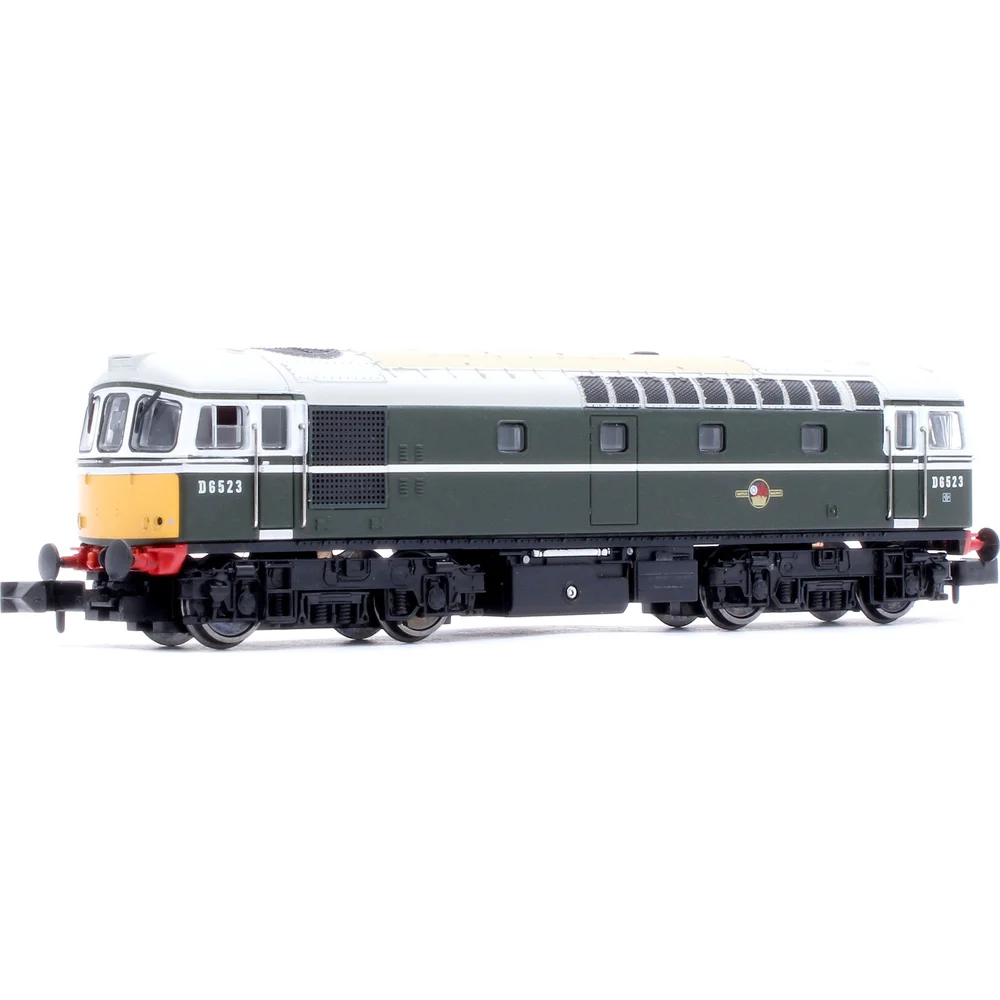

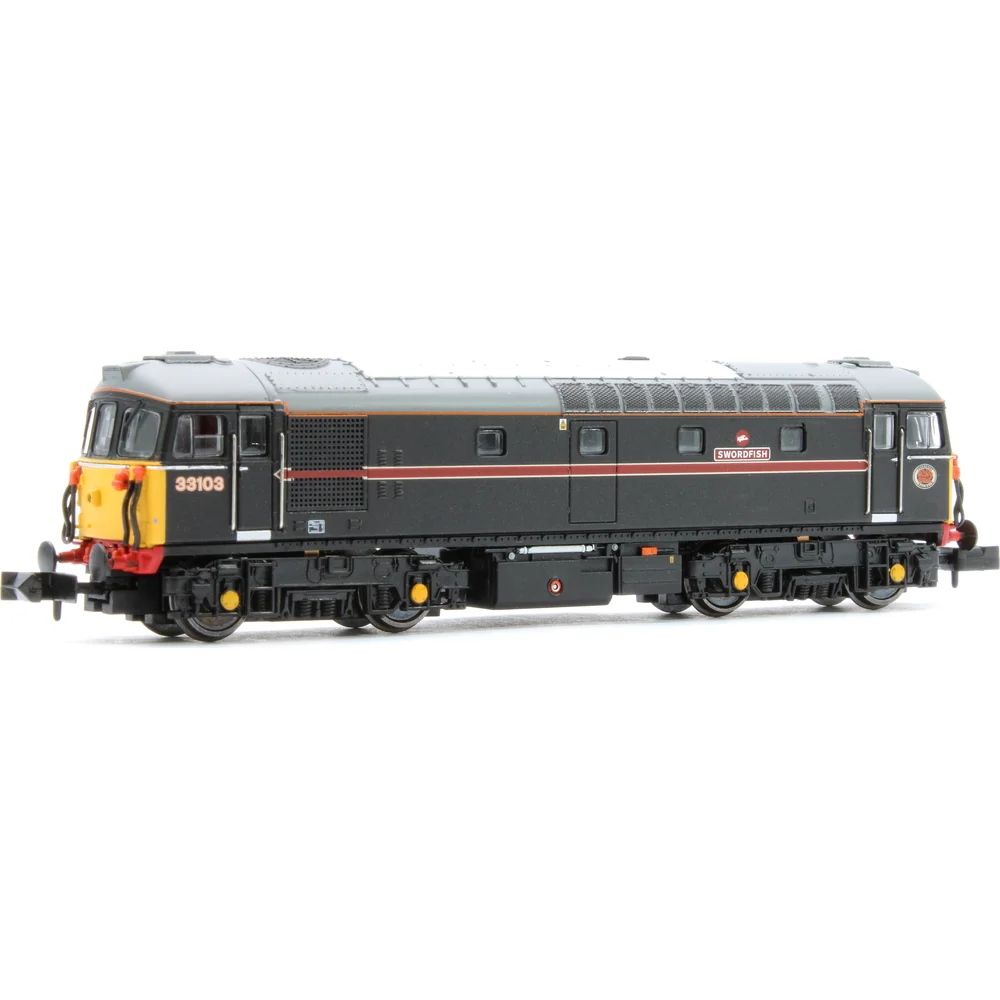

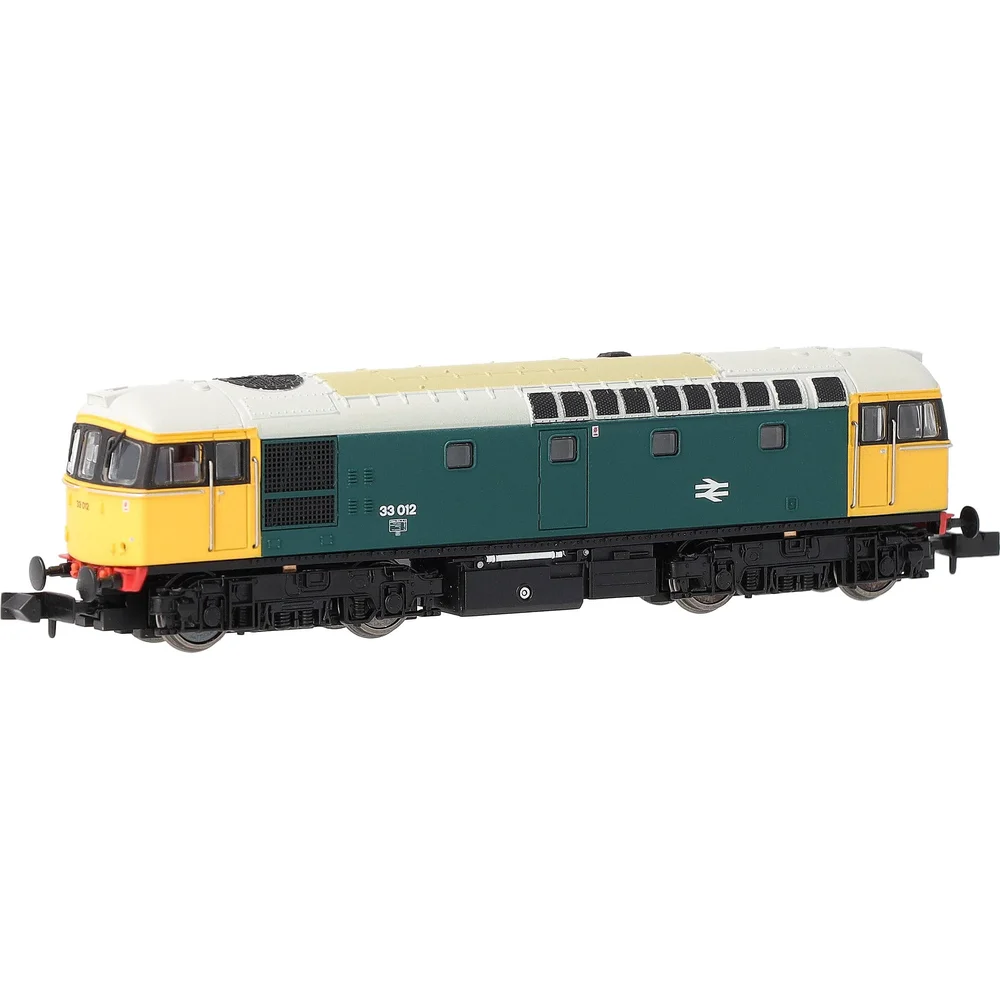

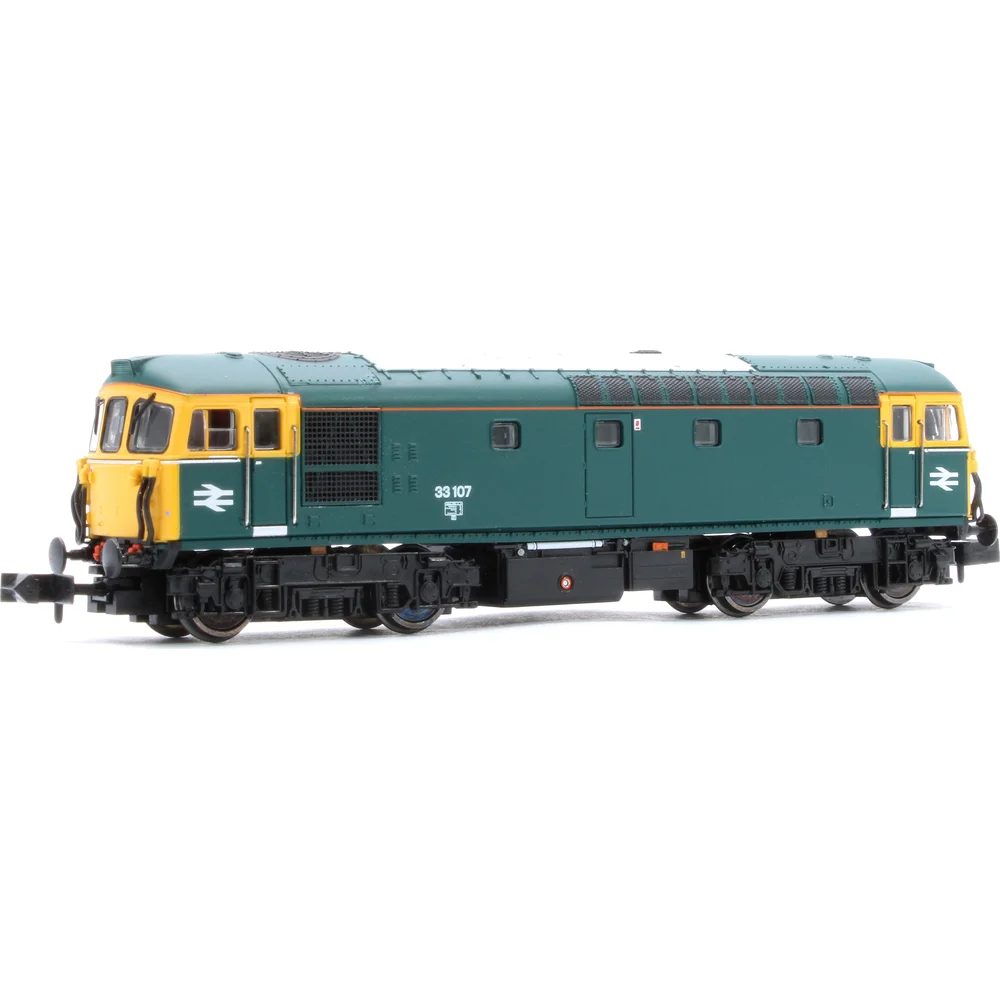

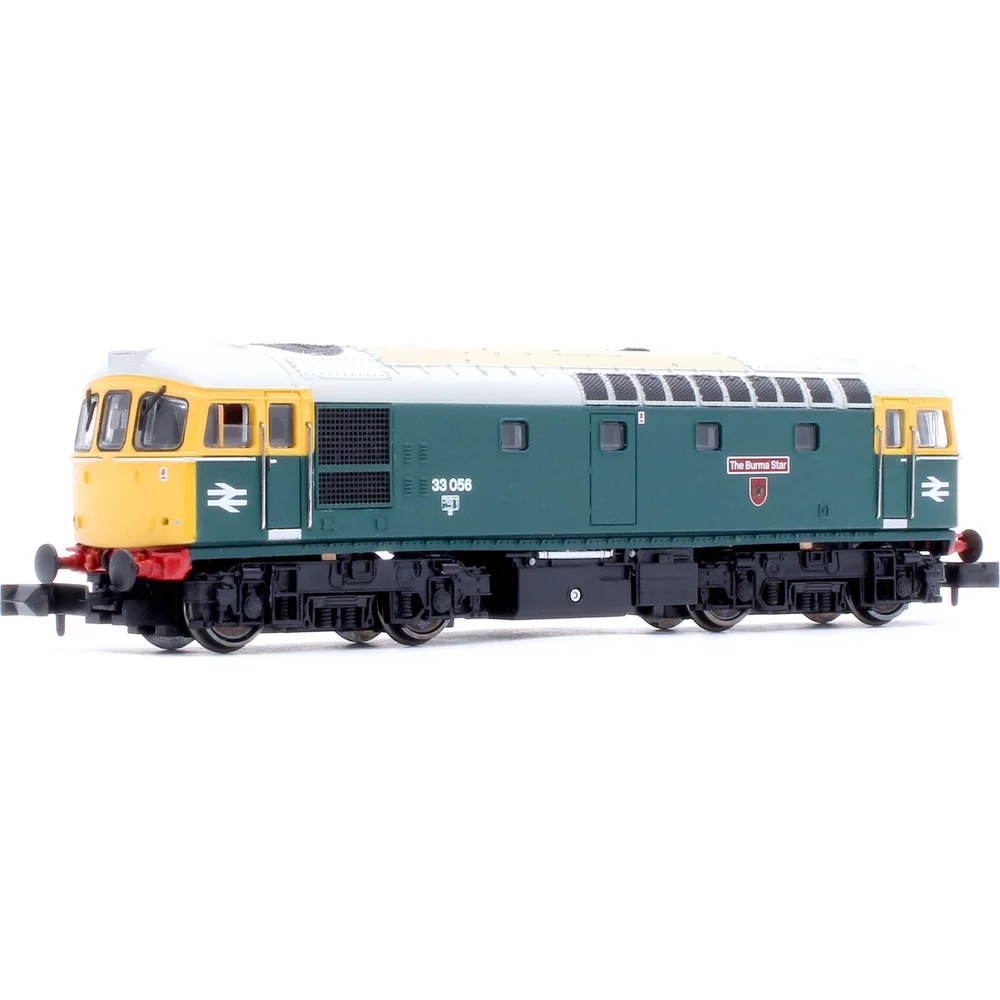

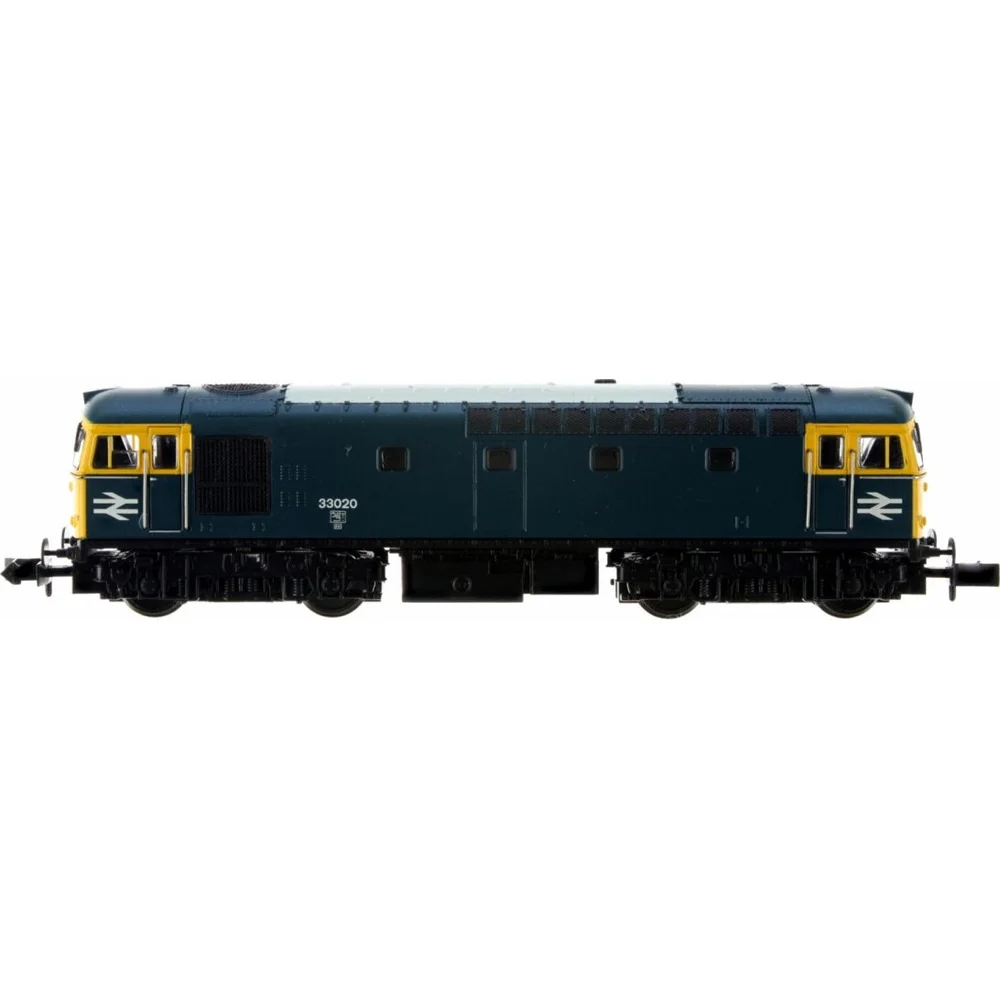

• Dapol 2D-001 series – Current production, £132.95-£156.60. DCC Ready and DCC Fitted versions. New batches delivered through 2024-2025. Features 5-pole motor, all-wheel drive, etched details. Catalog numbers include 2D-001-007 (Triple Grey Construction), 2D-001-011 (BR Blue), 2D-001-012 (DRS), 2D-001-025 (West Coast maroon). Multiple liveries available

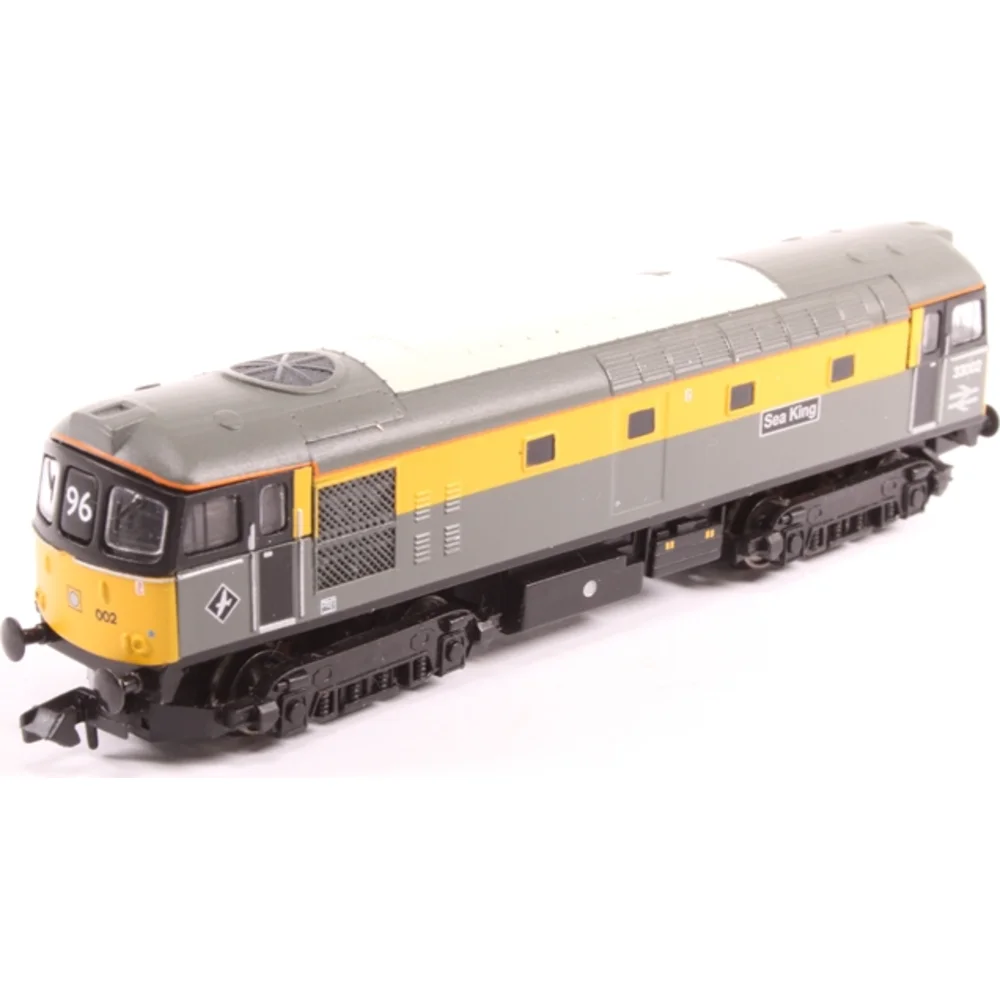

• Graham Farish 371-series – Mostly discontinued, limited second-hand availability £60-75. Catalog numbers 371-125K, 371-127, 371-128, 371-129, 8312-831A. Older mechanism without DCC socket

O Gauge (7mm scale, 1:43.5) availability:

• Heljan Class 33/0 – £425-£579 (discounted from RRP). Catalog numbers HJ3394-HJ3405. Outstanding detail with rotating roof fans, detailed cab interior, two 5-pole motors, LED lighting, heavy die-cast construction. DCC Ready with sound installation provision. Available in BR Green (small panels/full yellow ends), Civil Engineers "Dutch," EWS, Network SouthEast, DRS, Railfreight Construction. Limited remaining stock from previous production run

Model railway manufacturers have served Class 33 enthusiasts exceptionally well, with comprehensive offerings across multiple scales. Heljan dominates OO gauge (4mm scale, 1:76) with highly detailed ready-to-run models covering all three sub-classes in numerous liveries. Their Class 33/0, 33/1, and 33/2 models feature separately fitted handrails, etched grilles, full underframe detail, illuminated headcode panels, 21-pin DCC sockets (latest versions), and heavy die-cast chassis for excellent running characteristics.

OO Gauge availability (current):

• Heljan Class 33/0 – £99-£219.95 RRP (retailers offering significant discounts). Catalog numbers include 3421-3425 series. DCC Sound versions available £270-320. Available in BR Green (various yellow panel configurations), BR Blue, Railfreight variants, Network SouthEast, EWS, DRS blue, West Coast Railways maroon
• Heljan Class 33/1 "Bagpipes" – £199-£219.95. Catalog numbers 3371-3373, 3364. Features push-pull pipework. Liveries include BR Green, BR Blue, Network SouthEast, Civil Engineers grey
• Heljan Class 33/2 "Slim Jims" – £169.95-£219.95. Catalog numbers 3375-3379, 3325, 3339. Narrow body correctly modelled. BR Green, BR Blue, BR General Grey available
• Hornby Railroad R2939 – Discontinued (based on 1977 Lima tooling). Budget range, basic detail. Available second-hand £30-50

N Gauge (2mm scale, 1:148) options:

• Dapol 2D-001 series – Current production, £132.95-£156.60. DCC Ready and DCC Fitted versions. New batches delivered through 2024-2025. Features 5-pole motor, all-wheel drive, etched details. Catalog numbers include 2D-001-007 (Triple Grey Construction), 2D-001-011 (BR Blue), 2D-001-012 (DRS), 2D-001-025 (West Coast maroon). Multiple liveries available
• Graham Farish 371-series – Mostly discontinued, limited second-hand availability £60-75. Catalog numbers 371-125K, 371-127, 371-128, 371-129, 8312-831A. Older mechanism without DCC socket

O Gauge (7mm scale, 1:43.5) availability:

• Heljan Class 33/0 – £425-£579 (discounted from RRP). Catalog numbers HJ3394-HJ3405. Outstanding detail with rotating roof fans, detailed cab interior, two 5-pole motors, LED lighting, heavy die-cast construction. DCC Ready with sound installation provision. Available in BR Green (small panels/full yellow ends), Civil Engineers "Dutch," EWS, Network SouthEast, DRS, Railfreight Construction. Limited remaining stock from previous production run

No Class 33 models exist in HO (1:87), TT (1:120), or larger scales, though specialist O gauge kits remain available from suppliers like RJH Models and Bowaters Models for advanced modellers.

Advanced Modelling: Identifying Authentic Variants

Heljan's comprehensive tooling variations enable period-specific accuracy across five decades. Class 33/0 standard locomotives suit any Southern Region layout from 1960-2001 in appropriate liveries. Class 33/1 "Bagpipes" with distinctive jumper cables, buck-eye couplers, and high-level brake pipes authentically represent push-pull operations from 1967-1988 (Bournemouth-Weymouth corridor). Class 33/2 "Slim Jims" with narrow 8 ft 1½ in bodies specifically model Hastings line operations 1960-1986. Livery chronology: BR Green with small yellow warning panels (1960-1966), BR Green with full yellow ends (1966-1969), BR Blue (1969-1987), Railfreight sectors (1987-1994), privatisation colours including EWS, DRS, West Coast Railways (1994-2001). Matching locomotive sub-class, livery, and operational era creates authentic layouts resonating with prototype practice.

Unique Modelling Tips and Layout Integration

The Class 33's compact 50 ft 9 in length and versatile mixed-traffic capability make it ideal for model railway layouts from 6x4 ft branch lines to extensive main line systems. The locomotive's Bo-Bo configuration handles second radius curves (18"/457mm in OO gauge) adequately, though third radius provides better appearance, particularly when hauling 4TC push-pull formations.

Authentic passenger formations by era:

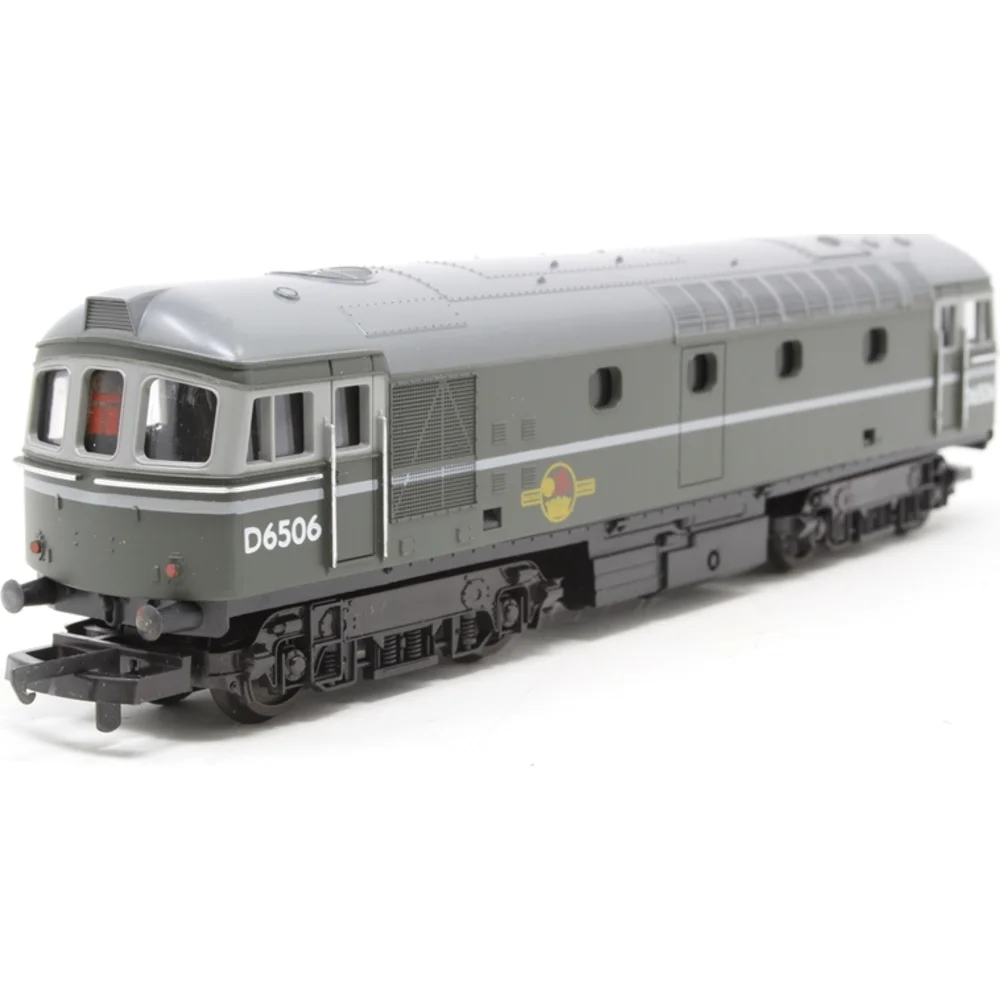

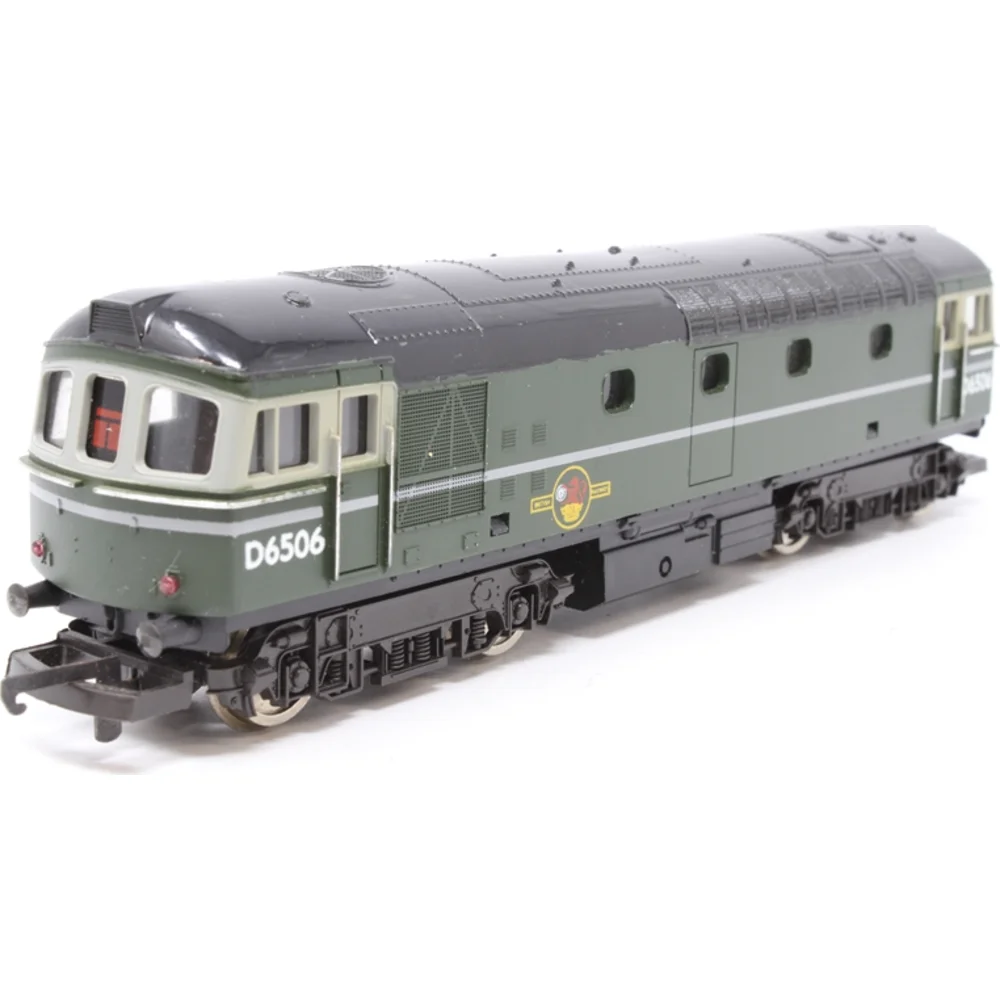

1960s Early BR Blue: BR Mk1 coaches in green or early blue (Bachmann/Hornby available). Maunsell 58 ft and 59 ft corridor stock (Hornby). Bulleid 63 ft coaches (Bachmann/Hornby). Typical train length: 4-6 coaches for secondary routes, 6-10 coaches for main line services.

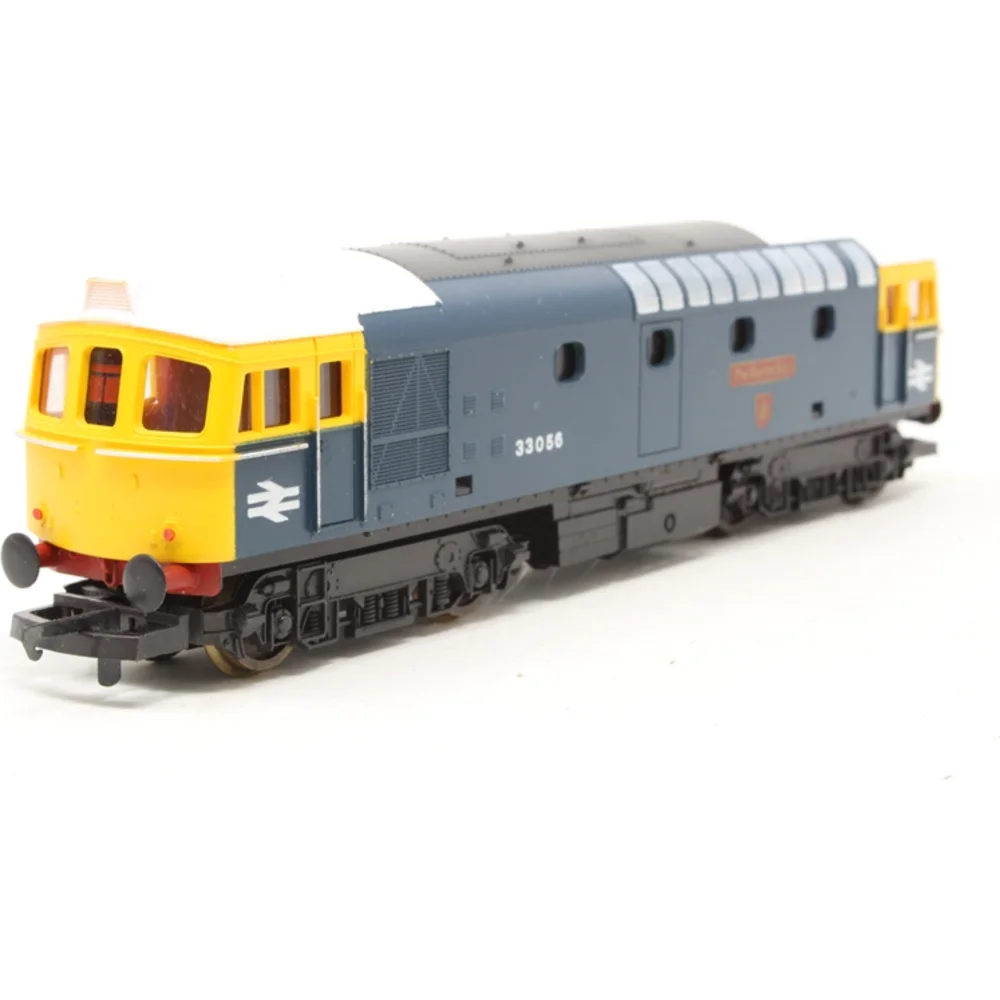

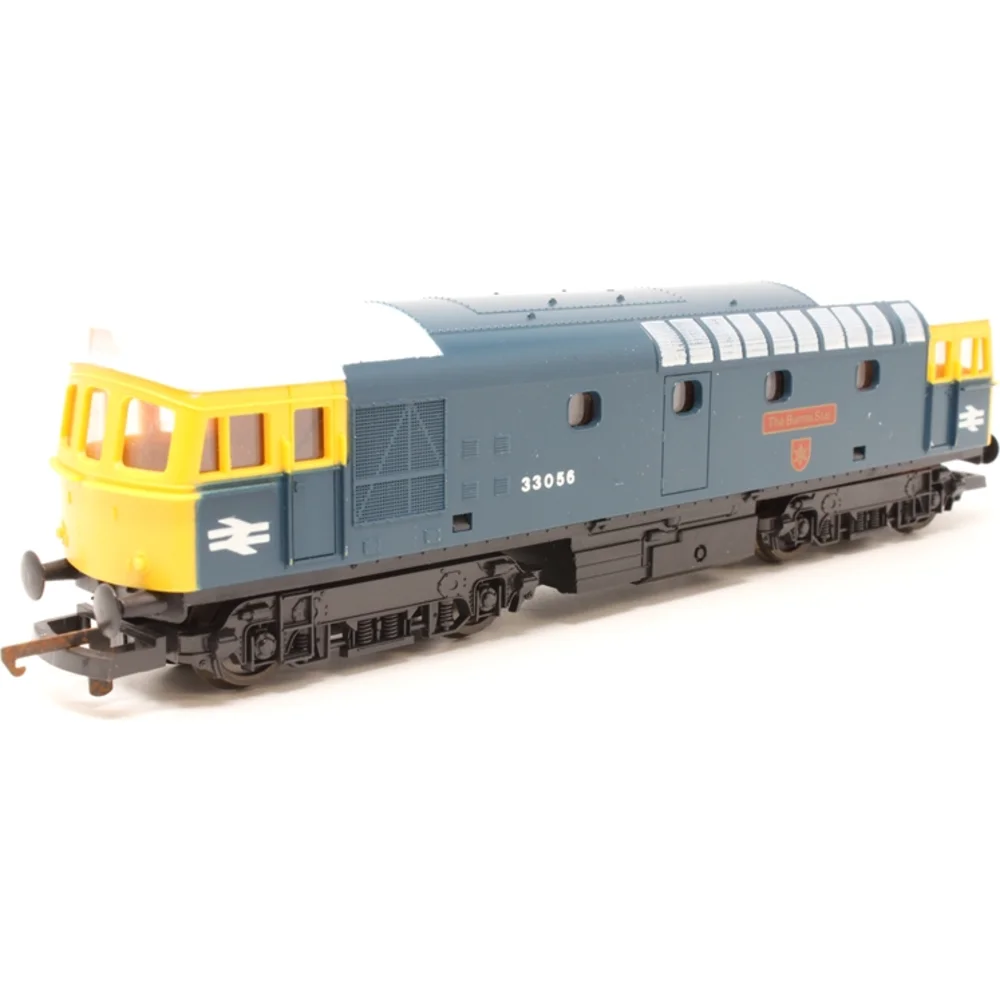

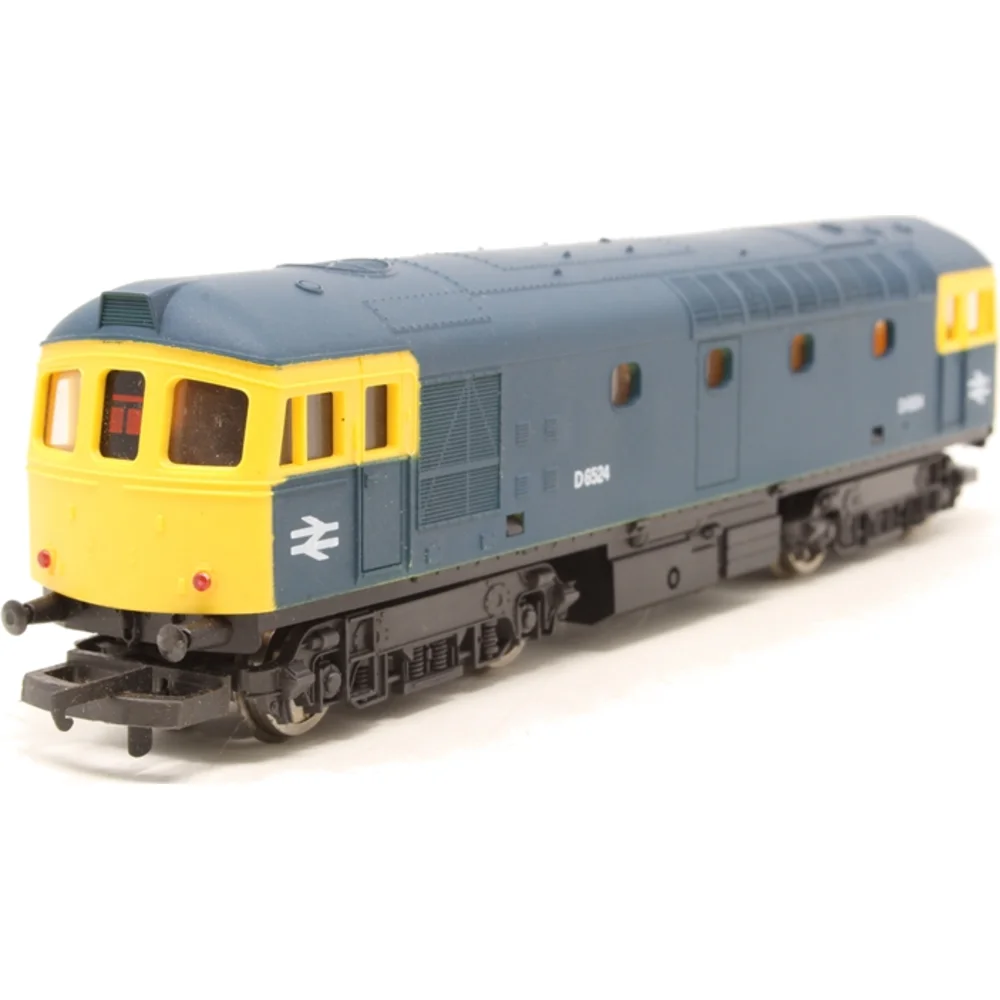

1970s-1980s BR Blue/Network SouthEast: 4TC sets essential for push-pull modelling (Bachmann/Kernow). Standard formation: 4TC+4TC+Class 33/1 (eight vehicles, locomotive at country end). BR Mk2 coaches for Waterloo-Exeter services. 4REP EMUs for Bournemouth connection modelling.

1990s Privatisation Era: Network SouthEast liveried Mk2 stock. Mixed formations during transition. Continued 4TC push-pull operation.

Freight formations offer rich modelling possibilities: Fawley oil trains (20-30 tank wagons), Cliffe cement workings (30 hopper wagons, typically double-headed Class 33s), aggregate traffic from North Kent (Sea Lion ballast hoppers particularly appropriate), general mixed freight (20-30 wagons with brake van). The Class 33 could handle 450-500 ton trains single-handed or 1,000+ tons when double-headed.

1990s Privatisation Era: Network SouthEast liveried Mk2 stock. Mixed formations during transition. Continued 4TC push-pull operation.

Freight formations offer rich modelling possibilities: Fawley oil trains (20-30 tank wagons), Cliffe cement workings (30 hopper wagons, typically double-headed Class 33s), aggregate traffic from North Kent (Sea Lion ballast hoppers particularly appropriate), general mixed freight (20-30 wagons with brake van). The Class 33 could handle 450-500 ton trains single-handed or 1,000+ tons when double-headed.

Depot and infrastructure modelling: Hither Green represents the archetypal Class 33 depot. Opened September 1933 with concrete-fabricated six-road shed, turntable, marshalling yard, and Continental Freight Depot (1960-1987), Hither Green remained primary Class 33 allocation throughout the locomotives' working lives. By 1980, 42 Class 33s were allocated alongside Class 08/09 shunters. Eastleigh TMD served the South Western Division fleet from 1965 onwards, particularly locomotives working Fawley oil traffic and West of England services.

Weathering Authenticity for Southern Region Service

Class 33 weathering should reflect era and operational intensity. 1960s-1970s examples in BR Green or early Blue warrant moderate weathering with generally clean, well-maintained appearance—light grey roof weathering for exhaust deposits, subtle grime around doors, grilles, and lower bodysides. The 1980s saw increasing grime and paint fading as maintenance standards declined under financial pressures. By the 1990s, heavy weathering proves appropriate with significant fading, roof grime, and bodywork deterioration, particularly on locomotives in Railfreight, EWS, and privatisation liveries. Focus weathering on roof exhausts (grimy black staining), bogies and underframe (heavy grimy black with rust and earth tones), buffer beams (scuffing and paint wear), and number panels (sun fading). Use diluted acrylic washes for panel lines, dry-brushing with light grey on raised details, airbrush fading on upper surfaces, weathering powders on bogies, silver pencil for paint chips, and vertical streaking effects from roof vents. AK Interactive, Vallejo, and MIG Productions offer comprehensive weathering product ranges specifically suitable for diesel traction.

Finally

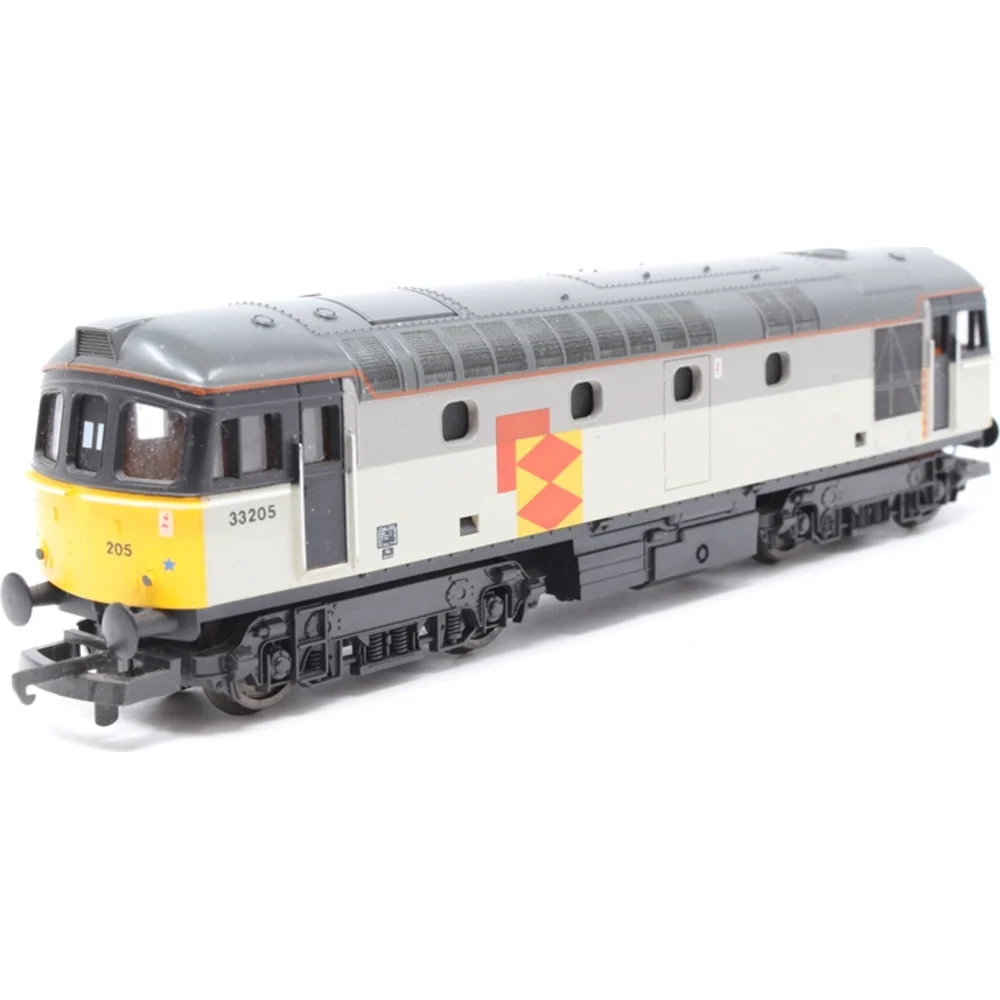

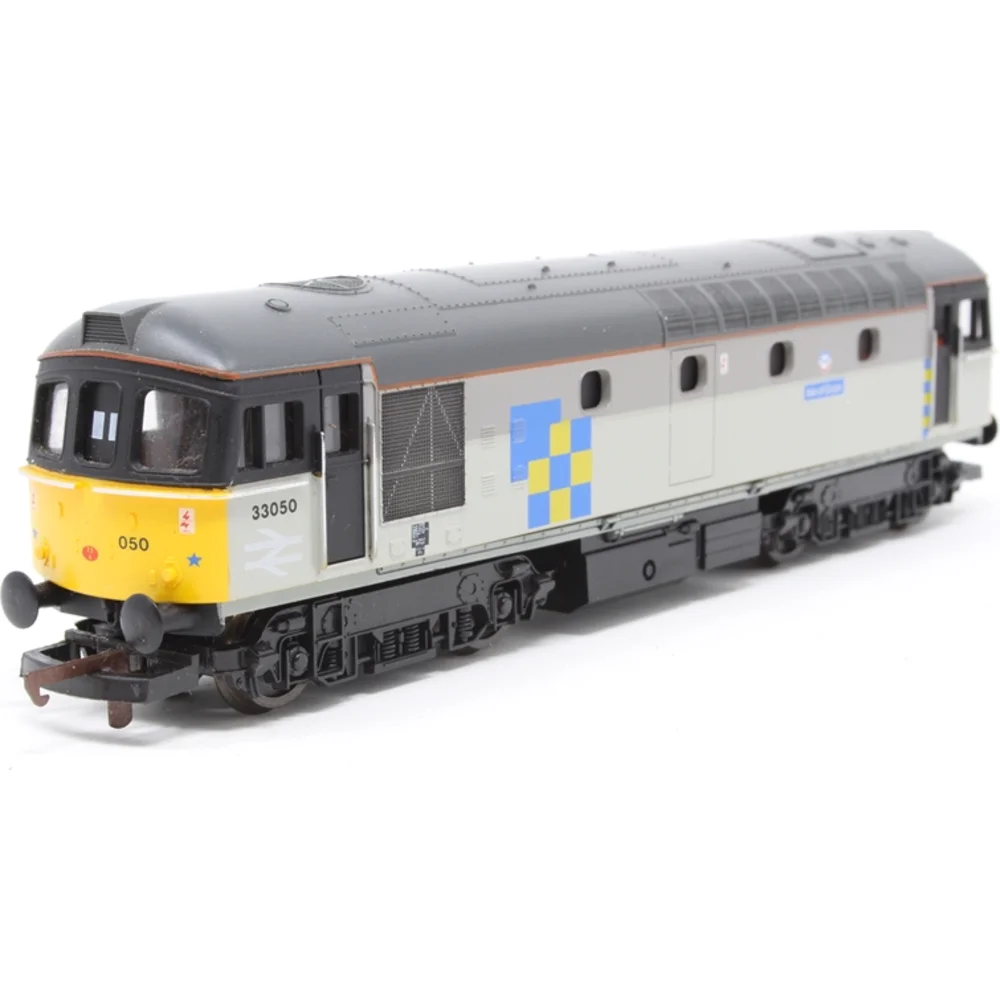

heavy weathering proved appropriate with significant fading, particularly on locomotives in Railfreight, EWS, and privatisation liveries.

Key weathering areas include roof exhausts (grimy black staining), bogies and underframe (heavy grimy black, rust, earth tones), buffer beams (scuffing and paint wear), and number panels (sun fading). Techniques include diluted acrylic washes for panel lines, dry-brushing light grey on raised details, airbrush fading on upper surfaces, weathering powders on bogies, silver pencil for paint chips, and vertical streaking from roof vents. AK Interactive, Vallejo, and MIG Productions offer comprehensive weathering product ranges.

Why Class 33s dominate Southern Region layouts

The Class 33 combines practical modelling advantages with authentic Southern Region character. The compact Bo-Bo configuration fits layouts from 6x4 ft upwards whilst the versatile mixed-traffic capability supports passenger, freight, and engineering operations within single layouts. Three distinct sub-classes (standard 33/0, push-pull 33/1, narrow-bodied 33/2) provide variety, whilst livery options span five decades from 1960s BR Green through Network SouthEast, Railfreight variants, and privatisation colours.

The distinctive two-digit headcode blinds between cab windows immediately identify Southern Region operations. Push-pull capability with 4TC sets enables authentic Bournemouth-Weymouth corridor modelling without complex run-round operations. The locomotives work naturally alongside Class 73 electro-diesels, creating authentic Southern Region motive power variety. Compatible coaching stock ranges from 1950s Maunsell and Bulleid vehicles through BR Mk1 and Mk2 coaches to 4TC EMU sets.

Sound-fitted DCC versions replicate the distinctive Sulzer 8LDA28 engine note and Crompton Parkinson electrical equipment whine. Specialist suppliers including Legomanbiffo and DC Kits produce Class 33-specific sound files for ultimate authenticity. The 85 mph top speed and 1,550 hp power output provide realistic performance characteristics, whilst operational features including ETH provision, dual braking systems, and multiple working capability add operational interest.

Layout themes: six authentic scenarios

Bournemouth-Weymouth push-pull corridor (1970s-1990s): Through station with platforms for 4TC set division/attachment. Class 33/1 with 4TC+4TC formation. Third rail electrification visible. Mix of express and local services. Scenic Dorset backdrop.

Kent freight hub (1960s-1990s): Hither Green-inspired depot with cement/aggregate facilities. Multiple Class 33s including 33/0 and 33/2 variants. Marshalling sidings, depot building, maintenance facilities. Class 08/09 shunters. Mix of freight and passenger through traffic.

Southern Region branch line (1960s-1980s): Small terminus station. Class 33/0 with 2-4 Mk1 coaches. Small goods yard with occasional freight. Semaphore or early colour-light signals. Rural Kent/Sussex/Hampshire scenery.

Boat train route (1960s-1980s): Dover or Southampton-inspired station. Class 33 with 6-8 coach boat train formation including Mk2 FK (First Class Kitchen). Continental Freight Depot elements. Cross-channel ferry connection theme.

South Western main line (1970s-1990s): Basingstoke or Winchester-inspired station. Class 33/1 push-pull services mixed with Class 73 electrics. Fawley oil traffic possibilities. Express passenger and freight mix. Modern colour-light signalling.

1960s modernisation era: Transition from steam to diesel. Early BR blue liveries. Class 33s alongside last steam. Kent Coast or South Western Division setting. Period rolling stock mix. Authentic 1960s infrastructure with mixture of semaphore and early colour-light signals.

Frequently Asked Questions

What is the difference between Class 33/0, 33/1, and 33/2 locomotives?

Class 33/0 comprises 86 standard mixed-traffic locomotives with full 9 ft 3 in width. Class 33/1 "Bagpipes" represents 19 locomotives converted 1966-1967 for push-pull operation with 4TC sets, featuring distinctive jumper cables, buck-eye couplers, and electro-pneumatic control. Class 33/2 "Slim Jims" are 12 narrow-bodied locomotives (8 ft 1½ in over body) built specifically for restricted Hastings line tunnels, later fitted with slow-speed control for coal trains.

Which OO gauge Class 33 model should I buy?

Heljan produces the definitive OO gauge Class 33 models with exceptional detail, 21-pin DCC socket (latest versions), and comprehensive livery range. Available in all three sub-classes (33/0, 33/1, 33/2) with prices from £99-£219.95. DCC Sound versions cost £270-320. Hornby Railroad R2939 offers budget alternative second-hand (£30-50) but features basic detail from 1977 Lima tooling. For serious modellers, Heljan represents best choice.

Are any Class 33 locomotives still operational today?

Twenty-nine Class 33s survive in preservation. Four remain mainline certified (33012, 33025, 33029, 33207) regularly hauling heritage railtours. Approximately 10-12 operate on heritage railways including Swanage Railway (two), West Somerset Railway (two), Severn Valley Railway, East Lancashire Railway, and South Devon Railway. Enthusiasts can ride behind operational Class 33s at these locations, particularly during diesel galas.

What coaching stock should I use with Class 33 models?

For 1960s operations: BR Mk1 coaches in green/early blue, Maunsell 58 ft corridor stock, Bulleid 63 ft coaches. For 1970s-1990s: 4TC sets essential for push-pull modelling (Bachmann/Kernow), BR Mk2 coaches, Network SouthEast liveried stock. Typical train lengths: 4-6 coaches for branch/secondary routes, 6-10 coaches for main line services. Push-pull formations: 4TC+4TC+Class 33/1 (8 vehicles) or 4TC+Class 33/1 (4 vehicles) with locomotive at country end away from London.

Did Class 33s work the Gatwick Express?

No. The dedicated branded Gatwick Express service (from 1984) initially used Class 73 electro-diesels with Mk2 stock, later Class 488/489 units, then Class 460 "Junipers," and finally Class 387s. Class 33s worked general passenger services through Gatwick on South Eastern Division routes but were not regular Gatwick Express motive power. They did haul boat trains, Kent Coast services, and South Western Division trains.

What N gauge Class 33 models are currently available?

Dapol 2D-001 series represents current N gauge production with DCC Ready and DCC Fitted options at £132.95-£156.60. Features include 5-pole super creep motor, all-wheel drive/pickup, etched details, and RP25.72 wheels. Multiple liveries available including DRS, Railfreight Construction, BR Blue, Network SouthEast, West Coast maroon. Graham Farish 371-series mostly discontinued but available second-hand £60-75 with older mechanism lacking DCC socket.

Where can I see preserved Class 33 locomotives?

Swanage Railway operates two Class 33s (33012 mainline certified, 33111) with annual Diesel Gala in May. West Somerset Railway runs two in authentic BR Green (33048, 33057). Severn Valley Railway operates 33108 in "Dutch" civil engineers livery. East Lancashire Railway has 33109 operational. South Devon Railway operates 33002, the oldest surviving Crompton. National Railway Museum York displays 33116 (static). Four locomotives (33012, 33025, 33029, 33207) work mainline railtours nationally.

What freight traffic did Class 33s haul?

Major freight flows included Fawley oil refinery trains (20-30 tank wagons, 1,000 tons capacity), Cliffe-Uddingston cement workings (30 hoppers, 1,050 tons, typically double-headed), North Kent aggregate to Angerstein Wharf, Northfleet cement, grain oil refinery traffic, and cross-London freights from Feltham. From 1990s, engineering and departmental trains dominated. Standard capacity: 450-500 tons single locomotive, 1,000+ tons double-headed. Always include period-appropriate brake van on model freight consists.

How much do O gauge Class 33 models cost?

Heljan O gauge Class 33/0 models (catalog HJ3394-HJ3405) retail £549-£579 RRP but discounted to £425-£466.65 at specialist retailers. Outstanding features include rotating roof fans, detailed cab interior, two 5-pole motors, LED lighting, heavy die-cast construction, DCC Ready with sound provision. Available liveries: BR Green (various panels), Civil Engineers "Dutch," EWS, Network SouthEast, DRS, Railfreight Construction. Limited remaining stock from previous production run. Some retailers offer numbering (£25) or numbering and weathering (£75) services.

What was the push-pull operation on the Bournemouth-Weymouth line?

From July 1967 to 1988 Weymouth electrification, Class 33/1 locomotives worked push-pull with 4TC unpowered EMU sets. Standard formation: 4TC+4TC+Class 33/1 (8 coaches, locomotive at country end). London Waterloo-Bournemouth used 4REP electric unit. At Bournemouth, 4REP detached whilst Class 33/1 propelled 4TC sets to Weymouth. Return journey saw locomotive propel train back to Bournemouth for 4REP reattachment. System eliminated time-consuming run-rounds, revolutionising service efficiency. Driver controlled locomotive from 4TC driving cab via electro-pneumatic control.

Why are Class 33s called "Cromptons"?

The nickname "Crompton" derives from Crompton Parkinson, the Manchester-based manufacturer of the locomotives' electrical equipment including main generator (CG391-B1), traction motors, ETH generator (235 kW, 800V DC), and auxiliary generator (57 kW). The Crompton Parkinson systems proved exceptionally reliable throughout the class's 30+ year service life, cementing the affectionate nickname. Class 33/1 push-pull variants earned additional nickname "Bagpipes" due to prominent jumper cables fitted at each end for multiple unit control.

What layout size do I need for Class 33 operation?

Minimum viable: 6x4 ft for single Class 33 with 2-4 coaches on branch line theme. Medium layouts (10x6 ft to 12x8 ft) accommodate Class 33 with 4-6 coach rakes and small goods yard. Large layouts (14x10 ft+) support full push-pull formations (8-12 coaches), freight consists of 20+ wagons, and authentic depot scenes. The compact Bo-Bo configuration handles second radius curves (18"/457mm in OO) adequately though third radius preferred for appearance. Platform lengths: 4-coach formations require approximately 5 ft in OO gauge, 8-coach push-pull needs 8-10 ft minimum (compression or off-stage extensions acceptable).
