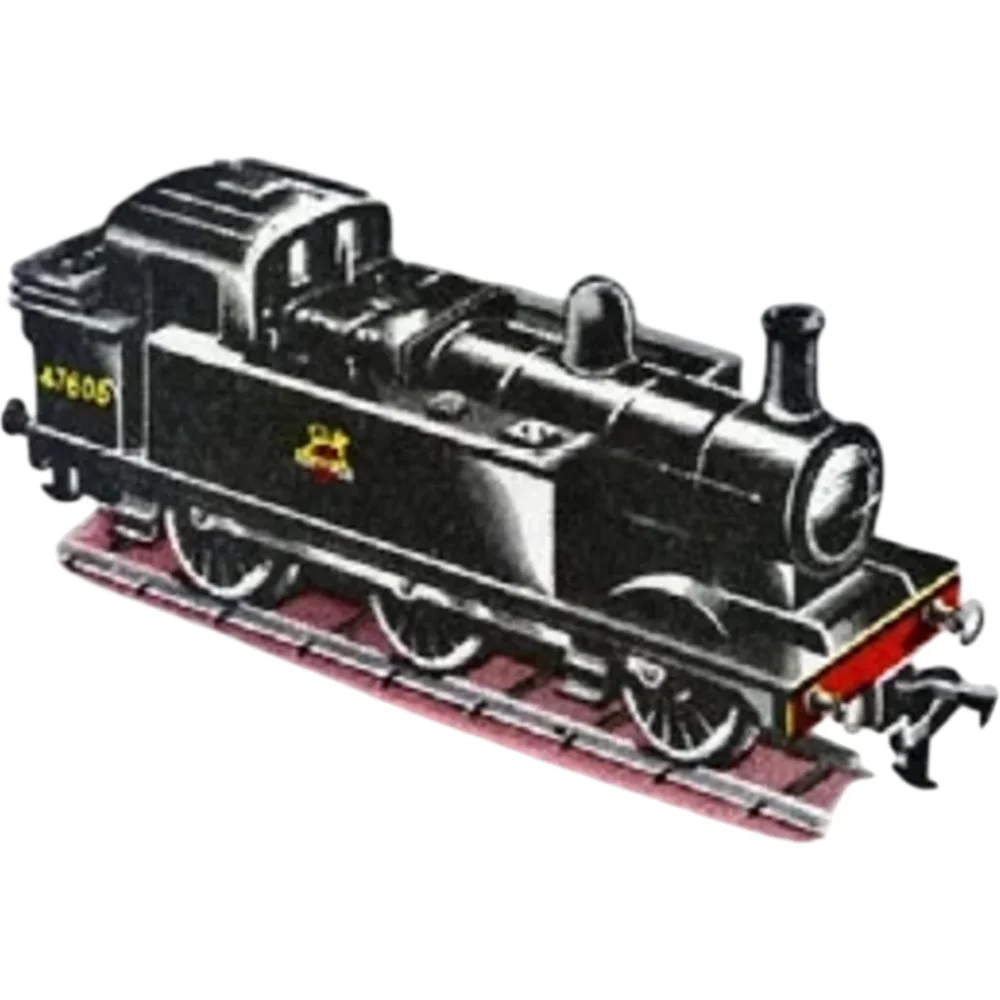

Tri-ang R.52

London, Midland & Scottish Railway Jinty 47606, British Railways (Black)

Last updated: 1 October 2026

60 spare parts, from 3 service sheets – find each on eBay

eBay listings

Buy models on eBay through our affiliate links. We’re part of the eBay Partner Network and may earn a commission.

Loading eBay listings…

Spare parts for the Tri-ang R.52

The parts listed on the manufacturer’s service sheets. Open Find on eBay beside a part to see its listings here, or follow a part for its own page. We’re part of the eBay Partner Network and may earn a commission.

Tri-ang service sheet 1a: Mark IV Motor, May 1963 For R.50, R.52, R.53, R.54, R.56, R.59, R.150, R.152, R.153, R.251, R.254, R.258, R.259, R.350, R.355, R.356, R.358, R.559, R.653

Tri-ang service sheet 1a: Mark IV Motor, May 1963: exploded diagram and numbered parts list
Select the sheet to enlarge it.
Other versions of this sheet (1): 1

  • Tri-ang service sheet No. 1: Mark IV Motor, November 1955 For R.50, R.52, R.53, R.54, R.56, R.59, R.152, R.153

    Replaced by 1a.

    Tri-ang service sheet No. 1: Mark IV Motor, November 1955: exploded diagram and numbered parts list

    Also lists: X.72 Worm and Thrust Bush

    Doesn’t list: S.2023 Thrust Bush, S.2051 Two-start Worm, X.69 Diaphragm and Eyelet (Illustrated os port

Tri-ang service sheet 2a: Chassis, January 1959 For R.52, R.152, R.153, R.251

Replaces Servicing Sheet No. 2 for models produced from 1st January, 1959.

Tri-ang service sheet 2a: Chassis, January 1959: exploded diagram and numbered parts list
Select the sheet to enlarge it.
Other versions of this sheet (1): 2

  • Tri-ang service sheet No. 2: Chassis, November 1955 For R.52, R.152, R.153

    Replaced by 2a.

    Tri-ang service sheet No. 2: Chassis, November 1955: exploded diagram and numbered parts list

    Also lists: S.1009 Body/Chassis Securing Screw, S.2015 Coupling Adaptor Pin, S.3000 Coupling Hook, S.3001 Coupling Bar, S.4000 Coupling Adaptor, S.4018 Front Weight, S.4019 Rear Weight, S.5095 Collector Insulator, S.5102 Coupling Eyelet, X.47 Coupling Unit (complete)

    Doesn’t list: S.1026 Bod curing Screw for, S.1070 Coupling Screw (%&"), S.3067 Body Bracket for, S.3148 Drawbar, S.4054 Front Weight, S.4055 Rear Weight, ST.4010 Drawbar Screw for, X.171 Mk, 3 Coupling Unit nerd Securing Screw for

Tri-ang service sheet 2b: Chassis, May 1961 For R.52, R.152, R.153, R.251

As produced after 1st January, 1961.

Tri-ang service sheet 2b: Chassis, May 1961: exploded diagram and numbered parts list
Select the sheet to enlarge it.
